Any good paints or coatings for exhaust manifolds ? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 11-08-2010, 10:18 AM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default Any good paints or coatings for exhaust manifolds ?

I have a Greddy manifold on the way and I don't want to put much money into it.

High Temp Powder Coating is rather expensive around here ( so far)

Are there any paints that will last me at least for a few months .

Thanks
poobs is offline   Reply With Quote
Old 11-08-2010, 07:35 PM   #2
Junior Member
iTrader: (2)

Join Date: Jul 2009
Location: langley BC
Posts: 134
Total Cats: 0
Default

high temp spray paint??? ever seen a can of it???

i use it all the time.... works great
sasquatch is offline   Reply With Quote
Old 11-08-2010, 07:37 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Works on an Exhaust manfold ?

What brand do you use ?
poobs is offline   Reply With Quote
Old 11-08-2010, 07:48 PM   #4
Junior Member
iTrader: (9)

Join Date: Apr 2007
Location: Hanover, MA
Posts: 237
Total Cats: 0
Default

I sand blasted my manifold and compressor housing and used VHT high temp spray paint. 2 months later itís just starting to show rust. I've yet to use a spray paint that holds up.
Pseudosport is offline   Reply With Quote
Old 11-08-2010, 08:31 PM   #5
I'm Miserable!

SlideRuler's Avatar

Join Date: May 2010
Location: NJ
Posts: 494
Total Cats: -6
Default

I'd recommend a heatshield (TDR) or thermo wrap...exposed header is not a wonderful idea, especially when summer comes back.
SlideRuler is offline   Reply With Quote
Old 11-09-2010, 09:33 AM   #6
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by SlideRuler View Post
I'd recommend a heatshield (TDR) or thermo wrap...exposed header is not a wonderful idea, especially when summer comes back.
Agree- The miata is already hot in the cabin as it is.
poobs is offline   Reply With Quote
Old 11-13-2010, 04:23 PM   #7
Roo
Newb

Join Date: Aug 2009
Location: Lake Orion, Michigan
Posts: 12
Total Cats: 0
Default

i had my greddy cast manifold and turbo housing ceramic coated.

while it still looks decent, it does not look like it once did.

Name:  IMG_3719.jpg
Views: 6
Size:  162.9 KB
Roo is offline   Reply With Quote
Old 11-13-2010, 04:25 PM   #8
Senior Member
iTrader: (3)

Join Date: May 2008
Location: Fargo, ND
Posts: 534
Total Cats: 3
Default

Begi will do it for less than 200 in ceramic good to 1800 degrees. Do it.
chance91 is offline   Reply With Quote
Old 11-13-2010, 05:03 PM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

high temp paing will peel. the manifold heat cycles more than anything on the car and even the 2000 vht paint will not hold up
18psi is offline   Reply With Quote
Old 11-13-2010, 08:09 PM   #10
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

What about something like Jet-Hot coatings? http://www.jet-hot.com/headercoatings.html
Chiburbian is offline   Reply With Quote
Old 11-13-2010, 08:30 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I've seen Swain White Lightning hold-up on turbo racecars.
hustler is offline   Reply With Quote
Old 11-15-2010, 11:46 PM   #12
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

chrome?
triple88a is offline   Reply With Quote
Old 11-16-2010, 09:39 AM   #13
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by hustler View Post
I've seen Swain White Lightning hold-up on turbo racecars.
i have requested info from swain about general racing products... i will see what their response is.
shlammed is offline   Reply With Quote
Old 11-16-2010, 10:06 AM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shlammed View Post
i have requested info from swain about general racing products... i will see what their response is.
Beware, they are soldiers of Christianity.
hustler is offline   Reply With Quote
Old 11-16-2010, 11:51 AM   #15
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

aw ****... i just sold myself with that email didnt I?
shlammed is offline   Reply With Quote
Old 11-16-2010, 02:49 PM   #16
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

I used BBQ heat paint on the manifolds on my Dart, after 2 years they still look pretty good. Although they arent as black as the used to be, a little fadded, but no rust.
RyanRaduechel is offline   Reply With Quote
Old 11-16-2010, 02:53 PM   #17
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,478
Total Cats: 115
Default

I painted mine myself with TechLine Black Satin Ceramic coating. Seems to hold up very well. I sand blasted the parts first and I baked it on in a pottery kiln at 750F but I think it would bake itself on with just exhaust heat if done right.

http://www.techlinecoatingswebstore....r_Coating.html

Bob
bbundy is online now   Reply With Quote
Old 11-16-2010, 03:29 PM   #18
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

yeah, I had mine machined for flatness, sandblasted, then baked in an oven, then painted. Stuff like this you need to take the time and make sure it is clean and preheated to the required specs or it just wont last.
RyanRaduechel is offline   Reply With Quote
Old 11-16-2010, 04:02 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Quote:
Originally Posted by Roo View Post

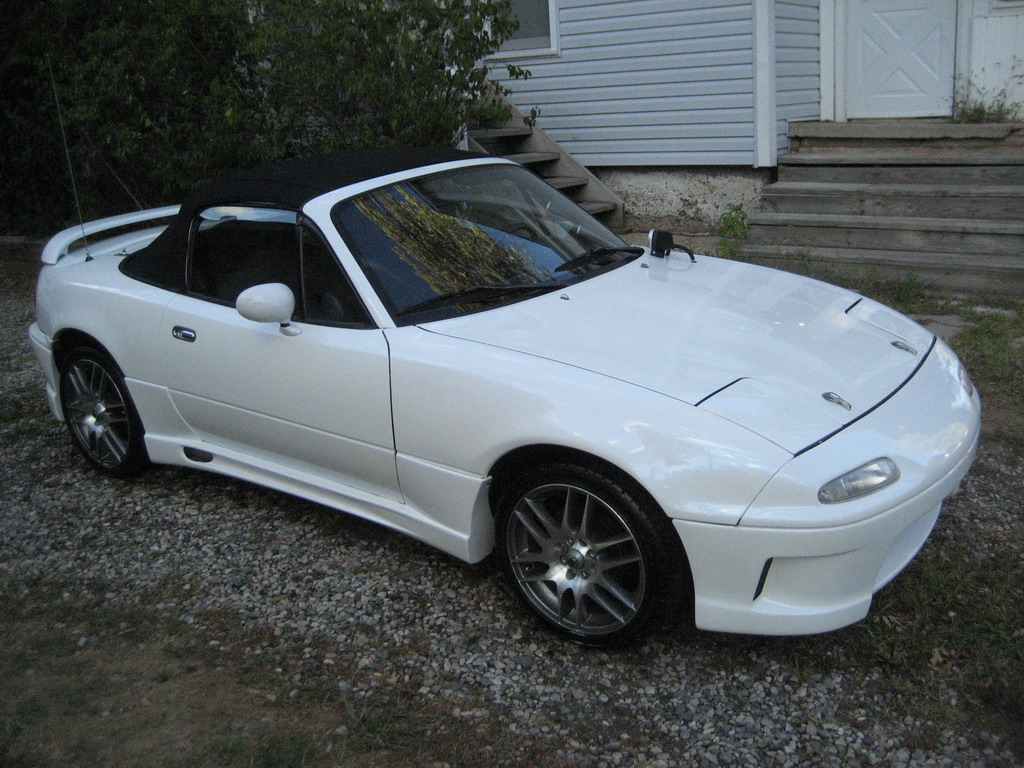

do you have an oil pressure gauge attached to your hood?
Braineack is online now   Reply With Quote
Old 11-16-2010, 09:01 PM   #20
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

looks like it
Attached Thumbnails
Any good paints or coatings for exhaust manifolds ?-img_3387.jpg
RyanRaduechel is offline   Reply With Quote
