Old 11-17-2010, 05:18 AM   #21
Newb

Join Date: Jan 2010
Location: Majorca, Spain
Posts: 37
Total Cats: 0
Default

Personally I'm gonna heat wrap the manifold and DP.
Not sure about the turbine case, I got the thing, but I've read that there are some cooling down problems with it.

Last edited by miatasc; 11-17-2010 at 05:30 AM.
miatasc is offline   Reply With Quote
Old 11-17-2010, 11:25 AM   #22
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Quote:
Originally Posted by RyanRaduechel View Post
looks like it
Very nice car!!!
poobs is offline   Reply With Quote
Old 02-24-2011, 09:00 AM   #23
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Quote:
Originally Posted by poobs View Post
I have a Greddy manifold on the way and I don't want to put much money into it.

High Temp Powder Coating is rather expensive around here ( so far)

Are there any paints that will last me at least for a few months .

Thanks

BTW. Soon after I posted this. I bought some Home Despot BBQ paint ($4.59/can) and painted the hot side of the turbo and the down pipe. Both are holding up fine. Only issue is that the black paint on the turbo turns into a sort of dark beige but it is holding up fine.
poobs is offline   Reply With Quote
Old 02-24-2011, 09:31 AM   #24
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default



I have a begi mani and turbine that they ceramic coated silver. It turned um dull whitish gray. After 3 years, it looks pretty good. A few rustish spots but overall pretty good. FWIW I peak around 1700 degrees EGT.
Faeflora is offline   Reply With Quote
Old 02-25-2011, 12:23 PM   #25
Junior Member
iTrader: (5)

Join Date: Mar 2008
Location: Dallas
Posts: 131
Total Cats: 1
Default

On a previous car, I had the manifolds coated by Jet Hot. This would've been 2004ish. They were done in what at the time was their 2nd-highest temp range...and in blue.

Two owners, two turbos and one exhaust later, and those manifolds are still blue, albeit a slightly lighter shade.

Post-Katrina experience with the nearest Jet Hot (Mississippi) location wasn't so great (three tries and they never got the order correct). Maybe you'd find decent results with a different location.
juxt3r is offline   Reply With Quote
Old 02-25-2011, 12:45 PM   #26
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

One thing to note about jet-hot--

On their website, I saw that they coat the inside of the parts too. Not sure that is a great idea.
Faeflora is offline   Reply With Quote
Old 02-25-2011, 12:50 PM   #27
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I just got a price quote from jet hot

For a compressor/turbine:
$120 for extreme sterling apiece
$160 for JH2000 apiece
Faeflora is offline   Reply With Quote
Old 02-26-2011, 09:55 PM   #28
Junior Member
iTrader: (5)

Join Date: Mar 2008
Location: Dallas
Posts: 131
Total Cats: 1
Default

Quote:
Originally Posted by Faeflora View Post
One thing to note about jet-hot--

On their website, I saw that they coat the inside of the parts too. Not sure that is a great idea.
Yeah, that sounds familiar. If I recall correctly, my manifolds and crossover pipe (connected the manifolds on the V6, fyi) weren't coated inside. I'll see what old pictures I can dig up for any sort of confirmation.

*edit* Found exactly what I needed...and it seems my memory sucks. Manifolds and xover did have coating inside. Never had any issues from it, though.

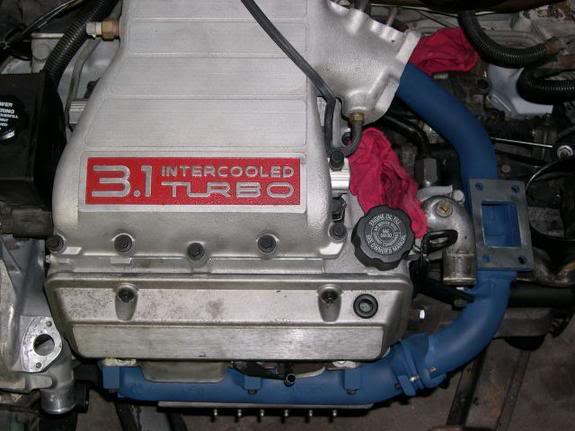

Name:  manixover.jpg
Views: 3
Size:  38.9 KB
This is when new.

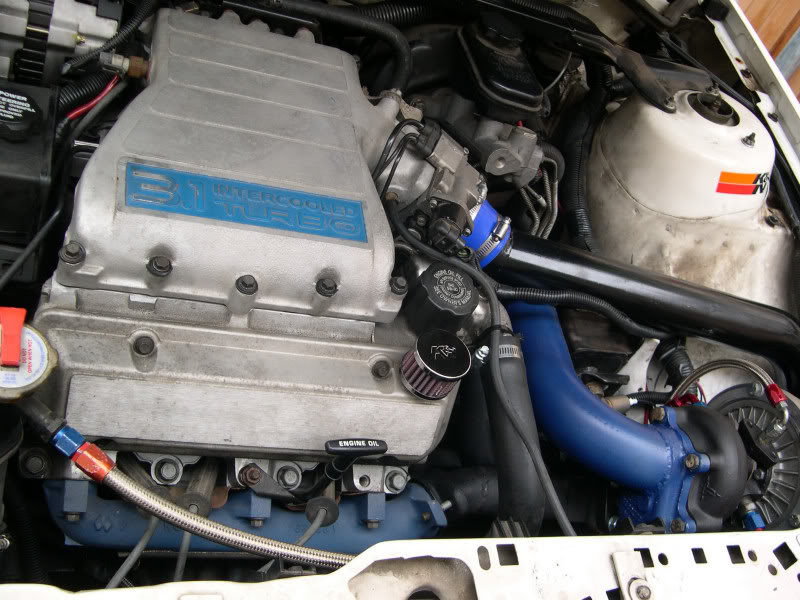

...and to show durability, here's a shot of the front manifold about four years later when some of the underhood piping got redone.
Name:  newbay3.jpg
Views: 3
Size:  108.2 KB
Replacement pipe and blue downpipe were done locally after Jet Hot screwed up thrice.

Everything from the downpipe back was coated inside (sterling finish that you noted). Didn't have any housings coated.
The Sterling held up really well on the post-turbo bits aside from scratching due to install/teardown & general hands-on stuff done in the garage.

I'll check with my buddy to see what we used on the housings...

Last edited by juxt3r; 02-26-2011 at 10:08 PM.
juxt3r is offline   Reply With Quote
Old 02-27-2011, 01:09 AM   #29
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

pics of the sterling? very interested in that
Faeflora is offline   Reply With Quote
Old 03-03-2011, 04:38 PM   #30
Newb

Join Date: Feb 2011
Location: Miami
Posts: 14
Total Cats: 0
Default

I can say from experience that Jet coating is worth the money, but if you're on a budget there's no shame in just getting the manifold coated, and then wrapping the down pipe.

My suggestion if you decide to wrap anything is to let the wrap soak in water for a while, and wrap it while wet. Once it dries it will get nice and tight.
Deepv is offline   Reply With Quote
Old 03-03-2011, 06:59 PM   #31
Junior Member
iTrader: (5)

Join Date: Mar 2008
Location: Dallas
Posts: 131
Total Cats: 1
Default

Sorry for the delay. Here is the only shot I have of the Sterling coating. This is when new:
Name:  manidown.jpg
Views: 3
Size:  9.3 KB
juxt3r is offline   Reply With Quote
