Default Artech Downpipe crack. Will a repair hold up?

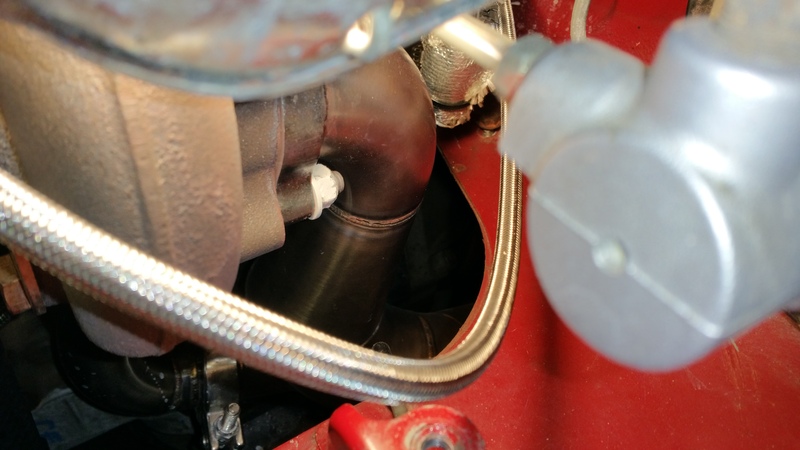

So I have probably less than 1000 miles on my Artech side-mount setup. All cruising miles, no track or anything. Got a nice crack that developed last week and im wondering if a repair will hold up? I'm not even going to E-mail Abe about this because I want to get the downpipe out, repaired, and re-installed all in the same day. This way I wont have to take up space in my work's garage for too long. Thoughts?

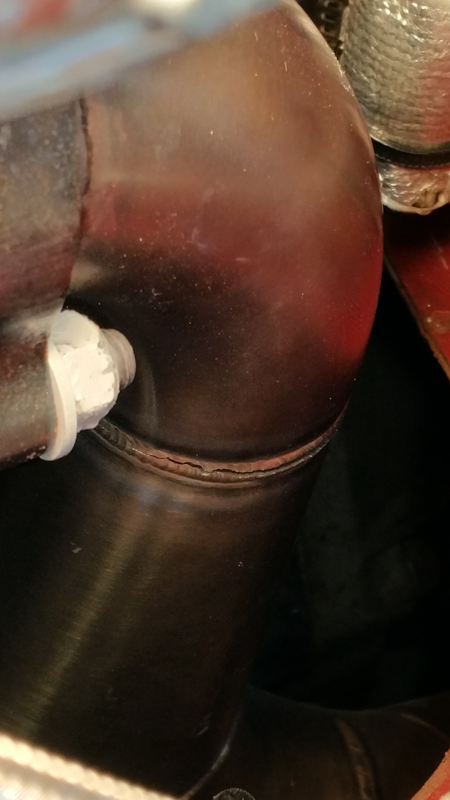

Zoomed in

Attached Thumbnails
Artech Downpipe crack. Will a repair hold up?-20150315_105306_zpse4iwck4o.jpg   Artech Downpipe crack. Will a repair hold up?-screenshot_2015-03-15-10-56-34_zpsg3ujokxa.png
BTMiata is offline   Reply With Quote
Old 03-15-2015, 12:26 PM   #2
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

I would reweld, then work on a transmission brace.
shuiend is online now   Reply With Quote
Old 03-15-2015, 12:45 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

What shuiend said. Also, I think Abe warranties all his stuff, it'd be foolish not to take advantage of that.
curly is offline   Reply With Quote
Old 03-15-2015, 12:45 PM   #4
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by shuiend View Post
I would reweld, then work on a transmission brace.
Cool thanks. I just started looking around at braces... $399 for the FM brace... Yikes better start tucking $$ away haha
BTMiata is offline   Reply With Quote
Old 03-15-2015, 12:49 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

is there a flex pipe on this?
Braineack is offline   Reply With Quote
Old 03-15-2015, 12:50 PM   #6
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Braineack View Post
is there a flex pipe on this?

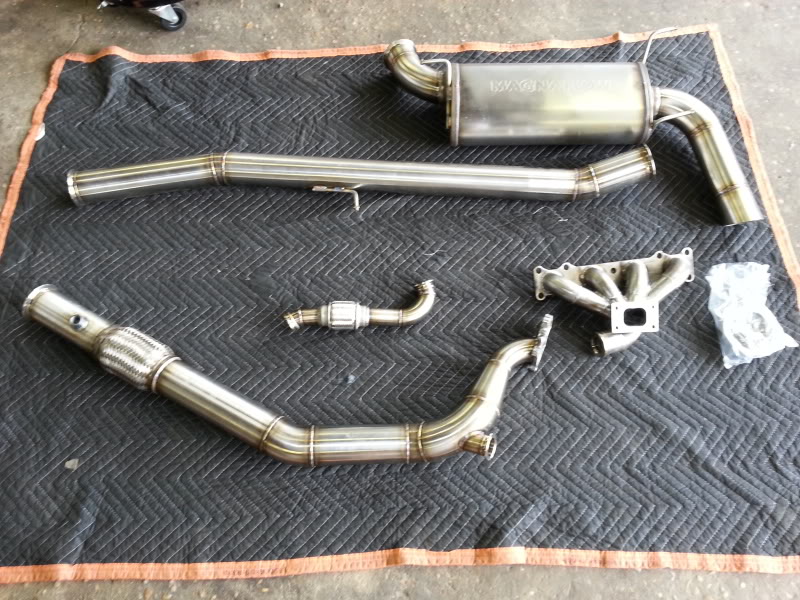

Yeah further down

Attached Thumbnails
Artech Downpipe crack. Will a repair hold up?-20130711_114130_zpsde452003.jpg
BTMiata is offline   Reply With Quote
Old 03-15-2015, 12:54 PM   #7
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

What in the world you looking at thats $400? I thought they were like 30-40?

edit: lars is talking about this right? http://www.flyinmiata.com/index.php?...umber=06-97577
Golferluke is offline   Reply With Quote
Old 03-15-2015, 12:59 PM   #8
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by curly View Post
What shuiend said. Also, I think Abe warranties all his stuff, it'd be foolish not to take advantage of that.
I thought about it originally but considering how much it would cost me to ship it and the time to send it, wait for him to repair it, and then send it back wouldn't be worth it. If he will send me a credit for a repair I have done though, It would be worth contacting him about that
BTMiata is offline   Reply With Quote
Old 03-15-2015, 01:02 PM   #9
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Golferluke View Post
What in the world you looking at thats $400? I thought they were like 30-40?

edit: lars is talking about this right? Flyin' Miata : Turbochargers : Parts and upgrades : 1990-97 3" FM exhaust brace
Oh wow if that is all he was referring to, I'll order that up today!
BTMiata is offline   Reply With Quote
Old 03-15-2015, 01:18 PM   #10
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Issue is that's for a fm manifold and dp. Idk if its going to be plug and play. May have to make your own that fits your setup.
Golferluke is offline   Reply With Quote
Old 03-15-2015, 01:33 PM   #11
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Golferluke View Post
Issue is that's for a fm manifold and dp. Idk if its going to be plug and play. May have to make your own that fits your setup.
Yeah that's true too... Doubt the positioning of the exhaust would be close enough for it to work. Might be a good starting point to though and try to modify it to work with my exhaust
BTMiata is offline   Reply With Quote
Old 03-15-2015, 01:52 PM   #12
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,107
Default

Quote:
Originally Posted by Golferluke View Post
What in the world you looking at thats $400? I thought they were like 30-40?

edit: lars is talking about this right? Flyin' Miata : Turbochargers : Parts and upgrades : 1990-97 3" FM exhaust brace
Yeah something like that.
shuiend is online now   Reply With Quote
Old 03-15-2015, 01:59 PM   #13
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,709
Total Cats: 269
Default

But that is the correct concept. Something that mounts at the tranny, and holds the downpipe up, while allowing it to expand in length. I made mine work with custom exhaust by cutting and re-welding the FM bracket so the clamp was in correct location. Tacked while on car.
DNMakinson is offline   Reply With Quote
Old 03-15-2015, 02:00 PM   #14
Senior Member
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 841
Total Cats: 44
Default

Why did i have to see this after putting a deposit down on similar setup? Subbed
stratosteve is offline   Reply With Quote
Old 03-15-2015, 02:02 PM   #15
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by stratosteve View Post
Why did i have to see this after putting a deposit down on similar setup? Subbed
Lol I wouldn't sweat it too much. I'm 1000% happy with the entire setup. Luckily it should be an easy repair... Make sure you add a brace to yours and you should have no trouble!
BTMiata is offline   Reply With Quote
Old 03-15-2015, 05:54 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

You flex pipe looks to be In a similar location as mine. Which means the fm brace would bolt behind the flex piece, rendering it useless.
curly is offline   Reply With Quote
Old 03-15-2015, 06:26 PM   #17
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by curly View Post
You flex pipe looks to be In a similar location as mine. Which means the fm brace would bolt behind the flex piece, rendering it useless.
Is there anything else that would work?
BTMiata is offline   Reply With Quote
Old 03-15-2015, 06:47 PM   #18
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,000
Total Cats: 1,466
Default

My next project is to use an exhaust band clamp to make a brace. It supposedly spreads the weight out better.
aidandj is offline   Reply With Quote
Old 03-15-2015, 07:08 PM   #19
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

Just clamp on an exhaust clamp, and use a 25mmx3mm mild steel strap bend and drilled to bolt the clamp to the box, in front of the flex.

(thats 1"x1/8th")
nitrodann is offline   Reply With Quote
Old 03-16-2015, 12:22 PM   #20
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by nitrodann View Post
Just clamp on an exhaust clamp, and use a 25mmx3mm mild steel strap bend and drilled to bolt the clamp to the box, in front of the flex.

(thats 1"x1/8th")
Yeap. Do this, and reweld the weld that's cracked.
patsmx5 is offline   Reply With Quote
