Old 04-08-2015, 01:07 PM   #61
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

Quote:
Originally Posted by BTMiata View Post
The only thing I noticed when removing the downpipe yesterday was that the exhaust seemed to be pulling down on the back side of the downpipe. I'm assuming that was putting stress on the weld that cracked and thats why it split. I fully plan to add a brace and see what happens this time.
that's exactly what the split is suggesting to me.

like the DP should be welded back up exactly as pictured.
Braineack is offline   Reply With Quote
Old 04-08-2015, 01:09 PM   #62
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'd be more worried about the stress thats being put on the manifold. Once you strengthen that failure point whats next.

Also major props to Abe for standing behind his work like this. It's really comforting for people who are looking to purchase from him.
aidandj is offline   Reply With Quote
Old 04-08-2015, 01:10 PM   #63
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by BTMiata View Post
The only thing I noticed when removing the downpipe yesterday was that the exhaust seemed to be pulling down on the back side of the downpipe. I'm assuming that was putting stress on the weld that cracked and thats why it split. I fully plan to add a brace and see what happens this time.
That is likely your problem. My suggestion is to first fix the hangers so that the exhaust system is holding itself up, and it's basically nuetral, the downpipe and the exhaust, then you bolt them together/clamp/however they attach. You don't want any load on the downpipe if possible. I admitedly need to add a hanger on the front of my exhaust system, but it's .065 mild steel so it probably won't fail regardless but still better to not have a huge load there.
patsmx5 is offline   Reply With Quote
Old 04-08-2015, 01:15 PM   #64
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by patsmx5 View Post
I don't know. In one of his pics (this one: http://i119.photobucket.com/albums/o...pszeiucefg.jpg ), it looks like the 2nd weld was not all the way around, there is a spot (that failed) that is still undercut in the pics. Perhaps (again, I don't TIG much so don't know much about TIG) this spot failed and then the crack propegated.

But I dunno. Seems to me something is putting really high stress in that spot. Hence why I recommended a brace.

Random thought, but if his EGT's were really high for some reason, would that contribute to this failure?

I actually took it back to the guy who repaired it before re-installing it the first time because I noticed that he didn't weld all the way around. He inspected it with a magnifying glass and welded the missed spot.... I guess there is a chance that he still didn't get the new weld all the way around... I dont know, I'm at a loss... Blah
BTMiata is offline   Reply With Quote
Old 04-10-2015, 09:30 AM   #65
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

What do you guys think about adding an extra exhaust hanger to the rear section of the downpipe and using all poly hangers?

I still have all original hangers from 1991 so they probably need to be replaced anyway.
BTMiata is offline   Reply With Quote
Old 04-10-2015, 09:39 AM   #66
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by BTMiata View Post
What do you guys think about adding an extra exhaust hanger to the rear section of the downpipe and using all poly hangers?

I still have all original hangers from 1991 so they probably need to be replaced anyway.
Poly hangers will probably be a good idea. I am not sure where you would mount an additional hanger around where the downpipe comes ends. There are not many bolt holes around there, unless you want to drill into the trans tunnel and fab something yourself.
shuiend is offline   Reply With Quote
Old 04-10-2015, 10:00 AM   #67
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

I have an ARTech downpipe with a flex joint in the same location and have not had problems.

I do also have MSM comp mounts, poly diff mounts, and poly exhaust hangers, so maybe that's helping. Hope you get it back in time for the meet!
Mazdaspeeder is offline   Reply With Quote
Old 04-10-2015, 10:12 AM   #68
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
I have an ARTech downpipe with a flex joint in the same location and have not had problems.

I do also have MSM comp mounts, poly diff mounts, and poly exhaust hangers, so maybe that's helping. Hope you get it back in time for the meet!
I have brand new MSM mounts installed when I swapped in the 1.8 and turbo parts back in October, and just added Poly diff mounts when I swapped in the 3.9 torsen. Definitely ordering up the poly exhaust hangers.

I'll probably just end up fabbing up some kind of bracket to take weight off the back of the downpipe and hoping it holds up. All this has me up at night hahaha
BTMiata is offline   Reply With Quote
Old 04-10-2015, 10:21 AM   #69
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Quote:
Originally Posted by BTMiata View Post
I have brand new MSM mounts installed when I swapped in the 1.8 and turbo parts back in October, and just added Poly diff mounts when I swapped in the 3.9 torsen. Definitely ordering up the poly exhaust hangers.

I'll probably just end up fabbing up some kind of bracket to take weight off the back of the downpipe and hoping it holds up. All this has me up at night hahaha
Those poly exhaust hangers are a bitch to install but I really think they will help you. I got mine from Corksport when I ordered my catback. I would probably loosen all your exhaust bolts when you put them in because chances are your OEM ones are stretched and you'll want to re-align the exhaust system as you install.
Mazdaspeeder is offline   Reply With Quote
Old 04-13-2015, 02:03 PM   #70
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

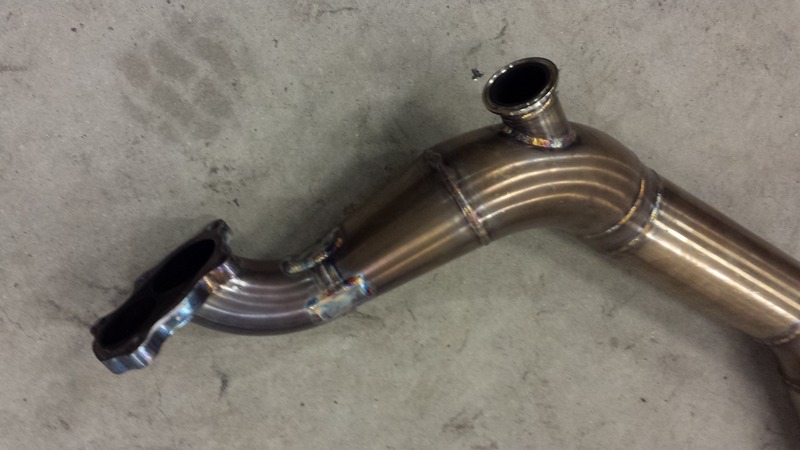

Got a pic from Abe! Now just a matter of waiting for it to come back to me and then developing some kind of bracket to take the weight off the back end of it. Also have to order some poly hangers ...

Attached Thumbnails
Artech Downpipe crack. Will a repair hold up?-20150412_224517_zps3ksjsmak.jpg
BTMiata is offline   Reply With Quote
Old 04-18-2015, 09:36 AM   #71
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Ok so downpipe is back in the car.

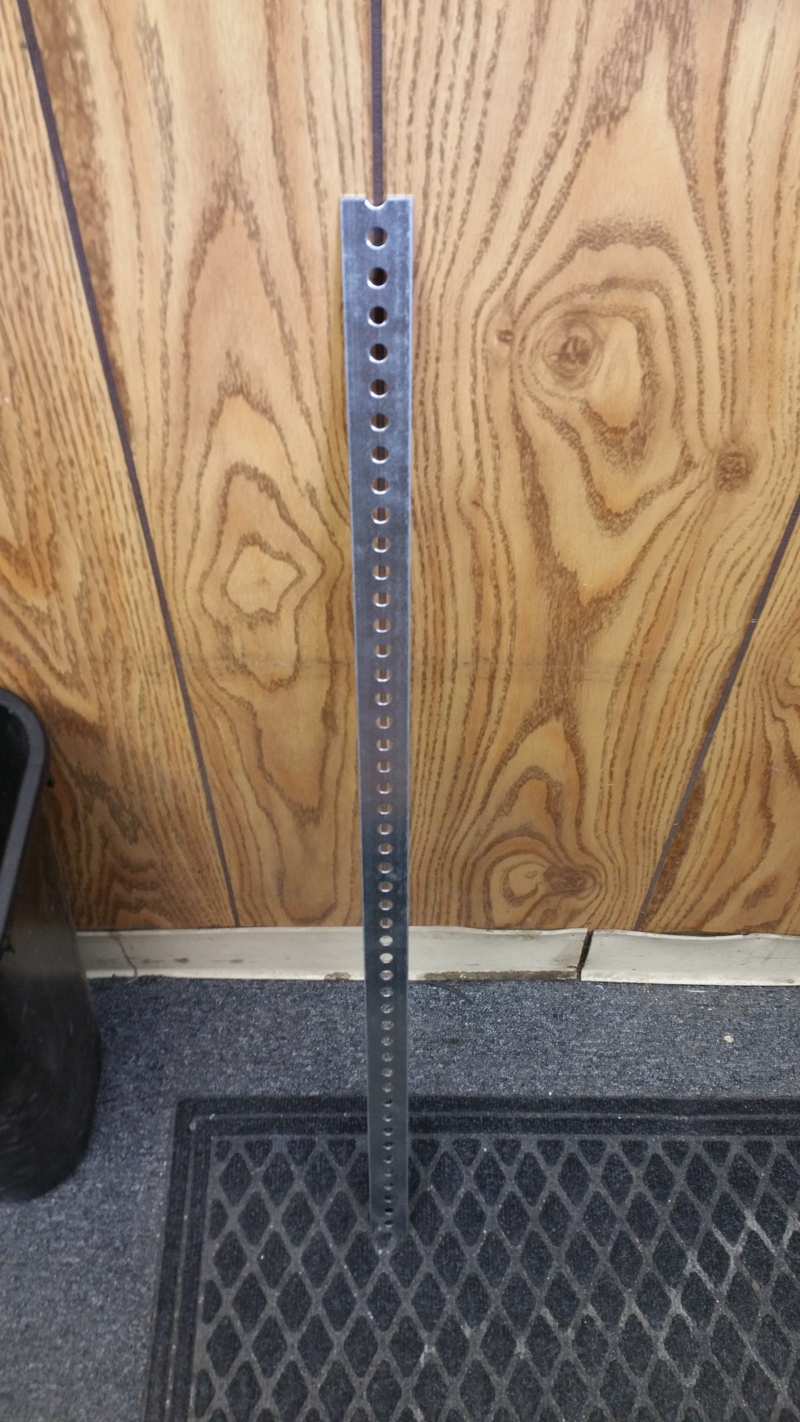

I picked up a 3" clamp and some steel for a bracket but i'd trying to decide the best place to run the bracket to.

First thought was one of the bell housing bolts, but space is limited...

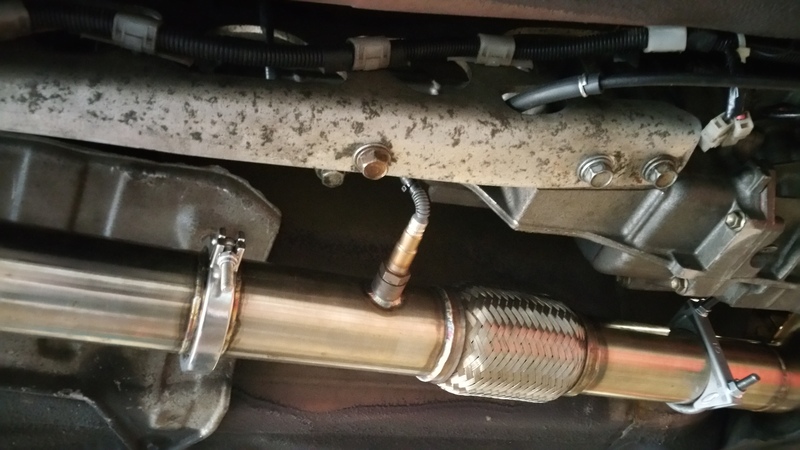

Name:  20150418_082350_zpsz4jcbzy1.jpg
Views: 21
Size:  430.2 KB







Maybe after the flex pipe and run the steel from the end of the downpipe on the clamp, to one of the ppf bolts?

Attached Thumbnails

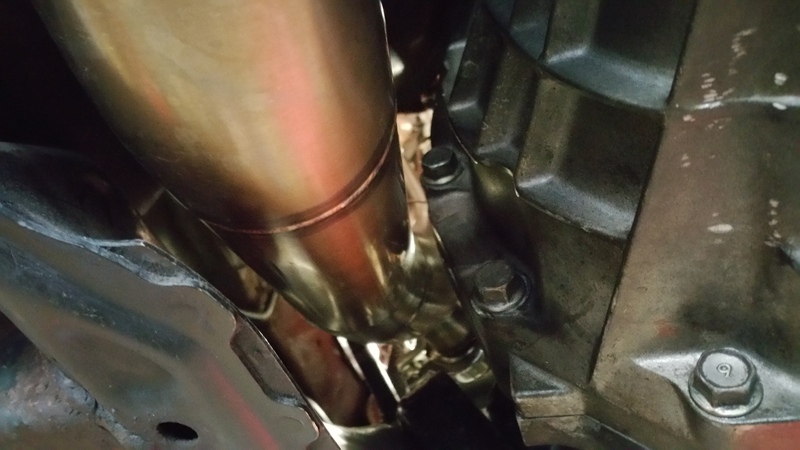

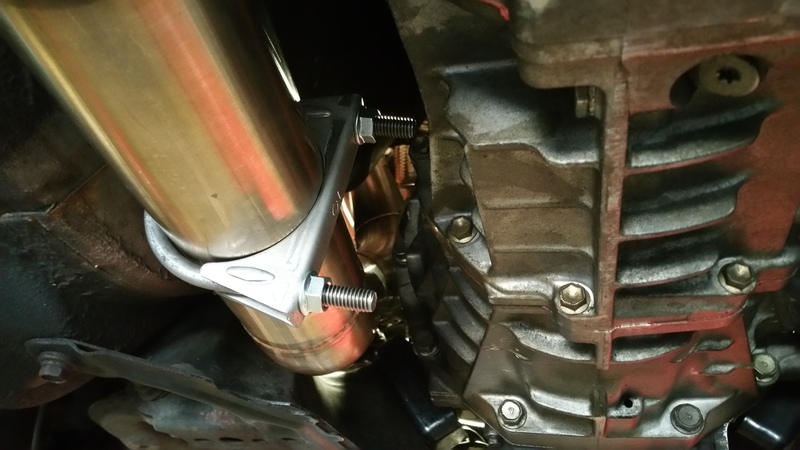

Artech Downpipe crack. Will a repair hold up?-20150418_082313_zpsaxn3gf2b.jpg   Artech Downpipe crack. Will a repair hold up?-20150418_082322_zpsxc0pvl4l.jpg   Artech Downpipe crack. Will a repair hold up?-20150418_082330_zps1cu5u5p7.jpg
BTMiata is offline   Reply With Quote
Old 04-18-2015, 10:15 AM   #72
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

The stock MSM downpipe is connected to the transmission right around where you have that clamp (not the v-band but the one up front). Do you see anything there? It was a 2 bolt bracket I remember. It's been out of my car for years now and I don't know if the other Miata trannies would have those holes3

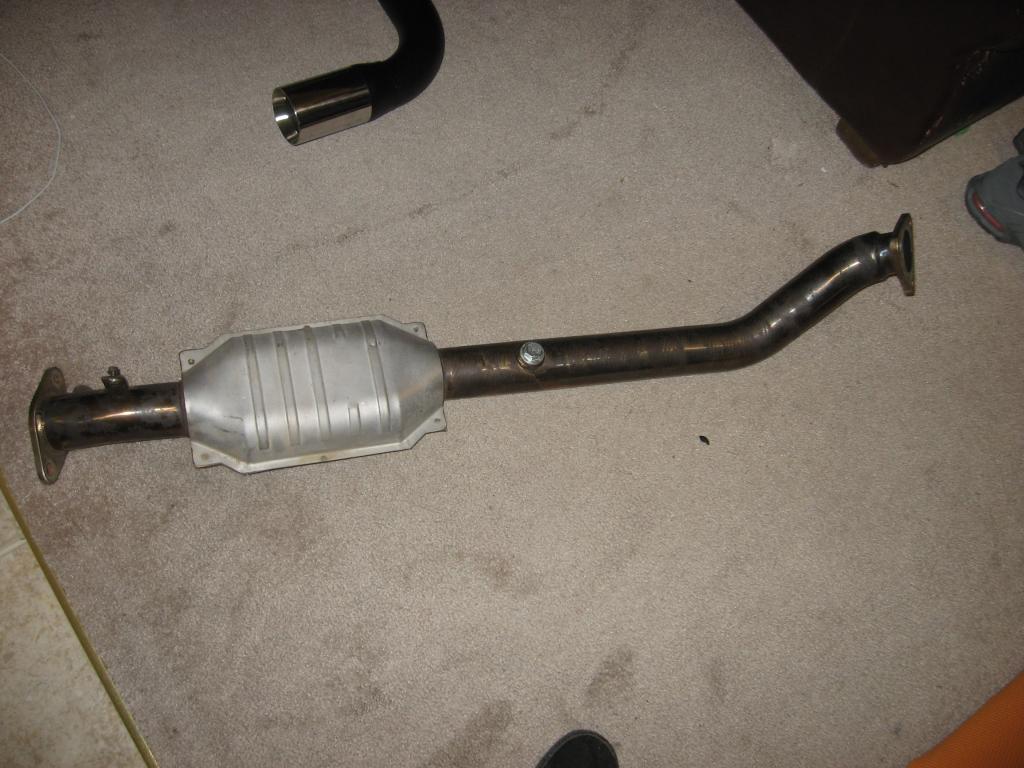

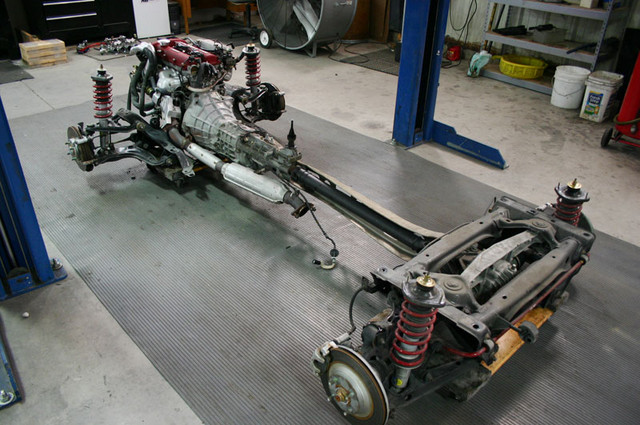

You can see how its connected up here. It looks like its to the bellhousing bolts that are tight lol. Look in front of the cat and in front of the silver "sleeve" on the pipe and you'll see the connection.
Attached Thumbnails
Artech Downpipe crack. Will a repair hold up?-114016d1400938040-flyin-miata-msm-downpipe-005_zpsab99ac7f.jpg   Artech Downpipe crack. Will a repair hold up?-naked_mazdaspeed_drivetrain.sized.jpg
Mazdaspeeder is offline   Reply With Quote
Old 04-18-2015, 10:38 AM   #73
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Yeah my stock exhaust did have that bracket but unfortunately I believe I trashed it when my car was bone stock trying to eliminate a deceleration rattle.
BTMiata is offline   Reply With Quote
Old 04-18-2015, 10:39 AM   #74
Senior Member

Join Date: Feb 2009
Location: Philadelphia
Posts: 815
Total Cats: 47
Default

Should still be able to use the holes it leaves behind no?
Mazdaspeeder is offline   Reply With Quote
Old 04-18-2015, 10:46 AM   #75
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by Mazdaspeeder View Post
Should still be able to use the holes it leaves behind no?
Well the bracket on mine was just held on by the bell housing bolts, which is why I was thinking of using one of those to run that bracket to
BTMiata is offline   Reply With Quote
Old 04-18-2015, 12:58 PM   #76
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Support should go before the flex.
DNMakinson is offline   Reply With Quote
Old 04-18-2015, 02:16 PM   #77
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Also you should use a band clamp instead of one of those kind of exhaust clamps.
aidandj is offline   Reply With Quote
Old 04-18-2015, 02:49 PM   #78
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Quote:
Originally Posted by aidandj View Post
Also you should use a band clamp instead of one of those kind of exhaust clamps.
FM uses the type BT shows. What advantage do you see in the band?
DNMakinson is offline   Reply With Quote
Old 04-18-2015, 02:49 PM   #79
Elite Member
Thread Starter
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

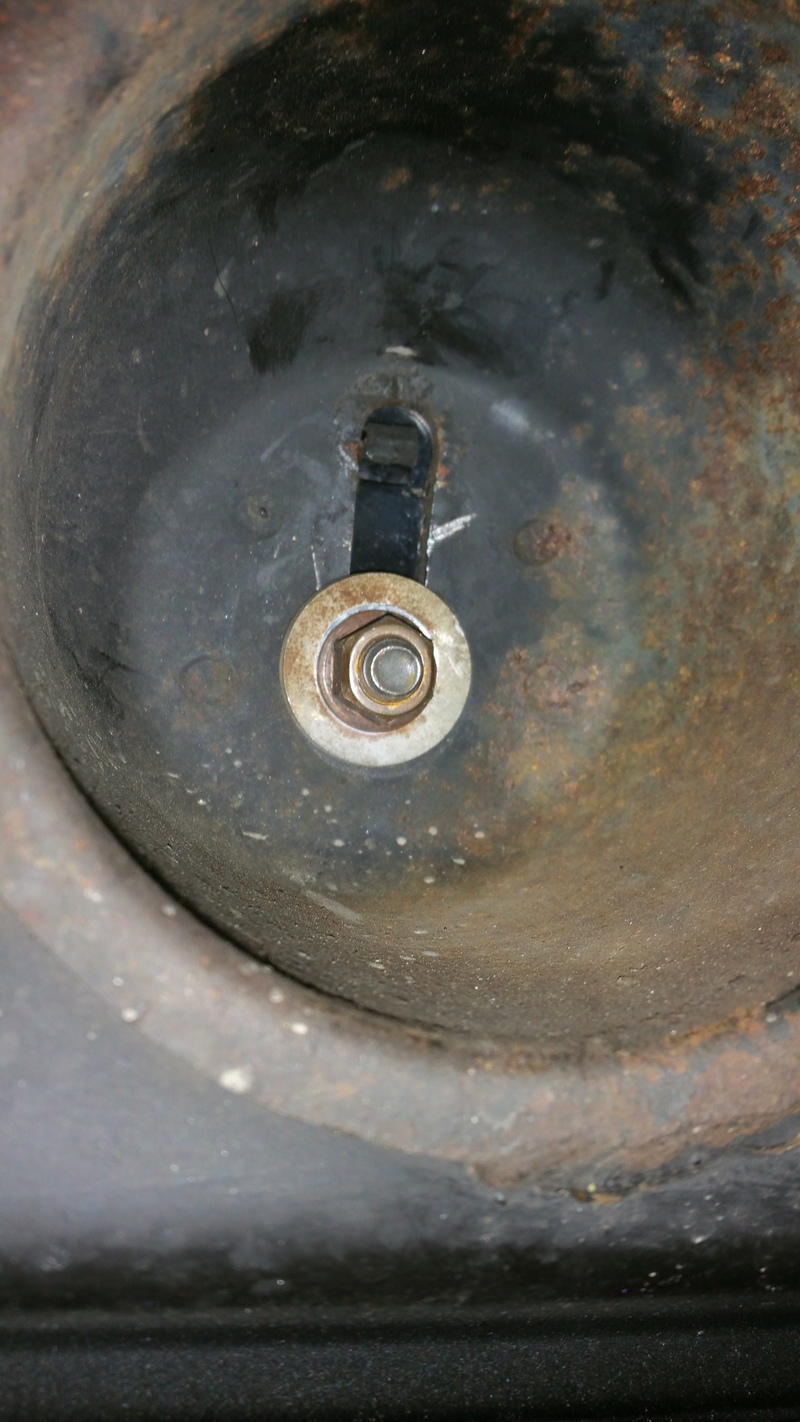

Does anyone know where my motor mounts should be in those adjustable slots... I just noticed that mine are bottomed out... Would that cause any issues?

Name:  20150418_100611_zps2qfhtlxv.jpg
Views: 20
Size:  341.4 KB
BTMiata is offline   Reply With Quote
Old 04-18-2015, 02:50 PM   #80
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Bob Bundy had issues with it causing cracking and extra stress. I need to find the thread where we talked about it. hi_im_sean might remember, he was there too.
aidandj is offline   Reply With Quote
