Old 11-03-2007, 07:07 PM   #21
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Ebay most likely.
cjernigan is offline   Reply With Quote
Old 11-04-2007, 05:53 PM   #22
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

money money money............money kool stuff
mike_671 is offline   Reply With Quote
Old 11-04-2007, 09:50 PM   #23
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by mikeflys1 View Post
Where'd ya pick up that plate if ya dont mind me asking?
Bought it off the classified section - I believe it's from Moss.
sv650_ck is offline   Reply With Quote
Old 11-05-2007, 12:58 AM   #24
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Have installed any of this yet??
TURNS101 is offline   Reply With Quote
Old 11-05-2007, 01:21 AM   #25
I'm Miserable!

Join Date: Sep 2007
Location: Marysville, California
Posts: 203
Total Cats: 0
Default

Ever since i used this forum....damn it...i feel like kicking myself in the *** for buy that cheap ebay turbo kit....i'm just waiting for things to break now...LOL...nice kit by the way...
Eunos_roadsterna6ce is offline   Reply With Quote
Old 11-06-2007, 07:25 PM   #26
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

You may be fine. SOme people have great success going that route.

Where do you drift?
TURNS101 is offline   Reply With Quote
Old 11-06-2007, 08:13 PM   #27
I'm Miserable!

Join Date: Sep 2007
Location: Marysville, California
Posts: 203
Total Cats: 0
Default

You may be fine. SOme people have great success going that route.

Where do you drift?
__________________
ThunderHill and this airport near my house....i aint that good but getting there...
Eunos_roadsterna6ce is offline   Reply With Quote
Old 11-07-2007, 12:05 PM   #28
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

Quote:
Originally Posted by sv650_ck View Post
One's the EGR port not sure about the other - maybe Stephanie will chime in.
The fitting all the way on the left is the '99-'00 EGR port. There is no EGT bung on this manifold.

And on this car, the oil does come from the pressure sender. Hence, the BNPT fitting and Tee.
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 11-07-2007, 09:00 PM   #29
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

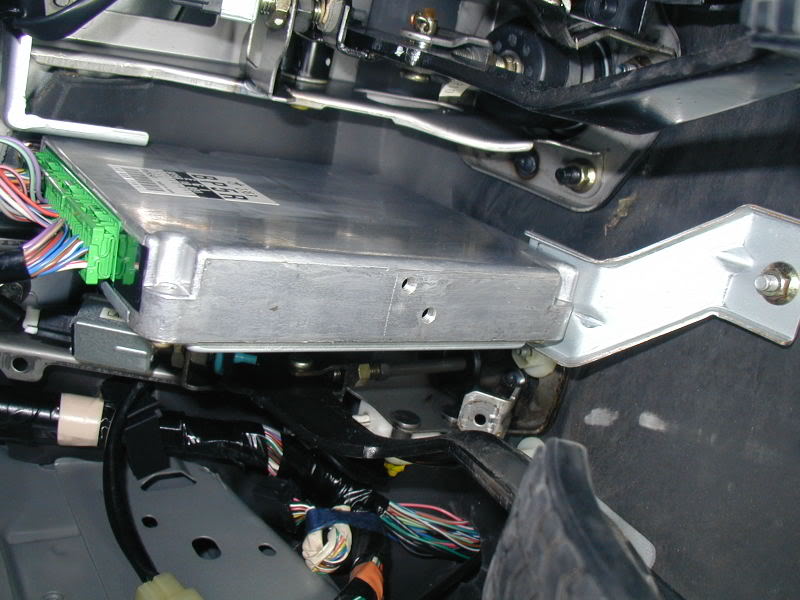

Got my harness in so I decided to find a home for the f/ic. Should fit here.
Name:  P1010106.jpg
Views: 1
Size:  72.4 KB

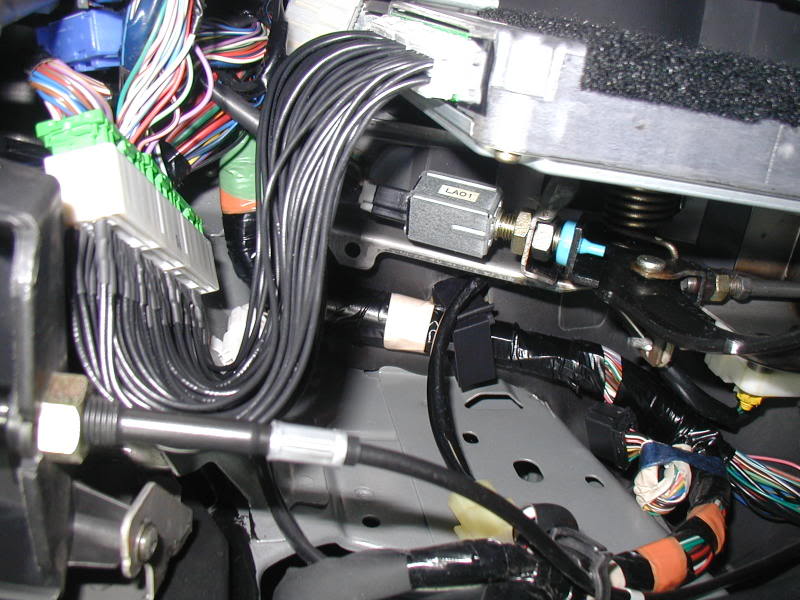

Did a trial fit of the patch harness that I'll be tapping into - Thanks cjernigan! You can see the velcro that I'm using to hold the f/ic.
Name:  P1010116.jpg
Views: 1
Size:  84.7 KB

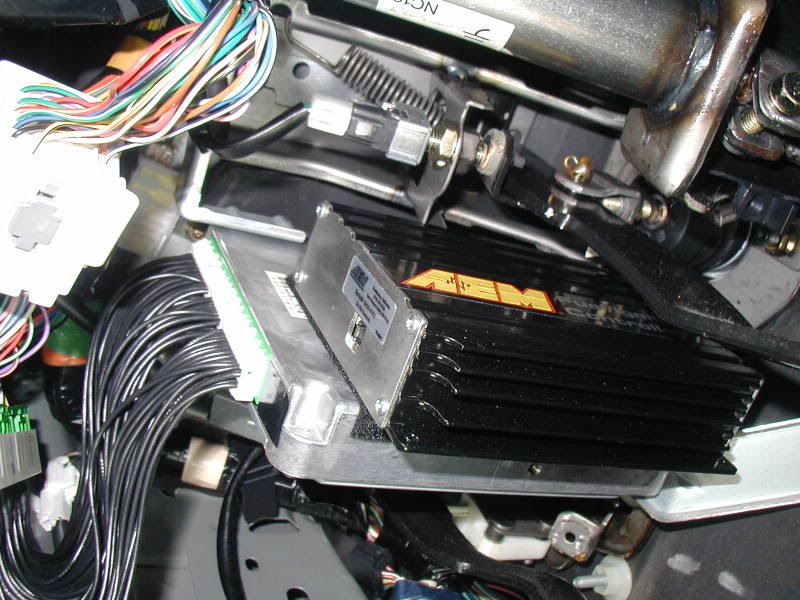

Every fits nicely and is out of the way.
Name:  P1010118.jpg
Views: 1
Size:  84.7 KB

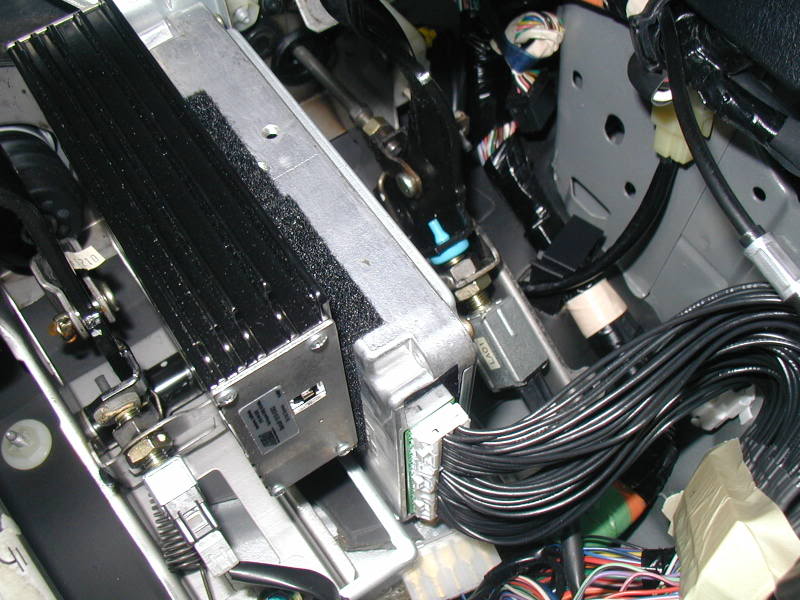

Started the car, ran for a couple of seconds, got a cel and died. One of the connectors pulled out. There's no locking mechanism on that side of the harness so I taped the connectors together and all is good. Plan to wire in the f/ic this weekend to make sure everything is working before starting the turbo install.
Name:  P1010119.jpg
Views: 1
Size:  85.7 KB
sv650_ck is offline   Reply With Quote
Old 11-08-2007, 03:37 PM   #30
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default FIC Maps

Plan on using these maps for initial start-up. Boost will be limited to ~6psi, stock injectors, 93 octane. Feedback would be appreciated.





sv650_ck is offline   Reply With Quote
Old 11-08-2007, 03:41 PM   #31
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Did you get the connector issue figured out?
I have my MS mounted in that exact same spot.

Last edited by cjernigan; 11-08-2007 at 03:56 PM.
cjernigan is offline   Reply With Quote
Old 11-08-2007, 07:14 PM   #32
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Did you get the connector issue figured out?
I have my MS mounted in that exact same spot.
You were right - the plugs weren't fully engaged. They locked in with some additional force. Just got to figure how to get them demated now. Thanks
sv650_ck is offline   Reply With Quote
Old 11-08-2007, 07:25 PM   #33
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Did you not get my message??????
I use a screwdriver myself. Depress the clip on the one side and use a wide blade screwdriver on the backside. Works a charm.
cjernigan is offline   Reply With Quote
Old 11-08-2007, 07:39 PM   #34
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by cjernigan View Post
Did you not get my message??????
I use a screwdriver myself. Depress the clip on the one side and use a wide blade screwdriver on the backside. Works a charm.
Got it - hard to do while laying on your back and you can't get both hands on it. I can't imagine trying to solder anything up there.
sv650_ck is offline   Reply With Quote
Old 11-08-2007, 07:42 PM   #35
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I've spent more time on my back (on the floor of my miata) then carmen electra.
My car came with a mangled ecu harness. The previous owner had chopped it to pieces and mess all kinds of things up. I had to solder much of it back together. Talk about PITA. If you remove the knee plate under the steering wheel you can easily access the ECU connectors to get at them with a screw driver.
I'm also a skinny/lanky individual, tight spaces aren't so bad for me.
cjernigan is offline   Reply With Quote
Old 11-13-2007, 09:18 PM   #36
Junior Member
iTrader: (3)

Join Date: Apr 2007
Location: St Louis Park MN
Posts: 163
Total Cats: 0
Default

Hmm keep us up dated. I'm waiting to hear if that AEM piece works on 99's if so I'm hitting it and have chad build me a harness as well!
Strider is offline   Reply With Quote
Old 11-14-2007, 01:25 AM   #37
Newb

Join Date: Oct 2007
Location: San Luis Obispo
Posts: 19
Total Cats: 0
Default

looks nice
Stitches is offline   Reply With Quote
Old 11-14-2007, 07:30 PM   #38
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by Strider View Post
Hmm keep us up dated. I'm waiting to hear if that AEM piece works on 99's if so I'm hitting it and have chad build me a harness as well!

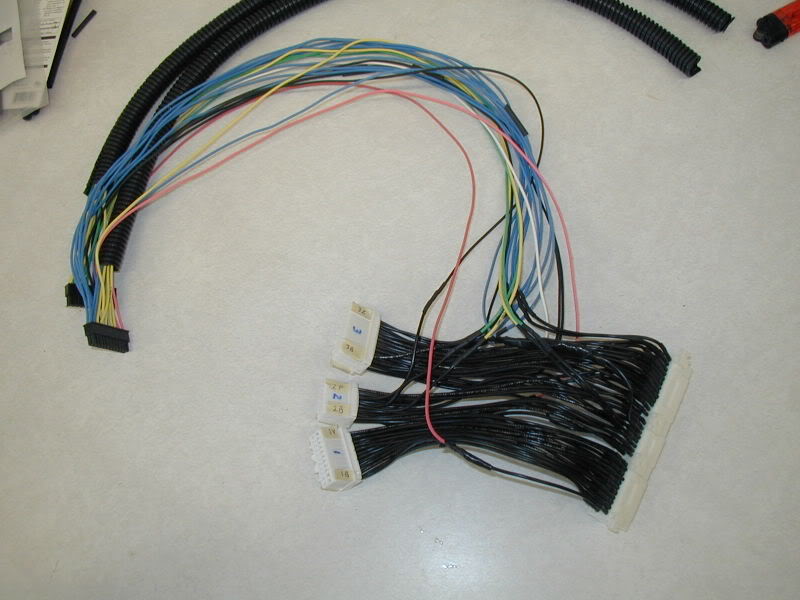

I've got it wired in. Car runs rough but no cel. Runs fine with the bypass plug installed so I think the wiring is installed correctly. Need to troubleshoot some more. No problems with chad's harness. Ran the car a while with it installed before wiring in the FIC.

Name:  Picture017.jpg
Views: 1
Size:  59.1 KB
sv650_ck is offline   Reply With Quote
Old 11-14-2007, 07:33 PM   #39
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Glad to hear it. Looks good. You made the AEM harness pretty long, should tuck up under the knee panel pretty well though.
cjernigan is offline   Reply With Quote
Old 11-14-2007, 09:41 PM   #40
Junior Member

Join Date: Jul 2006
Location: Huntsville/Auburn, AL
Posts: 114
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
I've spent more time on my back (on the floor of my miata) then carmen electra.
My experience was the other way around... Carmen Electra spent a whole lot more time on her back in my miata than I did. It was pretty cramped, but we managed.
RickA is offline   Reply With Quote
