Old 05-20-2009, 09:53 PM   #41
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

I did a compression test today cylinders 1-4 183-175-185-190 warm it still smoked after i drove it around the block what the heck it passed both the compression and cooling system pressure test.
E=MC^2 is offline   Reply With Quote
Old 05-20-2009, 10:26 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

post a picture of your engine bay.
Braineack is offline   Reply With Quote
Old 05-20-2009, 10:39 PM   #43
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

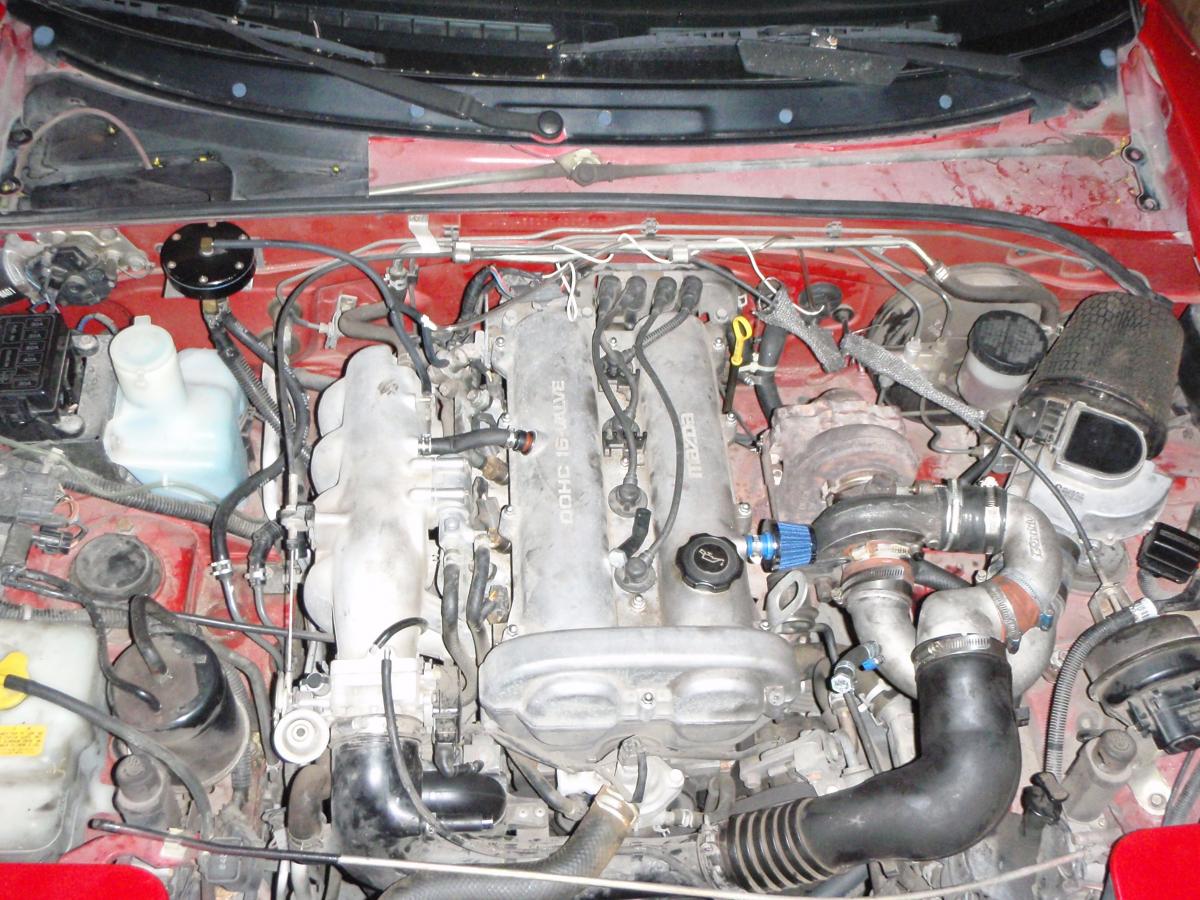

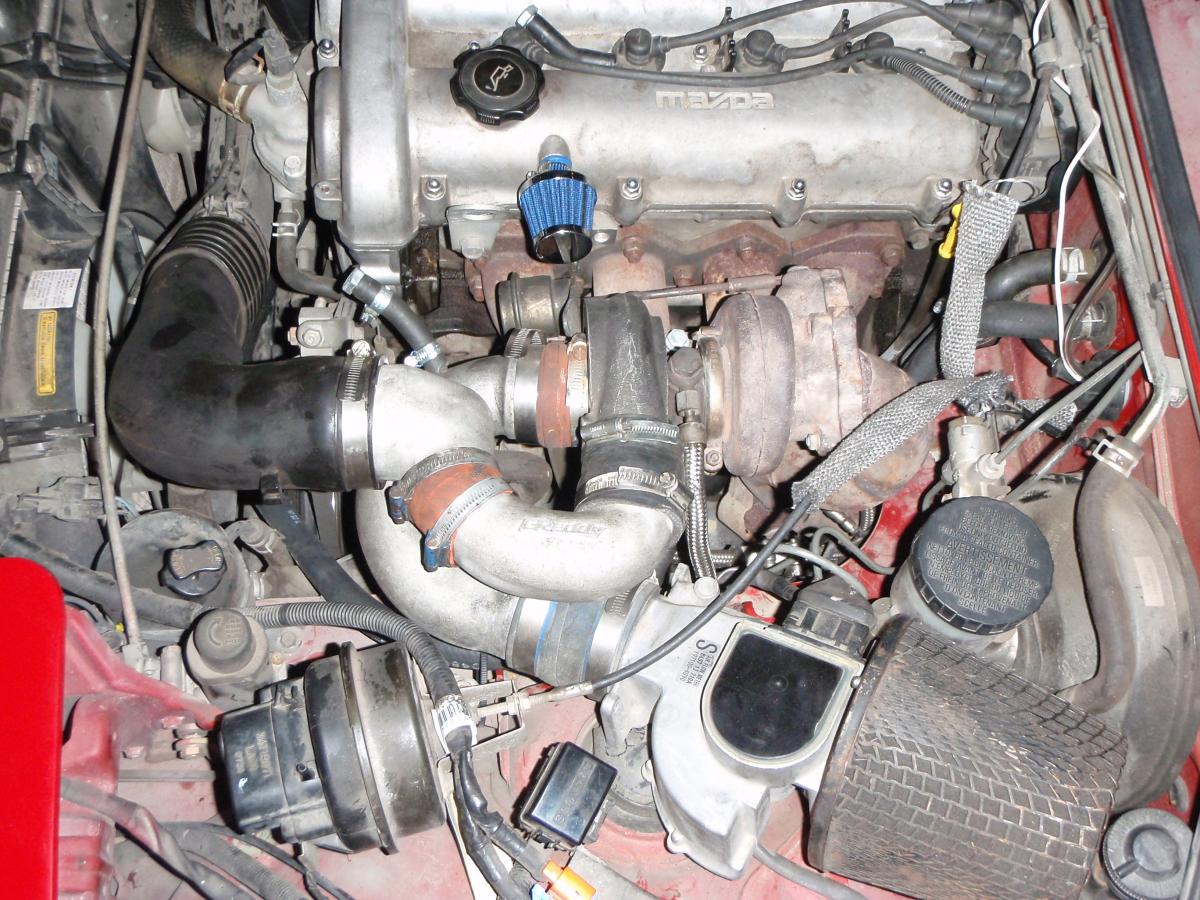

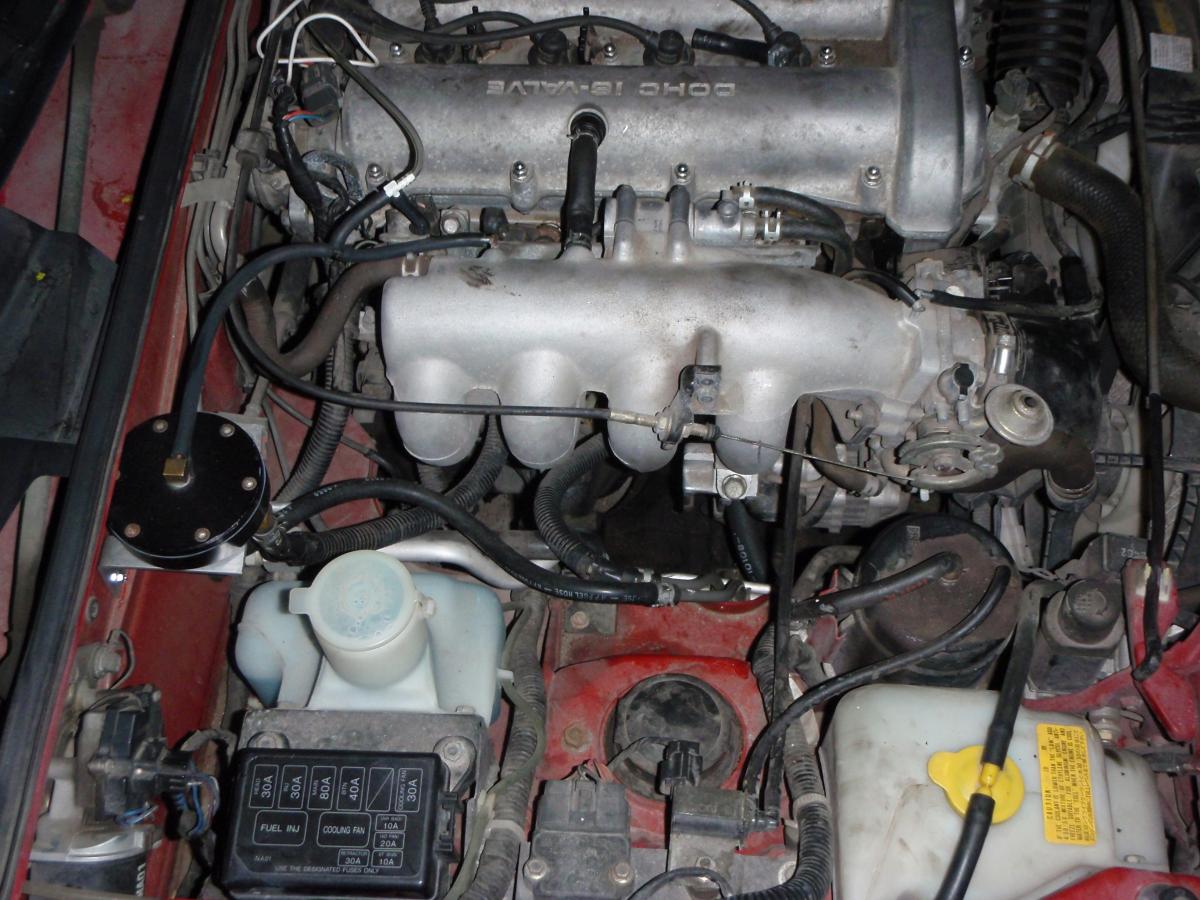

But ive been running filters on both sides of the head.
Attached Thumbnails
Blew my head gasket-p5200002.jpg   Blew my head gasket-p5200003.jpg   Blew my head gasket-p5200004.jpg
E=MC^2 is offline   Reply With Quote
Old 05-21-2009, 12:20 AM   #44
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

see anything odd
E=MC^2 is offline   Reply With Quote
Old 05-21-2009, 02:17 AM   #45
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Too much dirt and oil.

I'm going to go a different way than everyone else and say its the rings...

You also need to do a leak down test, not just a compression test.
NA6C-Guy is offline   Reply With Quote
Old 05-21-2009, 03:30 AM   #46
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

bad rings dont burn coolant. how am i getting collant into my cylinders if its not the head gasket?
E=MC^2 is offline   Reply With Quote
Old 05-21-2009, 04:13 AM   #47
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

How do you know its coolant? I say just have a HG ready, and pull the head and check it out. Clean up some junk while your at it. Bolt it back up and see what happens.
NA6C-Guy is offline   Reply With Quote
Old 05-21-2009, 04:25 AM   #48
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

My coolant was the only fluid that showed a change of any kind it was slightly lower the oil is perfect. Normal level, color and smell. on the dip stick and cap.
E=MC^2 is offline   Reply With Quote
Old 05-21-2009, 09:53 AM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

can you blow through your pcv?
Braineack is offline   Reply With Quote
Old 05-21-2009, 11:30 AM   #50
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by E=MC^2 View Post
My coolant was the only fluid that showed a change of any kind it was slightly lower the oil is perfect. Normal level, color and smell. on the dip stick and cap.


There are alot of things that would create a low coolant level including the water pump weeping fluid from it's filthy weep hole. To determine if the coolant is getting into the combustion chamber at all you can rule it out by pulling the spark plugs and cranking the motor, if there is any coolant in the cylinder because of a head gasket you'll have a gusher.
BenR is offline   Reply With Quote
Old 05-21-2009, 12:48 PM   #51
Junior Member
iTrader: (4)

Join Date: Oct 2006
Location: Alberta Canada
Posts: 228
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
can you blow through your pcv?
The PCV hose looks kinked/collapsed to me.

What is the hose laying on the valve cover behind #1 sparkplug wire?

Have you pressure tested the cooling system for an extended time, to see what it drops in say 1/2 hr to an hour?

I didnt see where there were results from a leakdown test.

Pull the plugs, look down the holes with a flashlight and see if there are any discolored piston tops. Oil burn = black, coolant leak = white, bad coolant leak the piston tops can be cleaned to almost new looking. A closeup pic of the plugs out may reveal something.
Alta_Racer is offline   Reply With Quote
Old 05-21-2009, 11:35 PM   #52
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

I just took my turbo off cylinder 4 seems to have a blackish gray soot in the exhaust
E=MC^2 is offline   Reply With Quote
Old 05-22-2009, 12:26 AM   #53
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by E=MC^2 View Post
I just took my turbo off cylinder 4 seems to have a blackish gray soot in the exhaust
well it is the exhaust side... I don't think that really means anything. And yah, your PCV hose looks like it's screwed.
dustinb is offline   Reply With Quote
Old 05-22-2009, 12:41 AM   #54
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

I did another coolant system pressure test for about an hour it was set at 15 psi i checked it after 15 minutes it was down to 14 then i checked a half hour later it was still at 14 after an hour it was still at 14. I dont run it with the bend tube i have filters on both pcv holes
E=MC^2 is offline   Reply With Quote
Old 05-22-2009, 12:03 PM   #55
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by E=MC^2 View Post
I dont run it with the bend tube i have filters on both pcv holes

Stop that, return it to at least the stock greddy configuration, make sure the pcv valve is functioning correctly and report back.
BenR is offline   Reply With Quote
Old 05-22-2009, 01:03 PM   #56
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

I'd advise at least a 323GTX PCV valve with a non-kinked hose going to the IM.

I personally don't like the idea of running the hotside breather into the compressor inlet. I don't want to be sucking oily air through the intercooler if I don't have to. So I run a little filter on that side as pictured.
Joe Perez is offline   Reply With Quote
Old 05-22-2009, 06:19 PM   #57
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

i have filters on both sides
E=MC^2 is offline   Reply With Quote
Old 05-28-2009, 04:25 AM   #58
Junior Member

Join Date: Feb 2007
Location: Winona, MN
Posts: 198
Total Cats: 0
Default

I'am having the same problem as this and everything I could check is ok. So the last thing I can think of is bad valve stem seals? because its only under a vac. that it will burn some oil. Its the only other source oil can enter the combustion chamber.

Also when you pull the head you can do a simple ring test of turn the engine till all the pistons are about the same hight, Then poor oil in each till the top of cylinder. Let sit overnight than see if levels change at all.
LOOINEY is offline   Reply With Quote
Old 05-28-2009, 07:49 PM   #59
Junior Member
Thread Starter

Join Date: May 2009
Location: st paul MN
Posts: 59
Total Cats: 0
Default

I took the turbo out and have not seen smoke or burned coolant since
E=MC^2 is offline   Reply With Quote
Old 05-28-2009, 09:40 PM   #60
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

Quote:
Originally Posted by E=MC^2 View Post
I took the turbo out and have not seen smoke or burned coolant since
Then it probably wasn't coolant to begin with.
