Default BOV flow direction...

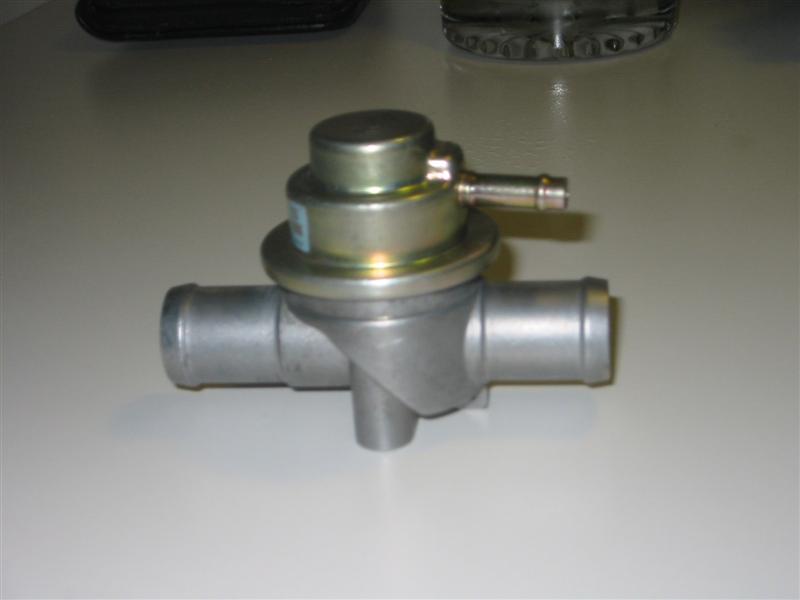

The attached picture shows a 323 GTX BOV that I'll be putting on my car. Anybody have a clue which direction is might flow? As in, which end should I connect to the charge piping?

BTW: If it weren't for waiting on my injectors, I'd have a running car again by the end of the weekend
Attached Thumbnails
BOV flow direction...-323-gtx-bov.jpg
Atlanta93LE is offline   Reply With Quote
Old 05-26-2007, 07:47 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

have an air compressor? put some compressed air into the vacuum line and see where the piston/diagphram wants to seal against...that's your inlet.


just by looking at it, im guessing the inlet is on the end opposite of the vacuum port. Due to the shape of the housing and how the piston thing will have to seal....
Braineack is offline   Reply With Quote
Old 05-26-2007, 07:48 PM   #3
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
have an air compressor?
That was my first thought, but no, I don't. My stupid apartment garage can't support the electrical flow. The space heater in the winter trips the breaker
Atlanta93LE is offline   Reply With Quote
Old 05-26-2007, 07:49 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

well, suck/blow into the vacuum port it and see how it reacts
Braineack is offline   Reply With Quote
Old 05-26-2007, 07:54 PM   #5
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Yeah, I had tried that, and discovered that my lung capacity isn't quite up to snuff.
Atlanta93LE is offline   Reply With Quote
Old 05-26-2007, 08:10 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

I have some NB 1.8 injectors & a BEGi FMU if you want something to make your car drivable for this nice, long, beautiful holiday weekend.
Ben is offline   Reply With Quote
Old 05-26-2007, 08:14 PM   #7
Elite Member
Thread Starter
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

I appreciate the offer, but I'm going out of town Wednesday anyway...no sense in installing and tuning for one thing for a day just to gut it and retune.
Atlanta93LE is offline   Reply With Quote
Old 05-27-2007, 10:41 AM   #8
Junior Member

Join Date: Jul 2006
Posts: 88
Total Cats: 0
Default

The side with the vacuum port is the input from the Throttle body.

If it's a used bypass valve, pressure testing it might be a good idea. In absense of a compressor, a pressure sprayer with some hoses and fittings from Home Depot can be rigged up for pressure testing.

Good luck.
retro is offline   Reply With Quote
