Default Challenge: Best 3" Downpipe on "T28" with EWG

Here are the parameters:
1. A generic internally wastegated T28/T25/GT2xxxR
2. Running external wastegate, so IWG is being blocked/welded/etc. This particular turbo has the turbine outlet separated from the wastegate pocket.
3. No space limitations directly behind the turbine outlet (This is not a Miata chassis)
4. Downpipe still needs to make a 90 degree turn downwards relatively quickly (Just like most Miata downpipes)

So the turbo flange is 2", what is the best way to get it to 3"? Expand quickly to 3" straight out of the turbo and then turn it downward, or make the turn with a 2" diameter pipe and then flare to 3"? In the latter setup, should it flare quickly, or slowly?

I was also toying with some unorthodox ideas for creating a bend that tapered continuously. Like making pie cuts of a megaphone, or maybe even some diy hydroforming
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-11-2015, 11:08 AM   #2
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

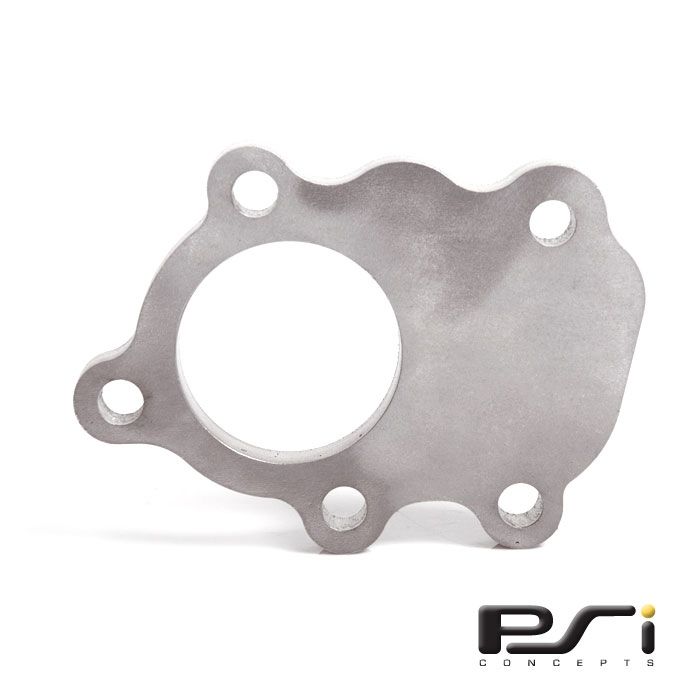

Also, does anybody know where I can find a flange like this for a good price?




There are a few on eBay but they are described as being cast iron with a zinc coating. I think Id like a nice properly cut flange to start with.
All the quality flanges (ATP, Columbia River, etc.) I find have the large oval cutout, which just creates more for me to seal up.
Attached Thumbnails
Challenge: Best 3" Downpipe on "T28" with EWG-80-large_136_10244_51001_89e772b1d3f9bb6a39a6b9ea50d5393e0a070665.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-11-2015, 11:09 AM   #3
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

double post
Attached Thumbnails
Challenge: Best 3" Downpipe on "T28" with EWG-80-large_136_10244_51001_89e772b1d3f9bb6a39a6b9ea50d5393e0a070665.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 06-11-2015, 12:03 PM   #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

You want to do the bend in 2.25", you can achieve this by porting the turbo rear housing. Then once the initial bend has been done go up to 3" with a conical reducer/expander.

I can post a billion photos if you need.
nitrodann is offline   Reply With Quote
Old 06-11-2015, 04:36 PM   #5
Junior Member
iTrader: (1)

Join Date: Jul 2013
Location: Jacksonville, FL
Posts: 65
Total Cats: 7
Default

Check out "Corky's Area Rule"
BEGi - Articles - Corky's Comments - Corkys_Comment_AreaRule

A gradual taper from the outlet diameter to the largest exhaust diameter is ideal.

"The intersections should all match with no diameter changes. Smooth flow of the exhaust gas requires no sudden changes of cross section area. Never/ever/never hook a 3.0" tube up to the 2.0" exit of the turbine. If a section change is required or desired, try to keep a gradual taper in between the two sizes."
pshgomiata is offline   Reply With Quote
Old 06-12-2015, 11:48 AM   #6
Junior Member

Join Date: Jul 2014
Location: Kensington, MD
Posts: 324
Total Cats: -26
Default

That's simple fluid dynamics.

Last edited by huesmann; 06-16-2015 at 02:29 PM.
huesmann is offline   Reply With Quote
Old 06-16-2015, 10:09 PM   #7
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

Nitro speaks with straight tongue.
Corky Bell is offline   Reply With Quote
Old 06-16-2015, 10:20 PM   #8
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

I bought the 5 bolt flange that's totally open like an oval.
Then I bought a 120* 3" bend and cut it almost 90* and heated it and bent it to an oval so it would fit the oval on the flange. Weld that bad boy on there and you're golden.
I think I bought my parts on eBay or APTurbo I think? It was a while ago.
thirdgen is offline   Reply With Quote
Old 07-04-2015, 11:29 AM   #9
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

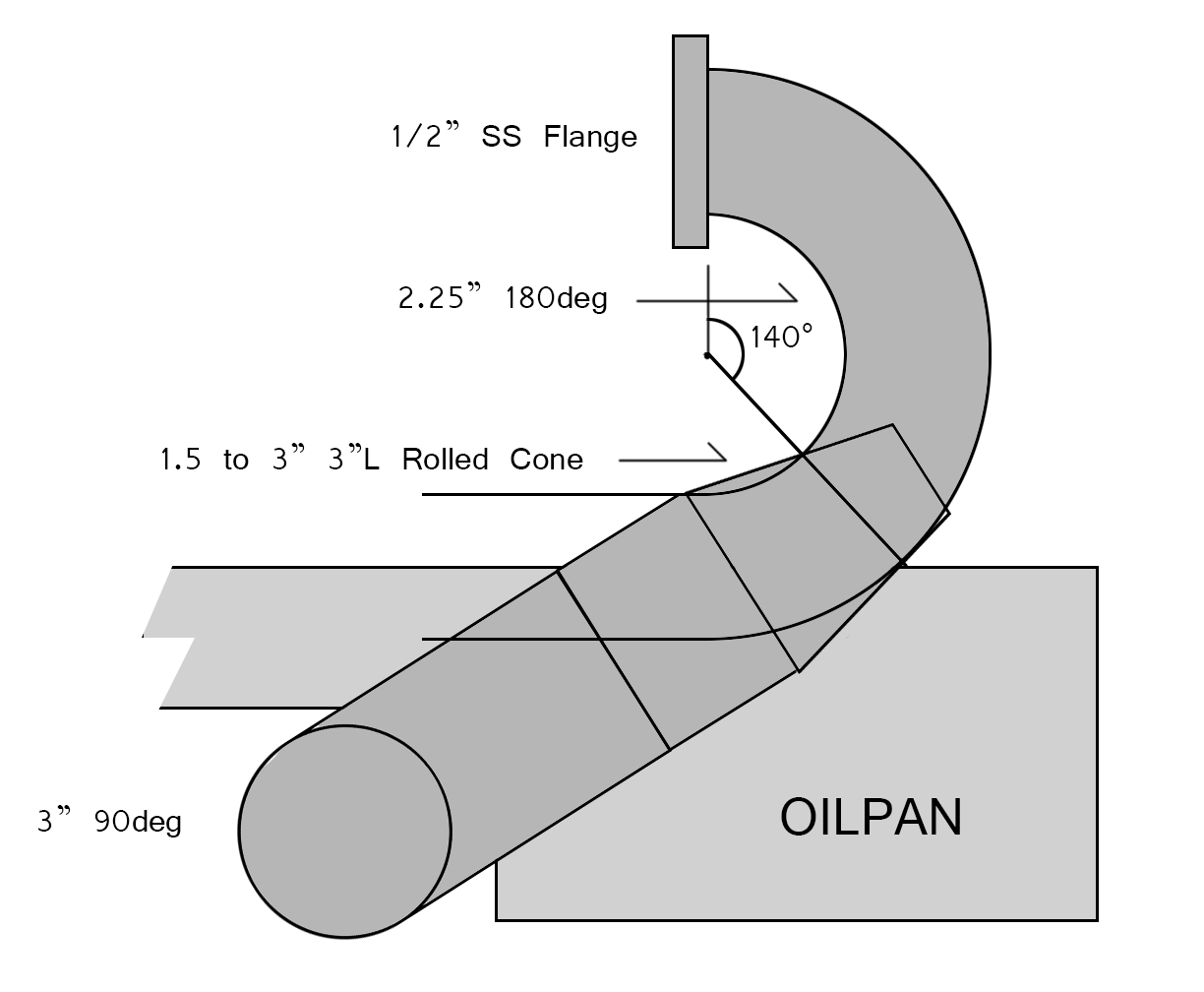

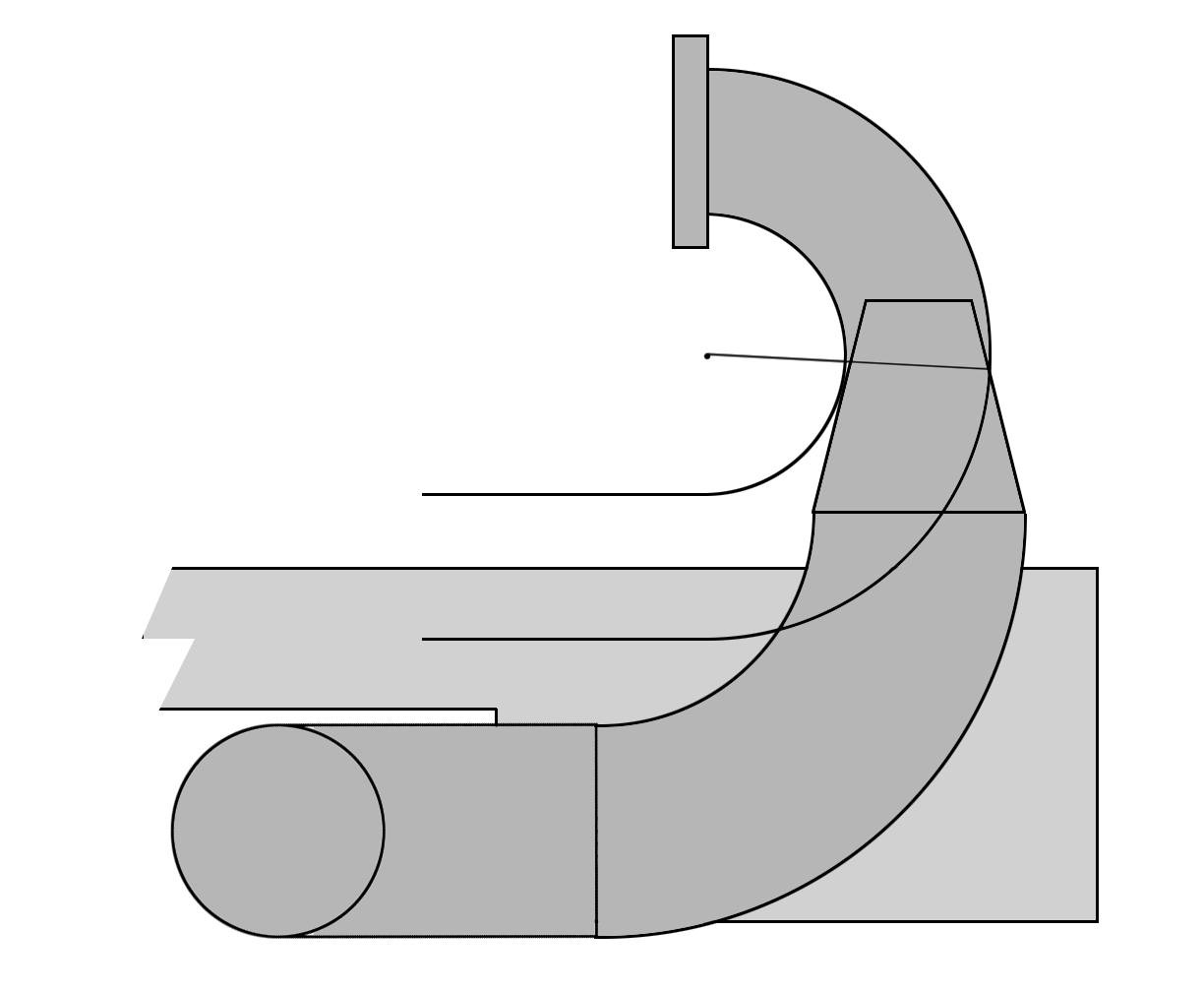

Here are a couple of design variants I have come up with.





There are defintely some space constraits because the downpipe has to make that turn back under the oilpan, but its pretty opened and 2 dimensional compared the complications of a big DP on a Miata.

Any feedback on which looks best? I think the first looks like it would have the smoothest transition, but the second design gets the downpipe out to 3" sooner.
Attached Thumbnails
Challenge: Best 3" Downpipe on "T28" with EWG-dspmmjm.png   Challenge: Best 3" Downpipe on "T28" with EWG-kzdttpx.png
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-04-2015, 12:34 PM   #10
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

<p>I dont think there is enough difference between those to make a noticable performace difference. Go with the one that is easier to execute.</p>
hi_im_sean is offline   Reply With Quote
Old 07-04-2015, 08:01 PM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

could you combine those two? Like 2.5" 90 do the cone transition, and then the least amount of 3 bend possible rather than doing 2 90s and a bit of straight, Only saves you like probably 10-20 degree of angle, but its slightly better.
Leafy is offline   Reply With Quote
Old 07-04-2015, 08:40 PM   #12
Elite Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

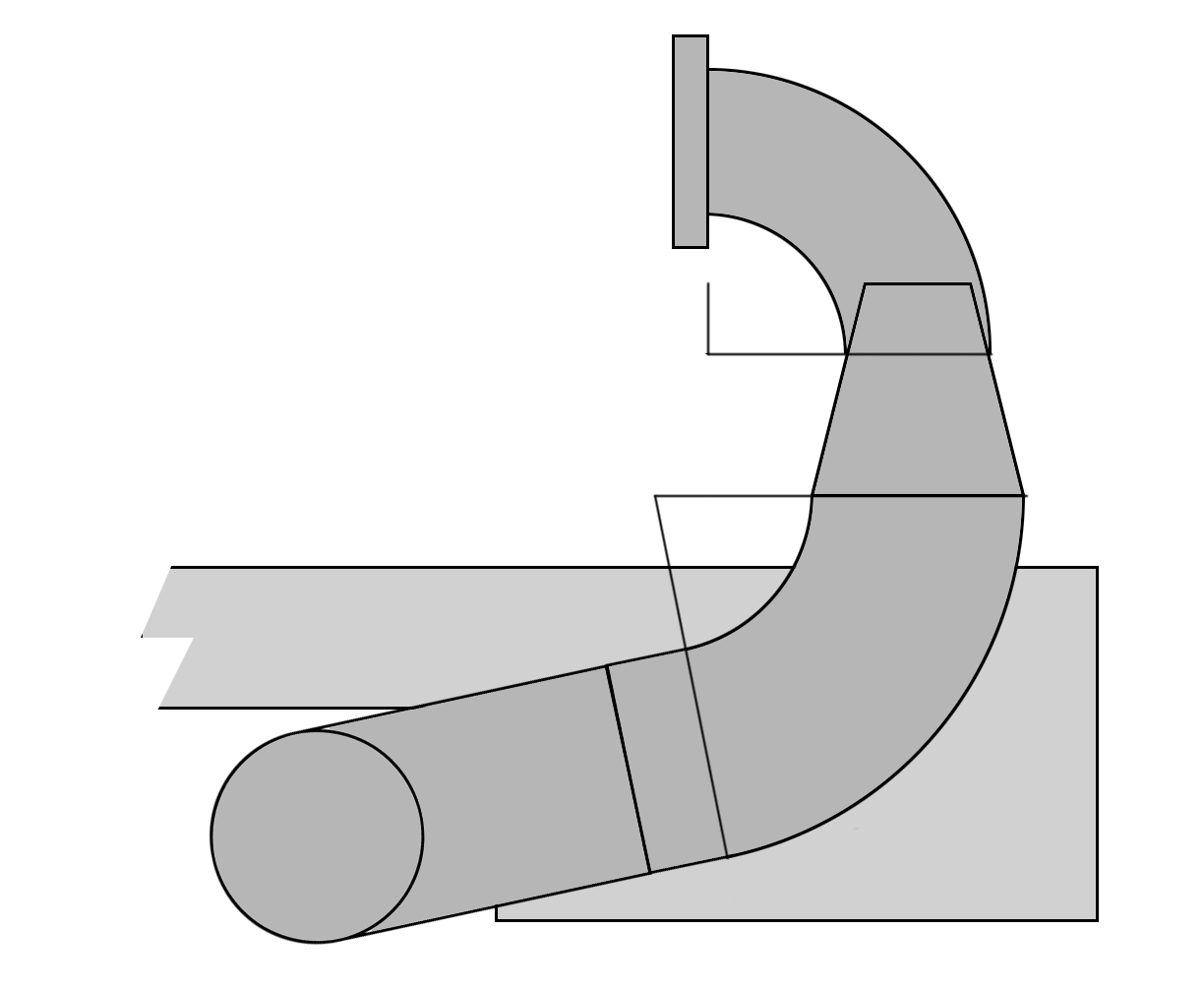

Maybe something like this?



If I could find a 3" mandrel bend with a centerline radius smaller than 4.5" I could make it tighter.

Were probably just picking nits at this point, but I like the way you think. I would like to make the best possible downpipe within reason.
Attached Thumbnails
Challenge: Best 3&quot; Downpipe on &quot;T28&quot; with EWG-ipoyatc.png
Full_Tilt_Boogie is offline   Reply With Quote
