Default Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine

Cause someone had to do it.

Currently turbo'd with EFR 7670 at 16 PSI, MS2E engine management.

New setup will be EFR 7670, intercooled with intercooler mounted flush with undertray and a pair of fans mounted on it (hidden but gets clean air), then going into a FFS coldside running a 130/65 pulley. Probably spray water meth right into inlet of blower. Probably gonna spray a LOT. And then to a built 10.5:1 VVT motor. Running on a MS3 Pro with IGN-1A Race coils and 36-1 triggerwheel in factory location with stock crank/cam sensors. Hope to run on 93 octane, but will switch to E85 if I have to.

Already built the engine, EFR 7670 installed. Motor revs to 8700-8800, makes good power, but is laggy from turbo being too big. Gotta move intercooler and build ducting/fan setup for it. Already ordered a MS3 Pro and wiring stuff to rewire engine. Ordered a AEM water/meth progressive kit. Bought a used FFS coldside off of 18psi (thanks!) and ordered the 130mm pulley for it.

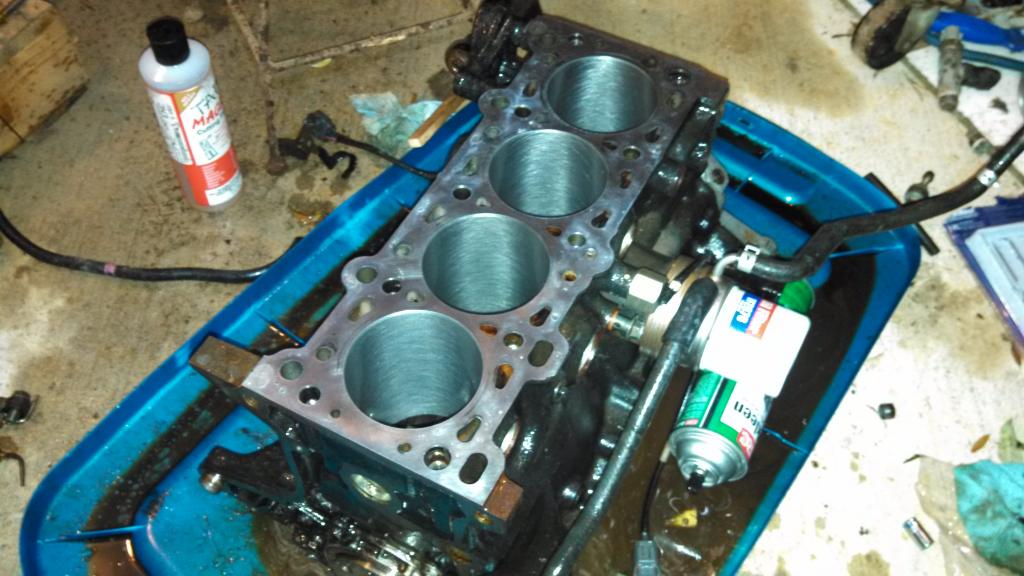

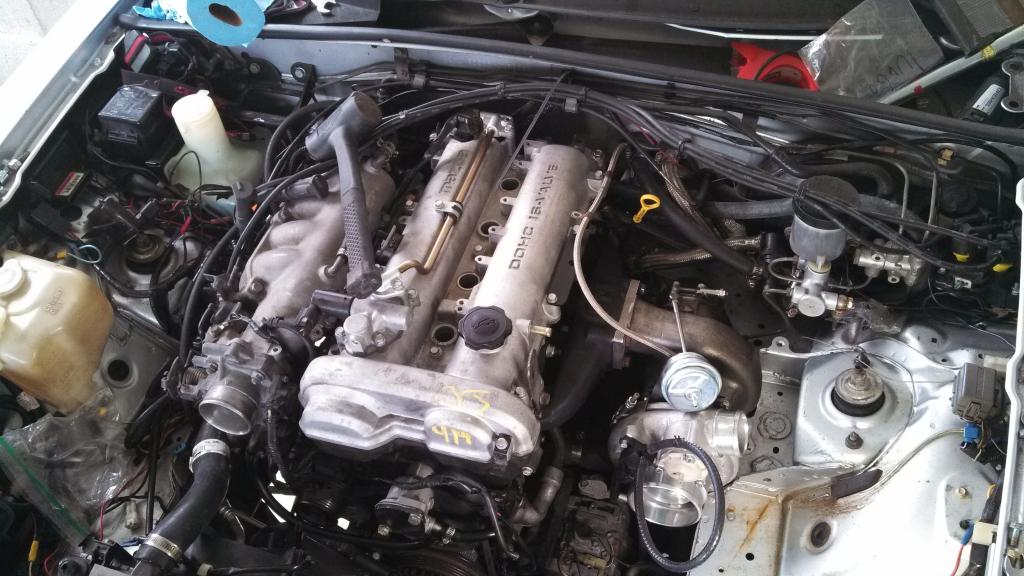

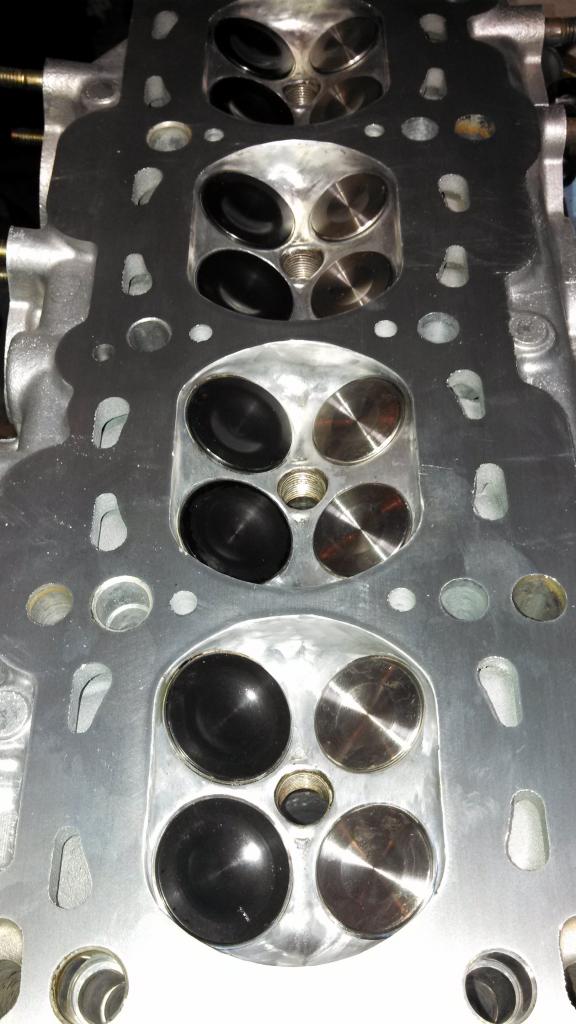

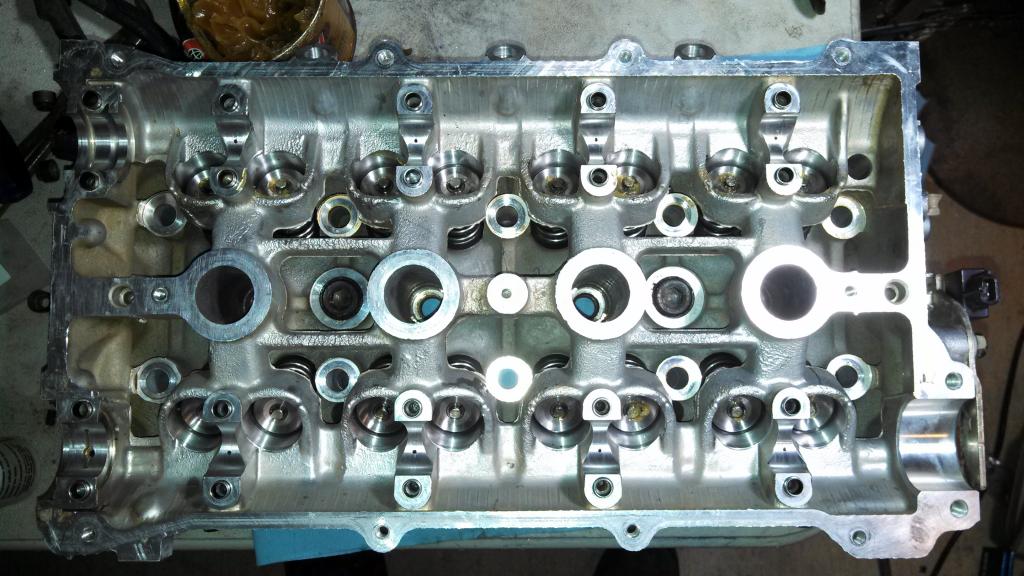

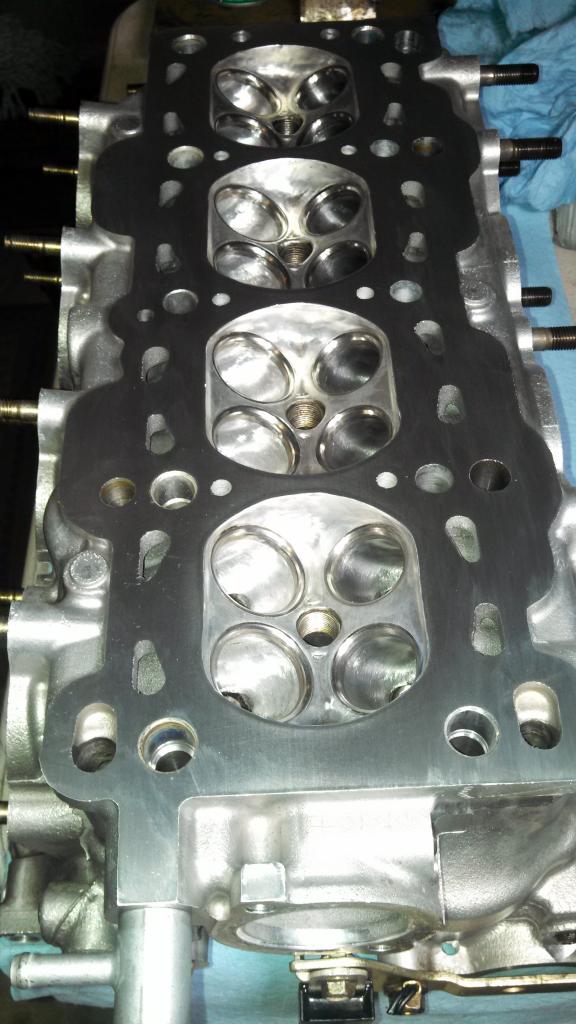

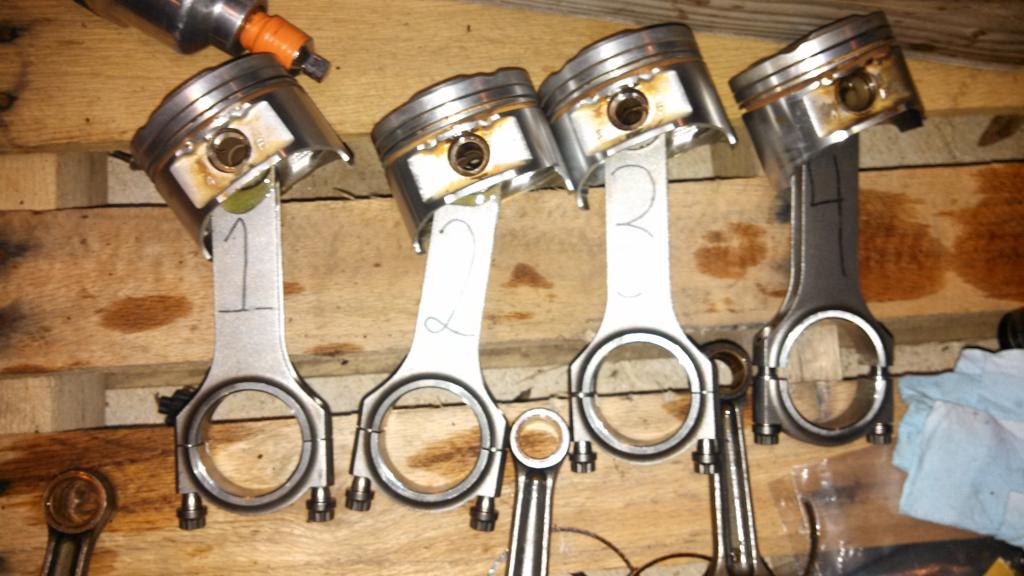

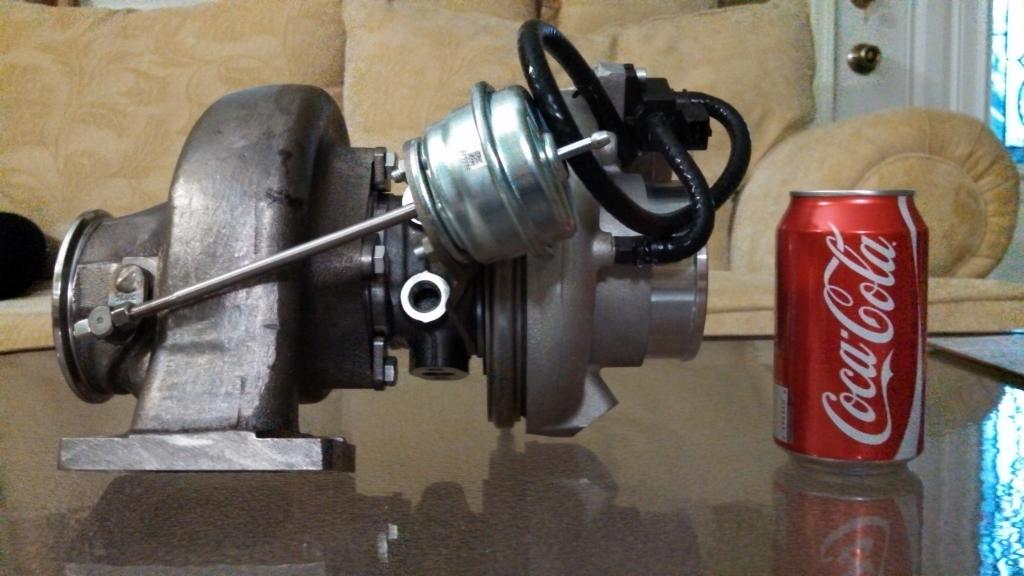

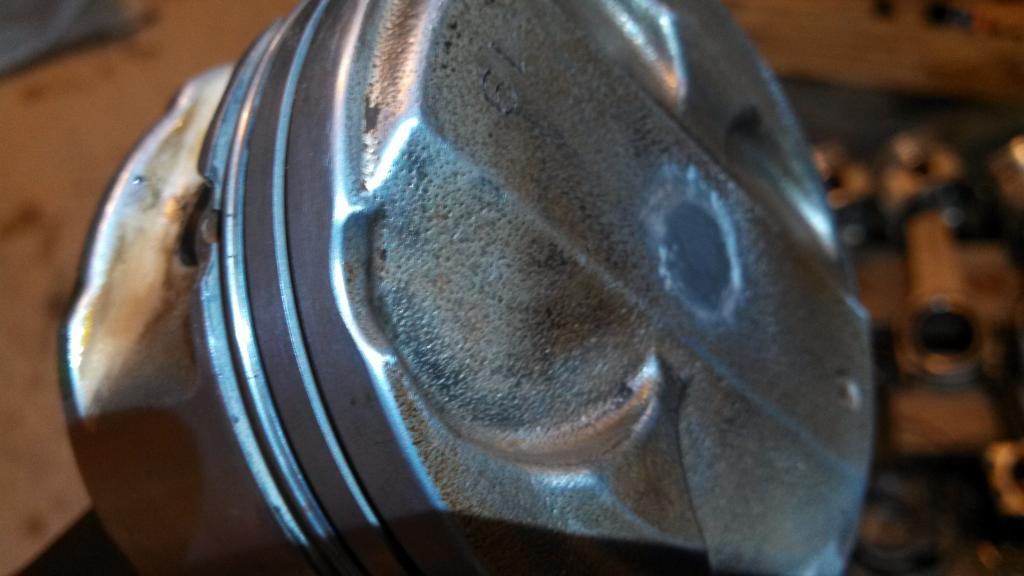

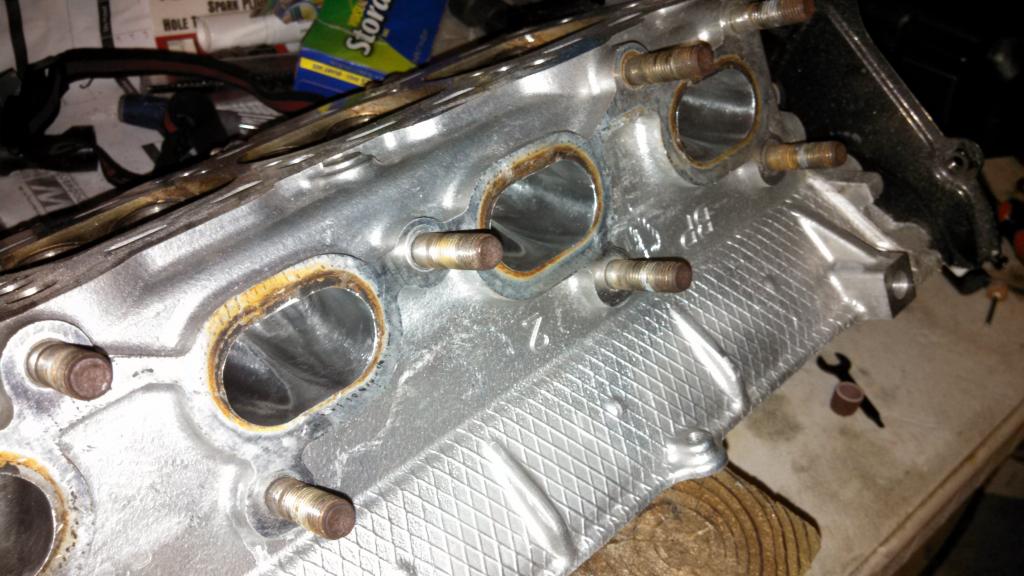

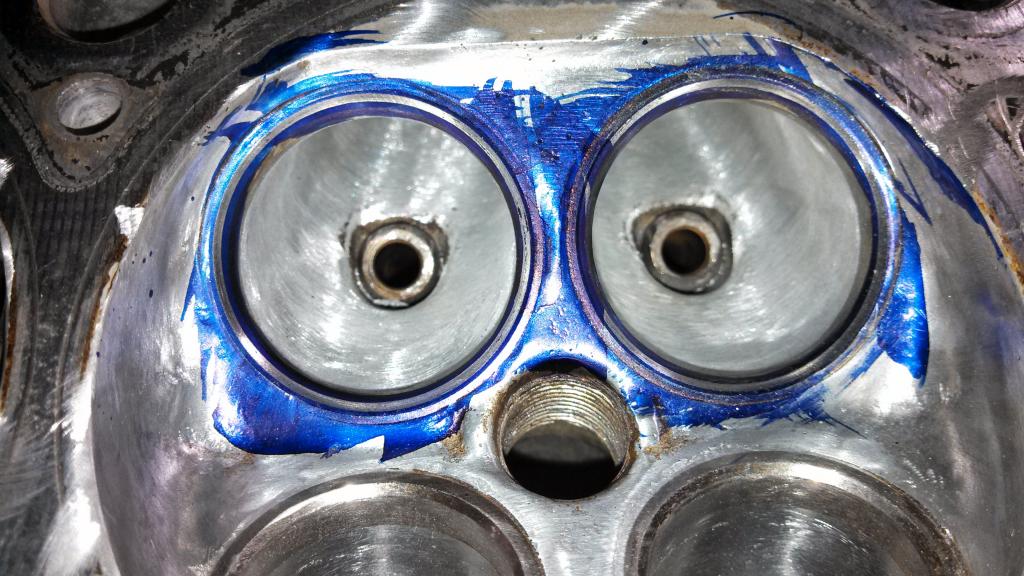

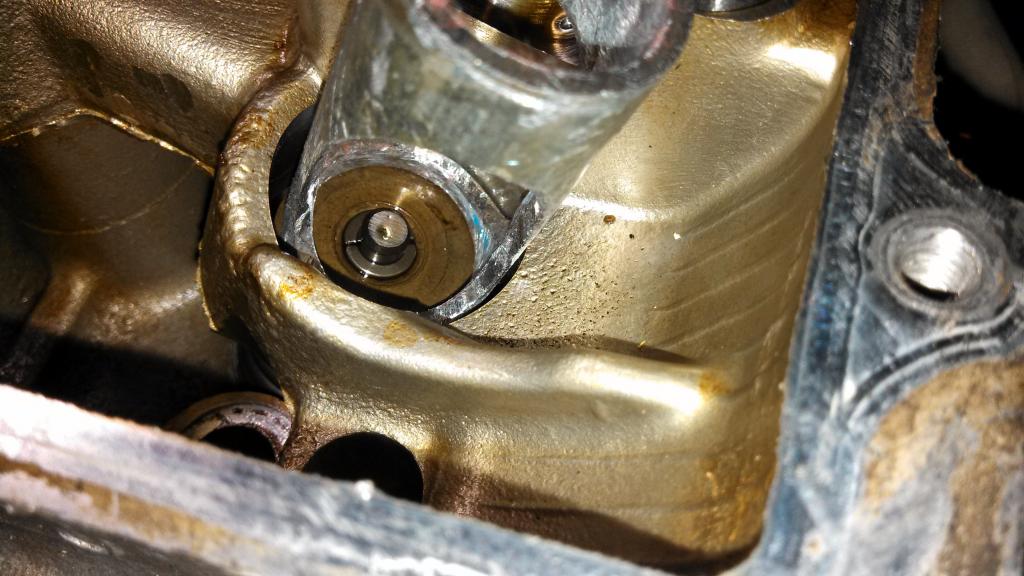

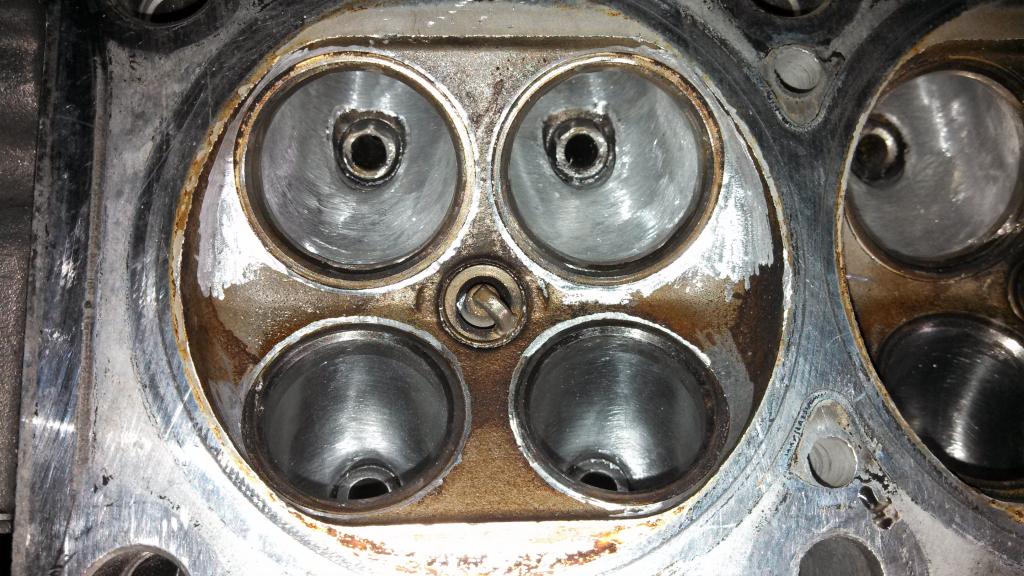

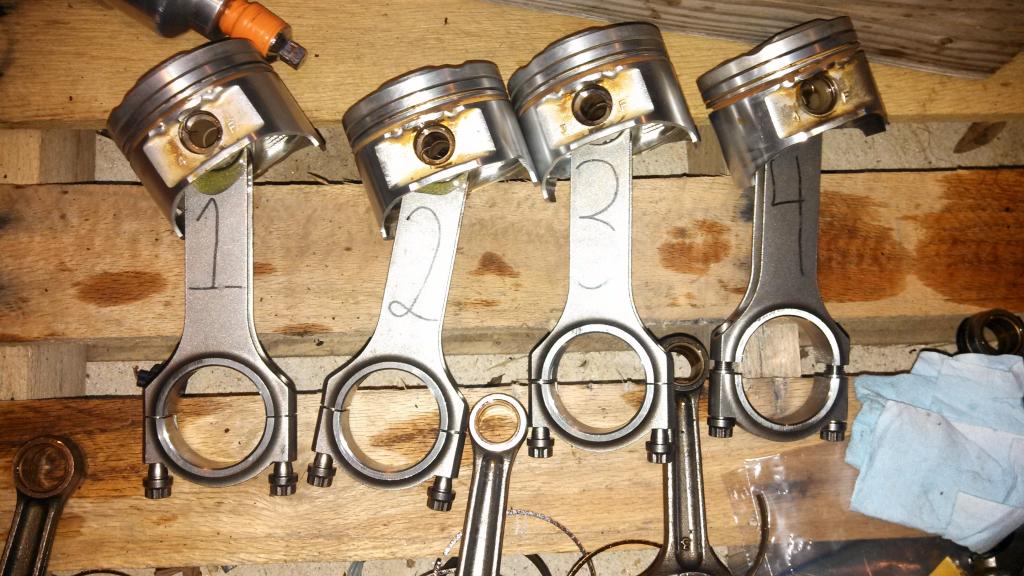

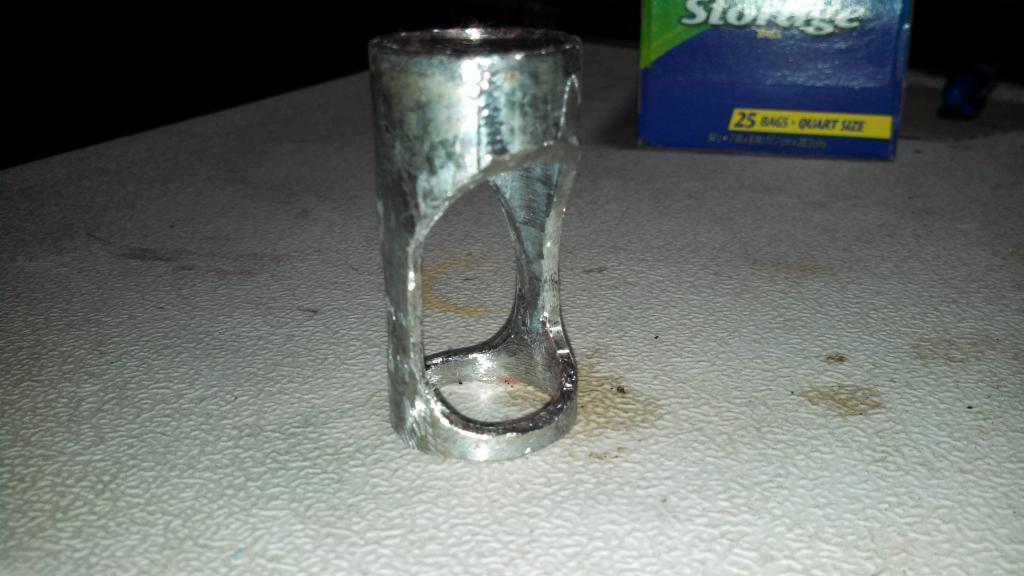

Pics of motor build and current setup:

Trubo


































Attached Thumbnails

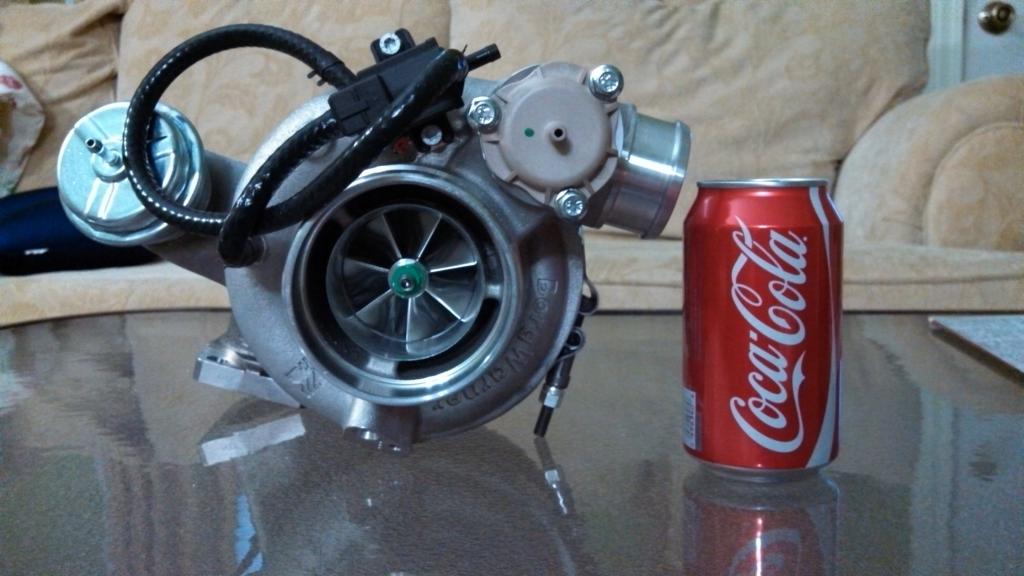

Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130517_194006_145_zps75c2c10f.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130517_194052_116_zpsb8580aaa.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130517_203311_738_zpsd52000b7.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130517_213210_594_zps272072d6.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130517_213216_143_zps59639602.jpg

Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130517_213345_371_zpsdaf8ac0a.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130520_214900_369_zps94d44db4.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130520_214939_604_zpsc3978c39.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130522_235707_364_zps59bb8b5d.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130523_011529_244_zps41749ca9.jpg

Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130523_204400_612_zpsea1f4830.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130524_233011_278_zps339f9006.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130525_014055_831_zps1e864571.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130525_014414_177_zps8003dc74.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_20130526_152058_040_zps44c45932.jpg

patsmx5 is offline   Reply With Quote
Old 07-16-2013, 02:29 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

1st
18psi is offline   Reply With Quote
Old 07-16-2013, 02:51 PM   #3
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by SleeperMX-5 View Post
but is laggy from turbo being too big.
That's not why its laggy.
soviet is offline   Reply With Quote
Old 07-16-2013, 02:53 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Why is it laggy then?
18psi is offline   Reply With Quote
Old 07-16-2013, 02:57 PM   #5
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by soviet View Post
That's not why its laggy.


Then why isn't it making full boost sooner?
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 03:02 PM   #6
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

In for winning. Glad someone bought that FFS on vlad and is going to use it the right way!

Quote:
Originally Posted by SleeperMX-5 View Post


Then why isn't it making full boost sooner?
Because you touch yourself at night.
Fireindc is offline   Reply With Quote
Old 07-16-2013, 03:12 PM   #7
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Because of the tune and setup.

Log exhaust manifold. Stock NB2 intake manifold.

"high to mid 9's at full boost" - that's like fouling plugs, 25% power drop rich.

"Ignition timing I won't say but lets say LOW" - that's a great way to skyrocket EGT (especially combined with super-rich fuel)

No mention of boost control (wastegate? ebc?) or VVT tuning

etc etc

Turbo sizing has a lot to do with it, but in this case it's just a dumb setup & tune.
soviet is offline   Reply With Quote
Old 07-16-2013, 03:17 PM   #8
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

If you are suggesting my current tune is not ideal, you're crazy!!!!

I kid. Obviously it sucks, I mentioned I tuned it that way to keep it safe (10.5:1 comp, sky-high AITs, no vvt). I know if I tuned it 11:1 and give it more timing I couldn't have made 35 passes at the track without a failure. I can tune a miata, been doing it for 6 years or so. It's rich and retarded now to keep my high comp motor safe till I get the setup finished. IE, it's not finished.
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 03:23 PM   #9
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

And my NB intake manifold is ANYTHING but stock.
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 03:24 PM   #10
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

11:1 is still super rich

you built a motor with stock pistons. now you're working around it to make up for the shortcomings of the motor and blaming it on the turbo being "too big"

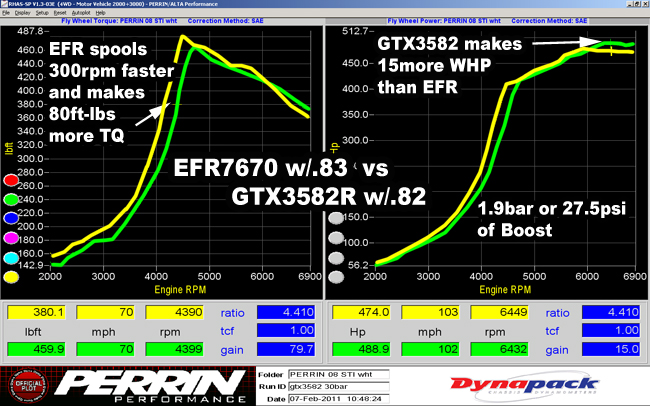

while this guy has 30psi from a GT35R at ~5200rpm. You make 6psi from a better spooling turbo at 6200rpm.



Fix your tune.
Fix your setup.
Attached Thumbnails
Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-gtx35efr7619bar.jpg
soviet is offline   Reply With Quote
Old 07-16-2013, 03:25 PM   #11
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Really? You came here to tell me 9.5:1 is too rich? What are the shortcommings of my engine again? Besides having 250 in the shortblock.
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 03:33 PM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Quote:
Originally Posted by SleeperMX-5 View Post
I know if I tuned it 11:1 and give it more timing I couldn't have made 35 passes at the track without a failure.
If your engine can't handle 11:1 afr - that would be a shortcoming.
soviet is offline   Reply With Quote
Old 07-16-2013, 03:57 PM   #13
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I dunno if it can run 11:1 with 168*F AITs while still breaking it in. Not gonna find out either! I would rather drive it than blow the motor again. I didn't exactly plan to have super high AITs, gotta change my IC setup.

Why you all over my case anyways? Other than stating the obvious. 9.5:1 is rich, 168*F is hot, no timing is not ideal, etc? Things are changing, see first post!

I would be stupid to tune it aggressive when there are problems with the setup (igition pickup issues, AIT issues, wideband at one point, had a tiny boost leak I found too).
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 04:05 PM   #14
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Fireindc View Post
In for winning. Glad someone bought that FFS on vlad and is going to use it the right way!



Because you touch yourself at night.
Yeap, it's gonna be sweet! I think this is the 18 PSI pulley I bought, so should improve low end torque a bit and help spool the turbo sooner too. Win-Win. (Que someone to tell me I'm increasing the cost and complexity!)
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 04:06 PM   #15
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Seven Valleys, PA
Posts: 639
Total Cats: 11
Default

who made that log manifold?
swimming108 is offline   Reply With Quote
Old 07-16-2013, 04:08 PM   #16
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by swimming108 View Post
who made that log manifold?
It's an FM manifold modified to T3 bolt pattern and opening, and a pipe welded on w/ 4 braces to support a 38mm wastegate. I made it T3 and made the pipe piece, had an old man TIG it on with a high-nickel filler. Been solid so far and cheap!
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 04:26 PM   #17
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

So I'm trying to conceptualize this but not real familiar with superchargers. Do they provide a max psi of some sort or will they always provide a constant delta P, So raising the inlet pressure will then directly relate to a raise in outlet pressure from the supercharger? or will the turbocharger just start the supercharger closer to its max target pressure?

Will the turbo not create drag from the supercharger suction at low rpm, then the supercharger just act as a restriction for the turbocharger at higher rpms?
rigidbigelsworth is offline   Reply With Quote
Old 07-16-2013, 04:31 PM   #18
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by rigidbigelsworth View Post
So I'm trying to conceptualize this but not real familiar with superchargers. Do they provide a max psi of some sort or will they always provide a constant delta P, So raising the inlet pressure will then directly relate to a raise in outlet pressure from the supercharger? or will the turbocharger just start the supercharger closer to its max target pressure?

Will the turbo not create drag from the supercharger suction at low rpm, then the supercharger just act as a restriction for the turbocharger at higher rpms?
The engine is an air pump. Mine is a 1.8L air pump.

The SC is an air pump. With a 130/65 pulley setup, it will turn two times every time the crank turns once. Motor moves 1.8L of air in 2 revolutions. So the SC will spin 4 times, each time moving 62 cubic inches of air, which is about 4L worth of air.

So blower tried to push 4L of air into a motor that only asked for 1.8L. Bam, boost.

Same story with the turbo blowing into the SC. Only there isn't a 2:1 or 4:1 simple ratio to explain it. At some engine speed, the motor is going to spool up the turbo and the SC will be sucking in 4L of air per 2 revs of the motor, and the turbo is going to blow in more than that into the inlet, boosting the inlet pressure.

Basically it will drive like a SC car down low, and take off up top when the turbo spools.
patsmx5 is offline   Reply With Quote
Old 07-16-2013, 04:45 PM   #19
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 494
Total Cats: 6
Default

Yeah I get that, I guess I was just looking at it as what happens when one is out performing the other? will the less performing charger not create a drag reducing the performance of each system if it was running independently? Or is that negligible due to the performance gain? So even a supercharger running at half of its normal efficiency due to the turbo creating drag at low rpms would still be better than no supercharger at all I guess. Or will the supercharger suction just cause the turbo to spool up faster and not really allow much drag from the turbo?

Just thinking out loud here

Either way im excited to see what happens.
rigidbigelsworth is offline   Reply With Quote
Old 07-16-2013, 04:45 PM   #20
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

So what is the timeline for this shiz? I want to know when to check back.
