Old 07-18-2013, 03:46 PM   #101
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by concealer404 View Post
Is 87mph in the 1/8 mile special? My daily driver does that, and i'm pretty sure it's not making the 350whp claimed, and it's heavier than a Miata.
87 is the fastest he's been, apparently. the current setup traps 83.

Then there's this guy with an ebay manifold, trapping 93 in 1/8 and 118 in 1/4....
https://www.miataturbo.net/dynos-tim...y-turbo-72172/
soviet is offline   Reply With Quote
Old 07-18-2013, 03:57 PM   #102
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

That sounds much better.
concealer404 is offline   Reply With Quote
Old 07-18-2013, 04:01 PM   #103
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by concealer404 View Post
Is 87mph in the 1/8 mile special? My daily driver does that, and i'm pretty sure it's not making the 350whp claimed, and it's heavier than a Miata.
Assuming the cars weighst about 2400lbs, trapping at 87mph would mean...
232 whp
I used this calculator: Wallace Racing HP Calculator For 1/8th Mile
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-18-2013, 04:04 PM   #104
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I used this calculator: Wallace Racing HP Calculator For 1/8th Mile
Assuming the cars weighst about 2400lbs, trapping at 87mph would mean...
232 whp
The wallace racing calculators assume you make a bit more torque than the average 230hp miata.
Leafy is offline   Reply With Quote
Old 07-18-2013, 04:05 PM   #105
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Torque doesnt matter.
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-18-2013, 04:21 PM   #106
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I give up. I haven't posted ANY dyno or any HP numbers. On m.net I said plus or minus 50 whp. I also said estimate. And I said its cutting out. And I can't find 3 rd at the track. Why does everyone care so much about this? And take everything out of context. Makes no sense. Not even good trolling when you take everything out of context. As said new setup only went 83 mph in the 1/8, not 87!
patsmx5 is offline   Reply With Quote
Old 07-18-2013, 04:24 PM   #107
Senior Member
iTrader: (3)

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 504
Total Cats: 3
Default

Quote:
Originally Posted by concealer404 View Post
Time out.




Is 87mph in the 1/8 mile special? My daily driver does that, and i'm pretty sure it's not making the 350whp claimed, and it's heavier than a Miata.
Damn ninjas...
TurboRoach is offline   Reply With Quote
Old 07-18-2013, 04:35 PM   #108
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Quote:
Originally Posted by SleeperMX-5 View Post
Why does everyone care so much about this?
because you're pretty much pioneering this and we want data
soviet is offline   Reply With Quote
Old 07-18-2013, 04:42 PM   #109
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by soviet View Post
because you're pretty much pioneering this and we want data
I'll share all the data I get. I'm going to quit responding to all the crap post though. I would much rather discuss HOW to make it work than argue about what color an intercooler should be.
patsmx5 is offline   Reply With Quote
Old 07-18-2013, 04:47 PM   #110
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by SleeperMX-5 View Post
I'll share all the data I get. I'm going to quit responding to all the crap post though. I would much rather discuss HOW to make it work than argue about what color an intercooler should be.
***** flesh color.
concealer404 is offline   Reply With Quote
Old 07-18-2013, 06:49 PM   #111
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I'd be happy with virtual dyno pulls, do one and see how the car is running now for a baseline.
Fireindc is offline   Reply With Quote
Old 07-18-2013, 07:25 PM   #112
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

I just read through your thread on Miata.net. Is the fastest MPH you have gone 83.2 in the 1/8th? I saw a reference of 87 MPH but I could not find documentation that you have gone that fast.

Anyway if I may, lets start with the set-up you are currently running. You mentioned that you are going to keep your AFR in the 9's. If you think you are doing this to keep your motor healthy, you are kidding yourself. If you continue to run it like that, you can kiss your cylinder walls goodbye. I recommend that you get your AFR to the tried and trued setting that so many have had success with.

The next thing I would do is make sure you have all your spark issues corrected. You never mentioned the heat range of your plugs. With the turbo you are running, I would go 2 steps colder. Also, you said you were playing around with plug gap. I would stick with between .025 and .030 gap. If you are still having issues with spark, then you need to address the ignitions components.

Then I would work on your timing. If you are smart, you will run race gas at the drag strip until you are confident in your tune, even if you are planning on a conservative pump gas tune. This will give you a margin of safety just in case you make a mistake somewhere.

I would not even consider doing a turbo/supercharger hybrid until you have done all the above. You may find that your priorities change when the car actually runs right. If it were me, I would ditch the blower and use nitrous as your spooling/off the line fix. It is much easier, and has been proven to work.

My
miata2fast is offline   Reply With Quote
Old 07-18-2013, 08:28 PM   #113
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by miata2fast View Post
I just read through your thread on Miata.net. Is the fastest MPH you have gone 83.2 in the 1/8th? I saw a reference of 87 MPH but I could not find documentation that you have gone that fast.

Anyway if I may, lets start with the set-up you are currently running. You mentioned that you are going to keep your AFR in the 9's. If you think you are doing this to keep your motor healthy, you are kidding yourself. If you continue to run it like that, you can kiss your cylinder walls goodbye. I recommend that you get your AFR to the tried and trued setting that so many have had success with.

The next thing I would do is make sure you have all your spark issues corrected. You never mentioned the heat range of your plugs. With the turbo you are running, I would go 2 steps colder. Also, you said you were playing around with plug gap. I would stick with between .025 and .030 gap. If you are still having issues with spark, then you need to address the ignitions components.

Then I would work on your timing. If you are smart, you will run race gas at the drag strip until you are confident in your tune, even if you are planning on a conservative pump gas tune. This will give you a margin of safety just in case you make a mistake somewhere.

I would not even consider doing a turbo/supercharger hybrid until you have done all the above. You may find that your priorities change when the car actually runs right. If it were me, I would ditch the blower and use nitrous as your spooling/off the line fix. It is much easier, and has been proven to work.

My
Thanks for the advice. I have no intention to run 9.5 AFR once everything is right. Only did that because of high comp and high aits to be safe. It will run 11. Something in boost when sits are in check.

I did buy a new ignition system so yes, that's getting fixed ASAP.

I have 2 heat range cooler race plugs going in too.

And yes, I'll be getting everything sorted before compounding. I don't wanna b old another motor if I don't have to. That head wasn't cheap and took a while to build.
patsmx5 is offline   Reply With Quote
Old 07-18-2013, 08:32 PM   #114
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,901
Total Cats: 109
Default

What camshaft are you using?
miata2fast is offline   Reply With Quote
Old 07-19-2013, 02:48 AM   #115
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Quote:
Originally Posted by soviet View Post
because you're pretty much pioneering this and we want data
"Pretty much" being the key part of that statement:






It really comes down to this. The SC is going to create some mechanical losses, as we all know, but will allow for more aggressive tuning as long he uses the turbo to make most of the boost and keeps the SC spinning slowly where its efficient.

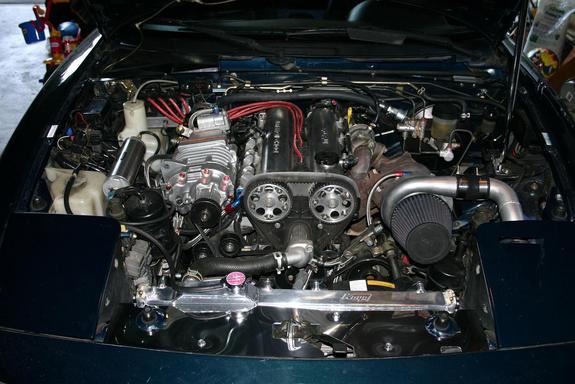

Attached Thumbnails
Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-3291570028_large_zpscd2b6f00.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-3291570018_large_zpsad36994c.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-19-2013, 02:50 AM   #116
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Besides that pic(s) posted all the time I have yet to see a build thread on that car or shared results and testing and what it even put down, etc.

So if Pat actually documents and shares with us his whole journey (which he intends to, whether its win or fail), he will pretty much pioneer this.
18psi is offline   Reply With Quote
Old 07-19-2013, 03:02 AM   #117
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

True. although its been done plenty with other cars, even with pretty similar components, such as the god awful M45 poopercharger.





Quote:
Current tune:

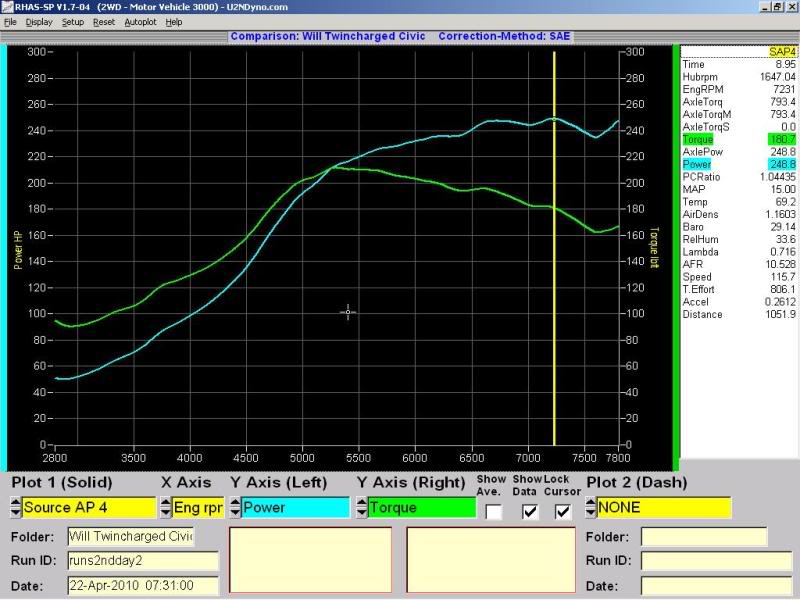

We also tried bypassing the SC to see what effect it has. Here is a turbo only curve at 16psi. Looks like typical shape for a turbo plot. Drivability would suffer at the lower rpms on the track.

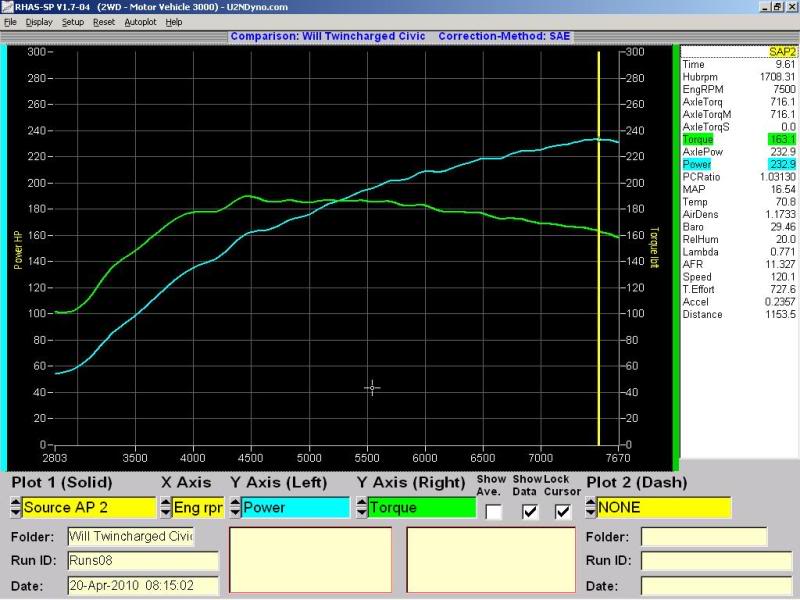

And at the same boost level a comparison with twincharge. Torque curve is flattened out and wider by about 1000rpms.

Its a balance between parasitic loss of the supercharger and higher IATs post SC'er without an intercooler, and greatly improved scavenging.
What wins out? Its hard to say.

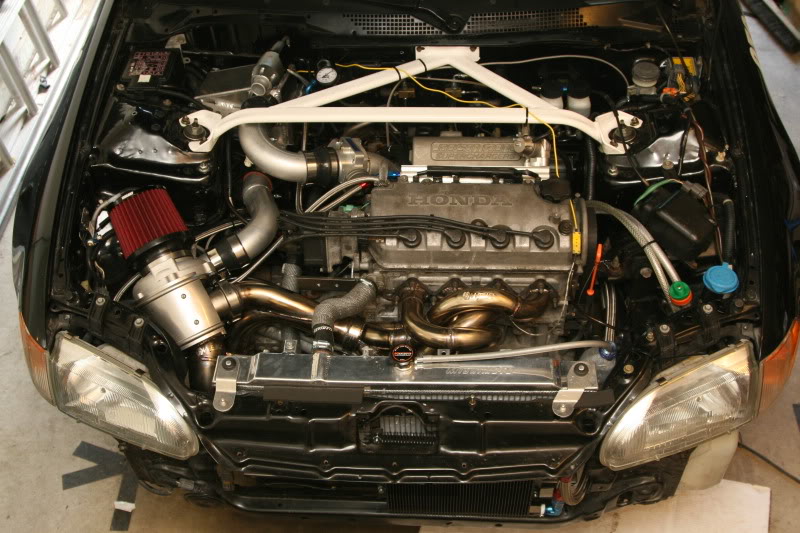

Attached Thumbnails
Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-img_9400.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-4707622075_86160dec0a_b.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-bypasspowertq.jpg   Compound boost: EFR 7670 into Coldside FFS W/ H20/Meth into 10.5:1 VVT Built Engine-16psipowertorque.jpg
Full_Tilt_Boogie is offline   Reply With Quote
Old 07-19-2013, 08:13 AM   #118
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by 18psi View Post
So if Pat actually documents and shares...
that's funny.
Braineack is offline   Reply With Quote
Old 09-23-2013, 01:16 AM   #119
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

Oh look,
this thread.
soviet is offline   Reply With Quote
Old 09-23-2013, 12:25 PM   #120
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Braineack View Post
Quote:
Originally Posted by 18psi View Post
So if Pat actually documents and shares...
that's funny.

Still mildly entertaining.
Braineack is offline   Reply With Quote
