Default Compressor housing quandary

Well, my SR20det compressor housing adapters haven't showed up yet... almost ready to file a Paypal claim, but it got me thinking...

My old 2G DSM compressor housing is .48ar and the new one is .80, ie. imcompatible. Why not just port the old one to go over the new compressor wheel??? That would be awesome as I wouldn't have to modify any of my existing piping. Obviously the tolerances are fairly tight and I wouldn't want to tackle this with my Dremel. I know turbo shops do a lot of machining but couldn't find anybody who advertises this exact service.

Anybody know of a shop who will take my .48ar compressor housing and port it out to .80ar?
samnavy is offline   Reply With Quote
Old 02-11-2007, 07:48 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Unless I'm mistaken the A/R is not the size of the wheel, it is the ratio of Area/Radius which is the cross-sectional size of the compressor housing inlet divided by the distance from the center of that area to the center of the turbine. The wheel size does affect this but the size of the volute in the housing is also important.
So they would be porting it to the size of the wheel and not just the A/R. Kind of like when people upgrade T25s to a T28 compressor side I suppose.
I don't know anyone that does that machining though.
I'll sell you my compressor outlet if you want, it's the one from ATP, comes with seals, bolts, and vac fitting.
cjernigan is offline   Reply With Quote
Old 02-11-2007, 08:13 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Are the housings made to accept teh same compressor wheel?

If so, then no machining is needed, as the A/R has nothing to do with it.
Braineack is offline   Reply With Quote
Old 02-11-2007, 08:15 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

A test fit is in order. My Saab T25 compressor housing wouldn't fit on my larger Nissan T25 wheel (for obvious reasons).
cjernigan is offline   Reply With Quote
Old 02-11-2007, 10:11 PM   #5
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

sam i think the nissan turbo is a t28,GT2560R.
turbopezz is offline   Reply With Quote
Old 02-11-2007, 10:14 PM   #6
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

no...its a Garret T25...I sold it to him.

its an s13 T25...not the BB ones of later S15s
miatamania is offline   Reply With Quote
Old 02-11-2007, 11:17 PM   #7
Elite Member
Thread Starter
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

So, what to do?
I know somebody out there in the turbo world has a CNC machine with the correct program already to go for what I want... or something like that. I'm gonna call a couple of the custom places on the internet and see what they recommend.
samnavy is offline   Reply With Quote
Old 02-11-2007, 11:22 PM   #8
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

gpopshop does that **** in addition to selling rebuild kits im pretty sure. Shoot them an email.
neogenesis2004 is offline   Reply With Quote
Old 02-12-2007, 04:02 AM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You also have the option of having a cast aluminum elbow welded onto the outlet. WOT can get them through ATP. That way you don't have to have the housing machined at all and you maintain all stock components for that turbo. I was going to go that route, but decided the machine work to be far easier.
cjernigan is offline   Reply With Quote
Old 02-12-2007, 04:19 AM   #10
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

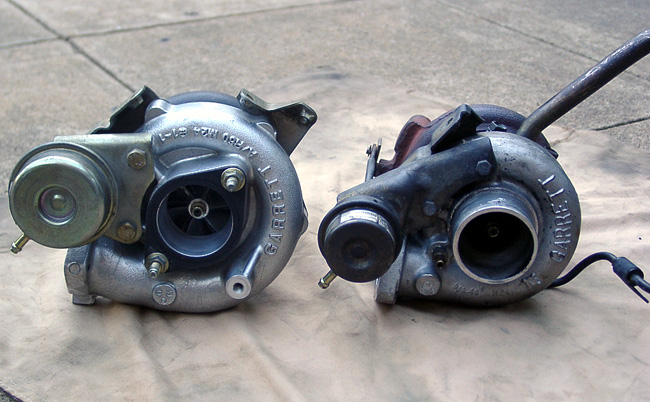

t28 comparison to t25.just trying to be helpful.
Attached Thumbnails
Compressor housing quandary-t28vst25_front.jpg
turbopezz is offline   Reply With Quote
Old 02-12-2007, 07:47 AM   #11
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

You can contact Guillaume at Blaastperformance too. He'll answer your email and tell you all your options. He might have a housing you're looking for which would be cheaper than the machining probably. If he can do the work, I've got a $50 credit with him which I'd sell for half price too. That offer goes to anyone looking to get something from him. I don'tneed any turbo stuff in the near future.

Frank
fmowry is offline   Reply With Quote
Old 02-12-2007, 01:08 PM   #12
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

honestly sam, stop trying to make a frankenstein turbo and just get a nice used SR20 T25 w/ the larger a/r compressor housing. Youll thank me later.
F20turbo is offline   Reply With Quote
Old 02-12-2007, 01:09 PM   #13
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

+1
magnamx-5 is offline   Reply With Quote
Old 02-12-2007, 01:17 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

haha, your turning into Carlos at this point Sam. :gay:
Braineack is offline   Reply With Quote
Old 02-12-2007, 01:30 PM   #15
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 464
Total Cats: 0
Default

Quote:
Originally Posted by turbopezz View Post
sam i think the nissan turbo is a t28,GT2560R.
That isn't possible is it? I thought that the 25 in the part number would make it a T28.

Anyways, my roommate has an S15 BB T28 for sale with elbows, I'll see if he is willing to part with just the elbows.
PAT! is offline   Reply With Quote
