Default Custom Exhaust Manifold is cracked / has hole... what could have caused this?

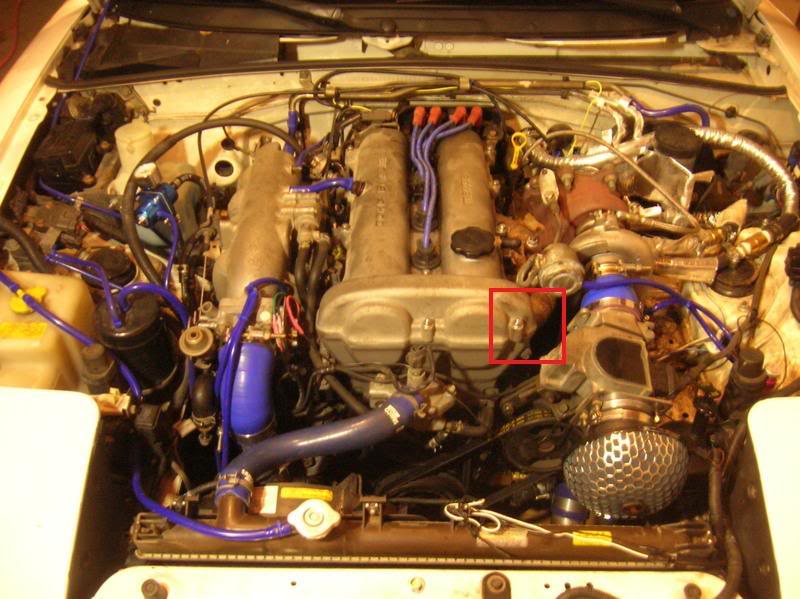

Im trying to figure out what could have caused this and have a few ideas so far. I am yet to take the exhaust manifold off the car to see exactly what has happened. About a week ago under any throttle above 1500 rpm's theres a loud exhaust leak that ticks(usually indicates a pre turbo leak). I checked the bolts holding the manifold in place hoping a few nuts got loose and while looking around for the leak, I gave the car a little throttle and was able to see some of the heat wrap around the manifold shooting out little dust particles indicating the hole is on the front section of the exhaust manifold. The red box indicates roughly where the hole is and its on the bottom side of the manifold (the side closest to the ground). The picture of the engine is not current...and i know theres a few issues with that setup. Any suggestions are appreciated.

Possible problems
-To much weight on the manifold due to turbo set up
FIX = Build custom brackets for manifold and turbo

-Material it was crafted from is to weak
FIX = Use better material, heat coat it

-Engine shifting under load with extra weight cracked it
FIX = HD motor mounts or chains to help engine from flexing as much

Name:  exhleakpic.jpg
Views: 16
Size:  85.6 KB
wrxnova is offline   Reply With Quote
Old 02-28-2009, 04:17 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

What manifold is it? I'd like to see a picture of the manifold, something closer up atleast to see which one it is.
What is the manifold made of?

It's hard to recommend much without knowing which manifold it is. It might have cracked due to lack of relief cuts but that is manifold dependent.
Standard recommendation would be to fix the manifold and brace it to take the weight off the runners. Maybe brace the downpipe as well so the turbo and manifold aren't supporting the weight of the downpipe and exhaust.
cjernigan is offline   Reply With Quote
Old 02-28-2009, 04:25 PM   #3
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

I will report back with pics as soon as the manifold is off the car. It was an ebay manifold (i think made from stainless steel) that i cut the turbo flange off of and then welded on a new flange for my turbo.
wrxnova is offline   Reply With Quote
Old 02-28-2009, 04:32 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That's the problem.
Read here. The ebay manifolds are built with cheap tubing, they all crack eventually, especially without bracing. Buy a real manifold.

https://www.miataturbo.net/forum/t19358/
cjernigan is offline   Reply With Quote
Old 02-28-2009, 04:39 PM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Yeah, post up a detail pic so we can get an idea of the "weakness" that might have led to it.
m2cupcar is offline   Reply With Quote
Old 02-28-2009, 04:45 PM   #6
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Buying one is not an option as its a custom turbo setup. Other than starting with a new manifold and welding onto that one is there anything that can be done to strengthen my current POS ebay manifold?
wrxnova is offline   Reply With Quote
Old 02-28-2009, 05:42 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

why dont you actually get some pics so we dont have to work with only speculation.
Ben is offline   Reply With Quote
Old 02-28-2009, 05:46 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

i like your heater core outlet plumbing... and your blocked breather line.
Braineack is offline   Reply With Quote
Old 02-28-2009, 05:53 PM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,356
Total Cats: 1,322
Default

Halp u guyz i want 2 kno y my ebay manifold broke :[
Savington is offline   Reply With Quote
Old 02-28-2009, 06:06 PM   #10
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post
i like your heater core outlet plumbing... and your blocked breather line.
LOL @ heater routing. As far as the crank lines go, most of the big daddy turbo set ups I see have the breather end plugged with a big PCV on the other end going to a catch can and then the intake manifold. I've also seen them going to the exhaust instead of the intake manifold, supposedly if you do it correctly, the exhaust flow will suck fumes through and burn them without getting the mess into the IM.
Ben is offline   Reply With Quote
Old 02-28-2009, 07:16 PM   #11
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Heater core was removed, valve cover breather has since been routed into the intake... thats why i said please excuse the outdated pics but anyways here are the pics of the crack in the manifold.

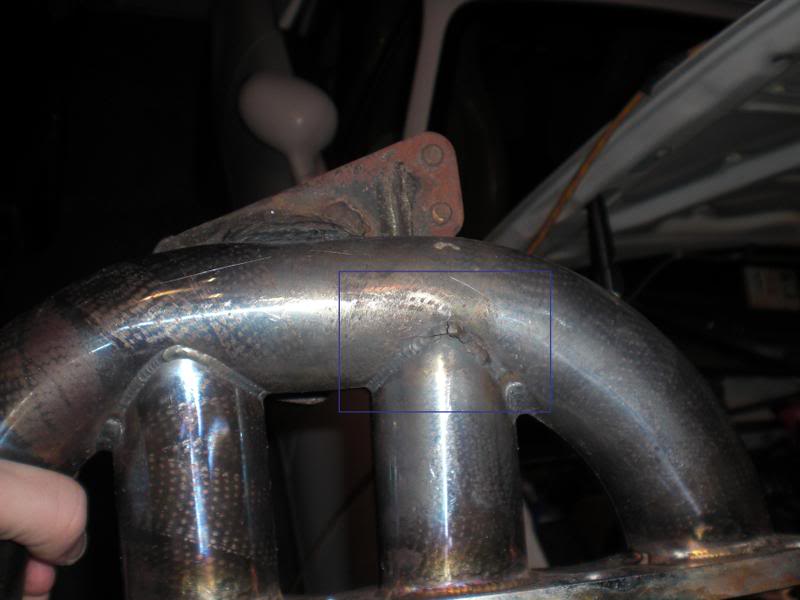

Name:  crackedmanispot.jpg
Views: 32
Size:  71.3 KB

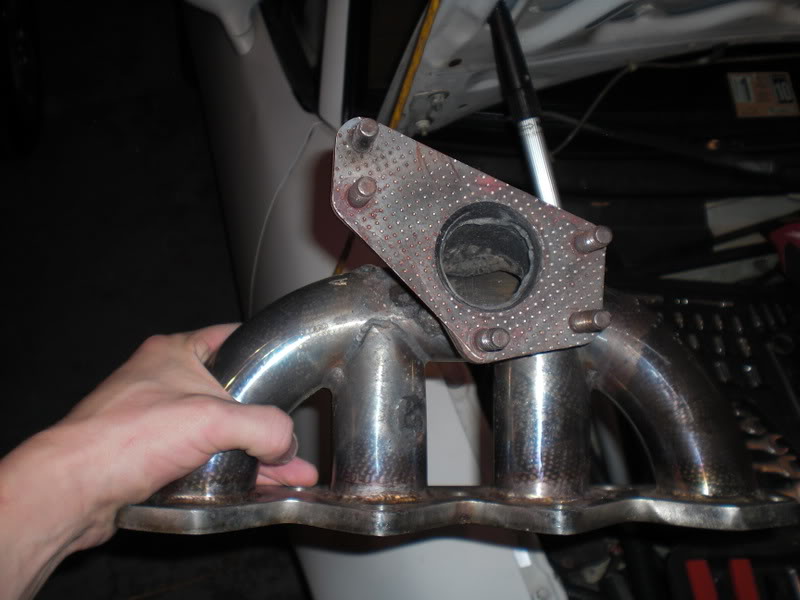

Name:  003.jpg
Views: 15
Size:  91.1 KB

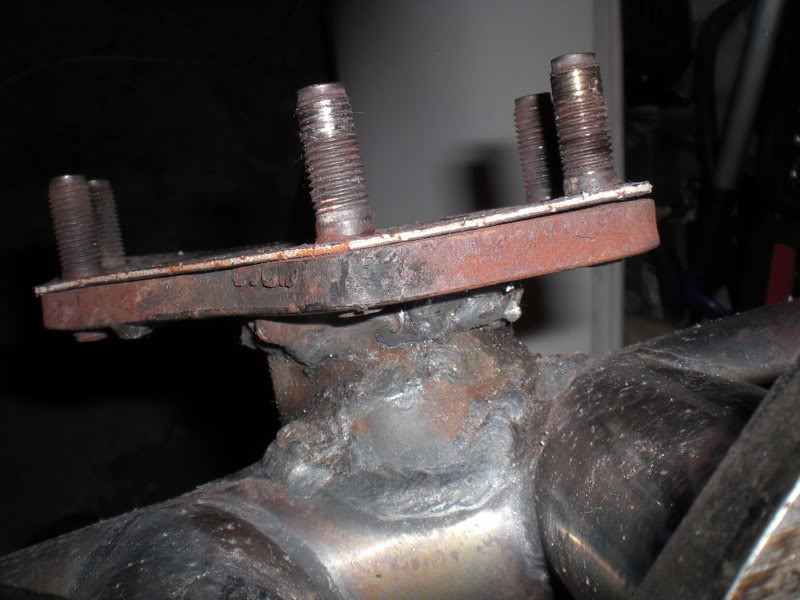

Name:  004.jpg
Views: 13
Size:  106.4 KB
wrxnova is offline   Reply With Quote
Old 02-28-2009, 07:33 PM   #12
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

An ebay manifold cracked. Damn, that's never happened...
patsmx5 is online now   Reply With Quote
Old 02-28-2009, 08:09 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

was it always wrapped? it's the nature of that manifold to crack, really.
Braineack is offline   Reply With Quote
Old 02-28-2009, 08:29 PM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Weld it up and wait for it to crack again, brace it this time, might last an extra week.
cjernigan is offline   Reply With Quote
Old 02-28-2009, 09:13 PM   #15
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

I now realize its made of cheap metal... I am just looking for a way to use it for a bit longer until I fabricate another design. It was the first exhaust manifold ive ever made. I know that I could have bought a turbo that would have worked with begi's or another name brands manifolds but i wanted to use a wrx turbo.

To those that fabricated their exhaust manifolds, what did you use as a starting point?
wrxnova is offline   Reply With Quote
Old 02-28-2009, 09:16 PM   #16
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Search. Search for words like "manifold" "tubular" "weld-ell" "pipe" and things like that. Schedule 10 and Schedule 40 pipe works very well to make runners for a manifold. Last forever and never cracks if you weld it up half way decent.
patsmx5 is online now   Reply With Quote
Old 02-28-2009, 09:30 PM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Turbo Header kits WARNING! FABRICATION REQUIRED!!!!!!!!!!!!!!!!!!!!!!

They sell a miata specific log manifold kit that takes all the work out of sourcing parts.
cjernigan is offline   Reply With Quote
Old 02-28-2009, 10:37 PM   #18
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

My plan for the WRX turbo:
You can take a cast mani for a T25 made by FM or Begi or HKS, etc., and buy two things from Weirtech. A T25 flange and a Subie flange. Orient them so you can get to the bolt holes on each and weld the two flanges together. Bolt the T25 part down to the mani and the Subie part to the turbo.

Or just weld the Subie part to the cast mani if you don't think you will ever go to a T25 in the future.

I'm going to try to do it the first way to preserve the integrity of the manifold.

If you are building your own mani, Weirtech has really nice flanges for the part that bolts to the head also...
weiRtech
sixshooter is offline   Reply With Quote
Old 03-01-2009, 01:15 AM   #19
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

or, you can bother ETD racing to make another one of this:

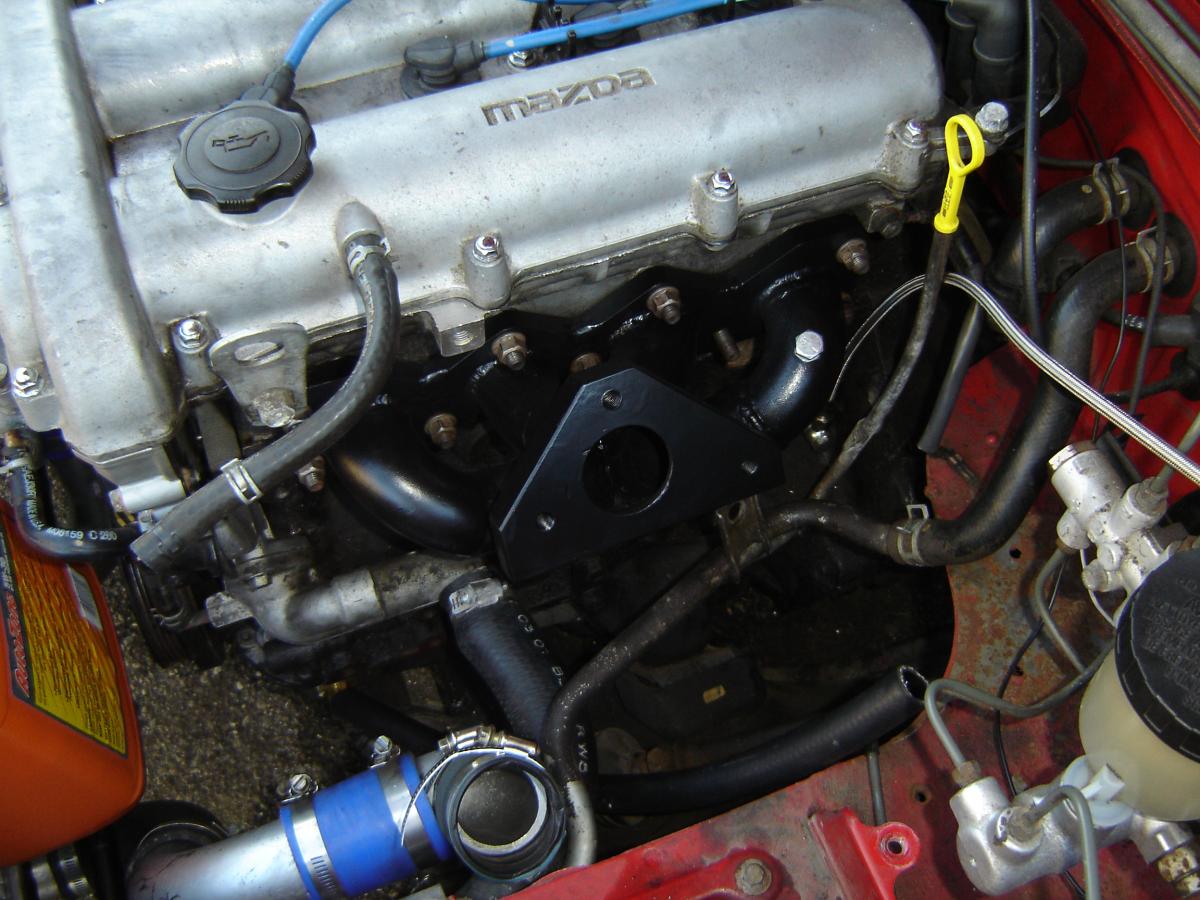

Custom Exhaust Manifold is cracked / has hole... what could have caused this?-dsc00460.jpg

but seriously, you could get one of these:

eBay Motors: 89-93 MAZDA MIATA 1.6L B6 CAST T3/T4 TURBO MANIFOLD (item 250380055633 end time Mar-02-09 17:38:31 PST)

and make an adapter plate that has countersunk bolt holes for the T25 flange and through-holes for the IHI/Subaru flange.
The_Pipefather is offline   Reply With Quote
Old 03-01-2009, 07:56 PM   #20
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default

Pipefather,
That shore is purty! I'm sure it was a few bucks more than I was willing to spend, though.
