Old 03-01-2009, 08:14 PM   #21
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

I welded the crack up, despite how I kept going right through it... it really is thin metal. I ran a few thicks beads across it hoping to give it a little more structure... I only want it to last a few more thousand miles... we will see.
wrxnova is offline   Reply With Quote
Old 03-01-2009, 08:37 PM   #22
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

That is the only crack you have. LOL

Mine is about to fall apart! LOL!
Toddcod is offline   Reply With Quote
Old 02-24-2010, 07:51 PM   #23
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

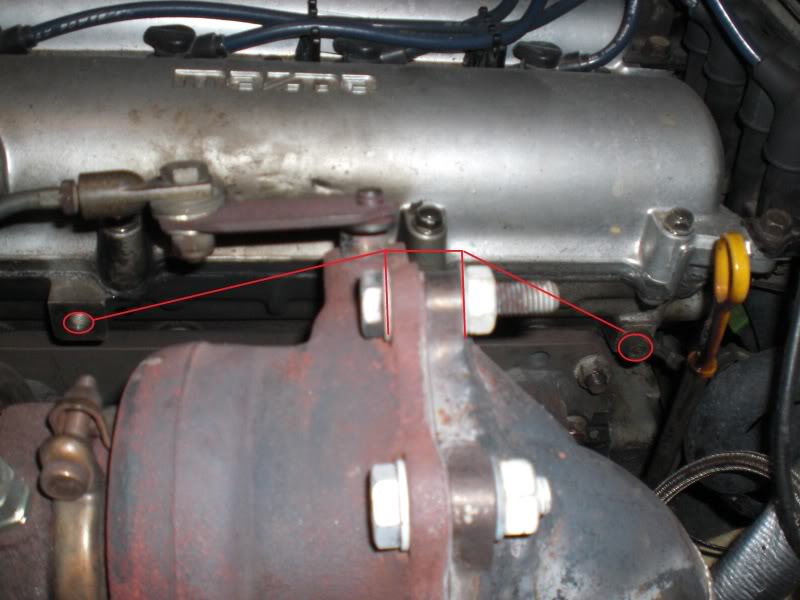

Unfortunately having issues with my new exhaust manifold and looking for some advice/tips on the support braces i'm about to make. I dont want to mount to the valve cover bolts so mounting locations are limited... but welding is an option.

Name:  Photo10111525.jpg
Views: 3
Size:  120.2 KB

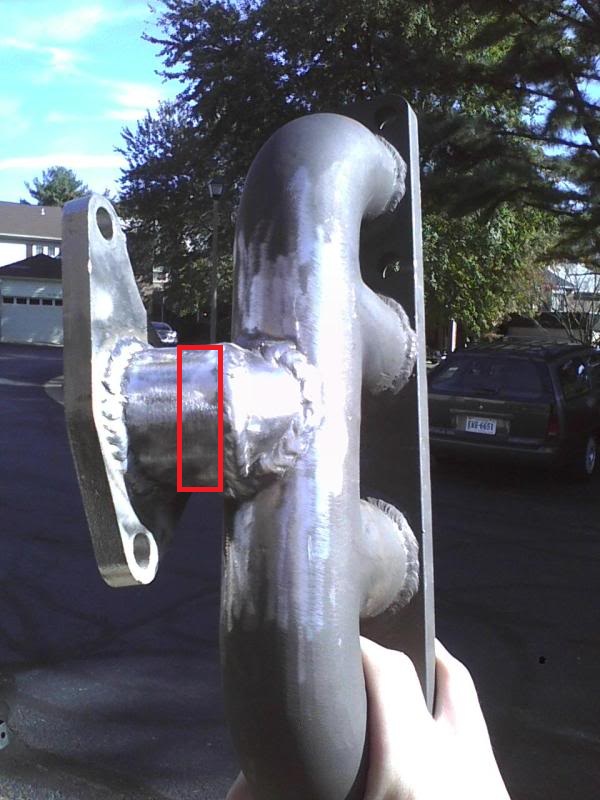

This is the new manifold Ive been using.

Name:  P1010001.jpg
Views: 3
Size:  33.1 KB

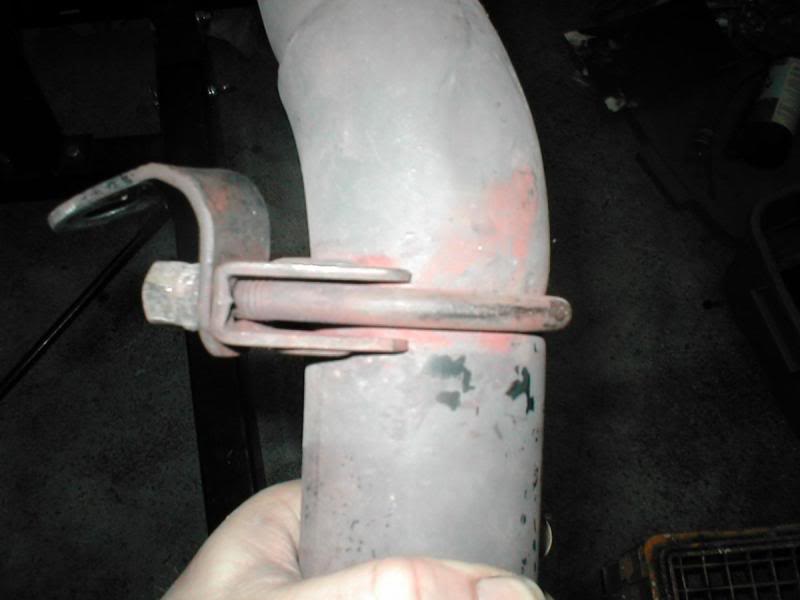

Downpipe to transmission bracket. I will defintiely use this.

Name:  P1010002.jpg
Views: 3
Size:  122.4 KB

Name:  Photo101115251.jpg
Views: 3
Size:  228.6 KB


or

Name:  CIMG1139.jpg
Views: 3
Size:  93.4 KB
wrxnova is offline   Reply With Quote
Old 02-24-2010, 09:21 PM   #24
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Indianapolis, IN
Posts: 758
Total Cats: 5
Default

Other than the fact that it is a cheap POS manifold to begin with, the heat wrap was probably a contributing factor. It allows moisture to get trapped next to the manifold, which can create large temperature gradients between nearby sections of metal, which leads to stress cracking.
boileralum is offline   Reply With Quote
Old 02-24-2010, 09:32 PM   #25
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

you cant brace it off the head, there will be dramatic differences in thermal expansion and it will cause another failure.

If that is thick material you wont need any bracing, that looks like a JGS to me, so that means its basically made of weld-els and should be plenty strong.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-24-2010, 10:34 PM   #26
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
you cant brace it off the head, there will be dramatic differences in thermal expansion and it will cause another failure.

If that is thick material you wont need any bracing, that looks like a JGS to me, so that means its basically made of weld-els and should be plenty strong.
It is a JGS (stage 2 i believe) and is way thicker than my first. Lasted 2k street miles. If I cant brace to the head, is their anywhere safe I can brace to? The standard issue bracing from downpipe to transmission just isnt cutting it.

Last edited by wrxnova; 02-24-2010 at 10:47 PM.
wrxnova is offline   Reply With Quote
Old 02-24-2010, 11:04 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I don't see the new manifold being a problem...
Braineack is offline   Reply With Quote
Old 02-24-2010, 11:07 PM   #28
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

If that's a JGS mani, you won't need to brace it. It's sched 40 pipe, plenty strong.
m2cupcar is offline   Reply With Quote
Old 02-24-2010, 11:11 PM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

leave it to the brain to crack a jgs log.

Braineack is offline   Reply With Quote
Old 02-24-2010, 11:36 PM   #30
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Name:  Photo1011152522121.jpg
Views: 3
Size:  227.8 KB

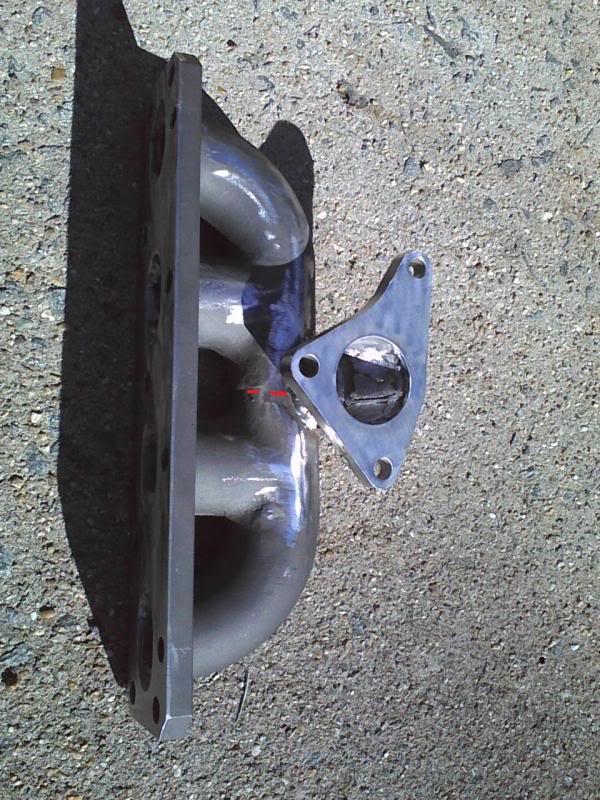

Thats what my new cracks look like.. no actual pics as its still on the car. Does the dead center location mean anything? High egt?
wrxnova is offline   Reply With Quote
Old 02-25-2010, 01:02 AM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

hey look at that, cracked in the same spot...but my turbo sat directly off #2. Mine cracked from too much exhaust bracing, I had my DP mounted firmly to the tranny.
Braineack is offline   Reply With Quote
Old 02-25-2010, 01:32 AM   #32
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Brace turbo mani to downpipe trans brace. Weld a tab to both the manifold and downpipe and bolt a fitted DIY steel bracket to it. I have had an ebay manifold and I was able to extend the life by doing this after it cracked a couple of times, along with an extra tab and bracket to the car's body, with swivel joints of course.

Edit: this may only work for my top mount, I forgot yours is a log... my bad. Brace downpipe to the block, where the tranny bolts to.
Pen2_the_penguin is offline   Reply With Quote
Old 02-25-2010, 01:46 AM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

good idea!

Braineack is offline   Reply With Quote
Old 02-25-2010, 04:23 AM   #34
Senior Member

Join Date: Aug 2009
Location: MONROE CT
Posts: 1,100
Total Cats: 2
Default

Do you have a flex joint in you downpipe?
miatamike203 is offline   Reply With Quote
Old 02-25-2010, 09:31 AM   #35
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
hey look at that, cracked in the same spot...but my turbo sat directly off #2. Mine cracked from too much exhaust bracing, I had my DP mounted firmly to the tranny.
To much bracing!?!? Didnt think that was possible. What did you do then?

Quote:
Originally Posted by miatamike203 View Post
Do you have a flex joint in you downpipe?
Yes.
wrxnova is offline   Reply With Quote
Old 02-25-2010, 09:33 AM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by wrxnova View Post
To much bracing!?!? Didnt think that was possible. What did you do then?
Got BEGi parts.

Read through this, Keith explains the issue pretty well: https://www.miataturbo.net/forum/t43572/
(Post #9)
Braineack is offline   Reply With Quote
Old 02-25-2010, 09:50 AM   #37
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
Got BEGi parts.

Read through this, Keith explains the issue pretty well: https://www.miataturbo.net/forum/t43572/
(Post #9)
Im pretty sure my downpipe is to far from the transmission to use FM's brace (already considered it) but ill check it out tonight.
wrxnova is offline   Reply With Quote
Old 02-25-2010, 10:11 AM   #38
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

A crack like that in a sched 40 pipe mani looks like the need for flange cuts. That said, the weld looks like it lacked penetration based on the rather large ridge. And I'd expect the load oriented crack to be in a weld running the opposite direction, like at the head flange or turbine flange- perpendicular to the load action.
m2cupcar is offline   Reply With Quote
Old 02-26-2010, 08:11 PM   #39
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

OT but are there any reports of the ebay T3 cast manifold cracking? I haven't heard any yet.
albumleaf is offline   Reply With Quote
Old 02-27-2010, 04:29 AM   #40
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by Braineack View Post
good idea!

holy roflshits!! time to grind that **** off...
