Old 03-05-2010, 11:23 AM   #41
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Name:  HPIM0214.jpg
Views: 4
Size:  71.3 KB

Name:  HPIM0213.jpg
Views: 4
Size:  85.1 KB

Should have made text a bit larger, sorry... but the arrows give you an idea of where the cracks are.


Its way worse than expected. On the center portion a crack runs nearly the entire way around and on the 2 outside runners cracks are developing on either side. This is a JGS stage 2 manifold (which was already welded together, which means all i had to do was weld on the turbo flange). All these cracks make me think that my bolts holding the turbo to the manifold allowed it to shift side to side thus cracking it. Im going to weld nuts to the bottom of the turbo flange to hopefully relieve me of this issue. Any advice is appreciated. This next time the manifold is being welded it will be done by a friend that welds for a living so hopefully he can do a better job.

Last edited by wrxnova; 03-05-2010 at 11:35 AM.
wrxnova is offline   Reply With Quote
Old 03-05-2010, 06:40 PM   #42
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

HOLY. Buy a new manifold now.
stranges12712 is offline   Reply With Quote
Old 03-05-2010, 07:31 PM   #43
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

needs more absurdness.
hustler is offline   Reply With Quote
Old 03-05-2010, 07:38 PM   #44
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

Fixed... I believe. Took the manifold to a friend thats been welding for 20 years and he blamed the manufacturer immediately after looking at. He claimed none of the welds by JGS (holding the elbows to the t pipe pieces) had penetrated deep enough. He drilled holes at the start and finish of each crack, then made V cuts with a dye grinder down each of the cracks (where the pieces were welded by JGS), then ran a solid bead down each of the V grooves. Its not as pretty but functional again. Pics coming soon.
wrxnova is offline   Reply With Quote
Old 03-05-2010, 08:31 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

now fix your gas tank too.
Braineack is offline   Reply With Quote
Old 03-06-2010, 12:03 AM   #46
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

imo that is stress/vibration maybe throw a brace in the mix for insurance.
magnamx-5 is offline   Reply With Quote
Old 03-06-2010, 07:10 PM   #47
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jan 2008
Location: Manassas, VA
Posts: 232
Total Cats: 3
Default

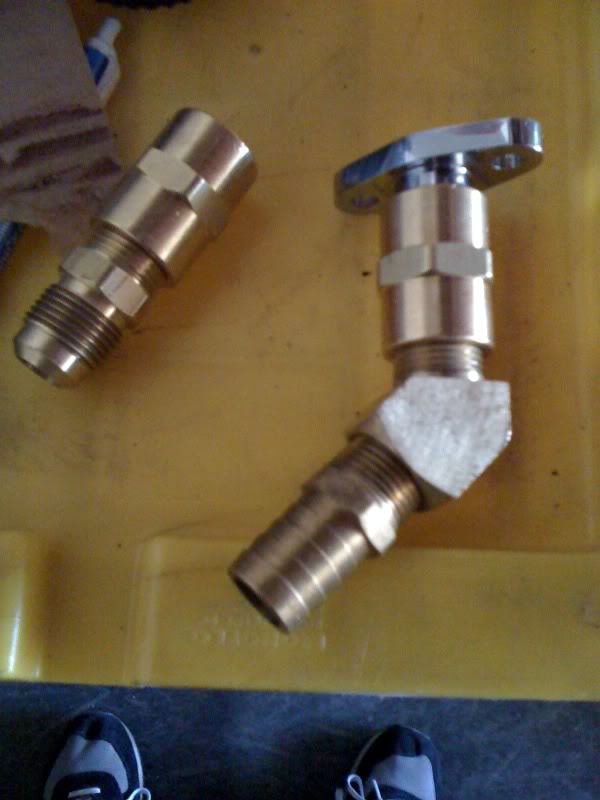

:Name:  b532ba8c.jpg
Views: 4
Size:  46.5 KB

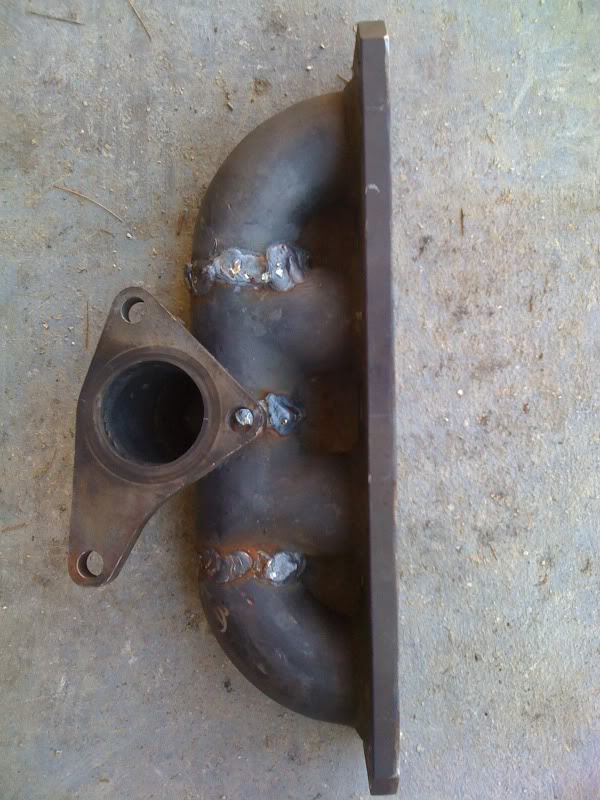

Name:  98432391.jpg
Views: 4
Size:  91.9 KB



still needs to be cleaned up but very functional
wrxnova is offline   Reply With Quote
Old 03-11-2010, 09:10 PM   #48
Former Vendor

Join Date: Dec 2007
Location: Texas Hill Country
Posts: 271
Total Cats: 16
Default

The log gets gobs hotter than the flange, thus its gets longer by even more gobs than the flange. Cut the flange between every port, literally slice it into four pieces. Then when the log heats up, the flange will slip on the head rather than force the log to crack.
It will warp when cut, but grind it flat.


Also, tighten the manifold to head stud/nuts a bit less.

Corky
Corky Bell is offline   Reply With Quote
