Old 05-06-2014, 01:09 PM   #21
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Tekel View Post
From their facebook
[/IMG]

Internal WG t3. They are saying $1500 with IC and turbo.
Now I understand the angle of the turbo.

Their kit has that funky IWG actuator that would hit if the turbo was positioned straight.

Kind of odd positioning for the intake pipe still, but its not that bad.

would like to see the downpipe clearance with it, but the turbo is forward mounted, so it might not be too bad... just a long downpipe.
shlammed is offline   Reply With Quote
Old 05-06-2014, 01:16 PM   #22
Newb

Join Date: Apr 2014
Posts: 11
Total Cats: 0
Default

Quote:
Originally Posted by shlammed View Post
Now I understand the angle of the turbo.

Their kit has that funky IWG actuator that would hit if the turbo was positioned straight.

Kind of odd positioning for the intake pipe still, but its not that bad.

would like to see the downpipe clearance with it, but the turbo is forward mounted, so it might not be too bad... just a long downpipe.
Yeah and its v-bands which is a plus, I think.





Attached Thumbnails
Cx racing thick walled tubular t3 manifold-9.jpg   Cx racing thick walled tubular t3 manifold-12.jpg   Cx racing thick walled tubular t3 manifold-8.jpg
Skraight is offline   Reply With Quote
Old 05-06-2014, 01:30 PM   #23
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

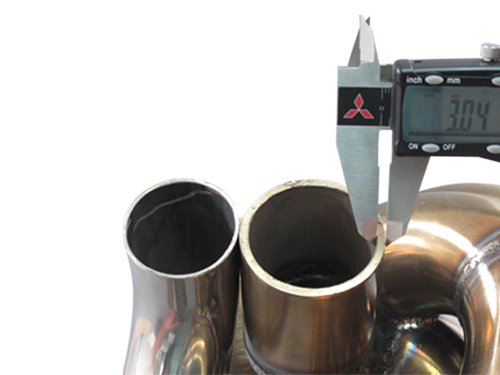

3mm is a good thickness. If its welded well, there shouldn't be any issues of cracking provided there is a nice flex bellow or brace in the exhaust system.


vband exhaust is nice, if the turbo has a vband on it. I don't (personally) understand the appeal of a vband adapter on the turbo unless the adapter in this case also is a 5 bolt turbo outlet with wastegate with a vband outlet... which in case, the turbo is an EWG turbo adapted to IWG operation....

Either way, different strokes.
shlammed is offline   Reply With Quote
Old 05-06-2014, 01:34 PM   #24
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The turbo kind of has a v-band outlet. Either way that style turbo is going to have at least a single bolted connection where the wastegate housing thing bolts on. You can still choose a normal bolted flange as the outlet to that housing, but why?
Leafy is offline   Reply With Quote
Old 05-06-2014, 01:37 PM   #25
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

And that's fine if you have to run the IWG adapter....

I just don't like the no purpose 5 bolt to vband adapter that is like an inch and a half deep.

You have the 5 bolt flange still, but then adapt it to vband for no apparent reason. there is no real reason to need the vband, and if there is you should be welding the vband right to the turbine housing. Again, its a personal thing I suppose, but I usually try to prevent the adapters in builds im consulting.
shlammed is offline   Reply With Quote
Old 06-15-2014, 04:35 AM   #26
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

Why is it only listed to work up to 99? Is it because of the down pipe and cat location? This should bolt right up to a VVT head right?
jacob300zx is offline   Reply With Quote
Old 06-15-2014, 04:59 AM   #27
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

go ahead and find out
