Default DIY finally running!

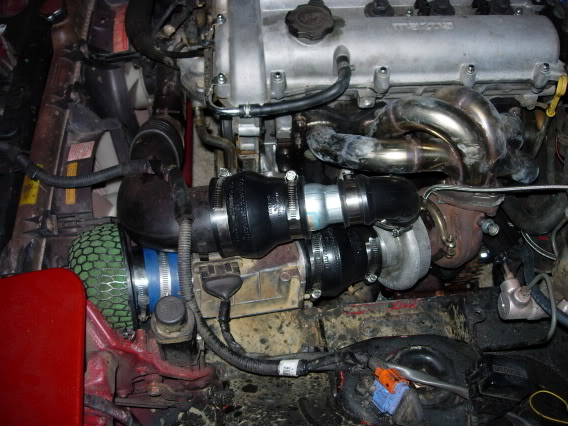

Still leaking a bit of oil at the return, and I need to install my fuel pump, but the car is running now......in a very ghetto fashion

Name:  TURBO003.jpg
Views: 2
Size:  65.1 KB
Betrayed is offline   Reply With Quote
Old 07-29-2006, 04:30 AM   #2
Newb

Join Date: Mar 2006
Posts: 8
Total Cats: 0
Default

specs?
I am planing a getto diy install my 1.6 soon
2002rsr is offline   Reply With Quote
Old 07-29-2006, 05:24 AM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Man that is alot of dirt put that puppy back together and go for a spin to blow some of it out.
magnamx-5 is offline   Reply With Quote
Old 07-29-2006, 10:59 AM   #4
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Anaheim, Ca
Posts: 118
Total Cats: 0
Default

it was actually a small colant drip on a pully, resulting in a colant bath under the hood. All it needs is a damp towel to clean up. With luck today I can hook up the SAFC I and fuel pump, then I can run at boost witout worry. Last night just made me hungrier(I took it for a small test with the o2 senser out so it would flood it with fuel and just touched boost).

Specs are as follows.
16g turbo
greddy tubular racing manifold w/ external wastegate(you usually see them for sr20s and such, I just got REALLY lucky with finding it. Retails at $1600 in japan)
HKS external wastegate with 5.62 lb spring
Custom made downpipe

(parts waiting but not installed)
SAFC I
255lb fuel pump
HKS boost controller
440 supra injectors
Blitz turbo timer
Betrayed is offline   Reply With Quote
Old 07-29-2006, 01:40 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

Your're going to melt your home depot 90* off the compressor outlet.

Did you tap the pan, that turbo sits too low not to have.

Is the crankcase braether line still hooked into the crossover? If so, plug that bitch.

Investing in a 2.5"/3" 45* silicone bend would put your filter right behind the headlight

and clean up your poop stains and heat wrap your water lines and brake lines and master, and while your at it the rubber bend off the turbo.

Braineack is online now   Reply With Quote
Old 07-29-2006, 03:50 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Don't you mean 15g unless you modified the normal greddy manifold the
tdo4-15g is what they run with i thought. the physical size difference is quite apparent.
magnamx-5 is offline   Reply With Quote
Old 07-29-2006, 05:14 PM   #7
Senior Member
iTrader: (1)

Join Date: Mar 2006
Location: Tucson "it's 110" Arizona
Posts: 1,017
Total Cats: 0
Default

Quote:
Originally Posted by braineack
Your're going to melt your home depot 90* off the compressor outlet.

Also it's nearly touching the manifold. Clock the turbo a couple degrees, plus the (above recommended) high temp silicone.

Any I/C plans?

Nice work on getting it started though.
UofACATS is offline   Reply With Quote
Old 07-30-2006, 12:37 AM   #8
Junior Member
Thread Starter

Join Date: Nov 2005
Location: Anaheim, Ca
Posts: 118
Total Cats: 0
Default

actually the 45 angle isnt as close as it looks. Its flexible pvc and the silicone one is in the mail. It is a 16g because its a t05. It is not close to the stock greddy setup. That picture was literally taken right after we finished hooking everything up. I still plan on capping the crank, thats happening tommorow. I have an intercooler setup planned, just need to get the pipes for it.

Oil pan IS tapped, as there was no way I was going to get away with running it around the block. After the little things are taken care of, its heat shielding for everything in the area.

Thanks for the reminders though. It helps to double check over my checklist to make sure Im not forgetting anything
Betrayed is offline   Reply With Quote
Old 07-30-2006, 01:00 AM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

cool i am no longer as alone. it is a small i assume? great job.
magnamx-5 is offline   Reply With Quote
Old 07-30-2006, 01:06 AM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

don't forget to hold onto something when you hit 3400 or so. how many pounds are you planing on running? the 6 psi should be pretty safe with fpr and even moderate IC heck i can run 8 psi on mine with the WI turned of before i get knock with the 1.8 injectors it is a realy nice turbo.
magnamx-5 is offline   Reply With Quote
Old 07-30-2006, 03:53 AM   #11
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5
Don't you mean 15g unless you modified the normal greddy manifold the
tdo4-15g is what they run with i thought. the physical size difference is quite apparent.

Hes running a 16G with a mitsu turbine housing...look at the manifold it has a 3 bolt flange. 16G's look smaller than 15G's from the outside...inside the wheels and housings are a LOT better.
F20turbo is offline   Reply With Quote
Old 07-30-2006, 04:19 AM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i know the difference i just wanted to see if he was realy running a 16g like me or just didn't know what comes with a greddy. come on andy you are better than that. i have full measurment of the differneces in flanges also as i initialy bought a 15g to use and then opted for a 16g instead. yeah i know the difference it is about 1.5 inches or so on some of the flange dimensions. not to mention cfm or other propertys.
magnamx-5 is offline   Reply With Quote
Old 07-31-2006, 03:36 AM   #13
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

Quote:
Originally Posted by magnamx-5
i know the difference i just wanted to see if he was realy running a 16g like me or just didn't know what comes with a greddy. come on andy you are better than that. i have full measurment of the differneces in flanges also as i initialy bought a 15g to use and then opted for a 16g instead. yeah i know the difference it is about 1.5 inches or so on some of the flange dimensions. not to mention cfm or other propertys.

my bad doggie.
F20turbo is offline   Reply With Quote
Old 07-31-2006, 11:49 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by braineack
Your're going to melt your home depot 90* off the compressor outlet.
yeah- can't you just clock the compressor housing to get it away from the manifold? I wouldn't drive it that way w/o an extinguisher in the pax seat.

You definitely have a talent for adapters, tubing and hose clamps. Nice job- good to see budget DIY efforts at work.
m2cupcar is offline   Reply With Quote
Old 07-31-2006, 12:58 PM   #15
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

It alright Andy you know how us rednecks can fly of the handle sometimes.
magnamx-5 is offline   Reply With Quote
