Old 12-29-2009, 01:31 AM   #181
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

hookers?
SKMetalworks is offline   Reply With Quote
Old 12-29-2009, 01:33 AM   #182
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by wayne_curr View Post
Sounds good! I'll slip a fiver in the box for shipping. I think I have your address still in a text message.

Edit: Anything you need that I might have?
Quote:
Originally Posted by sbkcocker499 View Post
hookers?
18psi is offline   Reply With Quote
Old 12-29-2009, 02:30 PM   #183
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Ok, some semi final pics. Some things are going to change other than the coolant line that is obviously pretty ghetto. I'm going to need to re-do the hot-side charge piping. The outlet adapter is a ---- hair away from the sub frame and will certainly make contact if I really get on it at the track. Also there is a really shitty exhaust leak at the turbine outlet v-band that is going to take some serious thought. There was a little gap between the flanges that I thought I got rid of by being creative while installing it and using some ultra copper but its leaking bad so my downpipe might take some modification unfortunately.

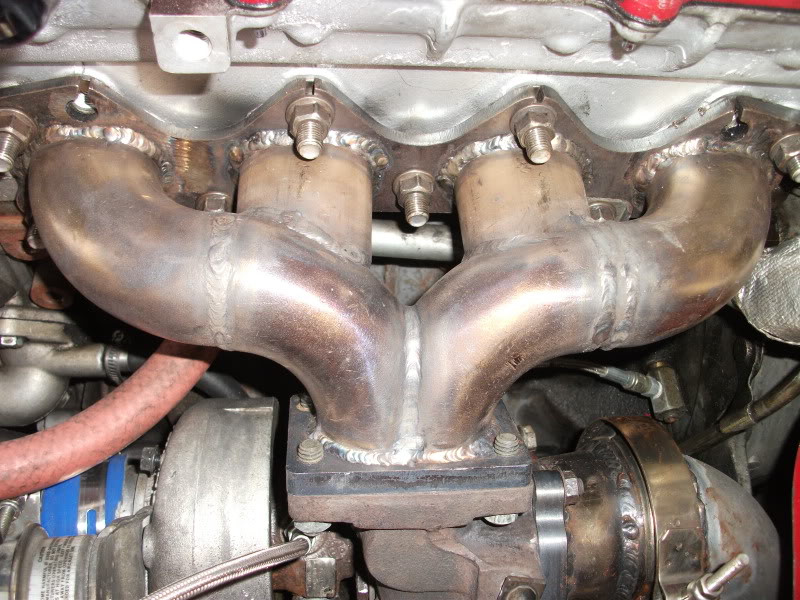

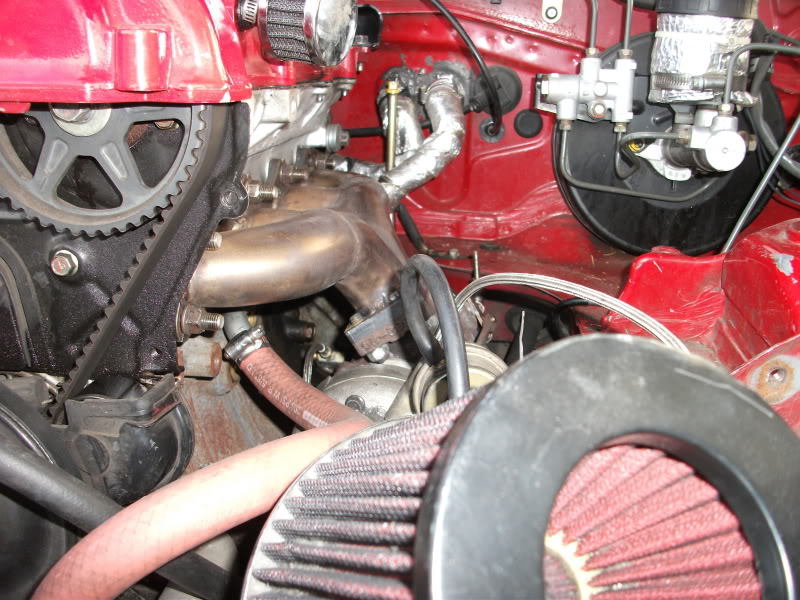

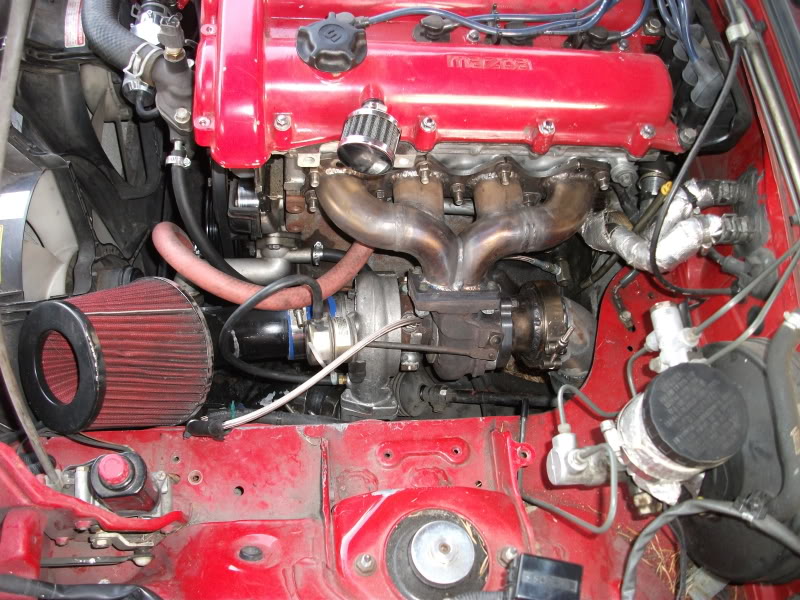

Here are a couple of overall shots.
Name:  DSCF0074.jpg
Views: 6
Size:  147.4 KB
Name:  DSCF0075.jpg
Views: 6
Size:  137.4 KB
Name:  DSCF0078.jpg
Views: 6
Size:  142.9 KB

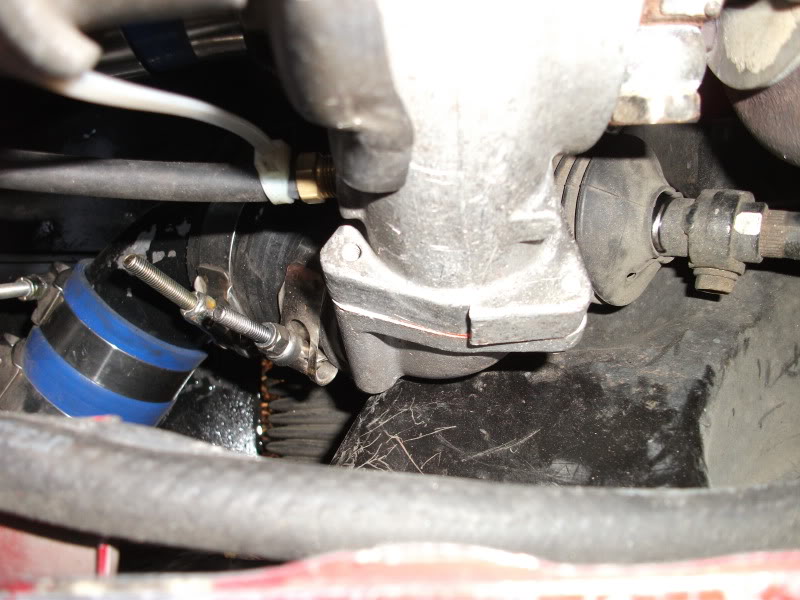

Clearance between compressor outlet and subframe. Going to redo the hotside with 2" piping some day before next racing season. Going to have to make a new outlet adapter somehow as well.
Name:  DSCF0076.jpg
Views: 6
Size:  103.5 KB

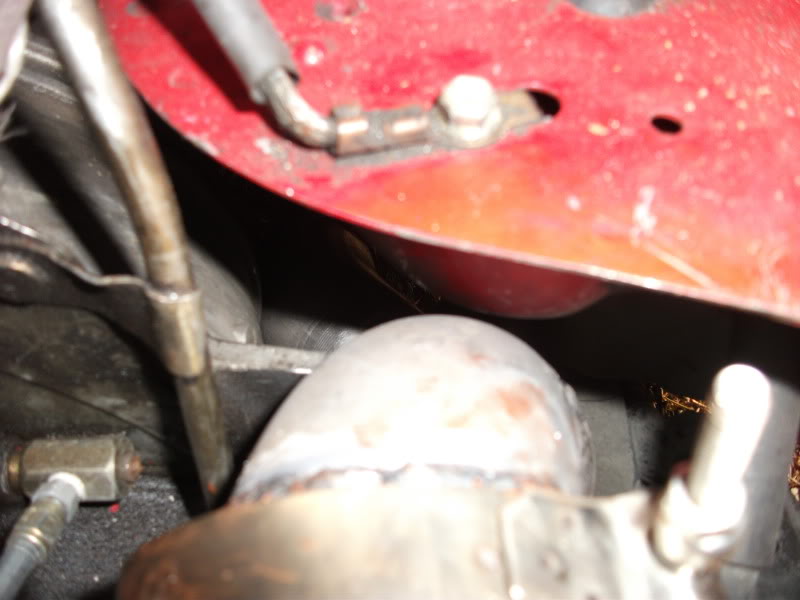

The downpipe is very close to the firewall as well.
Name:  DSCF0077.jpg
Views: 6
Size:  71.5 KB
wayne_curr is offline   Reply With Quote
Old 12-29-2009, 04:20 PM   #184
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

Look great, you did a nice job!

really!
absRTP is offline   Reply With Quote
Old 12-29-2009, 09:56 PM   #185
Junior Member
iTrader: (1)

Tmorgan's Avatar

Join Date: Nov 2009
Posts: 79
Total Cats: 13
Default

Nice. Looks like Tim has some competition
Tmorgan is offline   Reply With Quote
Old 12-29-2009, 10:28 PM   #186
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Tmorgan View Post
Nice. Looks like Tim has some competition
Lol not even close...
wayne_curr is offline   Reply With Quote
Old 12-30-2009, 02:15 PM   #187
Newb

Join Date: Jan 2009
Location: Arcata/Long Beach, CA
Posts: 29
Total Cats: 0
Default

nice!!!
miata_drift is offline   Reply With Quote
Old 12-30-2009, 03:45 PM   #188
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Turbo hit subframe, lol. Doesn't begi cut that flange off and tig weld on an elbow? Wouldn't give you too much more room, but I bet it'd be enough. Not sure I'd worry about the dp, that looks like enough room. Or are you trying to photograph the clearance below the flat shelf?
curly is offline   Reply With Quote
Old 12-30-2009, 04:36 PM   #189
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by curly View Post
Turbo hit subframe, lol. Doesn't begi cut that flange off and tig weld on an elbow? Wouldn't give you too much more room, but I bet it'd be enough. Not sure I'd worry about the dp, that looks like enough room. Or are you trying to photograph the clearance below the flat shelf?
I seriously dont need much more room. It hasn't made contact yet with my few short trips around town but it certainly will on the track with redline gear shifts. I agree that the downpipe is fine. It clears the shelf by a mile, its just the firewall beneath the shelf that its coming pretty close to.

Went out to tune the car a bit and the upper V-band is just leaking too bad right now for me to feel comfortable driving it. After a boosted pull I smelt the exhaust in the cabin. I may be crazy but it smelt a bit oily. I have a sneaking suspicion that the oil isn't draining out of the turbo correctly with its new clocked angle. Unfortunately I cant angle it anymore with the oil feed line I have right now before it hits the turbine flange...ugh.

Its back in the garage right now cooling off until I can take the downpipe off again and assess the situation on the exhaust leak and also check the turbine for oil. It runs great and pulls very very hard other than those two issues right now. Also the new addition of the torsen makes traction much improved in the rain but definitely still just spins in 1st/2nd and 3rd.

Also a heat shield is in planning now as this SS mani seems to get the hood WAY hotter than the iron Begi piece.
wayne_curr is offline   Reply With Quote
Old 12-30-2009, 09:28 PM   #190
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

If you want i can weld an outlet on the turbo so them track days wont give you headaches.
SKMetalworks is offline   Reply With Quote
Old 12-31-2009, 12:57 PM   #191
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by sbkcocker499 View Post
If you want i can weld an outlet on the turbo so them track days wont give you headaches.
Someday in the future before next track season I will likely have you do that. Also i'm going to be redoing the hot-side intercooler piping with 2" so I may do it in aluminum and have you weld that too.
wayne_curr is offline   Reply With Quote
Old 12-31-2009, 01:08 PM   #192
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

That's not a TiAL v-band which is why its leaking. I use the cheap "silicone intakes" v-bands on the exhaust after the DP, but you want the proper v-band flanges at the turbo inlet and outlet. They fit so precisely that you will need a third hand to get it right.
hustler is offline   Reply With Quote
Old 12-31-2009, 01:14 PM   #193
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
That's not a TiAL v-band which is why its leaking. I use the cheap "silicone intakes" v-bands on the exhaust after the DP, but you want the proper v-band flanges at the turbo inlet and outlet. They fit so precisely that you will need a third hand to get it right.
Regretfully I think you may be right. It is a cheapo v band for sure and really not easy to get exactly right on there but i'm pretty sure others have used v bands other than tial on turbine exits with luck so i'm not giving up yet.

I think I just need more ultra copper and perhaps wrapping the flange joint in something before I clamp it down? I'm not ashamed to get ghetto for now so I can atleast just drive and tune my car on the street.
wayne_curr is offline   Reply With Quote
Old 12-31-2009, 01:21 PM   #194
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

WTF do you think that "ultracopper" is going to do? Take it off mash the pinchers in the clamp and tighten it up again. Let me know how that works. I had to do this to my cheapo v-bands.
hustler is offline   Reply With Quote
Old 12-31-2009, 01:23 PM   #195
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
WTF do you think that "ultracopper" is going to do? Take it off mash the pinchers in the clamp and tighten it up again. Let me know how that works. I had to do this to my cheapo v-bands.
The ultra copper is to fill in the gaps from the undoubted warpage that happened when I welded it.
wayne_curr is offline   Reply With Quote
Old 12-31-2009, 01:43 PM   #196
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by wayne_curr View Post
The ultra copper is to fill in the gaps from the undoubted warpage that happened when I welded it.
No, it won't. How can you weld this crap and avoid warpage? Tim and Abe welded v-bands for me with no warping. I'm asking because I'm a tard, not jacking you off.
hustler is offline   Reply With Quote
Old 12-31-2009, 01:49 PM   #197
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
No, it won't. How can you weld this crap and avoid warpage? Tim and Abe welded v-bands for me with no warping. I'm asking because I'm a tard, not jacking you off.
Abe is the one that suggested the use of the ultra-copper and I do trust his opinion. He is the one that gave me this particular v band as well and said that they will warp a little when you weld them. Warping cheap flanges is tough to avoid when welding.
wayne_curr is offline   Reply With Quote
Old 12-31-2009, 03:04 PM   #198
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by wayne_curr View Post
Abe is the one that suggested the use of the ultra-copper and I do trust his opinion. He is the one that gave me this particular v band as well and said that they will warp a little when you weld them. Warping cheap flanges is tough to avoid when welding.
Well I like Abe and have no problem leaving my car with him for fab work...but I've tried that copper stuff and it failed on 3-attempts. I don't know enough about welding to comment on the warpage because I'm dumb.
hustler is offline   Reply With Quote
Old 12-31-2009, 03:21 PM   #199
Elite Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
Well I like Abe and have no problem leaving my car with him for fab work...but I've tried that copper stuff and it failed on 3-attempts. I don't know enough about welding to comment on the warpage because I'm dumb.
I haven't had it fail yet except for this joint. At this point it could either be horrid warpage or I just plain cant get it lined up perfectly by myself. Like you said you almost need a third hand to get it perfect. I used some blocks of wood under the tail end of the downpipe to try and get it lined up right but I think I need more accuracy than that.
wayne_curr is offline   Reply With Quote
Old 12-31-2009, 05:18 PM   #200
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

So what I'm getting from this is that aside from warpage issues, v-bands don't pull themselves together very well? That kinda sucks. Someone should design a vband with a different angle, maybe that would work better.
curly is offline   Reply With Quote
