Default This is a ebay T3 50 trim, right?

For a background, I have a 1.6, tacotaco cast manifold, and aiming for a very streetable 200rwhp. I'm pretty new to turbos, but I've been reading a lot as to not sound like a complete idiot.

It seems like the cheap 50 trim T3 chinacharger is pretty decent turbo for the 1.6. I'm pretty sure this is the/a turbo Braineack uses, as well as the turbo this guy eventually switched to from a T3/T4 hybrid (can't remember his forum name here...)

Anyway, in searching I found this quote. Wondering if this is a rounding error, or if the turbos just change slightly over time? This is the turbo I am looking at, Comp 43.20 / 60.41 - Turbine 45.74 / 62.86. If my math is any good, that is something like .51 trim on the turbine, and .52 on the compressor.

What I was looking for...

Quote:
Originally Posted by Braineack View Post
eBay 50 trim turbo:
compressor: 42mm in. and 60mm ex
turbine: 45mm exducer and 63.5mm inducer.

Garret 50 trim turbo:
compressor: 42mm in. and 60mm ex
turbine: 48.7mm exducer and 59mm inducer.
My math puts that at .49/.50? Surly both these turbos (the ebay one linked, and the "ebay 50 trim" Braineack references) would preform about the same? Are they the same thing?

Thanks for looking!
deezums is offline   Reply With Quote
Old 05-15-2014, 09:21 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

that's the one.

great job actually searching and finding it. 100 brownie points for not being retarded.
Braineack is offline   Reply With Quote
Old 05-15-2014, 09:55 AM   #3
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,468
Total Cats: 785
Default

Can we give him the official "Noob of the Month" award?
concealer404 is online now   Reply With Quote
Old 05-15-2014, 10:08 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,910
Total Cats: 1,793
Default

or i just ban the 10 other senior members that have had to ask over and over for the same thing this guy was able to find on his own easily.
Braineack is offline   Reply With Quote
Old 05-15-2014, 10:29 AM   #5
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

Quote:
Originally Posted by concealer404 View Post
Can we give him the official "Noob of the Month" award?
Bu bu but, I posted pictures of kittens!
Monk is offline   Reply With Quote
Old 05-15-2014, 04:57 PM   #6
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Win! Thanks guys!
Random google picture, because kitties n miatas lol

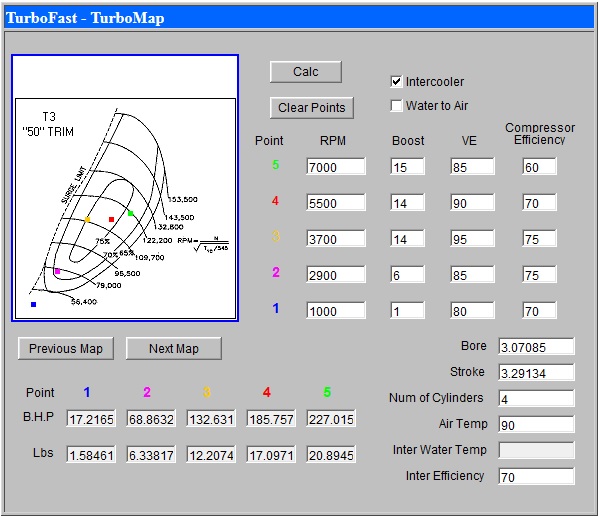

One a little more relevant, with spool data found on the forum here. Just for fun

Attached Thumbnails
This is a ebay T3 50 trim, right?-like-father-like-son.jpg   This is a ebay T3 50 trim, right?-untitled_zps78f74c7f.jpg
deezums is offline   Reply With Quote
Old 05-15-2014, 05:46 PM   #7
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Intriguing thread.

1) Well done. Research plus competent use of words/keyboard.

2) What purpose does the bungee cord in the picture serve?
Sparetire is offline   Reply With Quote
Old 05-15-2014, 06:33 PM   #8
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

looks like it helps keep all the junk from coming forward between the seats.
spoolin2bars is offline   Reply With Quote
Old 05-15-2014, 09:00 PM   #9
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,805
Total Cats: 494
Default

Quote:
Originally Posted by deezums View Post
Damn...checkmate.
