Old 06-24-2010, 06:45 PM   #21
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

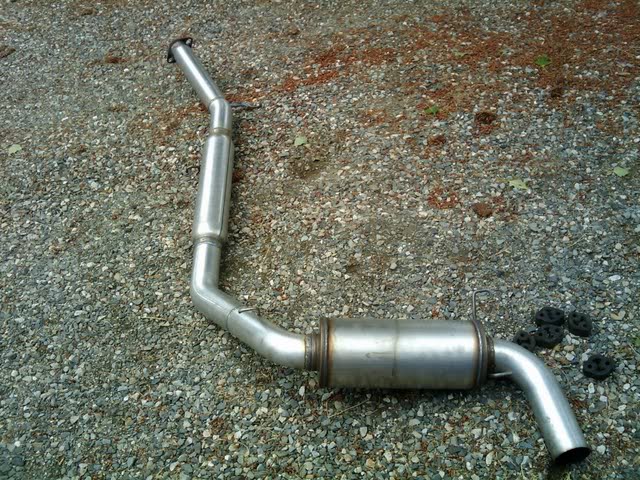

I doubted bob and his hacksaw skills. But sure enough, he made me an awesome exhaust.

Name:  2009-09-05134404.jpg
Views: 5
Size:  110.7 KB
wayne_curr is offline   Reply With Quote
Old 06-24-2010, 07:00 PM   #22
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

Quote:
Originally Posted by miatacross View Post
Dumbass, he's ******* with you.
I thought so but didnt dare say incase I was wrong
ronniebiggs is offline   Reply With Quote
Old 06-24-2010, 07:09 PM   #23
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

Just starting to price it up in 3" stainless steel. Looks like it will be about 100 without any muffler. So I guess about 230 with muffler.

Y8S how did you join it to the down pipe? Just a standard 3" flange and then a gasket between or did you have to rolll the tube etc?
ronniebiggs is offline   Reply With Quote
Old 06-24-2010, 07:14 PM   #24
Want fries with that?
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Scientific method FAIL

Seriously though, if you're going full custom you might as well go with V-bands. They're better, just as cheap, and easier to work with.
rider384 is offline   Reply With Quote
Old 06-24-2010, 07:20 PM   #25
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

I agree. I have just looked up them V clamps and they do look good. Plus it answers the above question on how to join it to the downpipe. The only problem I foresee is getting the magnaflow box. I might have to use another type of box similar to the magnaflow but a cheaper alternative which is easy to source from the UK.
ronniebiggs is offline   Reply With Quote
Old 06-24-2010, 09:43 PM   #26
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

just make sure you get a muffler (back box ) you can see through and roll a tennis ball through and you're good to go.

The nice thing about V-bands is that you get rotation after everything is welded up. good for last minute adjustments.
y8s is offline   Reply With Quote
Old 06-24-2010, 11:14 PM   #27
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Vband everything!
turbo, wastegate, cat, midpipe and muffler
its $ but you will never need to buy an exhaust gasket again.
shlammed is offline   Reply With Quote
Old 06-24-2010, 11:54 PM   #28
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by shlammed View Post
Vband everything!
turbo, wastegate, cat, midpipe and muffler
its $ but you will never need to buy an exhaust gasket again.
I like the V-band up by the turbo because it makes working on the exhaust system 1000X easyer. But for the cat 3 bolt flanges with Remflex exhaust gaskets have worked with no complaints for me. havent had any leaks and they have been appart and back together many times reusing the same gasket. the only advantage however with the flanges is they are cheaper. 2 bolt flanges are worthless with anything bigger than 2" pipe and OE style gaskets are garbage.

Bob
bbundy is offline   Reply With Quote
Old 06-25-2010, 01:31 AM   #29
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

Quote:
Originally Posted by bbundy View Post
I am an ok welder with quite a bit of experience but where I really stand out is my hack saw skill. I seem to be able to cut straighter and more efficiently with less effort than most people with a hack saw. There is definitely an art to operating a hack saw well.

Bob
One of my favorite posts evar.
SolarYellow510 is offline   Reply With Quote
Old 06-25-2010, 06:11 AM   #30
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

Just looked the prices up for the v bands and they cost a fortune!
Fore 1 x male, 1 x female, and 1 x clamp its 59 which doesnt include postage. I would need a minimum of 1 set and if I could do it maybe 2 sets so I can do the turbo end as well.
ronniebiggs is offline   Reply With Quote
Old 06-25-2010, 10:40 AM   #31
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

it is true, they are baller like gold teeth.
y8s is offline   Reply With Quote
Old 06-25-2010, 01:56 PM   #32
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

I went into my exhaust makers today to try and get a price and it was a waste of time!
They wouldnt give me a price unless I took the car to them which I couldnt do!

So I asked for a price for them to sell me the pipes so I can get it done myself and they wanted 58 + VAT for 2M of 3" stainless. The same pipe is 38 off the internet. So I walked out in discrase!

I spoke with my friend today and asked if he would be ok to weld it for me and he said as long as I bought the gas and wire he would do it so I might start to order the pipe now. Could some one tell me how many meters of 3" straight pipe I would need to buy to go from the downpipe flange back?

I take it I need 1 U bend and 2 90 degree bends to copy off you Y8S plus the muffler and then the straight sections.
ronniebiggs is offline   Reply With Quote
Old 06-25-2010, 02:41 PM   #33
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

We used 2 U bends but were lucky.

search the forum for my username and exhaust and there's somewhere a list of parts needed to build a complete downpipe back.
y8s is offline   Reply With Quote
Old 06-25-2010, 04:58 PM   #34
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

I will have a look now thanks
ronniebiggs is offline   Reply With Quote
Old 06-25-2010, 05:46 PM   #35
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by SolarYellow510 View Post
One of my favorite posts evar.
I has mad hack saw skillz.

Great for impressing chicks.

Bob

Last edited by bbundy; 06-25-2010 at 06:05 PM.
bbundy is offline   Reply With Quote
Old 06-25-2010, 06:29 PM   #36
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Default

I just had a 3" stainless exhaust made from turbo elbow to the back. Local guy 300
j555pre is offline   Reply With Quote
Old 06-26-2010, 06:50 AM   #37
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

Quote:
Originally Posted by j555pre View Post
I just had a 3" stainless exhaust made from turbo elbow to the back. Local guy 300
Thats not a bad price!

Thats the downpipe as well?
You live at Todmordon. Is that between Halifax and Rochdale? I go to Preston every week I could get one done by the same guy if he wanted to make another
ronniebiggs is offline   Reply With Quote
Old 06-26-2010, 04:01 PM   #38
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Default

Yes I bought a t28 fitting turbo elbow for a nissan 200sx then he made the downpipe he put a flexi under the car then a few little bends here and there then a powerflow backbox in standard location.

I'll try and sort some pics if you want?
j555pre is offline   Reply With Quote
Old 06-26-2010, 07:26 PM   #39
Junior Member
Thread Starter

Join Date: May 2010
Location: Darlington, UK
Posts: 280
Total Cats: 0
Default

yes please it would be nice to see what it looks like. I already have a nissan 200sx exhaust downpipe section that goes on the turbo I got it with the turbo as it was off a drift car nissan 200sx from round my area.
ronniebiggs is offline   Reply With Quote
Old 06-27-2010, 03:41 AM   #40
Junior Member

Join Date: Jan 2010
Location: Todmorden UK
Posts: 98
Total Cats: 0
Default

Is your turbo on the manifold yet and bolted to the car? does the 200sx downpipe clear the gearbox? The satndard cast iron one I had didn't. The stainless one I bought just needed a small amount of an unused lug on the gearbox removing.

If you down pipe doesn't fit at least you can cut the flange off it and start your build from there. I'll try and sort some pics today but it is the grand prix and the england germany match so no promises

Last edited by j555pre; 06-27-2010 at 07:18 AM.
j555pre is offline   Reply With Quote
