Default Finally fully done =)

I finally finished, and woo hoo this thing hauls at only 5 psi! Only problem is I seem to have some compreson surge, maybe the BOV that came on the turbo is not working right?








Last edited by cardriverx; 10-29-2007 at 10:51 PM.
cardriverx is offline   Reply With Quote
Old 10-29-2007, 09:54 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Pictures aren't working.

BOVs aren't on turbos, they're on you charge piping. It is possible that it is not working correctly or fast enough thus causing compressor surge.
cjernigan is offline   Reply With Quote
Old 10-29-2007, 10:15 PM   #3
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by cjernigan View Post
Pictures aren't working.

BOVs aren't on turbos, they're on you charge piping. It is possible that it is not working correctly or fast enough thus causing compressor surge.
The turbo I have has a built in BOV.. sorta odd. Im guessing the spring rate is too high.. guess ill have to rig up my bosch.
cardriverx is offline   Reply With Quote
Old 10-29-2007, 10:15 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Yeah the pictures still don't work. Is it that weird mercedes turbo?
cjernigan is offline   Reply With Quote
Old 10-29-2007, 10:19 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

pictures only work if you're a member of tirstaturnersi.com or whever they are linked from. try tinypic.com for us please.
Braineack is online now   Reply With Quote
Old 10-29-2007, 10:53 PM   #6
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Fixed.

yes, its the weird mercadies turbo. It works great though.

yes, there is no air filter currently. Im working on that.

yes, the vaccum lines are alittle messy at the moment.

=)
cardriverx is offline   Reply With Quote
Old 10-29-2007, 11:45 PM   #7
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I'm sorry to tell you, but once you turbo you're never done. You'll want to add something in t-minus 2 weeks.
neogenesis2004 is offline   Reply With Quote
Old 10-30-2007, 01:05 AM   #8
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

That's an interesting looking turbo there.

Good luck on finding an air filter that'll fit right there.

Your radiator looks like it's about to DIE.

Do you have any band-aid mods done yet? Aka Bipes, O2 clamp?
Bryce is offline   Reply With Quote
Old 10-30-2007, 08:53 AM   #9
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

bipes, o2 clamp, vortec riseing rate FPR. Yeah, finding a place to mount the air filter will be intresting... and hey, the radiator works so im not complaining lol.
cardriverx is offline   Reply With Quote
Old 10-30-2007, 09:37 AM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

You might wanna get some heatshielding on those heater hoses and brake master cylinder. Thumbs up for using t-bolt clamps from the start. As far as the air filter you might wanna try something like this- https://www.miataturbo.net/diy-turbo-discussion-14/afm-locations-problem-13713/
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-30-2007, 10:25 AM   #11
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Where did you buys the charge pipes, and do you think you can take some pics from behind the radiator to show how you routed it.
Saml01 is offline   Reply With Quote
Old 10-30-2007, 10:50 AM   #12
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I bought my piping here- www.mazzurisuper.com

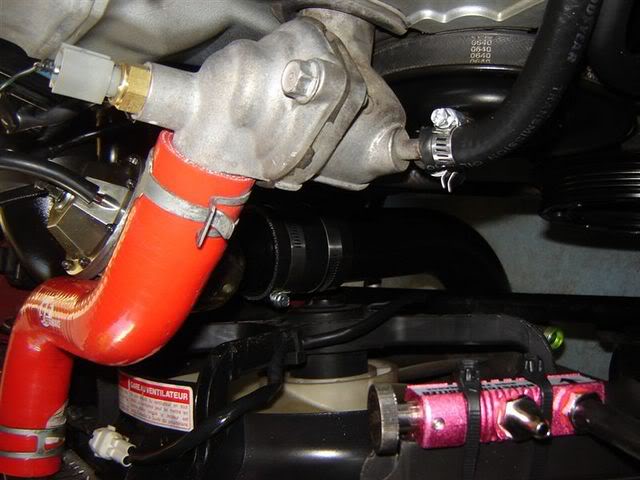

Cold side
Name:  DSC04399.jpg
Views: 1
Size:  47.3 KB

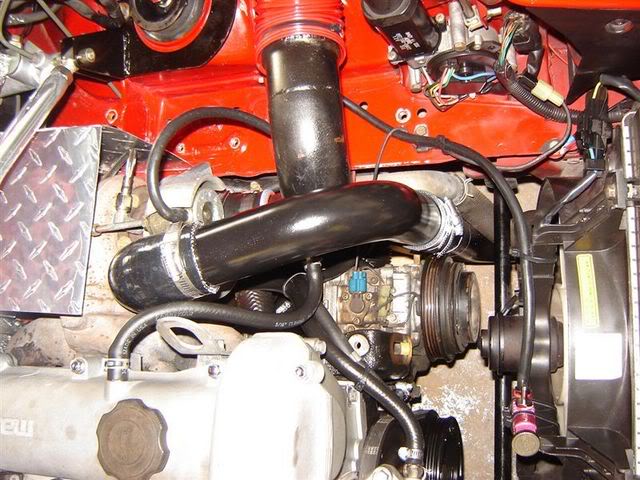

Hot side
Name:  DSC04396.jpg
Views: 1
Size:  76.0 KB

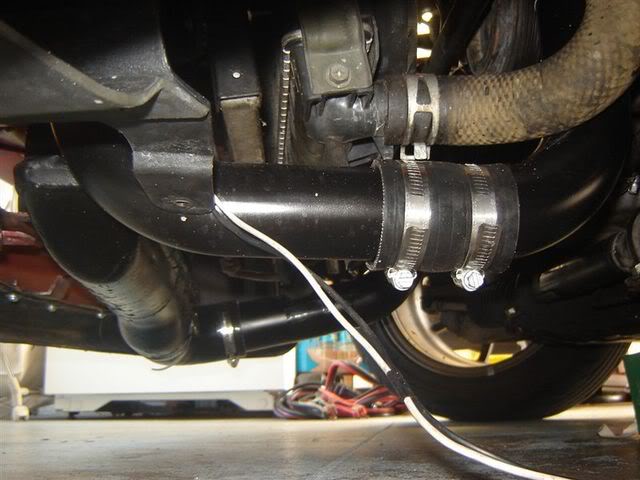

Name:  DSC04402.jpg
Views: 1
Size:  46.6 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-30-2007, 12:50 PM   #13
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Thanks.
Saml01 is offline   Reply With Quote
Old 10-30-2007, 04:25 PM   #14
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

My charge pipes are a combo of stripes pipes and BEGI pipes.
cardriverx is offline   Reply With Quote
Old 10-31-2007, 05:54 PM   #15
!!! NOT CONFIRMED !!!

Join Date: Feb 2007
Location: Thunder Bay Ontario Canada
Posts: 60
Total Cats: 0
Default

I presume your AFM works OK upside down? I had looked at mounting mine sideways, will that work?
Kenny is offline   Reply With Quote
Old 10-31-2007, 06:06 PM   #16
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by Kenny View Post
I presume your AFM works OK upside down? I had looked at mounting mine sideways, will that work?
yes
Loki047 is offline   Reply With Quote
Old 10-31-2007, 07:53 PM   #17
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Kenny View Post
I presume your AFM works OK upside down? I had looked at mounting mine sideways, will that work?
works fine.




And guys, it seems that when im at full boost and above 6750 rpm, the blow off valve works. So it must be too stiff a spring... I guess ill take it apart.
