Default Help with IAC

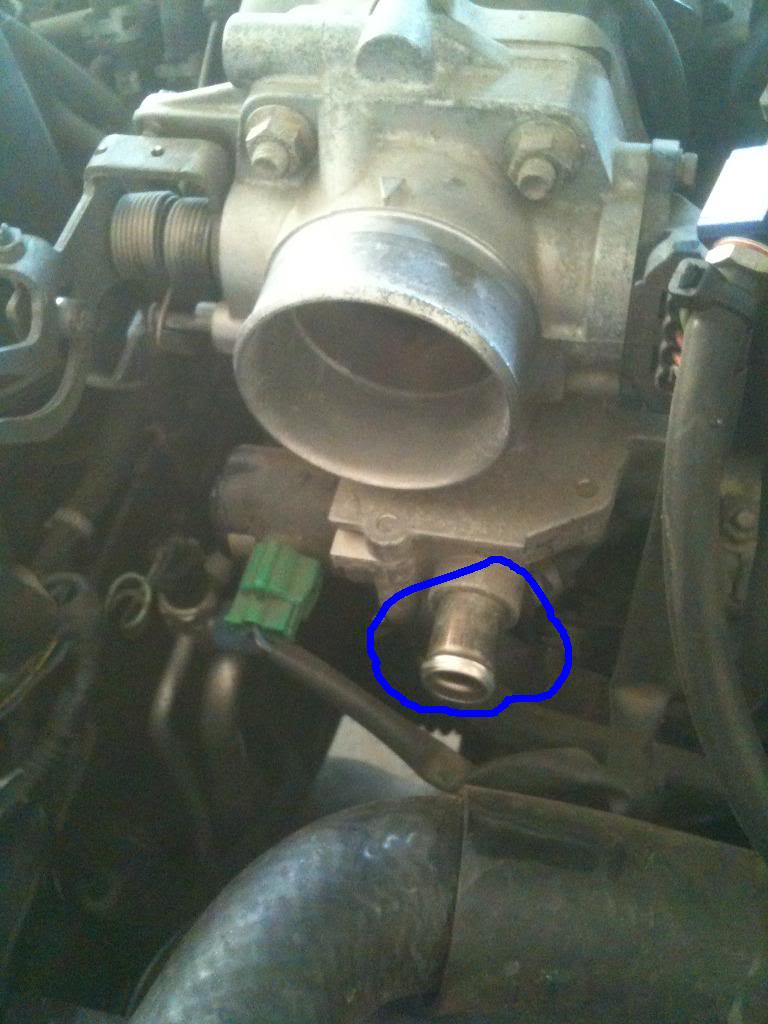

Now the car is NA, I am trying to figure out where the vacuum lines go. Im not sure what was rerouted for the Turbo Setup, but until I can go turbo again I need this car to at least be able to be a DD. Does this port go directly into the Air Intake? This car will not run at all cold on its own, It has to be warm. I am assuming this is probably the problem. Name:  iacv1.jpg
Views: 1
Size:  80.4 KB
snellm3 is offline   Reply With Quote
Old 07-27-2010, 08:41 AM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

plumb it directly into the intake tract

and yes, you're right, that is the intake for the idle air control

your car should run decently anyways if that is open to atmosphere - you just wont get any air past the MAF at idle.

Empty a can of "throttle body and air intake" cleaner into it?
fooger03 is offline   Reply With Quote
Old 07-27-2010, 08:49 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

yep, plumb it back to the intake between the TB and MAF and you'll have no problems.
Braineack is offline   Reply With Quote
