Default Help!- Upper Radiator hose Interferes with BEGI Cold side tubing

I have a DIY coolant re-route using the GM truck hose, and am in the process of installing a hodge-podge of turbo parts on my car.

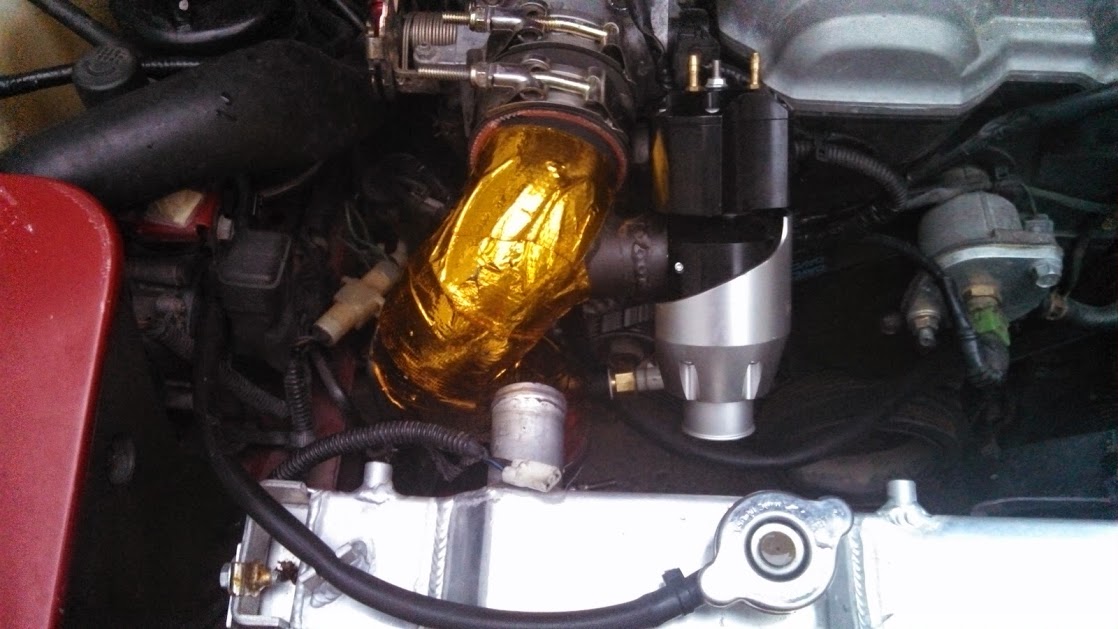

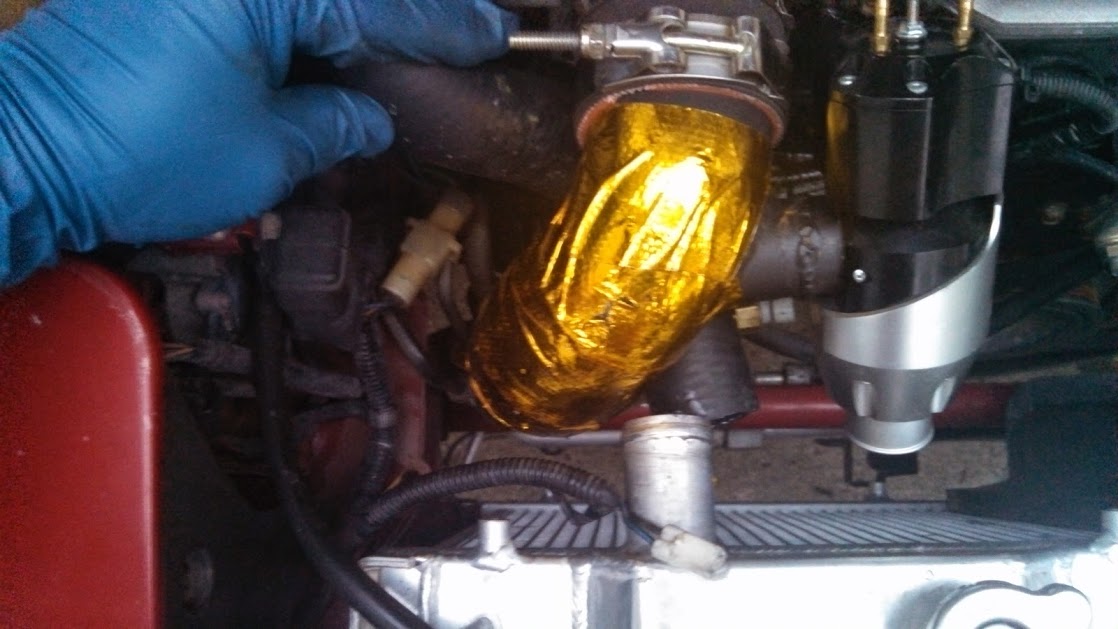

The BEGI cold side piping seems to interfere with my giant fleabay radiator outlet for the upper hose.

Check this out:

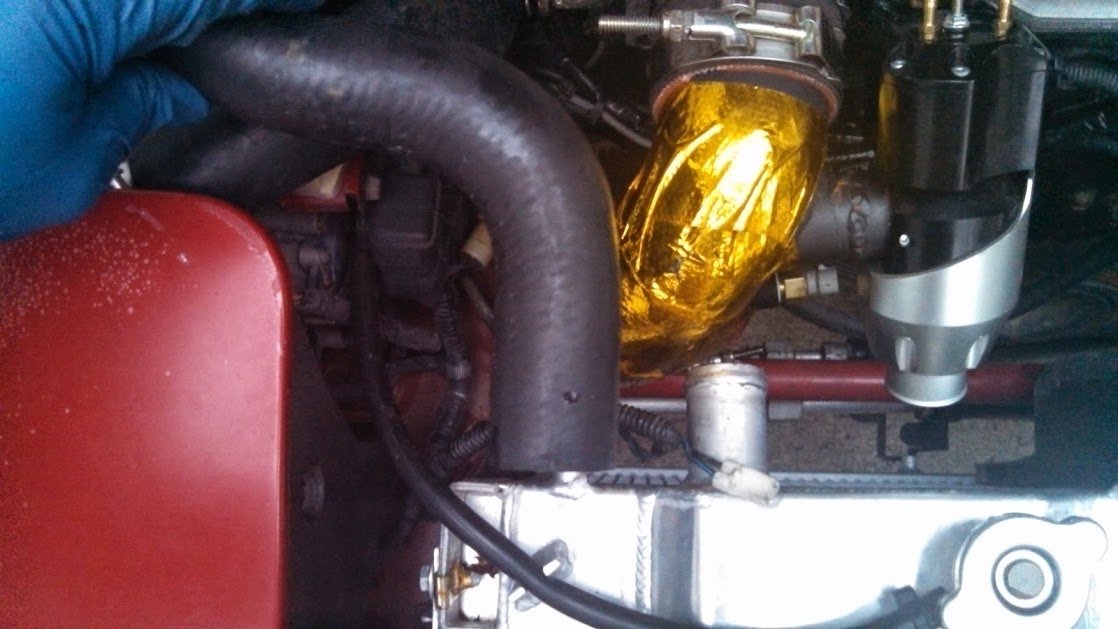

I bought the Oldsmobile radiator hose (Dayco 71519) to see if I could make some 90's and go around the right of the IC piping, but no luck.






Looks like I might have to cut off the radiator outlet and move it towards the driver side by about 1.5". But that would suck.

Seems like I don't want the hot water touching the cool inlet air. Any other ideas for me?
Attached Thumbnails
Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-img_20140515_203101_562.jpg   Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-img_20140515_203159_454.jpg   Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-img_20140515_203209_252.jpg
Frank_and_Beans is offline   Reply With Quote
Old 05-16-2014, 01:31 AM   #2
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

I ran into the same issue with mine when I was dry fitting everything. I came to the conclusion that I was going to have to make a new cold side pipe
Togeneral99 is offline   Reply With Quote
Old 05-16-2014, 12:45 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

OMG you're the first one to ever have this problem!!!

https://www.miataturbo.net/general-m...-issues-74311/
curly is offline   Reply With Quote
Old 05-16-2014, 02:24 PM   #4
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

Yeah, I found that thread, which is what turned me on to the Oldsmobile hose in the first place. Of course it doesn't fit, so looking for other possibilities...
Frank_and_Beans is offline   Reply With Quote
Old 05-16-2014, 02:33 PM   #5
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Trackspeed rad would solve that....outlet is WAY over by the look of them out of the way.

Looks like you may have some room to cut the hose down by maybe too
Preluding is offline   Reply With Quote
Old 05-16-2014, 03:03 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Hrmmm..... i hope this isn't what i'm in for....
concealer404 is offline   Reply With Quote
Old 05-16-2014, 03:44 PM   #7
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

I had this issue with the FM coldside and coolant reroute. I thought I made a thread about it, maybe not. I remember being okay with just letting them push against each other and forced it. Maybe it is worse in your situation, but looks similar to how mine was set up. I can't imagine the upper radiator hose being so hot as to impact intake air temp, but maybe.

Last edited by FRT_Fun; 05-16-2014 at 04:26 PM.
FRT_Fun is offline   Reply With Quote
Old 05-16-2014, 04:01 PM   #8
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

Is it wrong that my solution to nearly every problem is: cut, grind, weld, make fit right..?
ThePass is offline   Reply With Quote
Old 05-16-2014, 06:08 PM   #9
Senior Member

Join Date: Aug 2010
Location: Arl. Texas
Posts: 937
Total Cats: 23
Default

That's why it's called "building a car", not "putting a car together by the numbers". Lol

Make it work, make it your own.
Miater is offline   Reply With Quote
Old 05-16-2014, 06:30 PM   #10
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

Difference from the post Curley referenced is that the charge pipe there was straight and has a silicone 90 while the begi pipe uses a straight silicone coupler and a 90 on the pipe.

I'm still on a factory radiator and there really isn't any room to fit a reroute hose. You will have to modify the begi pipe or the radiator neck.

Weld steel or aluminum...your choice
Togeneral99 is offline   Reply With Quote
Old 05-16-2014, 06:47 PM   #11
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Trim an inch and half off the radiator hose such that the end of the radiator outlet JUST reaches the radius of the hose. You might be surprised with the clearance.

Though pliable, I'd imagine the silicone elbow would take up more space than a steel pipe
psyber_0ptix is offline   Reply With Quote
Old 05-16-2014, 07:13 PM   #12
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

Quote:
Originally Posted by Miater View Post
That's why it's called "building a car", not "putting a car together by the numbers". Lol

Make it work, make it your own.

LOL - "building a car" with off the shelf common parts that somehow don't even have a chance of working together is normal?

I'm guessing it is the fleabay radiator that is causing the problem, as there is no way you could even fit the stock non-reroute hose on there without interfering with the IC pipes. Must be that the radiator is built with some serious tolerance on the inlet location. I will have to get someone to cut and weld the inlet pipe on the rad for me.
Frank_and_Beans is offline   Reply With Quote
Old 05-16-2014, 09:31 PM   #13
Junior Member
iTrader: (2)

Join Date: Mar 2008
Location: Irvine, Ca
Posts: 277
Total Cats: 23
Default

Quote:
Originally Posted by Frank_and_Beans View Post
LOL - "building a car" with off the shelf common parts that somehow don't even have a chance of working together is normal?
Pretty much. I long gave up on off the shelf solutions and just hammer in parts from other random cars.
cjsafski is offline   Reply With Quote
Old 05-18-2014, 03:18 PM   #14
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

Well, it looks like I was able to come up with a no weld solution. Mainly 'cause I can't weld aluminum.

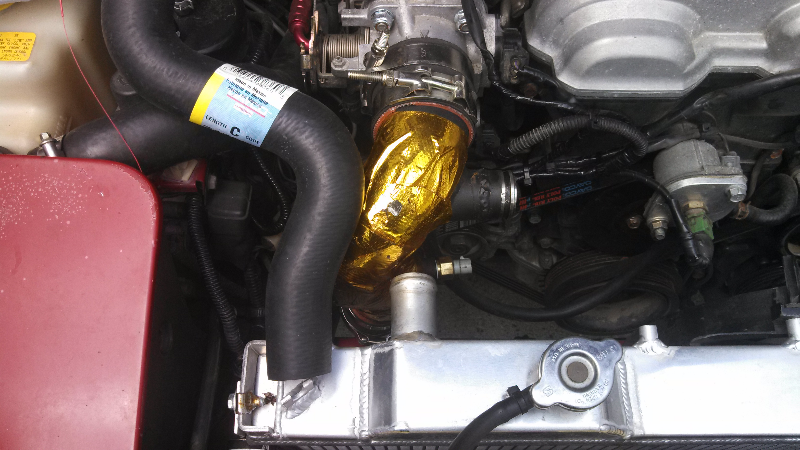

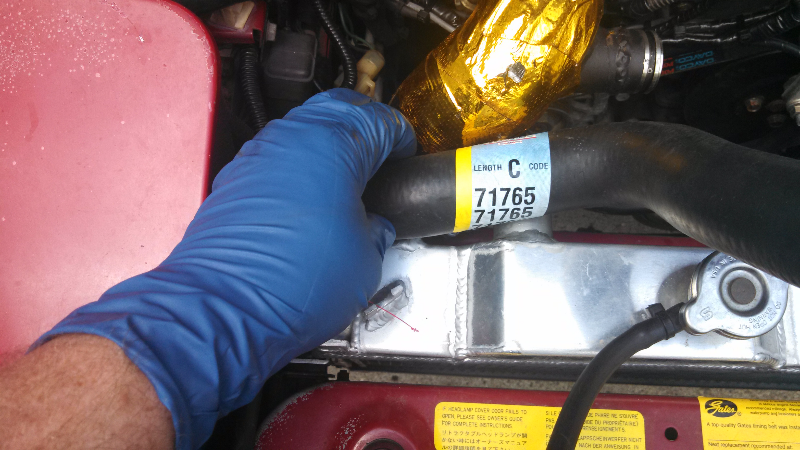

Went to the local AutoZone and spent a bunch of time rummaging through their radiator hose selection. Ended up finding something that looked like it might work.



Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141459.png



Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141523.png

dayco hose 71765

Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141536.png

Bought a 1-1/4" aluminum coupler on Ebay.

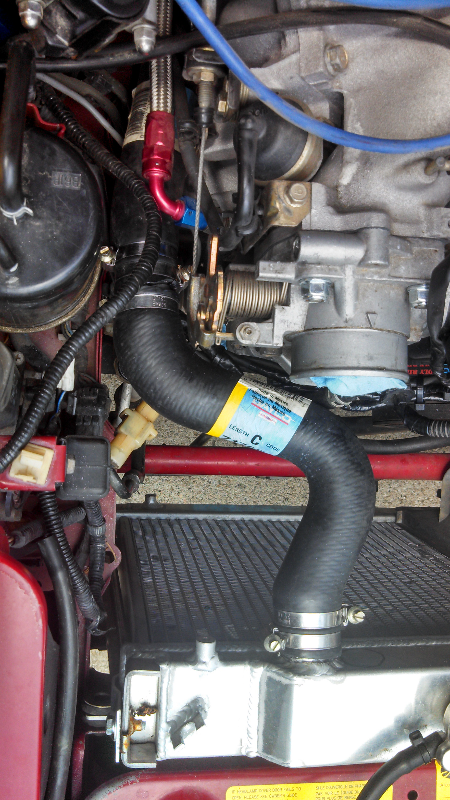

Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141603.png

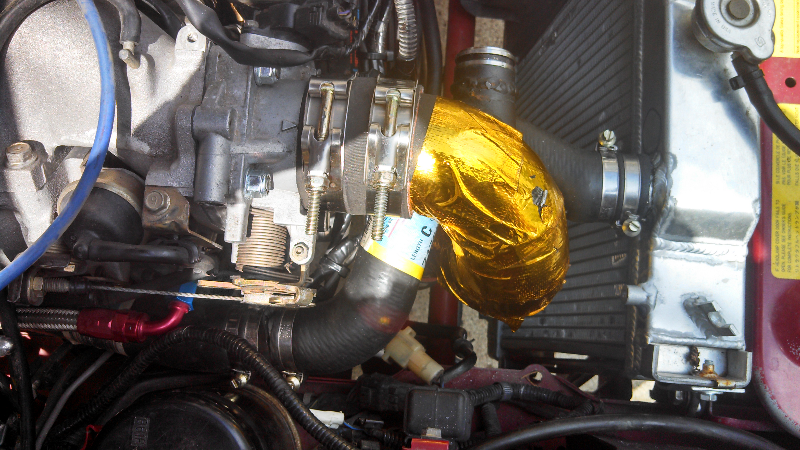

Final install, and attached to the GM reroute hose with the coupler.

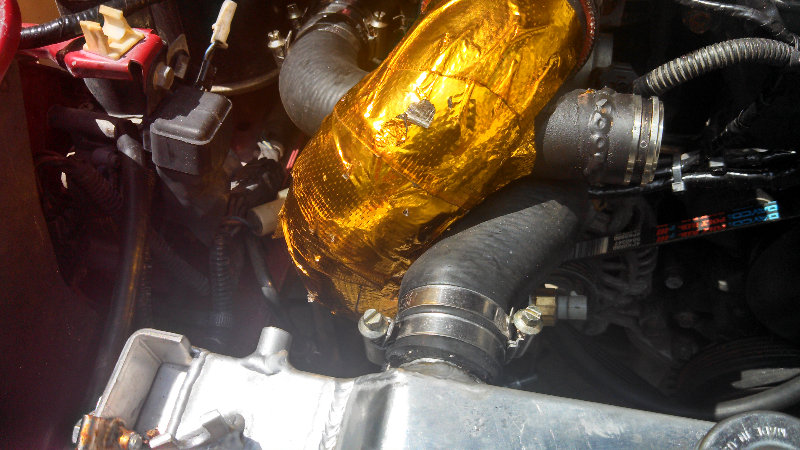

Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141619.png



Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141630.png

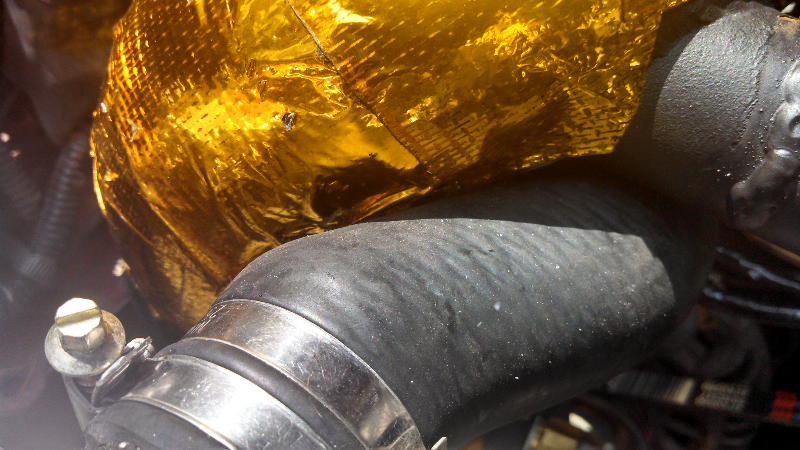

Its hard to tell from the pic, but it doesn't actually touch. Its about as close as thou can get without touching though.

Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_141640.png

Hope this helps someone else in the future.
Frank_and_Beans is offline   Reply With Quote
Old 05-18-2014, 03:29 PM   #15
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

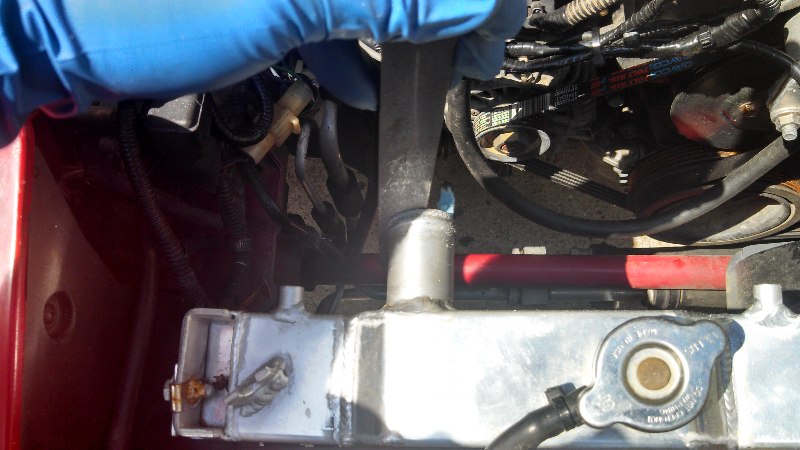

Forgot to mention I also filed the end of the radiator a little bit to make it slightly shorter.


Help!- Upper Radiator hose Interferes with BEGI Cold side tubing-forumrunner_20140518_142836.png

Basically just filed away the straight section after the bead.

Last edited by Frank_and_Beans; 05-18-2014 at 04:31 PM.
Frank_and_Beans is offline   Reply With Quote
Old 05-18-2014, 07:37 PM   #16
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

Well hot damn!

Good job
Togeneral99 is offline   Reply With Quote
Old 05-19-2014, 09:13 AM   #17
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

With my eBay radiator, I can't fit my pass side fan. Guess in going to have to go with some of the slim fans.
Tekel is offline   Reply With Quote
Old 05-20-2014, 02:30 AM   #18
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 492
Default

You flushed your radiator out after all that filing right?
ThePass is offline   Reply With Quote
Old 05-20-2014, 07:46 AM   #19
Junior Member
Thread Starter
iTrader: (10)

Join Date: Jun 2011
Location: Detroit Burbs
Posts: 300
Total Cats: 3
Default

Nope, but I did make sure to stuff a rag in the inlet prior to starting the filing. No filings allowed in there.

Last edited by Frank_and_Beans; 05-20-2014 at 09:27 AM.
Frank_and_Beans is offline   Reply With Quote
Old 05-28-2014, 08:04 PM   #20
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

Looks like we have the same eBay radiator and BEGI cold side pipe. I had to think outside the box. Here is another way to skin this cat.

https://www.miataturbo.net/general-m...-issues-77291/
Rallas is offline   Reply With Quote
