Default Hotside blades beaten to sh*t

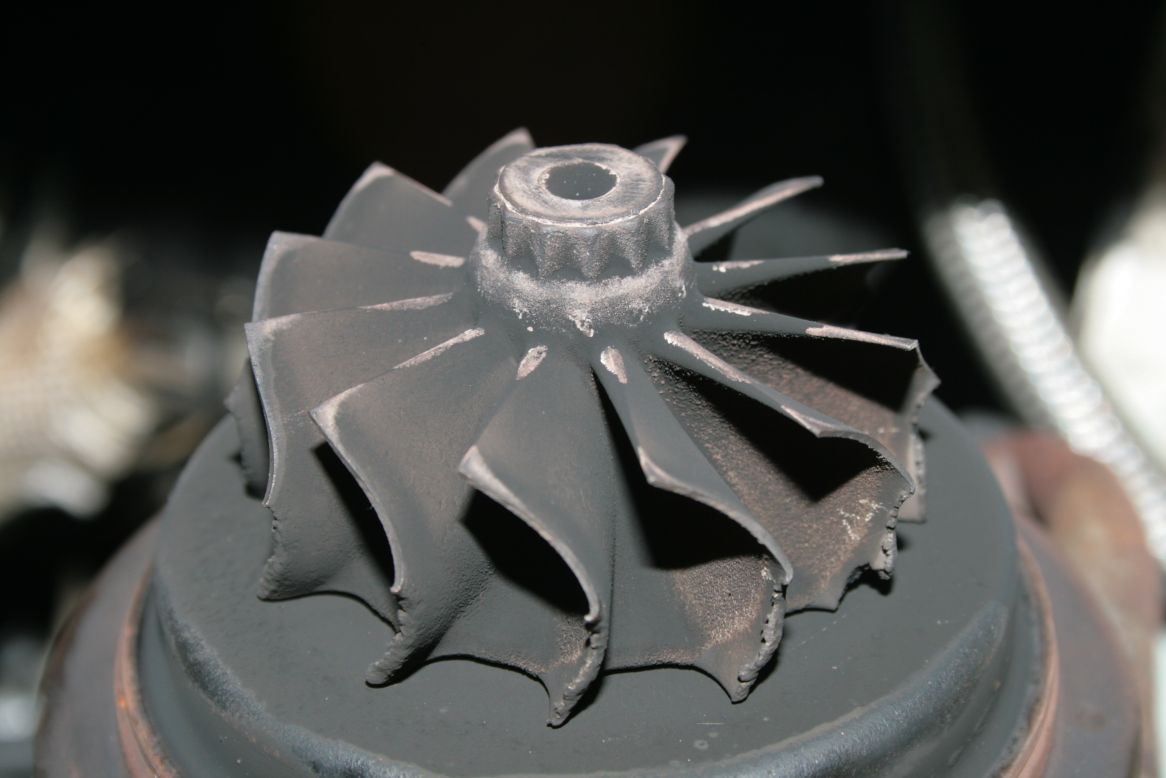

A week ago I started hearing a rattle sound coming from the turbo and figured it was the WG rod hitting the compressor side, I've had this problem for some time now and didn't pay it much mind. The car has been parked since then because I've been sick and didn't feel like driving. Today I fixed the WG rod and cranked it up to still find the same rattling sound. After some investigating figure I might have a bad bearing or a blade is tapping one of the housings. I turn the car off and pull the filter to check the compressor blades... Nothing wrong there. Next I take the v-band clamp off the CHRA to check the exhaust side and to my horror I find this....

Any ideas as to what might cause this would be great or what to do at this point. There are no signs of the blades hitting the exhaust housing and there is no play in the shaft.

Did I have a gremlin eat my blades?!?
Attached Thumbnails
Hotside blades beaten to sh*t-img_0008.jpg
DXO is offline   Reply With Quote
Old 09-30-2009, 08:36 PM   #2
Senior Member
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

It almost looks like they've melted?
I have no idea... Could spark cut only launch control do that?
nicacus is offline   Reply With Quote
Old 09-30-2009, 08:36 PM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,318
Total Cats: 1,916
Default

How much sand did you pour through the intake?
Joe Perez is offline   Reply With Quote
Old 09-30-2009, 08:51 PM   #4
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Look for the culprit in your cat if you have one.
neogenesis2004 is offline   Reply With Quote
Old 09-30-2009, 09:22 PM   #5
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

cant tell if its FOD or High EGTs. It really looks melted.
wayne_curr is offline   Reply With Quote
Old 09-30-2009, 09:30 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

looks like splitime's turbine.
Braineack is offline   Reply With Quote
Old 09-30-2009, 09:35 PM   #7
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

looks FOD + carbon buildup
neogenesis2004 is offline   Reply With Quote
Old 09-30-2009, 09:45 PM   #8
DXO
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Location: Kannapolis, NC
Posts: 229
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
looks like splitime's turbine.
Any links to images?

Quote:
Originally Posted by neogenesis2004 View Post
looks FOD + carbon buildup
I can't see where anything might have come from that could have caused damage like this and the carbon is from running a little rich.

No cat or muffler to check for anything so clues there. Guess its time rebuild the turbo and hope it doesn't happen again.
DXO is offline   Reply With Quote
Old 09-30-2009, 09:57 PM   #9
Junior Member
iTrader: (1)

Join Date: Aug 2008
Posts: 373
Total Cats: 36
Default

FOD. The tips are all bent backwards cuz the blade tip speed is faster than the chunk of exhaust valve they're hitting.

Oh and there might be some overtemping in there too
JKav is offline   Reply With Quote
Old 10-01-2009, 11:26 AM   #10
Junior Member
iTrader: (4)

Join Date: Dec 2007
Location: Springfield, Mass
Posts: 364
Total Cats: 0
Default

Do you know what your egts were?
seraph is offline   Reply With Quote
Old 10-01-2009, 12:08 PM   #11
Junior Member

Join Date: Jan 2008
Location: Sparta, NJ
Posts: 96
Total Cats: 0
Default

If you heard a rattling coming from the turbo then the blades were definitely hitting something.
avante43 is offline   Reply With Quote
Old 10-01-2009, 12:30 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

11.5:1 is the happy place.
hustler is offline   Reply With Quote
Old 10-01-2009, 12:34 PM   #13
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

I've seen something like that when a guy lost two electrodes off of his spark plugs from detonation and they went through the turbine. It is foreign object damage, not melting. Could be any little bits and pieces from your engine or that went through your engine.

Edit: Are you missing any nuts?

Or washers? or bolts? or screws?
sixshooter is online now   Reply With Quote
Old 10-01-2009, 12:37 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

That's more than just a screw...ive had a screw through my turbine...
Braineack is offline   Reply With Quote
Old 10-01-2009, 12:45 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

At some point you think we'd evolve as a race and learn to eliminate detonation.
hustler is offline   Reply With Quote
Old 10-01-2009, 01:03 PM   #16
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Mine didn't get damaged while I was running it. I did run my turbo like that though :P

Splitime is online now   Reply With Quote
Old 10-02-2009, 02:20 AM   #17
DXO
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Location: Kannapolis, NC
Posts: 229
Total Cats: 1
Default

Well I have yet to have the heart to touch the spark map for fear of detonation... I am using a base map for it still. I know the blades where hitting something but I can't figure out what. It's not the housing or at least it isn't showing any signs of it. Compression test came out fine so I doubt it is a piece of a valve. Spark plugs are kinda fowled from running rich. I don't know what the hell it was... anyway new turbine and compressor blades are on their way so I can have it rebuilt. While I am at it I'm ordering a clutch and flywheel so I finally have an excuse to go to the dyno and tune...
DXO is offline   Reply With Quote
Old 10-02-2009, 02:35 AM   #18
DXO
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jul 2008
Location: Kannapolis, NC
Posts: 229
Total Cats: 1
Default

Quote:
Originally Posted by hustler View Post
At some point you think we'd evolve as a race and learn to eliminate detonation.
I actually used your advice and made det cans to tune a friends car a month or so ago. They do look stupid as **** but work.

At the time I hooked it up to my car just to test and never heard anything. Maybe I'm just deaf but w/e if it was detonation I guess it means its time to rebuild and have it tuned by someone else....
