Default How bad could it be? GT3071R 1.06ar

So some of you might recall my recent purchase of a new GT3071R for $650 just before Christmas. See thread My first turbo...

I was bound and determined to get a real GT hotside at a similarly ridiculous price point and I really wanted V-band too. Well, I practically stole one on E-bay for $53! ATP gets $380 for this housing new. The housing is *barely* used; except for some light soot inside it looks brand spanking new. (The auction picture doesn't do it justice) However, the ar is 1.06. I bought it to barter for the same housing in 0.63 ar. See thread Other turbo car forums: Where can I swap/sell this housing?

But I got to thinking... How bad could the spool be if I run this housing on the Miata while I wait for the right housing to come along? I mean even super laggy boost is better than no boost, right?

What do you guys think, will I see any boost with this housing?
MazDilla is offline   Reply With Quote
Old 02-03-2008, 02:21 AM   #2
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

i'm thinking it will suck pretty bad, but try it out and let us know, if you don't like it then swap it
Mach929 is offline   Reply With Quote
Old 02-03-2008, 08:57 AM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

ctpsloni on .net runs a 3071 i think he is happy with it.
magnamx-5 is offline   Reply With Quote
Old 02-03-2008, 10:42 AM   #4
Junior Member

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

I am 100% SURE that the 1,06 hotside a/r cannot work in your application.

0,63 is the best for miata engines
BIGTURBO is offline   Reply With Quote
Old 02-03-2008, 11:33 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

i doubt a 1.06 will ever make boost.

a .63 wont make boost on a 1.6 till 4.5K and make 12psi at 5K


http://forum.miata.net/vb/attachment...chmentid=38520
Braineack is offline   Reply With Quote
Old 02-03-2008, 12:24 PM   #6
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by MazDilla View Post
So some of you might recall my recent purchase of a new GT3071R for $650 just before Christmas. See thread My first turbo...

I was bound and determined to get a real GT hotside at a similarly ridiculous price point and I really wanted V-band too. Well, I practically stole one on E-bay for $53! ATP gets $380 for this housing new. The housing is *barely* used; except for some light soot inside it looks brand spanking new. (The auction picture doesn't do it justice) However, the ar is 1.06. I bought it to barter for the same housing in 0.63 ar. See thread Other turbo car forums: Where can I swap/sell this housing?

But I got to thinking... How bad could the spool be if I run this housing on the Miata while I wait for the right housing to come along? I mean even super laggy boost is better than no boost, right?

What do you guys think, will I see any boost with this housing?

I think you will see boost, I think it will roll in around 5000 RPM or so. That's my guess. When it does it will be making more power per PSI than anything else we have yet seen on the Miata because of the large A/R.


Mark
Markp is offline   Reply With Quote
Old 02-03-2008, 01:34 PM   #7
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

build the motor to spin 10k rpms...and you've got yourself a turbo that'll scream up top...

thinking...Honda turbo.
miatamania is offline   Reply With Quote
Old 02-03-2008, 05:56 PM   #8
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Braineack View Post
i doubt a 1.06 will ever make boost.

a .63 wont make boost on a 1.6 till 4.5K and make 12psi at 5K


http://forum.miata.net/vb/attachment...chmentid=38520
My turbo has a .63 a/r, makes 10 psi at 3250 rpm.
cardriverx is offline   Reply With Quote
Old 02-03-2008, 06:28 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yeah but you don't have a 3071 you have a t3. while the turbines are similar in size the compressor is 17mm larger in diameter that will adversely effect spool.

the .63 a/r is efficient at 20 lb/min, the 1.06 a/r is efficient at 27 lb/min...IIRC a 1.6L pumps out a mere 14 lb/min @ 7K.

I'm just basing that off the dyno results some other member saw himself, with is pretty good data to go by.
Braineack is offline   Reply With Quote
Old 02-03-2008, 06:43 PM   #10
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by Braineack View Post
yeah but you don't have a 3071 you have a t3. while the turbines are similar in size the compressor is 17mm larger in diameter that will adversely effect spool.

the .63 a/r is efficient at 20 lb/min, the 1.06 a/r is efficient at 27 lb/min...IIRC a 1.6L pumps out a mere 14 lb/min @ 7K.

I'm just basing that off the dyno results some other member saw himself, with is pretty good data to go by.

For means of personal education.. Does lb/min air in == lb/min air out? Can you figure out the air consumption with a simple mathematical formula accurate or do you have to know the cylinder head flow also?
elesjuan is offline   Reply With Quote
Old 02-03-2008, 06:44 PM   #11
Junior Member
Thread Starter
iTrader: (7)

Join Date: Feb 2007
Location: Overland Park, KS
Posts: 395
Total Cats: 6
Default

Quote:
Originally Posted by Markp View Post
I think you will see boost, I think it will roll in around 5000 RPM or so. That's my guess. When it does it will be making more power per PSI than anything else we have yet seen on the Miata because of the large A/R.
Mark
Mark, are you saying you would expect the engine to be in vacuum until 5K?

...then .0002 seconds, 50 RPM, and 200 ft-lbs later I will Braineack my *** into a pole
MazDilla is offline   Reply With Quote
Old 02-03-2008, 06:56 PM   #12
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

hahahhahahahahahahahaha
Stealth97 is offline   Reply With Quote
Old 02-03-2008, 07:06 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by elesjuan View Post
For means of personal education.. Does lb/min air in == lb/min air out? Can you figure out the air consumption with a simple mathematical formula accurate or do you have to know the cylinder head flow also?
The head (and intake manifold, etc) is a variable, but it's adequate to throw a guess at it. For a four-valve engine, I'd throw maybe a 0.9 at VE.

The general rule is that base airflow (CFM) at atmospheric is:
(cc * RPM * .5 * VE) / 28317

At STP, one cubic foot of air is
0.0807 lbs, so multiply that against the answer to get lbs/min at atmospheric.

Under boost, multiply that result against the pressure ratio to get true lbs/min.



edit: Here is an awesome calculator to do all the math for you and produce tables both in CFM and lb/min: http://www.lovehorsepower.com/CFM1.htm
Joe Perez is offline   Reply With Quote
Old 02-03-2008, 10:01 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by elesjuan View Post
For means of personal education.. Does lb/min air in == lb/min air out? Can you figure out the air consumption with a simple mathematical formula accurate or do you have to know the cylinder head flow also?

air out through the turbine.

i use (CI x rpm) / 3456 / 14.47
Braineack is offline   Reply With Quote
Old 02-03-2008, 11:20 PM   #15
Senior Member

Join Date: Mar 2006
Posts: 1,379
Total Cats: 1
Default

Quote:
Originally Posted by MazDilla View Post
Mark, are you saying you would expect the engine to be in vacuum until 5K?

...then .0002 seconds, 50 RPM, and 200 ft-lbs later I will Braineack my *** into a pole
When it does spool... It will spool pretty violently would be my guess.

Mark
Markp is offline   Reply With Quote
Old 02-04-2008, 10:41 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

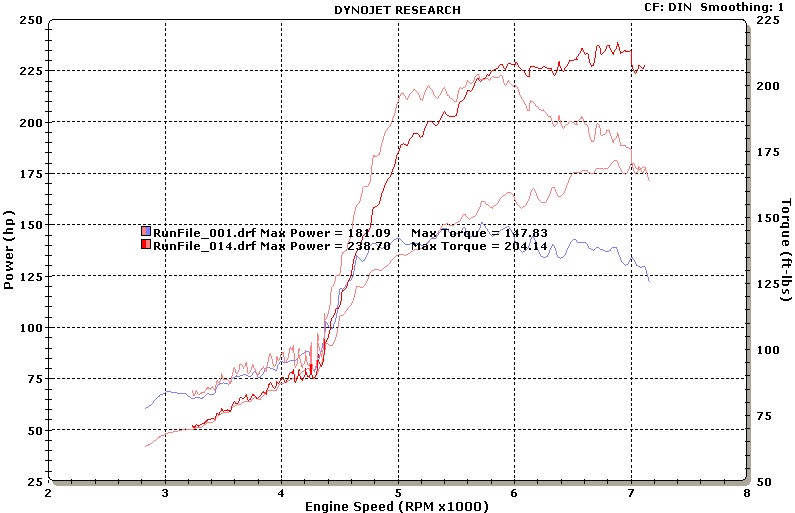

I'll post this up since no one seems to be following the link. 1.6L 3071 at 12psi.
Attached Thumbnails
How bad could it be? GT3071R 1.06ar-3076_dyno.jpg
Braineack is offline   Reply With Quote
Old 02-04-2008, 10:53 AM   #17
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

looks like a VTAK dyno
Zabac is offline   Reply With Quote
Old 02-04-2008, 01:16 PM   #18
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Quote:
Originally Posted by whaaamx5 View Post
looks like a VTAK dyno
That unfortunately stops at 7k.

Frank
fmowry is offline   Reply With Quote
