Default I need to know if this turbo would work?




Okay notice that circle on the inside? That won't work with the HKS manifold right? It looks as if i'll need to somehow get it machined until the circle so it's all flat and does this look like a T25 flange?
PaKMaN is offline   Reply With Quote
Old 11-20-2006, 03:15 PM   #2
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

that ALMOST looks like a T3 flange...get a shot of the back of the turbine housing and I can tell you. OK after looking closer that appears to be a T3 since the center section of the turbo is of a T3 style...looks like a chrysler style inlet on the turbine.
F20turbo is offline   Reply With Quote
Old 11-20-2006, 03:21 PM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

I think its the wierd volvo t3 inlet. Its t3, but that opening requires a wierd gasket. I think people have had success having the wierdness milled out so it fits normally.
Splitime is offline   Reply With Quote
Old 11-20-2006, 03:34 PM   #4
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

Yup...its a Volvo T3.
Kelly is offline   Reply With Quote
Old 11-20-2006, 03:44 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

volvo T3, sorry! But yeah, you can machine it flat.
Braineack is offline   Reply With Quote
Old 11-20-2006, 03:47 PM   #6
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

damn, I didnt even know volvo used that odd inlet...you learn something every day.
F20turbo is offline   Reply With Quote
Old 11-20-2006, 04:04 PM   #7
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

You can machine it flat (what I did with mine) or I believe you can purchase an adapter from ATP Turbo now.
bripab007 is offline   Reply With Quote
Old 11-20-2006, 11:49 PM   #8
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Would this work with a HKS manifold? 1.8 of course
PaKMaN is offline   Reply With Quote
Old 11-21-2006, 12:23 AM   #9
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

If the HKS manifold uses a T3 flange and you machine your Volvo turbine flange down, then the answer is "yes."
bripab007 is offline   Reply With Quote
Old 11-21-2006, 03:41 AM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by bripab007 View Post
If the HKS manifold uses a T3 flange and you machine your Volvo turbine flange down, then the answer is "yes."
**** the HKS is a T25 AGH!!!!!!!!!! is there anyway to use those adapter things?
PaKMaN is offline   Reply With Quote
Old 11-21-2006, 09:47 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yeah but your turbo will sit curiously higher.

http://cgi.ebay.com/ebaymotors/T2-TO...spagenameZWDVW

Or you could just weld a flange straight onto the exisiting, which will raise it about 1/2" or so. Probably easiest to just get a T2 turbo.
Braineack is offline   Reply With Quote
Old 11-21-2006, 05:14 PM   #12
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by AndyFloyd View Post
that ALMOST looks like a T3 flange...get a shot of the back of the turbine housing and I can tell you. OK after looking closer that appears to be a T3 since the center section of the turbo is of a T3 style...looks like a chrysler style inlet on the turbine.

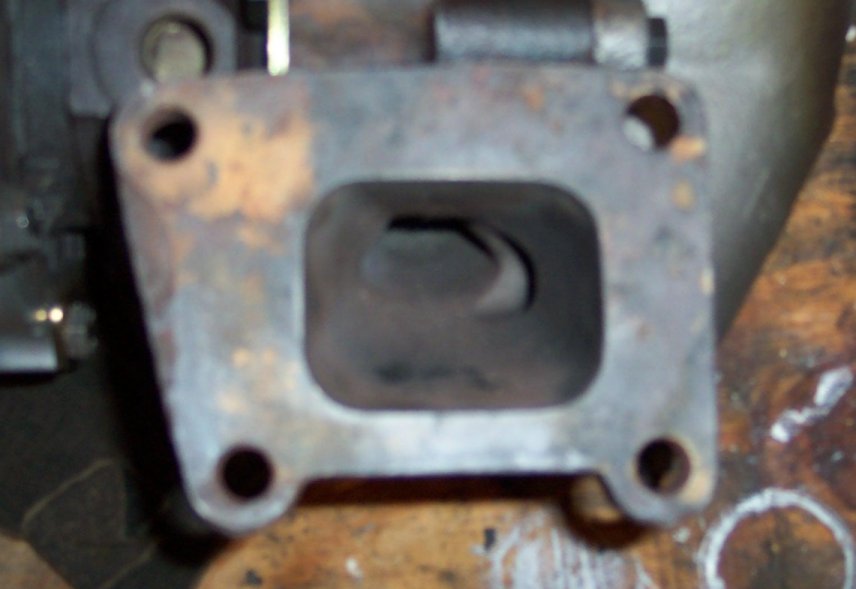

For future seachers see the photo attached for the chrystler style flange as come on my turbo (TB0335).
Attached Thumbnails
I need to know if this turbo would work?-tbo3_crystler_flange.jpg
Arkmage is offline   Reply With Quote
