DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 01-06-2009, 11:35 PM   #1
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default IAC bung

this is a question relating the IAC valve.
I referenced this thread: https://www.miataturbo.net/forum/t27901/

From what i have gathered i need to route the IAC into the charge pipe.

My setup will be:
1.8 L
CX racing intercooler and 2.5" alum. pipe kit
megasquirt in parallel (stock ecu controls idle)


My question is:
where do you get the bung to weld onto the intercooler pipe? what size is it?

Thanks!
240_to_miata is offline   Reply With Quote
Old 01-07-2009, 12:14 AM   #2
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

I went to my hardware store and bought a 3/8NPT to 5/8 barb fitting (AKA Oil Drain fitting) Used the same drill and tap to make another fitting on my charge pipe. Used a 5/8 heaterhose to connect to it.
jobambo is offline   Reply With Quote
Old 01-07-2009, 12:21 AM   #3
Hittin' Boost & Cones
Thread Starter
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

awesome. It didnt leak without using a weld in bung for that 3/8 npt?
240_to_miata is offline   Reply With Quote
Old 01-07-2009, 12:23 AM   #4
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

piece of pipe welded on for mine
akaryrye is offline   Reply With Quote
Old 01-07-2009, 12:48 AM   #5
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

FM's TB inlet pipe for me.

Vash-
Vashthestampede is offline   Reply With Quote
Old 01-07-2009, 02:17 AM   #6
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Springfield Oregon
Posts: 174
Total Cats: 0
Default

I turned a piece of aluminum stock on my lathe so it would have a barb on it (which might not be completely necessary), then used a bench grinder to grind it to the shape of the charge pipe, then MIG welded it onto my charge pipe. Not the simplest or easiest to come by way of going about it, but it is nearly ideal.

I'd think jobambo's method would be quite sufficient as well, along with coating the threads in JB Weld to seal it (that's exactly what I did with my oil drain bung) and I'd bet it would hold up for years and years. If I didn't have a lathe and MIG, that's what I would do without question.
miatamoxie is offline   Reply With Quote
Old 01-07-2009, 03:31 AM   #7
Junior Member

Join Date: May 2007
Location: San Diego
Posts: 383
Total Cats: 0
Default

Quote:
Originally Posted by 240_to_miata_OWNER View Post
awesome. It didnt leak without using a weld in bung for that 3/8 npt?
JB welded it just like my oil drain. Just remember to tap it a little further than normal because of the shape pipe.
jobambo is offline   Reply With Quote
Old 01-07-2009, 10:50 AM   #8
Junior Member

Join Date: Oct 2007
Location: Staten Island, NY
Posts: 159
Total Cats: 0
Default

Quote:
Originally Posted by Vashthestampede View Post
FM's TB inlet pipe for me.

Vash-
Where do you get that? I dont see it on their site.
anarchyx34 is offline   Reply With Quote
Old 01-07-2009, 10:57 AM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

I just used a piece of pipe and reused the IAC hose.


Quote:
Originally Posted by anarchyx34 View Post
Where do you get that? I dont see it on their site.
Call them, then bend over.
Saml01 is offline   Reply With Quote
Old 01-07-2009, 11:14 AM   #10
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by anarchyx34 View Post
Where do you get that? I dont see it on their site.
Yea, just call them and ask about it. Thats how I got my silicone IC piping.

Vash-

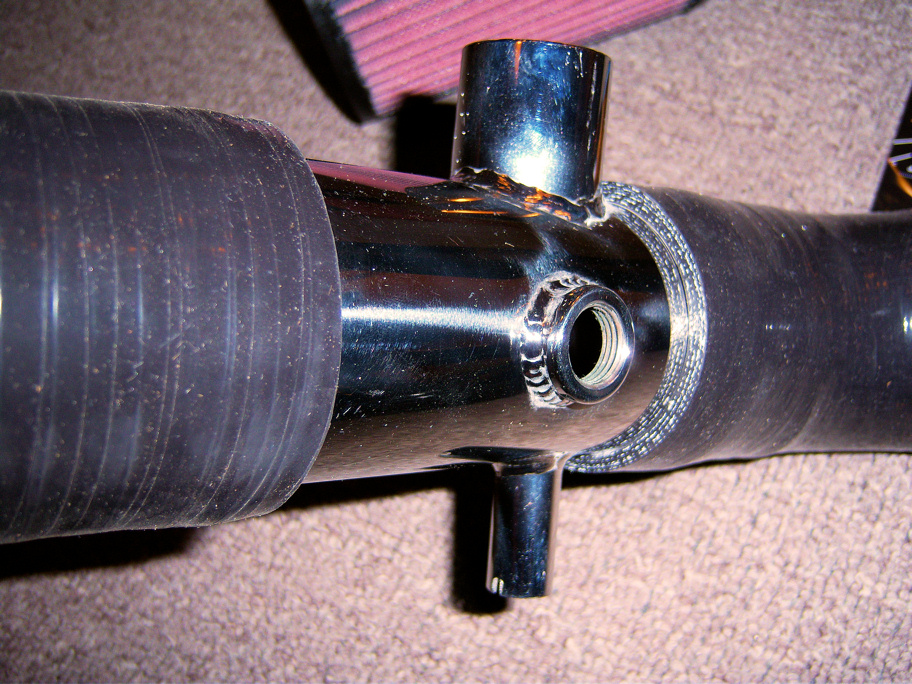

Attached Thumbnails
IAC bung-123_0479-2-.jpg
Vashthestampede is offline   Reply With Quote
