Default IC Piping Flex Coupler Questions

I posted this on Miata.net but since its turbo related thought I'd try here.

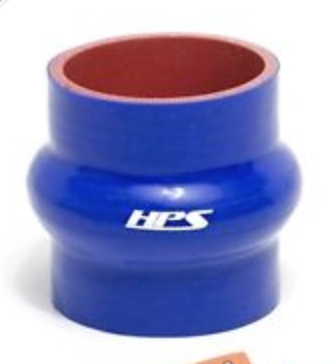

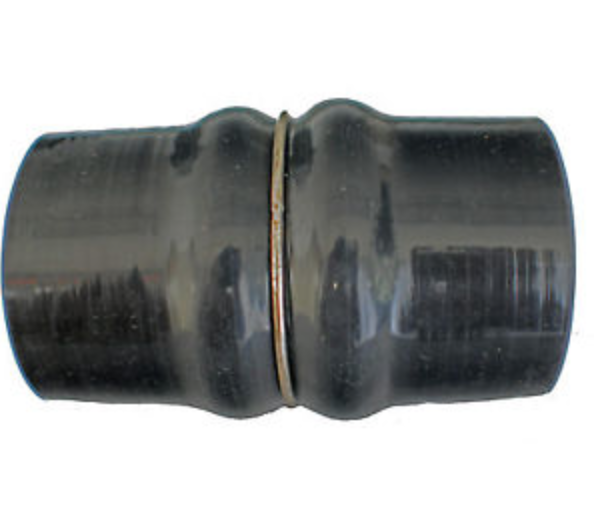

Can some one tell me the different functions of a single hump vs a double hump coupler hoses ...and what is the wire ring for on the double?

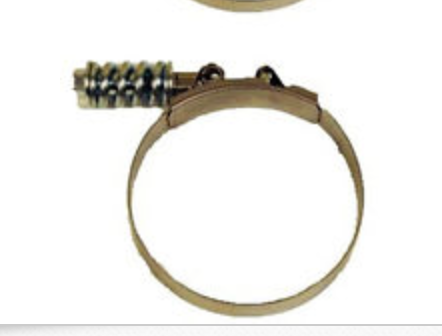

Do the clamps with springs really work?





Attached Thumbnails
IC Piping Flex Coupler Questions-screenshot2014-07-27at85911am_zpsebbb6238.png   IC Piping Flex Coupler Questions-screenshot2014-07-27at85933am_zps411b5116.png   IC Piping Flex Coupler Questions-screenshot2014-07-27at90217am_zpsc4a8bcef.png
scratchedup is offline   Reply With Quote
Old 07-27-2014, 04:11 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

humps are to allow more movement. the ring is to prevent from collapsing. yes those sprung clamps are probably the best (if you get the proper ones and not some knockoff)
18psi is offline   Reply With Quote
Old 08-01-2014, 11:35 AM   #3
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

The spring clamps are great; however, entirely unnecessary on a "proper" set up.

If you lip/bead your IC pipes, nothing more than a nice lined SS worm-drive clamp is required. Such as these:McMaster-Carr

I used these on my IC pipes and the clamping force was high enough to crush the aluminum piping. It ain't coming apart.

-Zach
thasac is offline   Reply With Quote
Old 08-01-2014, 01:34 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i always end up taking off the springs.
Braineack is offline   Reply With Quote
Old 08-01-2014, 01:55 PM   #5
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I have no problem with the cheap t-bolt clamps sourced form either cx racing or silicone intakes. I just make sure to anti-seize them to prevent galling, which you should do to all stainless threaded fasteners anyways. Ok, thats a lie, I have one problem with them. The cx racing ones all have 10mm nuts and the silicone intakes ones have 11mm and it pisses me off to no end whenever I have to remove the couplings either at the intercooler or the throttle body and have to use 2 different sized sockets.
Leafy is offline   Reply With Quote
Old 08-01-2014, 02:06 PM   #6
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 46
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
I have no problem with the cheap t-bolt clamps sourced form either cx racing or silicone intakes. I just make sure to anti-seize them to prevent galling, which you should do to all stainless threaded fasteners anyways. Ok, thats a lie, I have one problem with them. The cx racing ones all have 10mm nuts and the silicone intakes ones have 11mm and it pisses me off to no end whenever I have to remove the couplings either at the intercooler or the throttle body and have to use 2 different sized sockets.
How about replacing the 11mm nuts with a common size.....10mm?

When I'm prepping and fabricating I take off the lock nut and use a regular nut that can be hand tightened. When finished put the lock nut back.
scratchedup is offline   Reply With Quote
Old 08-01-2014, 02:08 PM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by scratchedup View Post
How about replacing the 11mm nuts with a common size.....10mm?

When I'm prepping and fabricating I take off the lock nut and use a regular nut that can be hand tightened. When finished put the lock nut back.
havent gotten around to it.

Oh and as another note, the cx racing t-bolt clamps are actually stainless bands with zinc coated steel t-bolt part.
Leafy is offline   Reply With Quote
Old 08-01-2014, 02:13 PM   #8
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 46
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
havent gotten around to it.

Oh and as another note, the cx racing t-bolt clamps are actually stainless bands with zinc coated steel t-bolt part.
I'm using a bunch of these clamps on the IC system and on the V-band on the IC and exhaust.

I've been using DIXON which are way over kill but they are nice. The nut is a nice 7/16 hex 1/4 x 28.
scratchedup is offline   Reply With Quote
Old 08-01-2014, 02:18 PM   #9
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I'm trying to avoid putting stuff on the car that requires fractional wrenches and sockets. Scratch that, I'm trying to avoid putting things on the car that require the use of anything besides a 7mm, 8mm, 10mm, 12mm, 14mm, 17mm, 19mm, or 22mm wrench or socket.
Leafy is offline   Reply With Quote
Old 08-01-2014, 02:25 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

11mm nuts blow.
Braineack is offline   Reply With Quote
Old 08-01-2014, 02:56 PM   #11
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
11mm nuts blow.
True story. I had to go buy a deep 11mm socket back in 2007 when I was installing my BEGI setup. It has lived in my toolbox since then and I think the only time it gets used is on those stupid t-bolt clamps.
shuiend is offline   Reply With Quote
Old 08-01-2014, 03:16 PM   #12
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

They are not 11mm. they are 7/16" and made in MURICA!!

Way to not be patriotic and get told by a russian french canadian.
Way to go.
Way. to. go.
soviet is offline   Reply With Quote
Old 08-01-2014, 03:17 PM   #13
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 46
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
I'm trying to avoid putting stuff on the car that requires fractional wrenches and sockets. Scratch that, I'm trying to avoid putting things on the car that require the use of anything besides a 7mm, 8mm, 10mm, 12mm, 14mm, 17mm, 19mm, or 22mm wrench or socket.
Yea I've given up and just use all the sizes...

never seen 7mm...stuff.

My turbo flange nuts are now all 13mm. I could not source the 12mm ones.
scratchedup is offline   Reply With Quote
Old 08-01-2014, 03:21 PM   #14
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

7mm should be M4 bolts, so probably almost nothing on the miata. I spend the extra money and get the Japanese Small Wrench (JIS) standard hardware to get all the right wrench sizes.
Leafy is offline   Reply With Quote
Old 08-01-2014, 03:25 PM   #15
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,517
Total Cats: 256
Default

Wilwood Dynalite calipers use 1/4" bleeders. That's 6.35mm. I only had a 6mm wrench, had to... file it out a little bit.
soviet is offline   Reply With Quote
Old 08-01-2014, 03:26 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by soviet View Post
They are not 11mm. they are 7/16" and made in MURICA!!

Way to not be patriotic and get told by a russian french canadian.
Way to go.
Way. to. go.

sorry im not trying to do fractions.

Last edited by Braineack; 08-02-2014 at 11:02 AM.
Braineack is offline   Reply With Quote
Old 08-01-2014, 04:26 PM   #17
Junior Member
Thread Starter

Join Date: Nov 2011
Posts: 46
Total Cats: -3
Default

This is the response I got regarding what size nuts bolts wrenches does the Airbus use...

"A bit of clarification for you guys, albeit from a pilot not an engineer!

Airbus are not French made, but rather "European", although I'm sure the French would be happy to pretend otherwise!

The major components are actually made all over Europe, and the standards used are an amalgam of the practices favoured by the various original constituent companies!

I have no doubt that there was once serious discussion about what sizes of fasteners should be used, and it would seem that the British contingent won that one and Unified (not SAE) sizes were used. (Standard in the British aviation industry). Sensible decision as maintenance needs to be carried out anywhere! This was how Concorde was built!

Next came the argument about how these fasteners should be designated, and the French won that one, consequently you will find what is actually a 1/4 inch fastener designated 6.35mm by Airbus!

Ignore that, use normal tools, and you will be fine!"
scratchedup is offline   Reply With Quote
Old 08-02-2014, 10:45 AM   #18
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,106
Total Cats: 48
Default

Quote:
Originally Posted by soviet View Post
They are not 11mm. they are 7/16" and made in MURICA!!

Way to not be patriotic and get told by a russian french canadian.
Way to go.
Way. to. go.
I was hoping someone would get a clue before i got to the bottom of the thread. although i do use a 11mm gear wrench because i don't have them in SAE.
