Default ITT: Post pics of your rear exhaust routing

More specifically, a 3" and how it is manipulated around the differential/frame.
rider384 is offline   Reply With Quote
Old 02-19-2011, 07:24 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

There used to be a ton of threads that popped up (cause we've had this discussion 100x times here already) just did a search and can't find em. Not sure wtf happened.

But to answer your question: its a close fit, but a 45* and a u-bend will basically get the job done.
Search for y8s, brains, turbotims, and my exhaust build threads. There are TONS more but these are just off the top of my head.


*edit: here's mine
crappy lighting but you can still kinda see it


Fits like a charm and made a huge difference from 2.5"
18psi is offline   Reply With Quote
Old 02-19-2011, 08:09 PM   #3
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

JayL is offline   Reply With Quote
Old 02-19-2011, 08:24 PM   #4
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Enthuza 3":

RotorNutFD3S is offline   Reply With Quote
Old 02-19-2011, 08:26 PM   #5
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Thanks for the pictures guys - I've found it's hard to search for something as specific as this.

Any problems with banging? I was concerned that the 3" pipe would not fit through there, and it appears to have very tight tolerances.
rider384 is offline   Reply With Quote
Old 02-19-2011, 08:36 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

It all depends on how precisely you mount it. If you're off by even 1/4-1/2" it will bang pretty much.

if you have an NA and don't have that rear brace it makes it a whole lot easier too btw
18psi is offline   Reply With Quote
Old 02-20-2011, 02:18 AM   #7
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

There's a lot of people with cut bumpers but not a lot of driver's side exits. Looks like it could be done with less drastic bends.
rccote is offline   Reply With Quote
Old 02-20-2011, 02:24 AM   #8
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Enthuza 3" 5x11x22

The angle of the pic makes it look like there is hardly any clearance, but there's at least 1/4". I put little hose clamps on the hangers to prevent it from sliding around and banging.

VanMSM is offline   Reply With Quote
Old 02-20-2011, 09:34 AM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Same 5x11x22 hugenaflow.

Mine


Braineack's


y8s is offline   Reply With Quote
Old 02-20-2011, 12:04 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 02-20-2011, 12:11 PM   #11
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

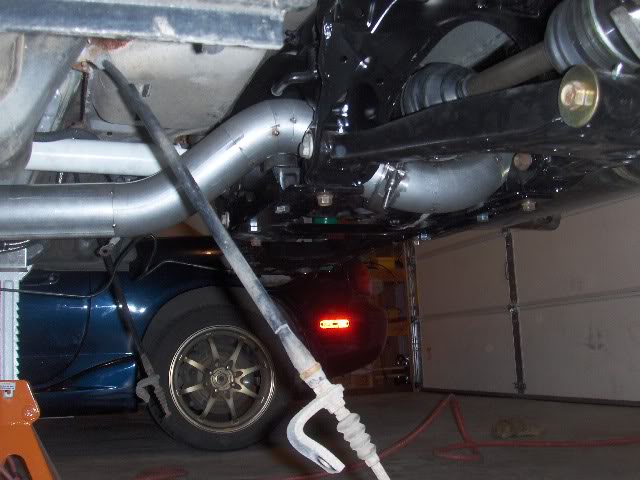

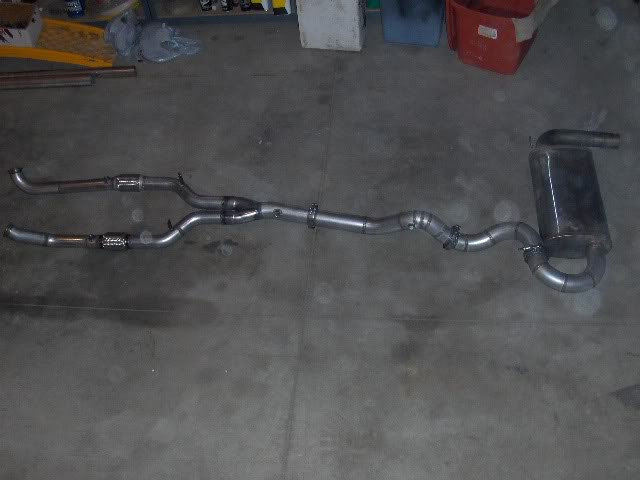

My V8 car, 3", tighter routing considering it's going around a Ford 8.8 diff instead of a little 7", plus my diff support. If there is a will, there is a way.

Name:  HPIM0893.jpg
Views: 16
Size:  57.5 KB
[IMG]http://i51.photobucket.com/albums/f357/68017/HPIM0898.jpg[IMG]

Name:  HPIM0899.jpg
Views: 11
Size:  35.5 KB
Stein is offline   Reply With Quote
Old 02-20-2011, 01:32 PM   #12
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by levnubhin View Post
Nubbins, yours looks exactly like what I'm planning. What size is that can?
rider384 is offline   Reply With Quote
Old 02-20-2011, 01:37 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,842
Total Cats: 1,787
Default

similar to this:




mine with a teenie tiny muffler that was useless:

Braineack is offline   Reply With Quote
Old 02-20-2011, 08:25 PM   #14
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default








TurboTim is offline   Reply With Quote
Old 02-21-2011, 09:36 AM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

6x12x22 magnaflow
m2cupcar is online now   Reply With Quote
Old 02-21-2011, 01:19 PM   #16
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by TurboTim View Post
Do you possibly have any pics of this exhaust installed? I was thinking of a system like this, just basically strait back and exit on the left with the bumper cut all the way across, but I'm worried it could look a little funny.
rider384 is offline   Reply With Quote
Old 02-21-2011, 02:30 PM   #17
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

I might somewhere. Perhaps Paul does. All I have easily now is this one, doesn't help you though.



EDIT: this was this exhaust before the muffler. Now the muffler exists on the right side of that vertical bumper support.

TurboTim is offline   Reply With Quote
Old 02-21-2011, 02:50 PM   #18
Want fries with that?
Thread Starter
iTrader: (3)

Join Date: Oct 2009
Location: Twin Cities, Minnesota
Posts: 2,023
Total Cats: -1
Default

Quote:
Originally Posted by TurboTim View Post
EDIT: this was this exhaust before the muffler. Now the muffler exists on the right side of that vertical bumper support.
That's what I was thinking of doing. What did it look like? Did it look funny at all?

And a question to anyone with a cut bumper: Do you still have the bumper support in there? Is it just trimmed or is it eliminated completely? If the latter, I don't want to do it because then it's pretty much guaranteed as totaled if you get hit, but if there's a way around it. Is the upper part still in there?
rider384 is offline   Reply With Quote
Old 02-22-2011, 10:12 AM   #19
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

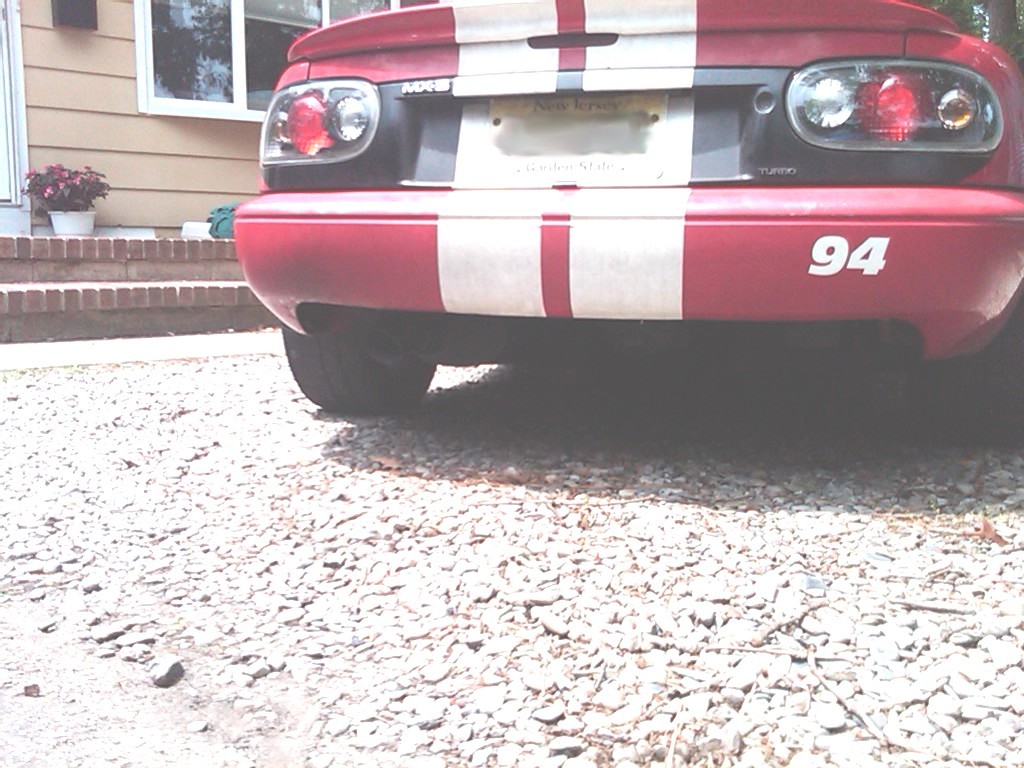

Here's the only pic Paul has of it on his car. He spray painted it black so it wasn't so obvious, IMHO it looked very slick & sounded great (5x8x14" magnaflow w/ resonator). I modified the image, cranked up the brightness so you could even see the muffler/tip. Paul still had the bumper supports I think, again painted them black.
Attached Thumbnails
ITT: Post pics of your rear exhaust routing-machinerear.jpg
TurboTim is offline   Reply With Quote
