Default Measured my China 2860 (Now with Datalog)

What does it all mean?

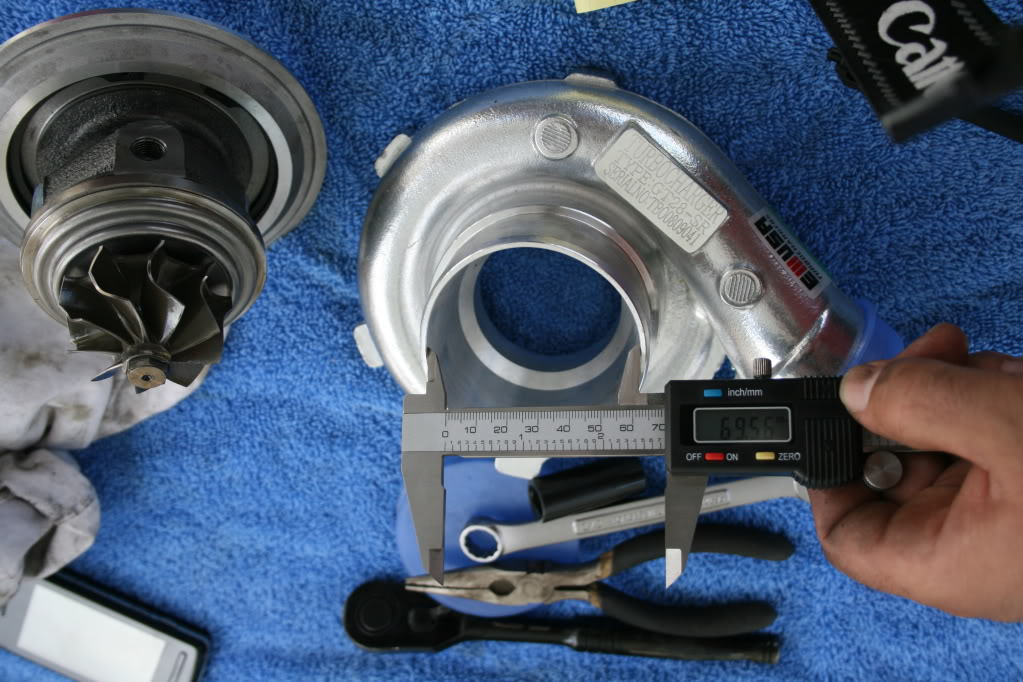

Name:  IMG_7179.jpg
Views: 10
Size:  131.4 KB

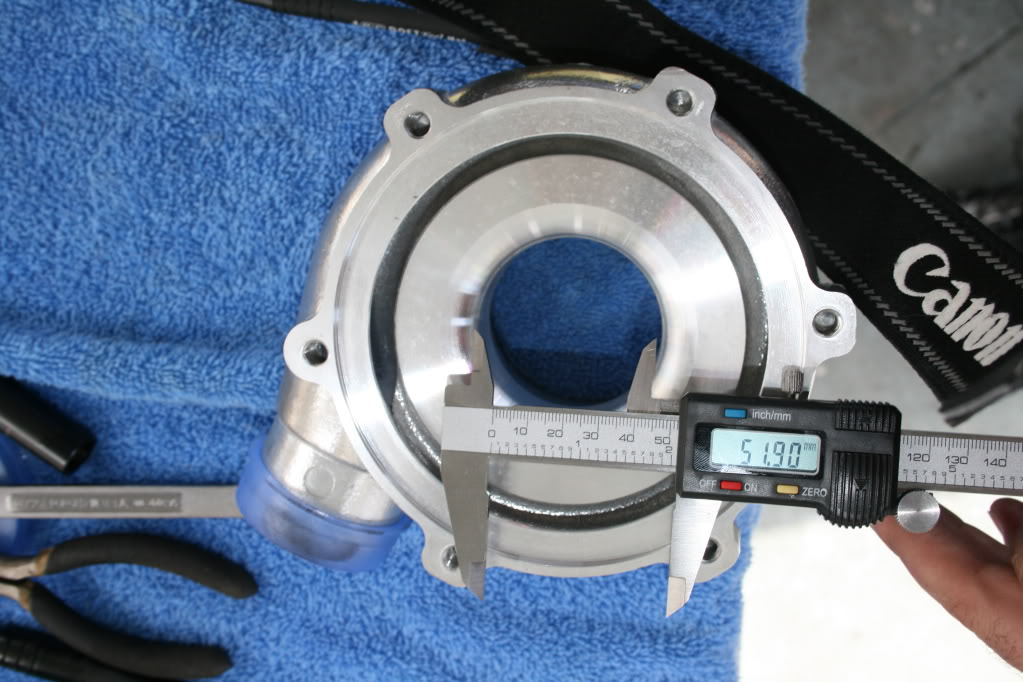

Name:  IMG_7180.jpg
Views: 9
Size:  109.8 KB

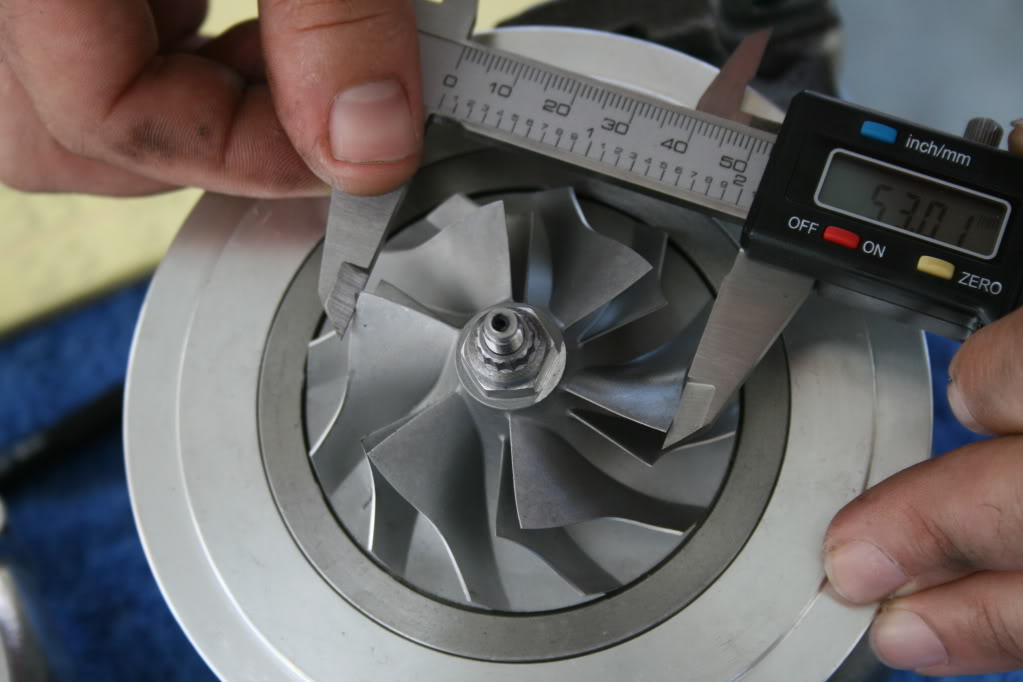

Name:  IMG_7187.jpg
Views: 11
Size:  71.4 KB

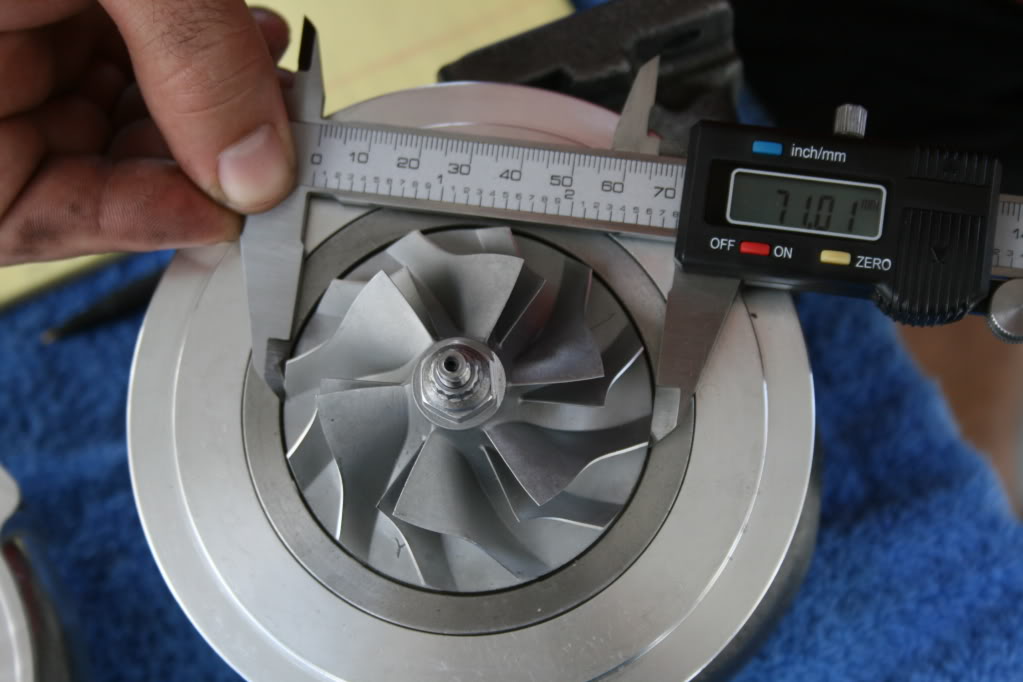

Name:  IMG_7191.jpg
Views: 9
Size:  72.6 KB

Name:  IMG_7193.jpg
Views: 9
Size:  83.9 KB

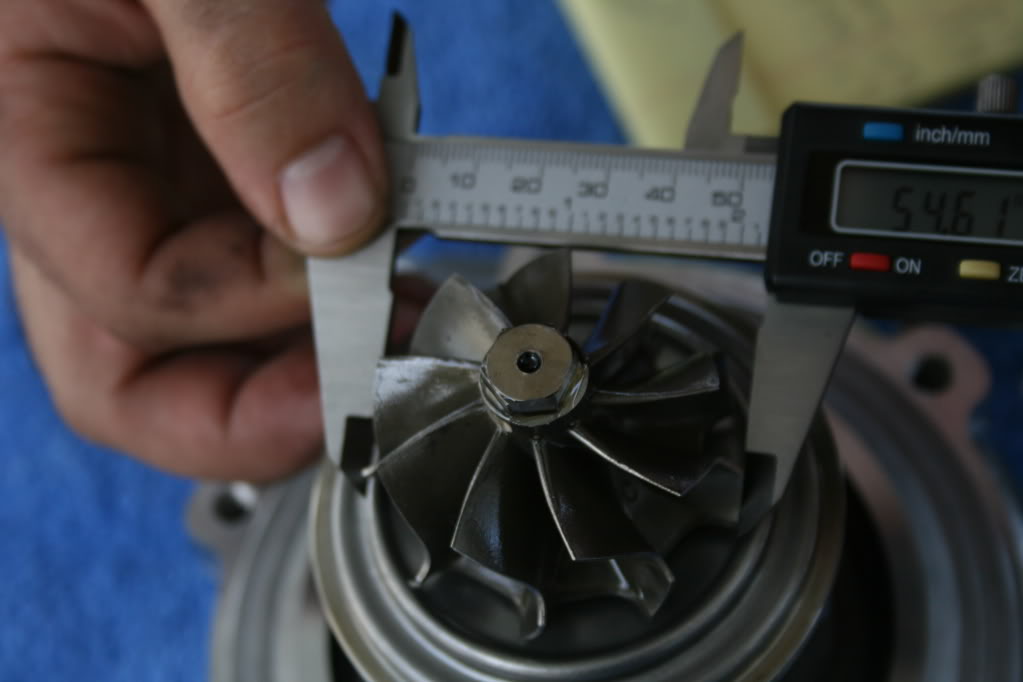

Name:  IMG_7194.jpg
Views: 9
Size:  54.1 KB

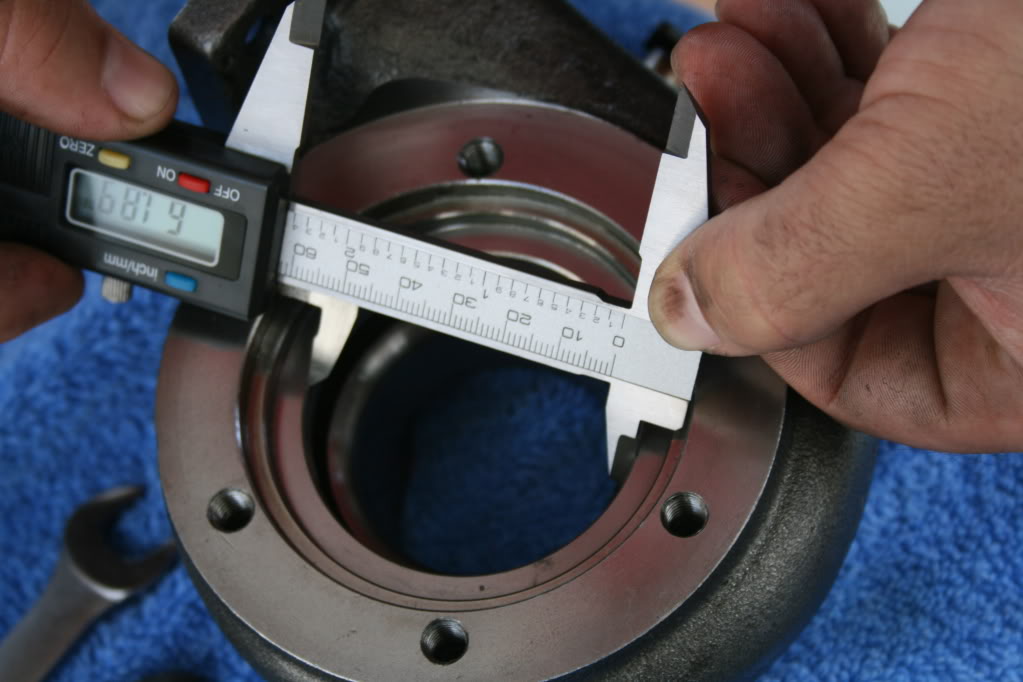

Name:  IMG_7195.jpg
Views: 9
Size:  79.7 KB

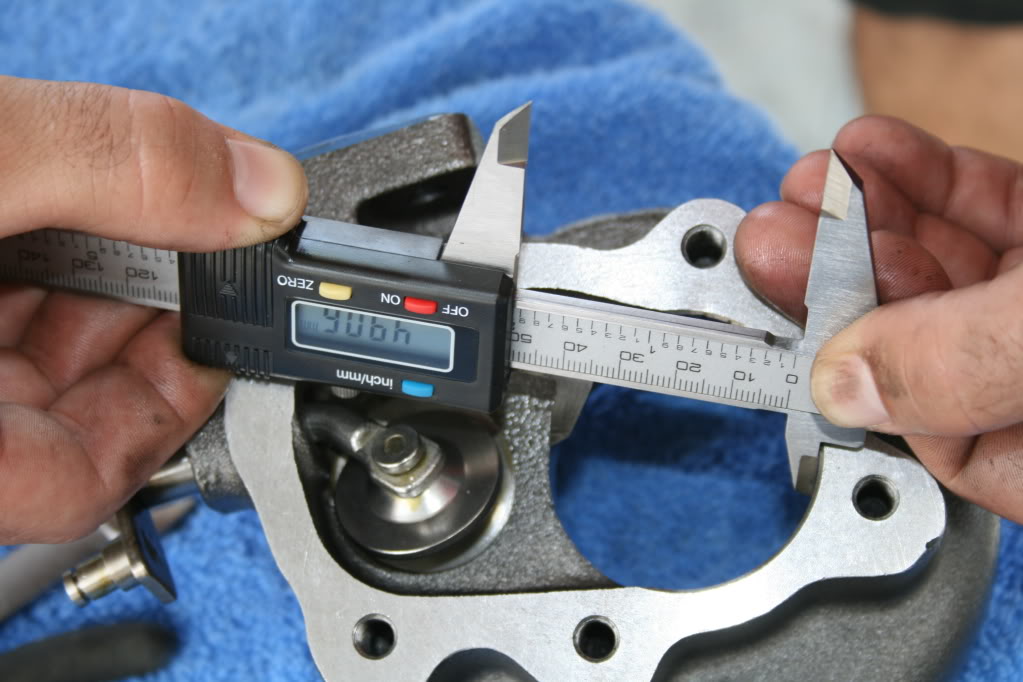

Name:  IMG_7196.jpg
Views: 9
Size:  92.3 KB

Datalog and screen shot. Still needs some tuning and I'll probably be getting to the dyno this coming weekend (Jared?)
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 03-12-2010 at 04:49 PM.
levnubhin is offline   Reply With Quote
Old 03-29-2009, 02:31 PM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,324
Total Cats: 1,922
Default

Quote:
Originally Posted by levnubhin View Post
What does it all mean?
It means you need to install that bitch on the car, show us some dyno numbers, and then start packing on the miles so we can get a reliability report out of you.
Joe Perez is offline   Reply With Quote
Old 03-29-2009, 02:35 PM   #3
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
It means you need to install that bitch on the car, show us some dyno numbers, and then start packing on the miles so we can get a reliability report out of you.
It's on. Soon as I finish the m-tuned brake sawp I'll be taking it for a drive.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-29-2009, 02:54 PM   #4
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Going by wheel size its closest to this
TurboByGarrett.com - Catalog
Saml01 is offline   Reply With Quote
Old 03-29-2009, 03:03 PM   #5
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

Quote:
Originally Posted by joe perez View Post
it means you need to install that bitch on the car, show us some dyno numbers, and then start packing on the miles so we can get a reliability report out of you.
+1000000000
leatherface24 is offline   Reply With Quote
Old 03-29-2009, 04:34 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by Saml01 View Post
Going by wheel size its closest to this
TurboByGarrett.com - Catalog
which means it's a smokin deal except for the bearing is journal right?
y8s is offline   Reply With Quote
Old 03-29-2009, 05:09 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

looks good. well see how it performs. with all these people switching over to chinachargers, through trial and error we might just find a company out there that makes decent quality ones......this is promising
18psi is offline   Reply With Quote
Old 03-29-2009, 05:17 PM   #8
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Seeing one apart makes me even more sure of going Chinese built. Only thing that makes me slightly uncomfortable is the fact I see no visible marks from balancing, if they in fact did balance anything. Maybe their engineering is that precise...

Or is that signs of balancing on the compressor wheel nut, or edge of the wheel, can't tell.
NA6C-Guy is offline   Reply With Quote
Old 03-29-2009, 07:22 PM   #9
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
which means it's a smokin deal except for the bearing is journal right?
Yes, journal wet float. What ever that means.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-29-2009, 08:52 PM   #10
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

yeah i dont see any signs of balancing...

generally its done on the "nut" of the turbine end
therieldeal is offline   Reply With Quote
Old 03-29-2009, 09:10 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Quote:
Originally Posted by levnubhin View Post
Yes, journal wet float. What ever that means.

all the same. a small brass sleeve with holes in for oil to pass through.






I do love how the measurements don't even come close to the auction however

enjoy the T2871.
Braineack is online now   Reply With Quote
Old 03-30-2009, 12:36 AM   #12
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

The lack of evidence that the rotating assembly was balanced concerns me.....I would send it out to a place that rebuilds turbos just to get the CHRA balanced.
The_Pipefather is offline   Reply With Quote
Old 03-30-2009, 12:42 AM   #13
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

The balancing on my stock sr20 t25s were done on the back side of the wheels... i believe the compressor side. One had a lot of balancing, the other just had one tiny tiny little machining. U might want to just mark the orientation, and take appart the CHRA to check for balancing, then re-install in the same orientation (assuming its balanced).

I would still think about getting it balanced as mentioned by others.
240_to_miata is offline   Reply With Quote
Old 03-30-2009, 12:43 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

Balancing is overrated.
Braineack is online now   Reply With Quote
Old 03-30-2009, 01:18 AM   #15
Junior Member
iTrader: (2)

Join Date: Sep 2008
Location: Sandy, Utah
Posts: 175
Total Cats: 0
Default

Crap, I was looking at the same one, but I don't know if I'd like the 2871 size. In to see the psi/rpm graph
Cpt_Slow is offline   Reply With Quote
Old 03-30-2009, 03:19 AM   #16
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Southern California
Posts: 72
Total Cats: 0
Default

how much did this cost you?
Vincent123 is offline   Reply With Quote
Old 03-30-2009, 04:04 AM   #17
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

300
thesnowboarder is offline   Reply With Quote
Old 03-30-2009, 10:32 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,885
Total Cats: 1,790
Default

STOP ZIPPING DATALOGS and MSQs!!!!



Your datalog is lean in boost, looks like it's making more power. how do like the spool difference?
Braineack is online now   Reply With Quote
Old 03-30-2009, 10:56 AM   #19
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
STOP ZIPPING DATALOGS and MSQs!!!!



Your datalog is lean in boost, looks like it's making more power. how do like the spool difference?
Sorry, lol. Fuel is ok, MLV and MS read leaner then the dash top AEM gauge does the richer it gets.

To be honest I really didn't notice a whole lot difference in spool. It looks like it spools slower on the log but it dosent feel a whole lot different. Needs more boost.

Oh, I wanted to ask. What injectors does Newbsauce run and what were his DC's at 17 psi. I'm already seeing 72% at 11 psi on my 550's and walbro 190.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 03-30-2009, 11:04 AM   #20
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

So any idea what the oil inlet size is? lol
Turbo_4 is offline   Reply With Quote
