Old 09-13-2013, 02:10 AM   #21
Newb

Join Date: Aug 2010
Location: Toronto, Canada
Posts: 22
Total Cats: -2
Default

Quote:
Originally Posted by Braineack View Post
porting the hole is trivial.
I beg to differ.

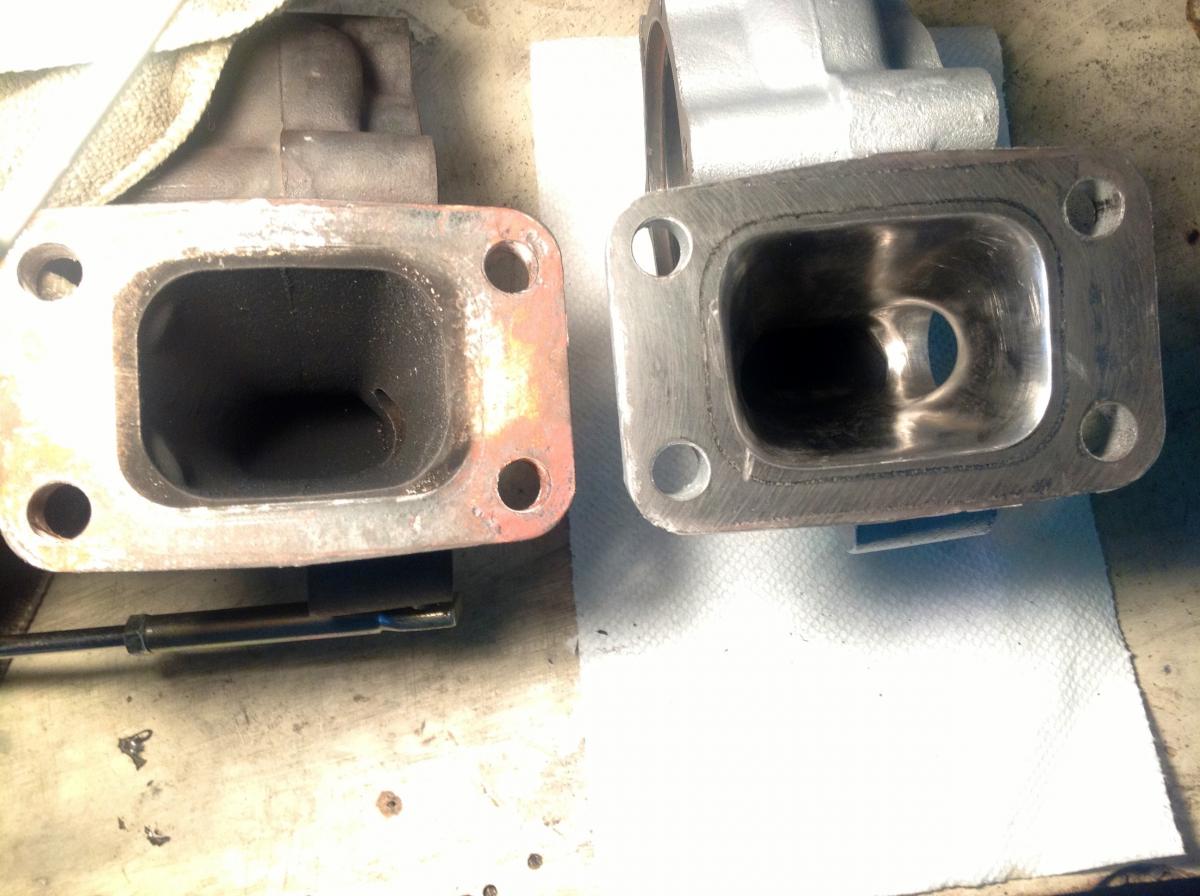

Exact same turbo, 2.5" V-band downpipe to 3" no cat... Ran into creep as well,
I even disconnected the wastegate entirely to trouble shoot but realized that the out of control creep still existed, so the problem is traced down to the turbine housings port being way to small..

Exact same housings, before and after. Yes I have 2 of these turbos, one is a spare so a perfect opportunity to showcase them side by side.

Note the black soot outline on the used left housing! Its a good idea since your in there to gasket match it to gain better flow, less lag which is exactly what I did as per right side ported housing.

You don't have to go to the extreme as mine and polish the housing (promotes higher exhaust gas velocity btw) but definitely should at least do what Braineack did on his, which has a similar shape to channel the gasses into the wastegate port.

Its hard to see this from my pic since I polished and smoothed mine out but the idea is the same. Keep in mind I am running a upgraded 1.5" flapper (yours is 1.25") and a Kinugawa billet wastegate : Results: boost creep? Whats that?!!
Attached Thumbnails
My 1.6 Turbo Dyno Results-image.jpg

Last edited by NorthernlightR; 09-13-2013 at 03:13 AM.
NorthernlightR is offline   Reply With Quote
Old 09-13-2013, 02:32 AM   #22
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

I'm pretty sure he meant making the hole larger in diameter.

He clearly showed porting his housing, but not hogging out the port itself.

Dann
nitrodann is offline   Reply With Quote
Old 09-13-2013, 03:55 AM   #23
Newb

Join Date: Aug 2010
Location: Toronto, Canada
Posts: 22
Total Cats: -2
Default

Quote:
Originally Posted by nitrodann View Post
I'm pretty sure he meant making the hole larger in diameter.

He clearly showed porting his housing, but not hogging out the port itself.

Dann

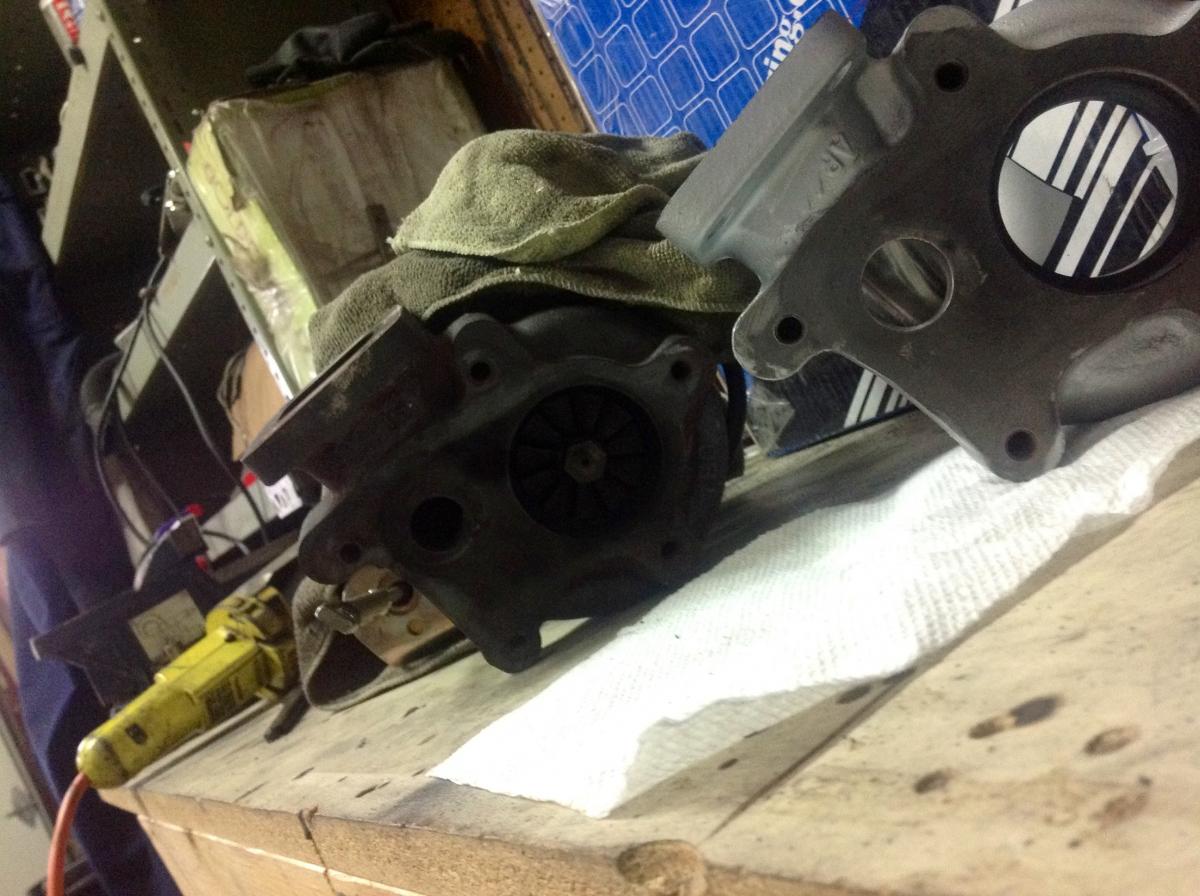

Note the larger diameter on the ported housing (right)
Attached Thumbnails
My 1.6 Turbo Dyno Results-image.jpg
NorthernlightR is offline   Reply With Quote
Old 09-13-2013, 04:43 AM   #24
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

And?
nitrodann is offline   Reply With Quote
Old 09-13-2013, 04:39 PM   #25
Newb

Join Date: Aug 2010
Location: Toronto, Canada
Posts: 22
Total Cats: -2
Default

Quote:
Originally Posted by nitrodann View Post
And?
Lol. Dumping a fixed amount of gases through a 1.25" diameter hole vs. 1.25" hole . Which one will evacuate the gases first! ..

Go ask companies that make variable size wastegates why they don't just use one size pistons and you will get your "and"

Or

Ask yourself why a 3" exhaust makes more power over the stock 2"...

Sure opening up the hole .5-1mm is trivial ok
But .250" makes a difference

You have your answer.

Nobody has to do what I did, the above method and pictures I posted is to help others see the merits of:

Simple fluid dynamics
NorthernlightR is offline   Reply With Quote
Old 09-16-2013, 12:55 PM   #26
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by NorthernlightR View Post
Dumping a fixed amount of gases through a 1.25" diameter hole vs. 1.25" hole . Which one will evacuate the gases first! ..
Huh? Is this a riddle?
hornetball is offline   Reply With Quote
Old 09-16-2013, 01:18 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

Quote:
Originally Posted by NorthernlightR View Post
Note the larger diameter on the ported housing (right)
that turbo had a severely undersized outlet to begin with. Look how much bigger the flapper area is compared to it. I've never dealt with a turbo like that, where I'm used the flapper just being maybe 2-4mm or so larger in diameter than the outlet.

There's also fear that if you do enlarge the hole that it's possible the extra exhaust gasses/pressure could force the wastegate open faster; but that sounds like a long math equation that I don't want to tackle.

also my comments were directed to that specific turbo itself: I have the same turbo; I don't have creep. The outlet doesn't need to be enlarged and there's little wiggle room to do so anyways.
Braineack is online now   Reply With Quote
Old 09-16-2013, 01:20 PM   #28
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

is it not just pressure over area?
nitrodann is offline   Reply With Quote
Old 09-16-2013, 01:23 PM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

Quote:
Originally Posted by nitrodann View Post
is it not just pressure over area?
plus the negative pressure of the wastegate actuator.
Braineack is online now   Reply With Quote
Old 09-17-2013, 02:07 PM   #30
Newb

Join Date: Aug 2012
Posts: 8
Total Cats: -3
Default

That's why I'd only go with external wastegate.
thangcu35 is offline   Reply With Quote
Old 09-17-2013, 02:10 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

Quote:
Originally Posted by thangcu35 View Post
That's why I'd only go with external wastegate.
OH COOL STORY!!! YOURE SO ******* AWESOME!
Braineack is online now   Reply With Quote
Old 09-17-2013, 02:39 PM   #32
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Expensive EWG setup for a $150 turbo. Makes sense.
thenuge26 is offline   Reply With Quote
Old 09-20-2013, 10:22 PM   #33
Newb

Join Date: Aug 2010
Location: Toronto, Canada
Posts: 22
Total Cats: -2
Default

Quote:
Originally Posted by Braineack View Post
that turbo had a severely undersized outlet to begin with. Look how much bigger the flapper area is compared to it. I've never dealt with a turbo like that, where I'm used the flapper just being maybe 2-4mm or so larger in diameter than the outlet.

There's also fear that if you do enlarge the hole that it's possible the extra exhaust gasses/pressure could force the wastegate open faster; but that sounds like a long math equation that I don't want to tackle.

also my comments were directed to that specific turbo itself: I have the same turbo; I don't have creep. The outlet doesn't need to be enlarged and there's little wiggle room to do so anyways.
The 2 housings i posted are the exact same turbos, same specific one as you, and OP. the one on the left is untouched, the right one was after I ported it.

Yes I agree with you 100% that a channel is all thats needed on this turbo, the process I did would be considered the "ultimate internal gate mod" lol, the step one would take if they don't want to go down the external wastegate route, but still want the same flow capability of a 38mm external gate, (exact same size) .

Last edited by NorthernlightR; 09-22-2013 at 10:17 PM.
NorthernlightR is offline   Reply With Quote
Old 09-26-2013, 01:36 AM   #34
Junior Member

Join Date: Sep 2013
Location: Denver, CO
Posts: 76
Total Cats: -9
Default

I love your heat shield! I have an old stop sign that I cut up and use for random things.
lexintexan is offline   Reply With Quote
Old 09-26-2013, 04:41 PM   #35
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Thanks lexintexan!

I blew my turbo inlet gasket yesterday so while I have the turbo off I plan to get it fixed up like the picture brain posted to rid of the boost creep. Brain, do you use the same flapper?

I am getting like extremely bad gas mileage. I talked to the tuner about it because I am running around mid 11s to mid 12s AFRs when cruising and he told me that it is like that because I would have a constant light load misfire when cruising (trying to stay the same speed) so he had to richen (that's not a word) it up to prevent that. Has anyone encountered this before and know of a fix or what's causing it?
Oochi is offline   Reply With Quote
Old 09-26-2013, 07:36 PM   #36
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

I cruise around 15.5 to 16. I get extremely good gas mileage and the car runs beautifully. I also don't use a "tuner" (unless you count VEA).
hornetball is offline   Reply With Quote
Old 09-26-2013, 07:41 PM   #37
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by hornetball View Post
I cruise around 15.5 to 16. I get extremely good gas mileage and the car runs beautifully. I also don't use a "tuner" (unless you count VEA).
Haha, I was just referring to the guy who tuned my car because I don't trust myself enough. I had it running around there before I took it to him, it just misfired when I tried to cruise around
Oochi is offline   Reply With Quote
Old 09-26-2013, 10:44 PM   #38
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

You should not be misfiring at those AFR's. Is your WBO2 accurate? Have you done a free air calibration lately?
hornetball is offline   Reply With Quote
Old 09-26-2013, 11:49 PM   #39
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

it only misfires at very light throttle, goes lean, no matter the RPM. As far as I know it's accurate. No I have not done a free air cal.

Edit: Sounded wrong

Last edited by Oochi; 09-28-2013 at 01:32 PM.
Oochi is offline   Reply With Quote
Old 09-27-2013, 01:00 AM   #40
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

The misfire honestly would worry me more than your other problems. Figure that out and fix it.
Onyxyth is offline   Reply With Quote
