Default My 1.6 Turbo Dyno Results

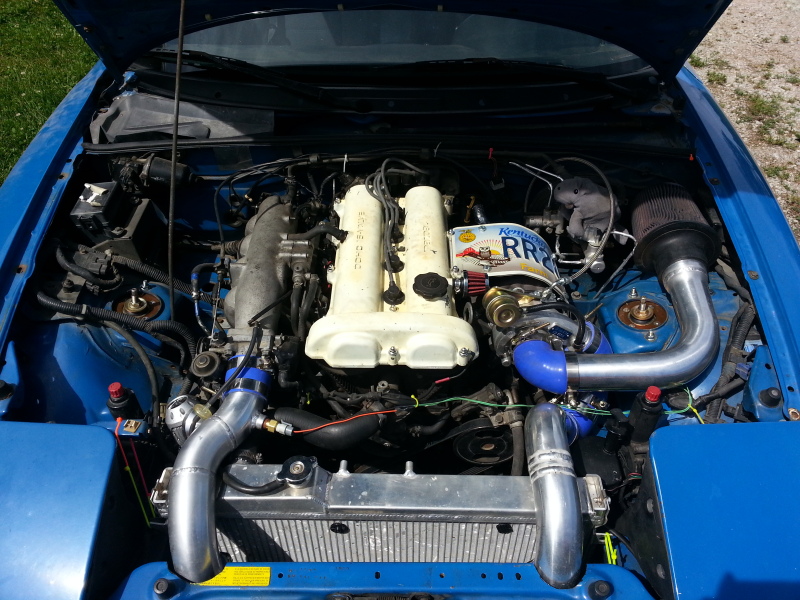

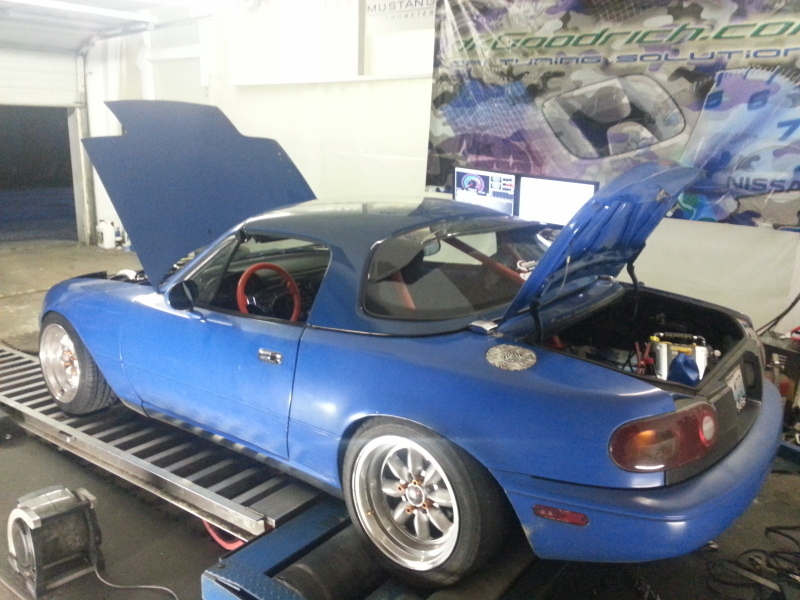

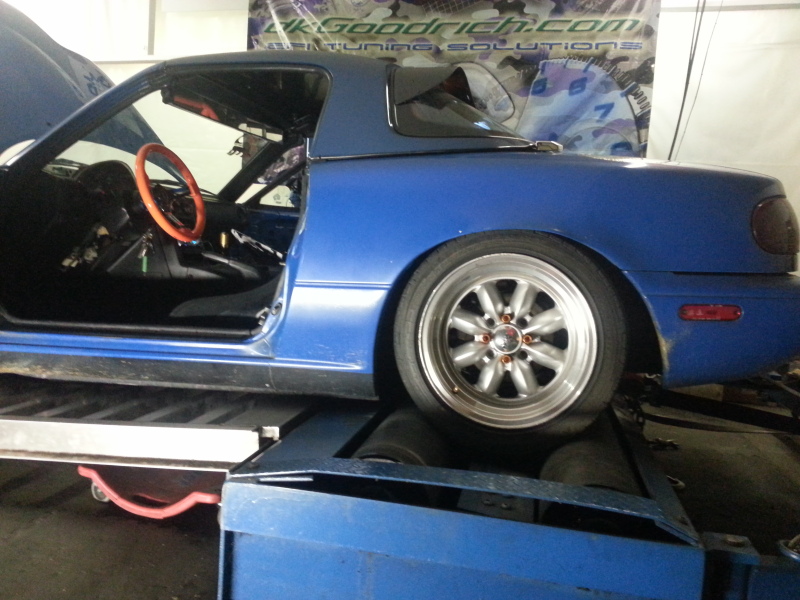

I have been working most of the spring and summer on my turbo build seen here: Oochi's turbo 1.6 build - ClubRoadster.net and I recently took it a buddy of mine to straighten out the high and medium loads on the map. I trusted him much more than myself. And here are my results on a mustang dyno.

Quick rundown:
Stock 90 1.6 with 166k miles
Megasquirt 3X built myself
Tacotaco cast iron manifold
Ebay Godspeed T3 48trim turbo
RX7 460cc injectors
Walbro 190 fuel pump
1.8 driveshaft, axles, welded diff
Conquest intercooler with custom endtanks
Custom 2.5'' over-the-radiator intercooler piping
Custom 2.5'' to 3'' vband downpipe (open)
Variable TPS
NGK BRK7E-6097 Spark plugs
Mazdaspeed comp motor mounts
Urethane diff mounts

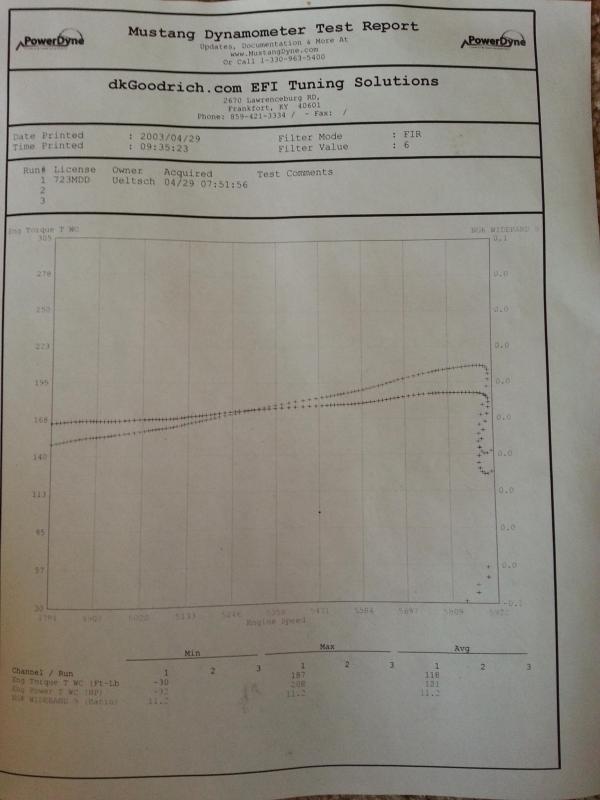

The result on his very first base conservative map made 208whp @5800something rpm. I was having boost creep issues after that and was hitting boost cut. Has anyone with this turbo had wastegate issues like this?

I was surprised with this power and trying to make it any higher makes me worry about the tranny.

The idle still sucks *****. I closed off my IACV. So if someone would be as so kind of helping with that I would be delighted to send you the .msq
Attached Thumbnails
My 1.6 Turbo Dyno Results-20130628_112836_zps8c35f28e.jpg   My 1.6 Turbo Dyno Results-20130823_172546_zpsa79f5924.jpg   My 1.6 Turbo Dyno Results-20130823_204140_zps4ccb4978.jpg   My 1.6 Turbo Dyno Results-20130827_181028_zps31999f53.jpg

Last edited by Oochi; 08-27-2013 at 11:48 PM.
Oochi is offline   Reply With Quote
Old 08-27-2013, 07:48 PM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

200+whp is pretty good on a mustang dyno. I'm sure it's fun as hell.
Fireindc is offline   Reply With Quote
Old 08-28-2013, 03:53 AM   #3
Junior Member

Join Date: Jan 2011
Location: Winnipeg, Canada
Posts: 84
Total Cats: 1
Default

how accurate are mustang dyno's typically?
ACiFiC is offline   Reply With Quote
Old 08-28-2013, 08:32 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Oochi View Post
I was having boost creep issues after that and was hitting boost cut. Has anyone with this turbo had wastegate issues like this?
everyone with a 3" exhaust has this issue.

Quote:
I was surprised with this power and trying to make it any higher makes me worry about the tranny.
no.

Quote:
The idle still sucks *****. I closed off my IACV. So if someone would be as so kind of helping with that I would be delighted...
tune.



why is your dyno going from 4700 to 5800?
Braineack is offline   Reply With Quote
Old 08-28-2013, 08:47 PM   #5
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Braineack View Post
everyone with a 3" exhaust has this issue.
If I read the mod list right, he's not even running an exhaust. Open 3" downpipe.

Based upon that, power is not surprising. Good numbers. Mustangs are usually pretty consistent and conservative.

+1 on this must be fun!
hornetball is offline   Reply With Quote
Old 08-29-2013, 01:06 AM   #6
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Fireindc View Post
200+whp is pretty good on a mustang dyno. I'm sure it's fun as hell.
Oh god yes. It's just annoyingly loud and makes me smell bad

Quote:
Originally Posted by Braineack View Post
everyone with a 3" exhaust has this issue.

why is your dyno going from 4700 to 5800?
So are my options just going with an external gate or could I grind some junk out behind the flap so it opens up a bit more?

Quote:
Originally Posted by hornetball View Post
If I read the mod list right, he's not even running an exhaust. Open 3" downpipe.

Based upon that, power is not surprising. Good numbers. Mustangs are usually pretty consistent and conservative.

+1 on this must be fun!
You are correct. I wish I had full exhaust though. It is fun for sure haha
Oochi is offline   Reply With Quote
Old 08-29-2013, 02:27 AM   #7
Junior Member
iTrader: (2)

albertogti117's Avatar

Join Date: Jul 2011
Location: Houston, Tx
Posts: 167
Total Cats: 4
Default

Full exhaust might help your creep. Porting the IWG port will definitely help.
albertogti117 is offline   Reply With Quote
Old 08-29-2013, 08:18 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Oochi View Post
So are my options just going with an external gate or could I grind some junk out behind the flap so it opens up a bit more?

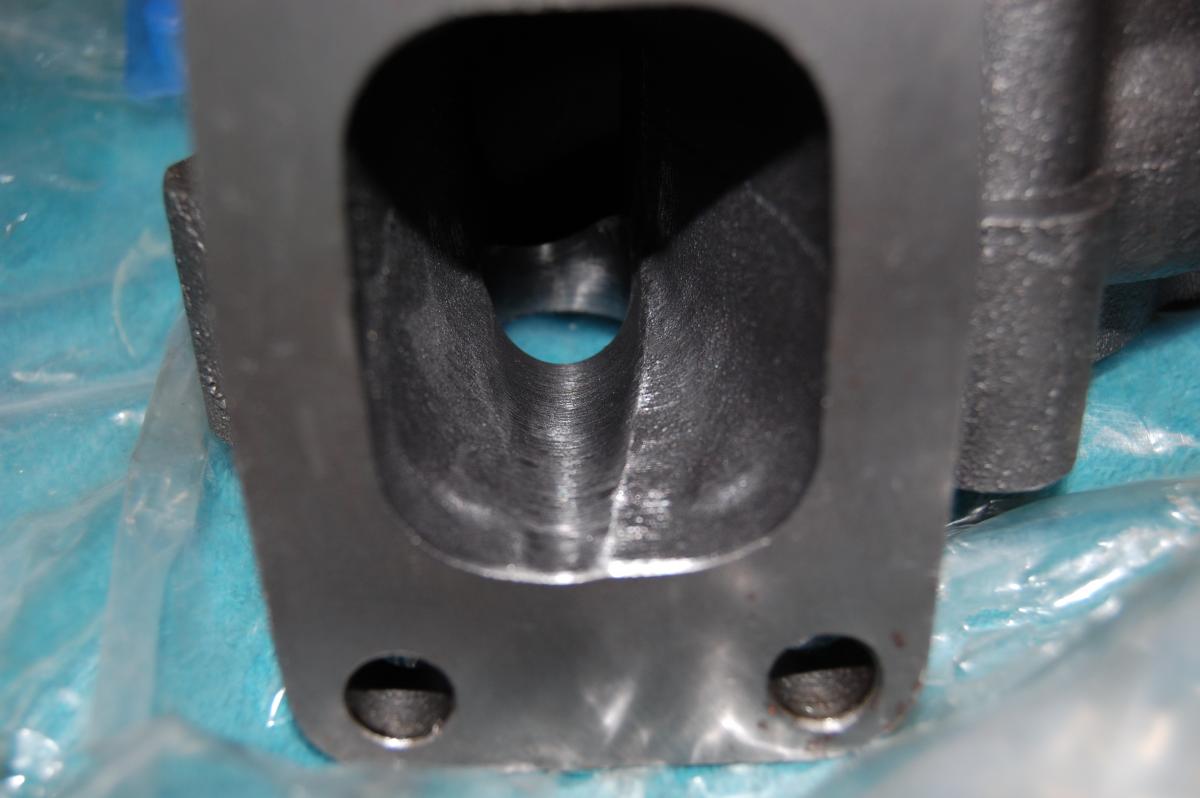

did you ever see my post (circa 2009) where I showed how I ported this exact same turbo's wastegate?
Braineack is offline   Reply With Quote
Old 08-29-2013, 03:31 PM   #9
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
did you ever see my post (circa 2009) where I showed how I ported this exact same turbo's wastegate?
No I don't believe I have! what should I search for or do you have a link?
Oochi is offline   Reply With Quote
Old 08-29-2013, 03:47 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

https://www.miataturbo.net/diy-turbo...t=chinacharger

crap, was posted before the automatic dl/attach feature. I dont have the pics online anymore.
Braineack is offline   Reply With Quote
Old 08-29-2013, 04:35 PM   #11
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
https://www.miataturbo.net/diy-turbo...t=chinacharger

crap, was posted before the automatic dl/attach feature. I dont have the pics online anymore.
Do you have them offline?
Oochi is offline   Reply With Quote
Old 08-29-2013, 05:02 PM   #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Got pics of your timing map and AFR logs? I'm curious to see how DK did.
concealer404 is offline   Reply With Quote
Old 08-29-2013, 05:31 PM   #13
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by concealer404 View Post
Got pics of your timing map and AFR logs? I'm curious to see how DK did.
I can grab them sometime. We installed the most current to my megasquirt using his laptop so I'm going to have to redo the firmware with mine to pull junk off of it. My gas mileage is that of a tractor though
Oochi is offline   Reply With Quote
Old 08-29-2013, 05:32 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by Oochi View Post
Do you have them offline?

yes
Attached Thumbnails
My 1.6 Turbo Dyno Results-dsc_0007.jpg
Braineack is offline   Reply With Quote
Old 08-29-2013, 05:39 PM   #15
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
yes

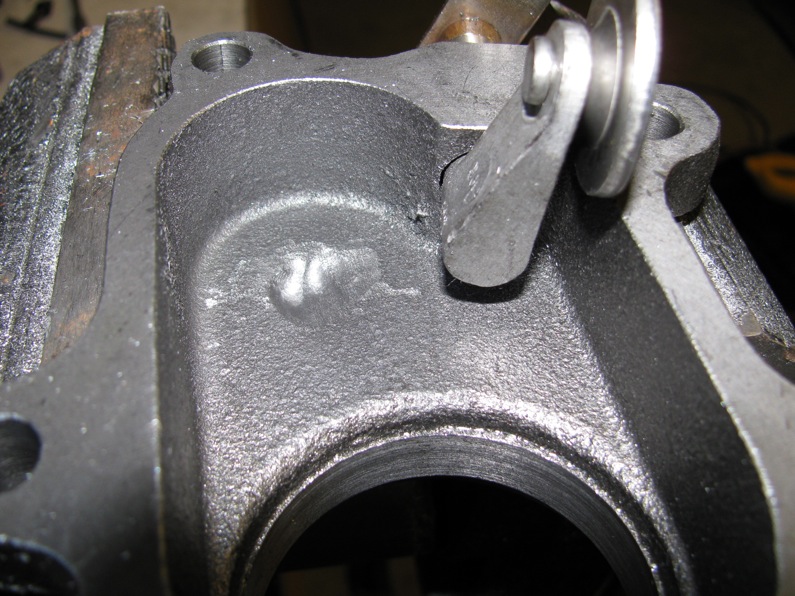

Thanks, man. I was expecting something like this but I figure your way works as well if not better. And what about porting the hole a tad?
Attached Thumbnails
My 1.6 Turbo Dyno Results-img_3348.jpg
Oochi is offline   Reply With Quote
Old 08-29-2013, 06:01 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

porting the hole is trivial.
Braineack is offline   Reply With Quote
Old 08-29-2013, 10:10 PM   #17
Newb

Join Date: Nov 2011
Posts: 34
Total Cats: 0
Default

If you don't saying where and how much was the tuning? I'm in your area and will need similar services shortly.
datsun40146 is offline   Reply With Quote
Old 08-29-2013, 10:20 PM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Louisville, DK Goodrich tuning. There's actually a bunch of good tuners there.

Sorry to answer for OP, I've just talked with most of them in the area.
concealer404 is offline   Reply With Quote
Old 08-30-2013, 12:14 PM   #19
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by datsun40146 View Post
If you don't saying where and how much was the tuning? I'm in your area and will need similar services shortly.
Quote:
Originally Posted by concealer404 View Post
Louisville, DK Goodrich tuning. There's actually a bunch of good tuners there.

Sorry to answer for OP, I've just talked with most of them in the area.
He's actually in frankfort, KY. Standard rate is $350
Oochi is offline   Reply With Quote
Old 08-30-2013, 06:07 PM   #20
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

If it was properly tuned you should be getting ~30mpg and have a good idle. Get your money back if not.
