My 1.6 Turbo Dyno Results - Page 3 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 09-29-2013, 04:37 PM   #41
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Another thing that worries me is my cluster going ***** nilly at high speeds/rpm but usually not in first gear. My Tach, oil pressure, and temp gauge go a bit crazy when im at highway speeds or high rpm. It didn't do this before I pulled my motor, so I assumed it was a ground somewhere, but from what I can tell, they all look fine.
Oochi is offline   Reply With Quote
Old 09-29-2013, 05:40 PM   #42
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

the last thing you want is an erratic oil pressure gauge. sounds like maybe you forgot to reconnect some grounds?
Braineack is offline   Reply With Quote
Old 09-30-2013, 01:26 PM   #43
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
the last thing you want is an erratic oil pressure gauge. sounds like maybe you forgot to reconnect some grounds?
That's what I thought, but unless I'm missing one, I don't see any that I missed
Oochi is offline   Reply With Quote
Old 10-07-2013, 06:25 PM   #44
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Fixed my boost creep issue, and switched the map sensor to be T'd off from the FPR and then T'd into boost gauge and map sensor. But still want to get the finnicky gauge problems and the light load misfires so I can get better than 15 mpg. I'm thinking about just replacing the engine ground on the exhaust side. I don't know what else to do.
Oochi is offline   Reply With Quote
Old 10-13-2013, 06:07 PM   #45
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

This is getting really frustrating. I replaced the grounding strap from the engine to the firewall, and sanded down the contacted for unpainted metal and the gauges are still going nuts at high speeds/rpm. IDK what else to try
Oochi is offline   Reply With Quote
Old 10-14-2013, 10:52 AM   #46
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

BTW, on a '90, the oil pressure gauge can be an excellent detonation indicator. It is located at the perfect place on the block to pick up det (where the knock sensor went on later models). Might be worth backing down the spark map to see if it goes away. If it does . . . you owe me!
hornetball is offline   Reply With Quote
Old 10-15-2013, 06:33 PM   #47
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

I don't think it's that because it happens to all the gauges except for speedo and gas. You can watch the tach, water temp, and oil pressure gauges get weird in this video

20131014_125236_zpsb99acba9.mp4 Video by Minimullen02 | Photobucket
Oochi is offline   Reply With Quote
Old 10-15-2013, 06:53 PM   #48
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I'd guess a loose connection somewhere. I started having an erratic OPG which eventually ended up being a loose wire making and breaking contact to the sender.
Fireindc is offline   Reply With Quote
Old 10-16-2013, 08:35 AM   #49
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

you have bad grounds.

your MS has nothing to do with the opg and tach.
Braineack is offline   Reply With Quote
Old 10-19-2013, 05:32 PM   #50
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
you have bad grounds.

your MS has nothing to do with the opg and tach.
I agree, I just can't find them/it
Oochi is offline   Reply With Quote
Old 11-27-2013, 05:29 PM   #51
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

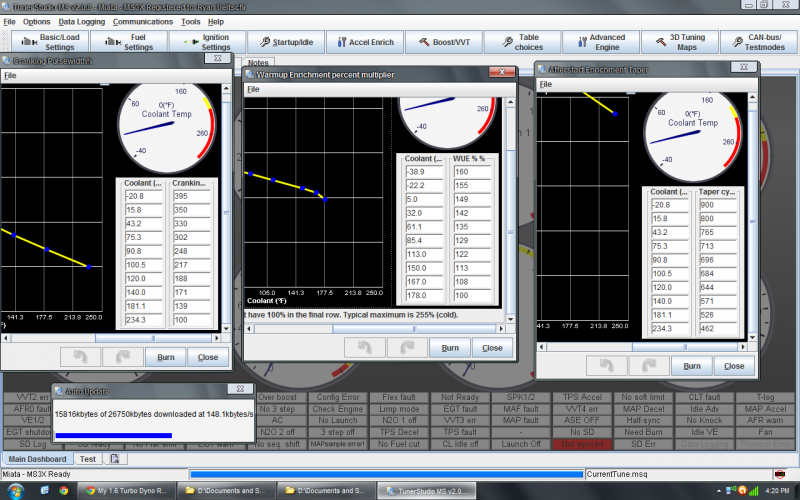

Anyone feel like checking out my tune? Whether for help or curiosity, I don't mind. But now that it is cold, my car is refusing to start and I already fouled some plugs. So it is time for cranking PW/ASE/WUE tuning. I have been dong research and for what I could find, my cranking pw is EXTREMELY high compared to what I've seen. Mine being in the hundreds and others being in the single digits. (Edit: I think I have confused them with something else). Idk if MS3 is different than 2 or what for those settings. I have attached my tune and here are my settings. I was hoping for any input before I dig in. Thanks.
Attached Thumbnails
My 1.6 Turbo Dyno Results-coldstartsettings_zps00e7e0e4.png
Attached Files
File Type: msq OochiMS3X2013-11-27.msq (176.9 KB, 33 views)

Last edited by Oochi; 11-27-2013 at 08:25 PM.
Oochi is offline   Reply With Quote
Old 11-27-2013, 09:58 PM   #52
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Lowered the priming PW quite a lot and it started but took about 5 seconds on the second try.
Oochi is offline   Reply With Quote
Old 12-16-2013, 04:54 PM   #53
Junior Member
Thread Starter

Join Date: May 2011
Location: Central Kentucky
Posts: 221
Total Cats: 1
Default

Alright apparently I lied about fixing the boost creep. I had the turbo ground out some and I thought it fixed it but I just wasn't driving it like a man and it still creeps in 3rd-5th gear. I got a full 3" stainless exhaust put on over the weekend. I hoping it would help but it srill creeps. F me, right? I guess it's either time for more porting, opening the hole a bit more, grinding behind the flapper, or ewg :(
Oochi is offline   Reply With Quote
Old 12-16-2013, 04:57 PM   #54
Junior Member

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

That heat shield is f'in cool
Hinano is offline   Reply With Quote
Old 12-16-2013, 05:30 PM   #55
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I'd just build the motor and run more boost

Seriously though, wastegate porting is how FM/BEGI addressed this IIRC, good luck!
Fireindc is offline   Reply With Quote
Old 12-16-2013, 05:41 PM   #56
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Usually, a better exhaust makes boost creep worse.
hornetball is offline   Reply With Quote
