Default My ***** have finally dropped (Philip didnt do this one)

After thinking it over and over.. and waiting for more parts to come.. I decided i'm just going to start installing **** and get it running then install the parts left over later ( Clutch, Flywheel, Motor mounts)..

Heres the pics.

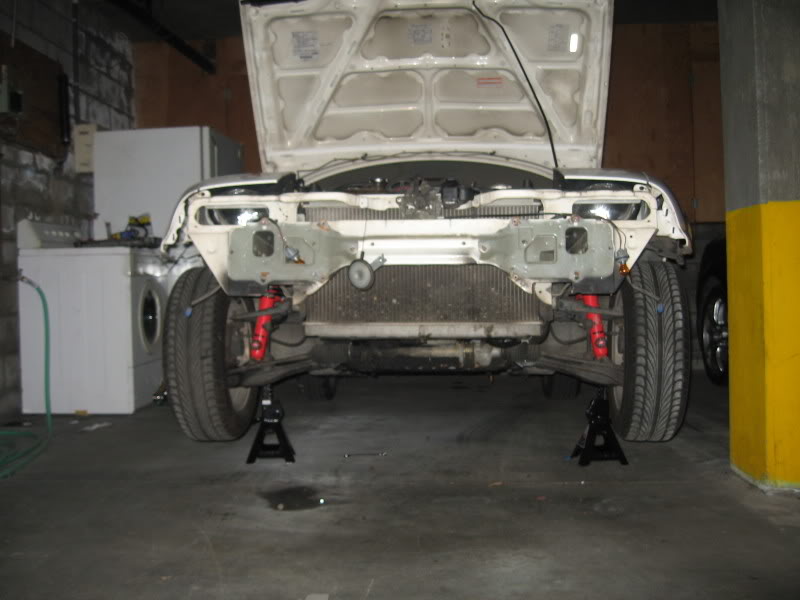

Name:  IMG_2675.jpg
Views: 0
Size:  55.6 KB

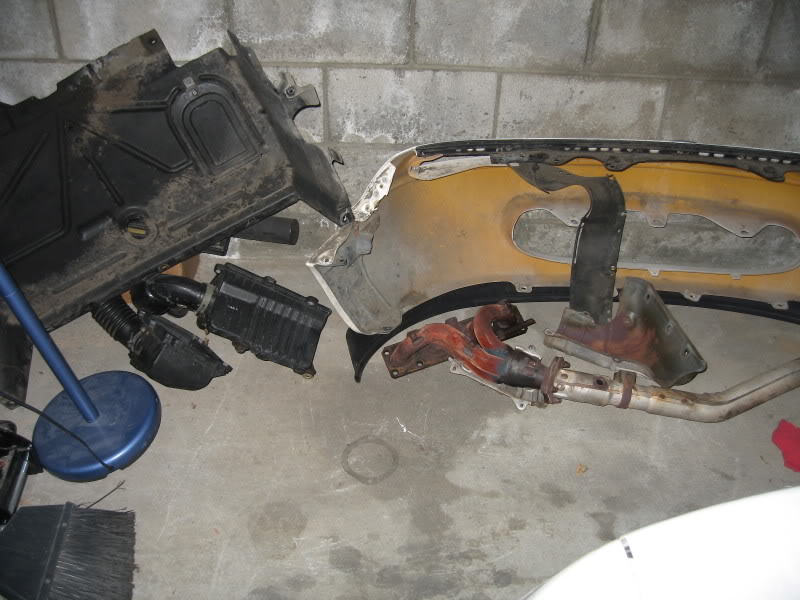

Name:  IMG_2680.jpg
Views: 0
Size:  85.4 KB

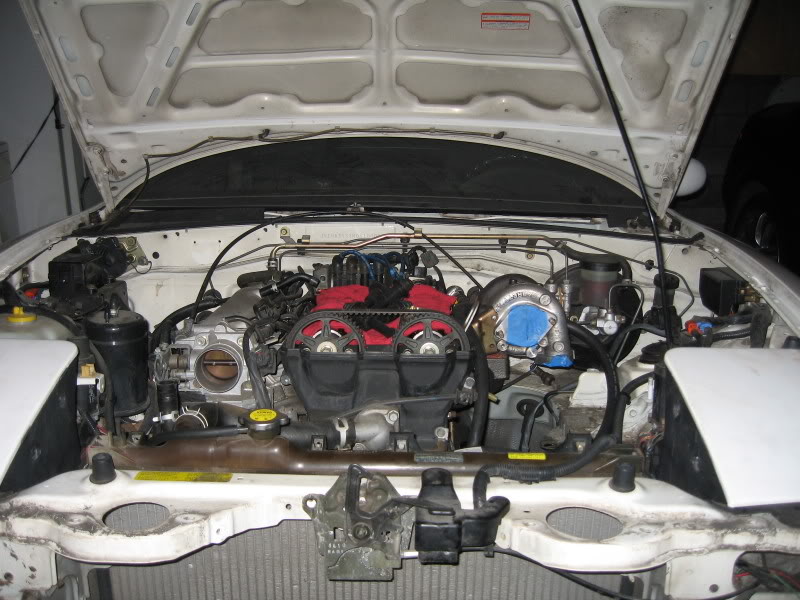

Name:  IMG_2676.jpg
Views: 0
Size:  97.5 KB

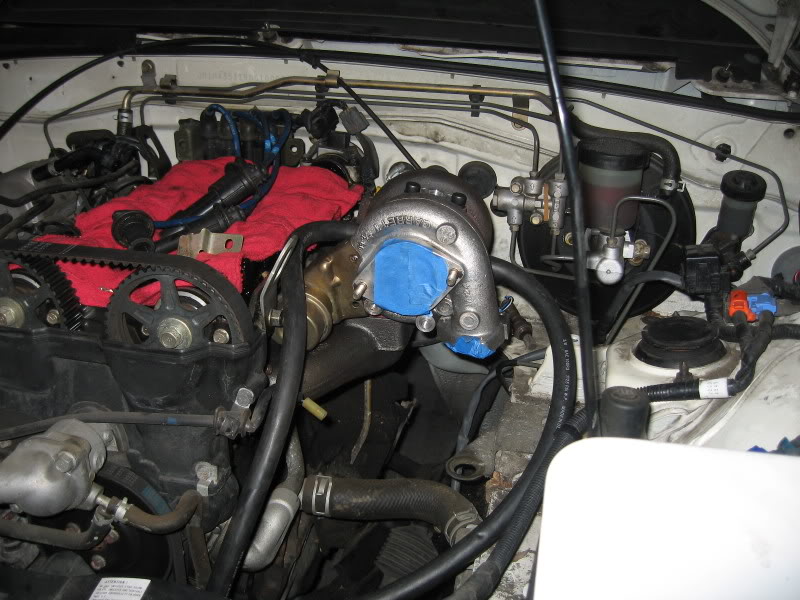

Name:  IMG_2677.jpg
Views: 0
Size:  98.2 KB

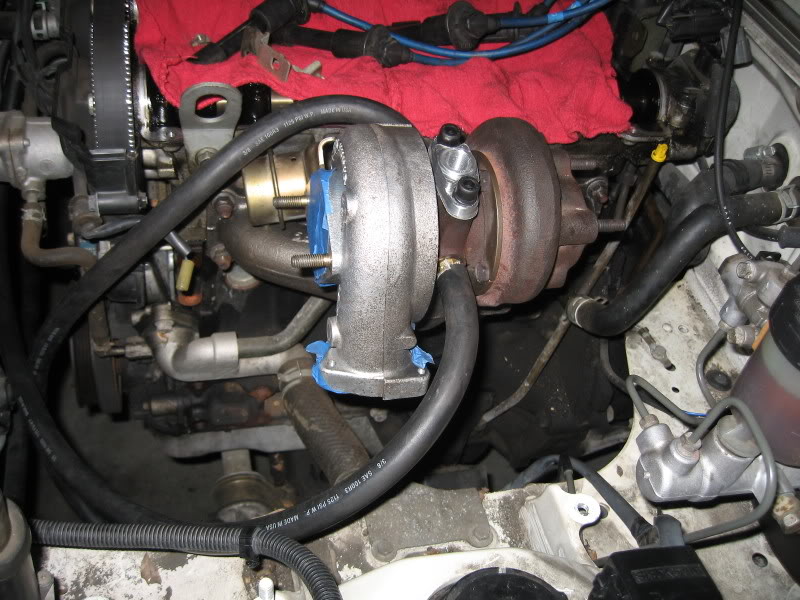

Name:  IMG_2678.jpg
Views: 0
Size:  104.9 KB

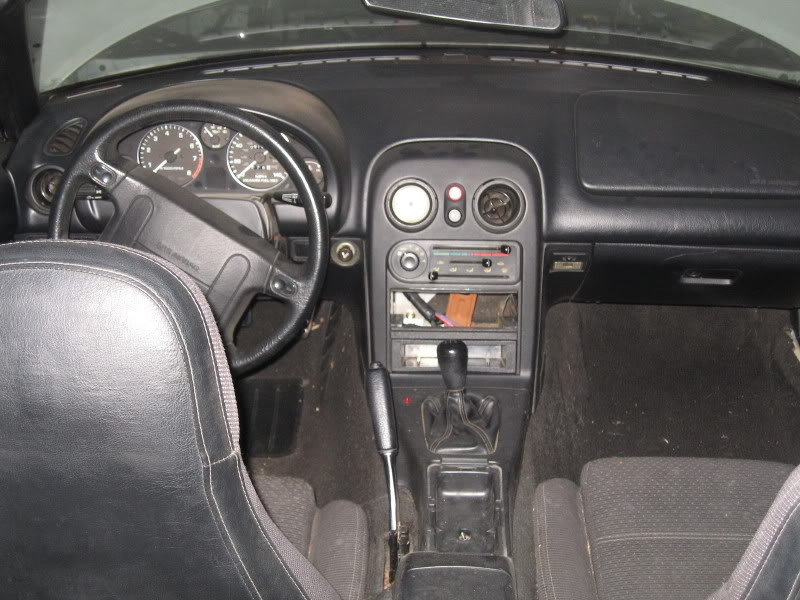

Name:  IMG_2681.jpg
Views: 0
Size:  89.9 KB

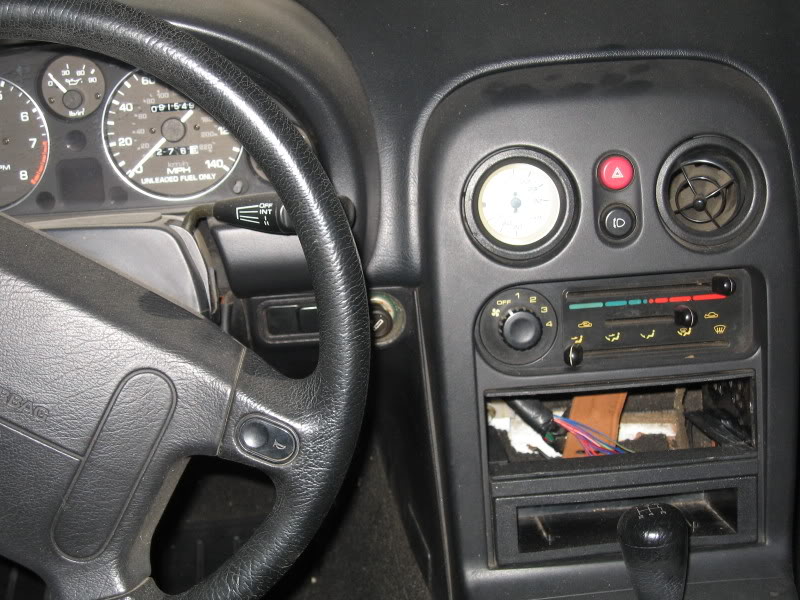

Name:  IMG_2683.jpg
Views: 0
Size:  103.4 KB

Still got alot of work ahead of me
PaKMaN is offline   Reply With Quote
Old 05-15-2007, 04:18 AM   #2
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

coo, what is your gauge?
akaryrye is offline   Reply With Quote
Old 05-15-2007, 04:51 AM   #3
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

um isn't your CHRA kinda upside down? I can't imagine your oil feed line works too well as a oil drain.
MX_Eva is offline   Reply With Quote
Old 05-15-2007, 05:10 AM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by MX_Eva View Post
um isn't your CHRA kinda upside down? I can't imagine your oil feed line works too well as a oil drain.
Oil drain is on the bottom. The feed is on top. And the turbo/manifold sits too high to clock the turbo any other direction
PaKMaN is offline   Reply With Quote
Old 05-15-2007, 08:21 AM   #5
Senior Member

Join Date: Dec 2005
Posts: 1,167
Total Cats: -1
Default

you should clock the chra housing downward....the part with the two bolts should face downward
RicanmiataRacer is offline   Reply With Quote
Old 05-15-2007, 09:29 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

it does look like the oil return on top....is that not 1/2" threading?
Braineack is online now   Reply With Quote
Old 05-15-2007, 10:18 AM   #7
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

I hate to beat a dead pack mule, but I gotta agree that if that black hose is in fact your drain, it definitely would not be at its most efficient at the angle it is in the picture.
Newbsauce is offline   Reply With Quote
Old 05-15-2007, 10:19 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

Quote:
Originally Posted by Newbsauce View Post
I hate to beat a dead pack mule, but I gotta agree that if that black hose is in fact your drain, it definitely would not be at its most efficient at the angle it is in the picture.
those are the two water hoses silly....im speaking just of the aluminum flange....looks too large to be an inlet.
Braineack is online now   Reply With Quote
Old 05-15-2007, 11:07 AM   #9
Junior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 464
Total Cats: 0
Default

That aluminum thing needs to be no more than 15* off from straight down... so the complete opposite of how you have it. You can clock the center section independently of the comp and turbine housings so it doesn't matter how hight the turbo sits.
PAT! is offline   Reply With Quote
Old 05-15-2007, 11:15 AM   #10
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

how long before philip bans you for misspelling his name...
y8s is offline   Reply With Quote
Old 05-15-2007, 11:18 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

Quote:
Originally Posted by y8s View Post
how long before philip bans you for misspelling his name...

good catch...i just saved a brutha
Braineack is online now   Reply With Quote
Old 05-15-2007, 12:15 PM   #12
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Pakman, dude, I've been wrong before... but I'm pretty sure that's the oil DRAIN you're showing. I think the only Garrett turbo's that need an oil inlet adapter are certain T3 models. If you go to the ATP website, they don't even sell a T25 oil inlet adapter... only T3. http://www.atpturbo.com/Merchant2/me...egory_Code=OIL

What does the fitting on the direct opposite side of the turbo look like. If it's just a single small hole with an male inverted flare thread, then that's your inlet.

The pics below are from an .80/.64 SR20det T25. The inlet fitting is 7/64"-24 inverted flare to -4an.

You need to unbolt the 4-bolts that hold the turbine housing to the CHRA and rotate the CHRA until the drain points down. Then you'll need snap-ring pliers to again rotate the compressor housing down.

Last edited by samnavy; 08-01-2007 at 10:51 PM.
samnavy is offline   Reply With Quote
Old 05-15-2007, 12:19 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

sam is too helpful.
Braineack is online now   Reply With Quote
Old 05-15-2007, 03:04 PM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

My bad... you guys are right its the Oil Drain Flange.. How do I clock the exhaust housing?
PaKMaN is offline   Reply With Quote
Old 05-15-2007, 03:06 PM   #15
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

Awsome. I shall be watching this thread.
MicaCeli is offline   Reply With Quote
Old 05-15-2007, 03:10 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,895
Total Cats: 1,792
Default

unbolt the four bolts on the turbine......

rotate CHRA and compressor....tighten bolts....

remove C-ring on compressor side.....rotate compressor only where you want it...or where the wastegate lines back up.....Replace C-ring....
Braineack is online now   Reply With Quote
Old 05-15-2007, 03:19 PM   #17
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
unbolt the four bolts on the turbine......

rotate CHRA and compressor....tighten bolts....

remove C-ring on compressor side.....rotate compressor only where you want it...or where the wastegate lines back up.....Replace C-ring....
You need to replace the C-ring?
PaKMaN is offline   Reply With Quote
Old 05-15-2007, 03:20 PM   #18
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by akaryrye View Post
coo, what is your gauge?
Sorry I forgot to reply to your post. It's a Faze Boost gauge
PaKMaN is offline   Reply With Quote
Old 05-15-2007, 03:24 PM   #19
Senior Member

Join Date: Jan 2007
Location: Maryland
Posts: 701
Total Cats: 0
Default

Unbolt the four bolts on it out just enough that it's hard to turn and turn it carefully, this way you don't knock the wheel. Rotate the center down (or the turbing housing up/whichever is easier. Then take your snap-ring pliers and spin the compressor housing how you want it again.
MX_Eva is offline   Reply With Quote
Old 05-15-2007, 03:24 PM   #20
Senior Member
Thread Starter
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
unbolt the four bolts on the turbine......

rotate CHRA and compressor....tighten bolts....

remove C-ring on compressor side.....rotate compressor only where you want it...or where the wastegate lines back up.....Replace C-ring....
https://www.miataturbo.net/forums/sh...highlight=Sr20


thanks buddy
