Default My big turbo setup

ENGINE

Head stock
Cams ΜΚ1 90-93 lightly modified
COMETIC gasket
ARP studs
JE Pistons 1mm oversize
TOTAL SEAL rings gapless 2nd
PAUTER rods
Threemetallic rod and main bearings
Comretion ratio 9,2/1 ++


COMPONENTS

Τurbo GT2876R
Stainless steel exhaust manifold
Downpipe and exhaust 3" full inox
Custom front mount i/c with 60 mm piping
FORGE blow-off valve
JR filter
Custom clutch kit


FUEL SUPPLY

8 injector modified intake manifold with 2 fuel rails
4 extra injectors bosch 320 cc/min
4 stock injectors from 1.8 MK1 miata 230 cc/min
WALBRO fuel pump HP 255 lt/hr


ELECTRICS

ECU stock with overclock
GREDDY E-manage blue for extra injectors,stock injectors and timing tuning
GREDDY Profec b-spec II boost controler
Boost,EGT and a/f ratio gauges by AUTOMETER
BIGTURBO is offline   Reply With Quote
Old 07-25-2006, 02:15 PM   #2
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Do you have any pics of the modified intake manifold for the extra fuel rail? Very interested in the individual extra injector setup.
brgracer is offline   Reply With Quote
Old 10-12-2006, 03:50 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

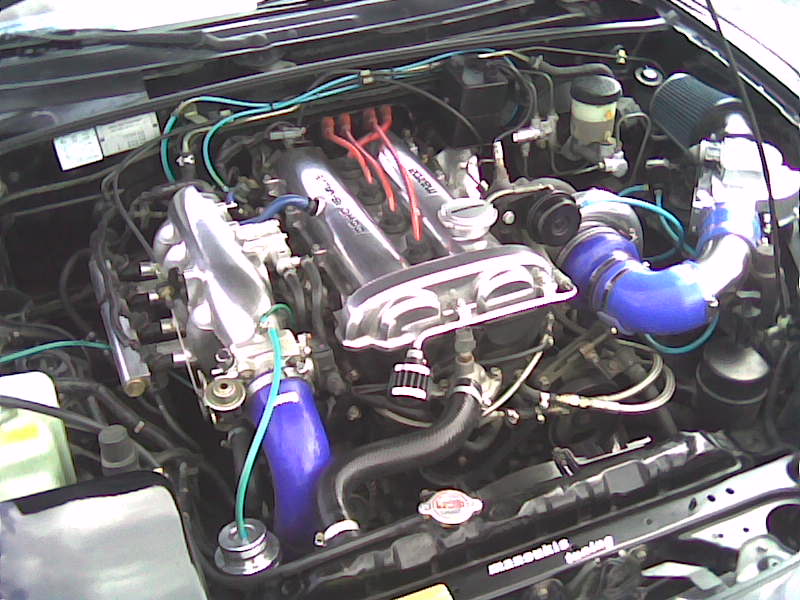

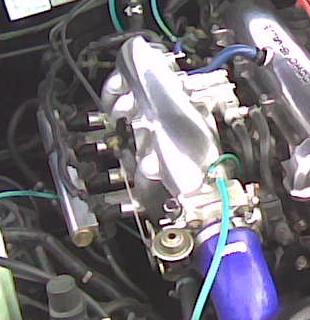

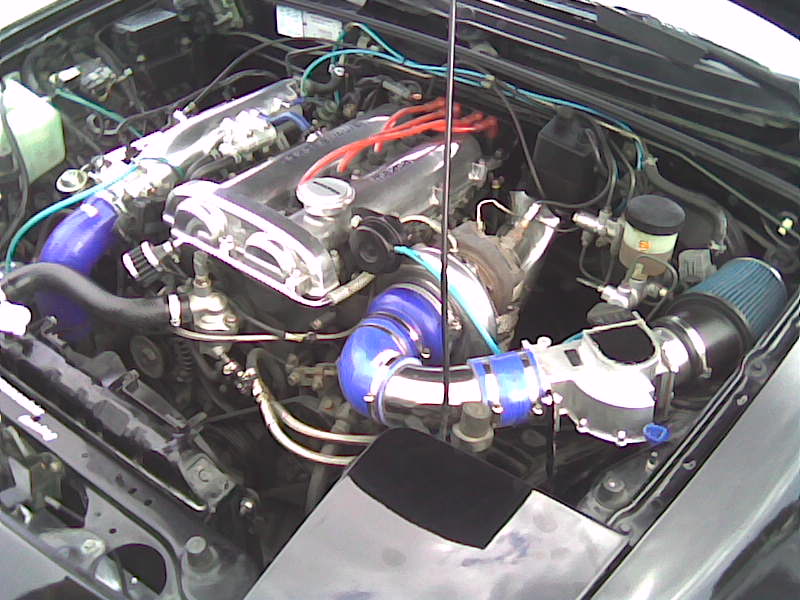

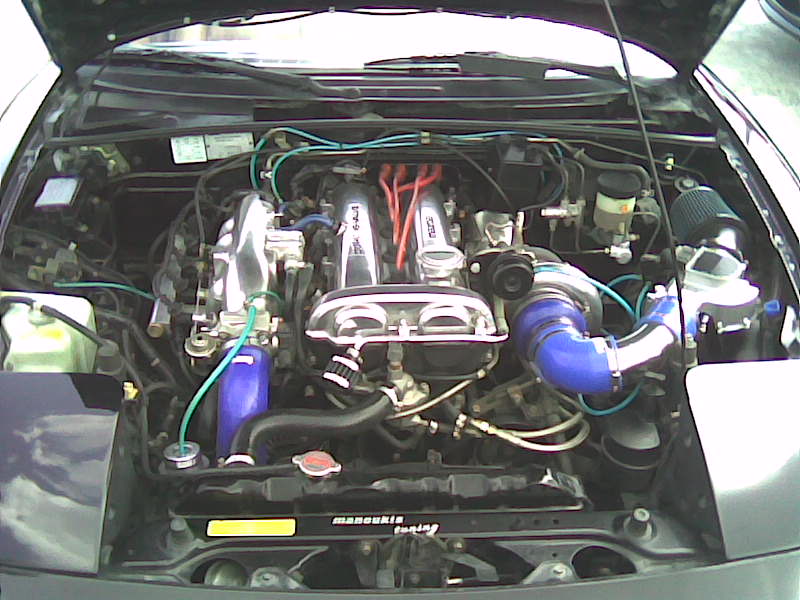

Here are some some fotos from my engine bay, and the modified intake manifold
Attached Thumbnails
My big turbo setup-gt2876r.jpg   My big turbo setup-%CE%95%CE%B9%CE%BA%CF%8C%CE%BD%CE%B1010.jpg   My big turbo setup-%CE%95%CE%B9%CE%BA%CF%8C%CE%BD%CE%B1004.jpg   My big turbo setup-mpekiera2.jpg
BIGTURBO is offline   Reply With Quote
Old 10-12-2006, 03:57 PM   #4
Senior Member
iTrader: (3)

Join Date: Apr 2006
Location: Northern Michigan
Posts: 898
Total Cats: 0
Default

That settles it, I am going to Greece the next time I am in Italy. Rides?
rotaryjunky is offline   Reply With Quote
Old 10-12-2006, 04:09 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

What's the vacuum line off the manifold going into?
Braineack is offline   Reply With Quote
Old 10-12-2006, 06:12 PM   #6
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

WOW! That's some blue bling!!! I really like it. It's very clean... and really simple. We need dyno graphs!!!

I think I see that vacuum line running down to his wastegate... you can see it pretty clear in the third pic. What kind of WG is that?

And you'd better get religious about heat shielding in there or you're gonna melt stuff!
samnavy is offline   Reply With Quote
Old 10-12-2006, 06:57 PM   #7
Junior Member

Join Date: Jun 2006
Posts: 128
Total Cats: 0
Default

320cc + 230cc = 550cc which are common, why not just go with a lot less complication and get a set of 550's or bigger?
Dr. Nick is offline   Reply With Quote
Old 10-12-2006, 07:17 PM   #8
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Probably can't run 550cc injectors with the Emanage Blue. Buying the 8 smaller injectors is probably cheaper than buying the 550cc injectors.

Ultimately I think this is a perfect solution when running a piggy back.
jayc72 is offline   Reply With Quote
Old 10-12-2006, 07:25 PM   #9
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

interesting setup probably a nightmare to tune. i like the idea of leaving the stock 230s alone and using the other injectors to add needed fuel
Mach929 is offline   Reply With Quote
Old 10-12-2006, 08:07 PM   #10
Senior Member
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Wow, that looks great! And your name fits after seeing the size of your turbo!

As for tuning, his setup, while more complicated in terms of wiring and the extra rail, should actually be easier to tune. Off boost the stock ECU controls everything with the stock injectors so nothing has changed or needs to be done, and in boost the emanage simple retards timing and adds fuel to the extra set of injectors. It actually makes the off boost tuning that you usually need for much larger injectors non-existent so no lumpy idle or off boost issues.
brgracer is offline   Reply With Quote
Old 10-12-2006, 08:48 PM   #11
Senior Member

Join Date: Mar 2005
Posts: 531
Total Cats: 0
Default

could I use my dsm 450's like this with the emanage? as the secondary injectors? they are just sitting in my garage lol

how does that fuel rail attach to the additional injectors? I dont see a bracket or is it somthing else?
VRTSid is offline   Reply With Quote
Old 10-12-2006, 08:49 PM   #12
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

I like the extra injectors, thought about doing that down the road instead of the common 550's as to avoid idle problems and low speed crap sometimes associated with that. In fact its the same thing FM used to do with the NB FM2 kits a while back and it seemed to work pretty good for them.

hmmmmm
Fritch is offline   Reply With Quote
Old 10-14-2006, 10:45 AM   #13
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by braineack View Post
What's the vacuum line off the manifold going into?

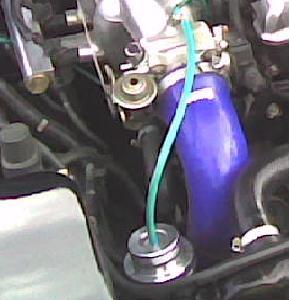

If you are saying about this in the foto, this is the BLOW OFF VALVE.
Attached Thumbnails
My big turbo setup-bov.jpg
BIGTURBO is offline   Reply With Quote
Old 10-14-2006, 10:53 AM   #14
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by Dr. Nick View Post
320cc + 230cc = 550cc which are common, why not just go with a lot less complication and get a set of 550's or bigger?
1.Emanage can't hold 550 cc/min injectors.
2.Driveability
3.Because I still have the stock ECU in my miata using piggyback solution, I prefer to have the extra fuel I need on boost situations, from an extra 4inj. so my ECU has no relation to my extra needs of fuel.

Sorry but I can't explain exactly what I want to say.
BIGTURBO is offline   Reply With Quote
Old 10-14-2006, 10:56 AM   #15
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by jayc72 View Post
Probably can't run 550cc injectors with the Emanage Blue. Buying the 8 smaller injectors is probably cheaper than buying the 550cc injectors..
No it's not the cost. I have already set of 550 injectors from RX7 and they are for sale.
The real reason is what I said in the previous post!

Quote:
Originally Posted by jayc72 View Post
Ultimately I think this is a perfect solution when running a piggy back.
+1

I think that this is the best solution when using a piggyback.
BIGTURBO is offline   Reply With Quote
Old 10-14-2006, 10:58 AM   #16
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by Mach929 View Post
interesting setup probably a nightmare to tune.

Actually.. it's easier to tune!
BIGTURBO is offline   Reply With Quote
Old 10-14-2006, 11:07 AM   #17
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by brgracer View Post
Wow, that looks great! And your name fits after seeing the size of your turbo! .


Quote:
Originally Posted by brgracer View Post
As for tuning, his setup, while more complicated in terms of wiring and the extra rail, should actually be easier to tune. Off boost the stock ECU controls everything with the stock injectors so nothing has changed or needs to be done, and in boost the emanage simple retards timing and adds fuel to the extra set of injectors. It actually makes the off boost tuning that you usually need for much larger injectors non-existent so no lumpy idle or off boost issues.
Something like that...

We have made some little changes at off boost situation (advance timing and some changes to the additional inj.) and at boost we are using the sub inj. map and the other 2 maps for retard the timing and addit. inj.
BIGTURBO is offline   Reply With Quote
Old 10-14-2006, 11:07 AM   #18
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Nice Job, I was once going to do this, but at the time the second fuel rail scared me and I went to a standalone with 550's. Glad it works well for you.
-Michael-
TheBandit is offline   Reply With Quote
Old 10-14-2006, 11:08 AM   #19
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Quote:
Originally Posted by VRTSid View Post
how does that fuel rail attach to the additional injectors? I dont see a bracket or is it somthing else?
The brackets are from the down side, u can't see them in the foto.

Actually u can see them making zoom to the picture.
BIGTURBO is offline   Reply With Quote
Old 01-21-2008, 04:00 PM   #20
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Update with some changes (cams,turbo manifold,external wg,radiators,transmission,shocks,gauges,etc)

My set up now, is

ENGINE 1600cc Β6 DOHC 16v
JE pistons custom order 79mm
TOTAL SEAL rings gapless 2nd
PAUTER rods
COMETIC head gasket
ARP bolts
High quality main and rod bearings
ΗΚS cams 264ο
CR 9,3/1
Τurbo GT2876R
TIAL external wastegate 38mm
Custom long tubular manifold with 42 mm pipes
Downpipe and exhaust 3"
High pressure oil feed-return and water lines
Full inox 60mm piping
SAMCO hoses
Ιntercooler tube and fin 24x72x6 cm
FORGE blow off valve
Intake manifold custom 8 injectors set up with custom stainless fuel rail
4 extra injectors bosch 320 cc/min
4 stock injectors 1.8 230 cc/min
WALBRO HP 255 lt/hr fuel pump
ADR aluminium radiator
Thermostat 82ο
TRD 1,5 bar radiator cap
MAZDASPEED oil cap
MAGNECOR kv85 plug wires
DENSO platinum plugs
SIMOTA cone air filter
SIMOTA breather filter
ECU stock with overclock for rising the rev limiter
GREDDY E-manage blue + GREDDY map sensor 3.5 bar
GREDDY Profec b-spec II boost controler
AUTOMETER boost gauge
AUTOMETER pyrometer
AUTOMETER wideband kit
RX7 FD3s transmission
220mm flywheel from bp engine
Custom 6-pad clutch kit
EIBACH springs
KYB AGX
BMW 325 E36 front brake calipers
High performance 288mm rotors
High pressure brake lines
ADVANTI 15" lightweight wheels
ΤΟΥΟ R888 205/50/15 tires
MAZDASPEED motor mounts
BIGTURBO is offline   Reply With Quote
