Old 04-10-2009, 09:16 PM   #61
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Clean car man, still looks odd to me to see such a big turbo breathing through an AFM. I wonder how much is being left on the table by having that there?
kotomile is offline   Reply With Quote
Old 04-10-2009, 10:22 PM   #62
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Bigturbo,

Let me know what kinda RPM you are hitting full boost with the GT3076R at roughly 20 psi. I am curious as I plan to run a similar turbocharger in the near future and would like to map its performance on my engine. Fourth gear pulls would be preferred... Thanks for the assistance!

On another note, awesome car!
thagr81 us is offline   Reply With Quote
Old 04-13-2009, 12:50 AM   #63
Junior Member
iTrader: (3)

Join Date: Mar 2009
Location: Birmingham, AL
Posts: 254
Total Cats: 3
Default

Hey nice work. What are you running for a rear end? Got any more pics of tranny install.
kww502 is offline   Reply With Quote
Old 04-13-2009, 09:30 AM   #64
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

IIRC... He took the bellhousing from the FD and Miata, cut them in two, and welded to two pieces together to make a single make-shift bellhousing to mate the FD tranny.
thagr81 us is offline   Reply With Quote
Old 04-13-2009, 10:35 AM   #65
Newb

Join Date: Mar 2009
Posts: 21
Total Cats: 0
Default

Wow that's clean. Show quality clean.

Can you show off how exactly the 8 injectors and how the fuel rails are situated on/in the intake mani?

Last edited by solidBP; 04-13-2009 at 10:49 AM.
solidBP is offline   Reply With Quote
Old 10-28-2010, 08:34 AM   #66
Junior Member
Thread Starter

Join Date: Dec 2005
Location: Greece, athens
Posts: 98
Total Cats: 0
Default

Just for the story, my cars updates is

New built 1.6 motor
Wiseco pistons,eagle rods,full arp bolts,cometic,acl race bearings, and a new fully port and polish head with my old HKS 264 cams.I pushed the CR at 9,5/1. The old motor that I had 5 years had oil consumption its last days,and one day at 2,1 bar burn a valve at second cyl. Everything was ok but just for mass reasons I built a new motor.
And I sold my JE and PAUTER to a friend and they still works great to his motor.

I also put with reverant an MS2 ecu, running still 8 injectors.

Dyno not avaliable yet, but we expecting about 400-420 at full boost at my 3076.

Or 550 at another reach dyno
BIGTURBO is offline   Reply With Quote
Old 11-22-2010, 06:40 PM   #67
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

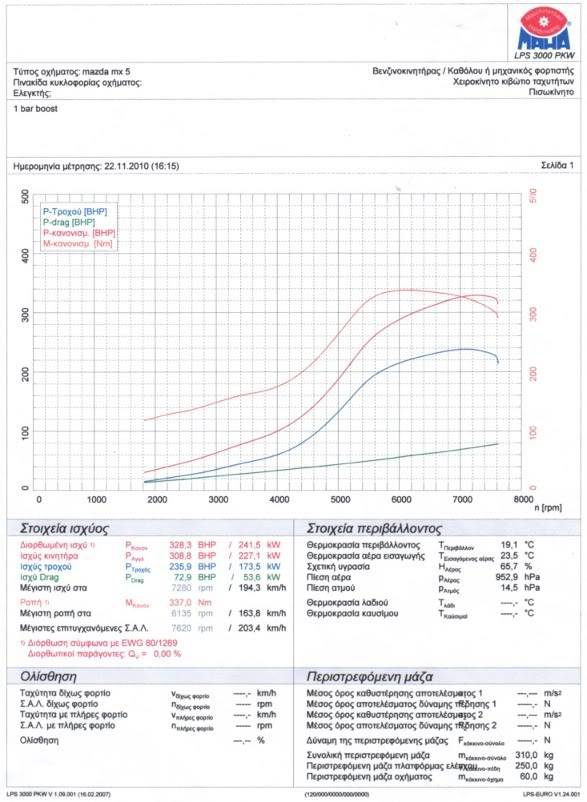

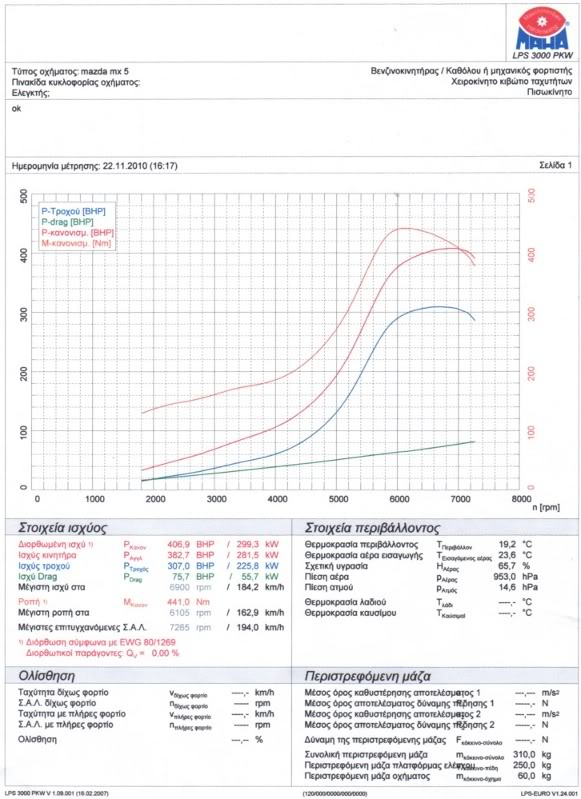

Dynoed today. Not too shabby.

328hp at 15psi

407hp at 26psi

Name:  img453_1.jpg
Views: 1
Size:  92.5 KB

Name:  img452_1.jpg
Views: 1
Size:  91.8 KB

The MS2 was pulling massive timing as the intercooler was overwhelmed and couldn't cope with the heat on the dyno - hitting 130*F at 15psi and 170*F at 26psi. We reckon we could have made another 30 or so if the timing wasn't retarded as much - about 4-5*.

AF was 11.5-11.8 at 15psi and 11-11.4 at 26psi, mostly due to retarding so much (we were shooting for 11.3-11.5).
Reverant is online now   Reply With Quote
Old 11-22-2010, 06:54 PM   #68
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Jim, what does a stock Miata do on the same dyno?
Savington is offline   Reply With Quote
Old 11-22-2010, 07:03 PM   #69
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Stock 01-05 w/VVT, 129hp (instead of say, 146hp), on the same dyno.


Last edited by Reverant; 11-22-2010 at 07:13 PM.
Reverant is online now   Reply With Quote
Old 11-22-2010, 07:18 PM   #70
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

And for the kicks, a 1.6 on a Garret 2560, 12psi, MS2. 220bhp (NOT whp!), and 200tq, again, NOT wtq.

Reverant is online now   Reply With Quote
Old 11-23-2010, 05:49 AM   #71
Junior Member
iTrader: (4)

Join Date: Mar 2007
Location: Greece
Posts: 290
Total Cats: 4
Default

Jim is this Mass's dyno? Did he *** on the paper cause of his joy or did he cry for the low numbers?
gianic is offline   Reply With Quote
Old 11-23-2010, 05:54 AM   #72
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Yes, its Mass' dyno. He liked it.
Reverant is online now   Reply With Quote
