Default My Spark Map now with "Death Cans" :)

We trimmed my spark table using my home made det cans.

Please comment.

Goal was to make it safe for boost but more woik needs to be done especially (still) on AE, tip in, pesky idle dip etc.

Happy holdays
Attached Files
File Type: msq Road tune 1 by Ken.msq (179.2 KB, 177 views)
poobs is offline   Reply With Quote
Old 12-19-2013, 11:13 AM   #2
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Damn you in Florida, tuning your car in Dec.



Can you take a screenshot of your timing map? My TS gives several errors when opening that msq (diff firmware version, etc). If you put up a screenshot that would help us lazy people out.
Attached Thumbnails
My Spark Map now with "Death Cans" :)-z4s9fuz.jpg
Fireindc is offline   Reply With Quote
Old 12-19-2013, 11:18 AM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Dam! What is that white stuff on your mariner blue ?!!

I'll try for a screen shot
Attached Files
File Type: zip Road tuned spark.zip (297.7 KB, 25 views)
poobs is offline   Reply With Quote
Old 12-19-2013, 11:33 AM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

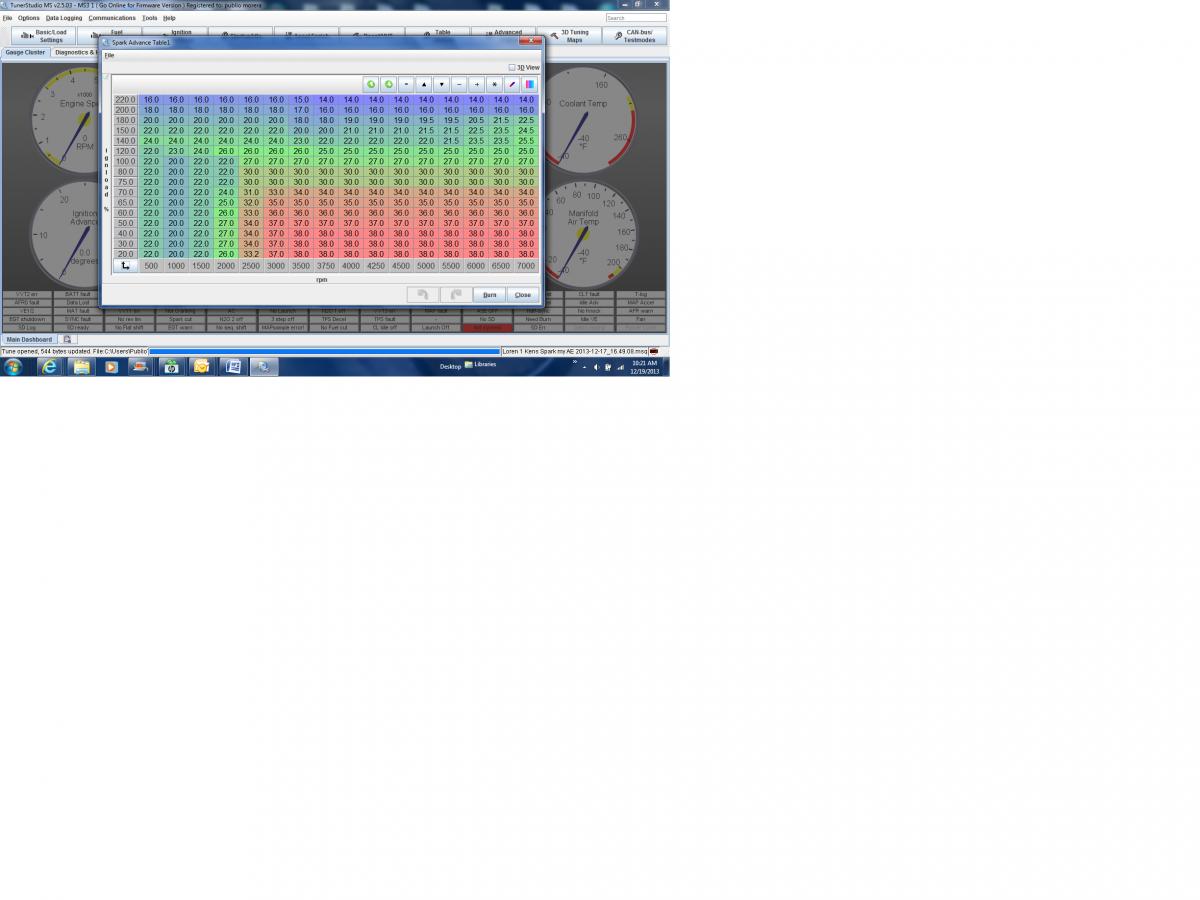

Try this
Attached Thumbnails
My Spark Map now with "Death Cans" :)-road-tuned-spark.jpg
poobs is offline   Reply With Quote
Old 12-19-2013, 11:52 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

why 20* at idle? that's way too much timing, you need like 14
also 25* past 100kpa on pump gas is brave, is your engine built?

overall a fairly aggressive map if you ask me. but not bad. these motors obviously take lots of timing with no issues
18psi is offline   Reply With Quote
Old 12-19-2013, 11:54 AM   #6
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Is the motor all stock? 1.8? 1.6?

Did you advance it until you got knock and then back it down or just verified that you weren't getting knock with this map? Thanks for posting.

Also, love this top down weather we're having. It's finally cooling off a bit, the high here is only 81 today, lol.
pdexta is offline   Reply With Quote
Old 12-19-2013, 11:57 AM   #7
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

you sync'd timing with the map locked to 10 degrees, right?

just asking... it looks pretty aggressive...but if it works well and has no issues that's cool.
shlammed is offline   Reply With Quote
Old 12-19-2013, 12:09 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

19-20 at 12psi isn't "pretty aggressive".

20 at idle is pretty aggressive. get your idle zone back to 10, this will help with smoothness coming back from idle and prevent stalling, then let adaptive timing control do its thing.
Braineack is offline   Reply With Quote
Old 12-19-2013, 12:35 PM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Thanks guys ! I really appreciate the feedback and it makes sense in light of what I have been noticing.

The map is for a 1.6 w Greddy turbo w flebay IC, stock internals running on 93 pump fuel.

We messed w the map on a 85 degree day. I drove while my friend manned the lap top and death cans. We had a long flat road and at successive passes he got enough data points to come up w that map.

Honestly I don’t know why it so darn advanced at and around idle.

We were able to turn up the boost a bit after that map but drivability is rather poor – so it makes sense based on what Brains says.

I haven’t had much time to go back and review it but I check out and post the map that we started with …

Thanks again
poobs is offline   Reply With Quote
Old 12-19-2013, 01:32 PM   #10
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

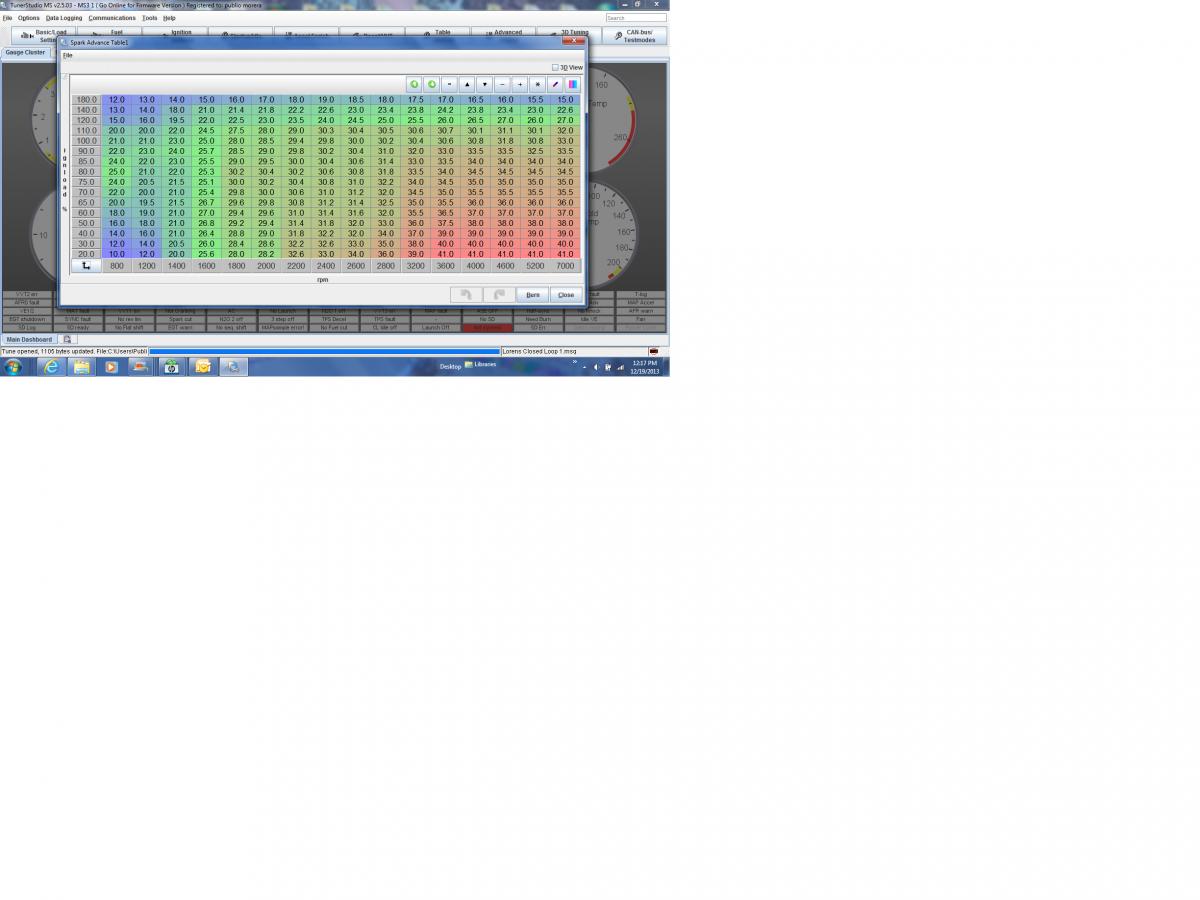

I have a hard time visualizing things like this

But I think I know what you guys are going to say.
Attached Thumbnails
My Spark Map now with "Death Cans" :)-original-timing.jpg
poobs is offline   Reply With Quote
Old 12-19-2013, 01:37 PM   #11
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

I usually run ~14 degrees of timing at idle. It helps my idle be smoooth as possible with the lower res ms1 ecu. I think 10 is what the oem map uses.

Also, to me it seems like you could scale your map to have a little more resolution in boost (only 4 boosted rows?), but I'm not sure if that's even necessary or not. Someone else can chime in on that.
Fireindc is offline   Reply With Quote
Old 12-19-2013, 02:07 PM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by Fireindc View Post
I usually run ~14 degrees of timing at idle. It helps my idle be smoooth as possible with the lower res ms1 ecu. I think 10 is what the oem map uses.

Also, to me it seems like you could scale your map to have a little more resolution in boost (only 4 boosted rows?), but I'm not sure if that's even necessary or not. Someone else can chime in on that.

I'm also skeptical about the fact that he re scaled my **** to 220 KPA

I drive like an old lady most of the time.
poobs is offline   Reply With Quote
Old 12-19-2013, 02:12 PM   #13
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Fireindc View Post
Damn you in Florida, tuning your car in Dec.

Damn you in NM with your snow and skiing.
hornetball is online now   Reply With Quote
Old 12-19-2013, 06:56 PM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Ok, it was easier to just switch MSQs instead of fudging with the map.

This MSQ uses the spark map that is posted above scaled to 180 KPA max. and more benign idle timing


Only thing is that I don't know how knock safe it is without doing the det can process again.
Attached Files
File Type: zip Current w 180 KPA.zip (22.6 KB, 16 views)
