Default NB2 intercooler routing suggestions (paging 18psi)

Hey All,

I've looked at many a intercooler photo, and it seems that routing on the 2001+ with A/C and P/S is the hardest. People seem to like 18psi's handy work, but those photos have since expired.

The intercooler I got has 2.25 inlets (despite advertising as 2.5). Is there any downside to changing diameters multiple times? The turbo outlet is 2.25, and some people go with 2 inch on the hot side, then the TB is 2.5. What if I put 2.25 as far as I could go on the hot side and then reduced to 2 inch if the fit is too tight before bumping up to 2.25 before the intercooler, then starting with 2.5 at the TB and reducing to 2.25 where I need to for fitment? Or just make my life easier with a 2 inch kit and the appropriate reducers?
nigelt is offline   Reply With Quote
Old 12-03-2015, 04:37 AM   #2
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by nigelt View Post
Hey All,

I've looked at many a intercooler photo, and it seems that routing on the 2001+ with A/C and P/S is the hardest. People seem to like 18psi's handy work, but those photos have since expired.

The intercooler I got has 2.25 inlets (despite advertising as 2.5). Is there any downside to changing diameters multiple times? The turbo outlet is 2.25, and some people go with 2 inch on the hot side, then the TB is 2.5. What if I put 2.25 as far as I could go on the hot side and then reduced to 2 inch if the fit is too tight before bumping up to 2.25 before the intercooler, then starting with 2.5 at the TB and reducing to 2.25 where I need to for fitment? Or just make my life easier with a 2 inch kit and the appropriate reducers?
You shouldn't have any trouble doing 2.25" all the way on an NB2. Use the holes behind the headlights.
Schuyler is offline   Reply With Quote
Old 12-03-2015, 05:59 AM   #3
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 485
Total Cats: 44
Default

Narrower plumbing definitely makes routing easier.

What you want to avoid is downsizing in the chain from the turbine outlet to the TB, that'll throttle your airflow.

ie. If your turbine outlet is 2.25" and your intercooler barbs are 2.25", keep the hotside plumbing 2.25". For the coldside use 2.25" and a hose reducer elbow from your TB to the 2.25" coldside plumbing.
Lokiel is offline   Reply With Quote
Old 12-03-2015, 10:18 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I fit 2.5 behind the headlight, just needed a tiny bit of massaging.

2.25 all the way on both sides is totally fine, no need to make steps or change diameter several times
18psi is offline   Reply With Quote
Old 12-03-2015, 11:37 AM   #5
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 655
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
I fit 2.5 behind the headlight, just needed a tiny bit of massaging.

2.25 all the way on both sides is totally fine, no need to make steps or change diameter several times
Could you repost your routing photos? The left headlight has a hole that could just be enlarged, and I'm guessing you put a hole in the other side in the same place?
nigelt is offline   Reply With Quote
Old 12-03-2015, 12:58 PM   #6
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Yeah, when I'm home.
nope, the cold side is "traditional" routing. I saw no reason to hack a hole when it's so easy to route as is.

I just enlarged the dr side hole and mimicked MSM routing with larger piping
18psi is offline   Reply With Quote
Old 12-03-2015, 03:07 PM   #7
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default







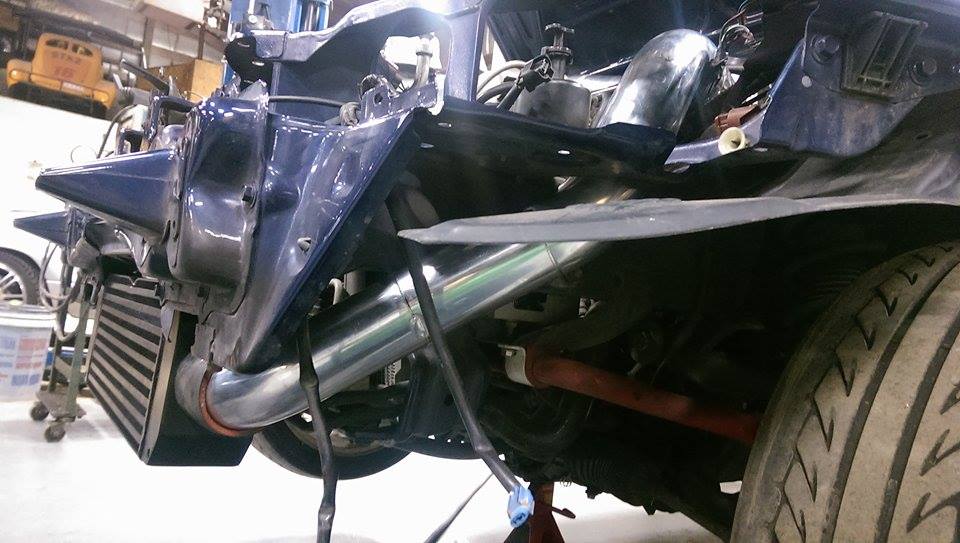

Attached Thumbnails

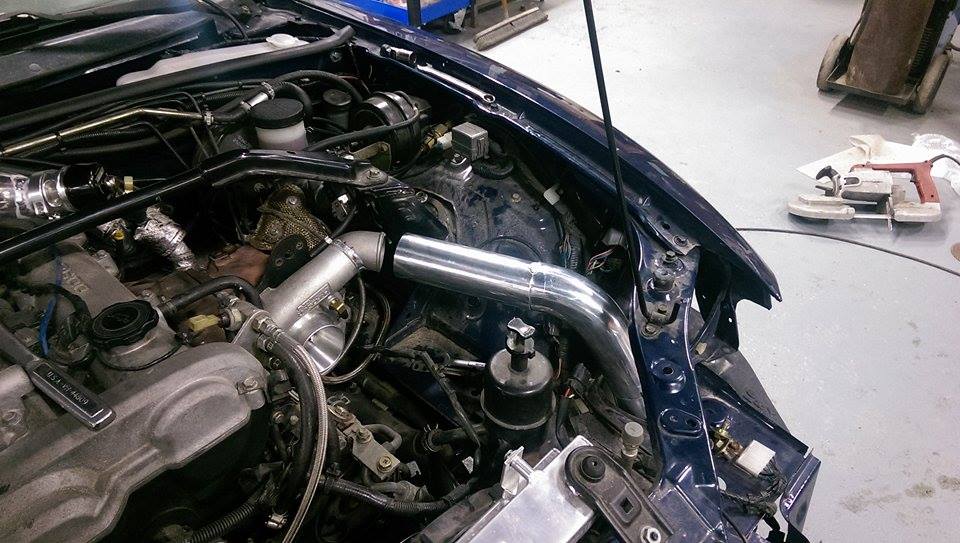

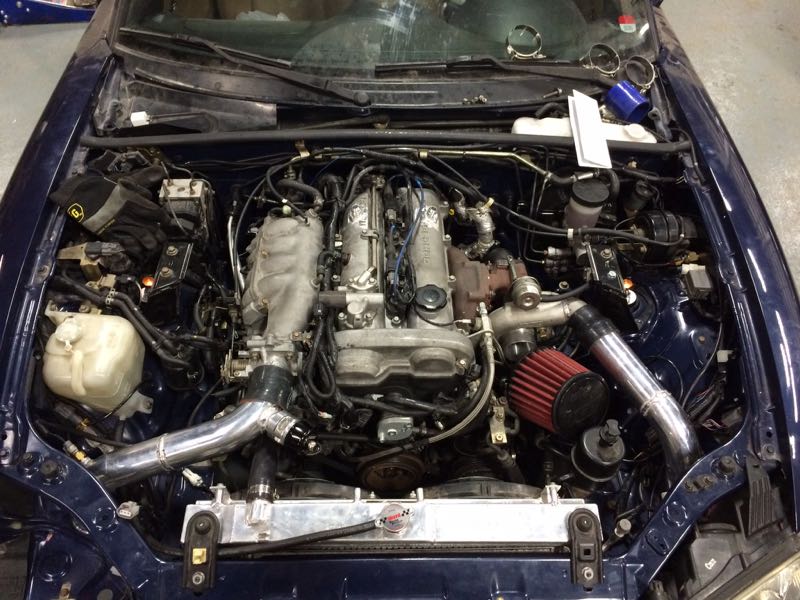

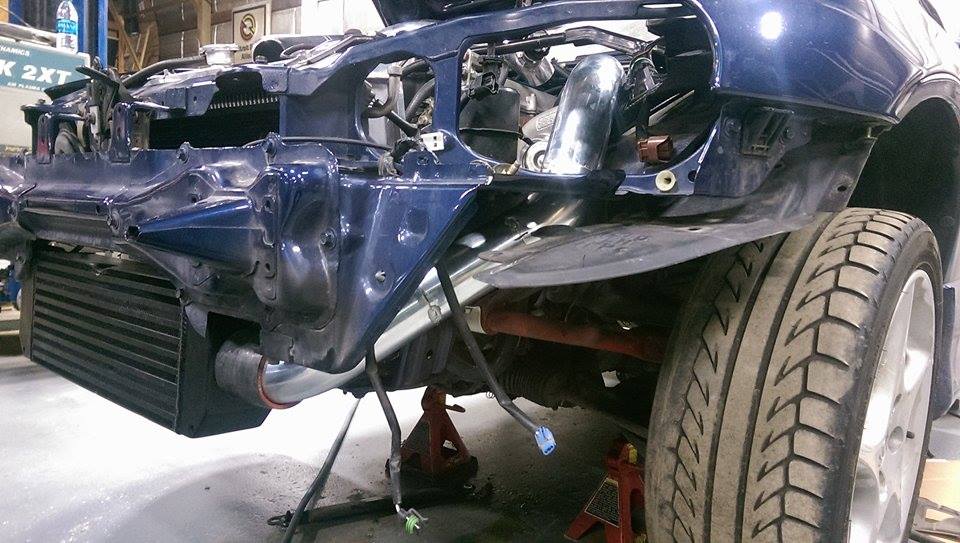

NB2 intercooler routing suggestions (paging 18psi)-134883d1425860415-chiburbians-01-lots-potential-no-follow-through-build-img_0028.jpg   NB2 intercooler routing suggestions (paging 18psi)-129320d1418697854-chiburbians-01-lots-potential-no-follow-through-build-hotside_2.jpg   NB2 intercooler routing suggestions (paging 18psi)-129321d1418697854-chiburbians-01-lots-potential-no-follow-through-build-hotside_3.jpg
Chiburbian is offline   Reply With Quote
Old 12-03-2015, 03:12 PM   #8
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default





Attached Thumbnails

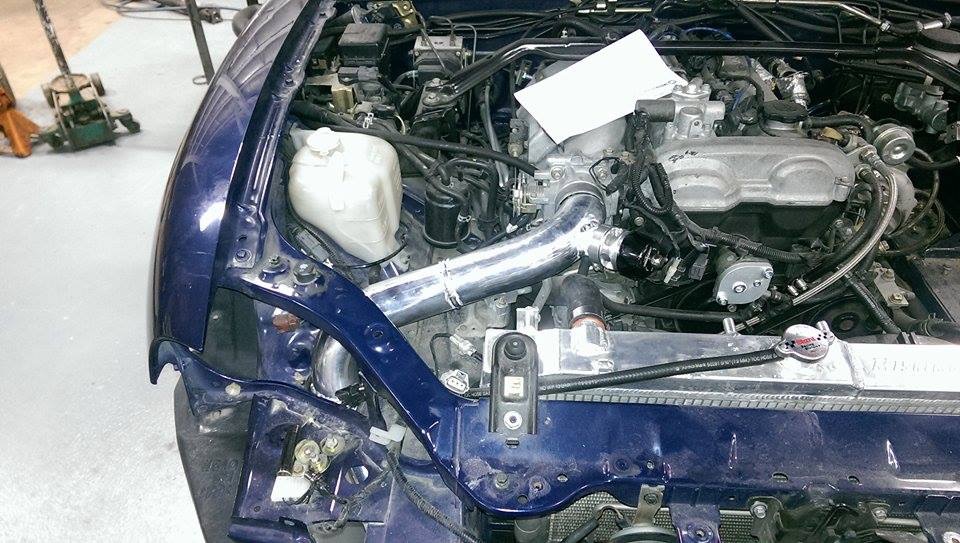

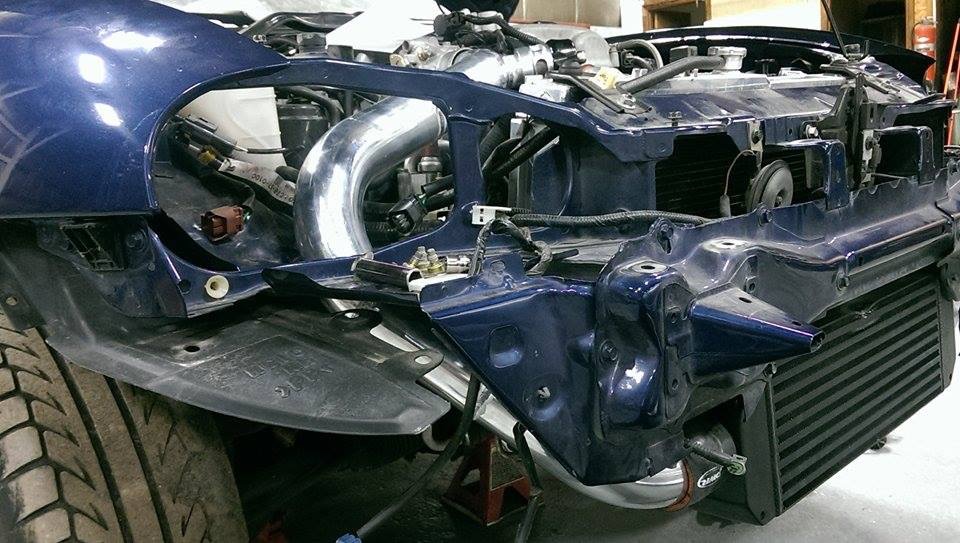

NB2 intercooler routing suggestions (paging 18psi)-129005d1418230527-chiburbians-01-lots-potential-no-follow-through-build-image3.jpg   NB2 intercooler routing suggestions (paging 18psi)-129006d1418230527-chiburbians-01-lots-potential-no-follow-through-build-img_2260.jpg
Chiburbian is offline   Reply With Quote
Old 12-03-2015, 03:13 PM   #9
Senior Member
Thread Starter
iTrader: (8)

nigelt's Avatar

Join Date: Sep 2014
Location: Carmel Valley, CA
Posts: 655
Total Cats: 71
Default

Thanks! I've got the same tires, and had the same wear on the front

18psi - is "traditional" routing on the cold side straight down from the TB, under the sway bar, and a 180 around the rad? Or something else?
nigelt is offline   Reply With Quote
Old 12-03-2015, 03:16 PM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

You don't have to do a 180 around the rad. I just did a 90 coupler to a 45* pipe, and it drops it right under the TB.
aidandj is offline   Reply With Quote
Old 12-03-2015, 03:18 PM   #11
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

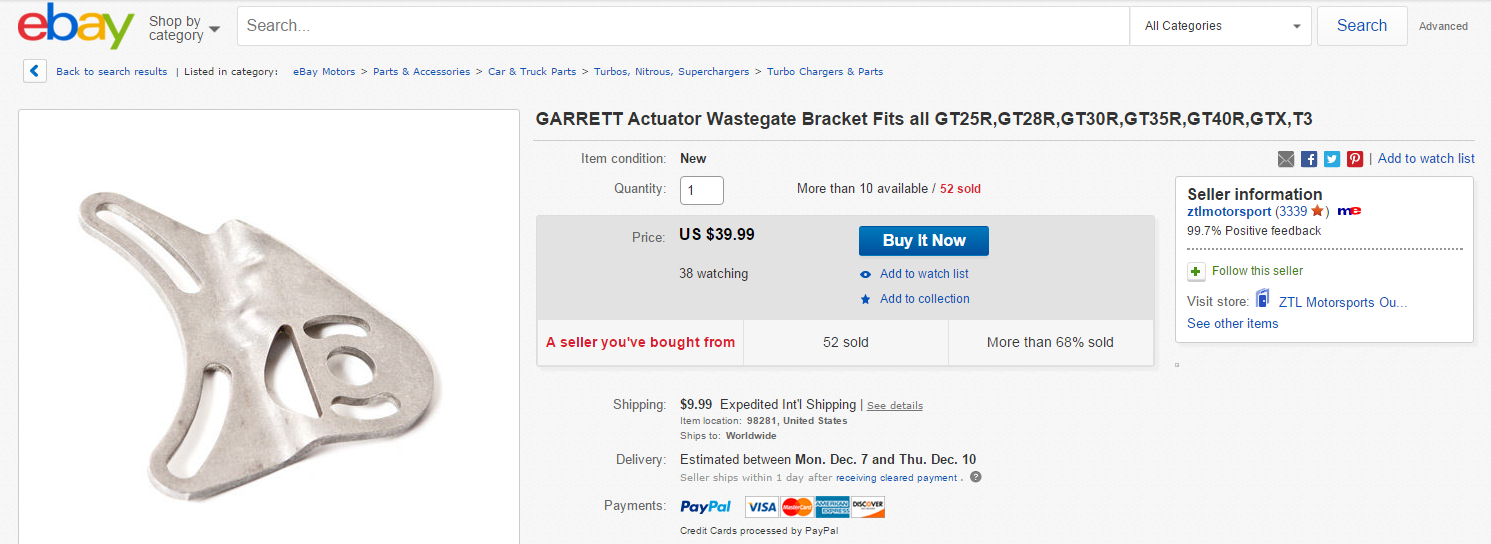

Would I do either routing again? I don't know. Hot side makes more sense than cold side. Both may require a custom wastegate actuator bracket. I bought one online that did the job in the end. This one:
Garrett Actuator Wastegate Bracket Fits All GT25R GT28R GT30R GT35R GT40R GTX T3 | eBay


Attached Thumbnails
NB2 intercooler routing suggestions (paging 18psi)-80-bracket_d1f9ae7f94527b1745e51003c46b9a987f0421e3.png
Chiburbian is offline   Reply With Quote
Old 12-03-2015, 03:34 PM   #12
Senior Member
iTrader: (1)

Join Date: Nov 2010
Location: Marylandistan
Posts: 841
Total Cats: 44
Default

Attached Thumbnails

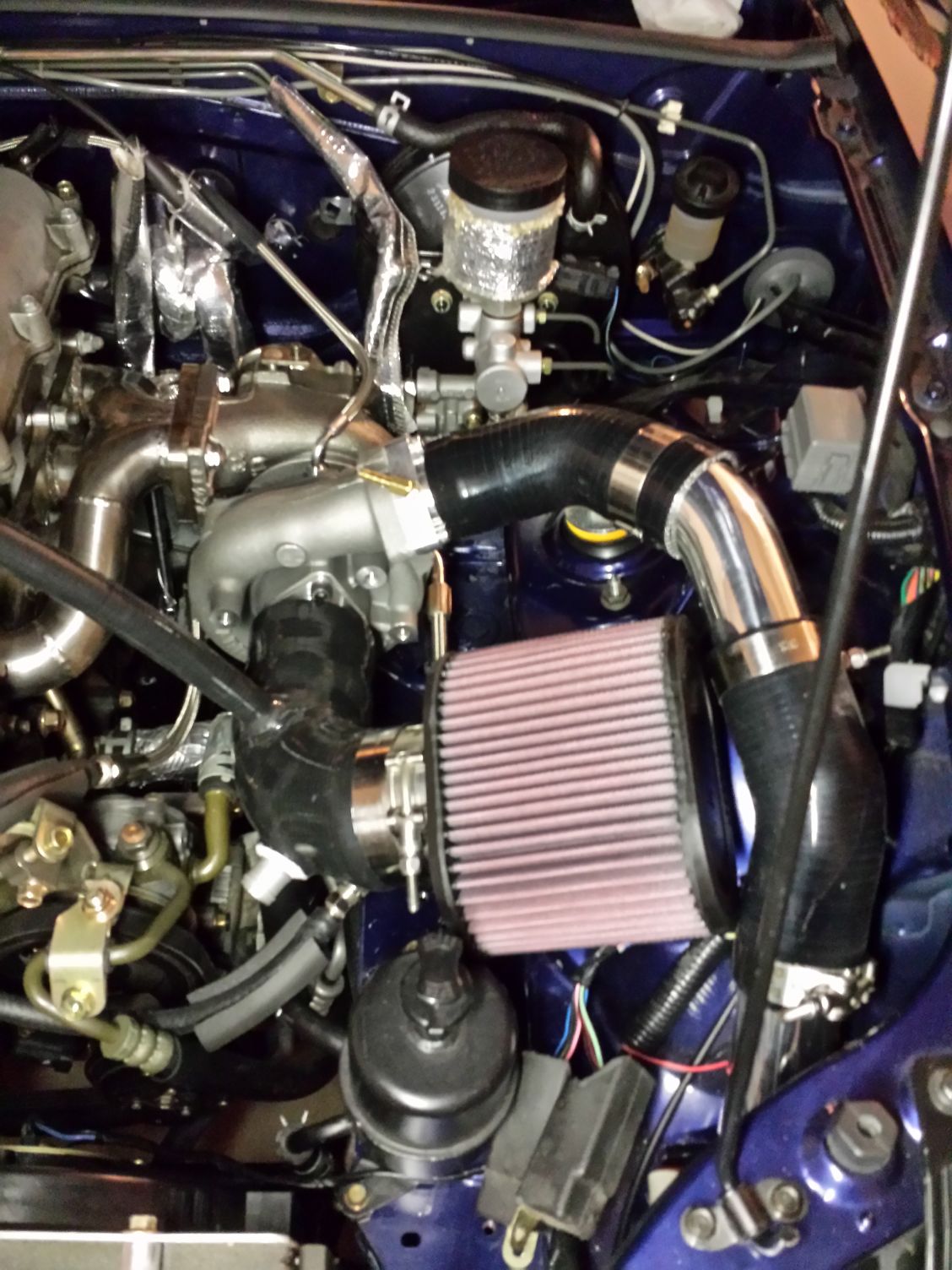

NB2 intercooler routing suggestions (paging 18psi)-80-20150619_121151_c3789ab77cf345aa7e6580c91aa9a9e50e511498.jpg
stratosteve is offline   Reply With Quote
