Need help.. how does this wastegate come off??? - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 06-29-2007, 02:44 PM   #1
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default Need help.. how does this wastegate come off???

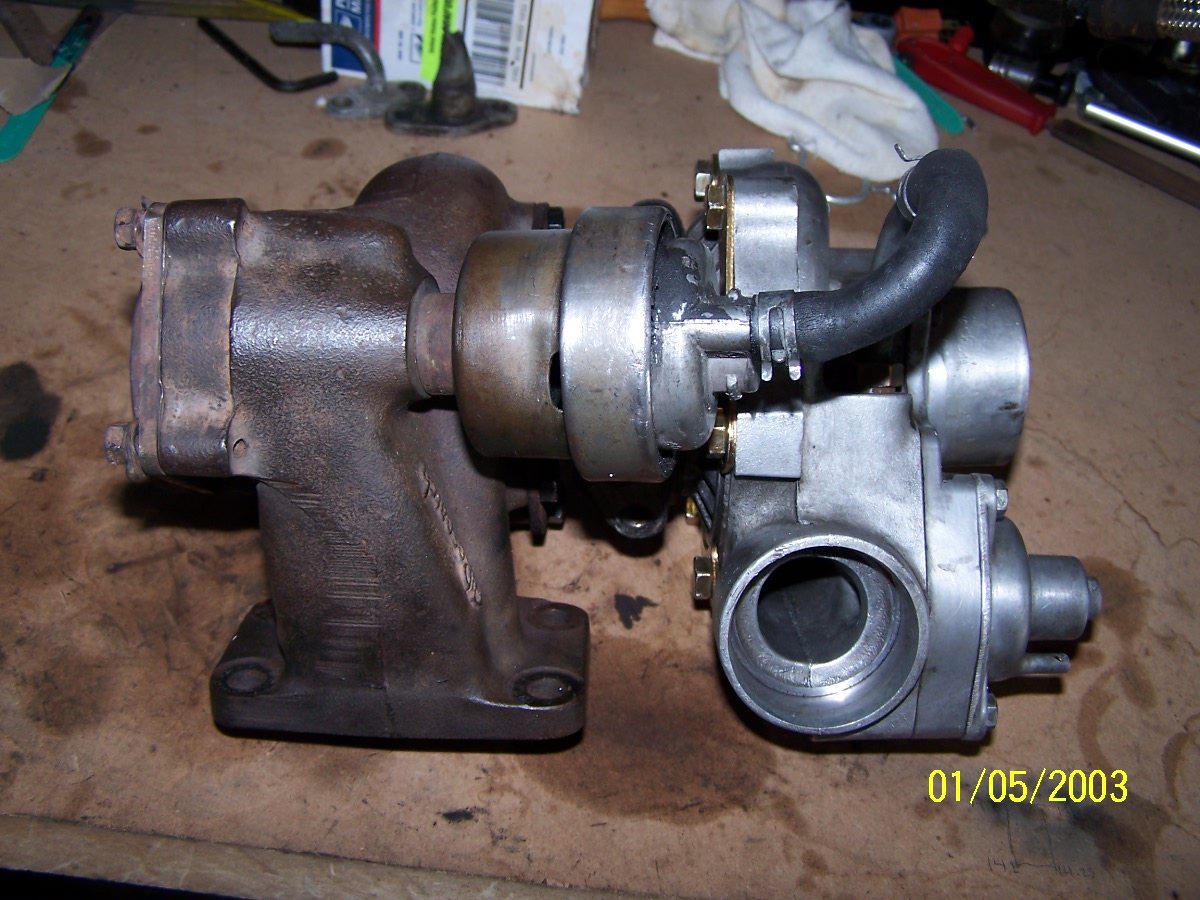

I tried unscrewing the whole thing using vice grips.. but it wont budge! But the top part with the nipple will spin independant of the whole bottom half.
Attached Thumbnails
Need help.. how does this wastegate come off???-turbooo-001.jpg
cardriverx is offline   Reply With Quote
Old 06-29-2007, 02:57 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

GL i am stumped what kinda turbo is that?
magnamx-5 is offline   Reply With Quote
Old 06-29-2007, 03:13 PM   #3
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

well I did some reasearch.. and it seems its a garrett ta0301 or tb0359. If only I knew what the wastegate was set at.
cardriverx is offline   Reply With Quote
Old 06-29-2007, 03:32 PM   #4
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

ive never seen a wastegate like that.
SloS13 is offline   Reply With Quote
Old 06-29-2007, 03:34 PM   #5
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

can't you test it with a compressor?
miatamania is offline   Reply With Quote
Old 06-29-2007, 03:39 PM   #6
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

I sorta did, but it came out to like 19 psi!? That cannot be right. If it is, I need to find a way to get the wastegate off. im about to freakin hack saw it or somethin.
cardriverx is offline   Reply With Quote
Old 06-29-2007, 03:43 PM   #7
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

is it from a diesel weasle or some random gasoline oem application?

it might be an interferance fit, dry ice, blow torch and a bfrh?
Sirnixalot is offline   Reply With Quote
Old 06-29-2007, 03:48 PM   #8
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Its from a mercedes 300d or 300sdl (idk what trim), from the 1980s. Like I said im 99% sure its a garrett ta0301 or tb0359. The dry ice and blowtorch is a good idea..
cardriverx is offline   Reply With Quote
Old 06-29-2007, 04:19 PM   #9
Junior Member

Sirnixalot's Avatar

Join Date: Aug 2005
Location: Cayman Islands
Posts: 440
Total Cats: 17
Default

its a diesel turbo then.....you sure that will work "ok" for you?

if the cap spins freely then you might be able to just uncrimp that, take some coils out of the spring, crimp it back on and that should lower the boost some? no garunteeing you will get a air tight seal though
Sirnixalot is offline   Reply With Quote
Old 06-29-2007, 04:26 PM   #10
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

it's off a diesel mercedez... have you checked the compressor maps for it? Since diesels have such a low RPM range they generally require much less flow per liter than gasoline. AKA... a 1.8L Gas engine @ 8K rpm will need the same amount of air as a 4.0L diesel @ 3000 rpm. Now granted the diesels run a higher AFR (17-20:1 rather than 14.7:1), but that's not a HUGE difference in the big scheme of things.
Arkmage is offline   Reply With Quote
Old 06-29-2007, 08:53 PM   #11
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

One site that has a very similar turbo for sale says its good for cars around 1.6 to 2.2L. It will work, its just the wastegate I need to figure out.
cardriverx is offline   Reply With Quote
Old 06-29-2007, 10:02 PM   #12
Junior Member

Join Date: May 2007
Posts: 112
Total Cats: 0
Default

it's ugly that's for sure!!!
MiazdaBLUE is offline   Reply With Quote
Old 06-29-2007, 10:43 PM   #13
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

eh its not that bad.. and I still dunno about the wastegate..
cardriverx is offline   Reply With Quote
Old 06-29-2007, 10:47 PM   #14
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

well spooledmotorsports said they think the WG is set at 7 psi...
cardriverx is offline   Reply With Quote
Old 06-29-2007, 11:08 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

when you put compressed air into a wastegate line, did you take note of the first reading where the arm moved? that should be closest to the reading of the wastegate.

BUT: The wastegate is opened by two forces; boost pressure x the area of the wg diaphragm + exhaust gas pressure x the wg valve area. Which makes it hard to determine by the simple compressed air method.
Braineack is offline   Reply With Quote
Old 06-29-2007, 11:29 PM   #16
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by Braineack View Post
when you put compressed air into a wastegate line, did you take note of the first reading where the arm moved? that should be closest to the reading of the wastegate.

BUT: The wastegate is opened by two forces; boost pressure x the area of the wg diaphragm + exhaust gas pressure x the wg valve area. Which makes it hard to determine by the simple compressed air method.
Well, I used a crappy way of measureing it, so I would not be surprized if I was off. well, what if I just put it on my car and see what happenes? If I go over 7 psi, I better let off quick..

What is a better way to measure it? Someone has to know something about this WG.
cardriverx is offline   Reply With Quote
Old 06-30-2007, 01:48 AM   #17
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Good luck getting that thing to work on a Miata. I don't see how you run an oil feed line or how you're going to clock it.

I just did a quick search, and the wastegate can be anywhere from 10-16psi depending on what year 300SD you got it off of. That's what a couple Merc forums I searched listed for the OEM boost levels. I've seen some eBay ads for SpooledMotorsports used turbo's and they're prices are absurd.

I assume you're going to have a manifold and DP custom fabricated... I can't imagine you'd be lucky enough that is has standard T3 flanges. I'm sure you got it fairly cheap... but that thing looks like a huge pain in the ***. If you don't mind saying, why did you buy it and what do you hope to get out of it?
samnavy is offline   Reply With Quote
Old 06-30-2007, 02:09 AM   #18
Elite Member
Thread Starter
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by samnavy View Post
Good luck getting that thing to work on a Miata. I don't see how you run an oil feed line or how you're going to clock it.

I just did a quick search, and the wastegate can be anywhere from 10-16psi depending on what year 300SD you got it off of. That's what a couple Merc forums I searched listed for the OEM boost levels. I've seen some eBay ads for SpooledMotorsports used turbo's and they're prices are absurd.

I assume you're going to have a manifold and DP custom fabricated... I can't imagine you'd be lucky enough that is has standard T3 flanges. I'm sure you got it fairly cheap... but that thing looks like a huge pain in the ***. If you don't mind saying, why did you buy it and what do you hope to get out of it?

acually... It has a standard t3 flange for the manifold, standard t3 flanges for the oil feed/drain, and a 2.5 inch v band for the exhaust. So, all I need to do is fab up a downpipe (already have a begi manifold) and get this wastegate thing sorted out.

PLUS, I just rebuilt the turbo using one of the ebay full garrett t3 turbo rebuild kits (oh it spins soo nice now). It is a standared t3 turbo, just that it has a odd WG and its own BOV (which is acually kinda cool)

I guess I could wait awhile.. get larger injectors and a intercooler setup.. and just run at the 10 to 16 psi it is set at. I dont know..
cardriverx is offline   Reply With Quote
