Old 11-18-2009, 02:07 AM   #21
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Haha sorry I didnt get to work on it today, probably by Thursday.
Gotpsi? is offline   Reply With Quote
Old 11-18-2009, 02:47 AM   #22
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

you plan on using that ebay WG?
p51hellfire is offline   Reply With Quote
Old 11-18-2009, 08:59 AM   #23
Junior Member
iTrader: (1)

Join Date: Jan 2008
Posts: 161
Total Cats: 0
Default

Great job, instant subscribe, the turbo is huge, cant wait to see a dyno sheet when that thing starts spooling, JEJEJE!


Ebay stuff is not after all, I am using EGAY EWG, BOV and CAM GEARS, so far working good! Of course I always read the feedback and other people's follow up comments, time as a seller etc. Anyway, props on your setup will check every now and then to see the progress, thanks for sharing your work with high res images!
psiturbo is offline   Reply With Quote
Old 11-18-2009, 11:17 AM   #24
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by p51hellfire View Post
you plan on using that ebay WG?
Yes I am, I have cx racing BOV and it has worked better than the brand name ones I have used so I figured I would give this a try. If it fails, it uses the same flange as the TiAL 38mm so I can always get a real one.
Gotpsi? is offline   Reply With Quote
Old 11-18-2009, 11:29 AM   #25
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

woah... stoked to see how this goes!

similar plans to what i have for my 1.6L


for those of use not in the know.... what does your built engine consist of?
shlammed is offline   Reply With Quote
Old 11-18-2009, 02:49 PM   #26
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Forged rods, low comp-pistons, bottom end balenced, over sized and unshrouded valves, ported head, Titanium retainers and duel springs, everything squared and blue printed. I bought my engine kit from Belfab. Tri-vally machine did the machining and balancing and I build the motor.
Gotpsi? is offline   Reply With Quote
Old 11-21-2009, 07:36 PM   #27
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Ok I know its been awhile but I got a chance to go at to the garage today, here is what I have so far.
[IMG][/IMG]
[IMG][/IMG]
Gotpsi? is offline   Reply With Quote
Old 11-21-2009, 08:49 PM   #28
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Can you take more pics please? Level with front and back and both sides. top and bottom (inside collector). Maybe some 3/4 angle from front/back and both sides as well.

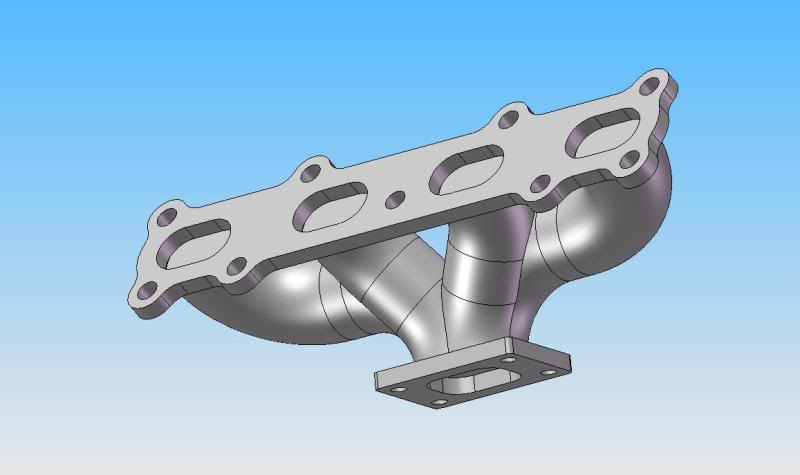

Dont you need those rear angles (for runners 2 and 3) to be more at a 45* angle to match this drawing?
Name:  wayne_currmaniblend2.jpg
Views: 1
Size:  26.3 KB
wayne_curr is offline   Reply With Quote
Old 11-21-2009, 09:00 PM   #29
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Im not matching the drawing I just used it for a reference. Ill get more pics up I just welded the flange on.
Gotpsi? is offline   Reply With Quote
Old 11-21-2009, 09:06 PM   #30
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Hey were are the pics of your manifold already? I thought it was done?
Gotpsi? is offline   Reply With Quote
Old 11-22-2009, 01:50 AM   #31
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Ok Im done for the day thought I would share the progress. Not finished yet still need to get my gaps closed up and the runners for 1&4 in and the waste gate on.
[IMG][/IMG]
[IMG][/IMG]
Gotpsi? is offline   Reply With Quote
Old 11-22-2009, 07:34 PM   #32
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Gotpsi? View Post
Hey were are the pics of your manifold already? I thought it was done?
Haven't picked it up from Sbk yet. He lives 2 hours from me.
wayne_curr is offline   Reply With Quote
Old 11-23-2009, 02:28 AM   #33
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

O bummer cant he at least put some pics up?
Gotpsi? is offline   Reply With Quote
Old 11-23-2009, 10:11 PM   #34
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Are you going to have any problems with your manifold design(Not doubting your skills at all, lol, so please don't think that) and the weight of the Holset? Any plans for serious bracing?

A couple friends of mine have E30's with Holsets ranging from HX30's to HX45's and those suckers are heavy. I remember the HX30 being around 28-30 pounds and the HX45 being around 45-50+ pounds.

I want a holset soooo bad
viperormiata is offline   Reply With Quote
Old 11-23-2009, 10:45 PM   #35
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Yes I have bracing in mind, something like the weld bracing on Sav's mani. I will take pics when I am done, I don't have enough material to finish, I just ordered the rest tonight I think I might get it before thanksgiving but we have family coming into town until the weekend so I don't know if I will have time to do any more till next week. I have the HY35 and the turbine housing is about half the size of the housing of the HX35, its still heavy but I know the manifold will hold up.
Gotpsi? is offline   Reply With Quote
Old 11-23-2009, 11:53 PM   #36
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

you're a bottom mount.
hustler is offline   Reply With Quote
Old 11-24-2009, 12:03 AM   #37
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

You know I dont roll like that MR broke back mountain. did you run out of nubes to e-thug or somthing?
Gotpsi? is offline   Reply With Quote
Old 11-24-2009, 02:19 AM   #38
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by hustler View Post
you're a bottom mount.
18psi is offline   Reply With Quote
Old 11-24-2009, 02:39 AM   #39
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Hey 18psi is your car running yet?
Gotpsi? is offline   Reply With Quote
Old 11-24-2009, 02:59 AM   #40
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Quote:
Originally Posted by Gotpsi? View Post
Hey 18psi is your car running yet?
yep
18psi is offline   Reply With Quote
