So its gonna be tight but not too tight? :P
triple88a is offline   Reply With Quote
Old 12-01-2009, 10:37 PM   #62
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Yea thats why I made it closer to the engine than the frame, plus I have solid motor mounts so movement will be very minimal.
Gotpsi? is offline   Reply With Quote
Old 12-01-2009, 10:40 PM   #63
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Collector pen shots??? Also interested in the head flange penetration shots.
SKMetalworks is offline   Reply With Quote
Old 12-01-2009, 11:00 PM   #64
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Ill get you the pics when Im done, Im not to happy with some of the welds, I tryed some of this weld through tape the welding store gave me to demo, specificaly for back purging and I didnt like the out come, I had some sugaring in a few places. I also had trubble cleaning some of the parts after plasma cutting them, I found that plasma cuases major sugar and you have to grind the heck out of it before you weld to it or your screwed. But hey this is my first manifold and I dont ever do much with stainless so Im quite happy over all with the project so far.
Gotpsi? is offline   Reply With Quote
Old 12-01-2009, 11:01 PM   #65
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

penatration was awsome by the way, I just had some sugaring, and I think that take stuff cuased some contamiation that I had to grind out and reweld in a couple spots.
Gotpsi? is offline   Reply With Quote
Old 12-01-2009, 11:04 PM   #66
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Meh, only tape i use is 3M masking tape; the white stuff. Smells good and does its job. Had 0 sugaring on waynes manifold. Gonna build myself one hopefully this weekend if the damn flanges get here
SKMetalworks is offline   Reply With Quote
Old 12-01-2009, 11:07 PM   #67
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

This stuff was aluminum foil like, It has adhesive on two sides and nothing in the middle, so you are supose to just "weld through" it but it did some strange things so I just diched it.
Gotpsi? is offline   Reply With Quote
Old 12-01-2009, 11:07 PM   #68
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

It worked great for blocking off the flanges though!
Gotpsi? is offline   Reply With Quote
Old 12-01-2009, 11:07 PM   #69
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by Gotpsi? View Post
This stuff was aluminum foil like, It has adhesive on two sides and nothing in the middle, so you are supose to just "weld through" it but it did some strange things so I just diched it.
"If it aint broke dont fix it"
SKMetalworks is offline   Reply With Quote
Old 12-01-2009, 11:31 PM   #70
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

The stuff was free and it was suppose to help so I figured Id try it.
Gotpsi? is offline   Reply With Quote
Old 12-04-2009, 04:38 PM   #71
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Ok got some more done last night. [IMG][/IMG] [IMG][/IMG]
Gotpsi? is offline   Reply With Quote
Old 12-04-2009, 04:40 PM   #72
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

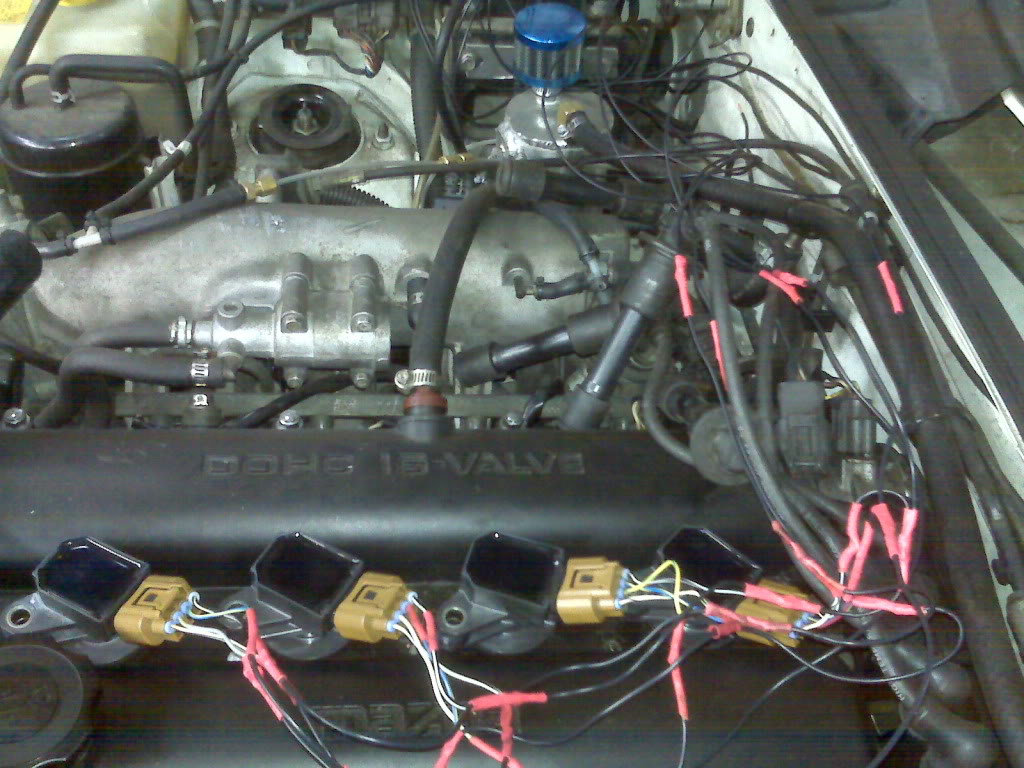

O and by the way my wife is the best! look what she made me while watching Shrek 3! Name:  cops.jpg
Views: 0
Size:  140.3 KB
now it just needs some nice loom so make it look organized, and I need to make a hold down bracket. FYI its all soldered and heat shrunk, no but connectors.
Gotpsi? is offline   Reply With Quote
Old 12-04-2009, 04:44 PM   #73
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

HAHA that's great

What are you going to do about the ewg sitting so high up and hitting the hood?
Also that turbine flange looks like its directly over the rail: looks like it will be a SUPER tight fit for the turbo.
And how are you planning to route the wg tube? Looks like the manifold blocks off its passageway to the dp
18psi is offline   Reply With Quote
Old 12-04-2009, 04:46 PM   #74
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,865
Total Cats: 1,790
Default

i have a feeling you're going to have boost control issues.
Braineack is offline   Reply With Quote
Old 12-04-2009, 04:50 PM   #75
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

the waste gate has plenty of clearance thats what the second pic is. Ill get some pics of the turbo on the mani soon, the turbine housing was still hot when I took the pic from welding up the internal waste gate hole. and I have not welded the 90 on the compressor housing yet that it will have. The hardest thing will be the the wastgate routing to the down pipe. it must go behind the manifold by the dip stick.
Gotpsi? is offline   Reply With Quote
Old 12-04-2009, 04:55 PM   #76
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

That's also where the heater core hoses are. Did you remove yours altogether or just for now? If you have your wg tube right next to em they will melt fast
18psi is offline   Reply With Quote
Old 12-04-2009, 04:58 PM   #77
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

In for 6" wastegate dump out the hood.
wayne_curr is offline   Reply With Quote
Old 12-04-2009, 04:59 PM   #78
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I dont have anything in my car its completely gutted. The only thing it will be close to it the throttle cable. I already melted that so Ill have so Ill have to make a heat shield.
Gotpsi? is offline   Reply With Quote
Old 12-04-2009, 05:00 PM   #79
Senior Member
Thread Starter
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by wayne_curr View Post
In for 6" wastegate dump out the hood.
I was actually considering doing it.
Gotpsi? is offline   Reply With Quote
Old 12-04-2009, 05:00 PM   #80
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Oh, I somehow missed that this is a gutted track car. In that case go nuts and vent straight out the hood
18psi is offline   Reply With Quote
