Talking Picking up HKS top mount w/t25 and lines for $300!

Well, I'm going turbo!

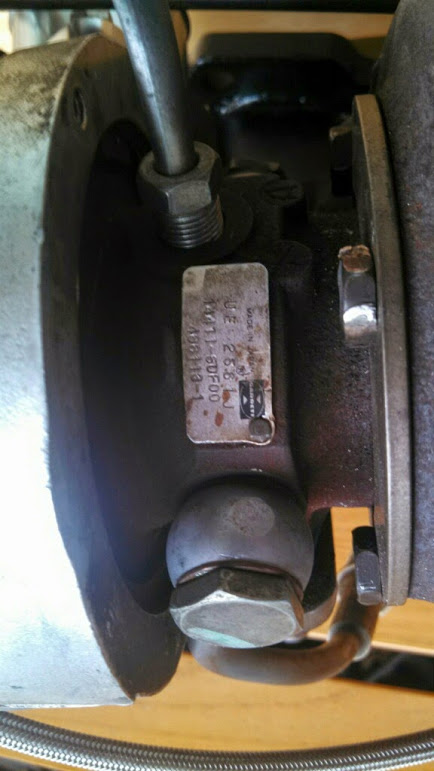

Ill be picking this up today. From what I understand, it's a HKS powerdercoated top mount manifold w/t25 from a older sr20. It has lines included. I'll need to make a custom down pipe and also get intake piping.







Video of the shaft play. Do you think I'll need a rebuild? https://www.flickr.com/photos/xxmachonexx/16066886383/

Long story short, I have a newish oem clutch and I don't want to change it again unless I have to so I want to stay with what I believe is the stock 7psi on the turbo. The stock clutch is good for 160whp yes? I'd like to stay within those limits, for now at least. So thats why unless I pick up a cheap intercooler locally, I want to run no intercooler. Right now I have rb header/catless connecting pipe on stock muffler. Wide band is on the way.

Question, will MS3 make the car significantly more reliable than running some kind of piggy back? Significantly as in $1,200 more?

Advice on any level is much appreciated.
Attached Thumbnails
Picking up HKS top mount w/t25 and lines for 0!-imagejpeg_0.jpg
Hinano is offline   Reply With Quote
Old 03-02-2015, 04:36 AM   #2
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

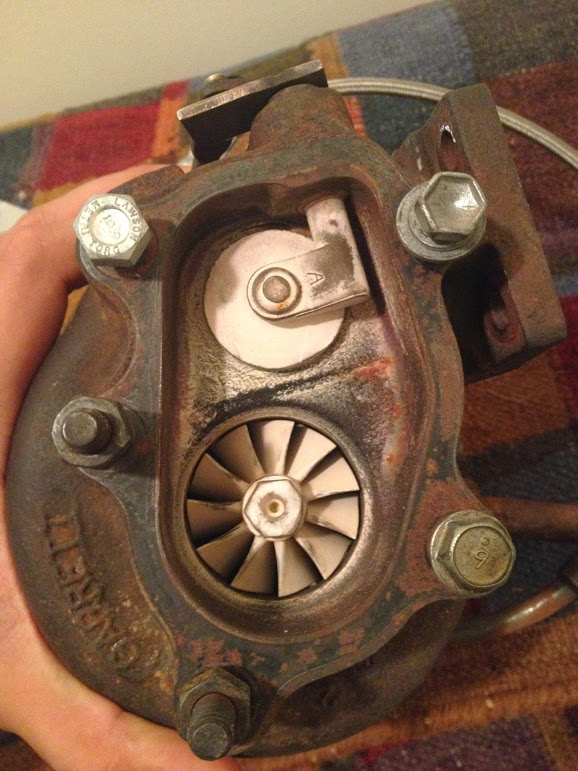

Got it! Barely ANY in out shaft play, which I hear is the bad one. It has some up and down play but the blades do not touch the compressor at all. I did now see and understand I have to clock the turbo but what about the following?

Did coolant run through it or something?

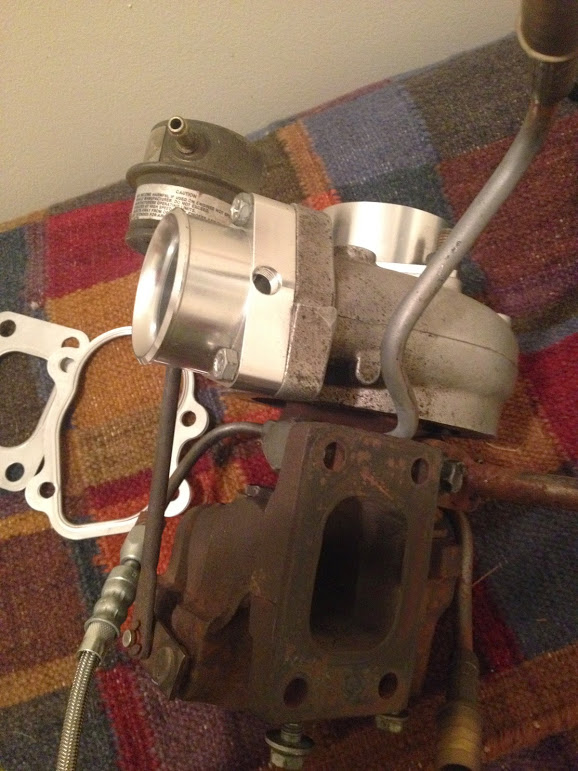

What is that hole on the bottom of the intake thing? Is that to recirculate?

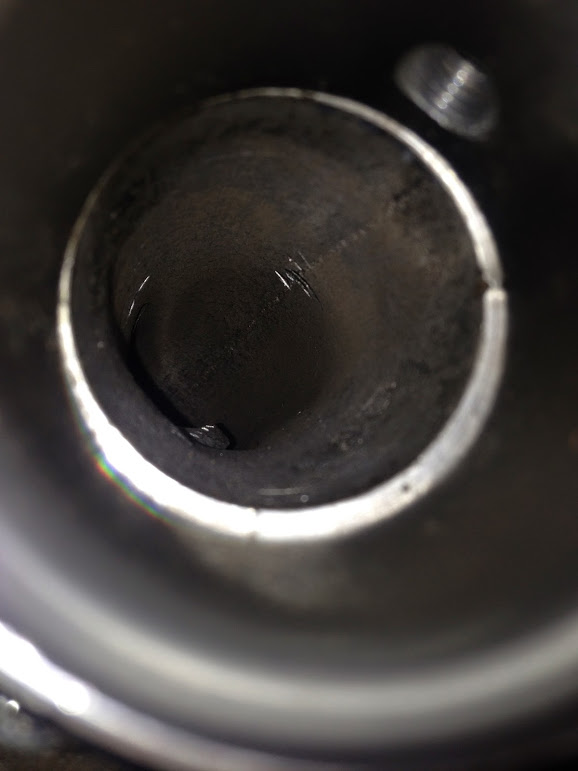

Some scuffing inside the compressor
Attached Thumbnails
Picking up HKS top mount w/t25 and lines for 0!-img_2064.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_2063.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_2070.jpg
Hinano is offline   Reply With Quote
Old 03-02-2015, 04:52 AM   #3
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

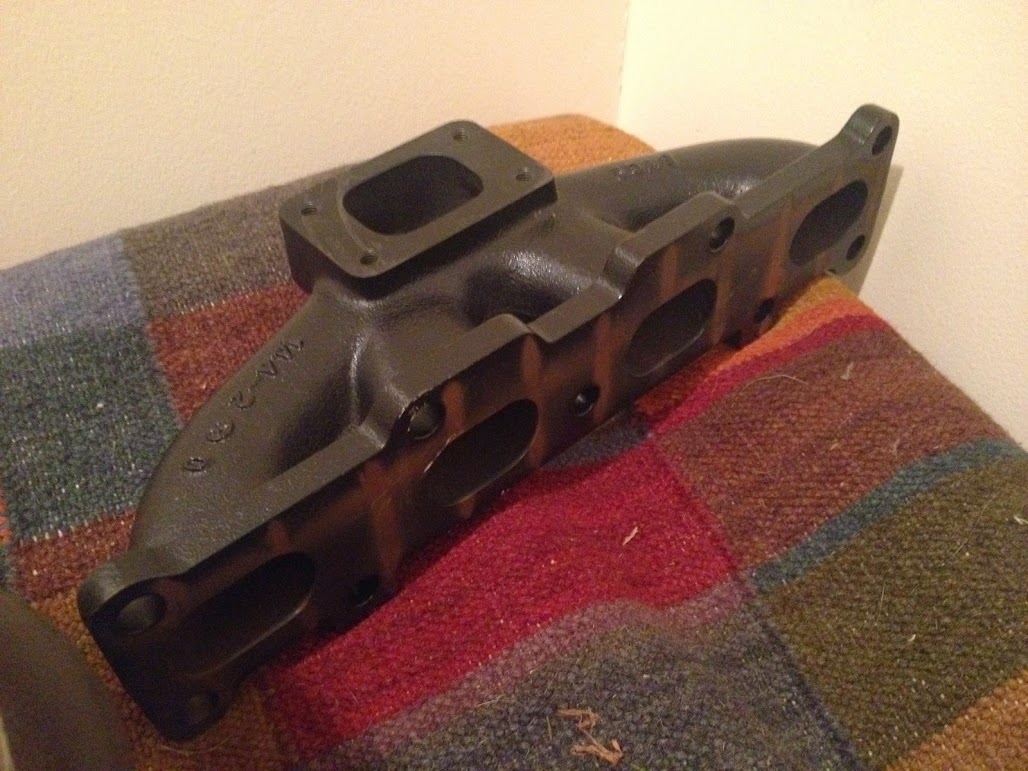

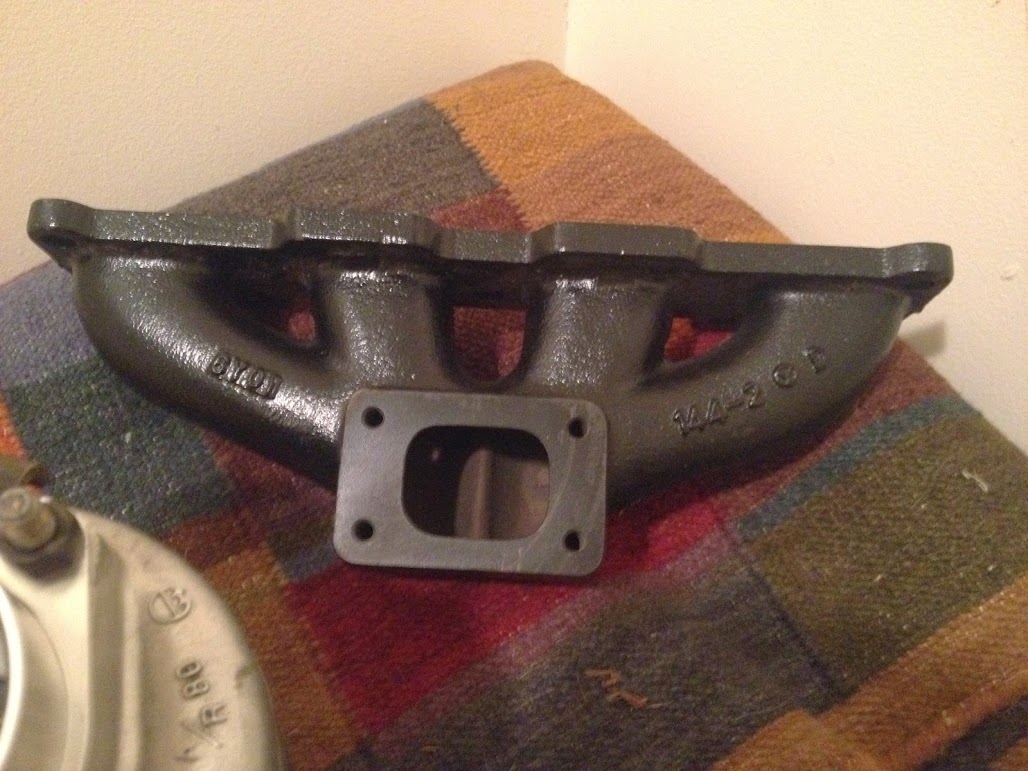

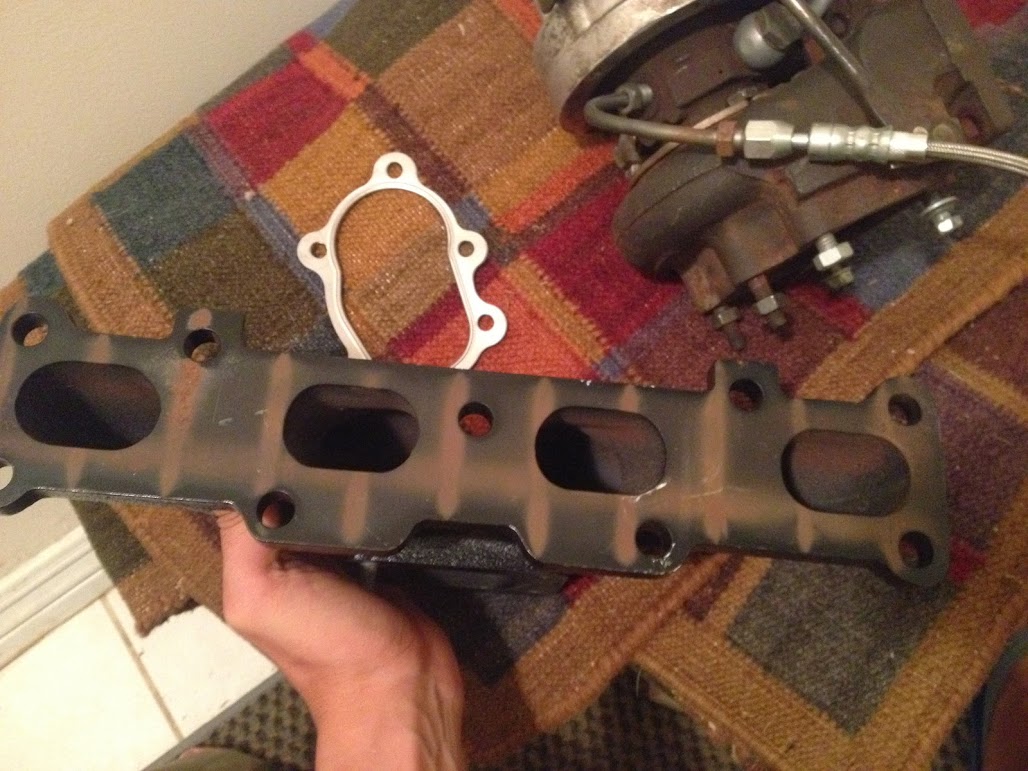

Manifold looks brand new!


Attached Thumbnails
Picking up HKS top mount w/t25 and lines for 0!-img_2073.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_2072.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_2065.jpg
Hinano is offline   Reply With Quote
Old 03-02-2015, 10:44 AM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

White dust is most likely from running lean on the previous car? Please tell us you have MS and larger injectors planned.

The hole on the compressor outlet adapter is most likely for a wastegate source, although I think the turbo has one built in on the front of the compressor housing. I suggest plugging both of those and adding one close to the throttle body, post intercooler pressure loss.
curly is online now   Reply With Quote
Old 03-02-2015, 10:48 AM   #5
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

It either ran really hot, or with race gas? Looks like soot from my dirtbike when I run vp.

Used ms come up every now and again. Be patient, use this time to read all about it. Allofit.

That turbo is a small chunk of what you a getting into. More like a morsel.


Ahh, beat me to it while I was eating with an open browser.^^^^
ryansmoneypit is offline   Reply With Quote
Old 03-02-2015, 02:31 PM   #6
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by curly View Post
White dust is most likely from running lean on the previous car? Please tell us you have MS and larger injectors planned.

The hole on the compressor outlet adapter is most likely for a wastegate source, although I think the turbo has one built in on the front of the compressor housing. I suggest plugging both of those and adding one close to the throttle body, post intercooler pressure loss.
I JUST ORDERED THE MS3 PnP w/maf delete from 949 for $1,200!!!

I'm planning to stay stock boost of what I believe is 7psi for now so I'm hoping I can run it with my stock 265's and non inter cooled. The temps here are hardly ever over low 90's and usually high humidity.

Quote:
Originally Posted by ryansmoneypit View Post
It either ran really hot, or with race gas? Looks like soot from my dirtbike when I run vp.

Used ms come up every now and again. Be patient, use this time to read all about it. Allofit.

That turbo is a small chunk of what you a getting into. More like a morsel.


Ahh, beat me to it while I was eating with an open browser.^^^^
I am kinda thinking maybe I should just rebuild the turbo while it's out and I don't need it.. I want to do this right the first time around because I don't want to be stuck riding moped for too long in rainy Hawaii. What do you guys think, should I maybe open it up and check and clean or something?
Hinano is offline   Reply With Quote
Old 03-02-2015, 02:41 PM   #7
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

I just noticed the AR 80. Is it a BB or journal bearing? Ball bearing can't be rebuilt unless you buy the chra, for a lot of moneys.

Last edited by ryansmoneypit; 03-02-2015 at 03:04 PM.
ryansmoneypit is offline   Reply With Quote
Old 03-02-2015, 03:56 PM   #8
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

It's a journal bearing.
Hinano is offline   Reply With Quote
Old 03-02-2015, 04:32 PM   #9
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Wants to do this right. Doesn't want injectors or intercooler.
ryansmoneypit is offline   Reply With Quote
Old 03-02-2015, 04:41 PM   #10
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

I'll keep my eye open for some oem small side mount or equivalent.
Hinano is offline   Reply With Quote
Old 03-02-2015, 04:45 PM   #11
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Tons of recent info on the eBay intercooler to get.
ryansmoneypit is offline   Reply With Quote
Old 03-03-2015, 05:01 AM   #12
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Took forever to find but I might have found a starter downpipe that I can cut & weld to fit my top mount t25. This can make at least the elbow. It's for a sr20 swap Datsun lol
Cxracing Turbo Downpipe for Datsun 510 s13 SR20DET Swap Top Mount Turbo GT28 | eBay
The rest should be easy for a shop to do no?
Hinano is offline   Reply With Quote
Old 03-03-2015, 01:14 PM   #13
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

A shop will most likely NOT want to mess with hacking up a junk manifold, so that you can try and save a few bucks. Go find the correct downpipe for that manifold/turbo you have. If there is such a thing, it wont be on EBAY.
You need to go read a bunch of people's builds around here, read alllll of the stickies and then proceed.

Without a build sheet, you seem to really have no idea what you are getting into.

Good luck man

Last edited by ryansmoneypit; 03-03-2015 at 01:24 PM.
ryansmoneypit is offline   Reply With Quote
Old 03-03-2015, 03:07 PM   #14
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by ryansmoneypit View Post
A shop will most likely NOT want to mess with hacking up a junk manifold, so that you can try and save a few bucks. Go find the correct downpipe for that manifold/turbo you have. If there is such a thing, it wont be on EBAY.
You need to go read a bunch of people's builds around here, read alllll of the stickies and then proceed.

Without a build sheet, you seem to really have no idea what you are getting into.

Good luck man
Im looking at various o2 housings

Last edited by Hinano; 03-03-2015 at 07:37 PM.
Hinano is offline   Reply With Quote
Old 03-03-2015, 10:23 PM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

What do you mean by o2 housings?
aidandj is offline   Reply With Quote
Old 03-03-2015, 10:55 PM   #16
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by aidandj View Post
What do you mean by o2 housings?
Aka turbo outlet, elbow, downpie
Hinano is offline   Reply With Quote
Old 03-03-2015, 11:42 PM   #17
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Quote:
Originally Posted by Hinano View Post
Aka turbo outlet, elbow, downpie
What.
ryansmoneypit is offline   Reply With Quote
Old 03-03-2015, 11:43 PM   #18
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Did some googling, apparently thats what its called in the DSM world?
aidandj is offline   Reply With Quote
Old 03-08-2015, 08:04 PM   #19
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Can someone tell me a link or explain to me what which lines do and what lines I need to run this top mount turbo? Sturovo is going to make a turbo outlet elbow for me and I see that he also makes lines but I don't know what I need. The turbo did come with some lines as you can see above..
Hinano is offline   Reply With Quote
Old 03-08-2015, 09:07 PM   #20
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

That welded wiener looks like your oil drain, the bent hard line is probably oil in and the two banjo bolts are the water in and out. Look up your turbo manufacturer for proper water flow direction. Probably doesn't matter too much though.

What injectors did you decide to use?
ryansmoneypit is offline   Reply With Quote
