Old 03-15-2015, 12:51 PM   #101
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Ahh didn't notice that. Maybe not.
aidandj is offline   Reply With Quote
Old 03-15-2015, 01:14 PM   #102
Elite Member
iTrader: (8)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,132
Total Cats: 145
Default

Quote:
Originally Posted by aidandj View Post
Ahh didn't notice that. Maybe not.
I source mine at the fitting right behind the throttle body. 2000

2000 NB1
bahurd is offline   Reply With Quote
Old 03-15-2015, 09:24 PM   #103
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by bahurd View Post
I source mine at the fitting right behind the throttle body. 2000

2000 NB1
Cool, I'll have to look into it. Ty

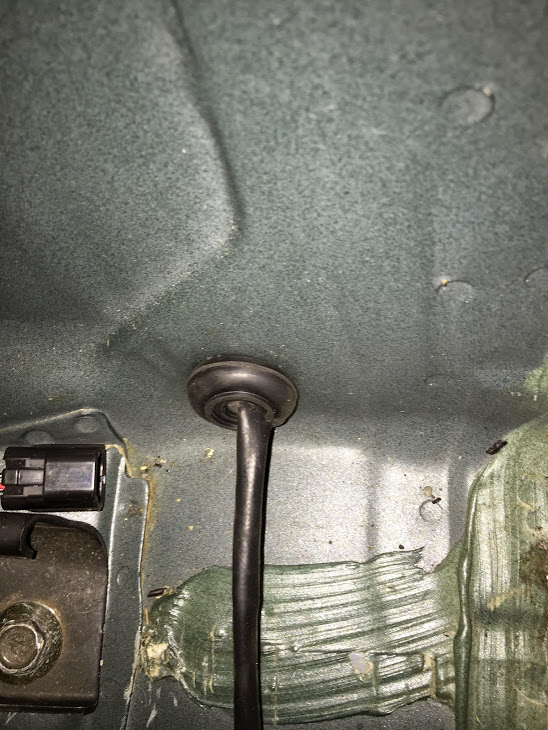

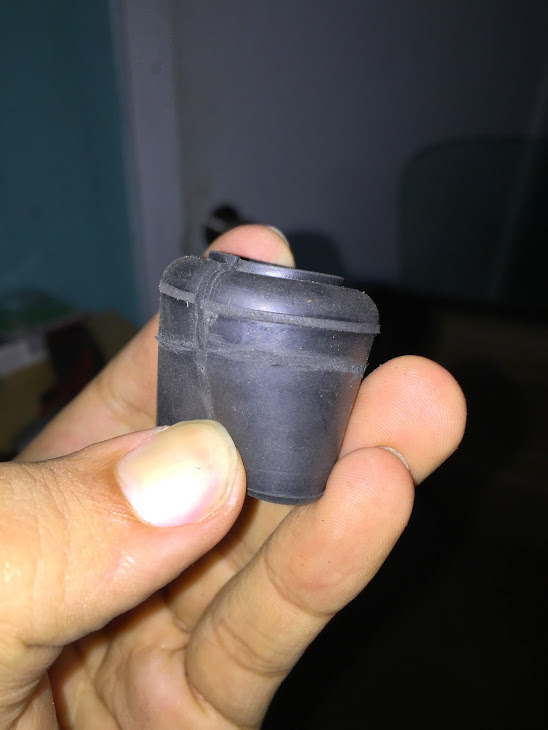

Here is my seat leg rubber cap mod. LOL All I did was poke a hole in the middle, cut it in half with scissors, cut in a "grove" so the sheet metal will have a edge to grab, then jam it in. This fits perfectly for a temporary AC line plug on the firewall if anyone was wondering.

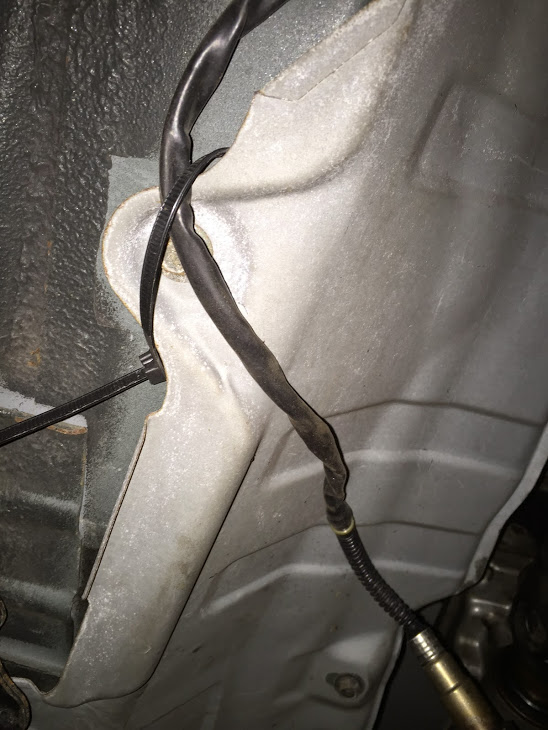

I zip tied the wideband wire


I'm actually not set on how I want to wire this stuff. Behind the seat might not be the best place. Just trying it out for now but I'm having wiring issues anyways. :(
Attached Thumbnails
Picking up HKS top mount w/t25 and lines for 0!-img_0065-2.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_0066.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_0060.jpg
Hinano is offline   Reply With Quote
Old 03-16-2015, 12:01 AM   #104
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

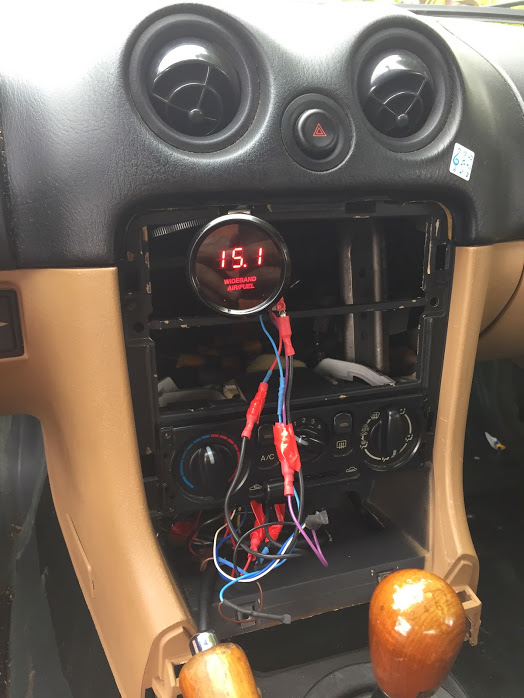

temporary location

Attached Thumbnails
Picking up HKS top mount w/t25 and lines for 0!-img_0080.jpg
Hinano is offline   Reply With Quote
Old 03-16-2015, 01:03 AM   #105
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Go for the butt splice record IMO.

edit: why the **** are you running the wideband through the firewall instead of the shifter?
albumleaf is offline   Reply With Quote
Old 03-16-2015, 01:05 AM   #106
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Won't work well. Cranking the fuel pressure on NB injectors apparently works for really low boost. But no point at all if you already have a MS. Just buy some RX8 injectors or something.
aidandj is offline   Reply With Quote
Old 03-16-2015, 01:25 AM   #107
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by albumleaf View Post
Go for the butt splice record IMO.

edit: why the **** are you running the wideband through the firewall instead of the shifter?
I bought it used and it came all choppedup. I'll clean it all up over spring break. I really wanted to get it on to see if I can catch my p0300 and figure out if it's maybe coils or fuel related.

Yeah through the shifter sounds like a great idea! It's at the transmission tunnel hole where the stock second O2 sensor was.

Quote:
Originally Posted by aidandj View Post
Won't work well. Cranking the fuel pressure on NB injectors apparently works for really low boost. But no point at all if you already have a MS. Just buy some RX8 injectors or something.
I saw how cheap the rx8 injectors are and so they are on my list for future upgrades but I want to run my free oem injectors lol
Hinano is offline   Reply With Quote
Old 03-16-2015, 01:30 AM   #108
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Blowing up an engine because of a lean condition is a lot more expensive than injectors...

$1200:

01 02 Mazda MX 5 Miata Engine Motor Long Block USDM | eBay
aidandj is offline   Reply With Quote
Old 03-16-2015, 01:33 AM   #109
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Im under the impression that my stock 265's will handle 7psi. But I'll start with 3psi just in case
Hinano is offline   Reply With Quote
Old 03-16-2015, 01:35 AM   #110
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Your turbo won't run 3psi. Normally sr20 turbo wastegate pressure is like 8psi.
aidandj is offline   Reply With Quote
Old 03-16-2015, 02:11 AM   #111
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by aidandj View Post
Your turbo won't run 3psi. Normally sr20 turbo wastegate pressure is like 8psi.
GOod point

Stock is 7 but yeah, I'm reading that I'll be fine. If you know of any threads that prove otherwise, I would really like to see them.
Hinano is offline   Reply With Quote
Old 03-16-2015, 02:21 AM   #112
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Based on a statement made in this thread sr20 turbos are good for about 10whp per psi. Stock VVT engine is 142hp. So 7psi * 10 + 142hp = 212. But since you don't have the best flowing stuff lets say a round 200.

Calculate the required cc of injectors needed (from the wiki):

200 x .55 / 4 x .8 = 110 / 3.2 = 34.4 lb/hr x 10.5 = 360cc

So you need 360cc injectors.

Stock NB2 injectors are 265cc at 60psi (Because you aren't using an Adjustable FPR, just don't) so:

60 / 43.5 = 1.379

sqrt of 1.379 = 1.174

1.174 x 265cc = 311cc

So without any fuel management you are about 49cc's short...

These are pretty common on the islands right?



Yeah, you're one of those short.

Last edited by aidandj; 03-16-2015 at 03:36 AM.
aidandj is offline   Reply With Quote
Old 03-16-2015, 03:23 AM   #113
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by aidandj View Post
Based on a statement made in this thread sr20 turbos are good for about 10whp per psi. Stock VVT engine is 142hp. So 7psi * 10 + 142hp = 212. But since you don't have the best flowing stuff lets say a round 200.

Calculate the required cc of injectors needed (from the wiki):

200 x .55 / 4 x .8 = 110 / 3.2 = 34.4 lb/hr x 10.5 = 360cc

So you need 360cc injectors.

Stock NB2 injectors are 265cc. So without any fuel management you are about 105cc's short...
That wiki article says 200 crank is 160whp and that the 265's can handle that at 80 percent duty cycle. But it does say something about 96psi fuel pressure? I think the NB2's have 60 and am now reading are unadjustable?...

Maybe I do need injectors..
Hinano is offline   Reply With Quote
Old 03-16-2015, 03:27 AM   #114
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Post above edited for NB 60psi fuel pressure.
aidandj is offline   Reply With Quote
Old 03-16-2015, 03:59 AM   #115
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Not sure what to say because I don't fully understand all those numbers yet but the mazdaspeed Miata has the same injectors as the nb2's and correct me if I'm wrong but they run like 7psi stock no?
Hinano is offline   Reply With Quote
Old 03-16-2015, 04:04 AM   #116
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Stock MSM is rated for 178hp. FM tested it and found that it was at 5psi.

Flyin' Miata : Dissecting the Mazdaspeed MX-5
aidandj is offline   Reply With Quote
Old 03-16-2015, 04:24 AM   #117
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Wow I never knew that. But both fm and begi say stock injectors are maxed out at around 200 whp.. And thanks for all you input btw.

Fm seems to have also done a follow up reporting errors or something? I don't know, I'm reading on my phone and it's confusing but I'll have to investigate.
Hinano is offline   Reply With Quote
Old 03-16-2015, 04:30 AM   #118
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I'm out. Just realize that running out of fuel is what blows **** up. Leaning out causes detonation, which breaks things. The last thing you want to do is spend 2k on a rebuild, which is 10 times more than injectors.
aidandj is offline   Reply With Quote
Old 03-16-2015, 04:48 AM   #119
Junior Member
Thread Starter

Join Date: Dec 2013
Posts: 217
Total Cats: -283
Default

Quote:
Originally Posted by aidandj View Post

So without any fuel management you are about 49cc's short...

These are pretty common on the islands right?



Yeah, you're one of those short.
Very common haha





Its my 49cc Yamaha Razz

Attached Thumbnails
Picking up HKS top mount w/t25 and lines for 0!-img_0938.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_0788.jpg   Picking up HKS top mount w/t25 and lines for 0!-img_0794.jpg
Hinano is offline   Reply With Quote
Old 03-16-2015, 11:51 AM   #120
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

Quote:
Originally Posted by Hinano View Post
Not sure what to say because I don't fully understand all those numbers yet but the mazdaspeed Miata has the same injectors as the nb2's and correct me if I'm wrong but they run like 7psi stock no?
If you don't "fully understand all those numbers", you don't need to be physically boosting anything at the moment. Its the fundamental equation needed for proper injector sizes based on a HP goal.

Be patient and read/learn more, first. Rather than blow stuff up, first.
