Default PO had no clue what mods have been done to this car.. Please help

Ok.. I picked up this 97 STO (1.8L) with a homebrew kit for $2600. It's not terrible, but not great either. PO did not know any of the modifications or specifications. All he knows is that it was "turbo" and "fast". The car is currently shuttling at 3,500-4,000 rpms under load. Not sure if this is fuel or boost related. Had it checked out at a dyno shop and the car is running extemely lean (16/1 in full boost ~7 psi). Was rightfully instructed avoid boosting until I can get the car tuned. It has a megasquirt PNP, and I just got the cable in today. I am hoping that a base map will help even things out and get a proper fuel mixture. I do not know injector size, PO claimed they were 'oversized'. I have never tried to tune a car and I am a big ol' noob, could really use some help!

Ideally I would like to get the car running well enough to not do any damage and still be able to have fun. I also want to cut down on my dyno time as much as possible so I would like to have most of the mapping done before I get there.

My questions:
How do I find out what size my injectors are?
Will I blow up my car using a base map?
Any tips for a tuning noob?

Thanks in advance!

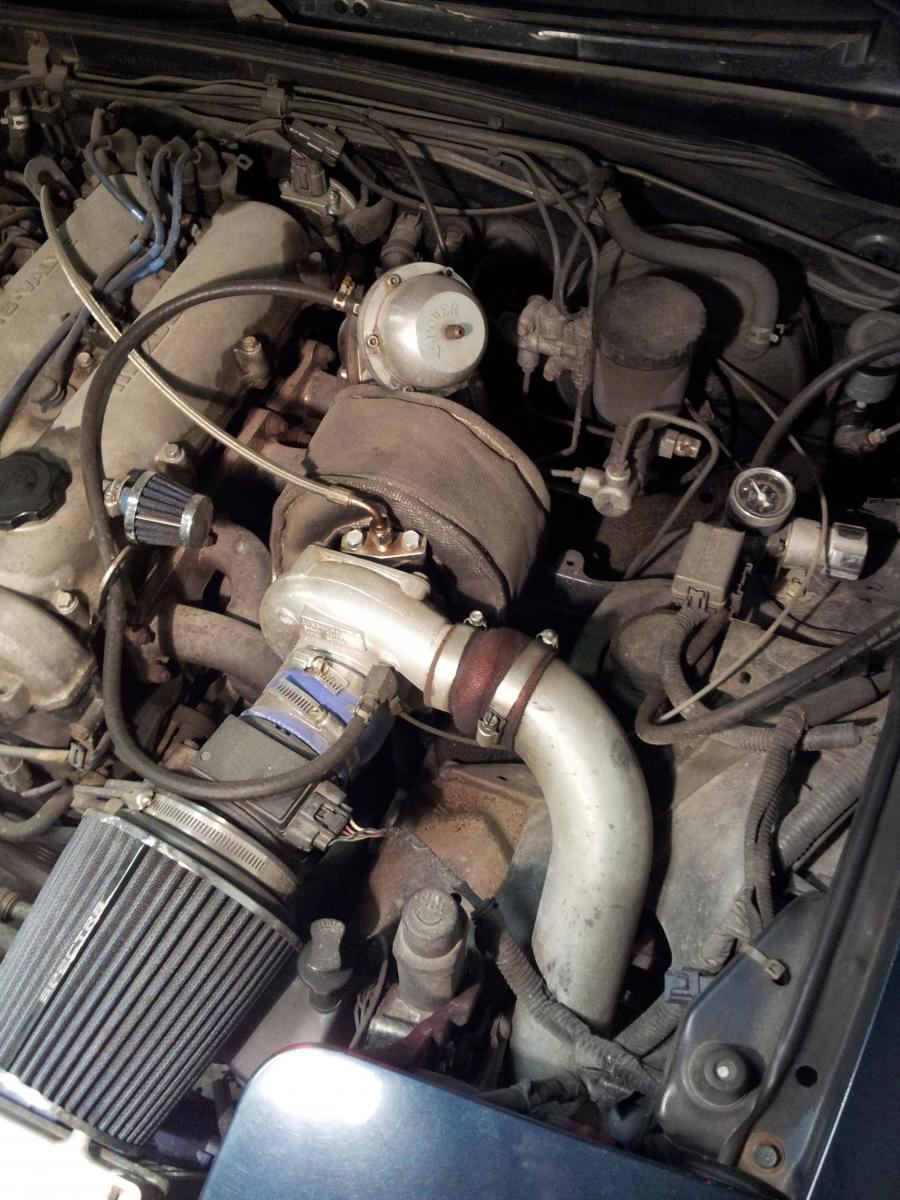

Attached Thumbnails
PO had no clue what mods have been done to this car.. Please help-bqmzgfm.jpg

Last edited by CantSleep_BuildinStuff; 02-22-2014 at 06:02 PM.
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-22-2014, 04:27 PM   #2
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Post some detailed pictures, and when you can post the tune file.
dieselmiata is offline   Reply With Quote
Old 02-22-2014, 04:42 PM   #3
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by dieselmiata View Post
Post some detailed pictures, and when you can post the tune file.
I don't know how to post a tune file. I will figure it out though. o_o
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-22-2014, 04:47 PM   #4
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

I also strongly encourage you to either not drive the car, or tie the wastegate open until you have the tune sorted out.
dieselmiata is offline   Reply With Quote
Old 02-22-2014, 04:55 PM   #5
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Does it have a wideband?

Yeah.
I also suggest that you just park the car until you know what you're doing.
Erat is offline   Reply With Quote
Old 02-22-2014, 05:18 PM   #6
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by Erat View Post
Does it have a wideband?

Yeah.
I also suggest that you just park the car until you know what you're doing.
No wideband yet. It's the only car I have other than my motorcycle at the moment. Parking it is unfortunately not an option as I have work and class. I am trying to get everything sorted so I can get it tuned at a shop. I just want to get it safe to drive for now
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-22-2014, 05:24 PM   #7
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Easy enough, tie the wastegate open. Do not go into boost. It can be driven, but gingerly. You need to get a wideband before anything else.

I can't believe it's lived this long if those were your actual AFRs.
dieselmiata is offline   Reply With Quote
Old 02-22-2014, 05:28 PM   #8
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by dieselmiata View Post
Easy enough, tie the wastegate open. Do not go into boost. It can be driven, but gingerly. You need to get a wideband before anything else.

I can't believe it's lived this long if those were your actual AFRs.
The PO said he turned down the spring inside the wastegate because it was at 16 psi, and he wanted better gas mileage. Then he had trouble with it idling, so he 'turned up' the idle. : \

edit: Also, any tips for tying the wastegate open?
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-22-2014, 05:36 PM   #9
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

Internal or external? This is why we need pics. We can't really help if we don't know what you have.
dieselmiata is offline   Reply With Quote
Old 02-22-2014, 05:39 PM   #10
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Erat is offline   Reply With Quote
Old 02-22-2014, 06:01 PM   #11
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by Erat View Post
You found it!
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-22-2014, 09:29 PM   #12
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

For your injectors, you will have to pull them and look at the numbers.
Tekel is offline   Reply With Quote
Old 02-22-2014, 10:41 PM   #13
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Host the pictures on here please. Take pictures of the downpipe (the exhaust pipe that comes out of the back of the turbo).

Try and get under the car and check for things that plug into the downpipe that have wires.

Though it is not impossible, IF it truly has a megasquirt I have a hard time believing there isn't an oxygen sensor. You also need to get a laptop hooked up to that megasquirt and post up the tune. And disconnect the wastegate actuator arm from the flapper and wire it wide open until you get it it sorted out.

Check if the vacuum line is connected to the megasquirt and also check where it connected to in the engine bay.

Additional pictures that would be helpful:
- Pictures of the megasquirt itself
- pictures of where the vacuum line is plugged into on your manifold
- pictures of where your wastegate is getting it's vacuum signal (nevermind... i see)
- take off the turbo blanket if you can without destroying it. Take a bunch of pictures from various angles so we can see the exhaust manifold. This isn't important for tuning but it will give us an idea of what kind of parts were installed.

What cable were you waiting for? Have you downloaded tunerstudio? Once you have tunerstudio installed on laptop and cable connecting the two (vehicle powered up but not necessarily running), create a new project and when it will ask you for ECU definition. You can have tunerstudio get that from the megasquirt. Then, allow the tune on the car to overwrite the tune on your laptop. Is there anyone in the birmingham area that can walk you through this?

Btw, you don't necessarily need a base map. We need to see what your current tune has in it first though.

Last edited by Chiburbian; 02-22-2014 at 10:52 PM.
Chiburbian is offline   Reply With Quote
Old 02-23-2014, 12:20 AM   #14
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by Tekel View Post
For your injectors, you will have to pull them and look at the numbers.
Numbers are printed on it? Ok. I'll pull them and have a look.

I will also take some more pictures tomorrow.

Here's what I've done so far:
-Downloaded Tunerstudio
-Uploaded the base map for a 96-97 miata from megasquirt
-Used live tuning and autotune to further dial the car in

The car is running like a scalded dog right now, but still unsure of my AFR in and out of boost. My local shop offers installation of an O2 sensor bung for $75. Still figuring out how to install a standalone wideband display. Car is still idiling really high (approx. 2,000 RPM), oscillating, and is shuttling some at high RPMs. I only ran tunerstudio autotune twice before I had to quit (getting late, neighbors complaining). I will continue to let it map itself. I am having a friend come over tomorrow to help me adjust timing.

I hope I am not being naive in letting Tunerstudio sort the car out, but it seems to be working for now.
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-23-2014, 12:49 AM   #15
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Wait, how are you auto-tuning without an o2 sensor?
Chiburbian is offline   Reply With Quote
Old 02-23-2014, 01:05 AM   #16
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by Chiburbian View Post
Wait, how are you auto-tuning without an o2 sensor?
I have O2 sensors, I just want another bung so I can install a wideband and have my mixture displayed as I boost my face off
CantSleep_BuildinStuff is offline   Reply With Quote
Old 02-23-2014, 01:56 AM   #17
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

Ok, you have an o2 sensor, but only a narrowband? You can't tune anything other than stoich on a narrowband.

This is how it was explained to me...

Say a narrowband is 1-3 volts... (I may be off on the actual volts)

When you AFR is between 14.3 and 15.1 the voltage reads 2 volts. When the voltage is above 2.2 volts you know your AFR is higher than 15.1, when it reads lower than 1.8 volts your narrowband knows it's lower than 14.3. That's all. Period. It is fundimentally unsafe to (auto)tune without a wideband o2 sensor.

IF you have a wideband that doesn't have a display, then you can keep on tuning.

EDIT: You don't need a bung installed for wideband, you can install it in the place of one of your existing o2 sensors. Then you need to run the 5v wire to the megasquirt and setup the MS for use with the wideband including calibration...
Chiburbian is offline   Reply With Quote
Old 02-23-2014, 02:09 AM   #18
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Dude. You're going to blow your car up. You have every reason to believe you're about to blow the motor running super lean. Stop boosting it.
turbofan is offline   Reply With Quote
Old 02-23-2014, 11:11 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

more pics please. (of entire car too)


parts shown look like ebay parts.
Braineack is offline   Reply With Quote
Old 02-23-2014, 11:18 AM   #20
Newb
Thread Starter

Join Date: Feb 2014
Posts: 23
Total Cats: -1
Default

Quote:
Originally Posted by Chiburbian View Post
Ok, you have an o2 sensor, but only a narrowband? You can't tune anything other than stoich on a narrowband.

This is how it was explained to me...

Say a narrowband is 1-3 volts... (I may be off on the actual volts)

When you AFR is between 14.3 and 15.1 the voltage reads 2 volts. When the voltage is above 2.2 volts you know your AFR is higher than 15.1, when it reads lower than 1.8 volts your narrowband knows it's lower than 14.3. That's all. Period. It is fundimentally unsafe to (auto)tune without a wideband o2 sensor.

IF you have a wideband that doesn't have a display, then you can keep on tuning.

EDIT: You don't need a bung installed for wideband, you can install it in the place of one of your existing o2 sensors. Then you need to run the 5v wire to the megasquirt and setup the MS for use with the wideband including calibration...

I will find a wideband and install it ASAP. There are not many performance shops around here, so I will proabably have to wait until tomorrow.
