Old 03-01-2009, 05:57 PM   #81
Junior Member
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Quote:
Originally Posted by Stein View Post

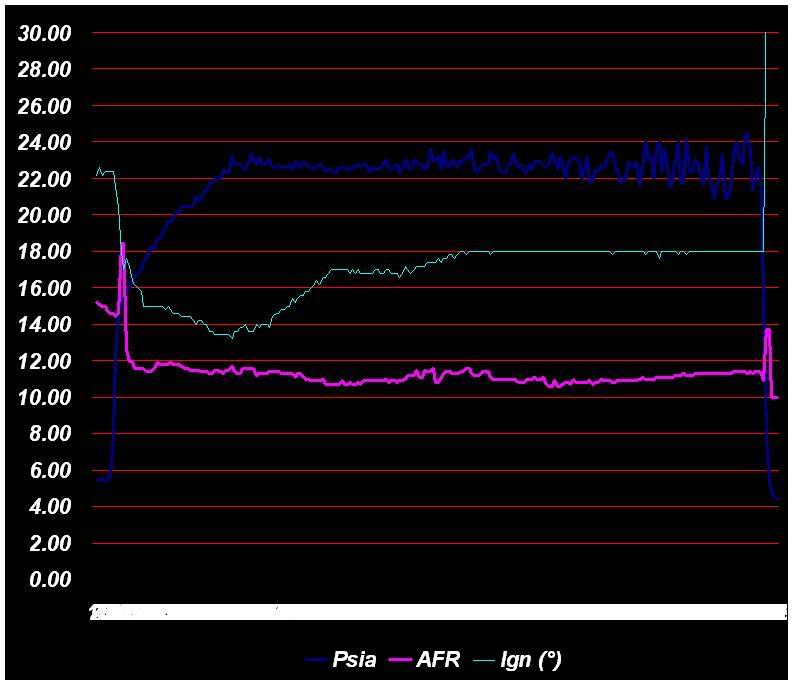

I need to adjust my tip in or accel enrichment. It goes lean for a moment upon touching the throttle.
Wouldn't the rapid learn mode eventually tune out the lean tip in?

Name:  log.jpg
Views: 4
Size:  49.0 KB
sv650_ck is offline   Reply With Quote
Old 03-01-2009, 06:33 PM   #82
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Lean tip in is not part of the fuel map and thats what the rapid learn mode tunes isn't it? Acceleration enrichments usually have to be hand tuned like every other EMS.
cjernigan is offline   Reply With Quote
Old 03-01-2009, 10:07 PM   #83
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

cant wait to have the 2nd adaptronic nb in the states going to start fixing my 2 leaks and figuring out the shitty idle asap
18psi is offline   Reply With Quote
Old 03-01-2009, 10:16 PM   #84
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by cjernigan View Post
What injectors are you running and how lean can you idle them? I'm tired of not being able to idle my 550s that flowed closer to 600cc at 44 psi. Which means they flow even more than that at our static 65 psi of fuel pressure. The MS1 lacks enough resolution to idle them any leaner than 13:1 on a good day with hi-res.
Word. I have messed with this a lot, including timing adjustments. I finally just gave up and I idle them rich, like 12-12.5:1.
ZX-Tex is offline   Reply With Quote
Old 03-01-2009, 10:21 PM   #85
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Hehe, I was idling my 550's at 4 squirts and idling 19:1 missfiring when playing with injector settings. Low ohm FTW. Also four sprays instead of two makes for a snappier and just different idle. It falls to an idle like a diesel does. Hard, fast, and just lands flat fast and hard and sits there rock solid. It's neat.
patsmx5 is offline   Reply With Quote
Old 03-01-2009, 10:44 PM   #86
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Quote:
Originally Posted by patsmx5 View Post
Hehe, I was idling my 550's at 4 squirts and idling 19:1 missfiring when playing with injector settings. Low ohm FTW. Also four sprays instead of two makes for a snappier and just different idle. It falls to an idle like a diesel does. Hard, fast, and just lands flat fast and hard and sits there rock solid. It's neat.
I hate you.
ZX-Tex is offline   Reply With Quote
Old 03-02-2009, 09:23 AM   #87
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I have stock injectors now and 550's at Deatschwerks getting serviced. Supposedly, this ECU will idle large injectors easily. It says how and why in the manual, but I don't recall how it does it. Once I get this map done on stock injectors I will be saving it for future users and then should be able to do a percentage scale to convert to the 550's. I will then autotune and save the map for 8 PSI. After that I plan on getting an EBC, upping to 10 PSI. I will autotune and then dyno tune.

Anyone that is interested should download the installation manual and the software. Both function without the unit. They will answer a lot of your questions.
Stein is offline   Reply With Quote
Old 11-27-2009, 01:35 AM   #88
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

subscribed
Jfornachon is offline   Reply With Quote
Old 11-27-2009, 01:52 AM   #89
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Jfornachon View Post
subscribed
Good to see that you are reading up. There are some things that are different since this thread. It will be pretty self explainatory when you see the new pics that I took before taking it apart.
Stein is offline   Reply With Quote
Old 11-27-2009, 02:18 AM   #90
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Stein just out of curiosity, why didnt you go with a more exotic manifold?
triple88a is offline   Reply With Quote
Old 11-27-2009, 02:30 AM   #91
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by triple88a View Post
Stein just out of curiosity, why didnt you go with a more exotic manifold?
I just wanted to make something that was clean, had good flow, balanced runners and fit the SR20 T25 easily. This was a modification of the simple "log" manifold that drove the gasses smoothly without running into each other. The only other option was a top or bottom mount and I didn't think that I would gain anything significant for a much larger effort to build.
Stein is offline   Reply With Quote
Old 11-27-2009, 03:32 AM   #92
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

thanks for the explanation sir have a nice night
triple88a is offline   Reply With Quote
Old 11-27-2009, 03:53 AM   #93
Senior Member
iTrader: (23)

Join Date: Oct 2009
Location: Chatsworth, SoCal
Posts: 948
Total Cats: 1
Default

Thank you. I am able to handle this mod, but it will be nice to have additional help.

Have a great day,
Jared
Jfornachon is offline   Reply With Quote
