Old 10-29-2007, 10:15 AM   #21
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by rappadan View Post
hey Mia,
did you buy the greddy down pipe from me?
yep, that was me.
MiaTurbo is offline   Reply With Quote
Old 10-29-2007, 10:17 AM   #22
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Pretty awesome man. Hope that beast flows awesome. Do you have anything to bolt it to when you weld the runners to the flange?
I have an extra head I'm going to bolt it to to do the final welding.
MiaTurbo is offline   Reply With Quote
Old 10-29-2007, 11:41 AM   #23
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

very nice work, i like
welds are not bad at all, good work
Zabac is offline   Reply With Quote
Old 10-29-2007, 01:39 PM   #24
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

Purty sweet man.
SloS13 is offline   Reply With Quote
Old 11-12-2007, 01:20 PM   #25
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Bump for updated pics!
neogenesis2004 is offline   Reply With Quote
Old 11-15-2007, 07:13 AM   #26
col
Newb

Join Date: Oct 2007
Posts: 24
Total Cats: 0
Default

Hi looks like it will flow well , the runners look quite big.
What inside diameter are they?
Do the runners end up bigger than your ports?
Thanks
col is offline   Reply With Quote
Old 11-15-2007, 10:44 AM   #27
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Woah this manifold looks familiar! hehe



Hey man, this build looks good. I give it to ya for doing it yourself, its tough but you'll feel great when it's done.
TurboTim is offline   Reply With Quote
Old 11-16-2007, 09:11 PM   #28
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

sorry guys. last couple of weekends have been full of family stuff. Hopefully will get it finished welding this weekend.

TurboTim, where did you get that from?
MiaTurbo is offline   Reply With Quote
Old 11-16-2007, 09:51 PM   #29
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

I made it earlier this week as an alternate/rotated design of another manifold I'm making for Paul. Total concident it looks like yours I'd say you are on the right track, hehe. If it is very close to this model, it will place the turbo in a great position for a very straight downpipe. (No A/C or P/S). If you do finish it this weekend and mount your turbo, let me know how far away it is from the steering shaft boot. Oh, mine's for a 1.8, T2 flange. Original nonrotated manifold pic here so not to hijack the thread anymore

Last edited by TurboTim; 11-16-2007 at 10:02 PM.
TurboTim is offline   Reply With Quote
Old 11-16-2007, 09:54 PM   #30
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

his points up though, not down. otherwise, thats pretty crazy coincidence.
neogenesis2004 is offline   Reply With Quote
Old 11-16-2007, 09:59 PM   #31
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by neogenesis2004 View Post
his points up though, not down. otherwise, thats pretty crazy coincidence.
Ahh I didn't realize that...still nice position.
TurboTim is offline   Reply With Quote
Old 11-18-2007, 08:35 PM   #32
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

cool, great minds think alike.

I was on a roll today. But alas, I ran out of wire, and the hardware store didn't have flux-core :/ Otherwise it would have been done today... And now that I got use to my welder more, the welds look a lot better
MiaTurbo is offline   Reply With Quote
Old 12-02-2007, 06:48 PM   #33
Junior Member
Thread Starter

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

I'm pretty happy with my first manifold



Close up of weld:
MiaTurbo is offline   Reply With Quote
Old 12-03-2007, 12:07 AM   #34
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Flux Core on a Turbo Manifold :( Probably going to keep cracking... Good luck with it!
M-Tuned is offline   Reply With Quote
Old 12-03-2007, 12:29 AM   #35
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Congratulations on being a total buzzkill, you win the award for being the biggest ***.
neogenesis2004 is offline   Reply With Quote
Old 12-03-2007, 12:46 AM   #36
Senior Member
iTrader: (1)

Join Date: Oct 2006
Location: Burbank, CA
Posts: 536
Total Cats: 0
Default

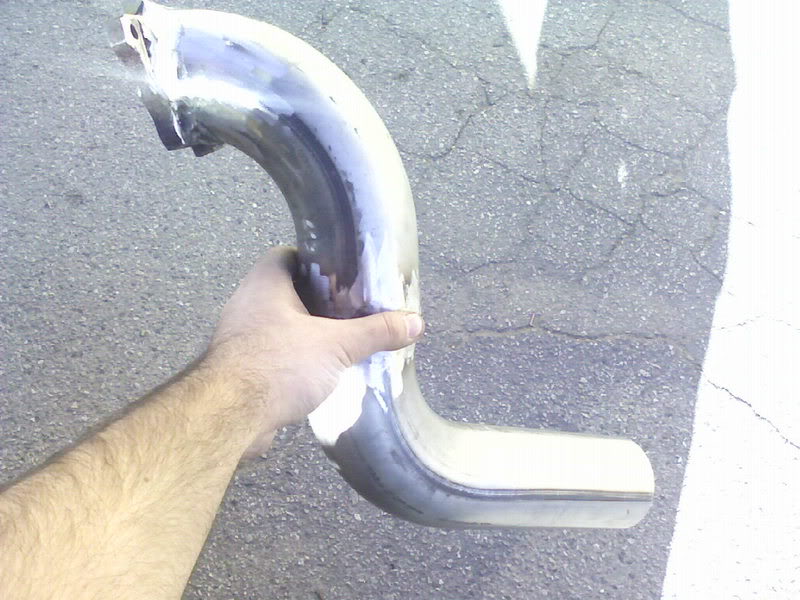

Can't wait till I start attempting a tubular mani


here's a pic of my 3" dp I made today.

Name:  noname-4.jpg
Views: 3
Size:  88.0 KB



back to you...


wirebrush that thing.. what type of rod are you using? It appears you are using a torch weld with acedylne and oxygen? And keep up the good work it's coming out great
PaKMaN is offline   Reply With Quote
Old 12-03-2007, 01:05 AM   #37
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Congrats man. Awesome that you had the courage and determination to tackle making your own manifold. I've been playing with the welder, and can't imagine stitching up an entire manifold.
Ben is offline   Reply With Quote
Old 12-03-2007, 12:15 PM   #38
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by neogenesis2004 View Post
Congratulations on being a total buzzkill, you win the award for being the biggest ***.
Advice is FREE, Experience is EXPENSIVE. I know from experience! I was making 500hp with my Miata 5 Years ago.

I know from experience. I built a manifold with Flux and a Gas Mix MIG and they loved to crack. Turbo manifolds need to be TIG'g with proper penetration if they have any hope of surviving the insane heat they endure.

Sorry for been an ***!
M-Tuned is offline   Reply With Quote
Old 12-03-2007, 12:24 PM   #39
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

A mig welded manifold can be just as good as any tig welded manifold. Maybe it won't look as pretty, but most of us aren't going for show car status. Just because you have had experience with manifolds cracking that you've made doesn't mean that it will happen all the time for everyone. There is a little thing I like to call "user error", look into it.

While his was flux welded, maybe it will crack maybe it won't, the fact is that it was his first time making anything like that. Let him enjoy it!
neogenesis2004 is offline   Reply With Quote
Old 12-03-2007, 12:41 PM   #40
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

My Mig, Tig, and Nickel welded manifold cracked..... stress can kill anything. HP means nothing.
Braineack is offline   Reply With Quote
