Default TD04 vs GT2554 vs GT2560

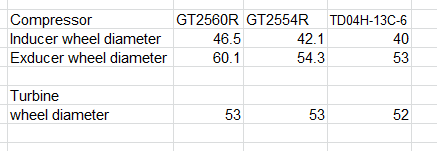

As I understand it, the TD04 is smaller then the 2554, so less power can be made with it.

200wbhp is about the max the TD04 can make (?)

Higher octane and 2.5" pipe can take me how far ? - I'm @ 192wbhp now

Thanks !
Attached Thumbnails
TD04 vs GT2554 vs GT2560-sg1.png
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:12 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

put car on dyno.
increase boost.
make pull.
repeat until no more power is made.
Braineack is offline   Reply With Quote
Old 07-02-2013, 08:15 AM   #3
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

did that, 192 knock free and 197 with knocks, the tuner said "get higher octane fuel and 2.5" pipe and come again"

I think the turbo can not do more...
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:17 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

wait, if a 2.5" is an upgrade what do you have now?
Braineack is offline   Reply With Quote
Old 07-02-2013, 08:17 AM   #5
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

stock pipe... with 2.75DP
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:26 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

that's ton of timing with a small turbo and stock exhaust.

you will see a bunch of power if you go to a 3" exhaust (3" or bust).

you will blow your motor soon.


confirm: 98 octane or 98 ron?
Braineack is offline   Reply With Quote
Old 07-02-2013, 08:34 AM   #7
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

RON is an octane rating

You guys use MON, right?
timk is offline   Reply With Quote
Old 07-02-2013, 08:37 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

well octane is (R+M)/2
Braineack is offline   Reply With Quote
Old 07-02-2013, 08:42 AM   #9
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

I use 95 RON and would try 98 RON.

Should I go to 3" pipe ? 2.5" is not enough ?
elior77 is offline   Reply With Quote
Old 07-02-2013, 08:47 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Yeah our 93 octane is pretty much 97-98 RON; I cant believe your motor hasn't popped yet.

and yes, this site's motto is: 3" or bust.
Braineack is offline   Reply With Quote
Old 07-02-2013, 12:03 PM   #11
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Is there a question in the OP that I'm missing?

There are a ton of td04 turbos. Not familiar with the 13c so can't comment on that.

Since you have a 2554 you should be able to hit 200-220 if you make the rest of your setup efficient. Stock exhaust is choking you down in a major way, among other things. You should post what you're trying to accomplish with this thread so we can try to help you.
18psi is offline   Reply With Quote
Old 07-02-2013, 12:18 PM   #12
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by 18psi View Post
Since you have a 2554 you should be able to hit 200-220 if you make the rest of your setup efficient.
Did I miss something? I thought he had a TD04.
FRT_Fun is offline   Reply With Quote
Old 07-02-2013, 12:26 PM   #13
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Not sure on the 13c compressor but on the 13t compressor you should be making more than 200 with a good tune. With the td04l-13t in my wrx I have it pushed to 240 on a mustang dyno with more drivetrain loss than you. I'm sure the wrx head flows better but still. On a 1.8 assuming the compressor is close to a 13t you should be able to push it to about 15psi at redline flowing ~400cfm. Of course the best part of that dinky turbo would be hitting 20psi from about 3krpm to 5k and tapering down to 15psi at redline... That would make 5 speed breaking torque though, assuming you have the knock resistance for it in the mid range. Dont even try that on a stock engine or stock 5 speed, you will break everything. I cant find a 13c compressor map though, appears to be volvo.

OT: In boredom and looking at random td04 compressor maps. I actually think the winner on a 1.8 miata would be the 19t. Could hold any amount of boost you want all the way to redline, looks like it would enjoy running at 20psi, but you could push it to 25 with a good intercooler and good knock resistance. You can buy mutant ones in multiple fitments, you would want the TD04HL-19t, to get the better flowing hot side. I would think you could be pushing 260whp on 93 maybe get close to 290 on e85. In a zippy little $600 "new" rebuilt brand name turbo.
Leafy is offline   Reply With Quote
Old 07-02-2013, 12:50 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

tl;dr. get a 3" exhaust.
Braineack is offline   Reply With Quote
Old 07-02-2013, 02:56 PM   #15
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Stock engine/5 speed checking in. Running a 13T for 20k miles now boosting 17psi. Includes multiple track days. I show much mechanical empathy though.
karter74 is offline   Reply With Quote
Old 07-03-2013, 04:26 AM   #16
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

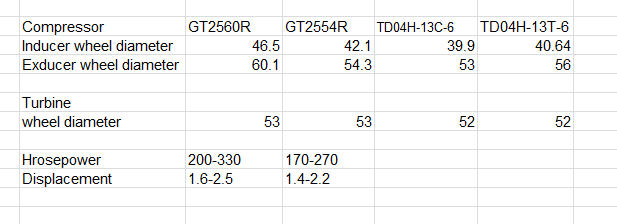

I use TD04H-13C, I'm trying to find out if I can get to 250wbp with it or I need a bigger turbo for that.

The 13T is a little bigger then 13C (53 vs 56 Exducer wheel diameter),
13T is just between 2554 and 2560


Attached Thumbnails
TD04 vs GT2554 vs GT2560-6fd.png

Last edited by elior77; 07-03-2013 at 05:15 AM.
elior77 is offline   Reply With Quote
Old 07-03-2013, 08:22 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you need a 3" exhaust and more boost.
Braineack is offline   Reply With Quote
Old 07-03-2013, 08:24 AM   #18
Senior Member
Thread Starter

Join Date: Nov 2012
Location: Israel
Posts: 543
Total Cats: -298
Default

thanks
elior77 is offline   Reply With Quote
Old 07-04-2013, 05:13 PM   #19
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

And E85.
triple88a is offline   Reply With Quote
Old 07-05-2013, 12:48 AM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I don't think you'll hit 250whp to be honest. But about 220 with a good hump of torque with an optimized setup
18psi is offline   Reply With Quote
