Old 12-03-2006, 02:00 AM   #21
mxv
Senior Member
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

is it good having all these hard mounts? i would think it would eventually break somthing down the road? if not i am about to go buy 24 ft of 1 inch tubing haha
mxv is offline   Reply With Quote
Old 12-03-2006, 10:01 AM   #22
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Since the engine and transmission are as one unit and the twisting of the ppf should have nothing to do with the meshing of gears, is the problem strictly the changing position of the shift **** in relation to the driver's hand?
olderguy is offline   Reply With Quote
Old 12-03-2006, 12:16 PM   #23
mxv
Senior Member
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

^ thats what i was thinking
mxv is offline   Reply With Quote
Old 12-03-2006, 12:26 PM   #24
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

ingalls is allegedly working on a "stiffy" for the miata
http://www.ingallseng.com/parts/ETD/ETD-Specs.htm
y8s is offline   Reply With Quote
Old 12-03-2006, 12:48 PM   #25
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

Quote:
Originally Posted by olderguy View Post
Since the engine and transmission are as one unit and the twisting of the ppf should have nothing to do with the meshing of gears, is the problem strictly the changing position of the shift **** in relation to the driver's hand?
wow, that's about the most diplomatic way of saying "driver error" I've ever heard.
m2cupcar is offline   Reply With Quote
Old 12-03-2006, 12:51 PM   #26
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

The 2/3 problem i have is when i try to quickly shift from 2 to 3 while under heavy acceleration, it grinds. Is this what you guys are talkin about? If so, i was not aware there was a solution! I guess i need to read up. I have this problem almost every time i try to shift under heavy acceleration, and i hate it, sounds like im gonna rip out the tranny.
adbradley is offline   Reply With Quote
Old 12-03-2006, 03:49 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

My 2-3 used to grind actually. But after some new turrent oil and redline fluid, no more.
Braineack is offline   Reply With Quote
Old 12-03-2006, 04:13 PM   #28
Senior Member
iTrader: (2)

Join Date: Feb 2006
Location: Mesa, AZ
Posts: 999
Total Cats: 0
Default

really?

whats turrent oil?
adbradley is offline   Reply With Quote
Old 12-03-2006, 04:53 PM   #29
Junior Member

Join Date: Apr 2006
Posts: 457
Total Cats: 0
Default

2-3 grind from a quick shift wouldnt that be worn snynchro and your shifting faster than it can snych? So more or less your forcing over the dog teeth and thats the grindin sound ya hear?
LunaticDriver is offline   Reply With Quote
Old 12-03-2006, 05:33 PM   #30
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

If things work out there will be a solution for this problem in the "near" future
Arkmage is offline   Reply With Quote
Old 12-04-2006, 04:42 PM   #31
Junior Member
Thread Starter

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Ok, got a 60 dollar ebay brace on the way, I'll see if that holds the engine in place. It looks like the 160 dollar weapon-R brace, only it costs 100 dollars less. If it falls short, I can always modify it with hammers.
beerslurpy is offline   Reply With Quote
Old 12-08-2006, 05:31 PM   #32
Junior Member
Thread Starter

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Hmm, I had to drill on it a little to get it to work, but it does appear to work. It comes very close to hitting the brake lines but just barely clears it. 2/3 shifts appear to be a lot smoother. I need to test it more once the weather warms up.

Only mods are worn stock motor mounts and the ebay brace.
beerslurpy is offline   Reply With Quote
Old 12-08-2006, 06:36 PM   #33
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

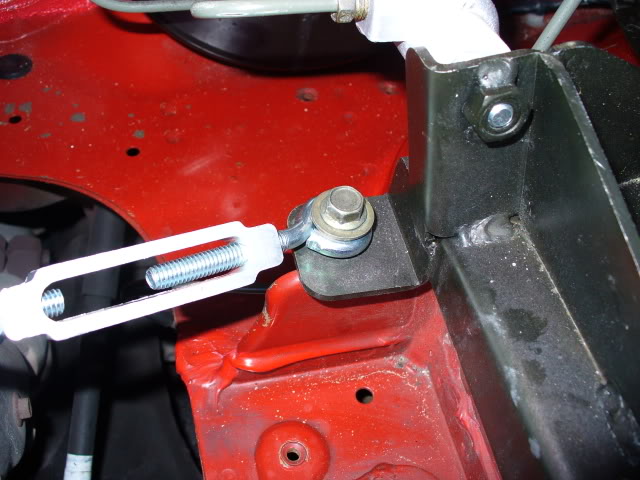

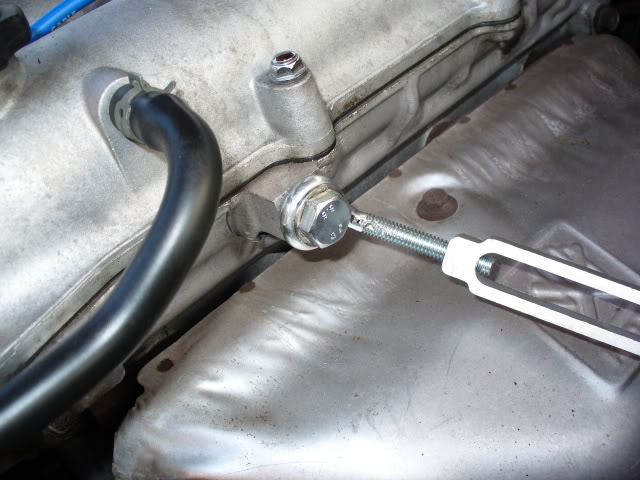

My homedepot solid brace (before turbo, turbo and homedepot brace can't co-exist )

Name:  miataenginebracing008.jpg
Views: 14
Size:  60.1 KB
Name:  miataenginebracing009.jpg
Views: 13
Size:  62.7 KB
kotomile is offline   Reply With Quote
Old 12-08-2006, 07:37 PM   #34
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Kotomile: I like how that integrates into your MC brace. Good looking piece. The only downer is that bolts being single shear. single shear = bad. Still more than adequate for the application though.
Arkmage is offline   Reply With Quote
Old 12-08-2006, 10:36 PM   #35
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

My Miata's become progressively more difficult to make the 2-3 shift as it's gained power. It's not the tranny fluid, as that's changed regularly.

Worn syncros are, however, the cause of the 1-2 shift grind I get when really huffing it.
bripab007 is offline   Reply With Quote
Old 12-09-2006, 01:21 AM   #36
Junior Member
Thread Starter

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Uh, this is a fresh tranny with fresh synthetic fluid. I'm telling you it is due to the engine flopping around under the hood and causing the transmission to shift around.
beerslurpy is offline   Reply With Quote
