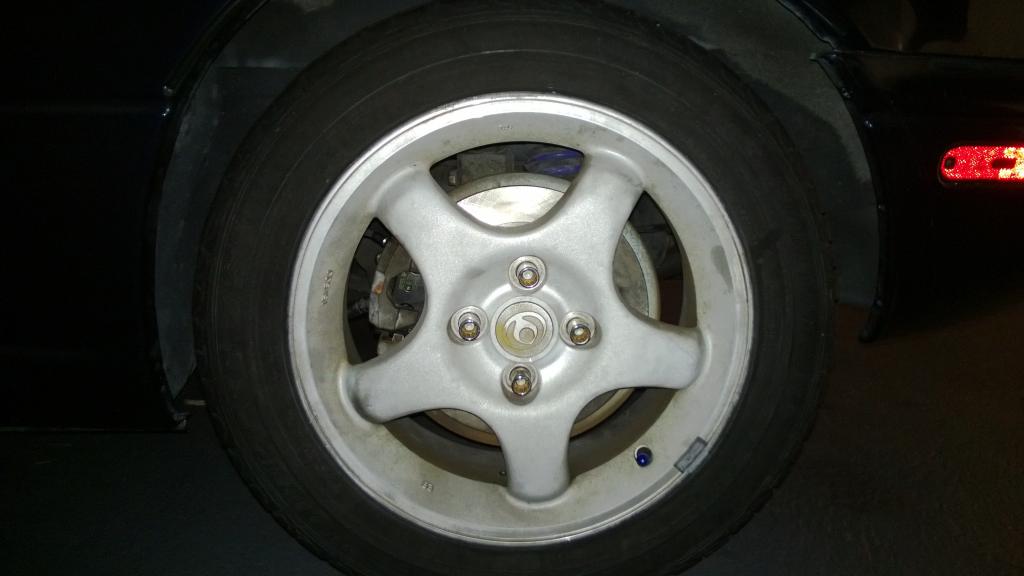

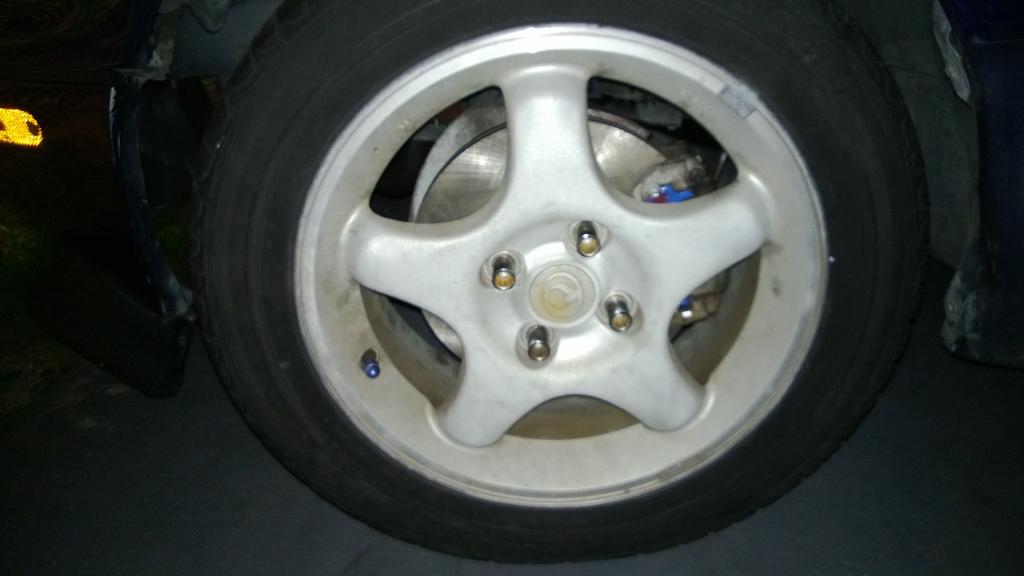

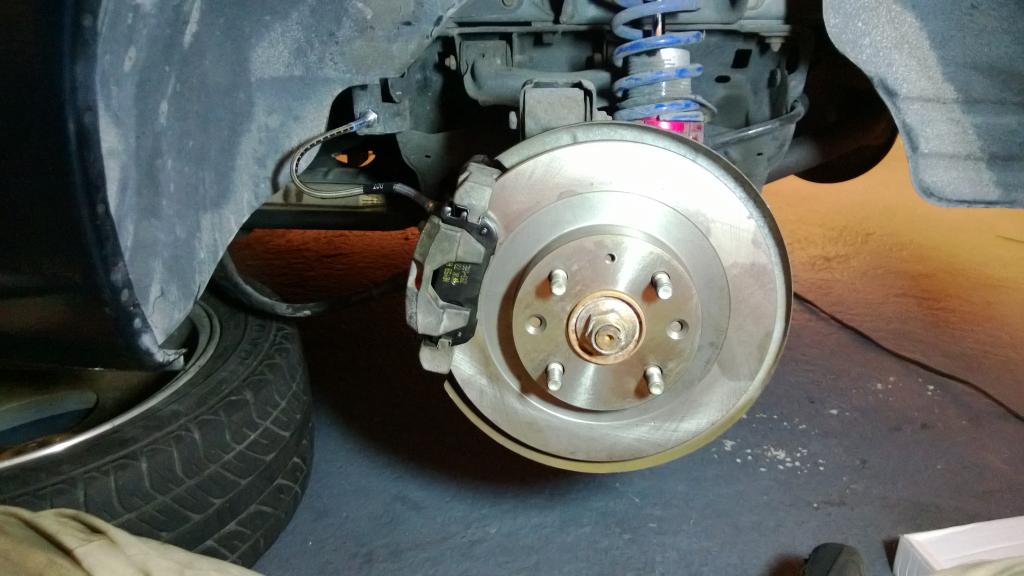

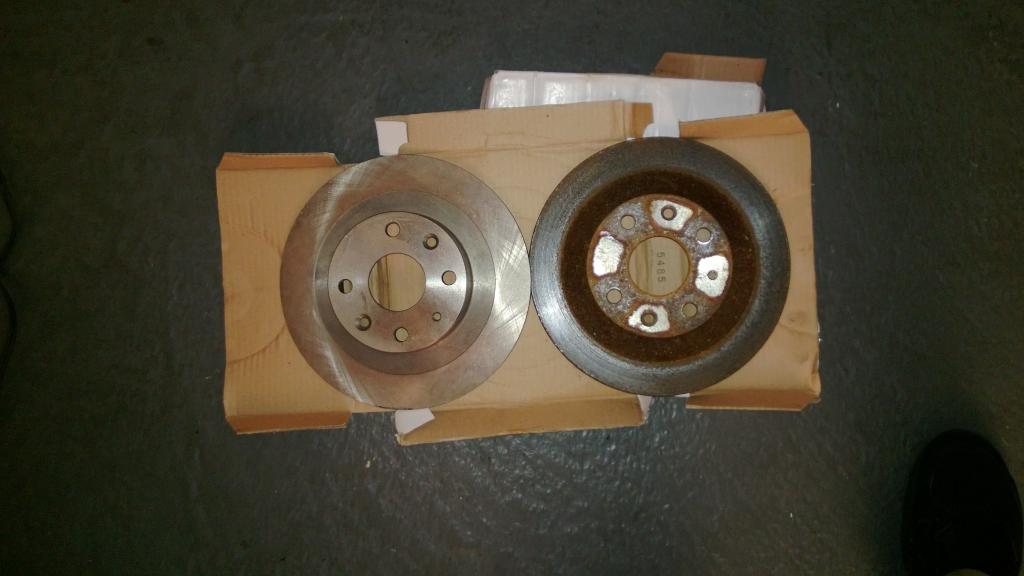

as promised, the old rotors didn't last long...








Attached Thumbnails
In-Too-Depp Turbo Build-wp_20130829_003_zps626eb414.jpg   In-Too-Depp Turbo Build-wp_20130829_004_zps12331695.jpg   In-Too-Depp Turbo Build-wp_20130829_005_zpsdc725d8a.jpg   In-Too-Depp Turbo Build-wp_20130829_006_zpsbf94bf03.jpg
Alejo_NIN is offline   Reply With Quote
Old 08-31-2013, 07:58 PM   #63
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

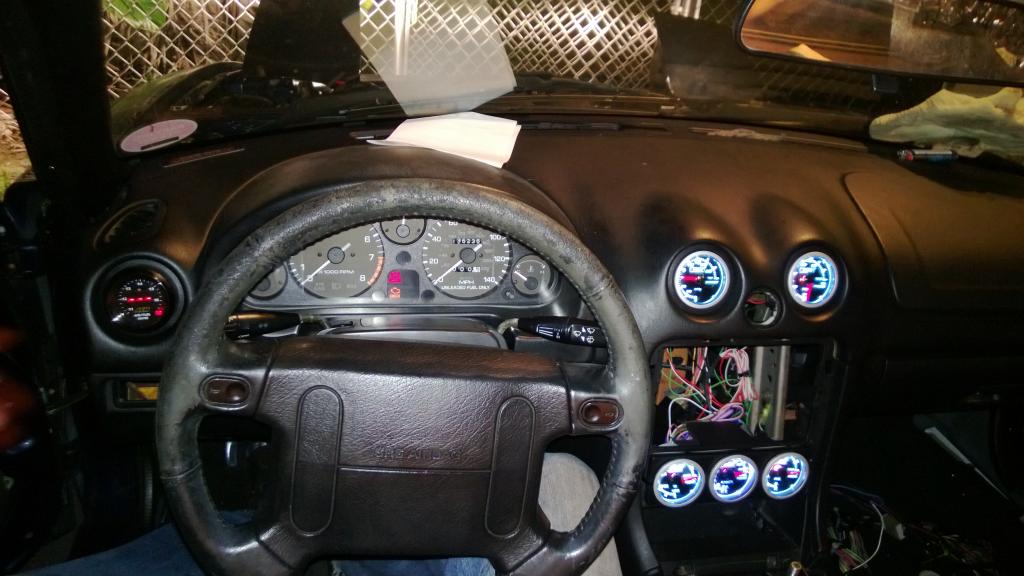

too much?
i think so..but if only gauges werent so awesome.

Attached Thumbnails
In-Too-Depp Turbo Build-wp_20130831_001_zps0ec1f465.jpg
Alejo_NIN is offline   Reply With Quote
Old 09-07-2013, 12:11 PM   #64
Newb

Join Date: Apr 2013
Posts: 7
Total Cats: 0
Default

Great build, any updates?
Dannym550 is offline   Reply With Quote
Old 09-07-2013, 07:40 PM   #65
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

we finally wired up the MSPNP...
started the car and idled weird until the tmep went up..then it was a bitch to start


nothing a temp sensor and a lighter couldn't do....bringing up the tmep on the sensor to 180 degrees allowed for the car to start

it was funky though, but did the trick

we still need to wire some things up, then is good for driving
Alejo_NIN is offline   Reply With Quote
Old 09-25-2013, 01:42 PM   #66
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

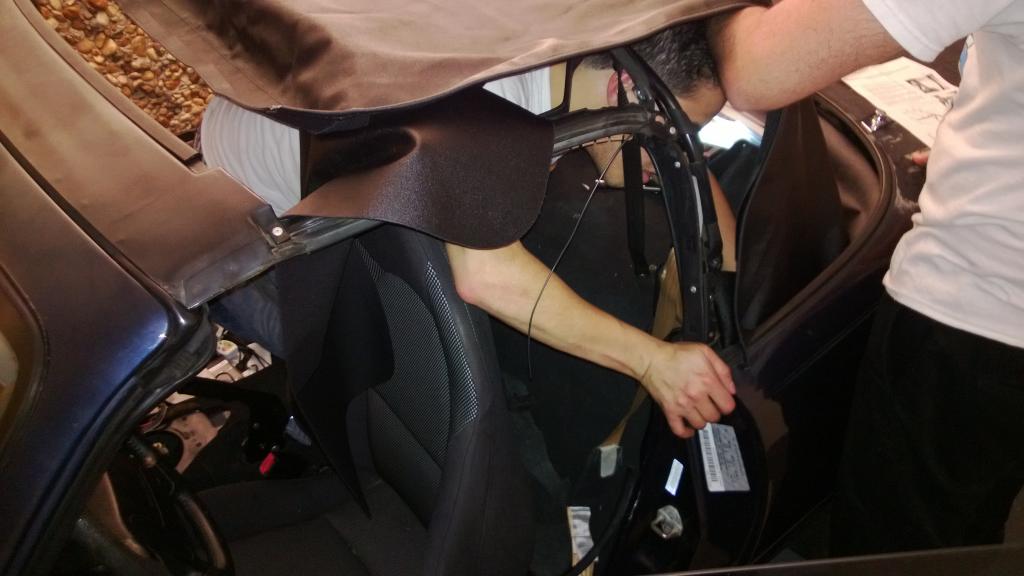

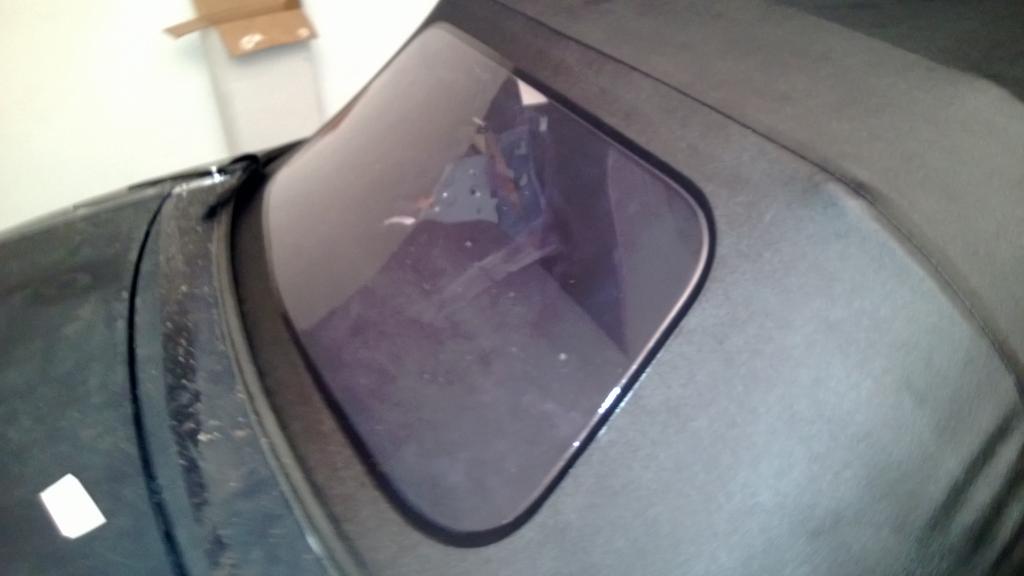

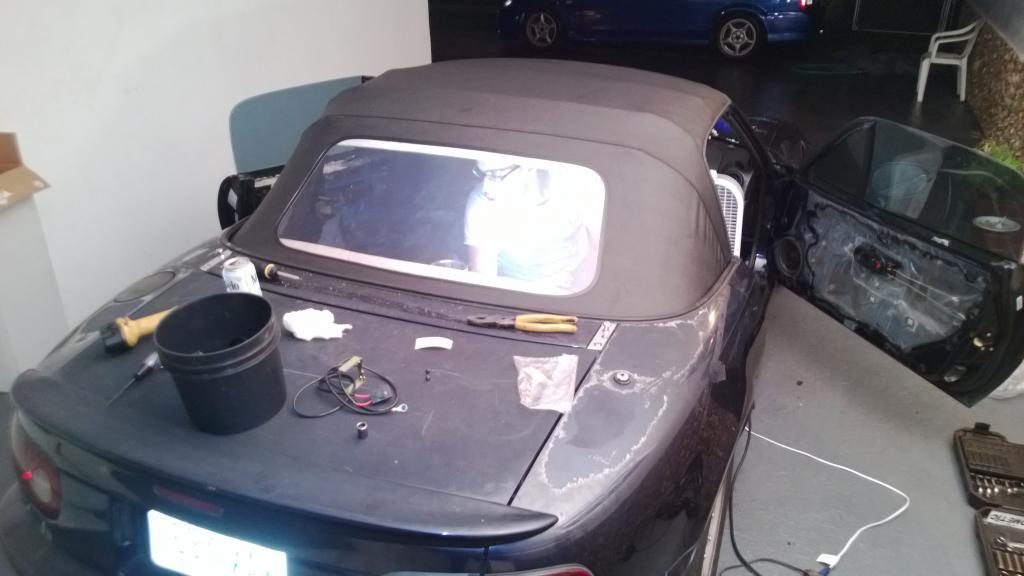

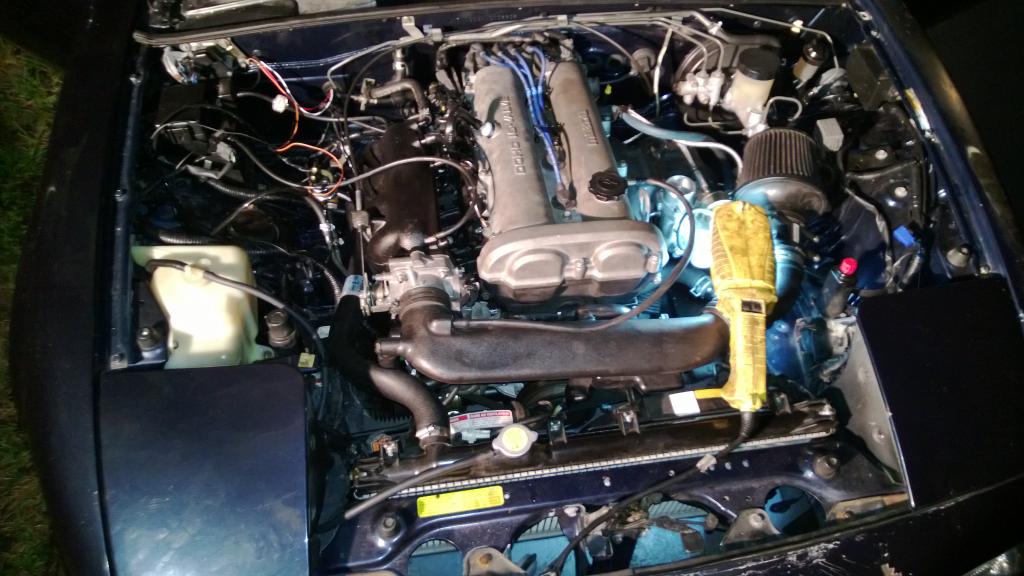

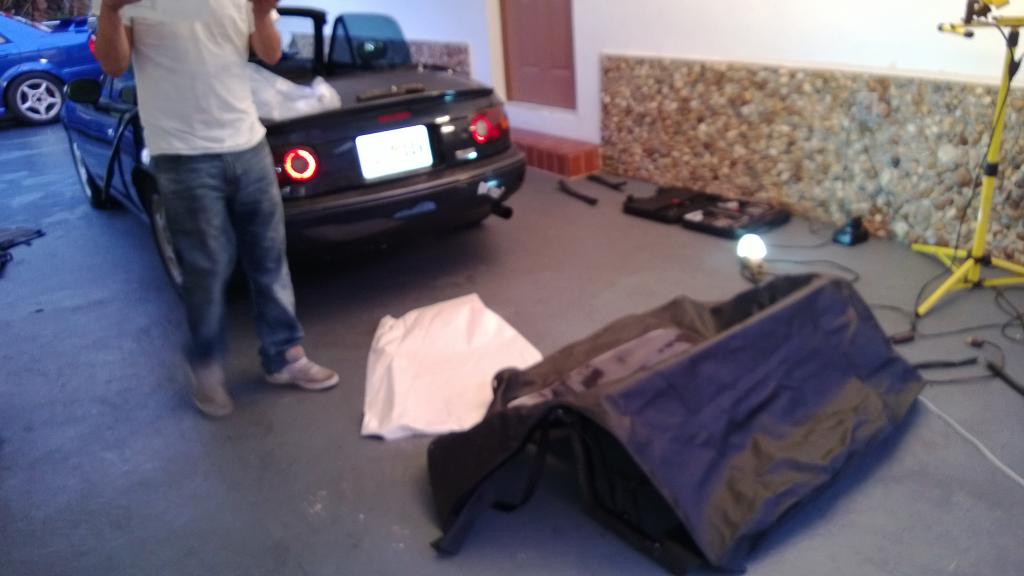

did some more modifications. fixed the convertible top, and installed a break out strip for the gauges..i just wasn't happy with the way the wiring was done.

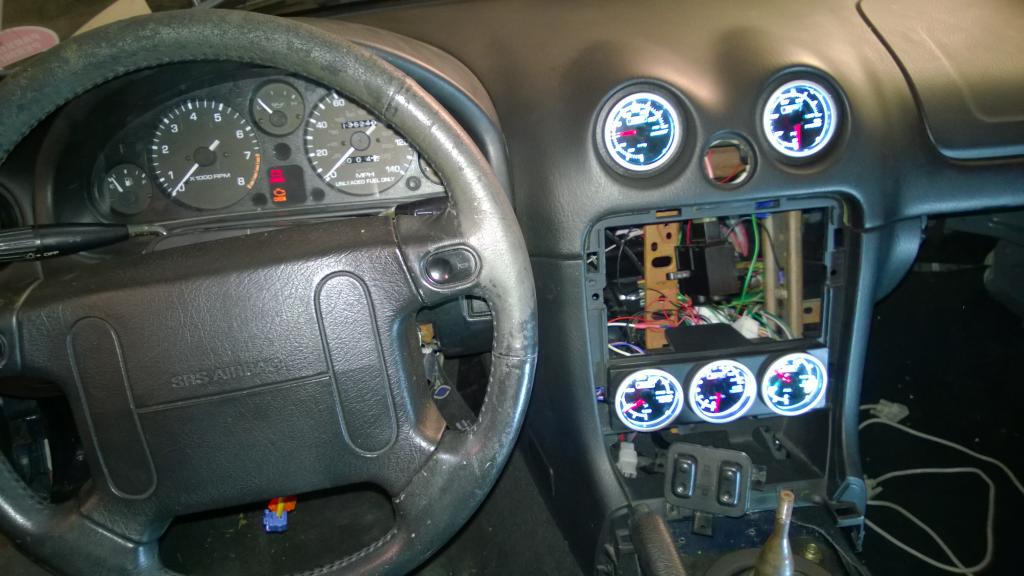

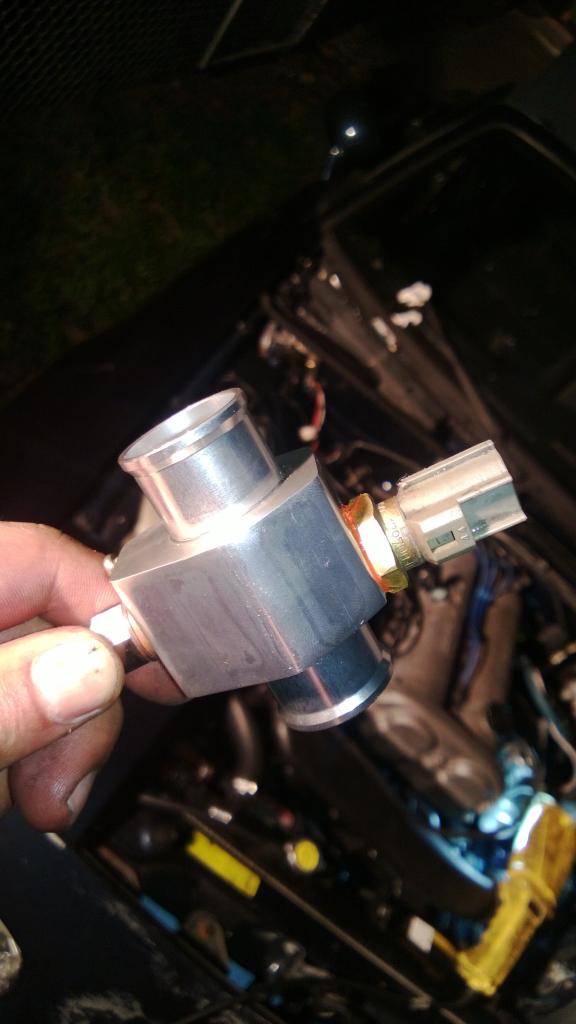

wired up fuel, coolant temp and other gauges.
car idles much better now and it no longer has the issue of not starting when hot.

we found out that the timing was off by like 1 tooth, so rmeoved timing belt and redid timing, set the timing to zero with stock ECU, wired in megasquirt and configured timing..car idles so much better now.

also wil be replacing the MAF with a IAT and installing a boost controller from DIYAutoTune.







more wiring than i'd like to see,,,wire tuck will be done prior to paint.




Attached Thumbnails
In-Too-Depp Turbo Build-wp_20130911_002_zpsdead5684.jpg   In-Too-Depp Turbo Build-wp_20130911_004_zpse21ffcb0.jpg   In-Too-Depp Turbo Build-wp_20130911_006_zps4350564a.jpg   In-Too-Depp Turbo Build-wp_20130911_008_zps3a146585.jpg   In-Too-Depp Turbo Build-wp_20130912_001_zps118f48a0.jpg

In-Too-Depp Turbo Build-wp_20130912_003_zpse2ae9831.jpg   In-Too-Depp Turbo Build-wp_20130914_009_zpsb4cda365.jpg   In-Too-Depp Turbo Build-wp_20130919_003_zpsae8e9880.jpg
Alejo_NIN is offline   Reply With Quote
Old 10-19-2013, 08:36 PM   #67
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16

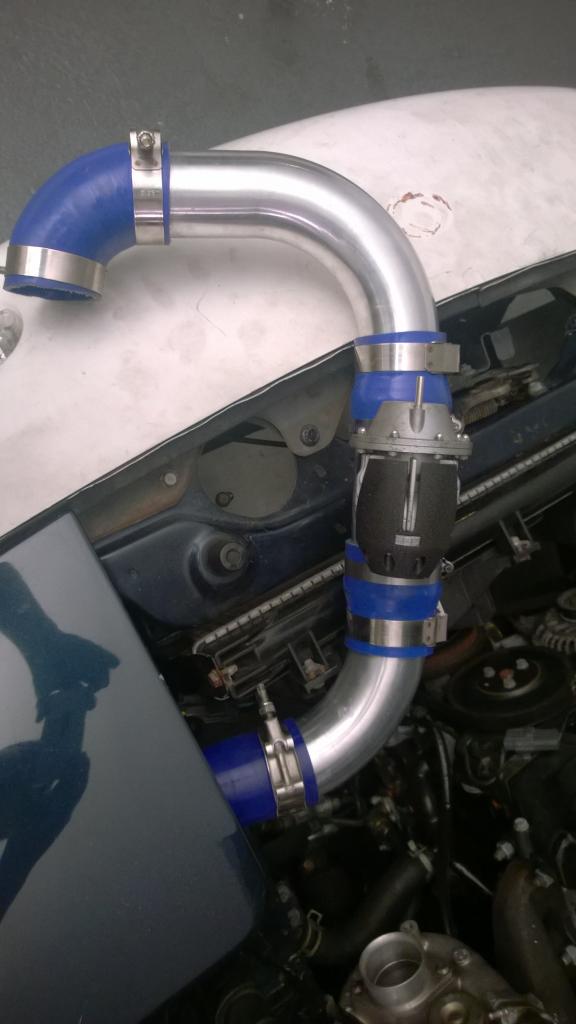

Default

more updates

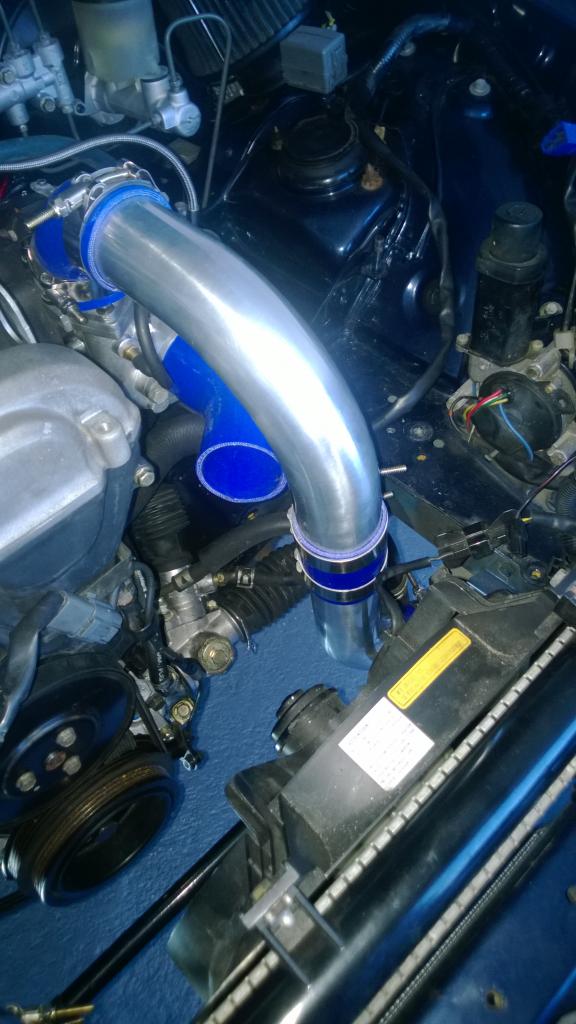

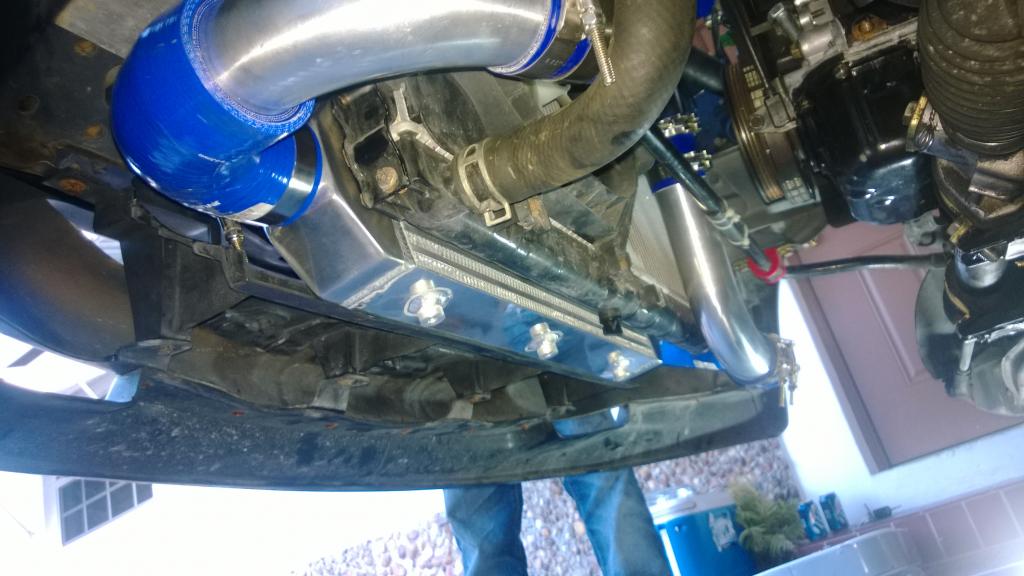

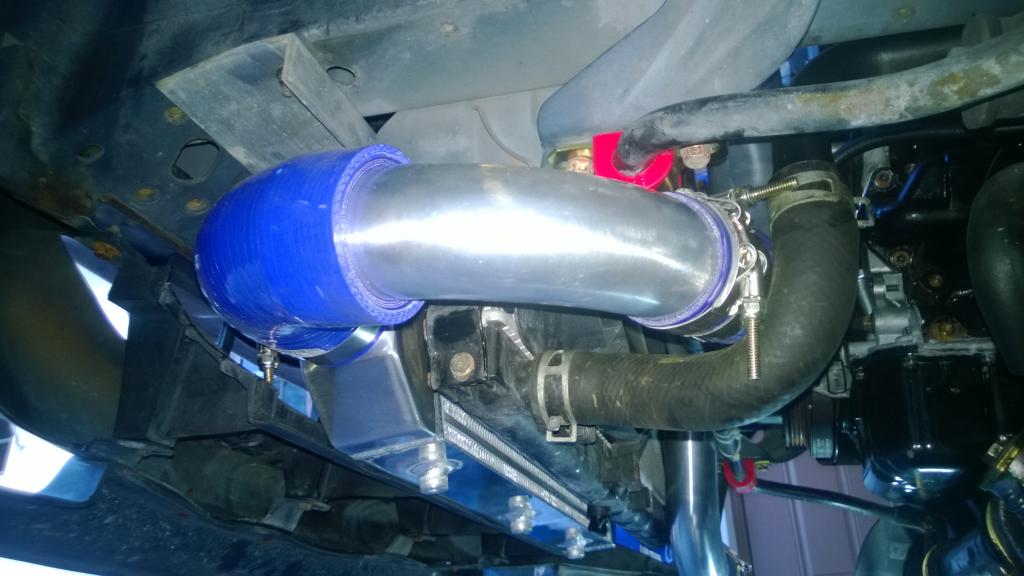

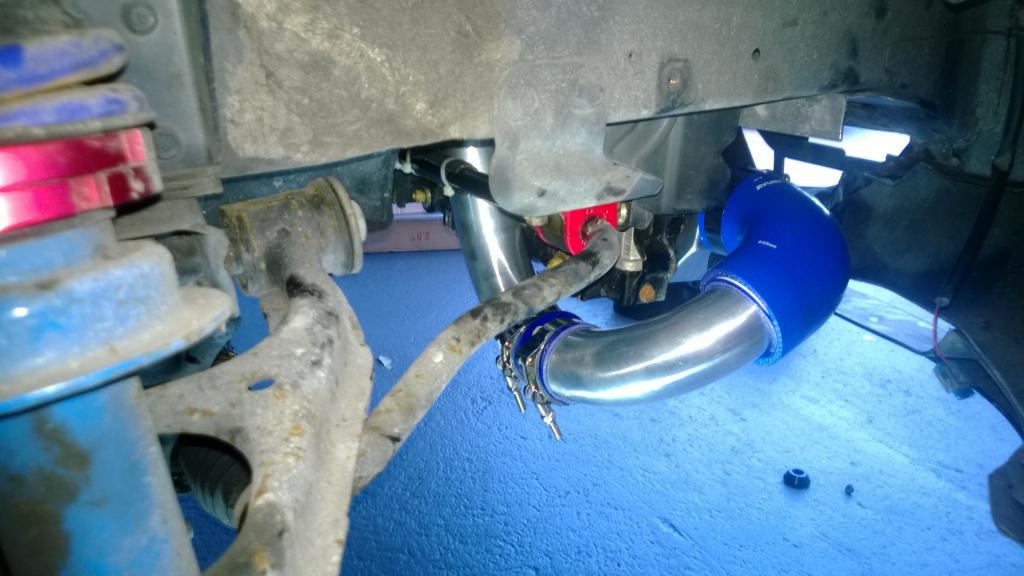

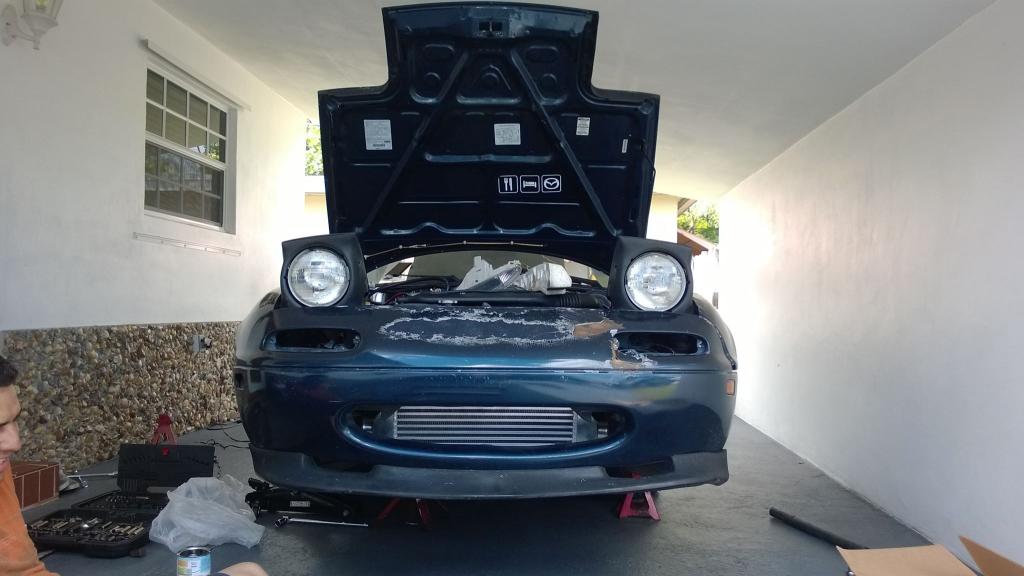

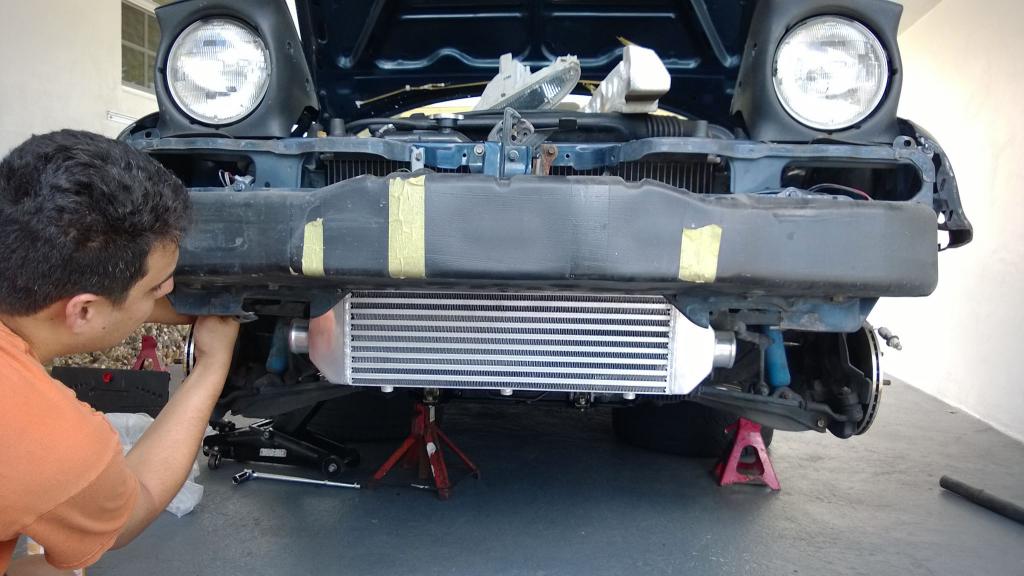

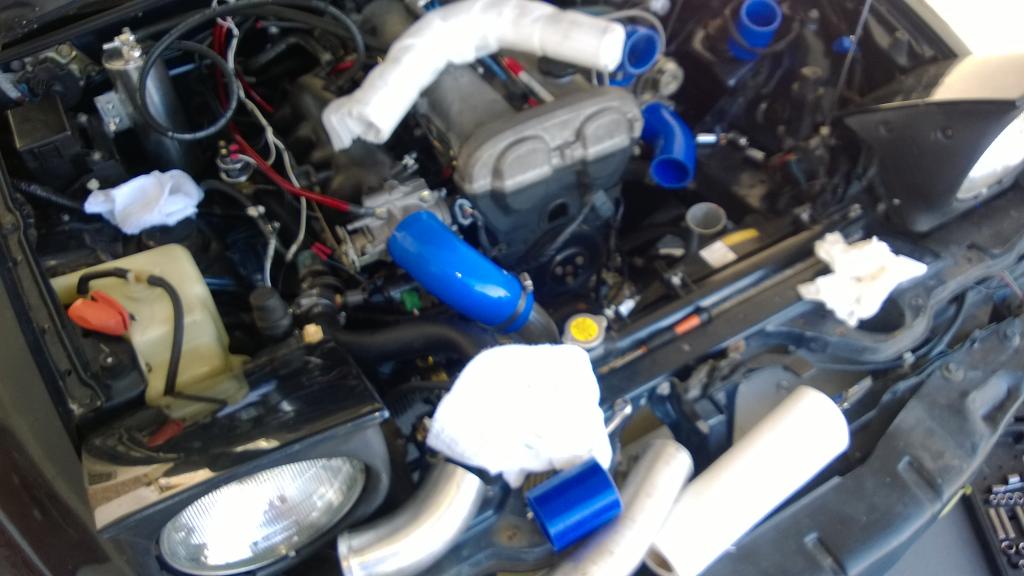

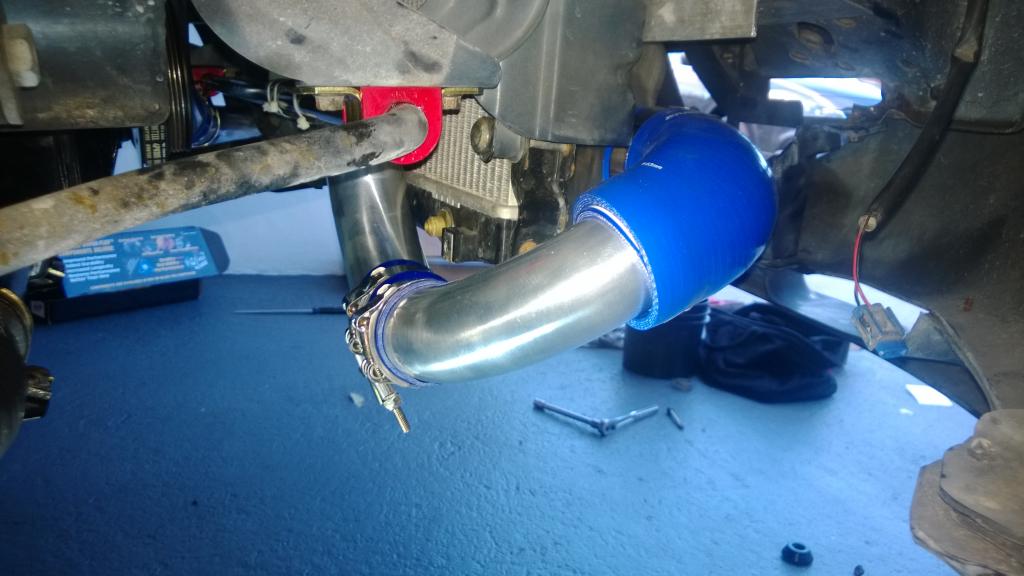

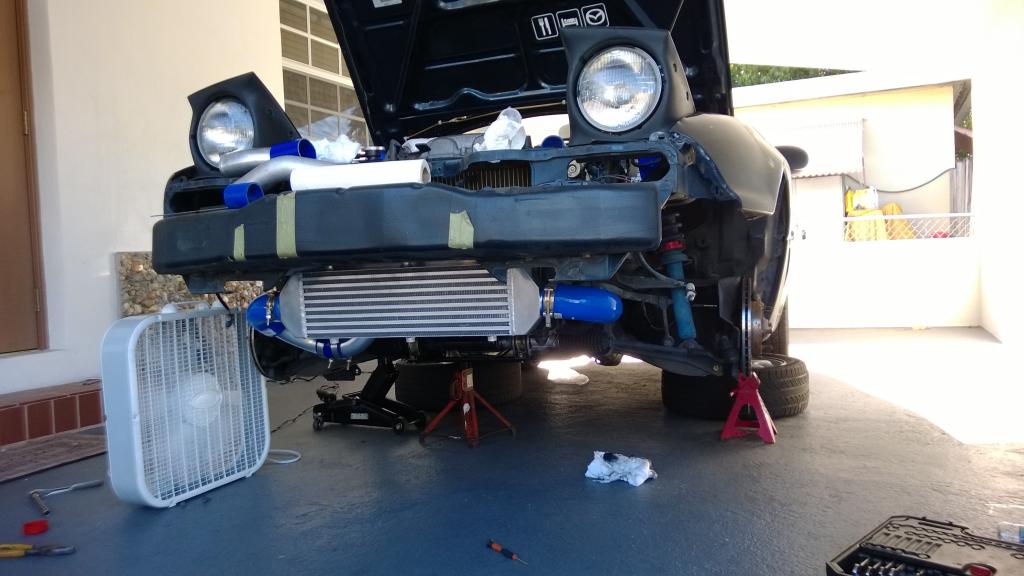

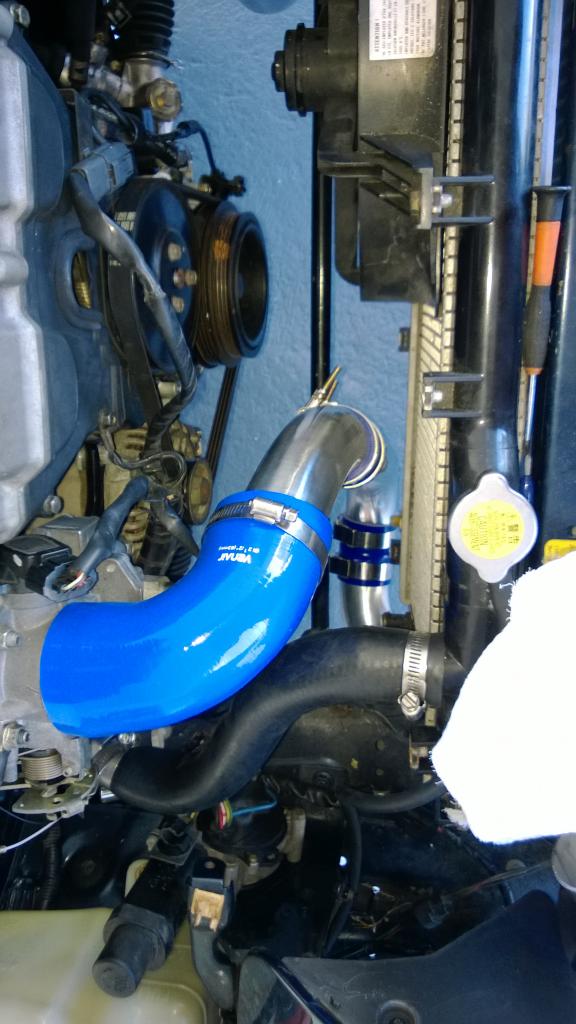

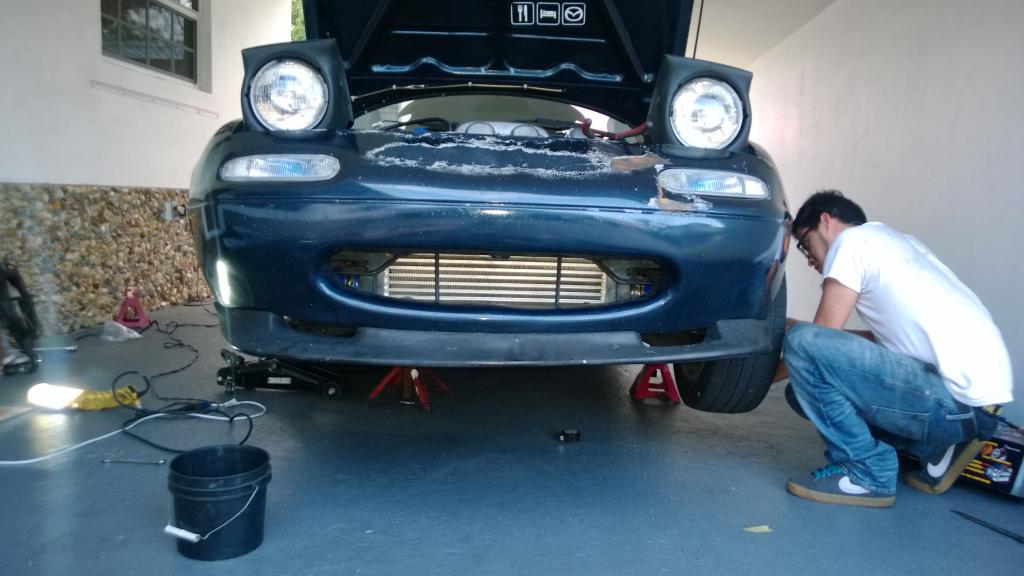

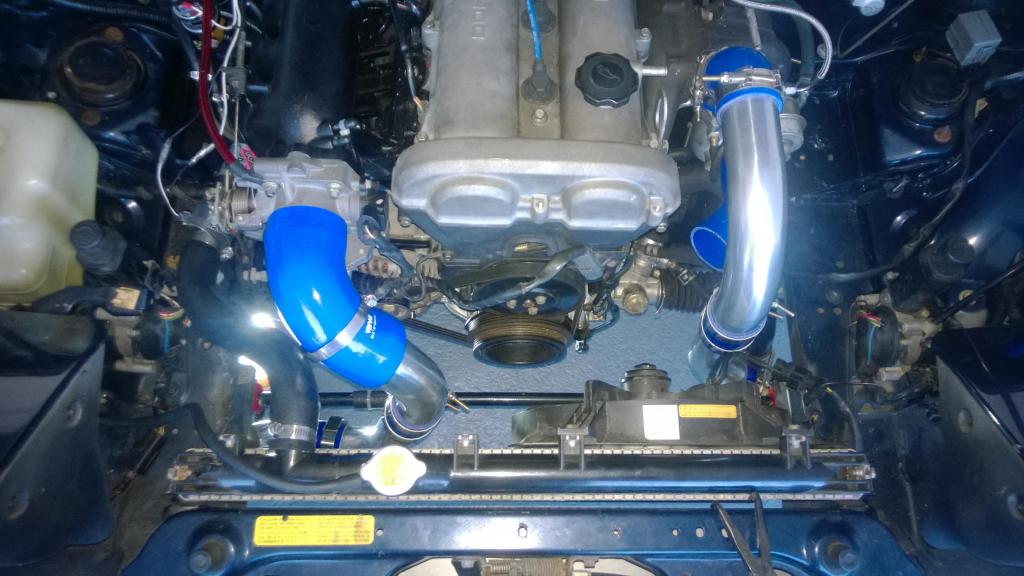

FMIC install
pipe size : 2.25
CXRacing Intercooler
took 9 hrs..wtf?

























Attached Thumbnails
In-Too-Depp Turbo Build-wp_20130924_001_zpsf8da5060.jpg   In-Too-Depp Turbo Build-wp_20131019_002_zpsb634a428.jpg   In-Too-Depp Turbo Build-wp_20131019_003_zps43040415.jpg   In-Too-Depp Turbo Build-wp_20131019_004_zpsa3cfe91d.jpg   In-Too-Depp Turbo Build-1398547_10151957639707889_1471232483_o_zpsd53f21e6.jpg

In-Too-Depp Turbo Build-883548_10151957640912889_171095412_o_zpsd3ae73da.jpg   In-Too-Depp Turbo Build-wp_20131019_005_zpsacf7f11f.jpg   In-Too-Depp Turbo Build-wp_20131019_006_zpsa6071db2.jpg   In-Too-Depp Turbo Build-wp_20131019_007_zps2cb2d94a.jpg   In-Too-Depp Turbo Build-wp_20131019_008_zpsbff18ceb.jpg

In-Too-Depp Turbo Build-wp_20131019_009_zps6b7c41eb.jpg   In-Too-Depp Turbo Build-wp_20131019_010_zps4a6461f2.jpg   In-Too-Depp Turbo Build-wp_20131019_011_zpse031ec95.jpg
Alejo_NIN is offline   Reply With Quote
Old 10-20-2013, 10:10 AM   #68
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Did you have to modify the kit a lot? 9 hours is a lot of time. The couplers don't look that strong.
ScottyP3821 is offline   Reply With Quote
Old 10-20-2013, 10:28 AM   #69
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

yea a little bit..not to much
9 hrs counts for
design
picking up some missing pieces
lunch
and energy suspension swaybar bushings....
and lazyness
Alejo_NIN is offline   Reply With Quote
Old 10-20-2013, 12:40 PM   #70
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Alejo_NIN View Post
and lazyness
Hah! I have that same problem.

Better make sure you get that undertray reinstated.
EO2K is offline   Reply With Quote
Old 10-21-2013, 10:17 AM   #71
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by EO2K View Post
Hah! I have that same problem.

Better make sure you get that undertray reinstated.

While your down there you might as well duct the whole thing too. You will need it. Trust Me
ScottyP3821 is offline   Reply With Quote
Old 10-21-2013, 10:18 AM   #72
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

i need to find the undertray but yea, it'll be going back in.


now, i just love that ******* IC..it's like the perfect size too!
Alejo_NIN is offline   Reply With Quote
Old 03-25-2014, 05:55 PM   #73
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

i acquiered a cluster **** of a car in November and put the miata on hold.
my brother got sick of the project and basically told me he was selling it...so i'm in a race against time to finish my other car, sell it and buy the miata from him.
hence why i haven't touched the miata in a very long time.

some updates:
install a Garrett GT28R turbo in place of the china charger.
fixed all the intercooler piping and may end up going 2.5 inch (i made the mistake with the 2.25, never again!)

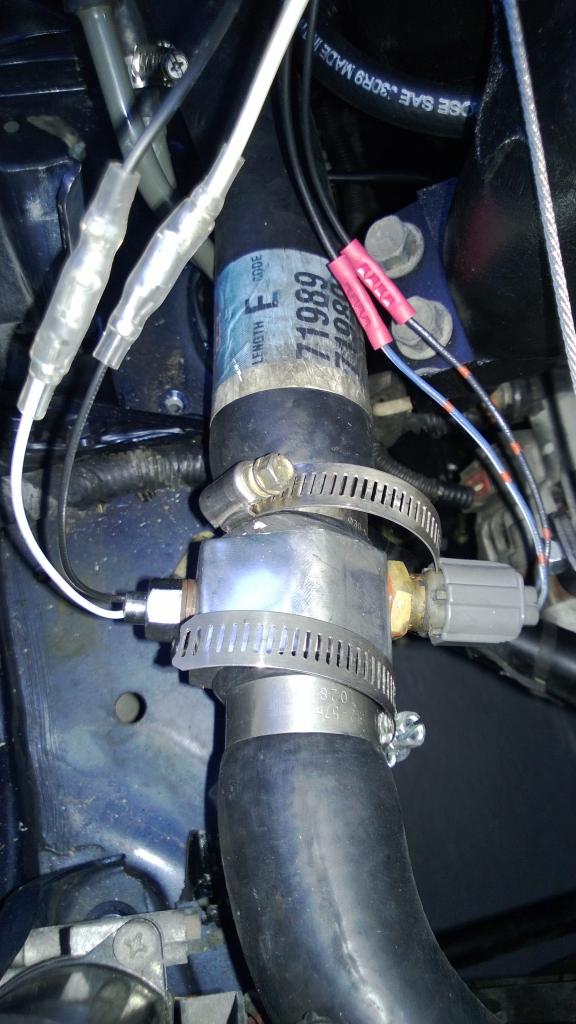

and connected all gauges and made them work.

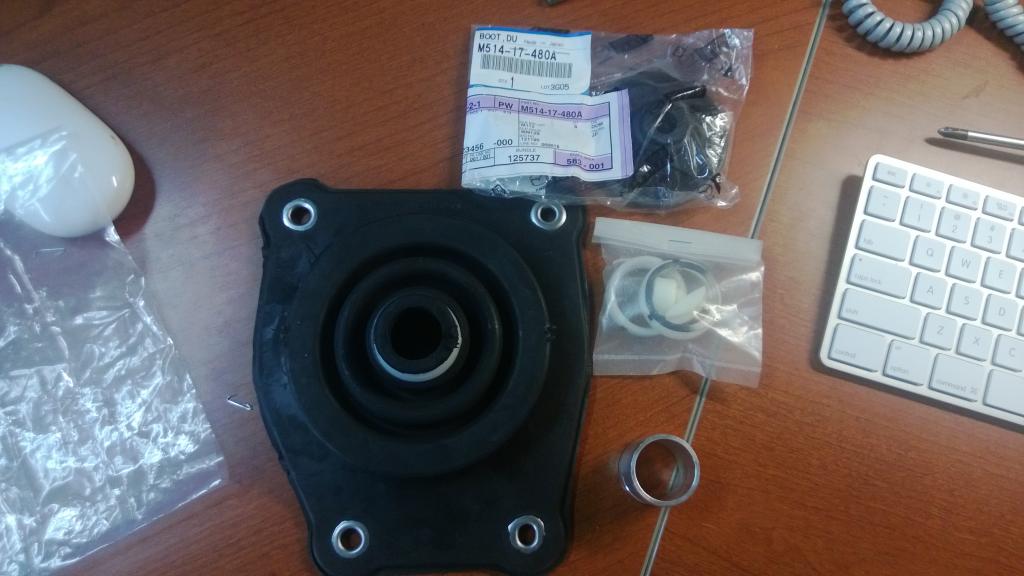

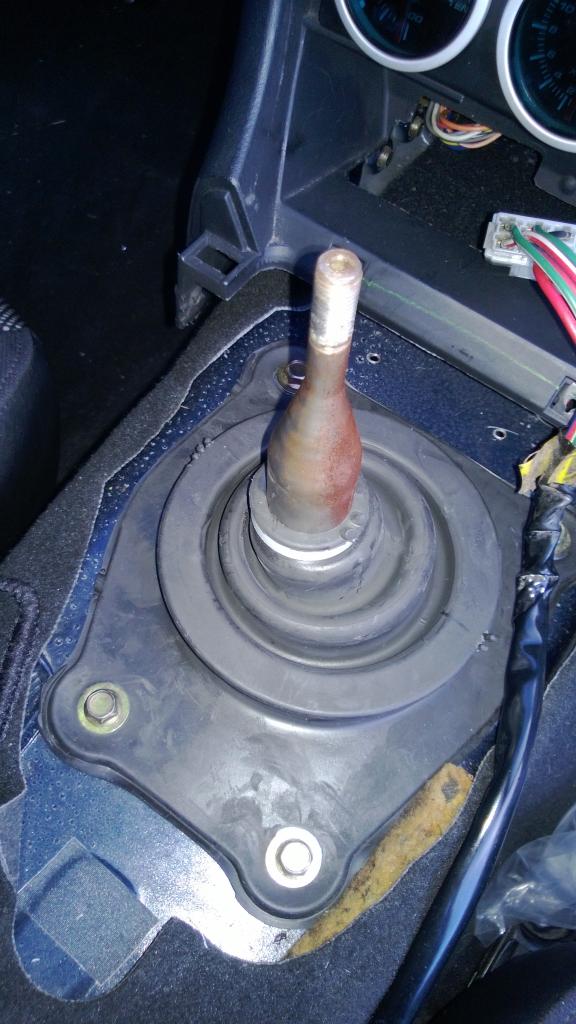

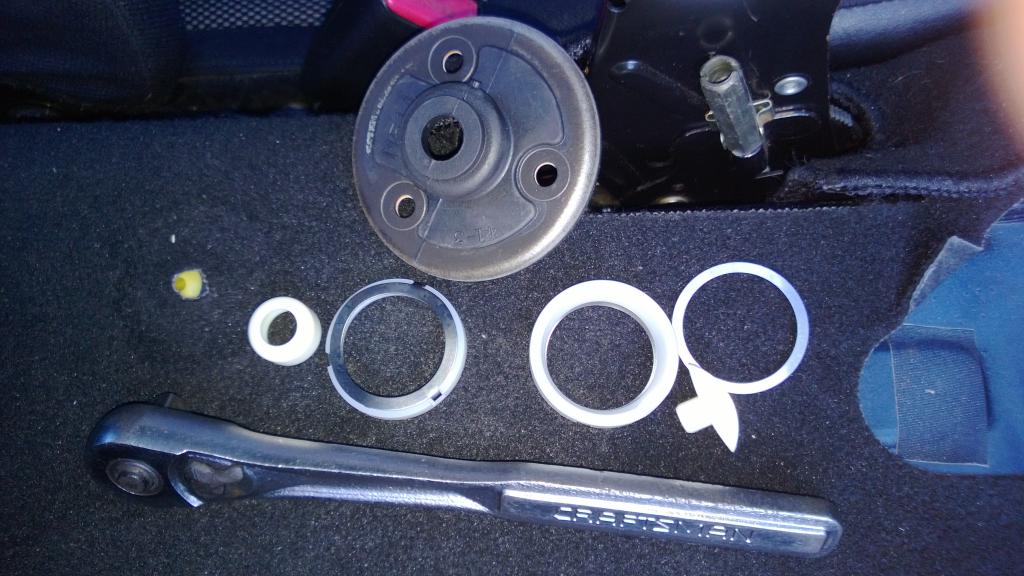

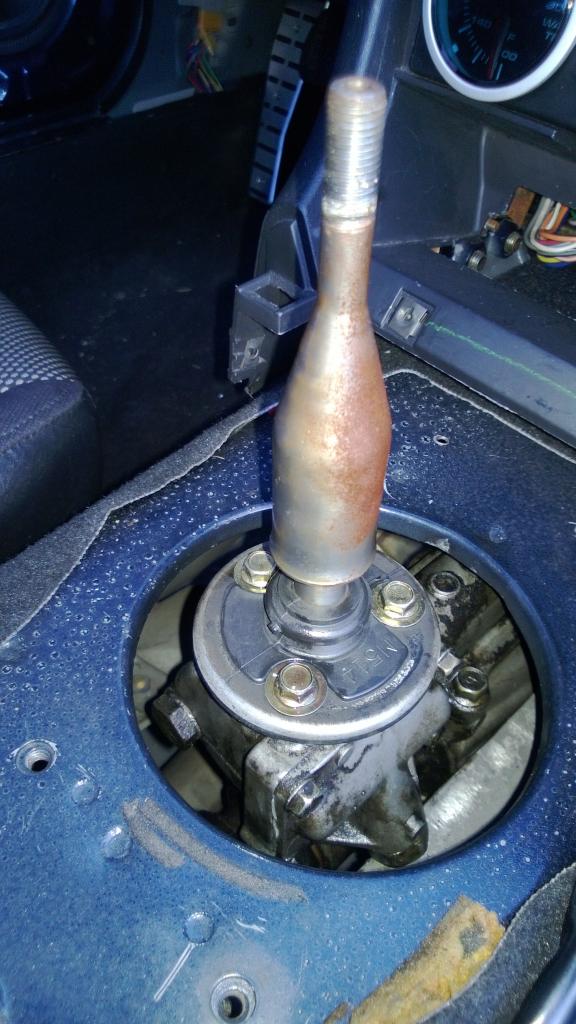

got an OEM shifter bushing kit

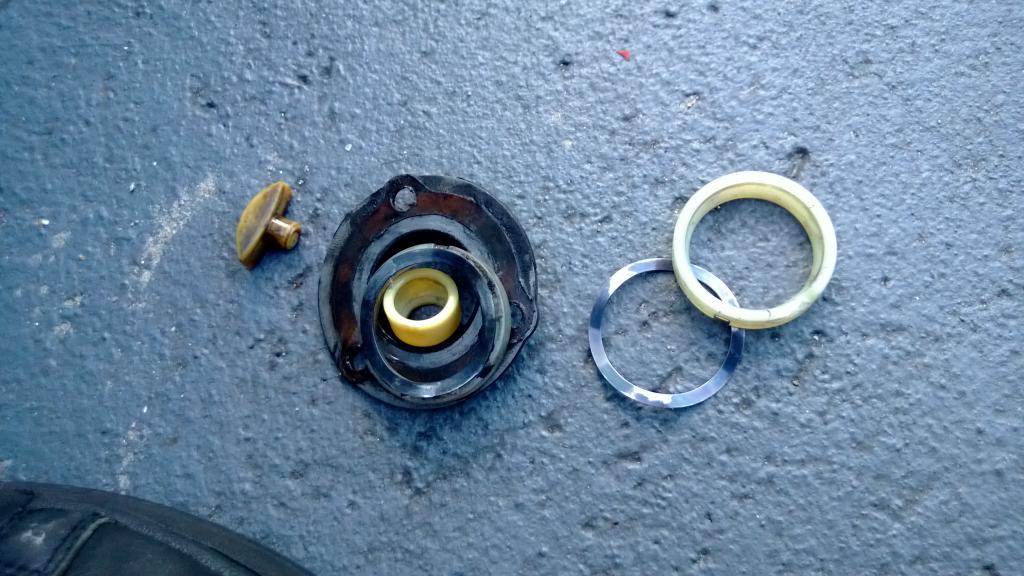

old ****


new ****

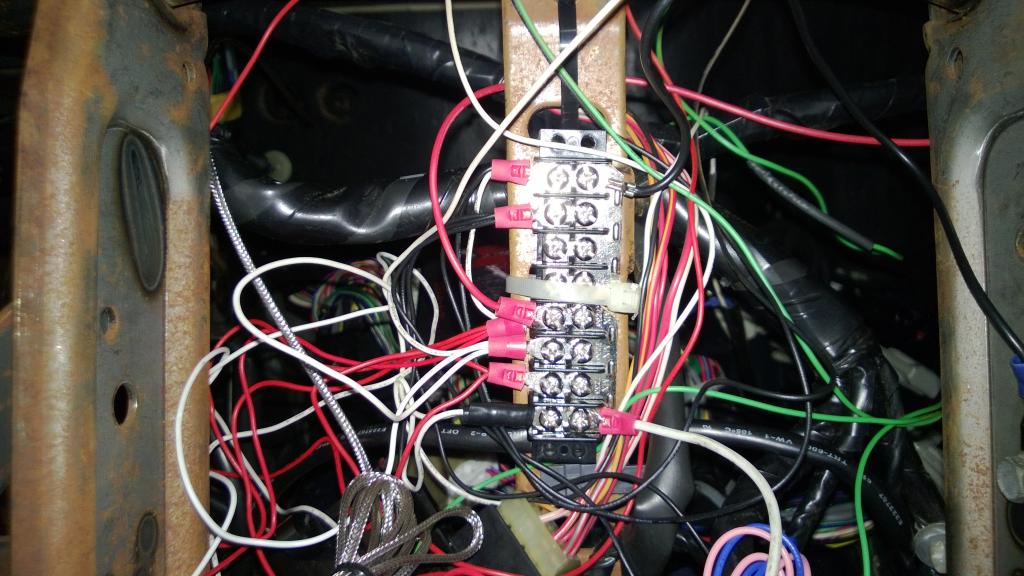

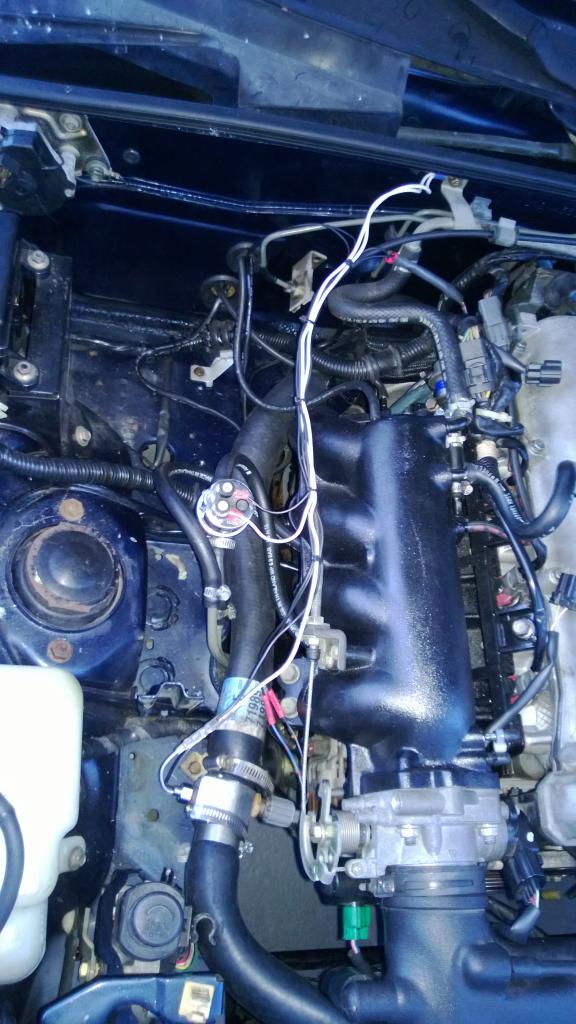

attemtping wire tucking.,


need to get a bigger housing


fuel pressure sneding unit


wil post more once i start working on the car again...
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20131001_015_zps33374db8.jpg   In-Too-Depp Turbo Build-wp_20130930_001_zps27c14e87.jpg   In-Too-Depp Turbo Build-wp_20131001_003_zpsd0bba4a1.jpg   In-Too-Depp Turbo Build-wp_20131001_004_zpsaa75461d.jpg   In-Too-Depp Turbo Build-wp_20131001_005_zps394c29c5.jpg

In-Too-Depp Turbo Build-wp_20131001_006_zpsf7111ce4.jpg   In-Too-Depp Turbo Build-wp_20131001_007_zps815cc1c9.jpg   In-Too-Depp Turbo Build-wp_20131001_008_zpsfb82f8f5.jpg   In-Too-Depp Turbo Build-wp_20131001_009_zps2c650ba1.jpg
Alejo_NIN is offline   Reply With Quote
Old 03-25-2014, 06:01 PM   #74
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Maybe ive been looking a lot at Jeffs build too much but that wiring and placement looks funny.
ScottyP3821 is offline   Reply With Quote
Old 04-21-2014, 06:13 PM   #75
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by ScottyP3821 View Post
Maybe ive been looking a lot at Jeffs build too much but that wiring and placement looks funny.
it does.
all of it was made to work.
i haven't had the chance of cleaning it up but i will def be fixing it. i hate it as much as you do

it'll be better, i promise.
Alejo_NIN is offline   Reply With Quote
Old 04-21-2014, 06:31 PM   #76
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

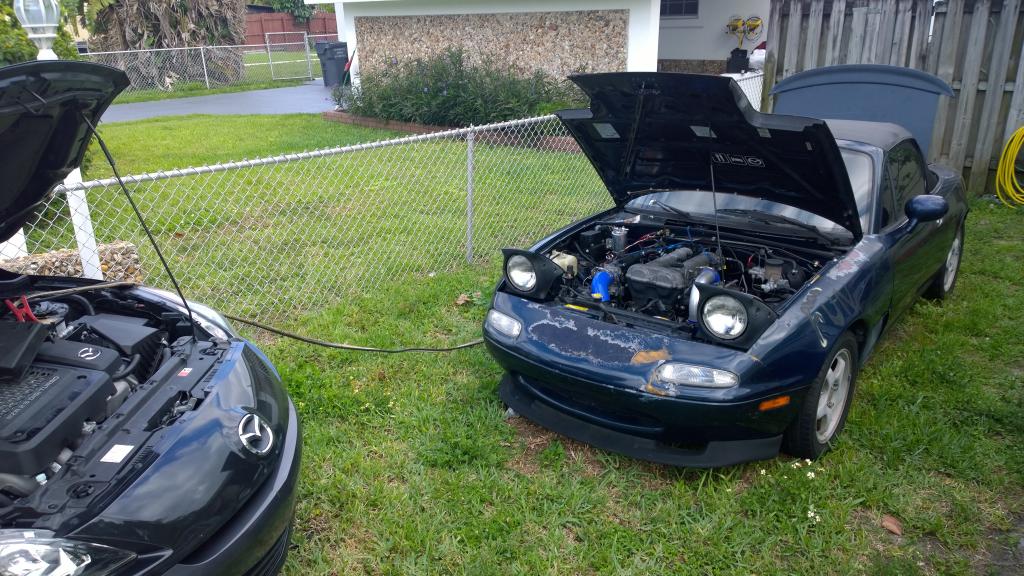

so, i'm restarting the build.
getting rid of the othe rnightmares frees up time to work on this one and now it will flourish.

can't wait.

more updates to come.

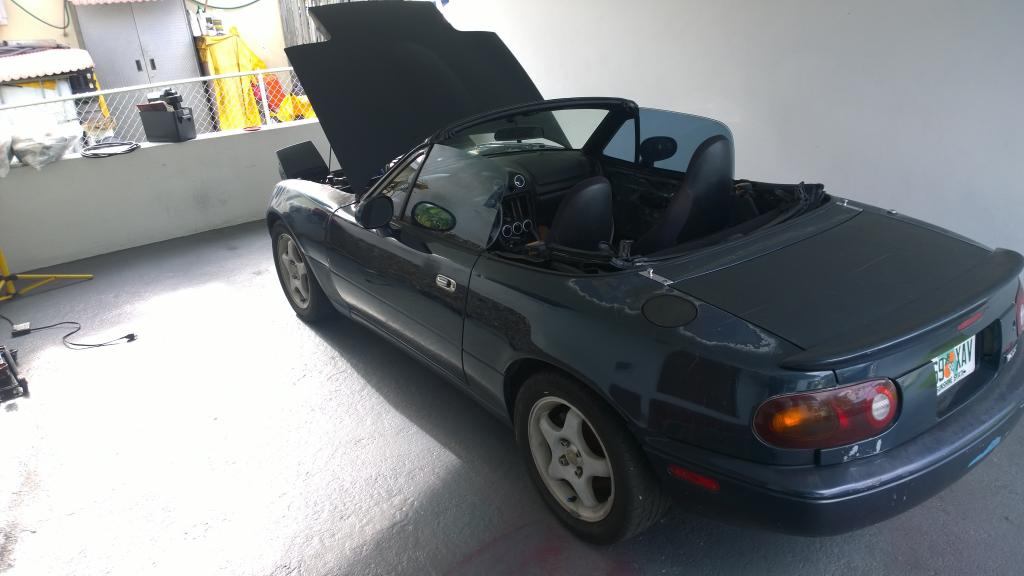

Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140420_008_zpsd0f60032.jpg   In-Too-Depp Turbo Build-wp_20140420_009_zps954b37e4.jpg
Alejo_NIN is offline   Reply With Quote
Old 05-31-2014, 10:17 PM   #77
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

it's been a while since a last update

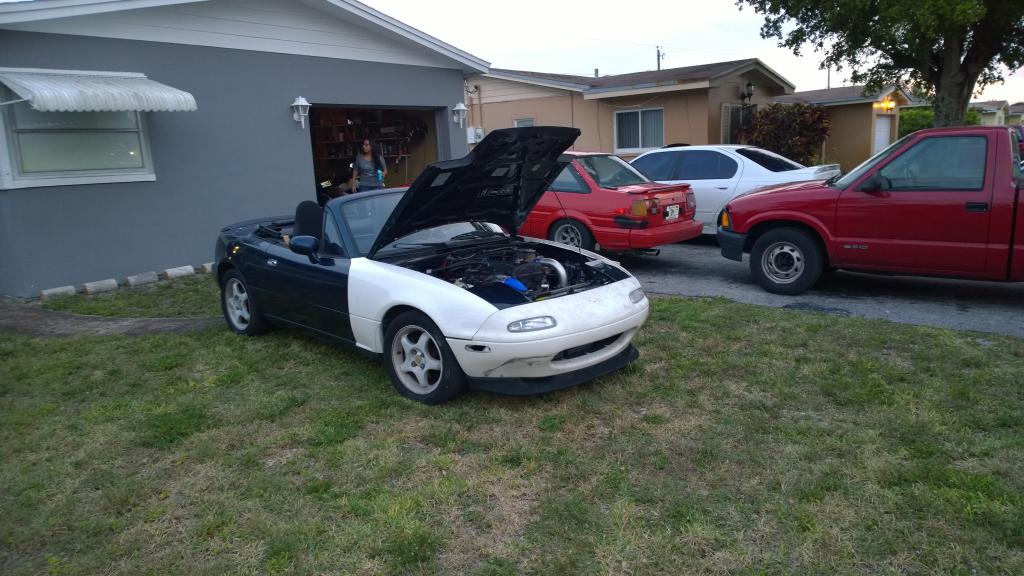

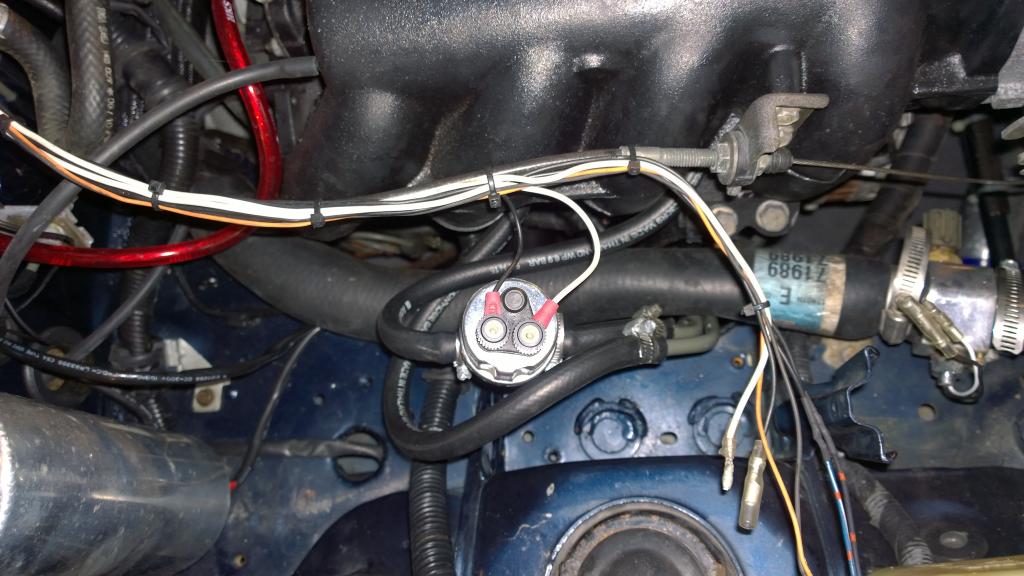

so far this is what it looked like before the car went under the knife for about 3 more times...


old old old

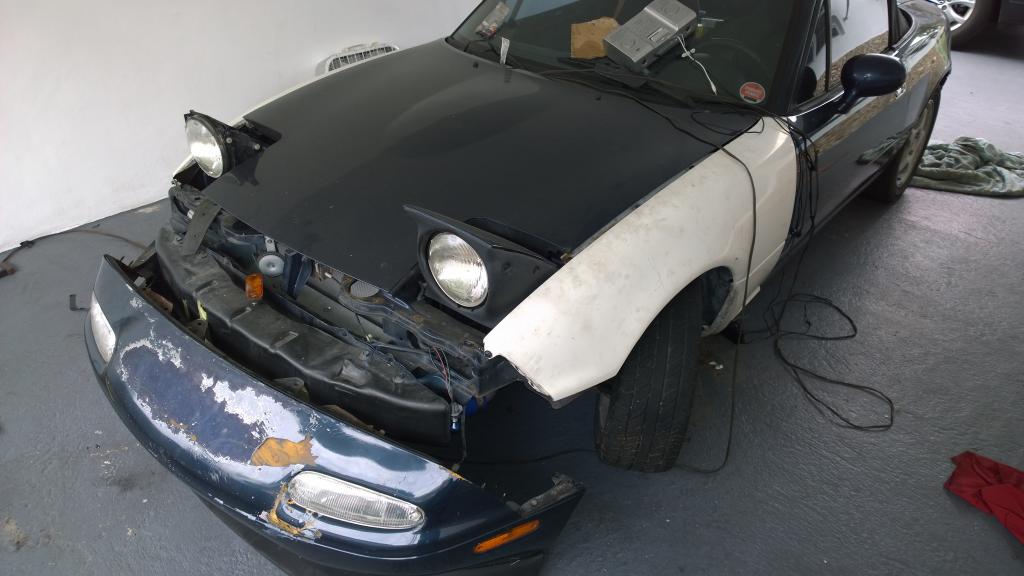

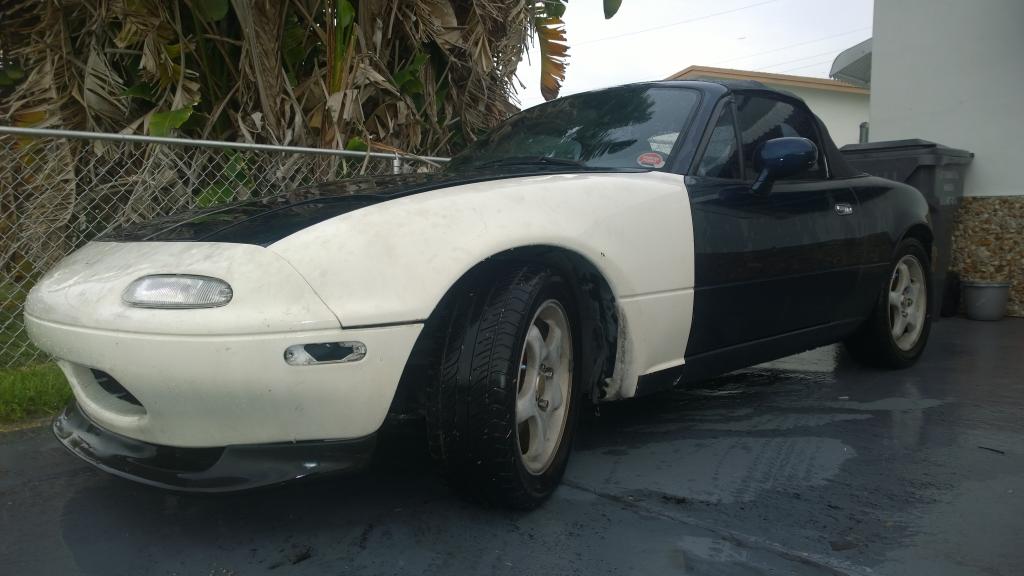

replacing bumpers and fenders

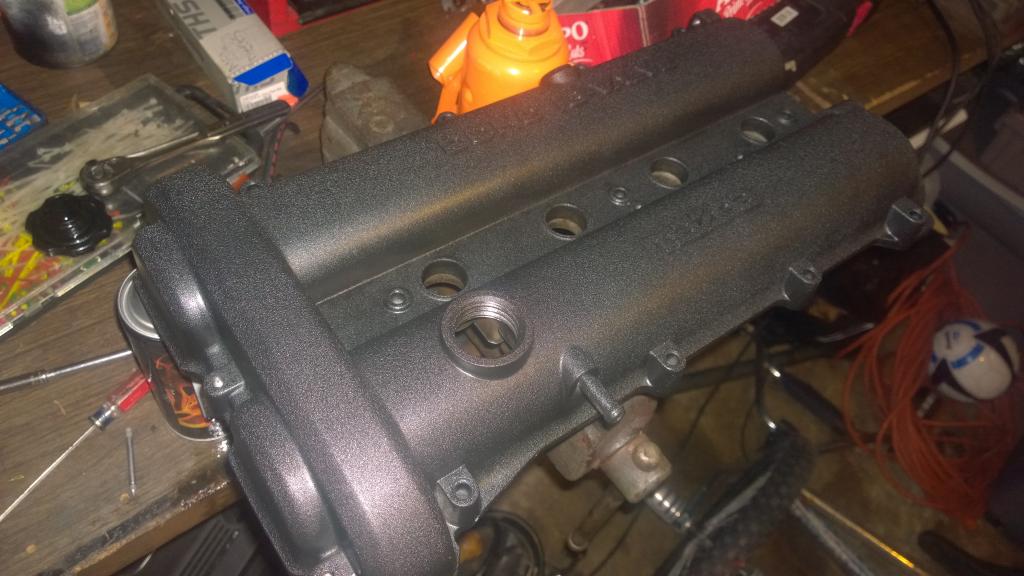

giving some life to otherwise boring parts....wrinkle paint valve cover

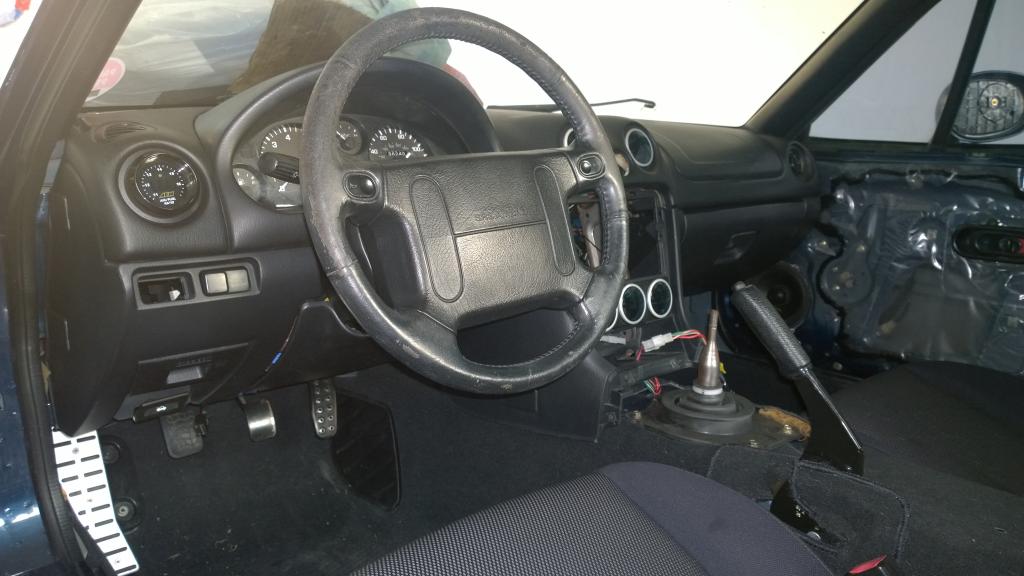

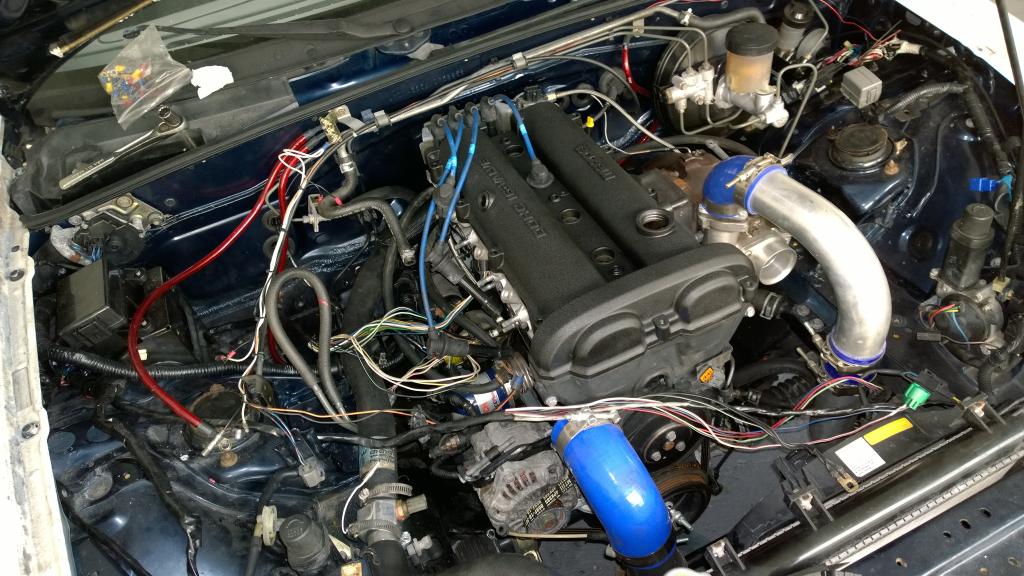

at this point i really thought to myself: i need to trim these wires


i attempted to make it look nice but those wires and fuse box...they had to go

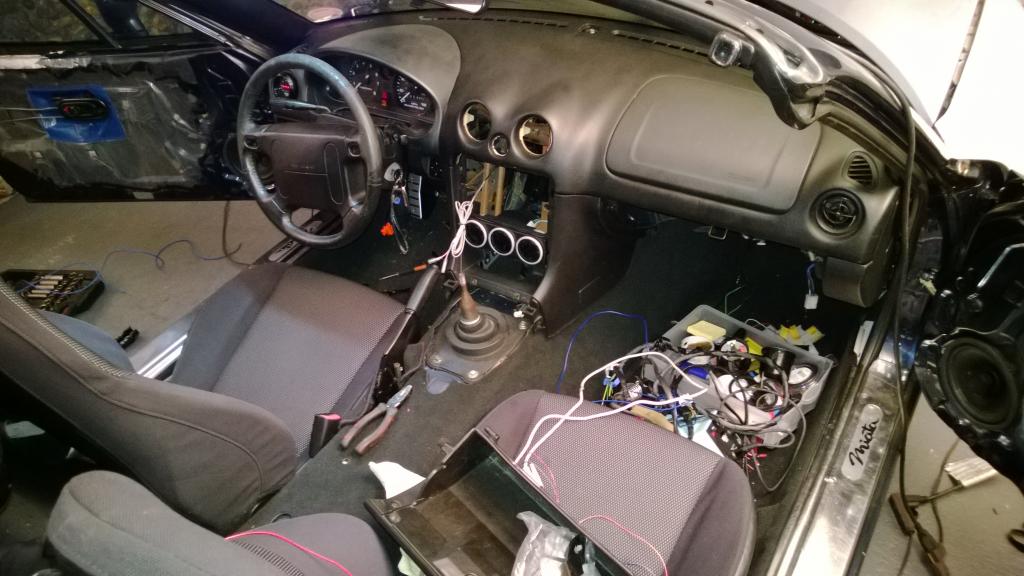

so out comes the dash board, again

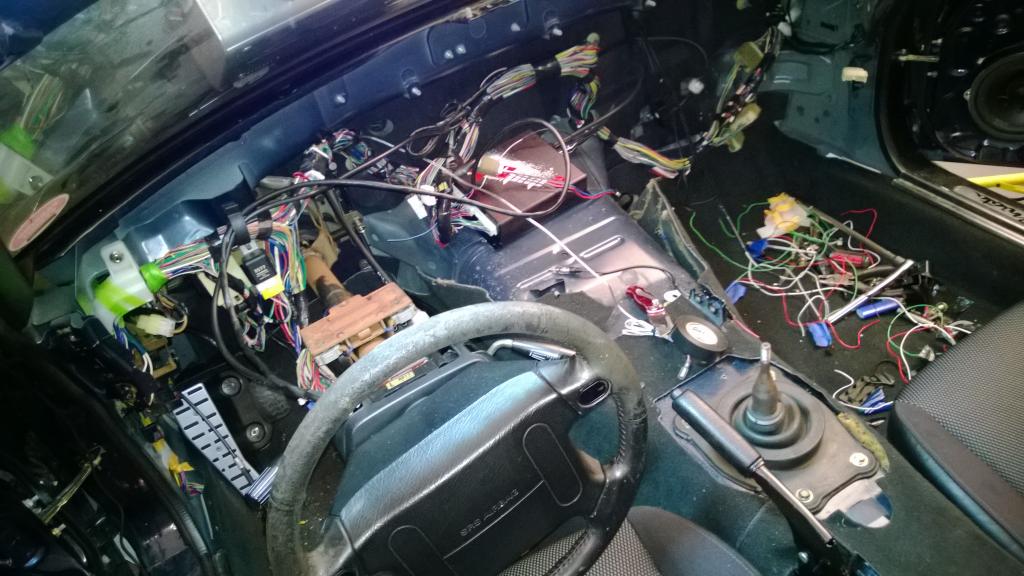

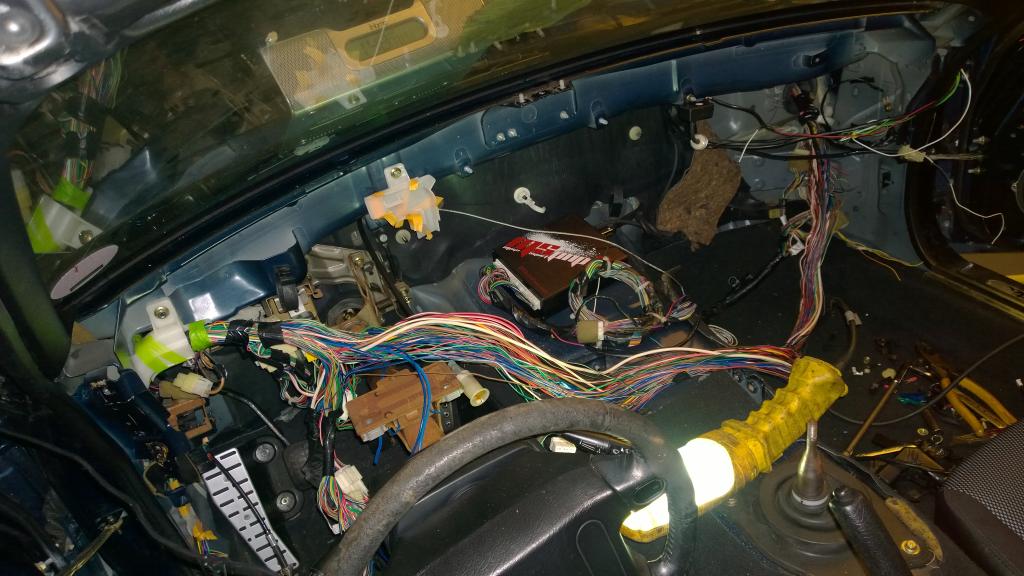

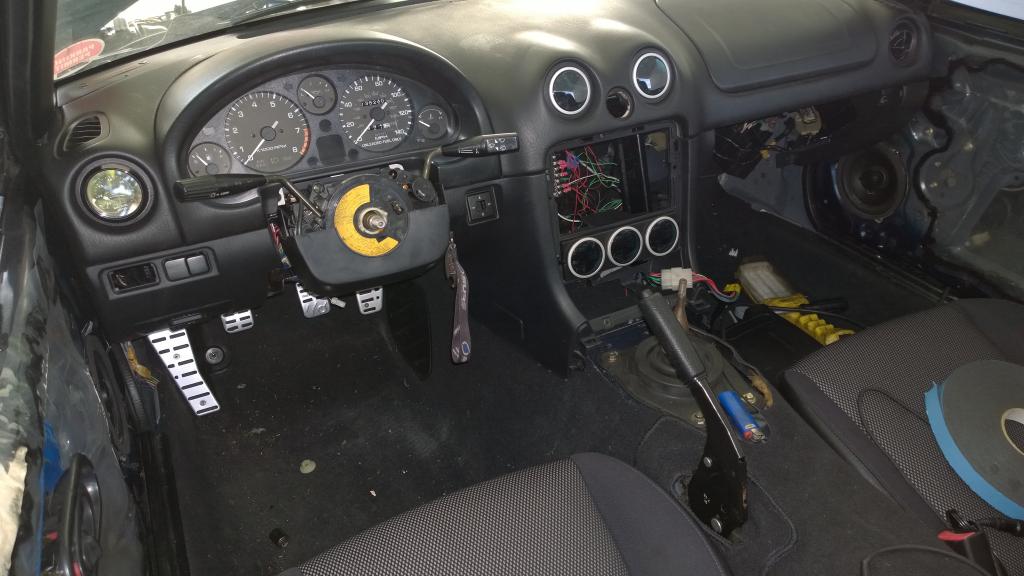

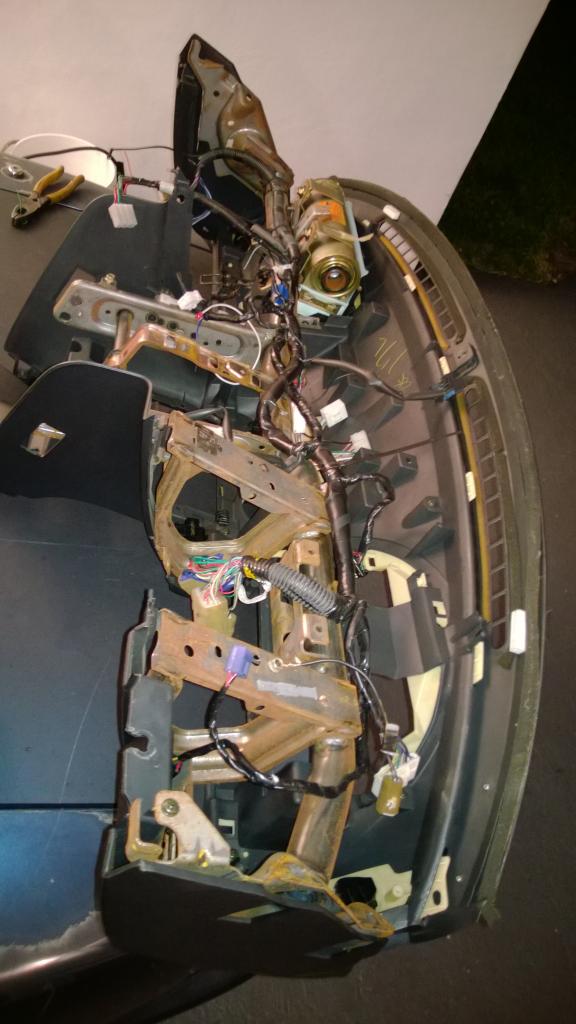

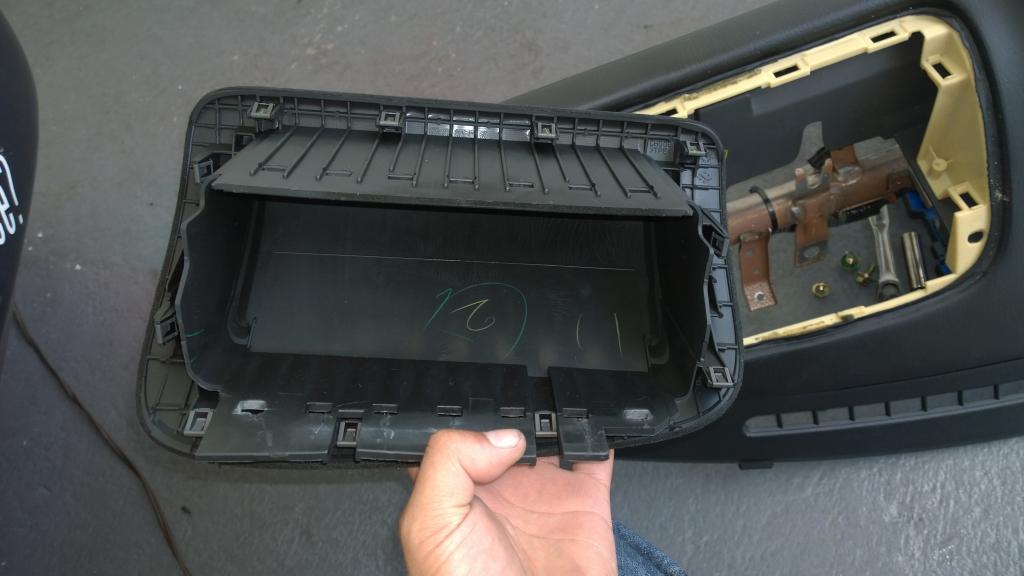

trimming, fixing, taping, rolling


cleaning ziptying etc


dash back on


still not happy tho


it doens't look that bad but it could be better




so out comes the dash again

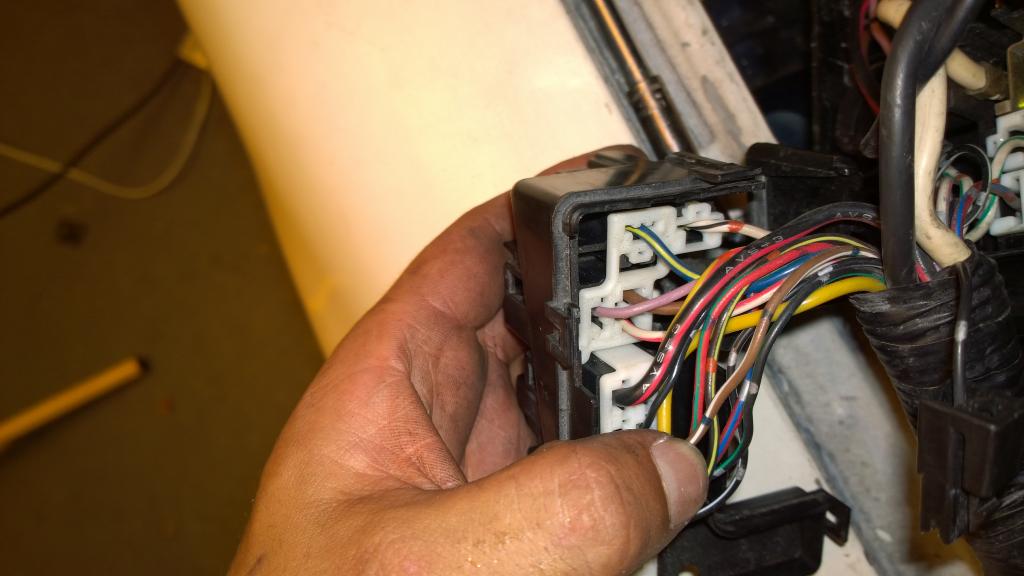

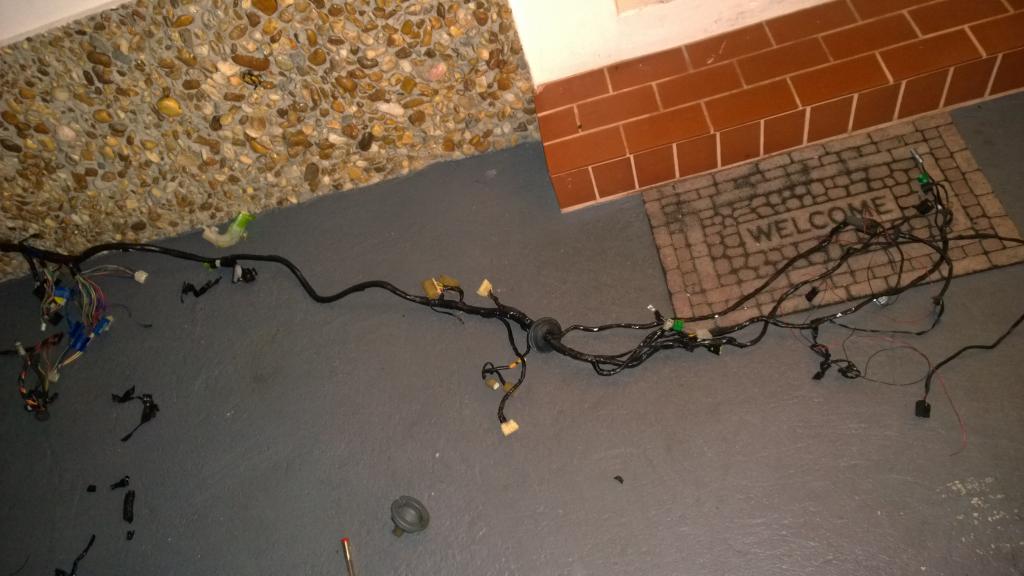

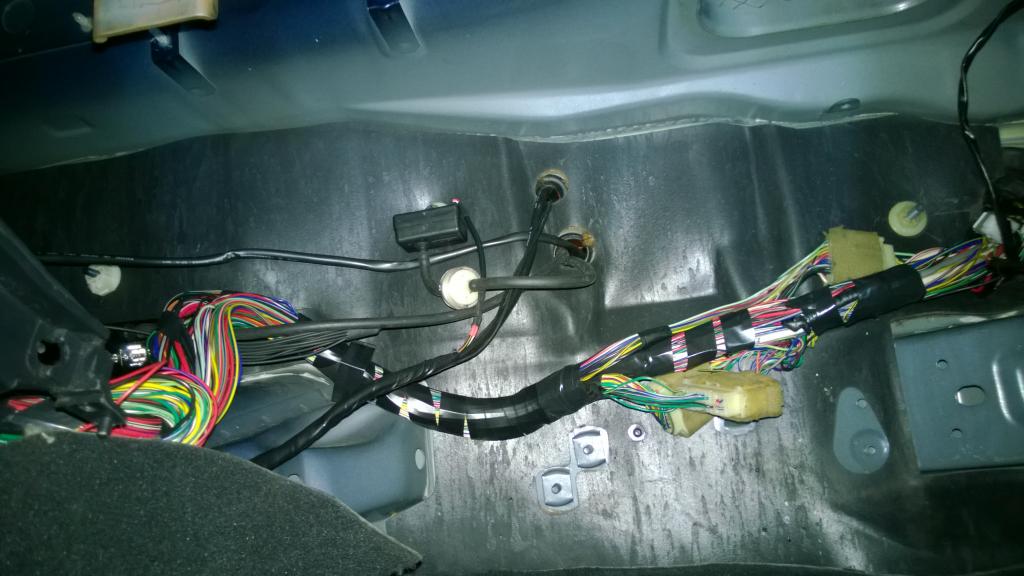

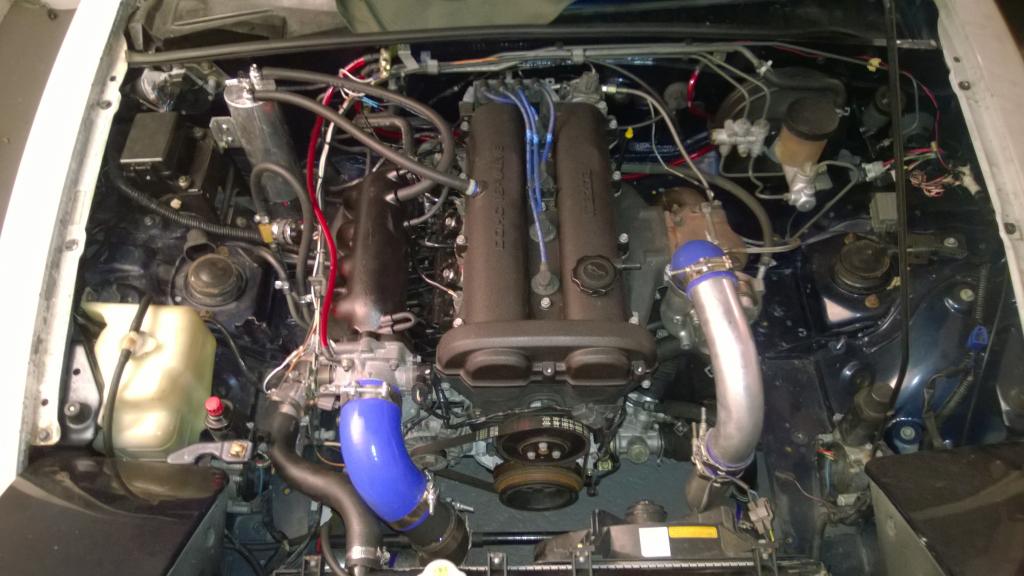

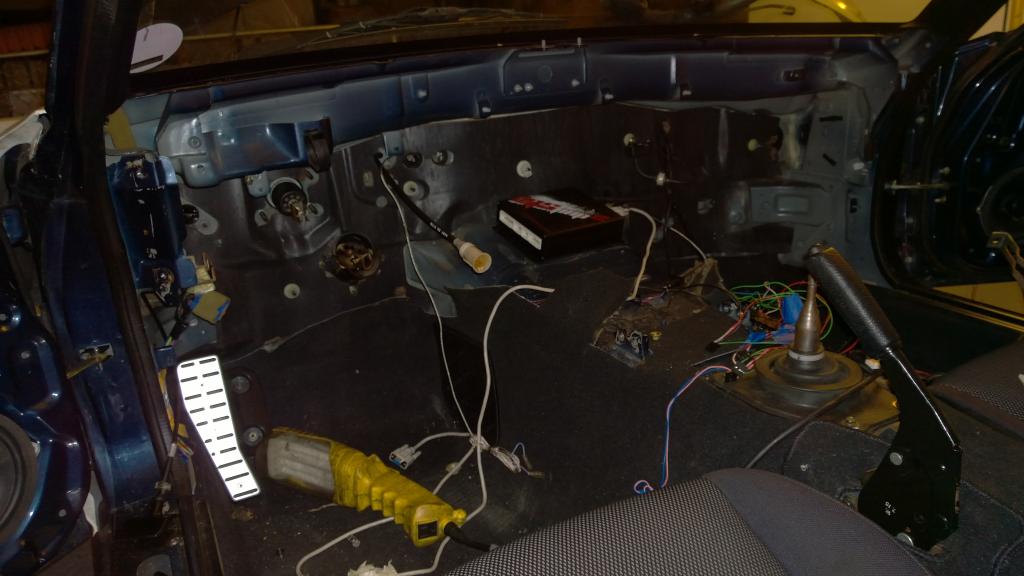

and now the whole wiring harness comes out as well.
time for some trimming and soldering

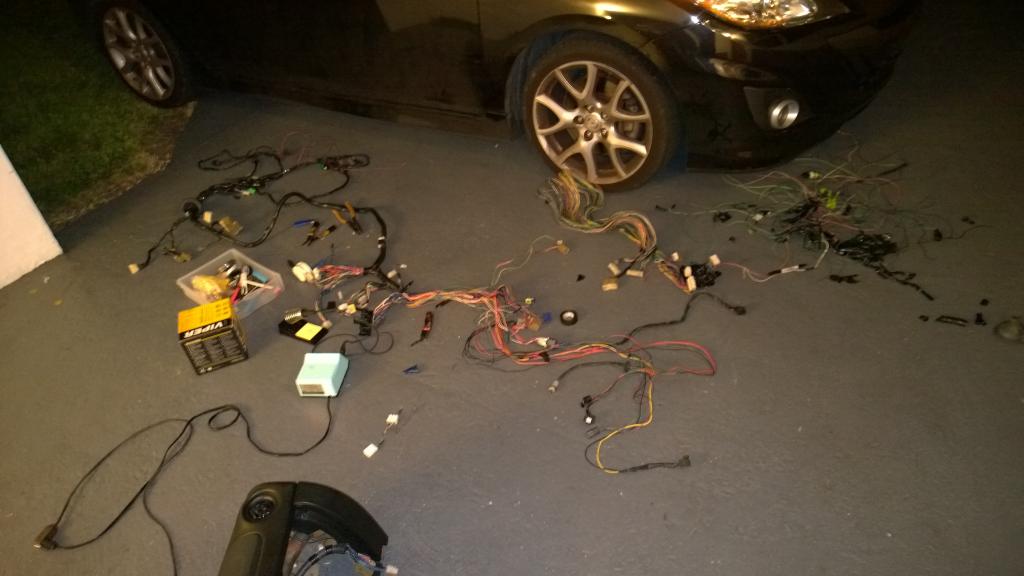

the pile on the right is all unused wiring

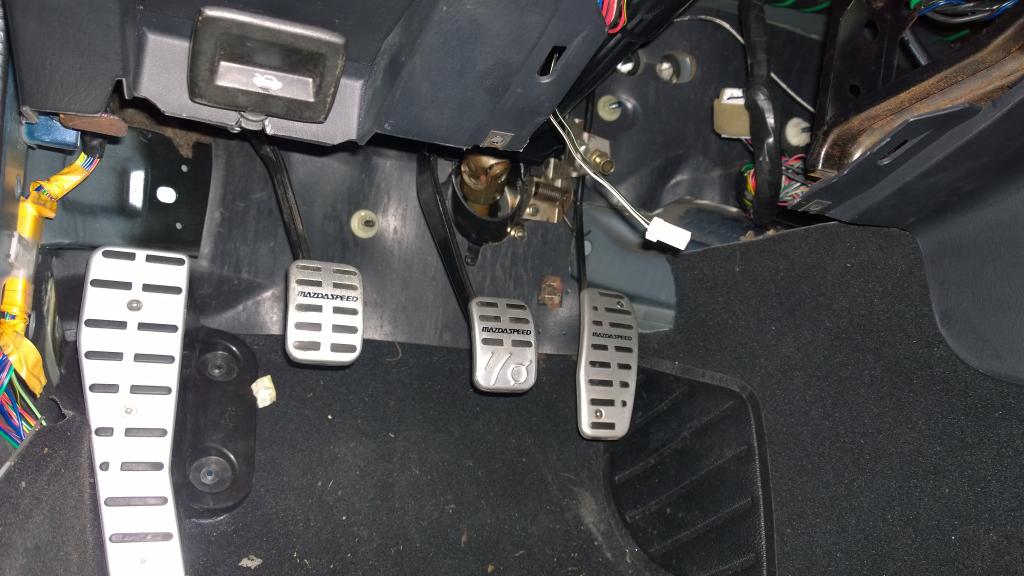

take advnatage of the situation to install MSM pedals

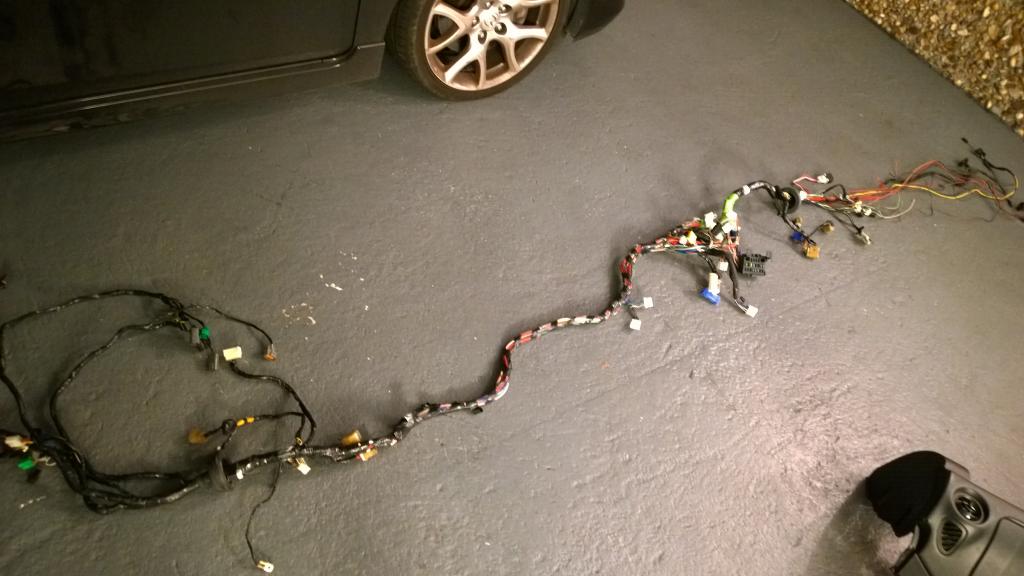

this is the passenger side wiring harness..not much to do to this one

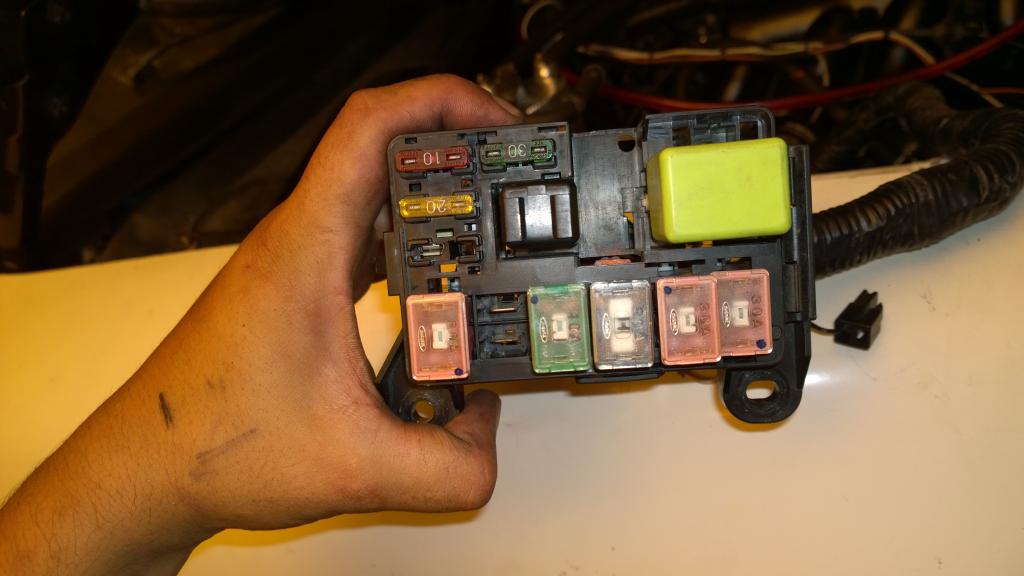

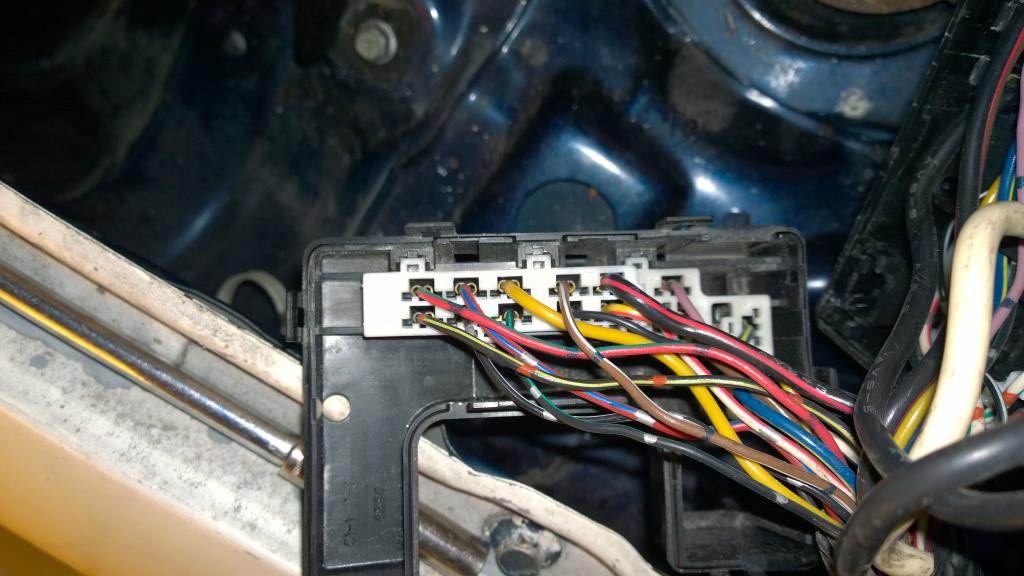

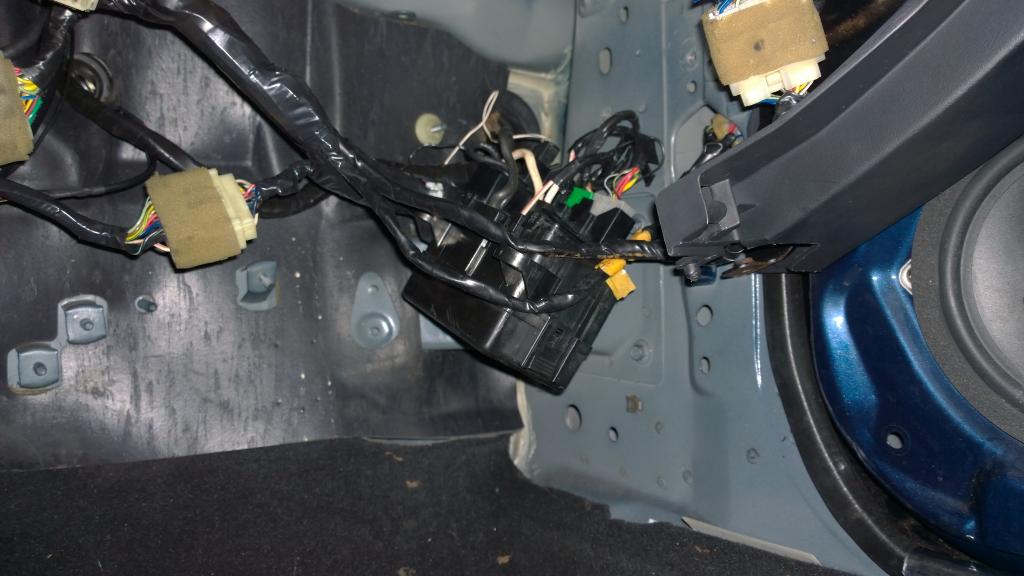

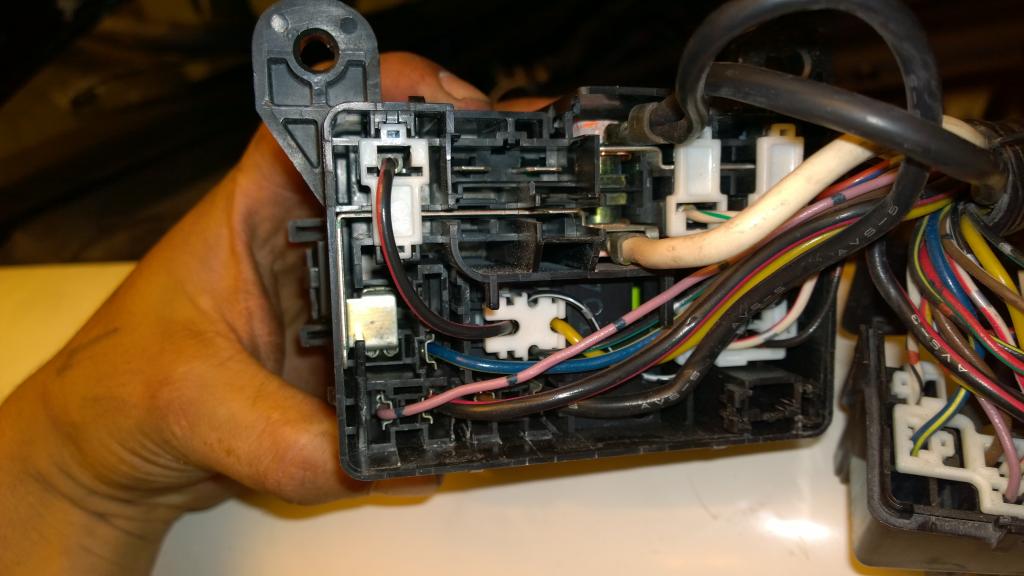

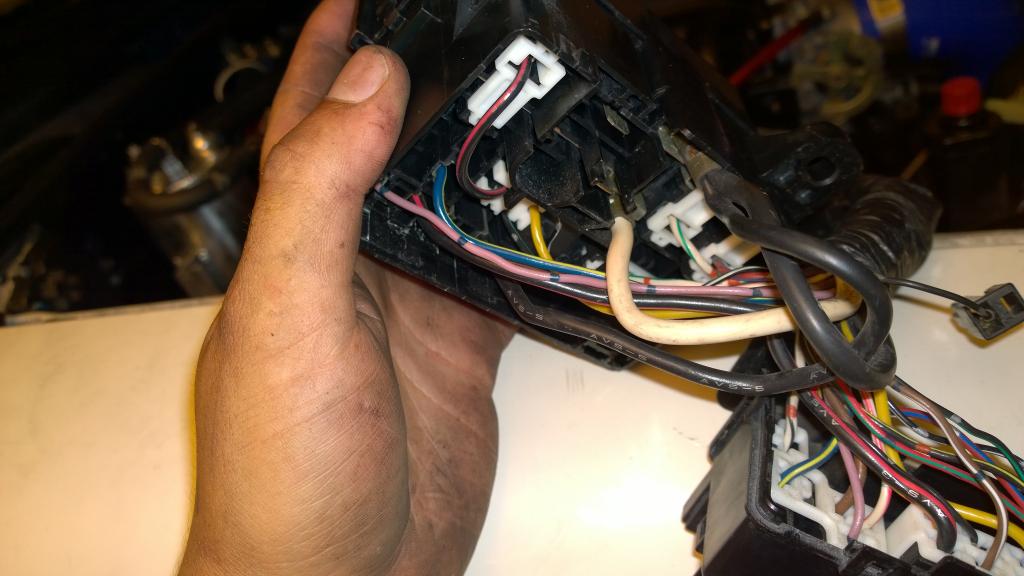

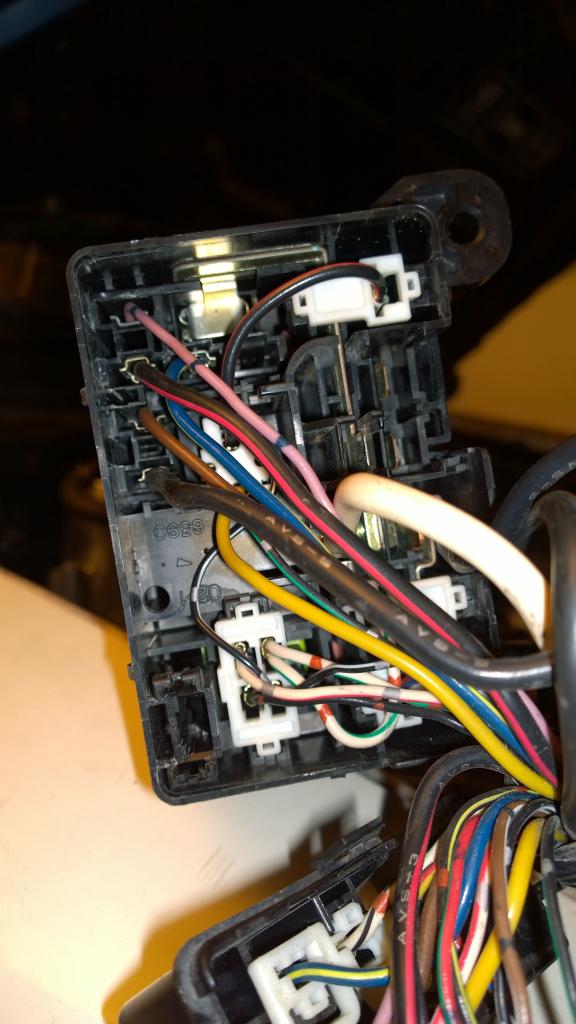

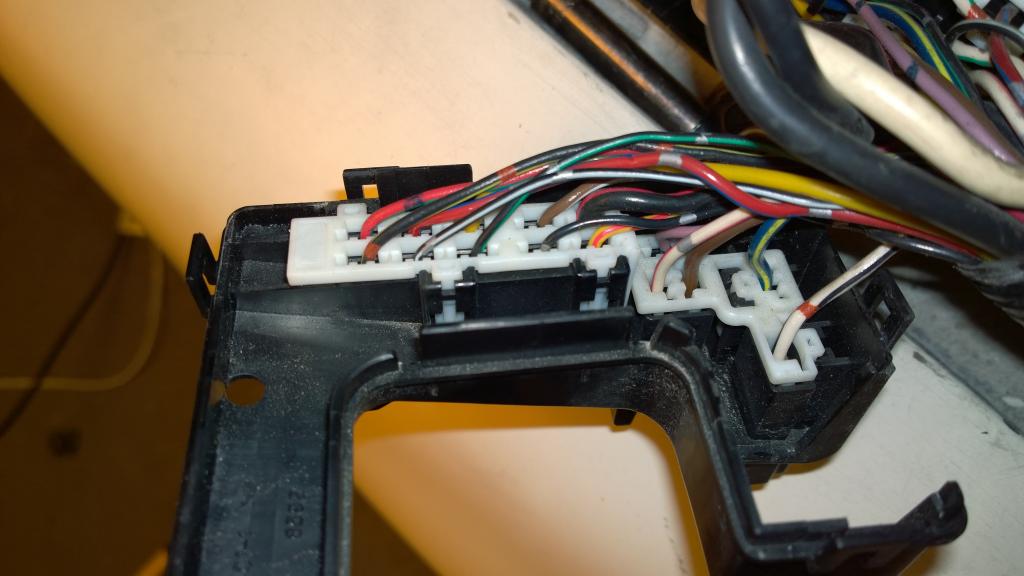

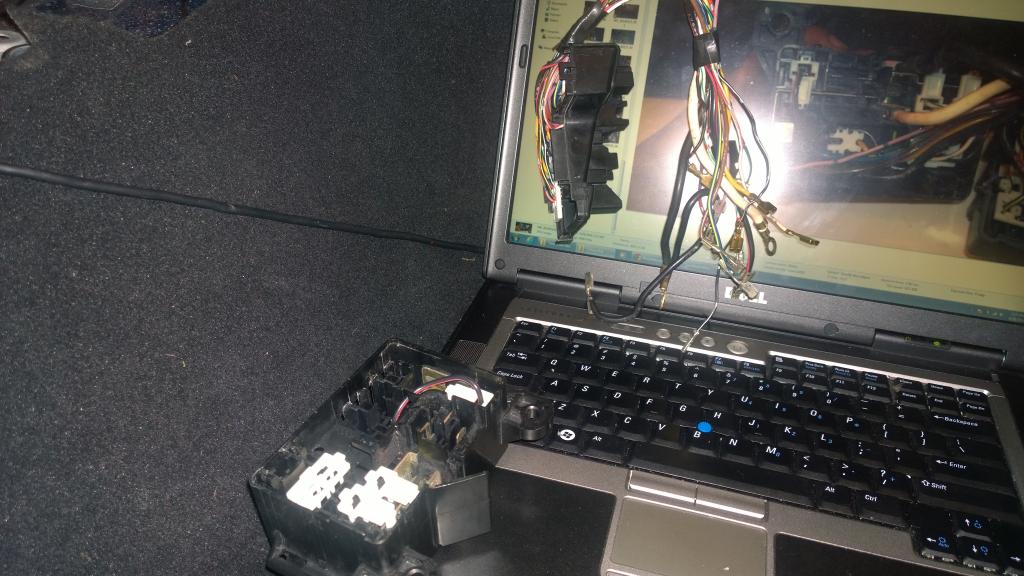

taking apart fuse box (tags: miata fuse block fuse box fuses relocation move dash)








took off all the leads


removed the airbag


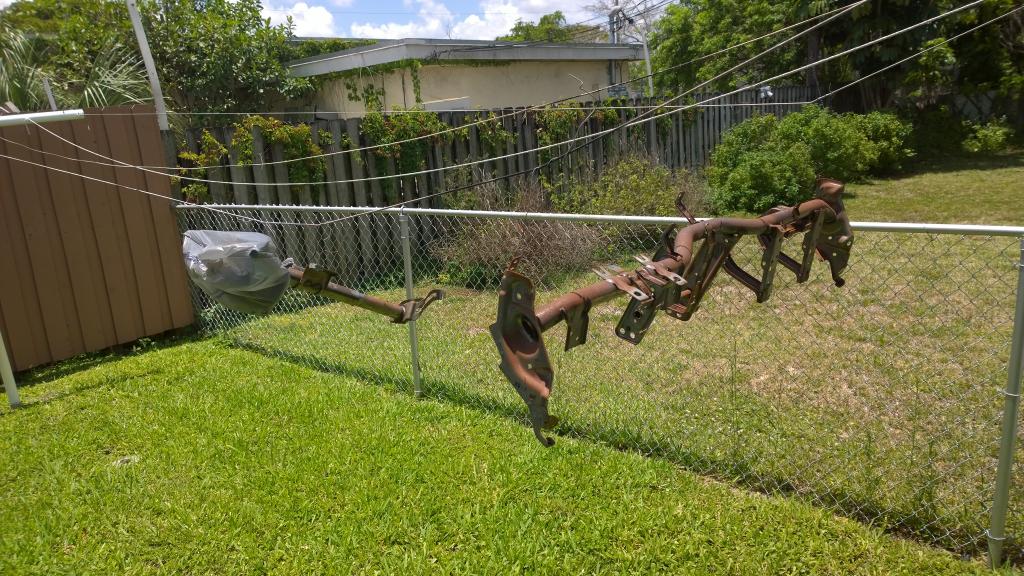

getting ready for paint


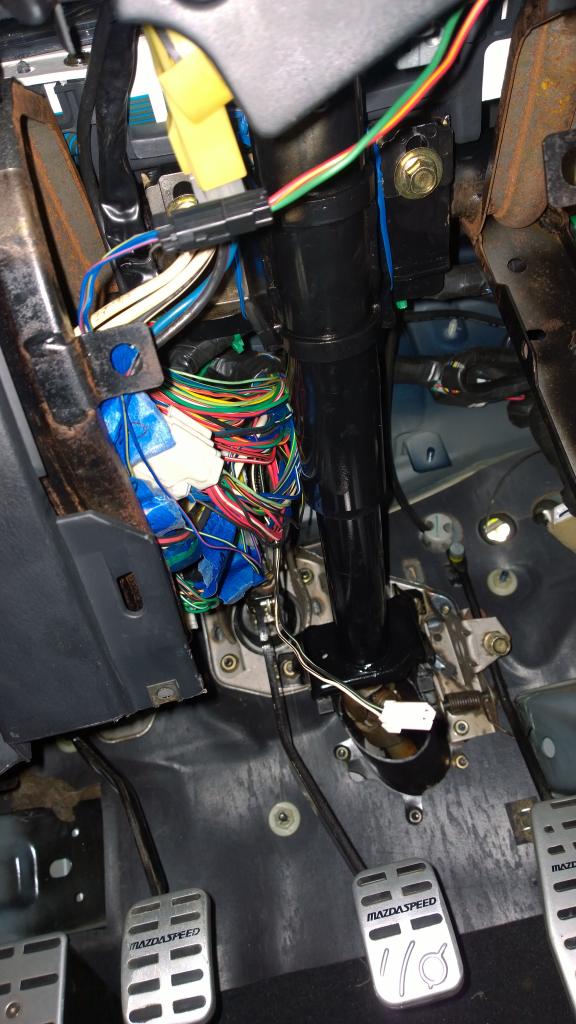

finished fuse box relocation under dash


starting to lok better...could be better tho

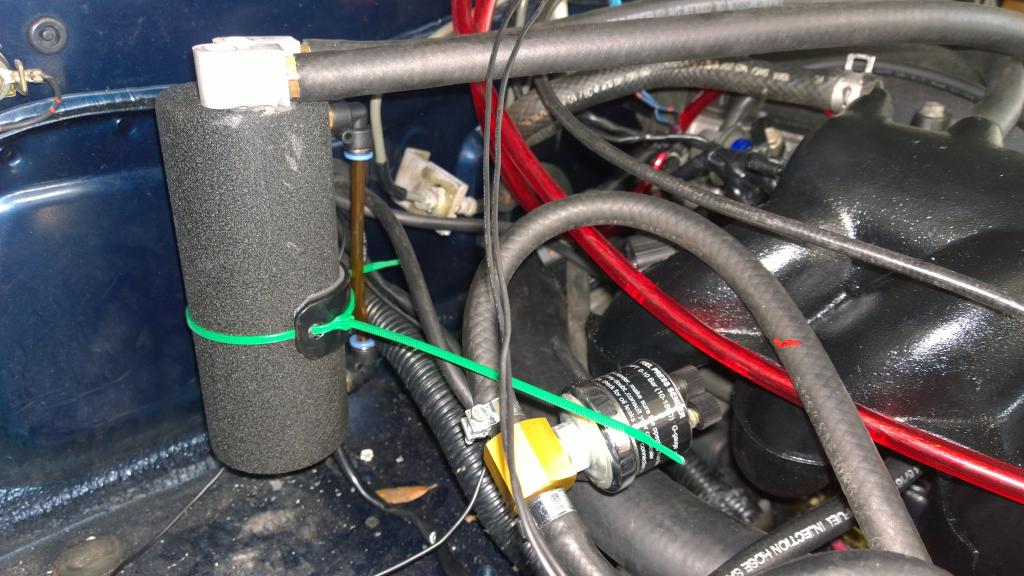

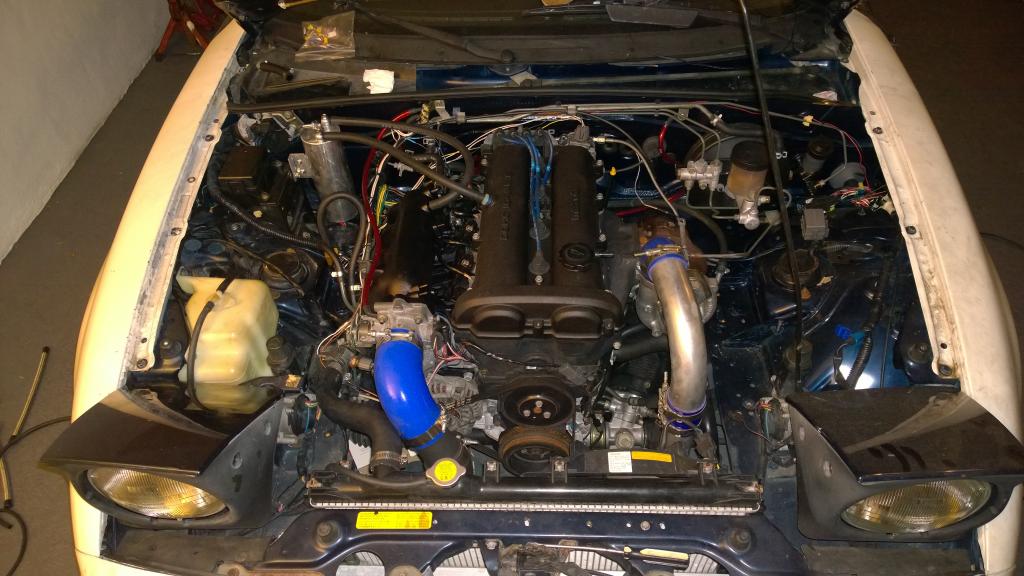

wrinklepainted my old oil catch can and installed


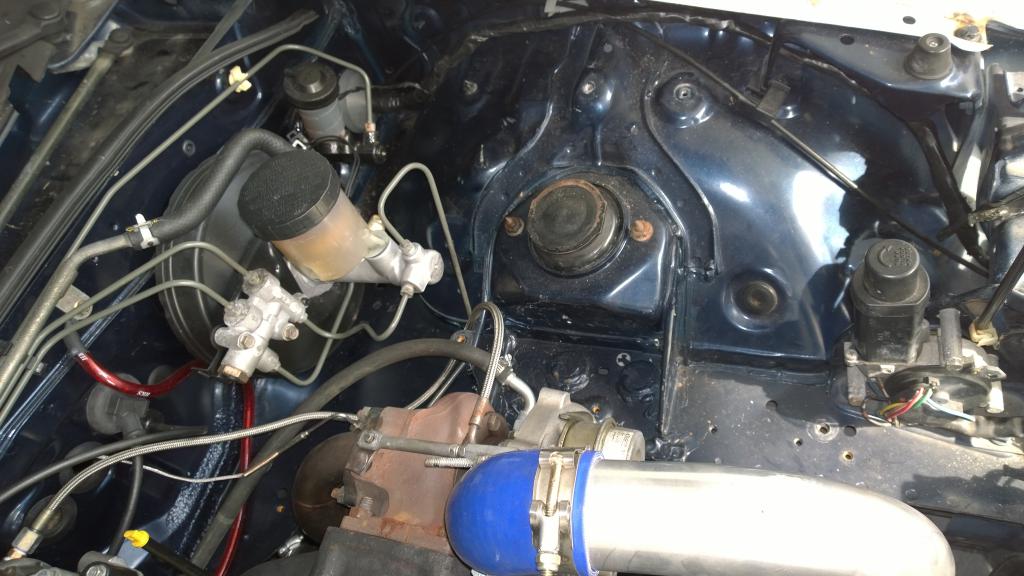

driver side engine bay cleaner


dash back on, pedals installed, painted steering rack back on

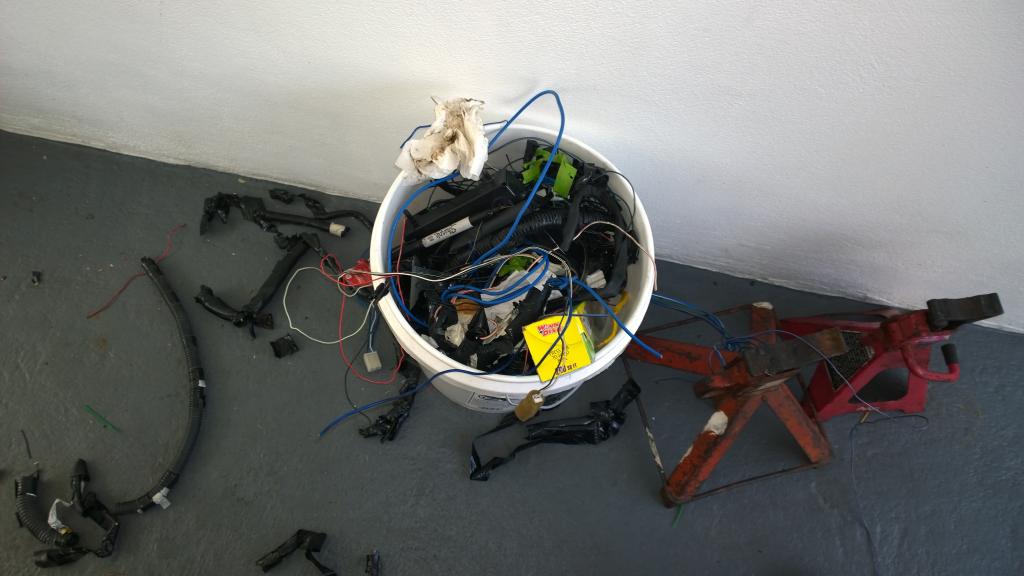

bucket of wires...to be sorted and thrown out


first wash in 1 yr


the proof is in the pudding. drove the car to a friends house to show off



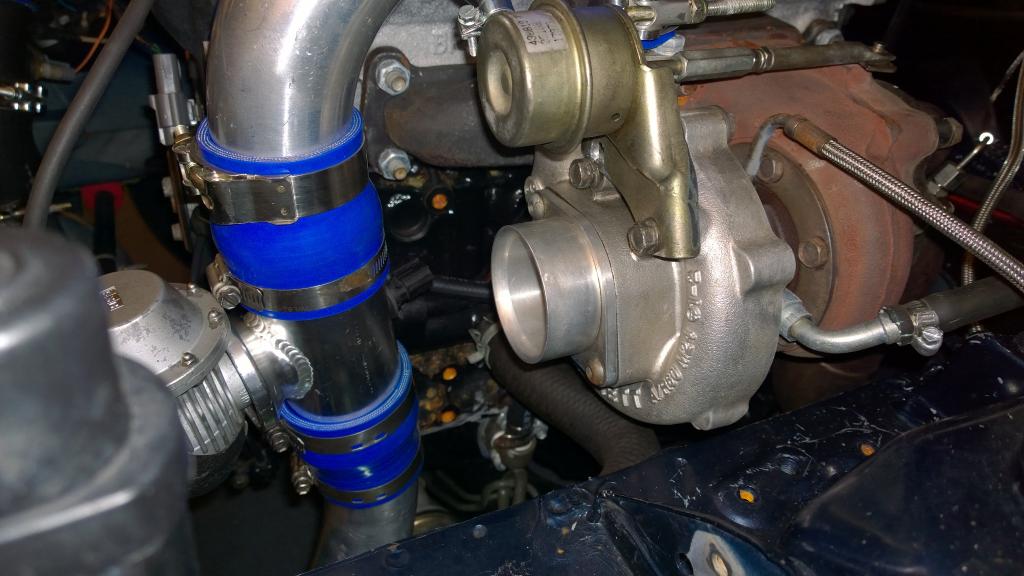

installing SSQV

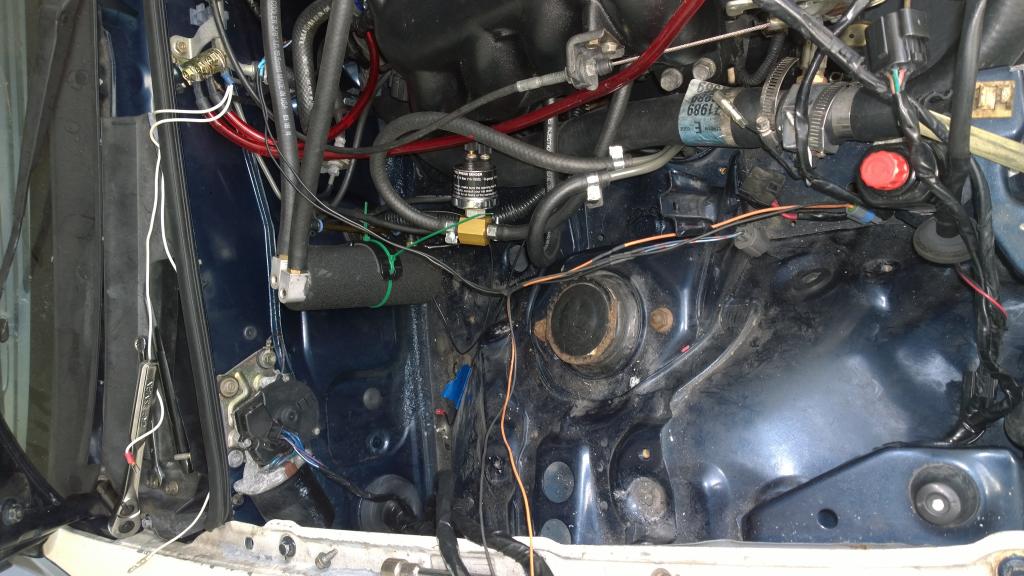

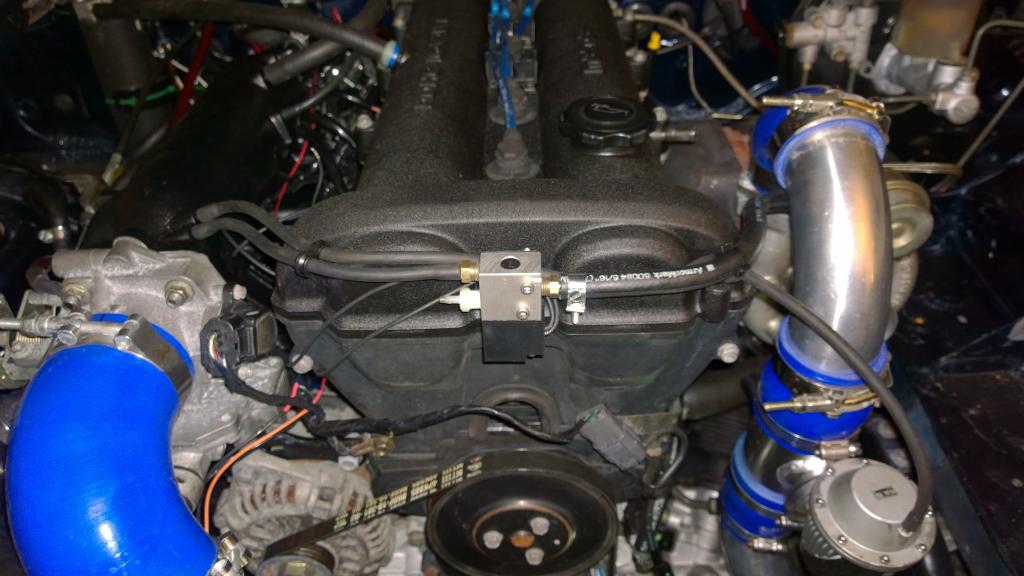

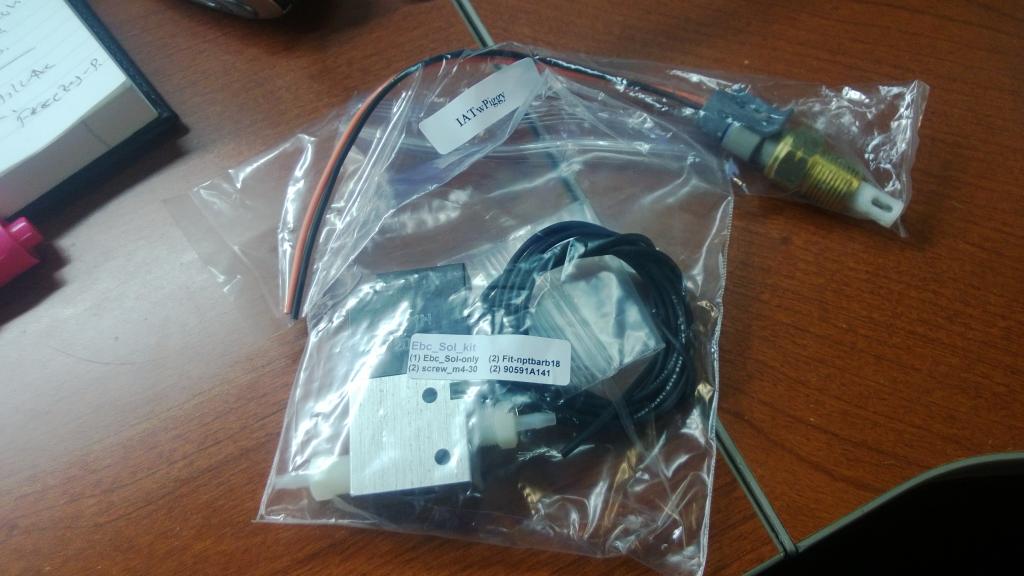

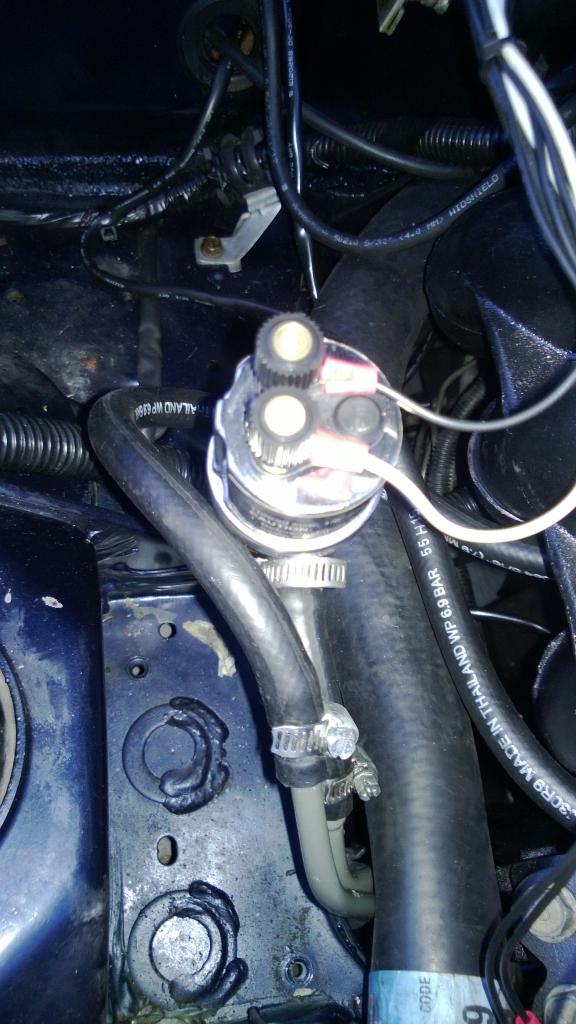

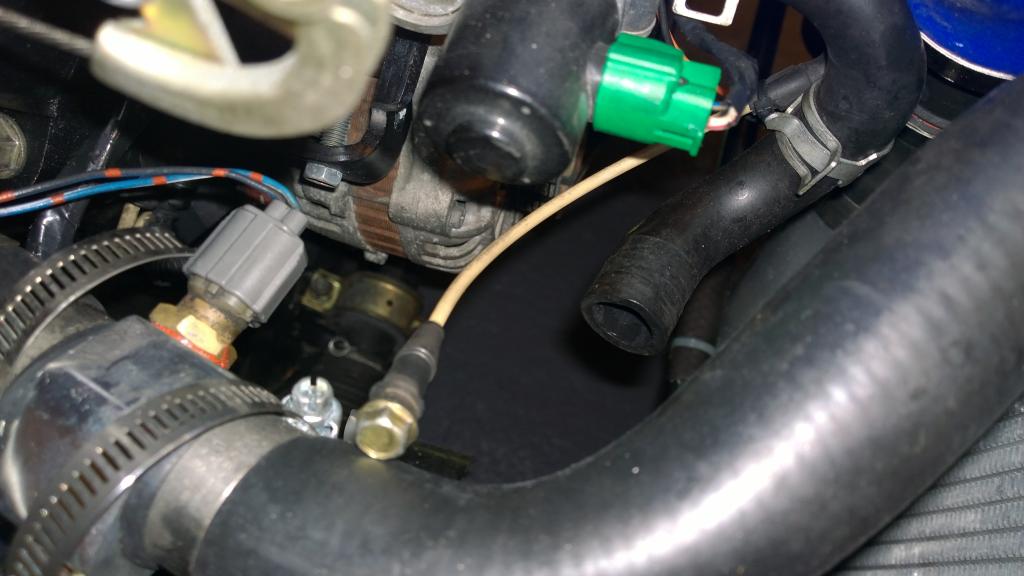

installing EBC for the MSPNP2


venting it for now while i figur eout what to do


need to figure out an intake for this as well
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140425_003_zpsf7cd977e.jpg   In-Too-Depp Turbo Build-wp_20140425_014_zps91d864be.jpg   In-Too-Depp Turbo Build-wp_20140503_010_zpsc30dca4c.jpg   In-Too-Depp Turbo Build-wp_20140509_005_zps2091fea1.jpg   In-Too-Depp Turbo Build-wp_20140510_006_zps0069d7dc.jpg

In-Too-Depp Turbo Build-wp_20140517_001_zps76eecddc.jpg   In-Too-Depp Turbo Build-wp_20140519_002_zps385a8a9a.jpg   In-Too-Depp Turbo Build-wp_20140519_0011_zps9762188b.jpg   In-Too-Depp Turbo Build-wp_20140519_0021_zps92055d26.jpg   In-Too-Depp Turbo Build-wp_20140519_003_zps49b855c4.jpg

In-Too-Depp Turbo Build-wp_20140521_002_zps216305ee.jpg   In-Too-Depp Turbo Build-wp_20140521_003_zps807ce8ff.jpg   In-Too-Depp Turbo Build-wp_20140521_007_zps883dcb0d.jpg   In-Too-Depp Turbo Build-wp_20140525_002_zps9453968a.jpg   In-Too-Depp Turbo Build-wp_20140525_004_zps70b30516.jpg

In-Too-Depp Turbo Build-wp_20140525_008_zps6998269d.jpg   In-Too-Depp Turbo Build-wp_20140526_001_zpsf9bb2552.jpg   In-Too-Depp Turbo Build-wp_20140526_002_zpsb1564bb6.jpg   In-Too-Depp Turbo Build-wp_20140526_005_zps78f5733c.jpg   In-Too-Depp Turbo Build-wp_20140526_006_zps6d67a34a.jpg

In-Too-Depp Turbo Build-wp_20140526_007_zps2c3aa7fa.jpg   In-Too-Depp Turbo Build-wp_20140526_008_zps44111c84.jpg   In-Too-Depp Turbo Build-wp_20140526_010_zpsc4ad7a8c.jpg   In-Too-Depp Turbo Build-wp_20140526_011_zpsc61dd657.jpg   In-Too-Depp Turbo Build-wp_20140526_012_zps7df74534.jpg

In-Too-Depp Turbo Build-wp_20140526_015_zps6bad0043.jpg   In-Too-Depp Turbo Build-wp_20140526_016_zpsc9c24f3c.jpg   In-Too-Depp Turbo Build-wp_20140526_017_zpsae8bef14.jpg   In-Too-Depp Turbo Build-wp_20140526_018_zpsf5f6ab6f.jpg   In-Too-Depp Turbo Build-wp_20140526_019_zps560c2936.jpg

In-Too-Depp Turbo Build-wp_20140526_020_zps98c4b82d.jpg   In-Too-Depp Turbo Build-wp_20140526_021_zps82a8cdd4.jpg   In-Too-Depp Turbo Build-wp_20140526_022_zpse0a78e38.jpg   In-Too-Depp Turbo Build-wp_20140526_023_zps9fb2b8fb.jpg   In-Too-Depp Turbo Build-wp_20140526_024_zps4947cac4.jpg

In-Too-Depp Turbo Build-wp_20140527_009_zps2ddaf8ae.jpg   In-Too-Depp Turbo Build-wp_20140527_010_zps10719fb5.jpg   In-Too-Depp Turbo Build-wp_20140530_001_zps77002716.jpg   In-Too-Depp Turbo Build-wp_20140530_0011_zps07c9b8eb.jpg   In-Too-Depp Turbo Build-wp_20140530_003_zpsf9088dd5.jpg

In-Too-Depp Turbo Build-wp_20140530_004_zps96da5e59.jpg
Alejo_NIN is offline   Reply With Quote
Old 07-22-2014, 12:03 PM   #78
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

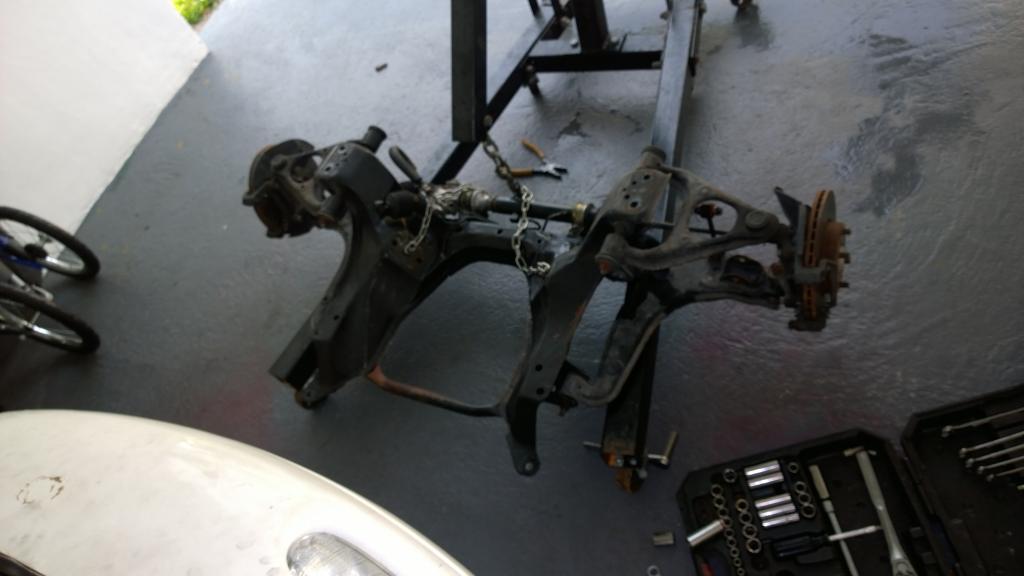

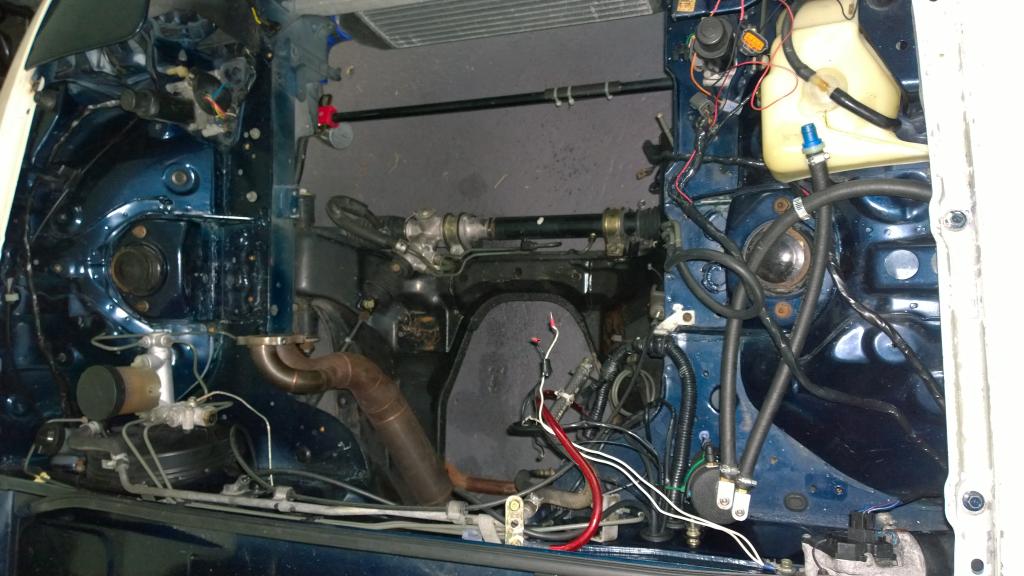

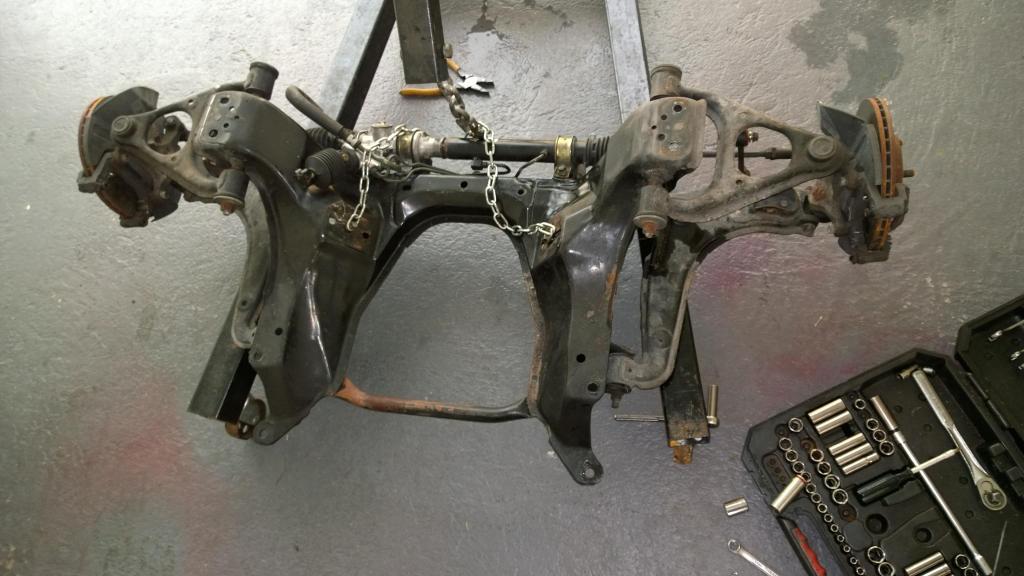

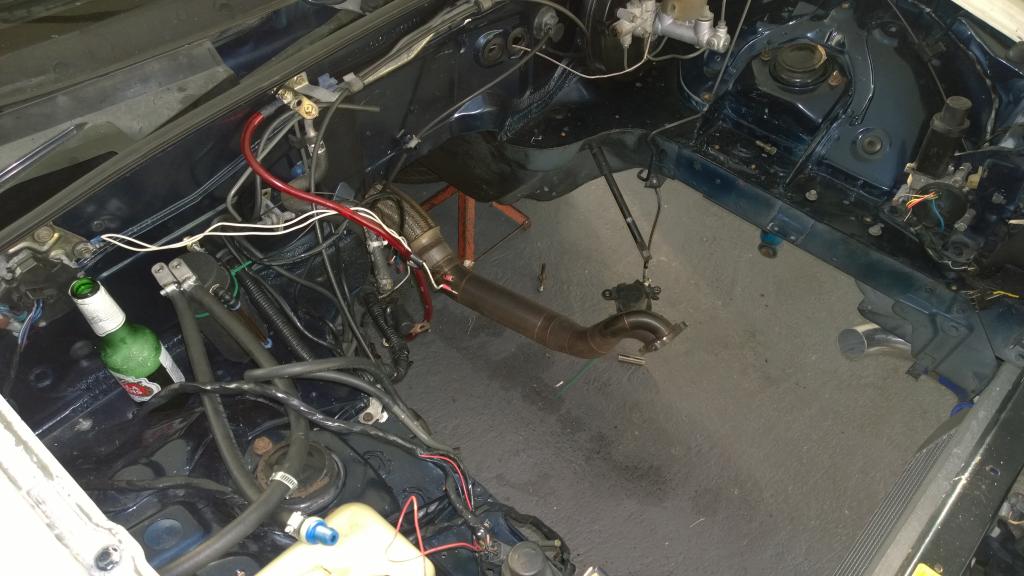

before rmeoving subframe


after:

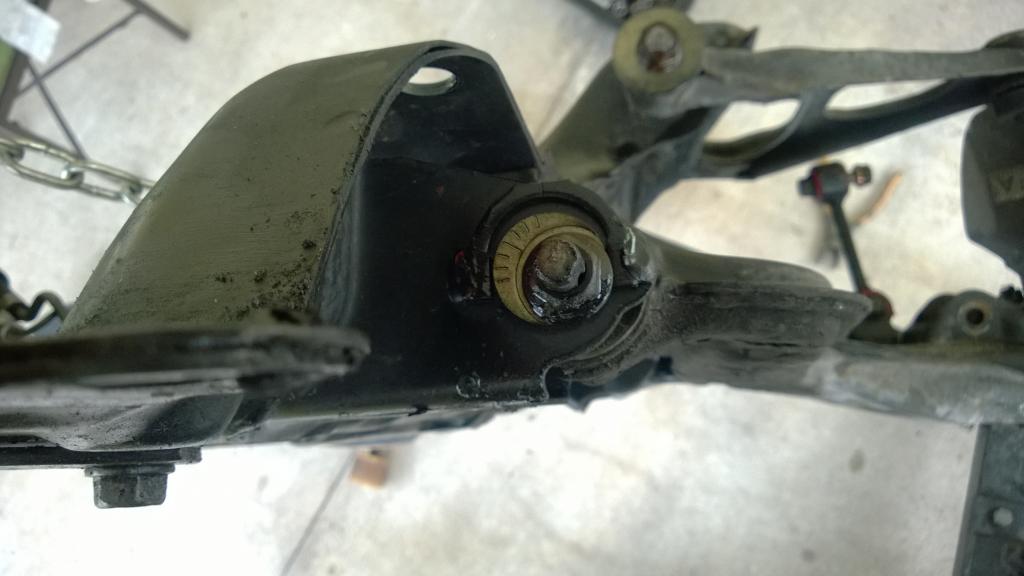

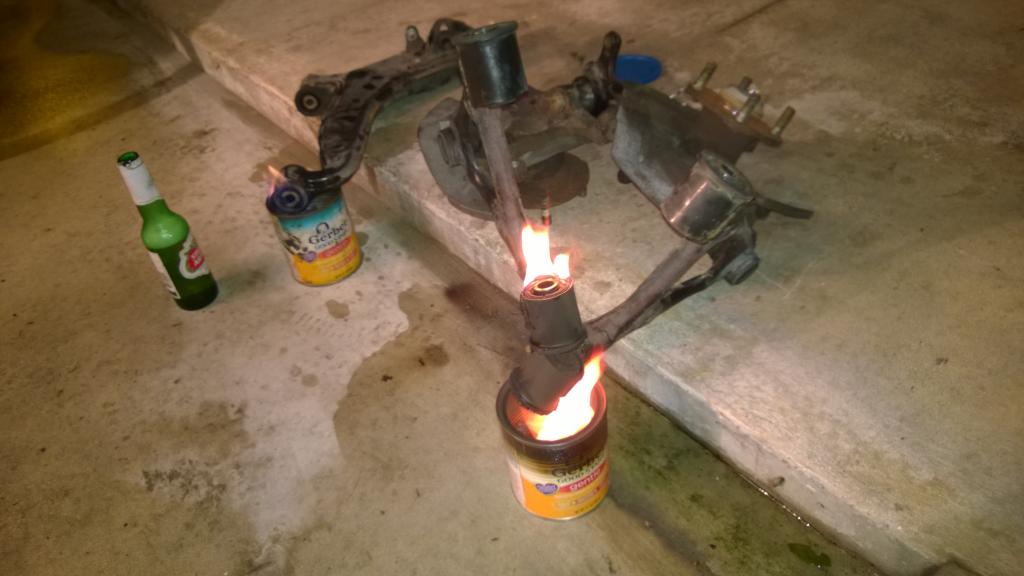

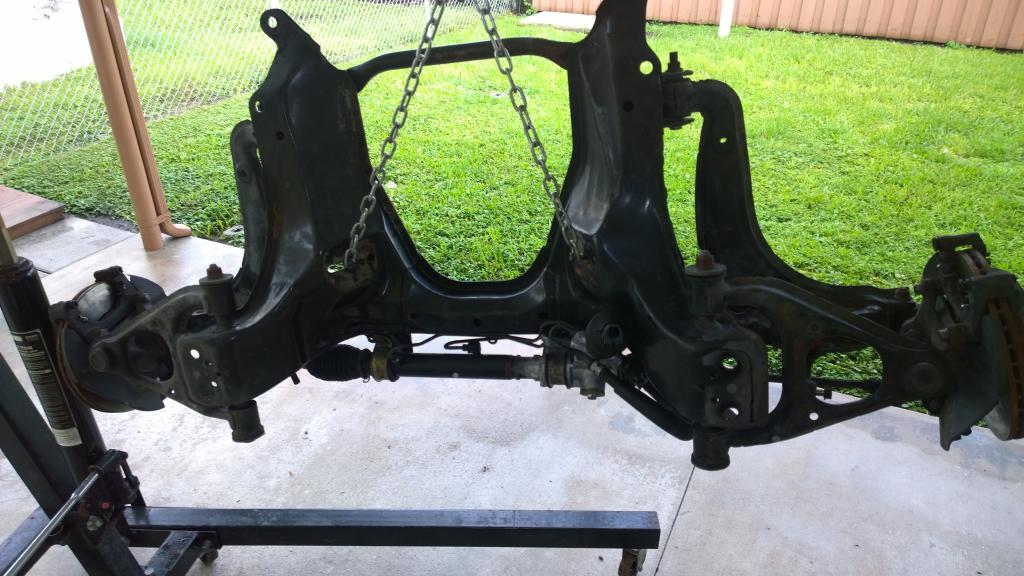

removing bushings...this idea FAILS...too long..too toxic...failed


using the old threaded rod and washers yielded a better result.
didn't take any pics of the process
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140703_007_zps58c20fdb.jpg   In-Too-Depp Turbo Build-wp_20140703_008_zpsea15f334.jpg   In-Too-Depp Turbo Build-wp_20140703_009_zpse2c33e05.jpg   In-Too-Depp Turbo Build-wp_20140703_010_zps7f31ebbf.jpg   In-Too-Depp Turbo Build-wp_20140703_011_zps73c0ad56.jpg

In-Too-Depp Turbo Build-wp_20140703_003_zpsedcc066f.jpg   In-Too-Depp Turbo Build-wp_20140703_0071_zps815ac743.jpg
Alejo_NIN is offline   Reply With Quote
Old 07-22-2014, 12:04 PM   #79
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

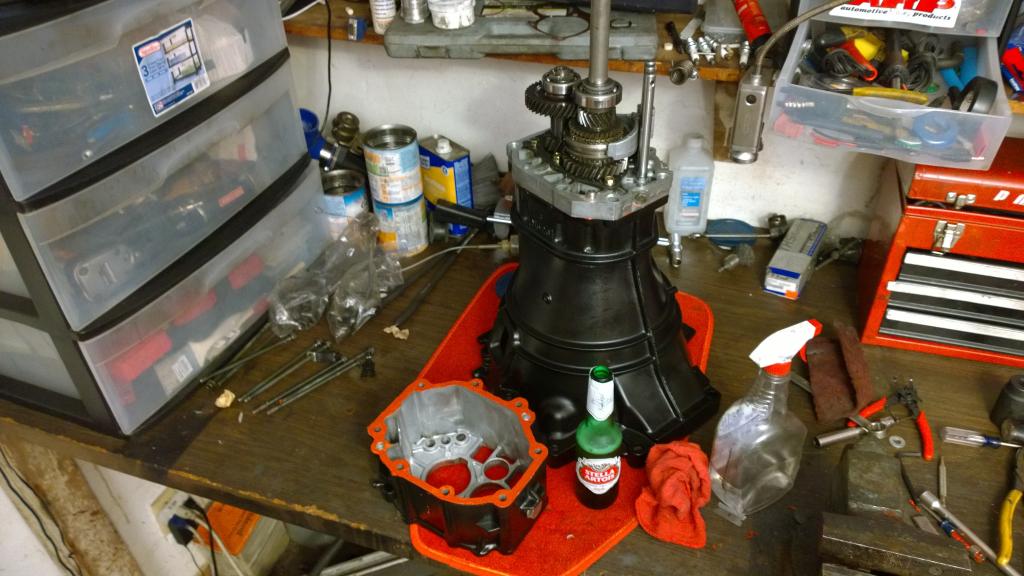

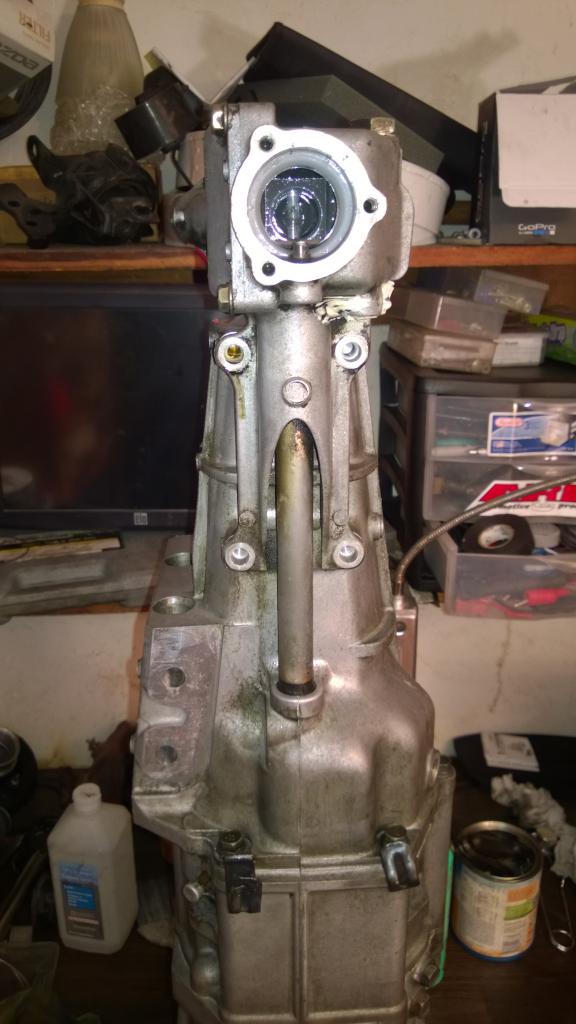

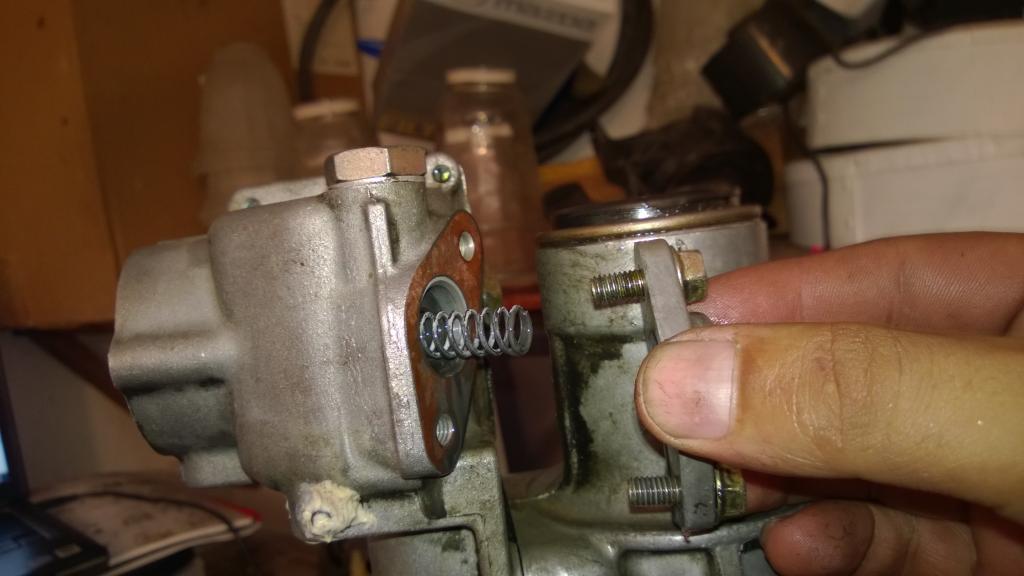

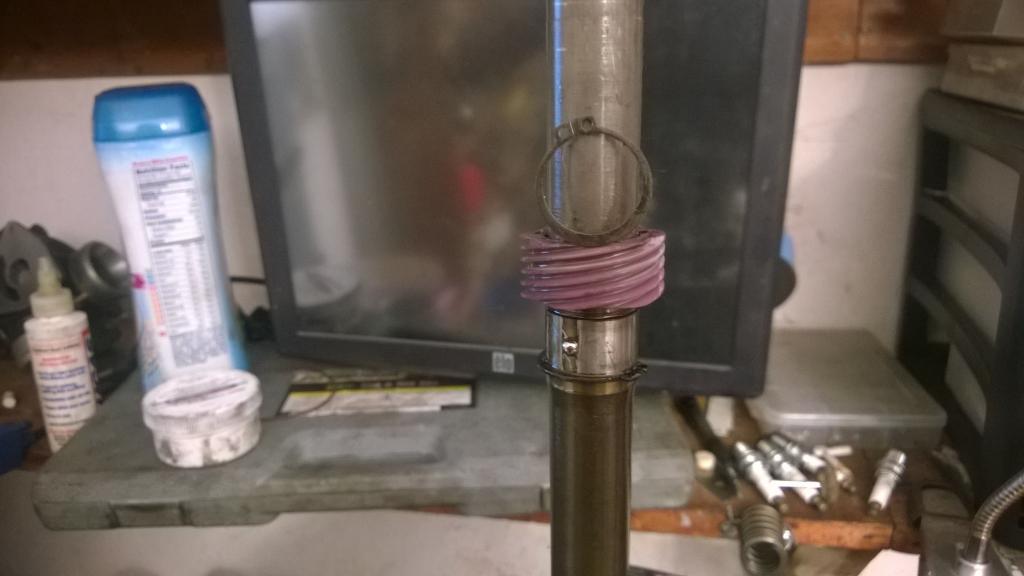

took apart transmission to clena it and replace seals

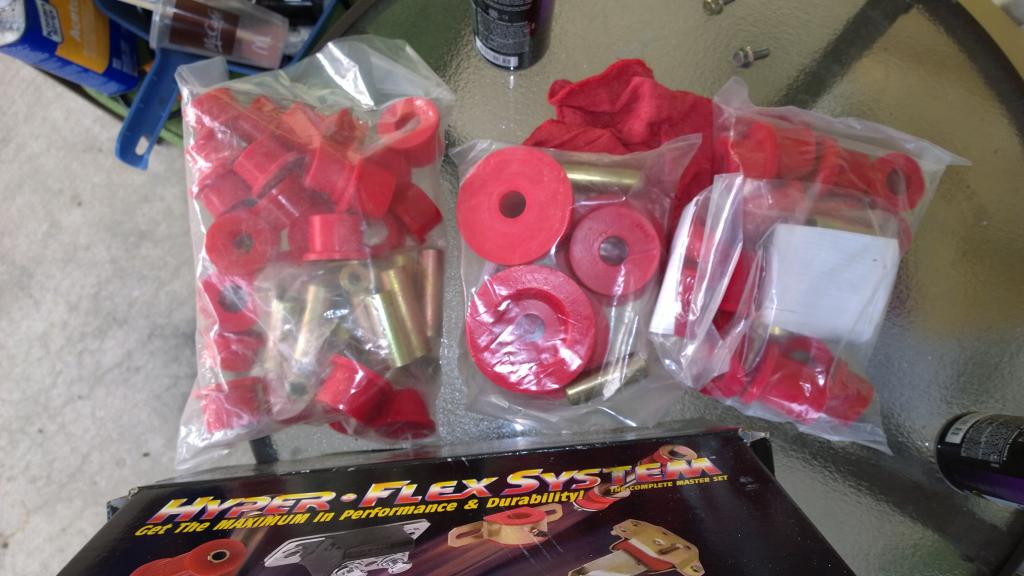

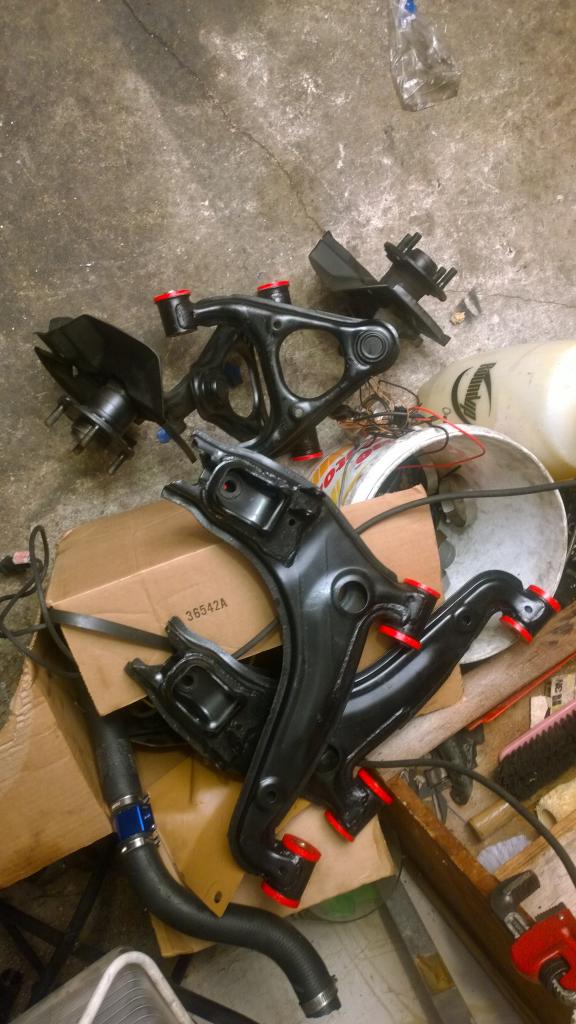

poly bushings for control arms

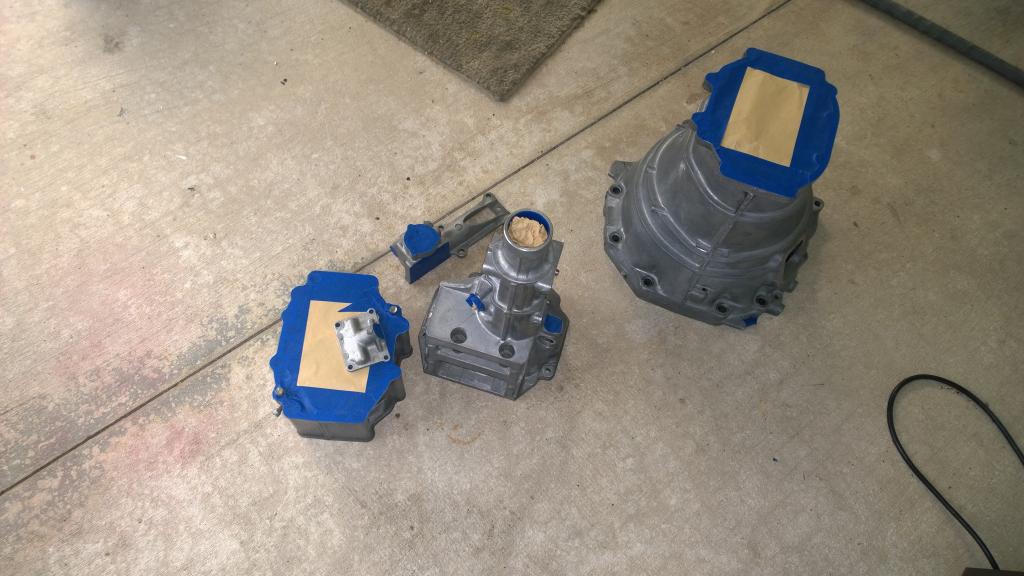

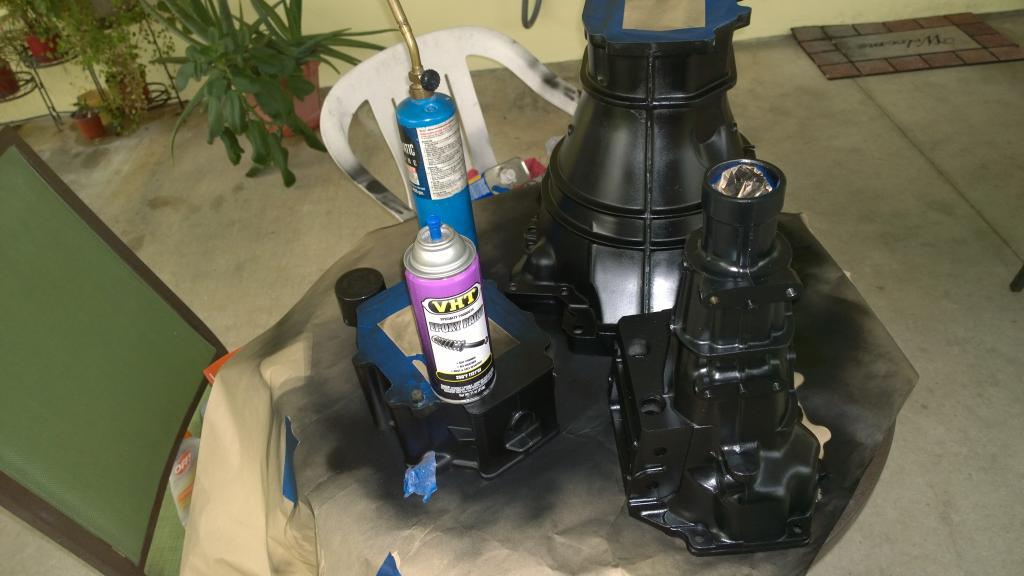

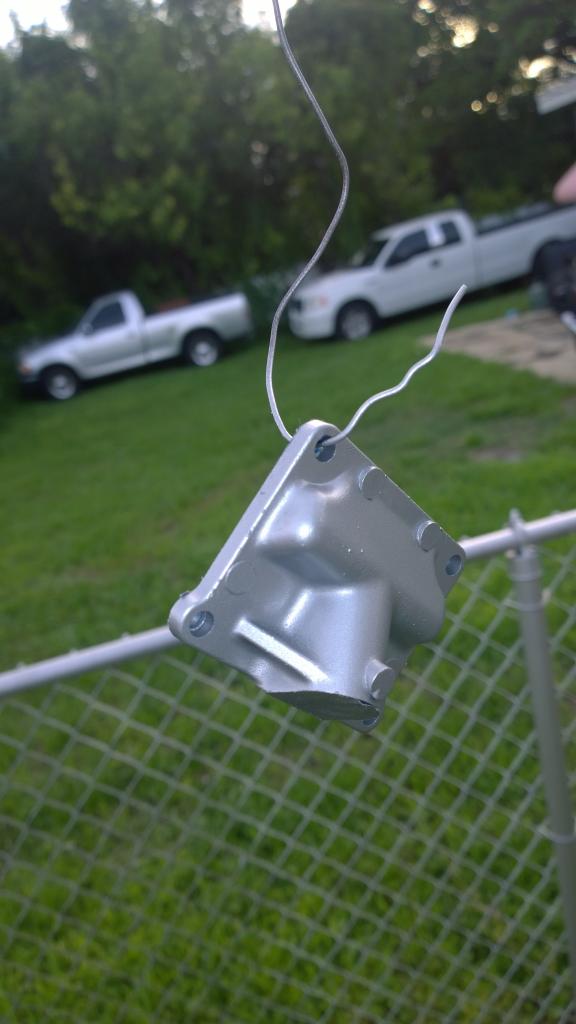

preping for paint on the tranny after cleaning


Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140712_001_zps69419f75.jpg   In-Too-Depp Turbo Build-wp_20140712_005_zps340bb2d7.jpg   In-Too-Depp Turbo Build-wp_20140712_013_zpsf5b080ce.jpg   In-Too-Depp Turbo Build-wp_20140712_020_zps45ea9e2e.jpg   In-Too-Depp Turbo Build-wp_20140713_002_zpsaf9c4eeb.jpg

In-Too-Depp Turbo Build-wp_20140713_003_zps94bd402b.jpg   In-Too-Depp Turbo Build-wp_20140713_008_zps63f02de9.jpg
Alejo_NIN is offline   Reply With Quote
Old 07-22-2014, 12:44 PM   #80
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

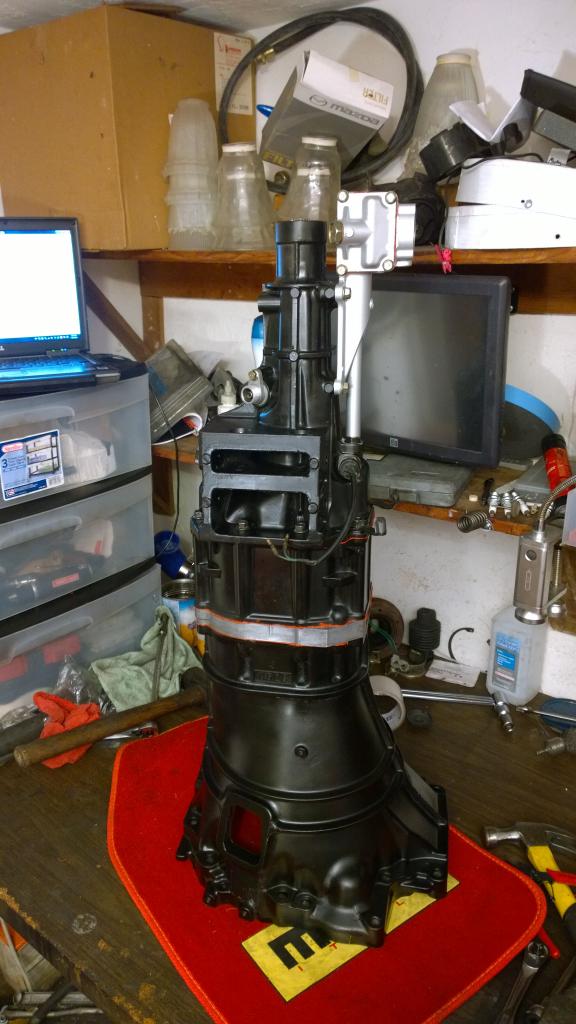

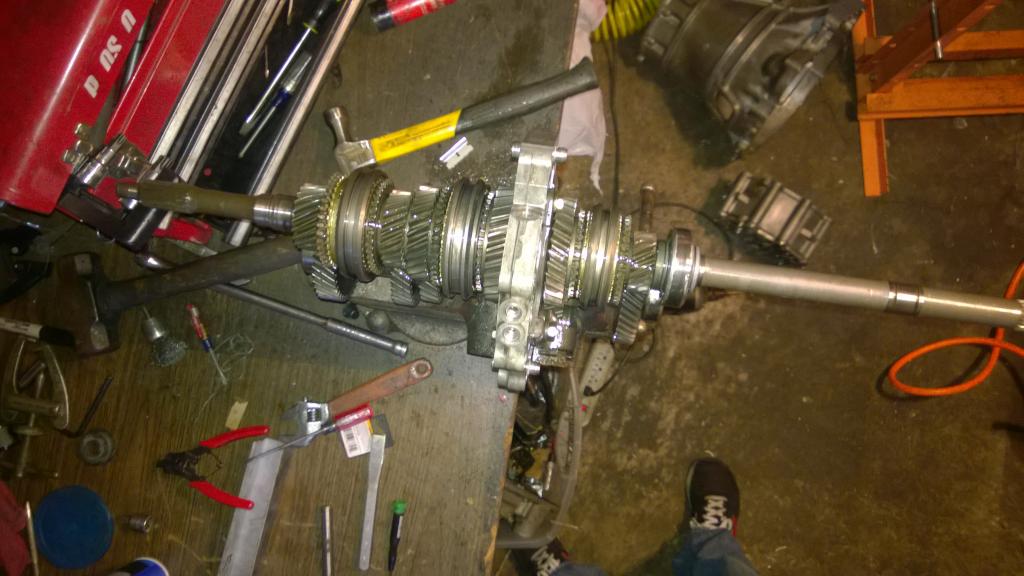

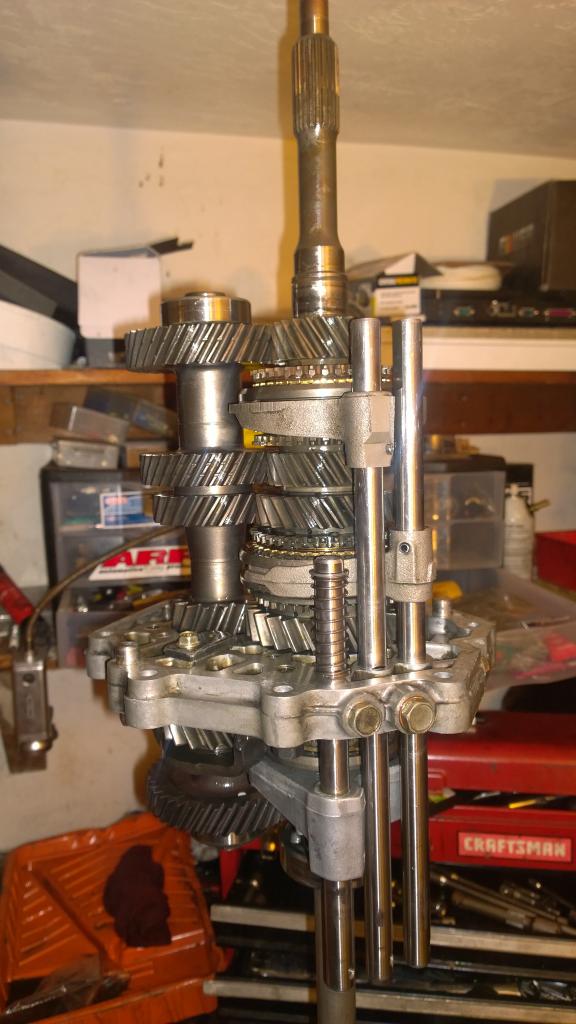

took apart the transmission to clean it up a bit and paint the case
















then cleaned and replaced the bushing on the control arms
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140712_020_zps45ea9e2e.jpg   In-Too-Depp Turbo Build-wp_20140712_013_zpsf5b080ce.jpg   In-Too-Depp Turbo Build-wp_20140712_005_zps340bb2d7.jpg   In-Too-Depp Turbo Build-wp_20140712_001_zps69419f75.jpg   In-Too-Depp Turbo Build-wp_20140717_003_zps4bc6a13c.jpg

In-Too-Depp Turbo Build-wp_20140718_009_zpsdf62cb8b.jpg   In-Too-Depp Turbo Build-wp_20140720_001_zps909ea40c.jpg   In-Too-Depp Turbo Build-wp_20140720_002_zps92c0cca6.jpg   In-Too-Depp Turbo Build-wp_20140719_004_zps59219f42.jpg
Alejo_NIN is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
LucaCarMods's Boosted Dutch Miata Build! LucaCarMods Build Threads 11 02-14-2016 07:13 AM
Bad head gasket or ? shooterschmidty Engine Performance 8 09-30-2015 11:28 PM
Low oil pressure after 1.8 swap and new turbo setup JesseTheNoob DIY Turbo Discussion 15 09-30-2015 03:44 PM
3rd Time's a Charm...hopefully. zephyrusaurai Meet and Greet 2 09-28-2015 11:59 PM
K&N Intake Filter nbdooey Miata parts for sale/trade 0 09-28-2015 09:46 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 01:47 AM.
