Old 10-08-2014, 03:43 PM   #121
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

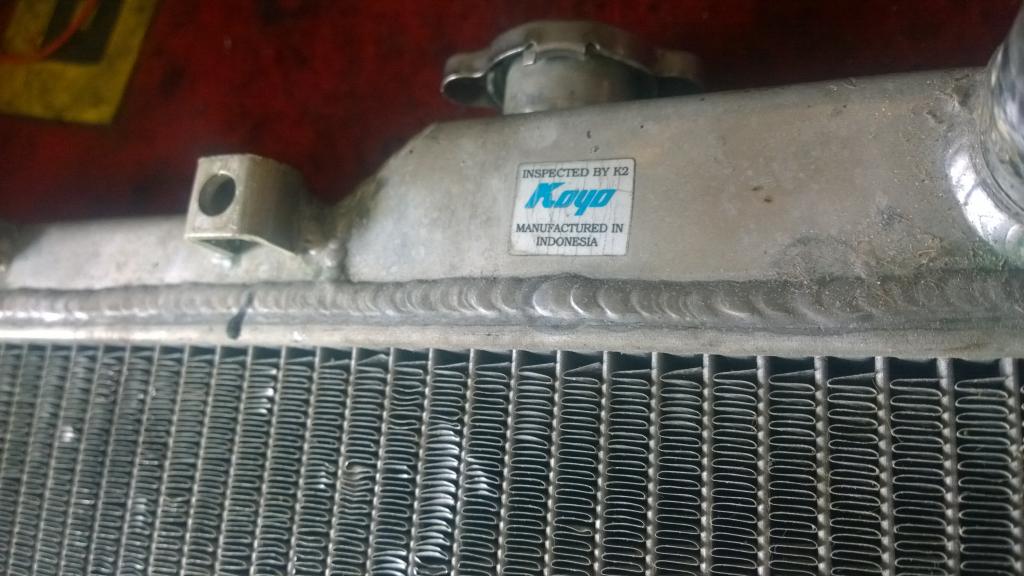

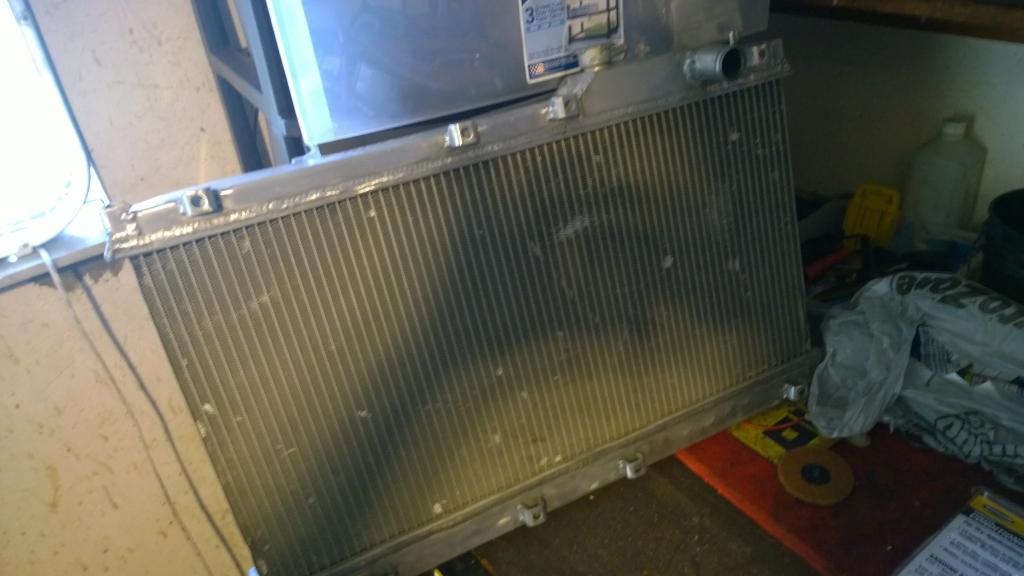

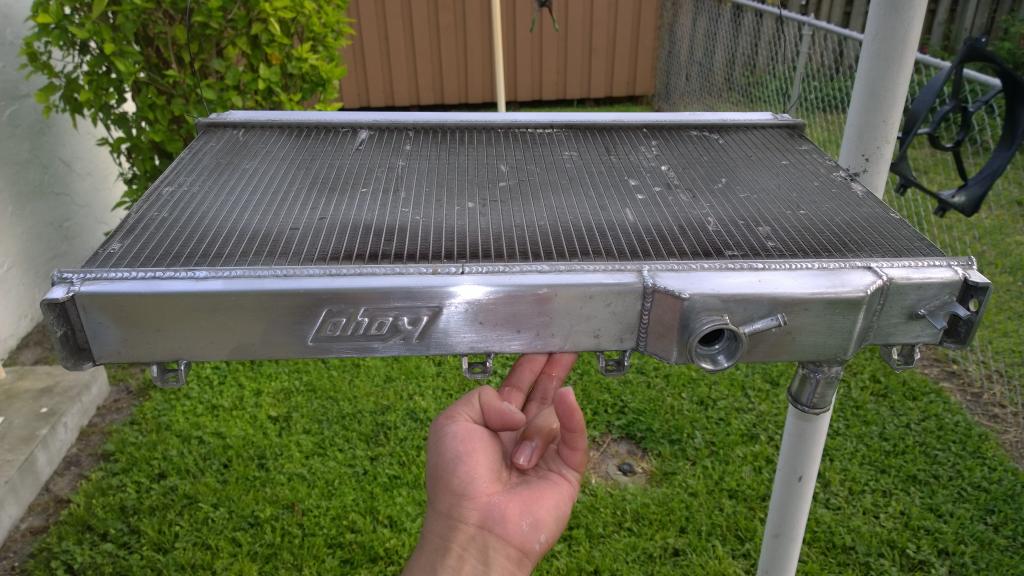

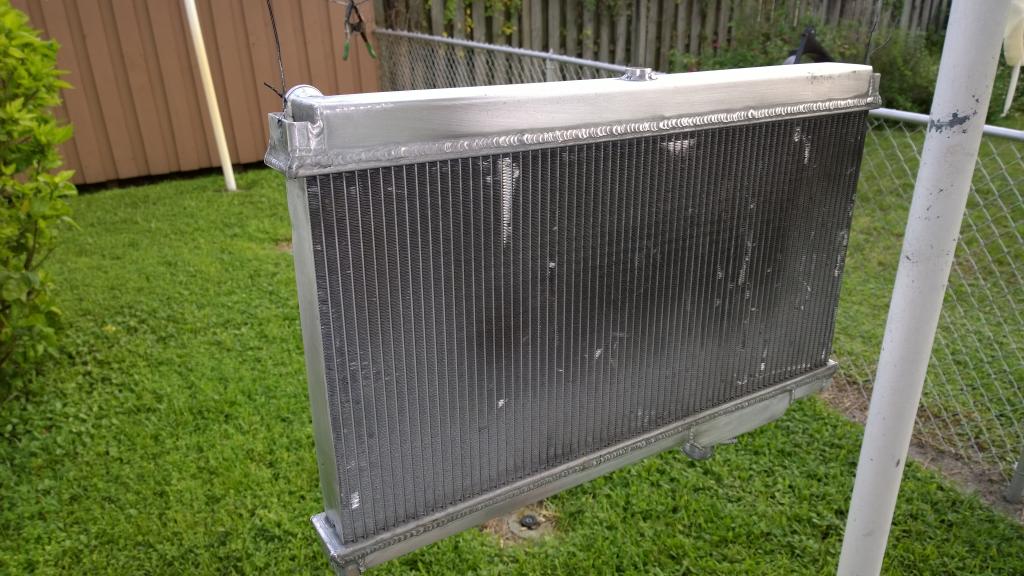

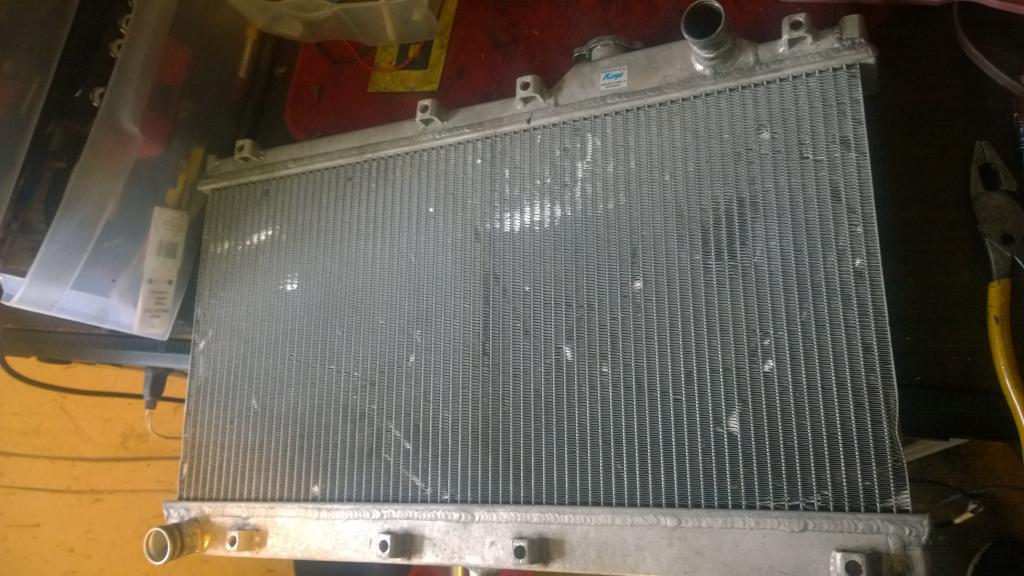

scored a toyo racing radiator for 150$
just needed some TLC

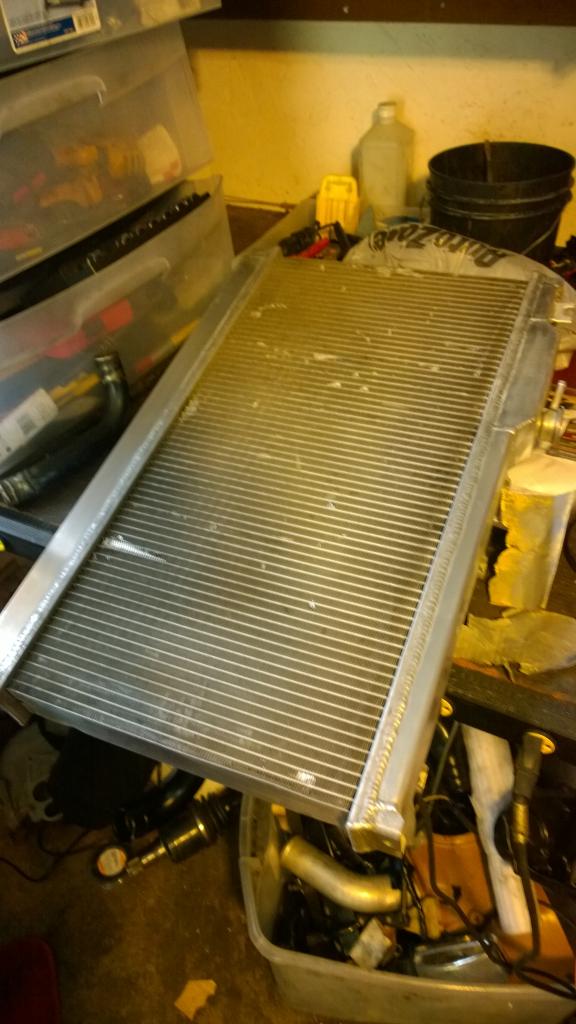

cleaning it and sanding it down






it looked good but....i hate shiny metal...so..

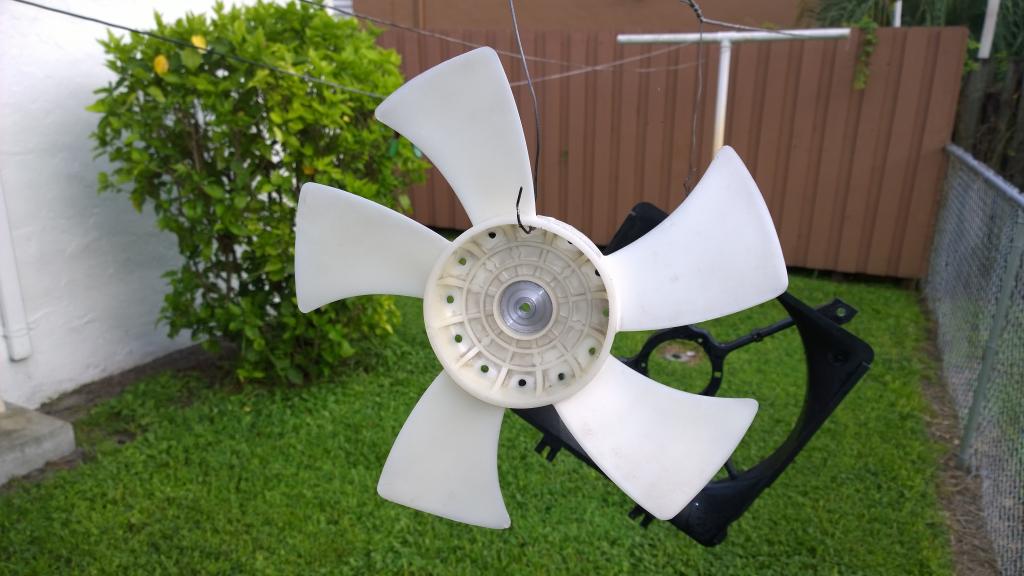

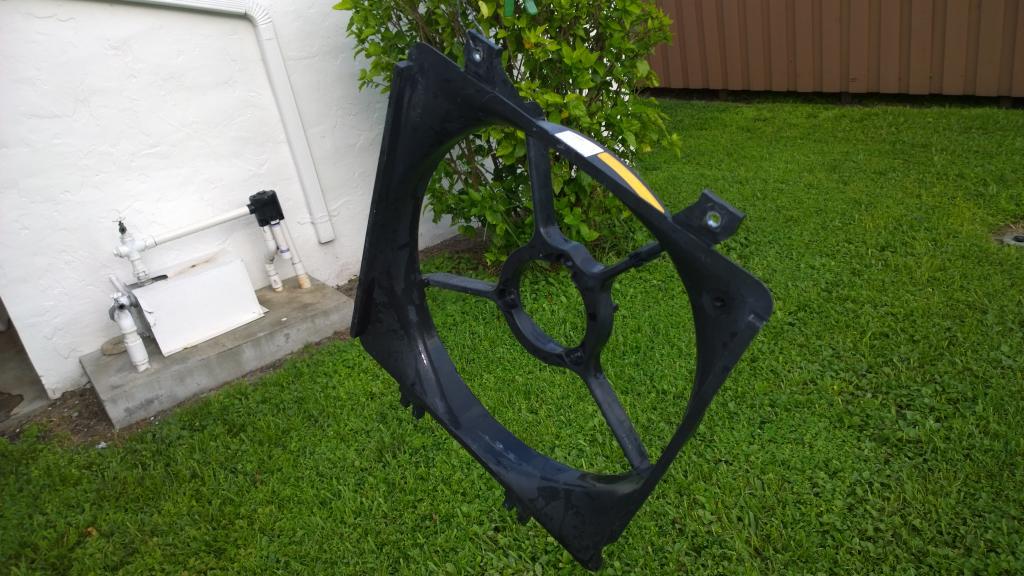

removed my crappy slimfan and replaced it with the OEM fan..but first..it needed to be cleaned

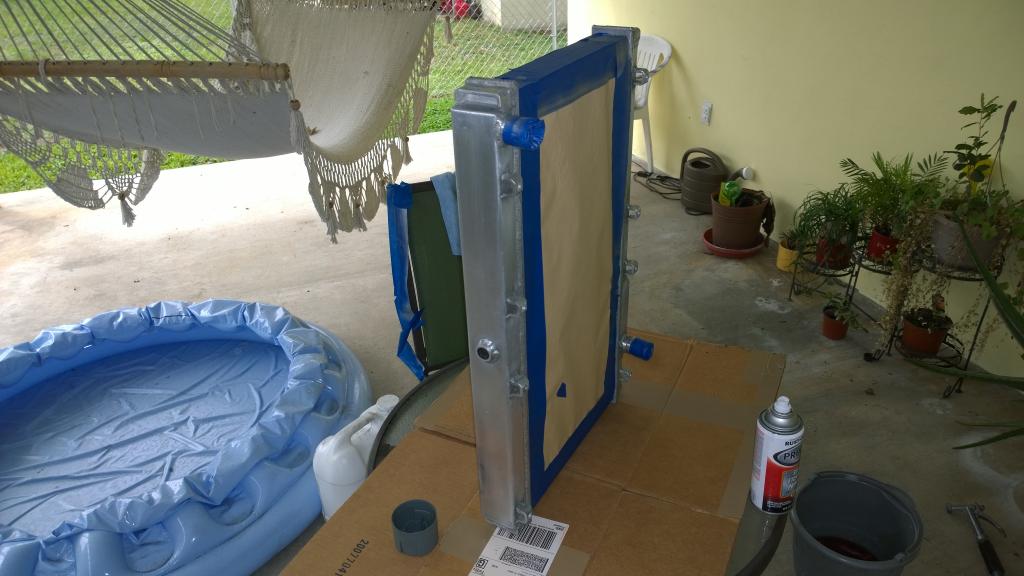

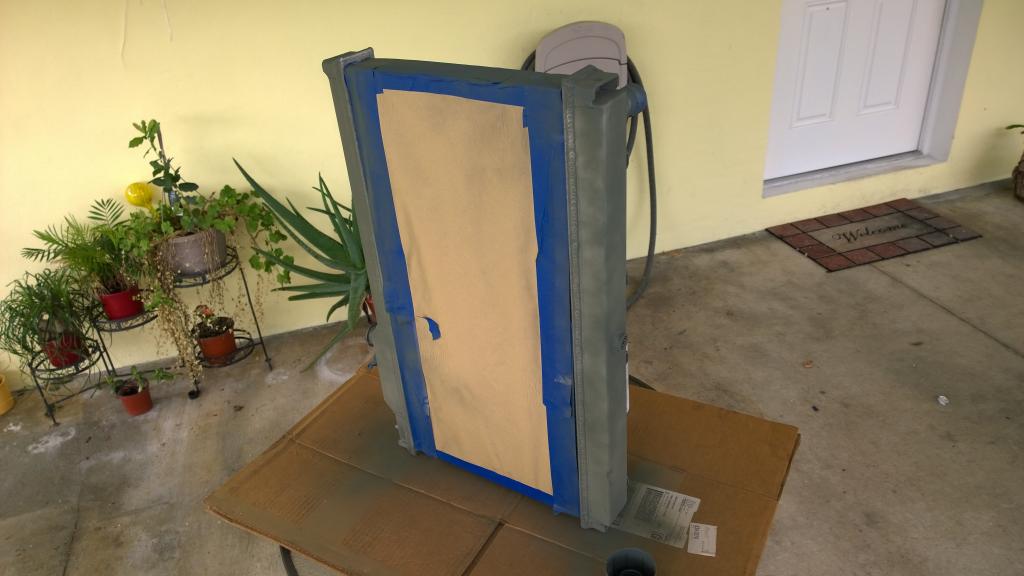

as i said, cna't stand shiny stuff..so it'll be getting the black out treatment




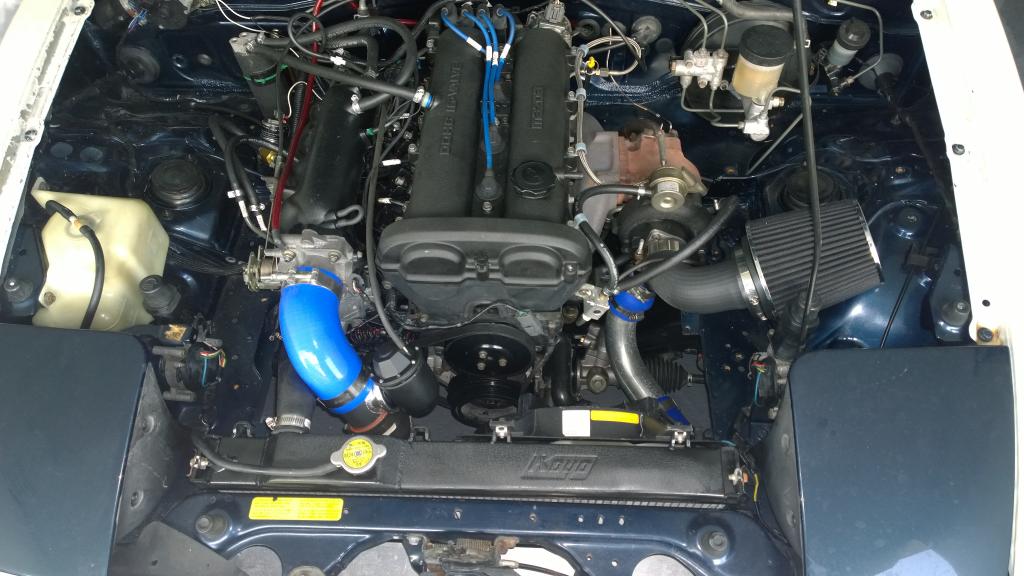

final product
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140923_003_zpse250c742.jpg   In-Too-Depp Turbo Build-wp_20140923_004_zps68894e92.jpg   In-Too-Depp Turbo Build-wp_20140923_005_zps0d76d05b.jpg   In-Too-Depp Turbo Build-wp_20140923_006_zps0d7537f6.jpg   In-Too-Depp Turbo Build-wp_20140923_008_zps0d66dbec.jpg

In-Too-Depp Turbo Build-wp_20140923_009_zpsd8b64d51.jpg   In-Too-Depp Turbo Build-wp_20140923_010_zps9e5c92f2.jpg   In-Too-Depp Turbo Build-wp_20140923_011_zpsf95d32ac.jpg   In-Too-Depp Turbo Build-wp_20140923_012_zpsccc12840.jpg   In-Too-Depp Turbo Build-wp_20140924_001_zpsa738f20e.jpg

In-Too-Depp Turbo Build-wp_20140924_003_zps3d498a87.jpg   In-Too-Depp Turbo Build-wp_20140927_007_zps0d10df9c.jpg
Alejo_NIN is offline   Reply With Quote
Old 10-08-2014, 03:46 PM   #122
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

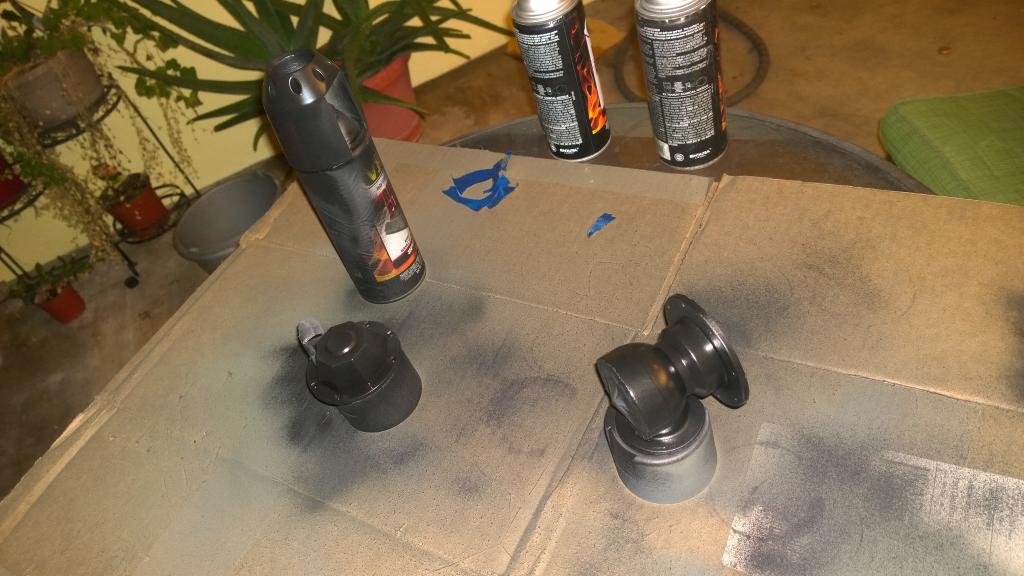

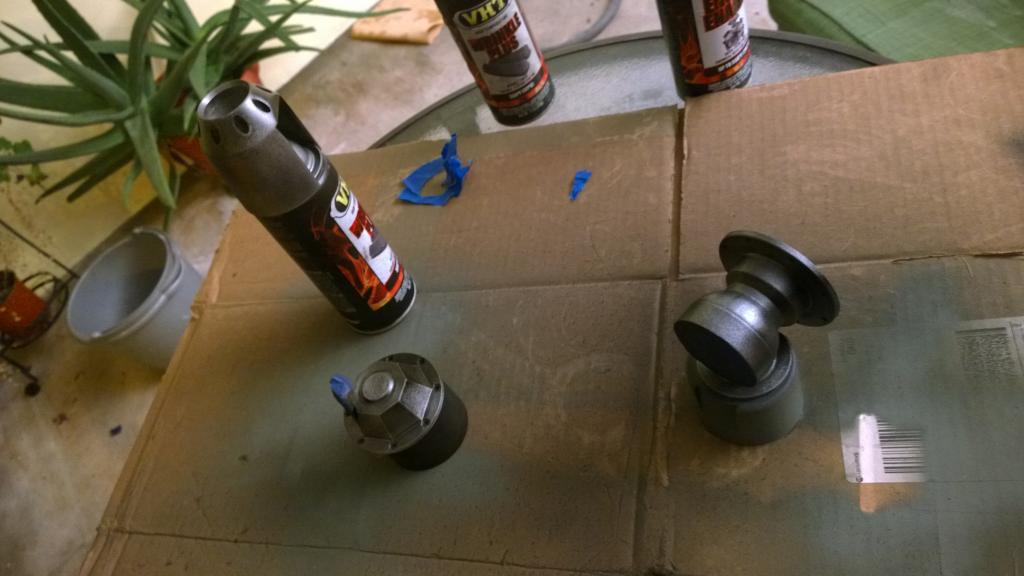

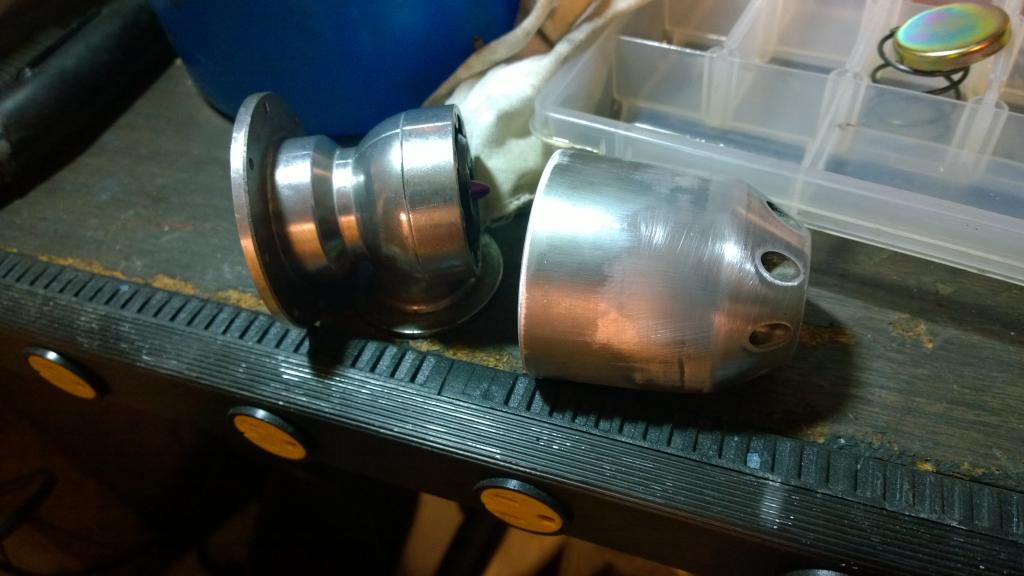

replaced the BOV because it was fluttering..but again..to shiny..so blacked out it is

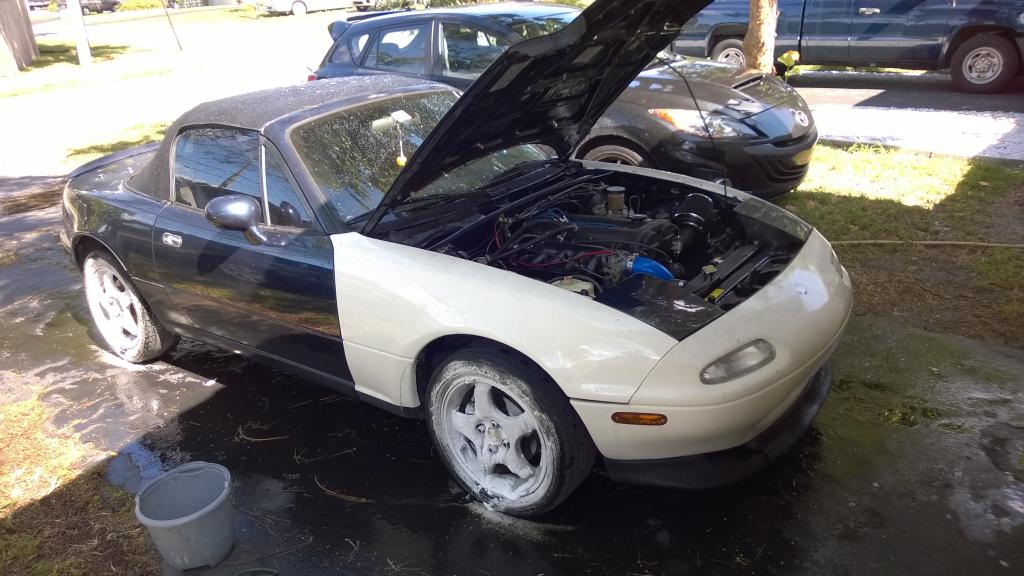

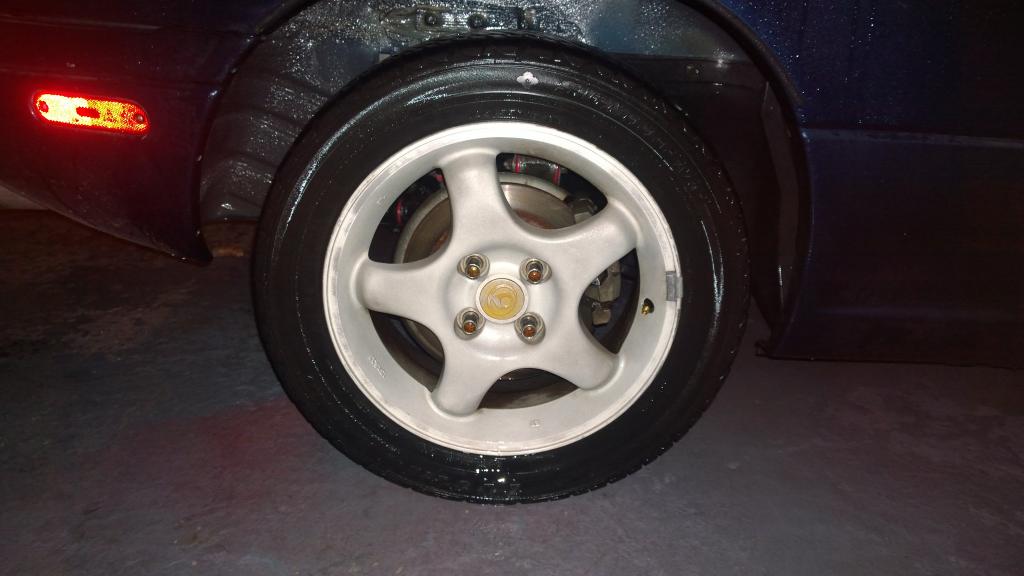

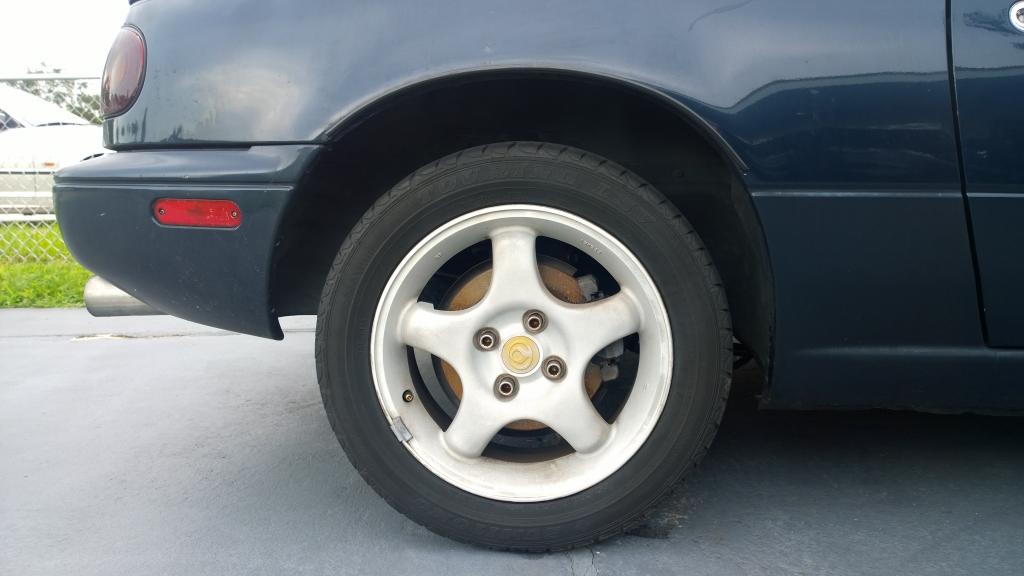

cleaned the wheels with oven cleaner....i could not believe my eyes...grime just basically fell off




day pic

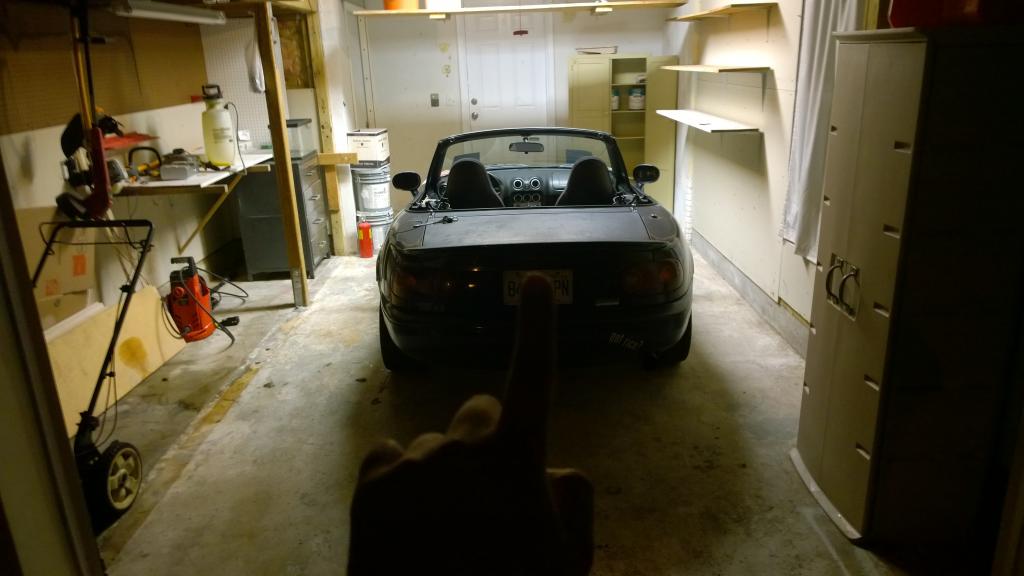

moved out into a new house..with a garage
first thing to move in was the baby


new torsen...i heard is a pain to install but i've done worse....

Attached Thumbnails
In-Too-Depp Turbo Build-wp_20140926_002_zps00b2e9e0.jpg   In-Too-Depp Turbo Build-wp_20140926_003_zpsc7ee0d45.jpg   In-Too-Depp Turbo Build-wp_20140926_004_zps54d2e130.jpg   In-Too-Depp Turbo Build-wp_20140926_008_zpsb1d738e3.jpg   In-Too-Depp Turbo Build-wp_20140930_010_zpsb9eada11.jpg

In-Too-Depp Turbo Build-wp_20141001_006_zps4e4004d5.jpg   In-Too-Depp Turbo Build-wp_20141007_001_zps5d36dec8.jpg
Alejo_NIN is offline   Reply With Quote
Old 11-26-2014, 04:53 PM   #123
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

some updates:
decided that if i was ever going to go on a long trip, i should have a radio.

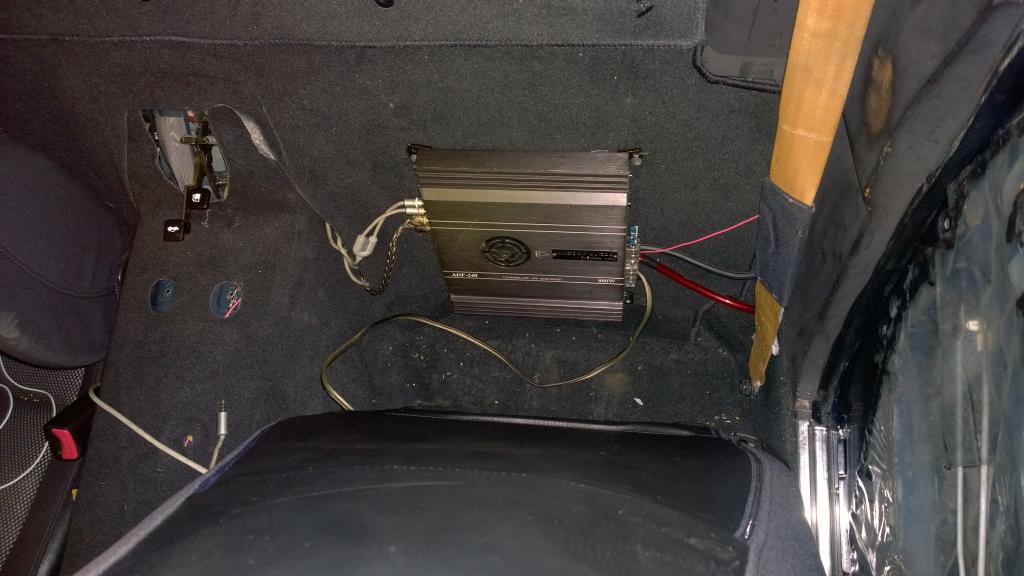

so i installed an AMP


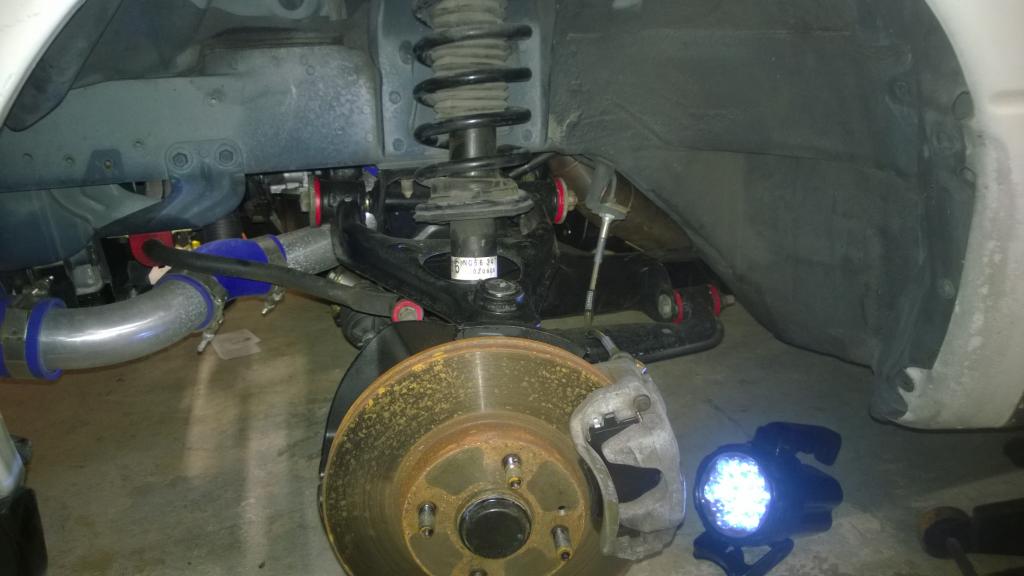

swapped suspension from NA to NB with tophats. it raised the car quiet a bit but it rides so much better on non-blown shocks

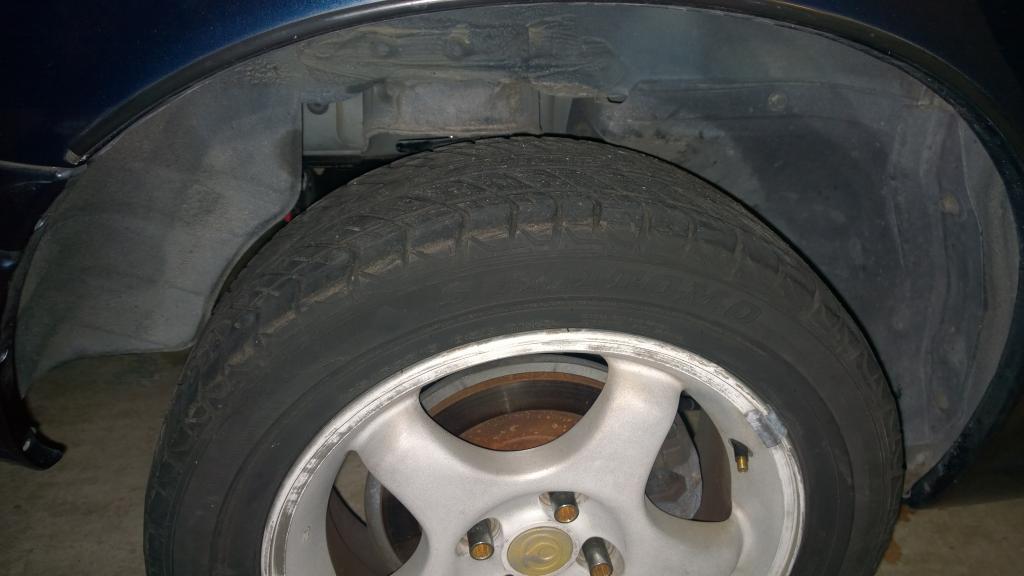

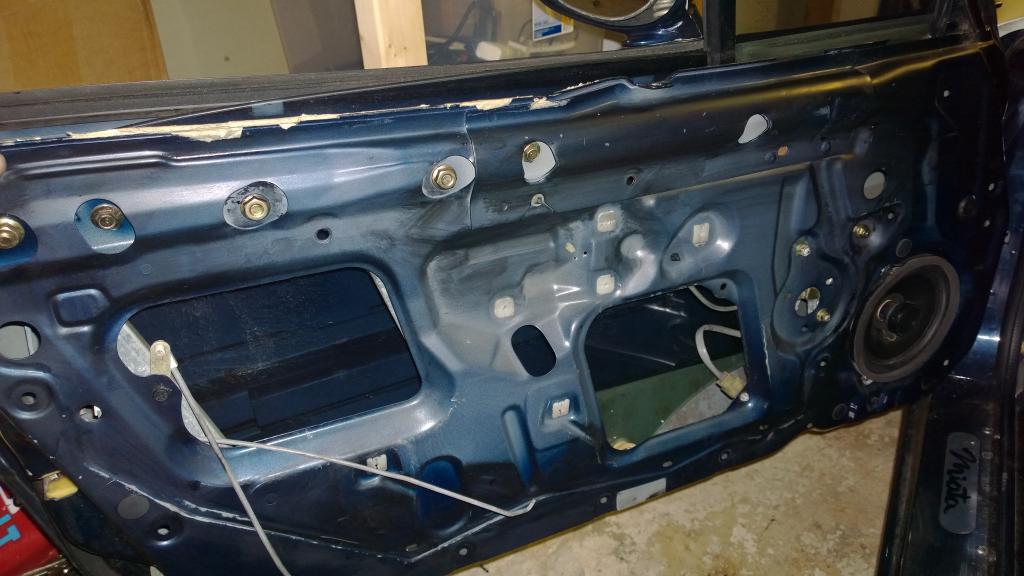

removed the plastic lining on the doors and cleaned the goo


proof that the car is not always parked:

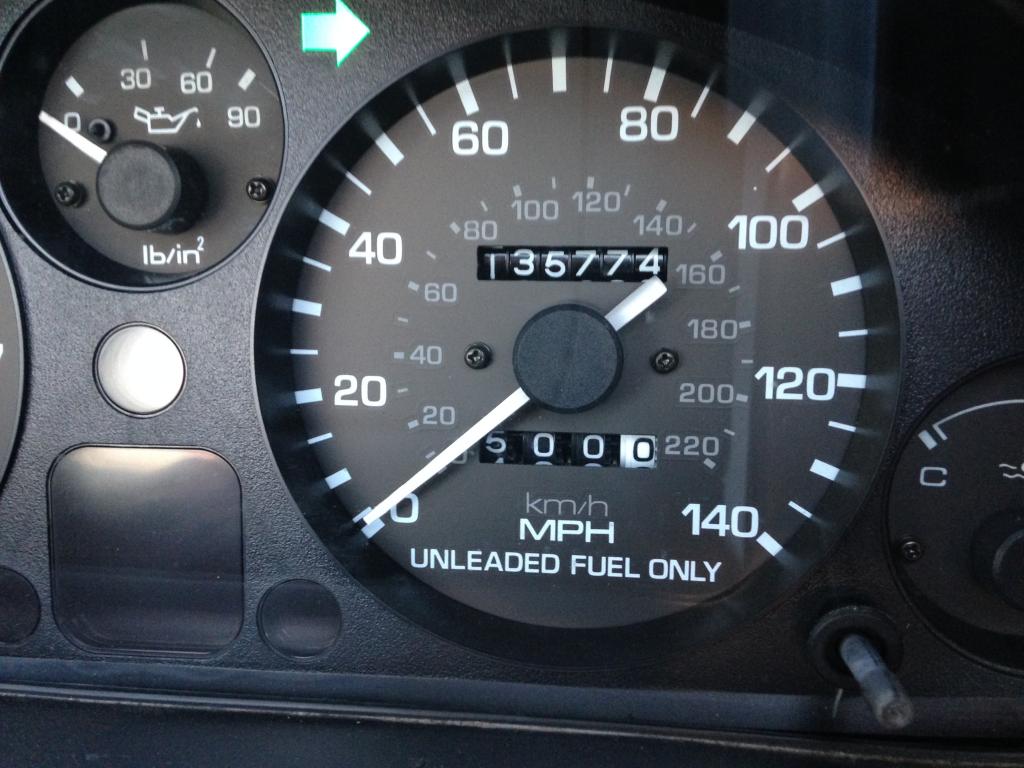

500 miles on the break in


further cleaning the wheels


Attached Thumbnails
In-Too-Depp Turbo Build-wp_20141013_005_zps794ee304.jpg   In-Too-Depp Turbo Build-wp_20141015_0011_zps2ff657f6.jpg   In-Too-Depp Turbo Build-wp_20141016_009_zps76ea5974.jpg   In-Too-Depp Turbo Build-wp_20141016_011_zps23def3ae.jpg   In-Too-Depp Turbo Build-20141031_222520950_ios_zpsb2d6b09d.jpg

In-Too-Depp Turbo Build-20141031_222644216_ios_zps58a4663f.jpg   In-Too-Depp Turbo Build-wp_20141101_001_zps2d05ada5.jpg   In-Too-Depp Turbo Build-wp_20141101_003_zpsa1ab4c00.jpg
Alejo_NIN is offline   Reply With Quote
Old 11-26-2014, 04:53 PM   #124
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

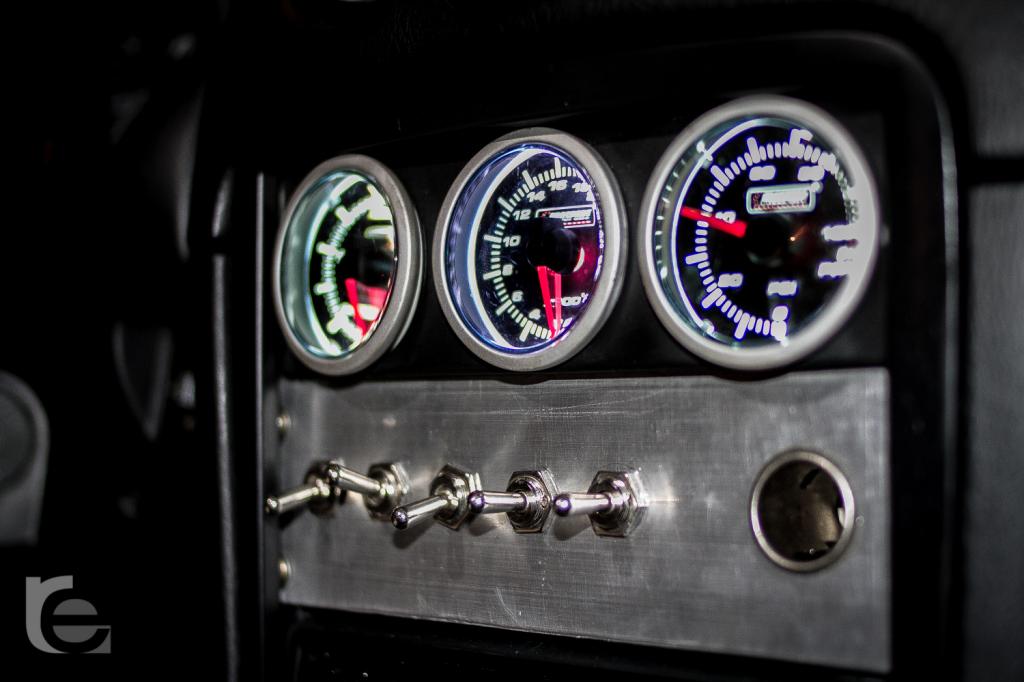

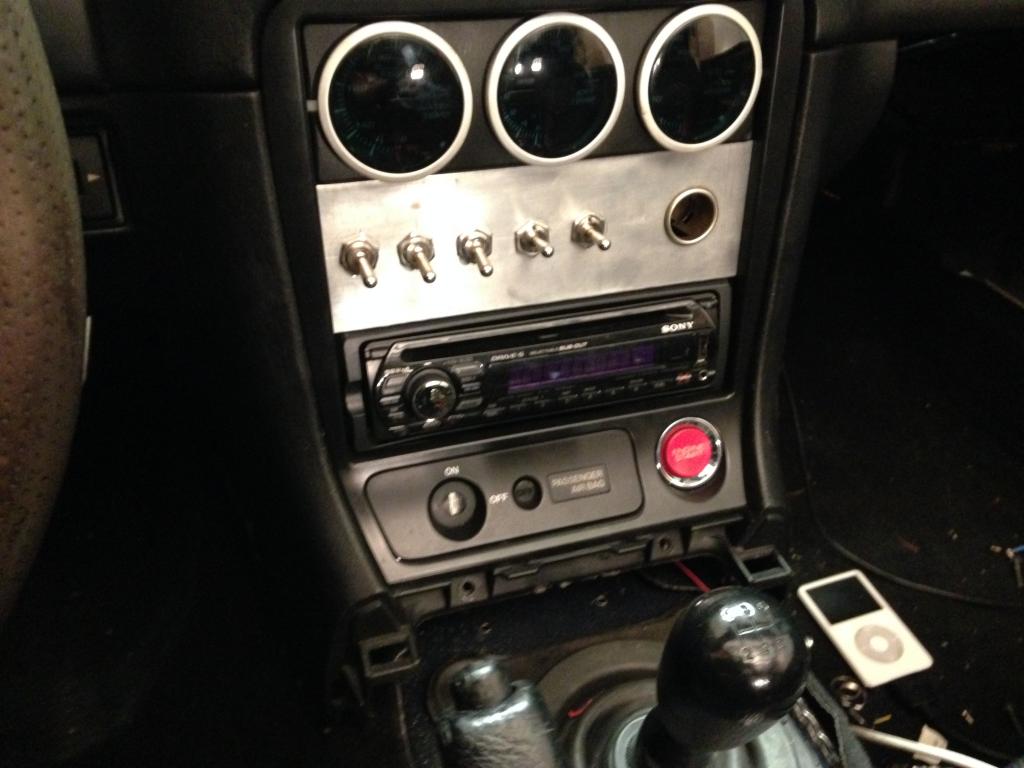

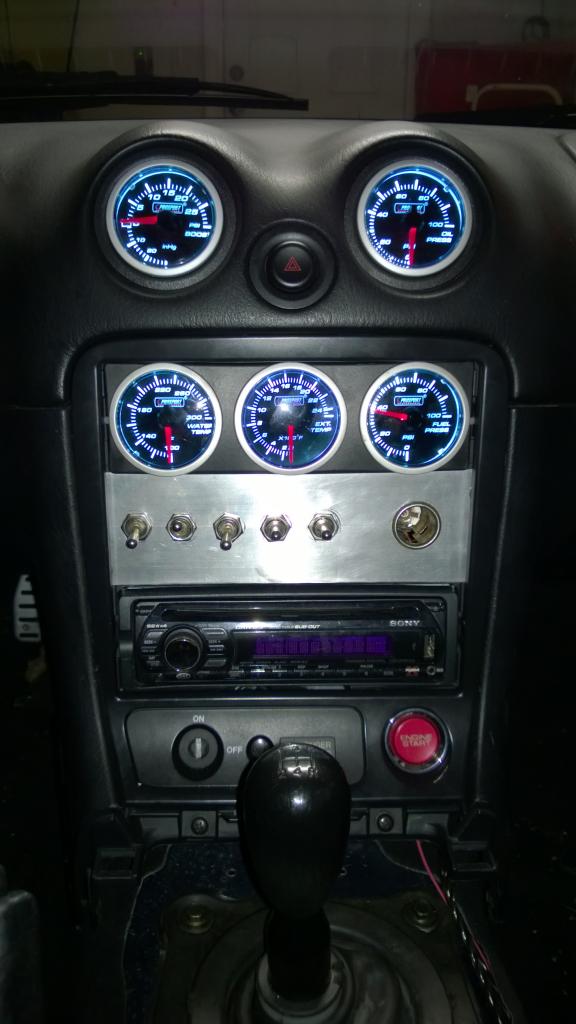

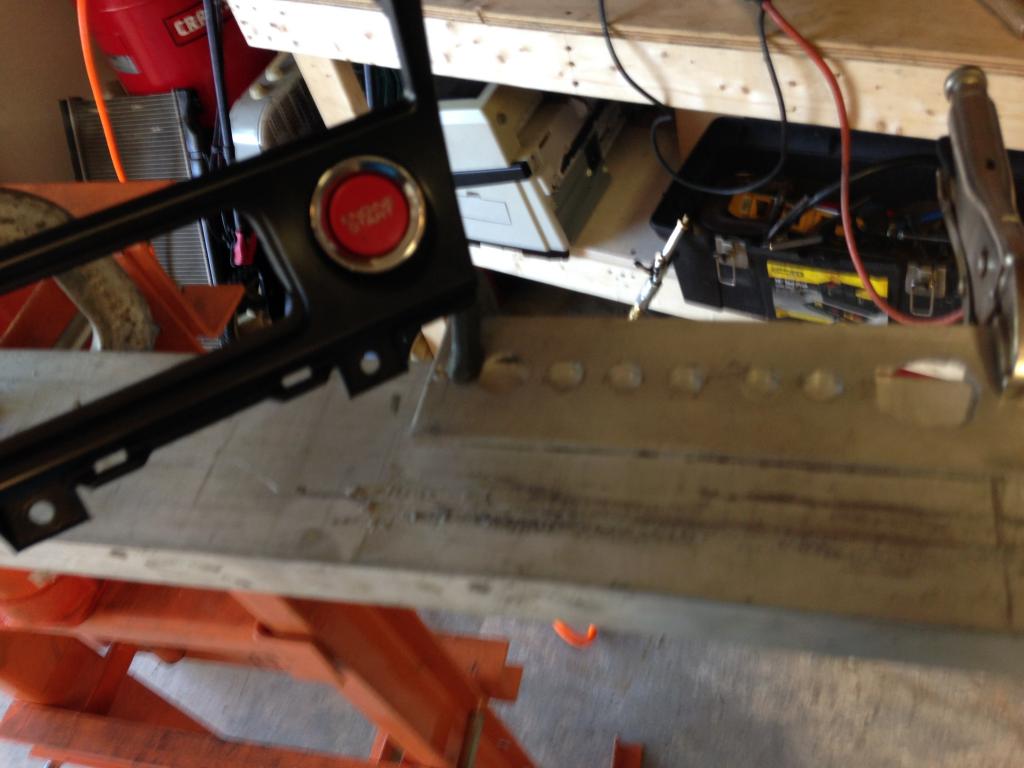

wasn't happy with my control plate and the loctaion of the start button
so switched things a bit





Attached Thumbnails
In-Too-Depp Turbo Build-20141102_204534777_ios_zps8156f129.jpg   In-Too-Depp Turbo Build-20141109_232435811_ios_zpse7131daf.jpg   In-Too-Depp Turbo Build-wp_20141122_003_zpsdc4a822e.jpg
Alejo_NIN is offline   Reply With Quote
Old 11-26-2014, 04:54 PM   #125
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

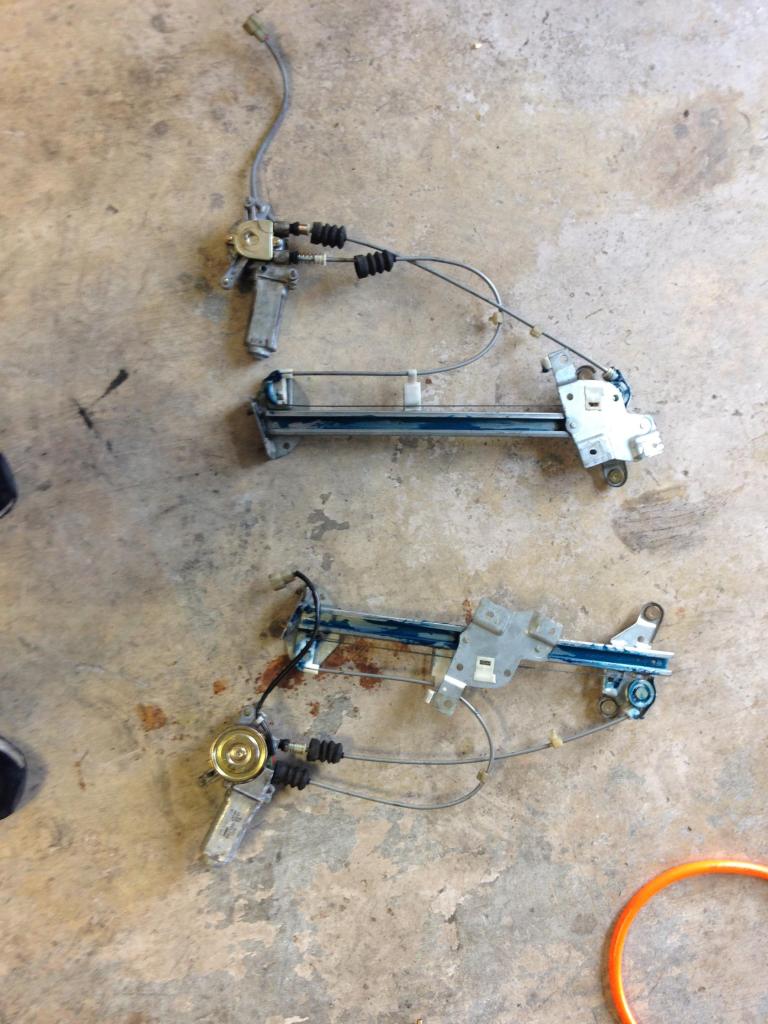

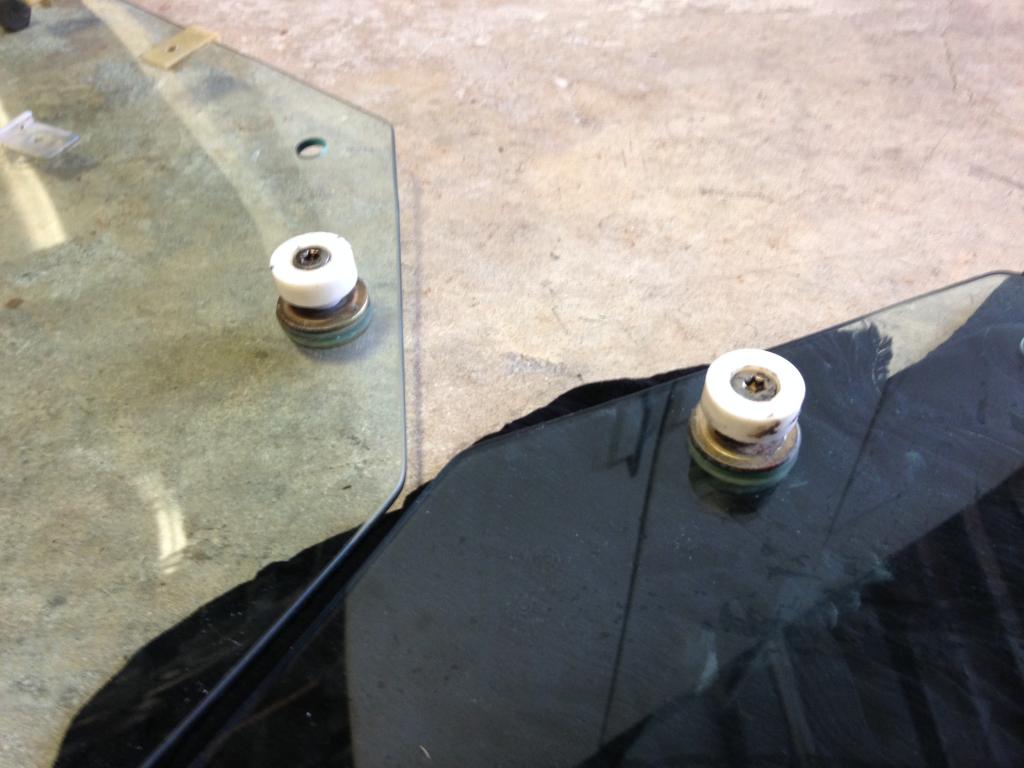

windows would be really slow coming down and going up. figured they needed cleaning

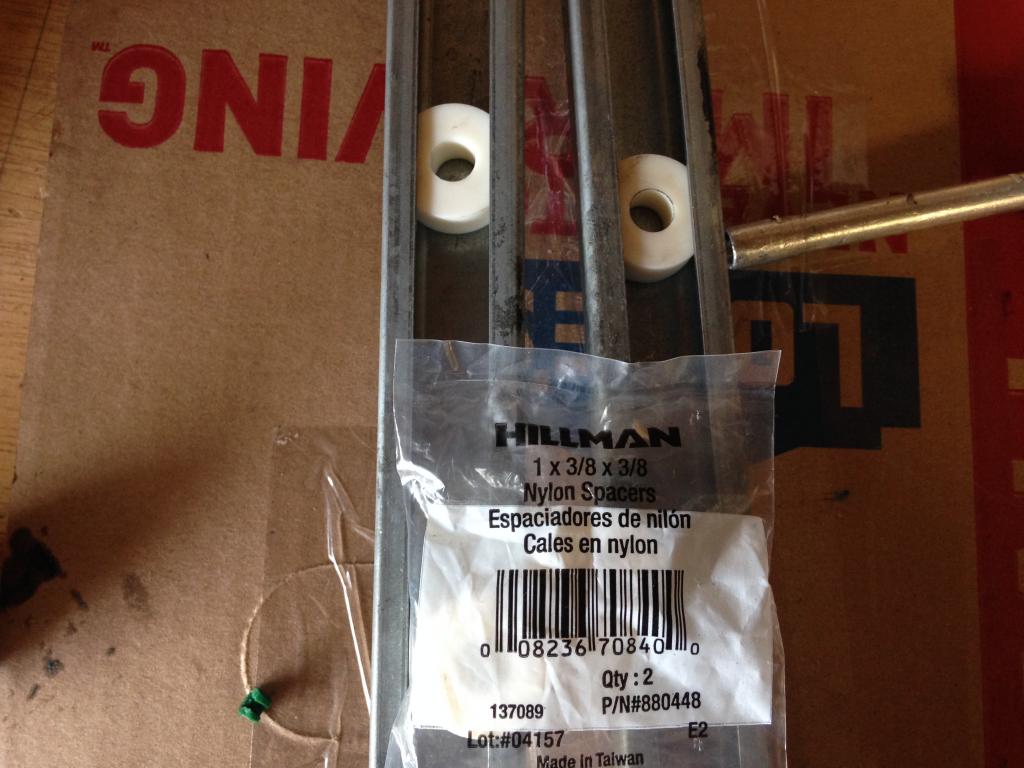

the guides were gone, so i went i bought some of the spacers to fix it

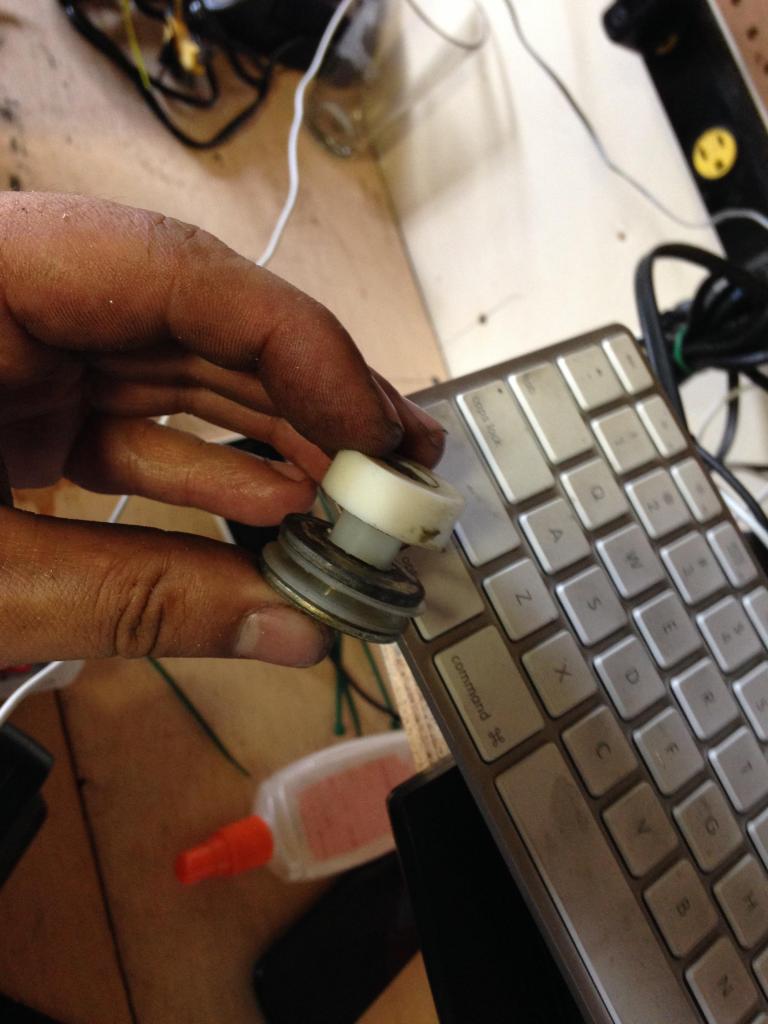

assembled spacer:


rmeoved the stupid tinted window as well


small video of how the siwtches work
Attached Thumbnails
In-Too-Depp Turbo Build-20141125_193028762_ios_zps117b305a.jpg   In-Too-Depp Turbo Build-20141125_193117686_ios_zps04c48676.jpg   In-Too-Depp Turbo Build-20141125_195500747_ios_zps43b5abe4.jpg   In-Too-Depp Turbo Build-20141125_201658184_ios_zps2c8806b1.jpg
Alejo_NIN is offline   Reply With Quote
Old 12-02-2014, 04:53 PM   #126
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

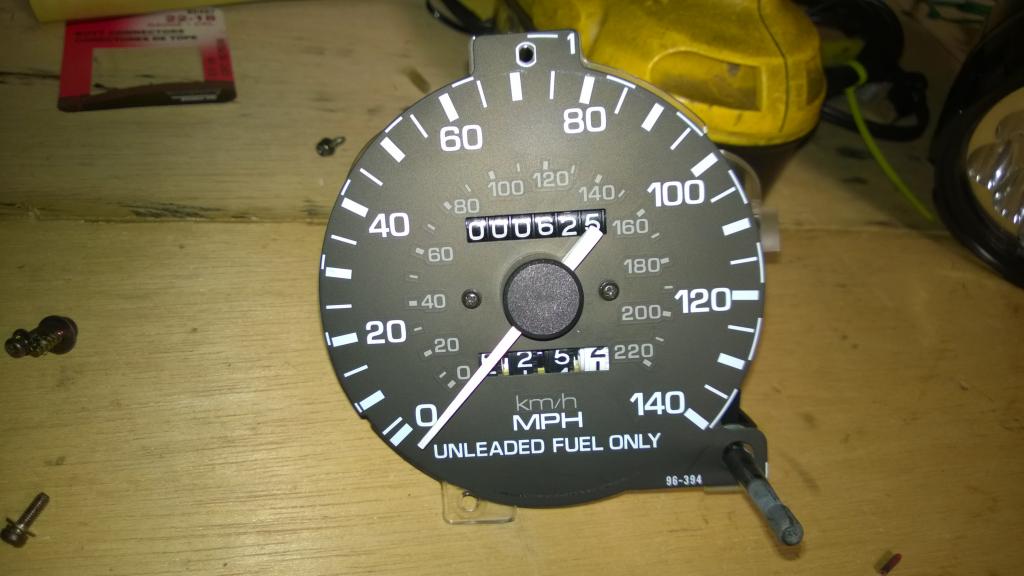

decided to roll back the miles to match my engine break in miles.
don't worry, i wrote down the current mileage somehwre safe

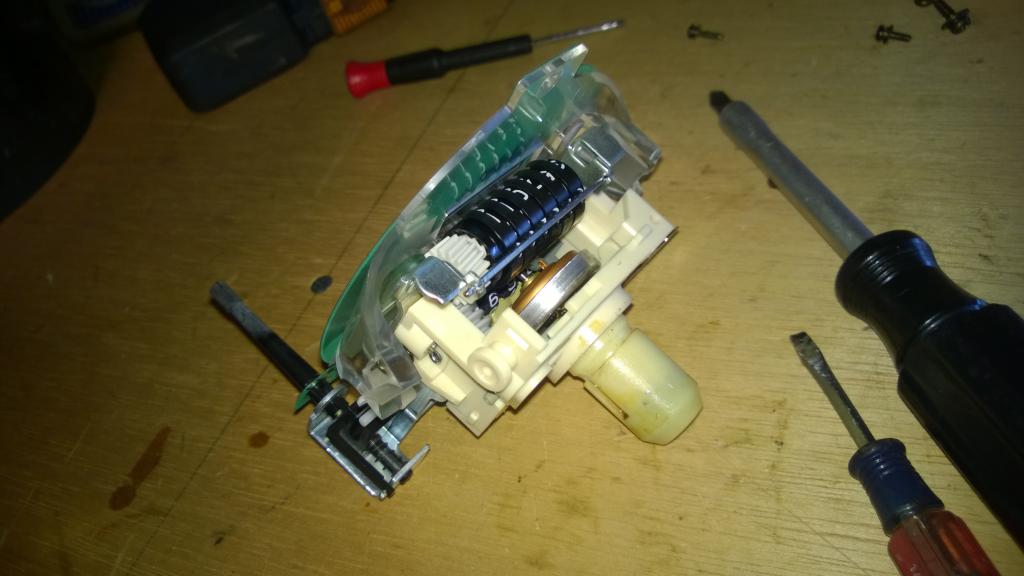

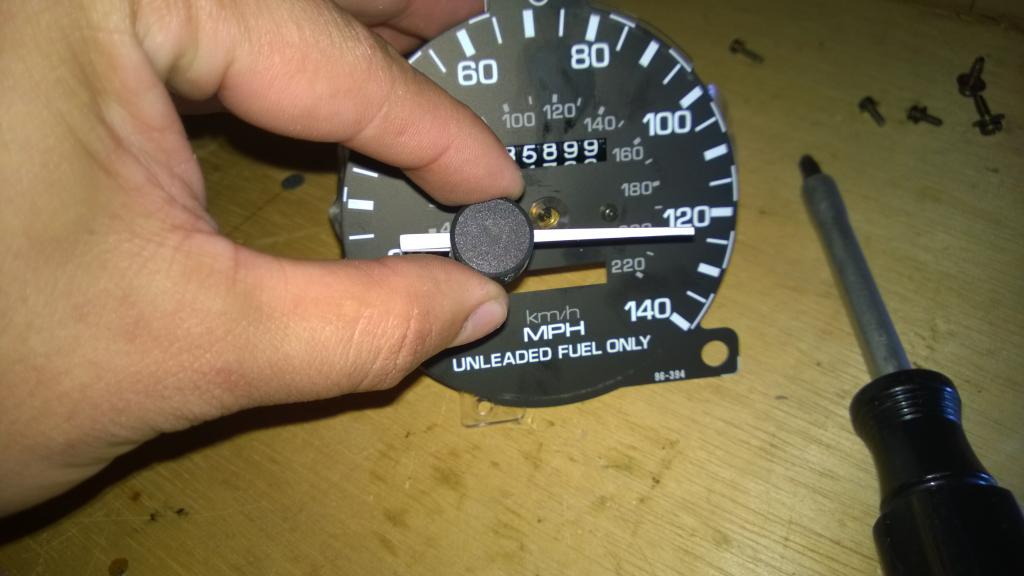

small step by step

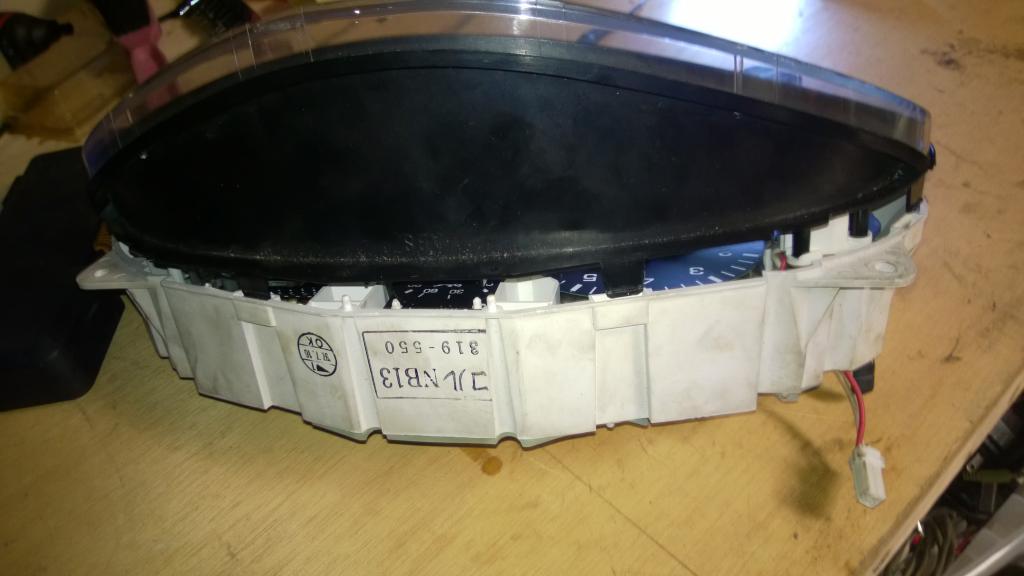

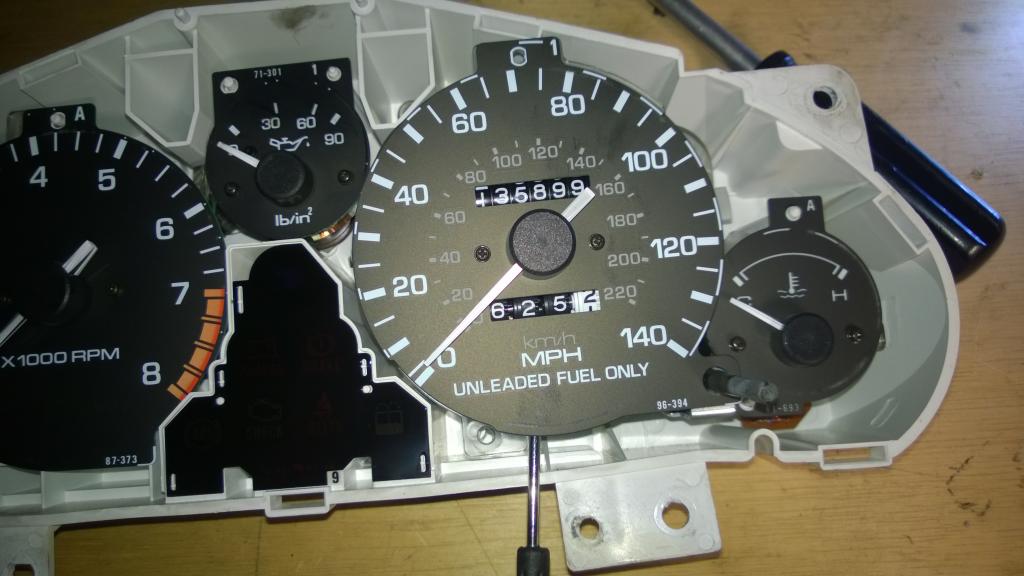

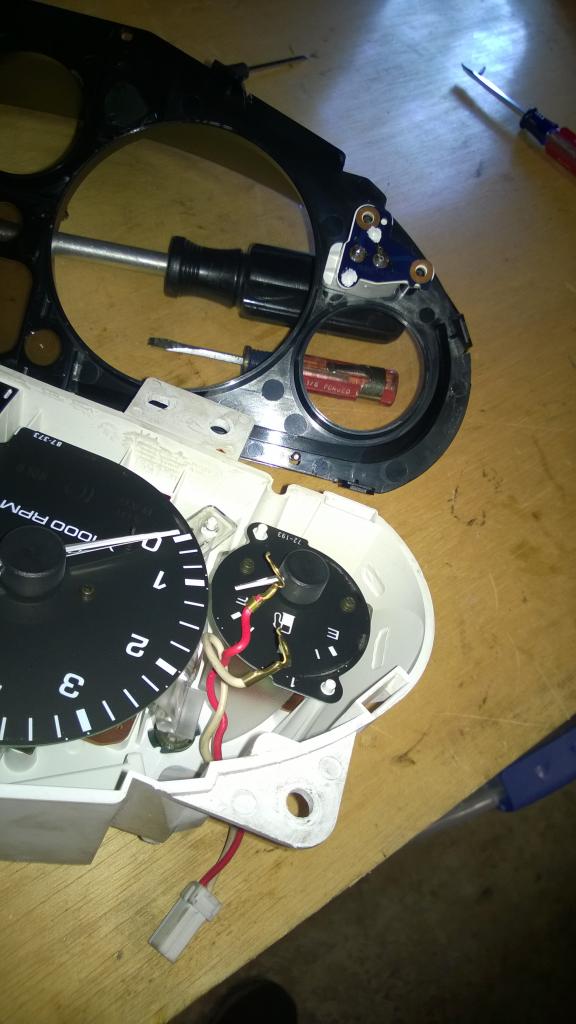

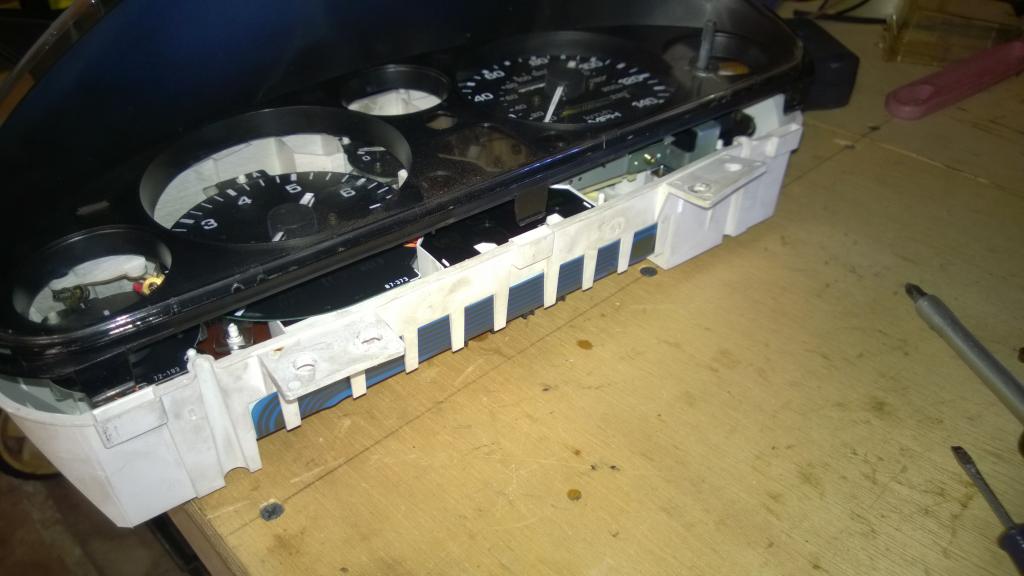

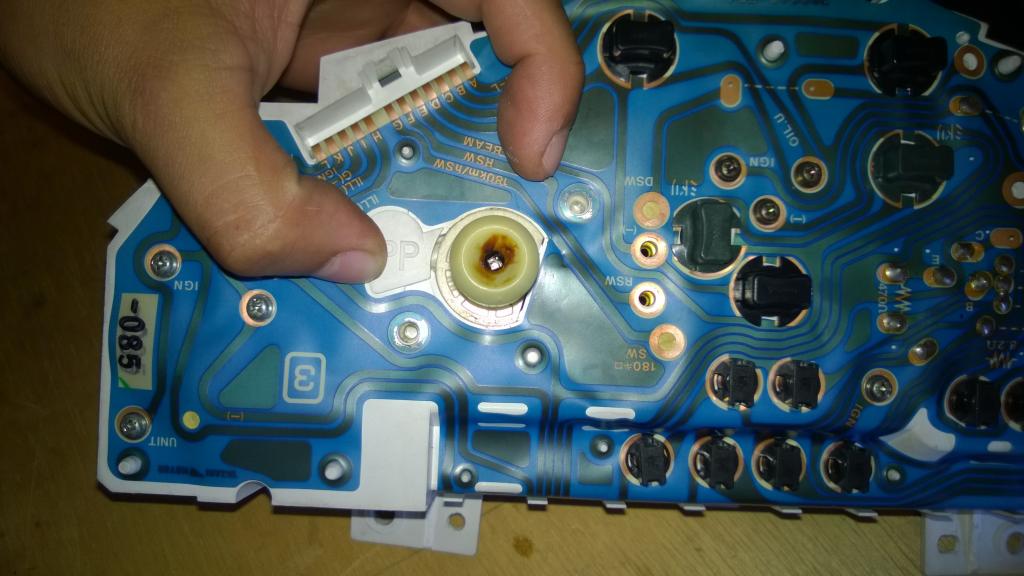

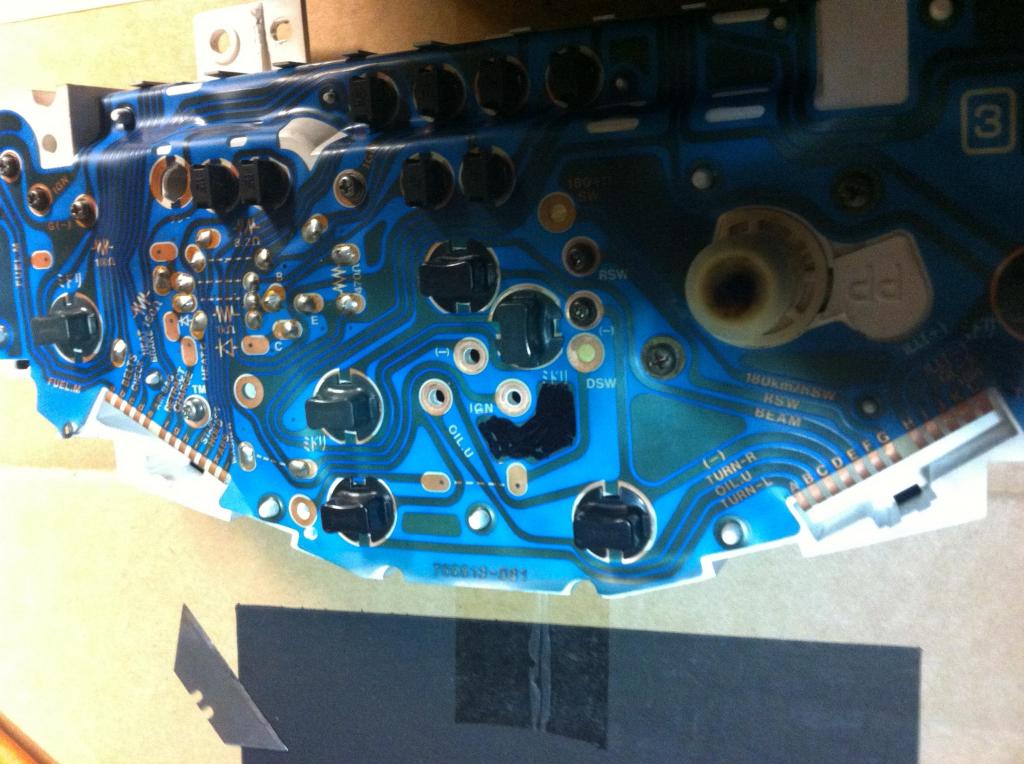

remove cluster
remove cluster clear plastic (has to come off with black bezel)

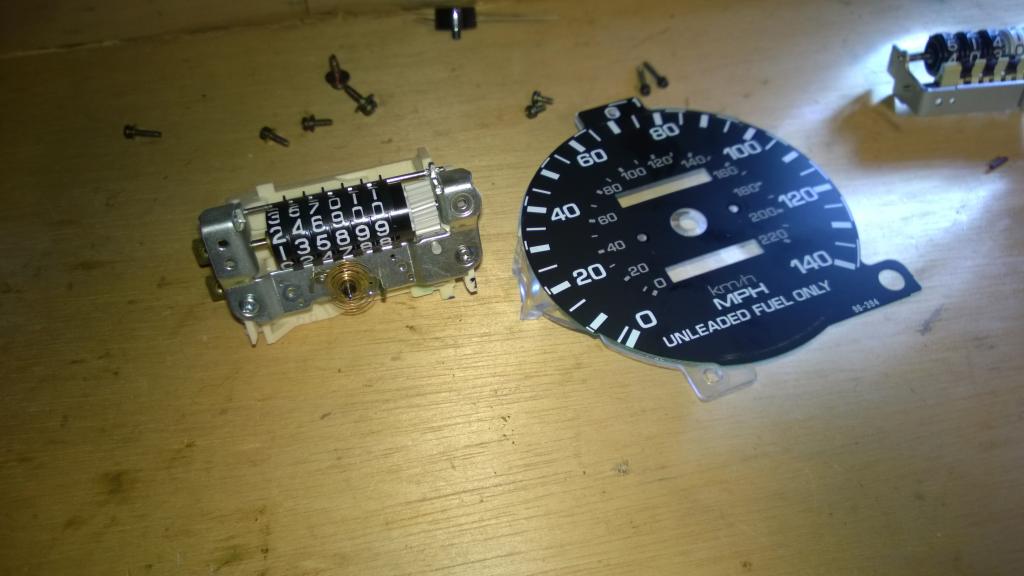

remove 4 screws holding the gauge (two are big, two small)
rmeove the niddle
rmeove the trip numbers
remove the rod keeping the plastic tabs from turning
with a flat head, bend back where the middle rod is being held.
somehow rmeove the al the numbers

play around with them until you figure out how to turn them back.
it took me a min but i figure dit out..just too hard to explain.
put back together.









Attached Thumbnails
In-Too-Depp Turbo Build-wp_20141126_001_zps356fc190.jpg   In-Too-Depp Turbo Build-wp_20141126_002_zpscbbabacf.jpg   In-Too-Depp Turbo Build-wp_20141126_003_zpsd15eef30.jpg   In-Too-Depp Turbo Build-wp_20141126_004_zpsdad5021c.jpg   In-Too-Depp Turbo Build-wp_20141126_005_zps74ec6a50.jpg

In-Too-Depp Turbo Build-wp_20141126_006_zps6829d2a9.jpg   In-Too-Depp Turbo Build-wp_20141126_007_zpsc4ff00b1.jpg   In-Too-Depp Turbo Build-wp_20141126_008_zps46496c59.jpg   In-Too-Depp Turbo Build-wp_20141126_009_zpsef70974e.jpg
Alejo_NIN is offline   Reply With Quote
Old 12-02-2014, 04:53 PM   #127
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

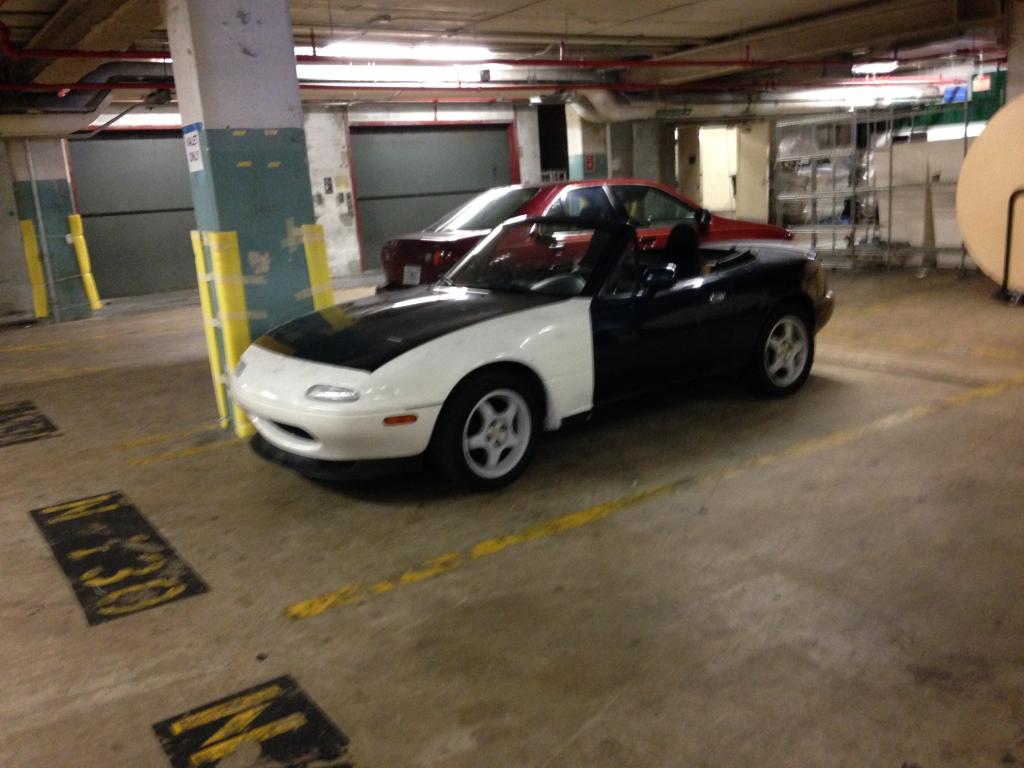

taking her out for a spin..


Attached Thumbnails
In-Too-Depp Turbo Build-20141127_142733048_ios_zpsac12606e.jpg   In-Too-Depp Turbo Build-20141127_145528681_ios_zps79300f84.jpg
Alejo_NIN is offline   Reply With Quote
Old 12-02-2014, 04:54 PM   #128
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

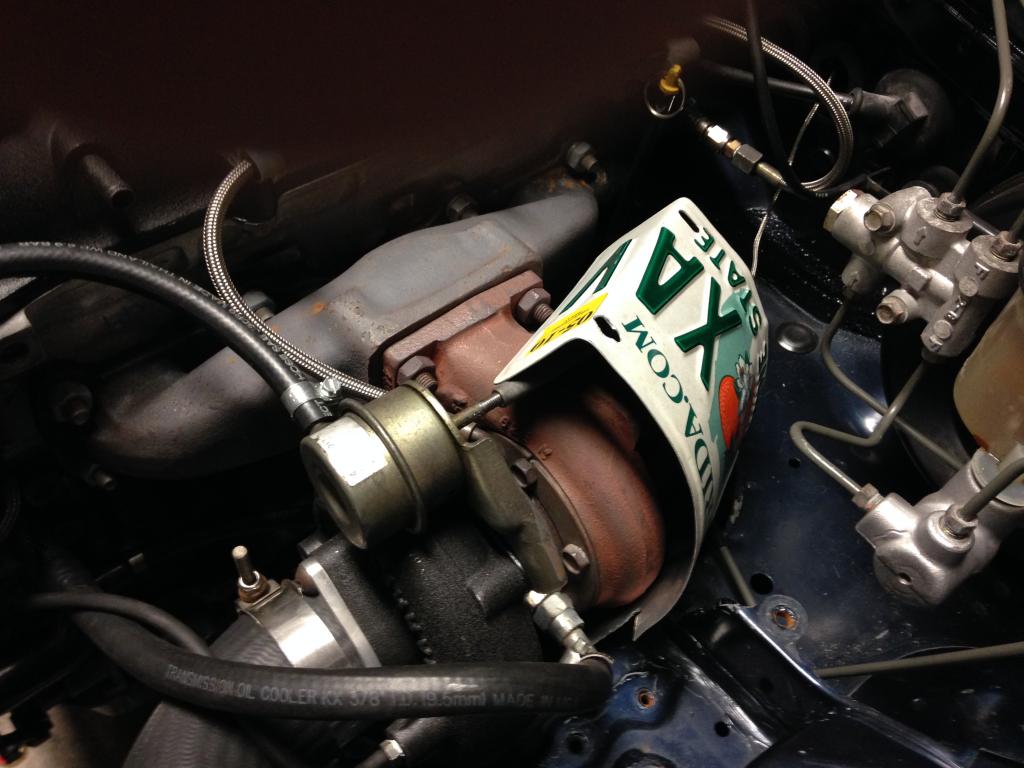

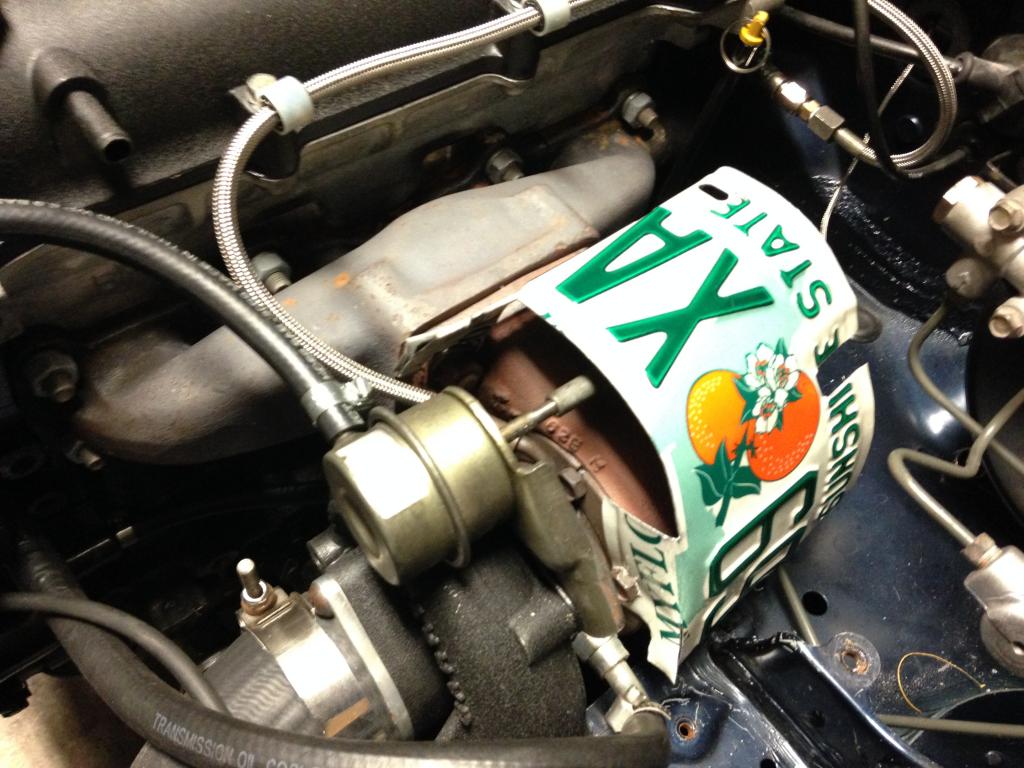

time to build a heatshield
being that i am so ****ing cheap and love DYI, i decided to do the license plate mod.



final product


then, fuel pump failure. doesn't turn on

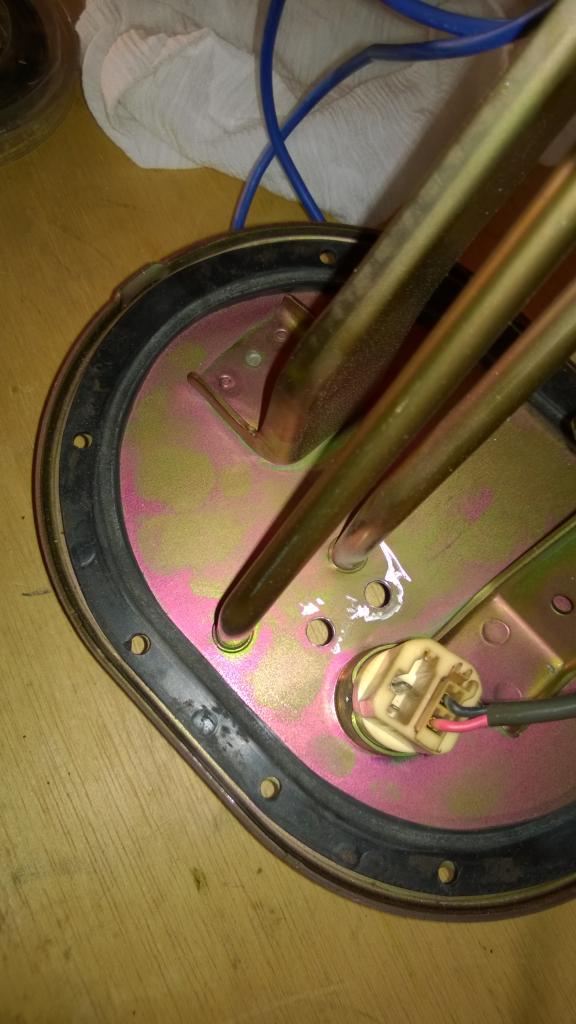

turne dout to be wiring issue. the plug overheated and stopped making a connetcion.
thank god for AAA, otherwise it would've been a dumb expensive mistake.

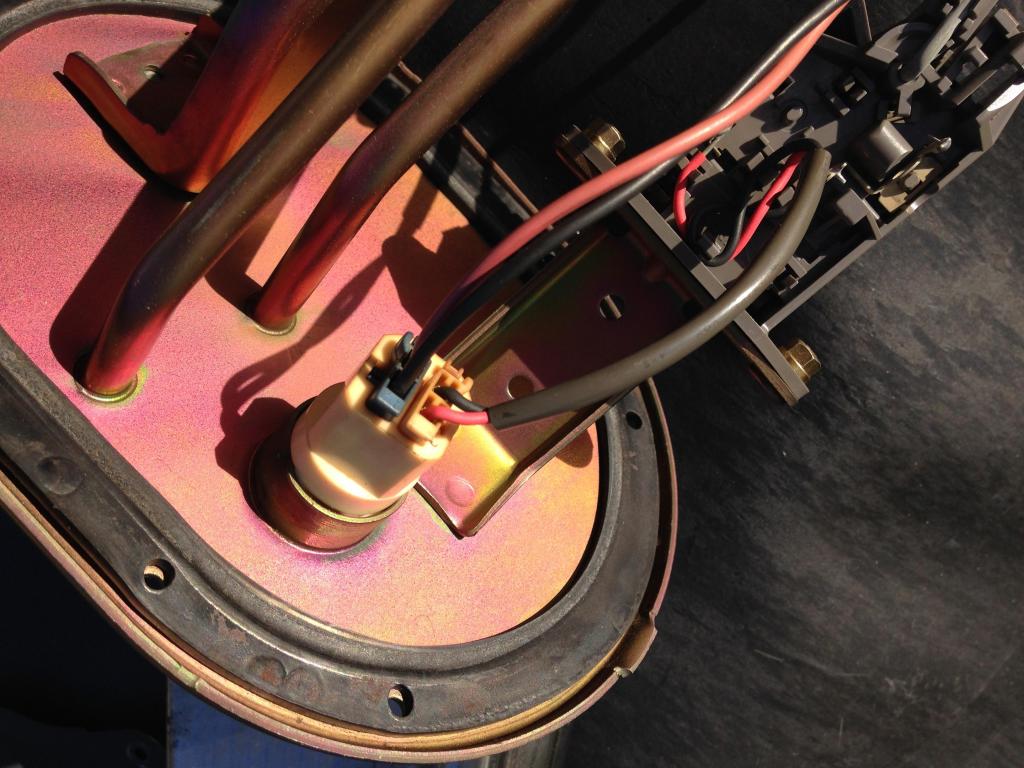

you can not see it, bu the RED on the left connector wa smelted inside.


fixed that and got my pressure back up...plus my blood pressure down

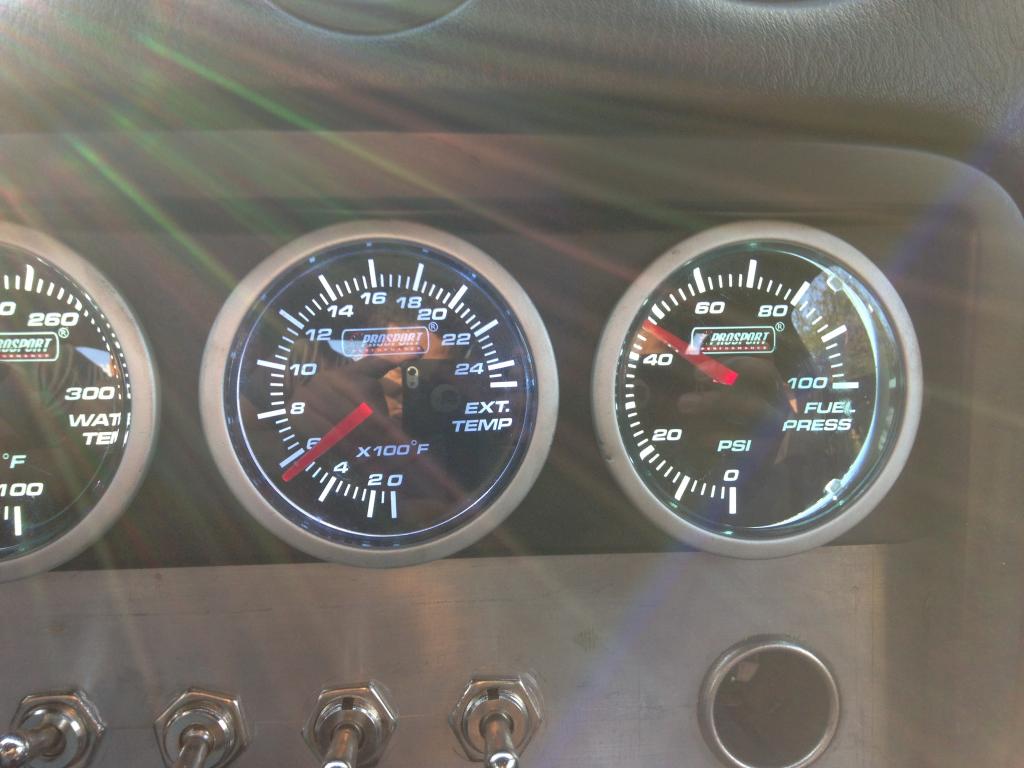

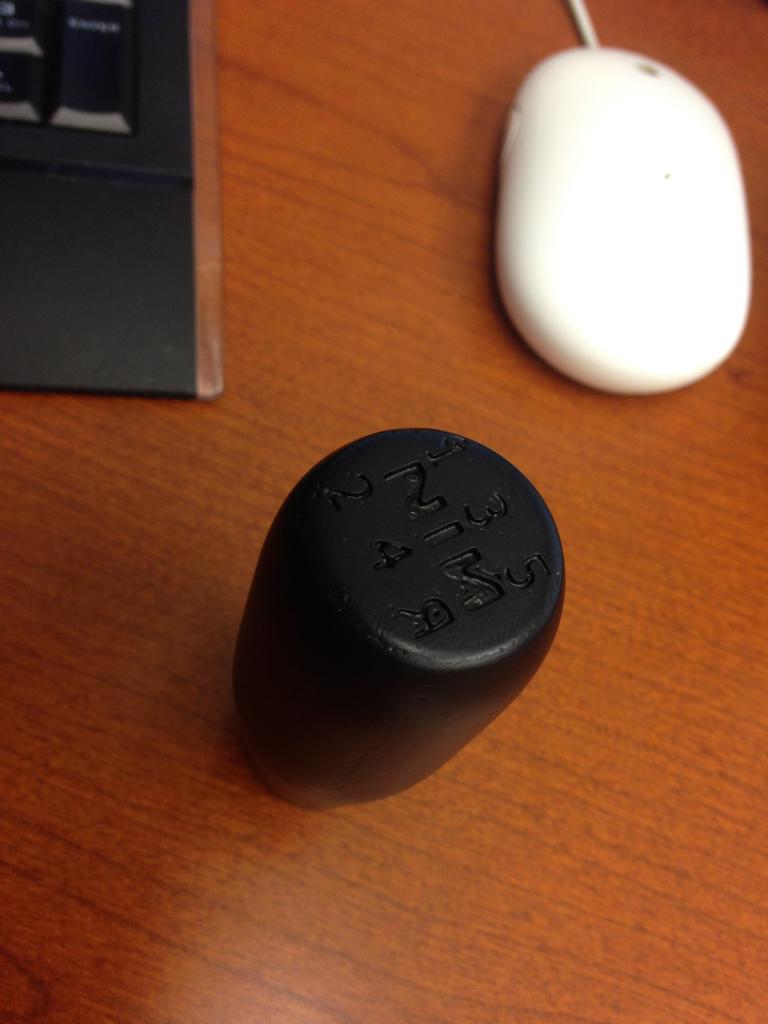

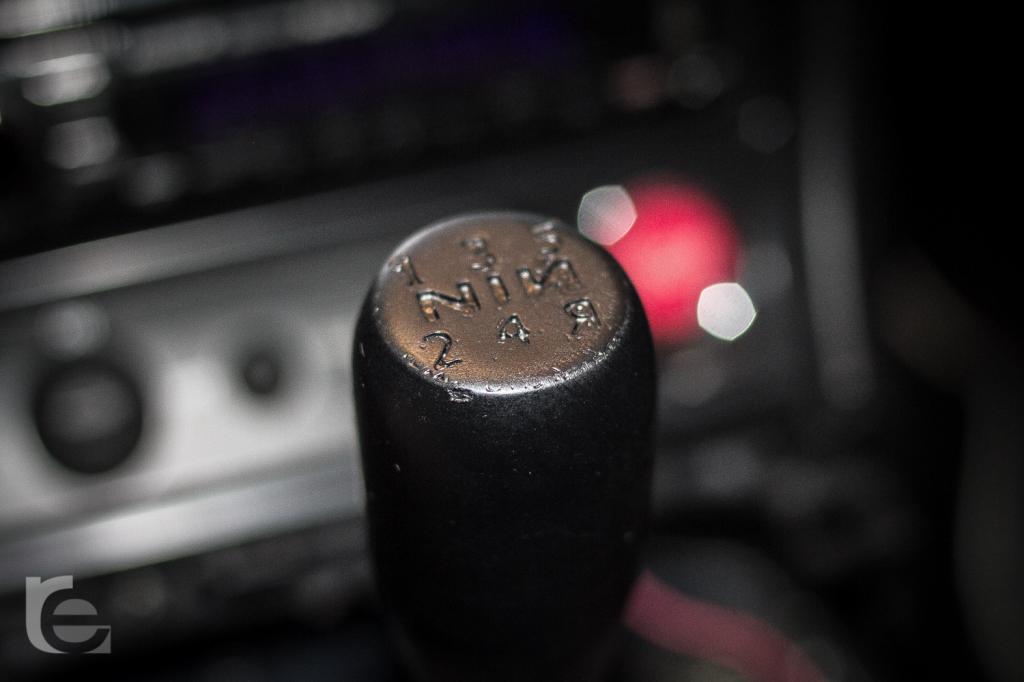

has a random awesome guy make me a shiftknob.

just gotta figure out a way to make it weighted,

looks cool tho..actually..looks awesome

Attached Thumbnails
In-Too-Depp Turbo Build-20141129_003937789_ios_zps5284c901.jpg   In-Too-Depp Turbo Build-20141129_012001204_ios_zps418eb3a0.jpg   In-Too-Depp Turbo Build-20141129_082329604_ios_zpsf4cb8b16.jpg   In-Too-Depp Turbo Build-20141129_205914577_ios_zps34fe5698.jpg   In-Too-Depp Turbo Build-20141129_211831544_ios_zpsc17c4457.jpg

In-Too-Depp Turbo Build-20141202_184130967_ios_zps1732eb18.jpg
Alejo_NIN is offline   Reply With Quote
Old 12-02-2014, 08:00 PM   #129
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Isn't ODO rollback, um, highly illegal?

Quote:
Originally Posted by Alejo_NIN View Post
has a random awesome guy make me a shiftknob.

just gotta figure out a way to make it weighted,

looks cool tho..actually..looks awesome
Depleted uranium maybe? Heh, neat **** though. I wish I had access to a lathe and the time to do that kind of stuff.
EO2K is offline   Reply With Quote
Old 12-02-2014, 09:16 PM   #130
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

only illegal if:
1. i sell the car and claim it has 1000 miles.
2. i sell the car and state it has less miles than it does.

i wrote down the actual mileage in the cluster so if you remove it you'll be able to add both and get actual chassis mileage.
i also highly doubt anyone will believe me when i say my car has 1000 miles
Quote:
Originally Posted by EO2K View Post
Isn't ODO rollback, um, highly illegal?



Depleted uranium maybe? Heh, neat **** though. I wish I had access to a lathe and the time to do that kind of stuff.
Alejo_NIN is offline   Reply With Quote
Old 12-03-2014, 01:07 PM   #131
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Its not illegal in Texas if the car milage is labeled EXEMPT which most if not all NA miatas here are because of age.
ScottyP3821 is offline   Reply With Quote
Old 12-03-2014, 01:18 PM   #132
Junior Member
iTrader: (2)

Join Date: Jul 2012
Location: Miami, FL
Posts: 109
Total Cats: 1
Default

Quote:
Originally Posted by ScottyP3821 View Post
Its not illegal in Texas if the car milage is labeled EXEMPT which most if not all NA miatas here are because of age.
Similar here in Florida. Most if not all NA's nowadays are mileage exempt around here.
Alpod is offline   Reply With Quote
Old 12-03-2014, 02:01 PM   #133
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Thanks guhys, I appreciate the edumication. Note to self: Do not trust mileage on cars that have been registered in FL and TX
EO2K is offline   Reply With Quote
Old 12-05-2014, 11:29 AM   #134
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

In TX always always always get a leak down or at least a compression test before buying a car.
ScottyP3821 is offline   Reply With Quote
Old 12-07-2014, 03:40 PM   #135
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

Many states work the same way... Over something like 10 years old in TN, the mileage is marked EXEMPT (or similar) when you transfer the title for a sale. This applies even if the mileage is known to be accurate on the speedometer.
noname4me is offline   Reply With Quote
Old 12-08-2014, 06:53 PM   #136
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

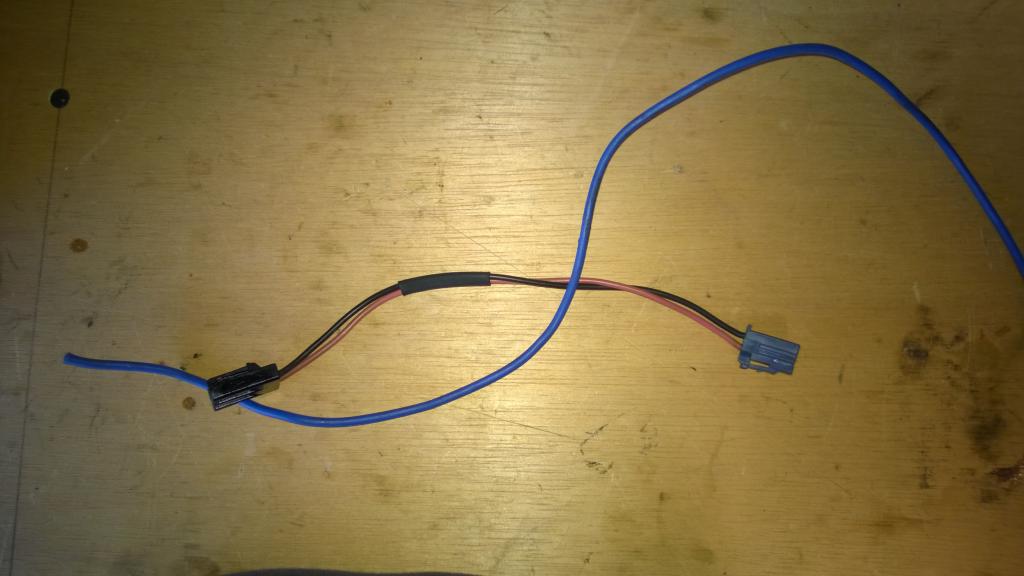

tackling my fuel issue, i decided to rewire the pump with thicker wire.

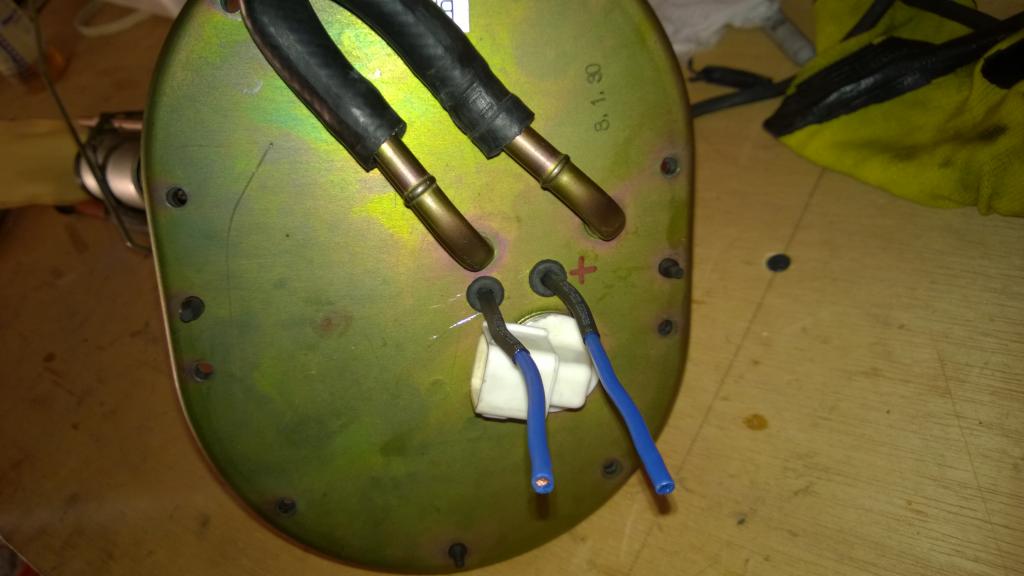

this is the wire that took a crap:


the blue wire is what will be replacing

Stock: 16AWG
New: 12AWG

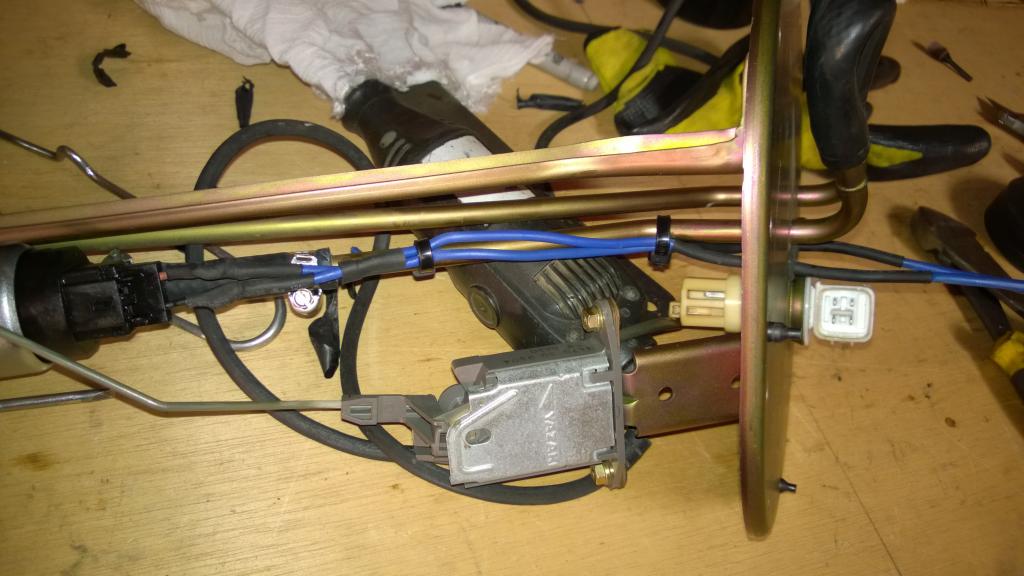

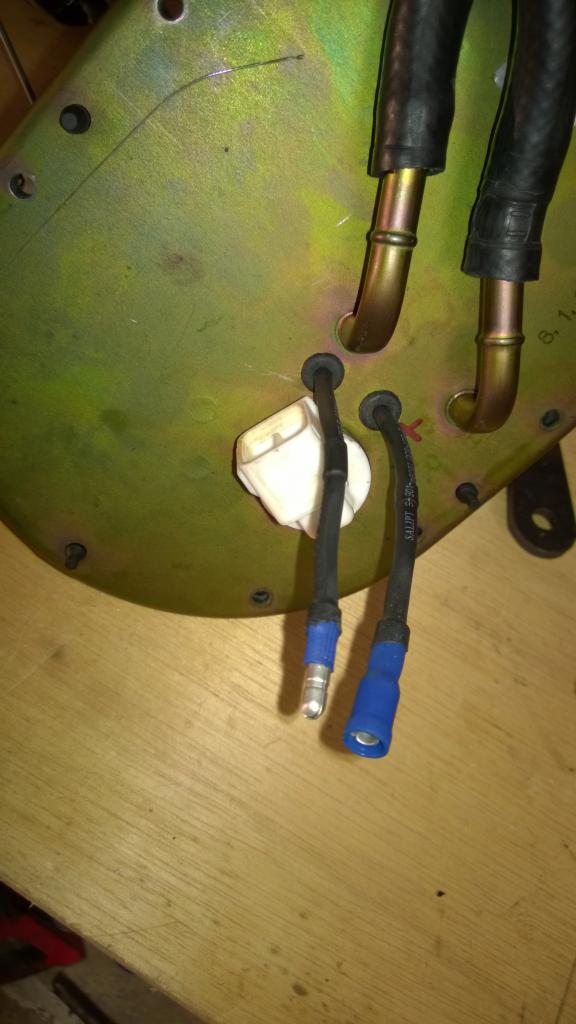

drilled two holes to pass the wires through. i will be installing little grommets to protect the wire

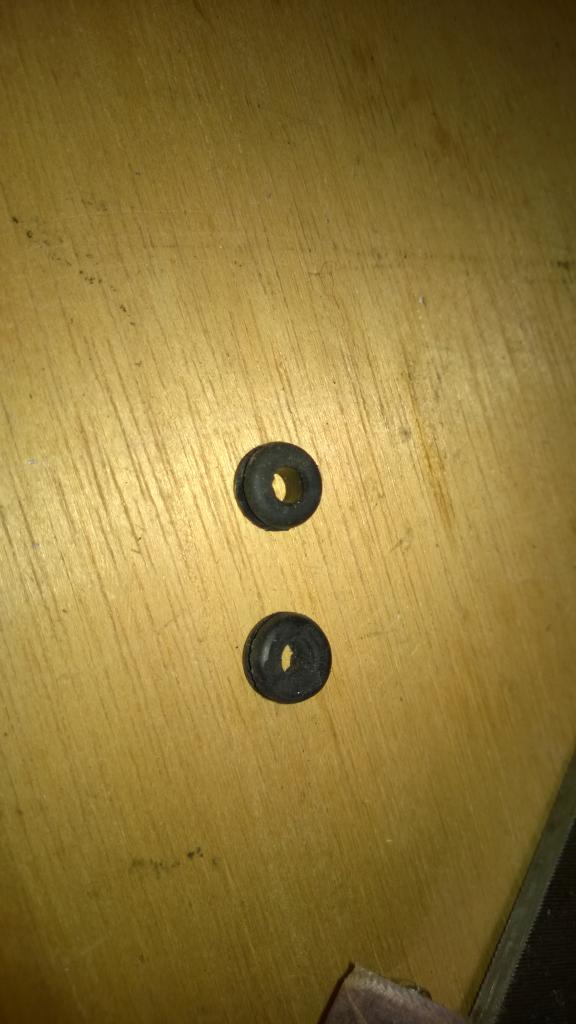

the grommets:


since the wire wasn't thick enough to fill the hole and i dind't want to use any kind of glue or epoxy, i opted to wrap a piece of heatwrap around the cable to make it thicker.
i should'vd gone for smaller grommets or thicker wire but this is what i had to work with so whatever

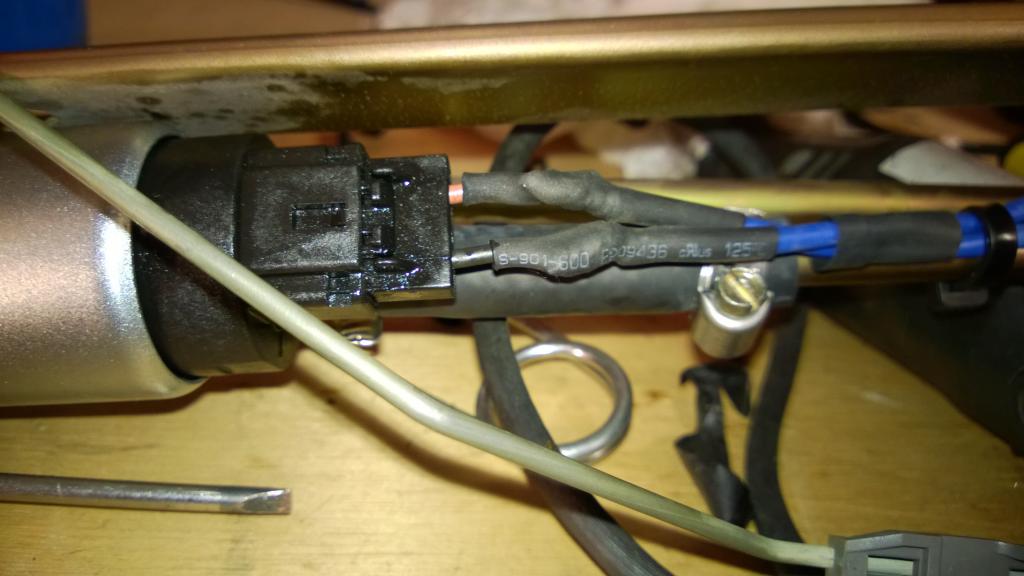

i opted to install these butt connectors. i kept them this way as to never be able to connect them backwards
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20141206_002_zps48e750eb.jpg   In-Too-Depp Turbo Build-wp_20141207_001_zps34bf88bb.jpg   In-Too-Depp Turbo Build-wp_20141207_002_zps461eaf5f.jpg   In-Too-Depp Turbo Build-wp_20141207_003_zpsc17fac91.jpg   In-Too-Depp Turbo Build-wp_20141207_004_zps7ac6d35b.jpg

In-Too-Depp Turbo Build-wp_20141207_005_zpscd4468ef.jpg   In-Too-Depp Turbo Build-wp_20141207_006_zpsd0bdfc94.jpg
Alejo_NIN is offline   Reply With Quote
Old 12-09-2014, 12:03 PM   #137
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default





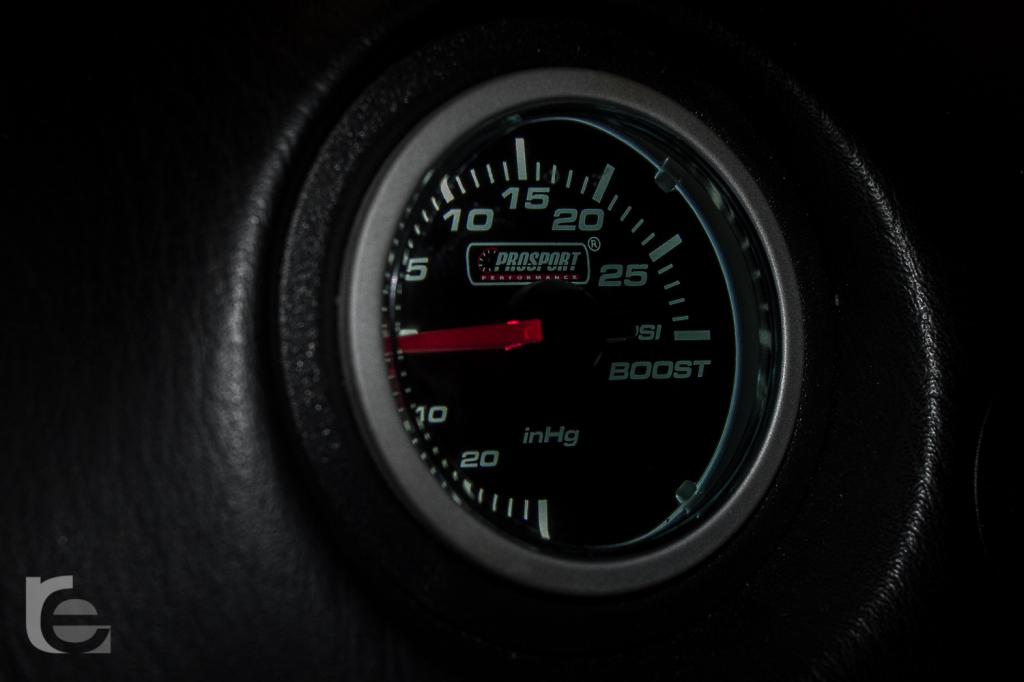

Attached Thumbnails
In-Too-Depp Turbo Build-_mg_2367_zpsa152a787.jpg   In-Too-Depp Turbo Build-_mg_2380_zps19e36671.jpg   In-Too-Depp Turbo Build-_mg_2391_zpsa40a90f9.jpg
Alejo_NIN is offline   Reply With Quote
Old 12-15-2014, 01:59 PM   #138
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

hanging out with a friend's boosted NB with the mazdaspeed setup

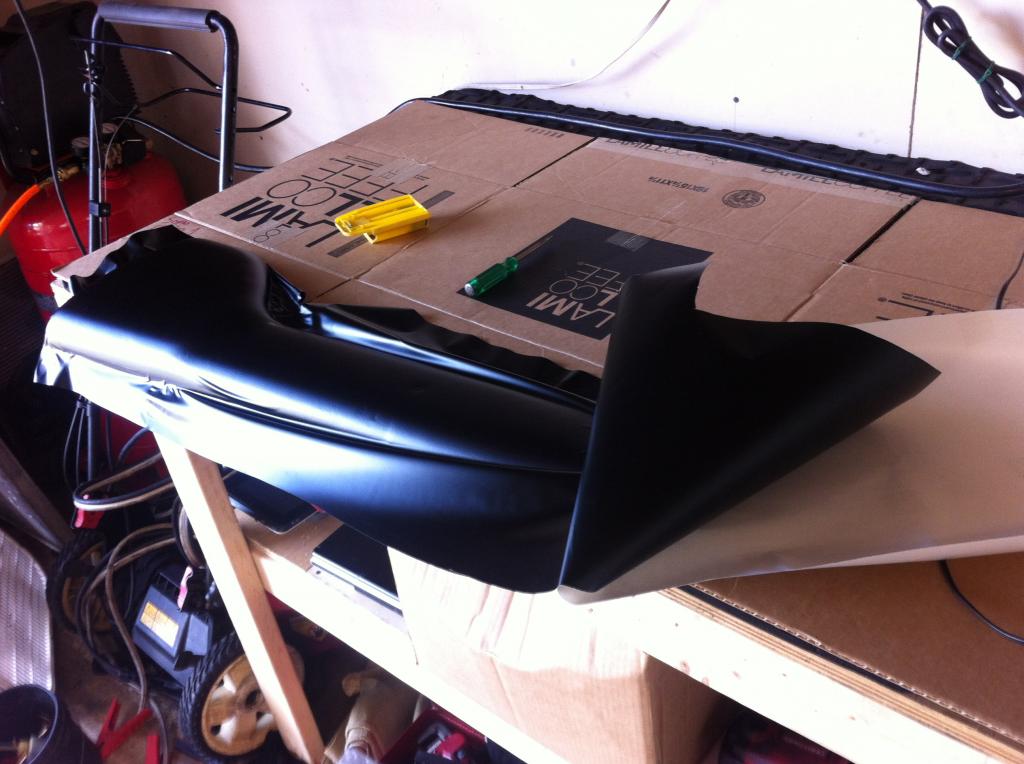

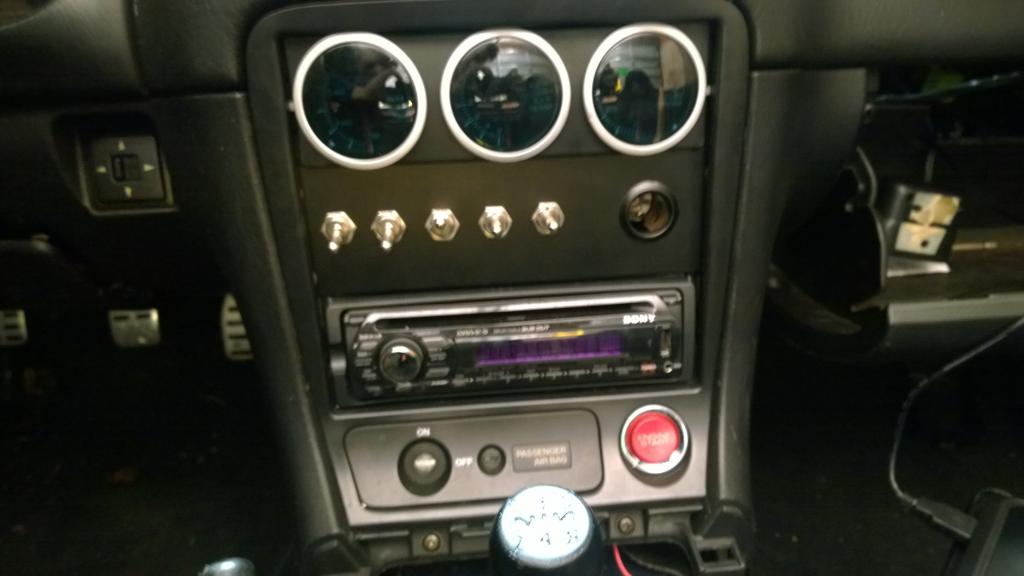

decided to wrap the switchboard in black vinyl

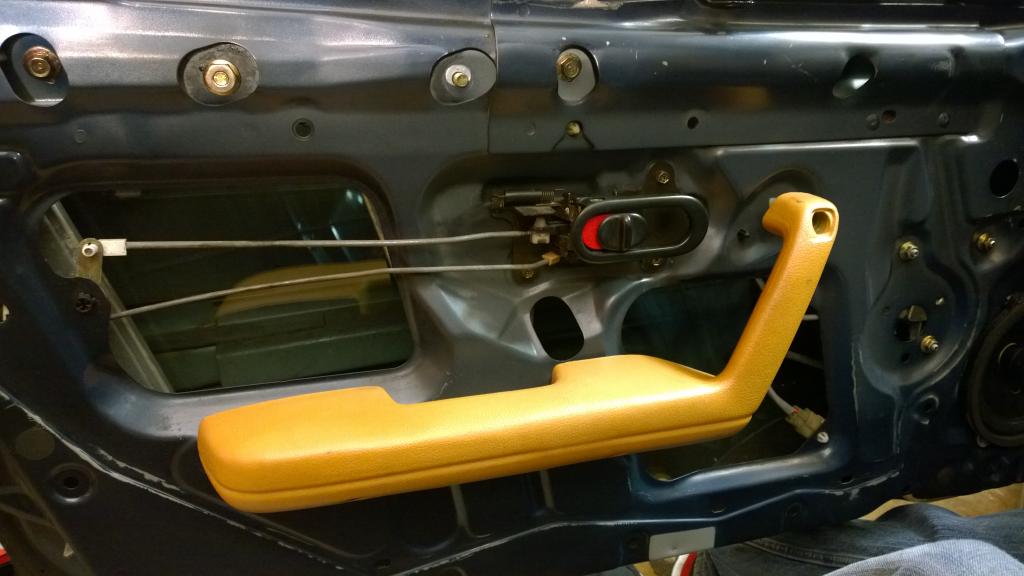

this is my idea for the doors.
i won't be installing door cards but i want the armrest
i will be painting it black as well as the inside of the door black.

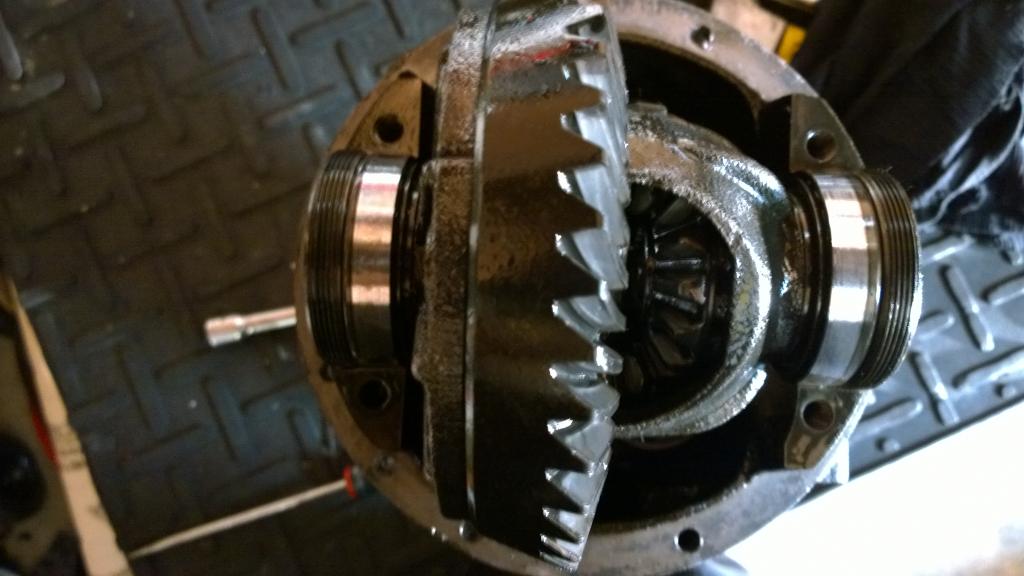

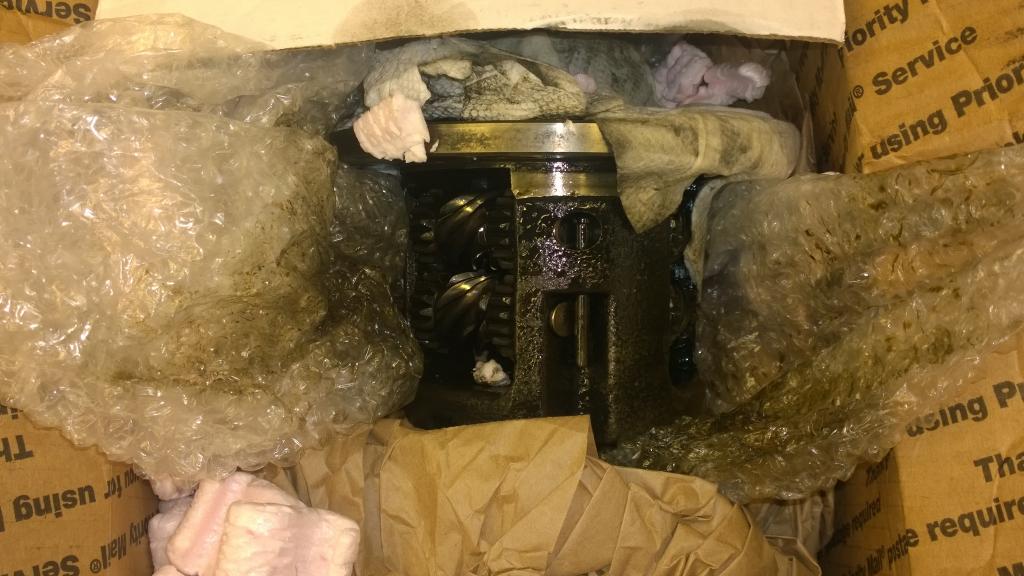

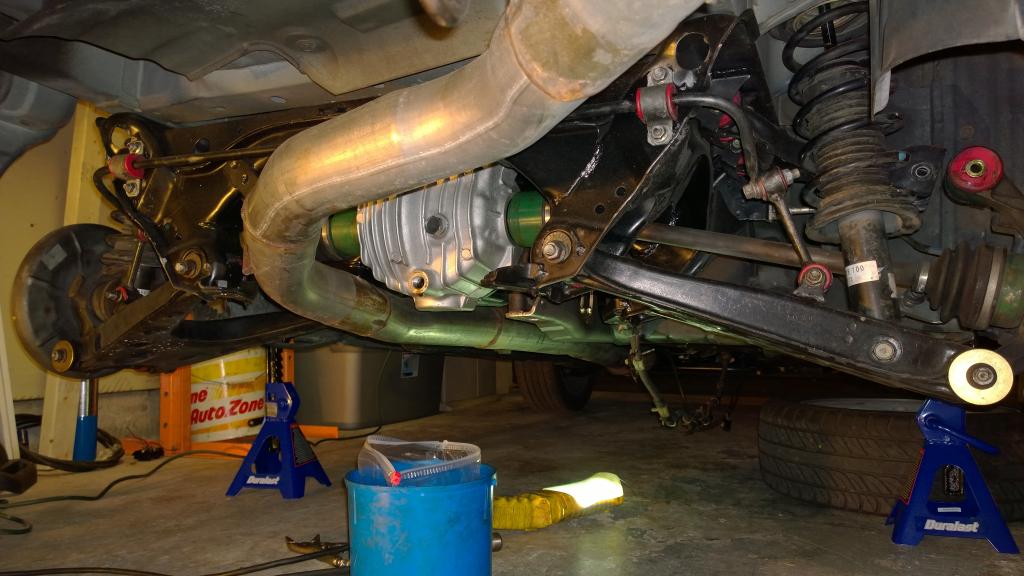

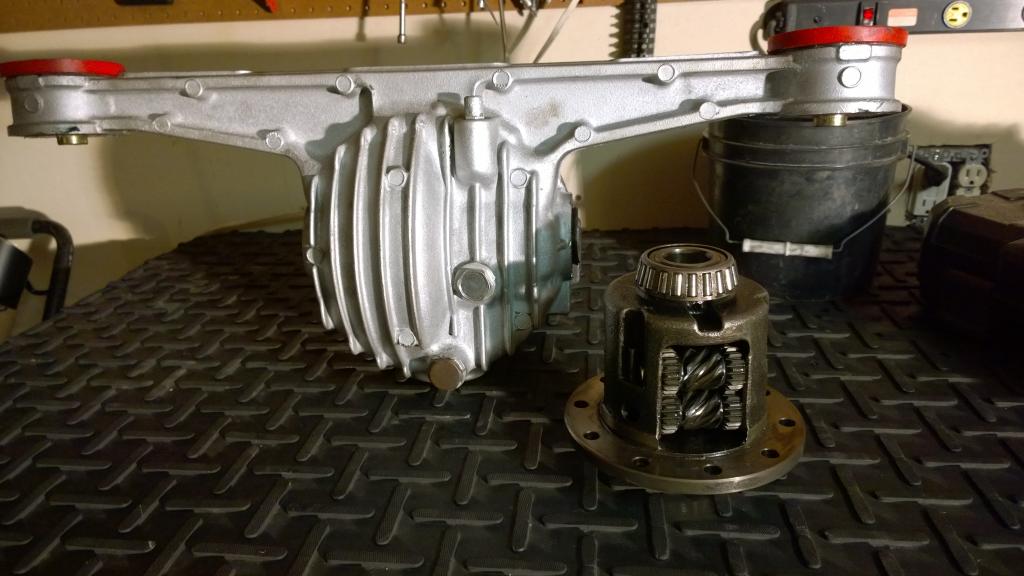

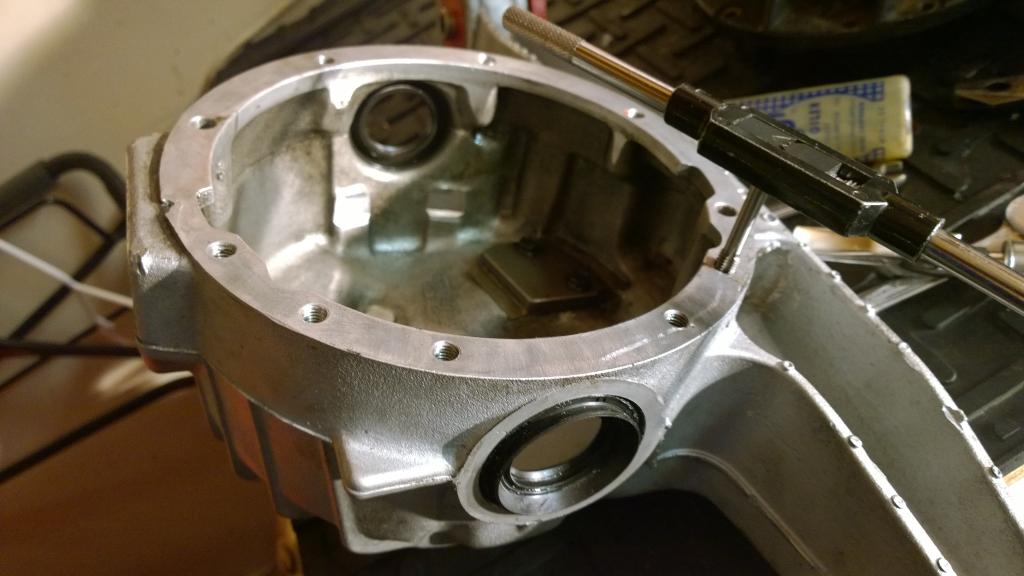

the limited slip install crusade

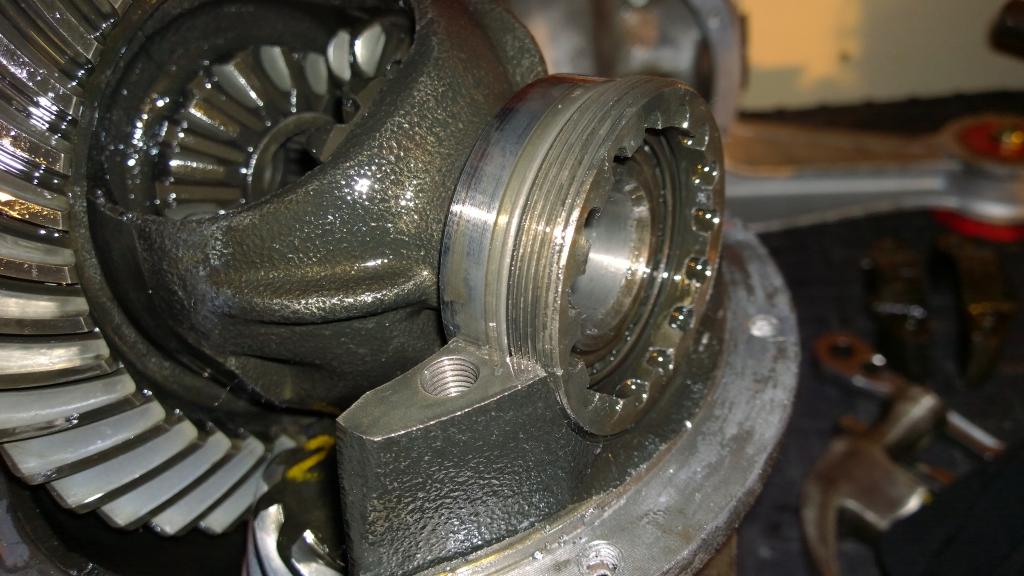

cleaning the bolts

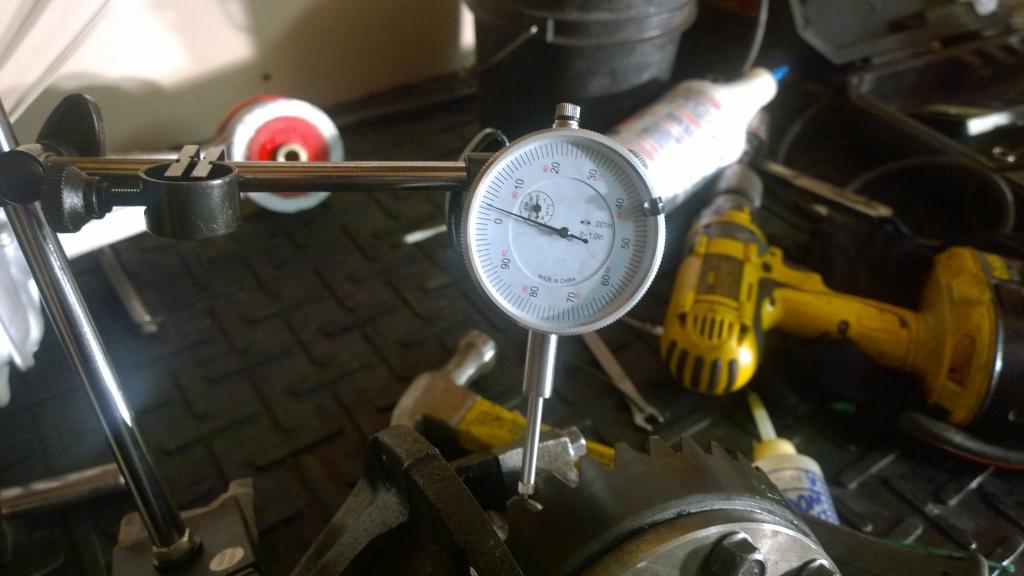

playing with backlash and understanding how it works
Attached Thumbnails
In-Too-Depp Turbo Build-wp_20141210_001_zpsfcb8745d.jpg   In-Too-Depp Turbo Build-wp_20141211_003_zps1d3be620.jpg   In-Too-Depp Turbo Build-wp_20141211_004_zps481b7f8e.jpg   In-Too-Depp Turbo Build-wp_20141212_002_zpse5dd88ef.jpg   In-Too-Depp Turbo Build-wp_20141212_004_zpsded61f1c.jpg

In-Too-Depp Turbo Build-wp_20141212_005_zps6893daa5.jpg   In-Too-Depp Turbo Build-wp_20141212_007_zpsd1875af7.jpg   In-Too-Depp Turbo Build-wp_20141213_004_zpsf9935992.jpg   In-Too-Depp Turbo Build-wp_20141213_005_zpse851d468.jpg   In-Too-Depp Turbo Build-wp_20141213_008_zps431049e9.jpg

Alejo_NIN is offline   Reply With Quote
Old 01-08-2015, 09:44 PM   #139
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

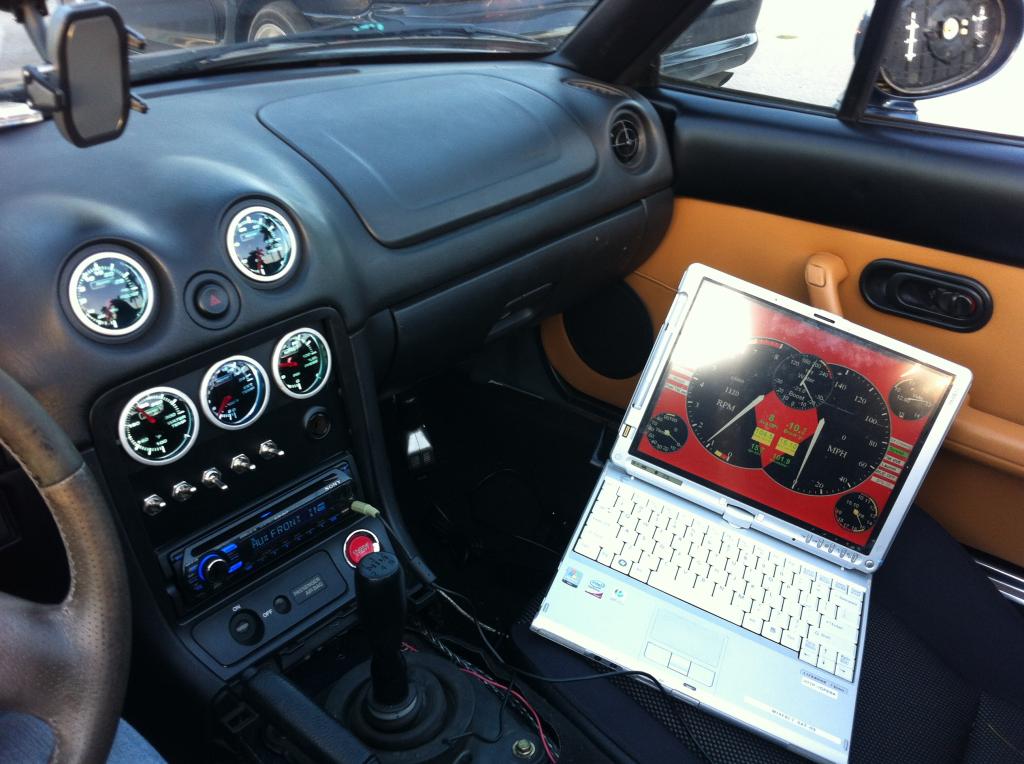

finally finished my torsen install and out i went.
paid version of MS to help me tune!

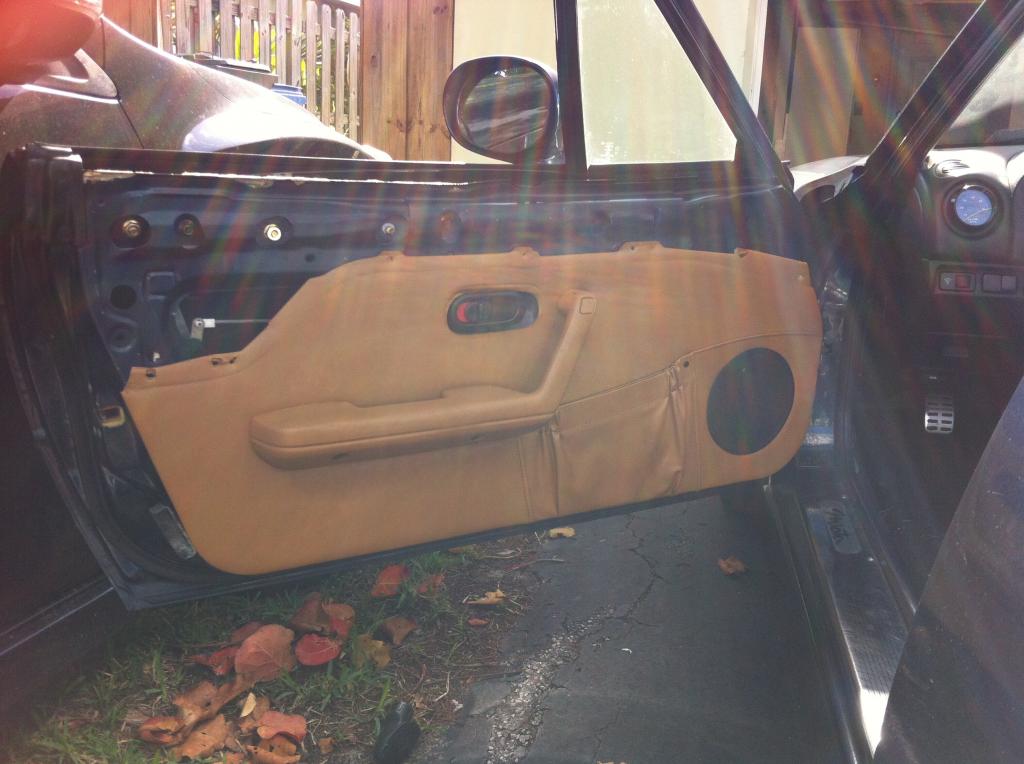

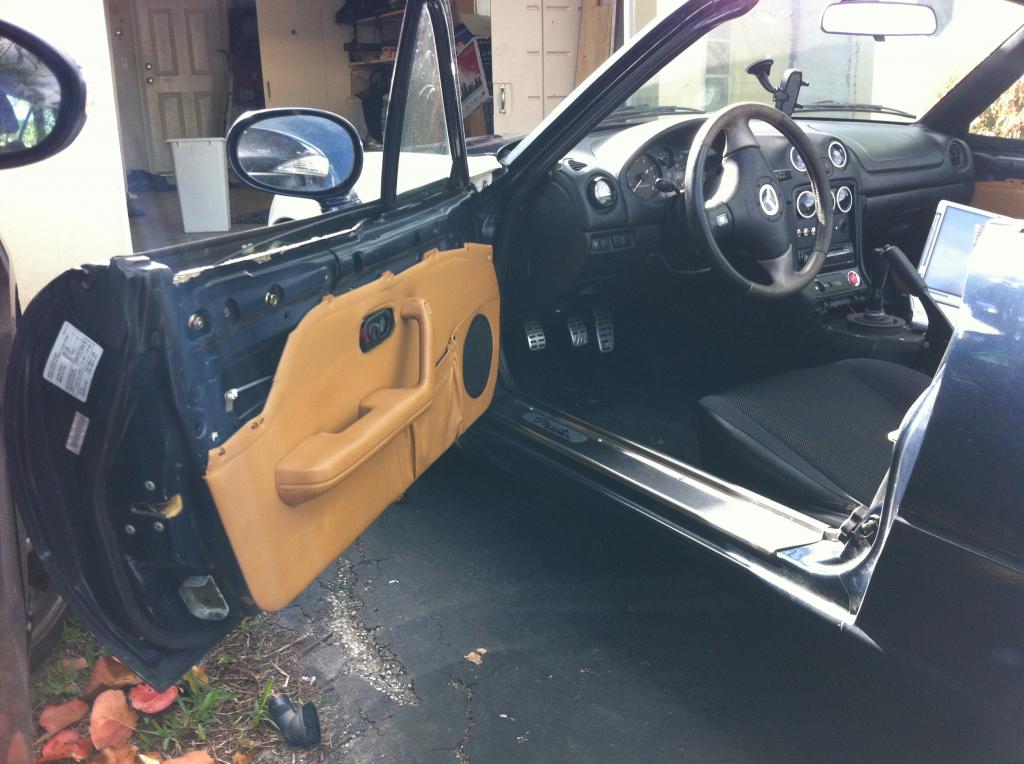

fixed the door cards and cleaned them up a bit.
wrapped the black arm rest in vinyl






then went out for a drive

Attached Thumbnails
In-Too-Depp Turbo Build-img_0006_zps97df14b1.jpg   In-Too-Depp Turbo Build-20150104_163226391_ios_zpsb435adf1.jpg   In-Too-Depp Turbo Build-img_0002_zps34f0467e.jpg   In-Too-Depp Turbo Build-20150104_191527213_ios_zps50efd485.jpg   In-Too-Depp Turbo Build-img_0004_zps393bf6ba.jpg

Alejo_NIN is offline   Reply With Quote
Old 01-08-2015, 09:45 PM   #140
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

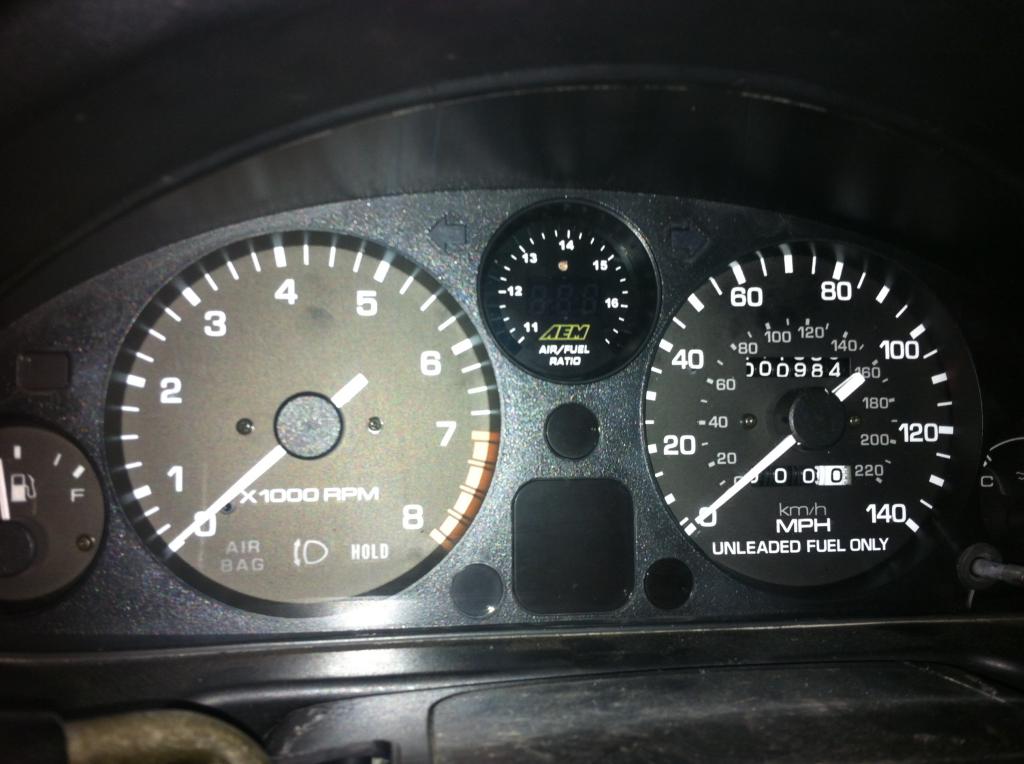

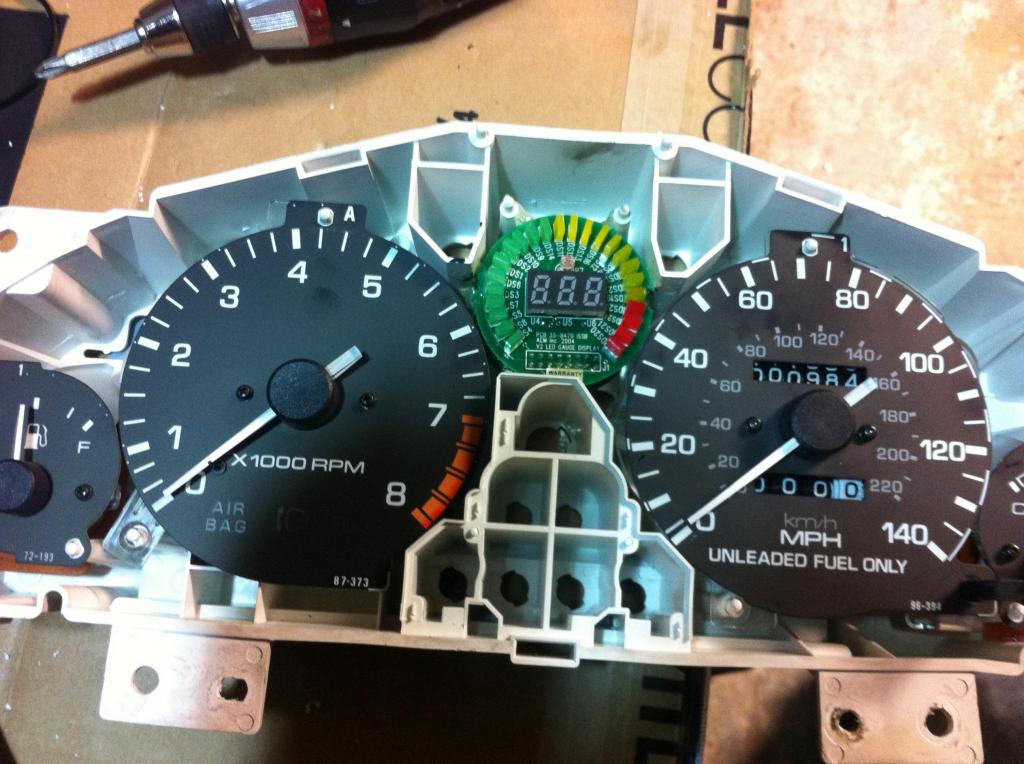

installed AEM gauge in the clutser




Attached Thumbnails
In-Too-Depp Turbo Build-img_0016_zpsefc99b55.jpg   In-Too-Depp Turbo Build-img_0011_zps4f438b6a.jpg   In-Too-Depp Turbo Build-img_0007_zps85e1ea1d.jpg
Alejo_NIN is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
LucaCarMods's Boosted Dutch Miata Build! LucaCarMods Build Threads 11 02-14-2016 07:13 AM
Bad head gasket or ? shooterschmidty Engine Performance 8 09-30-2015 11:28 PM
Low oil pressure after 1.8 swap and new turbo setup JesseTheNoob DIY Turbo Discussion 15 09-30-2015 03:44 PM
3rd Time's a Charm...hopefully. zephyrusaurai Meet and Greet 2 09-28-2015 11:59 PM
K&N Intake Filter nbdooey Miata parts for sale/trade 0 09-28-2015 09:46 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 11:20 AM.
