Default is this turbine ok?

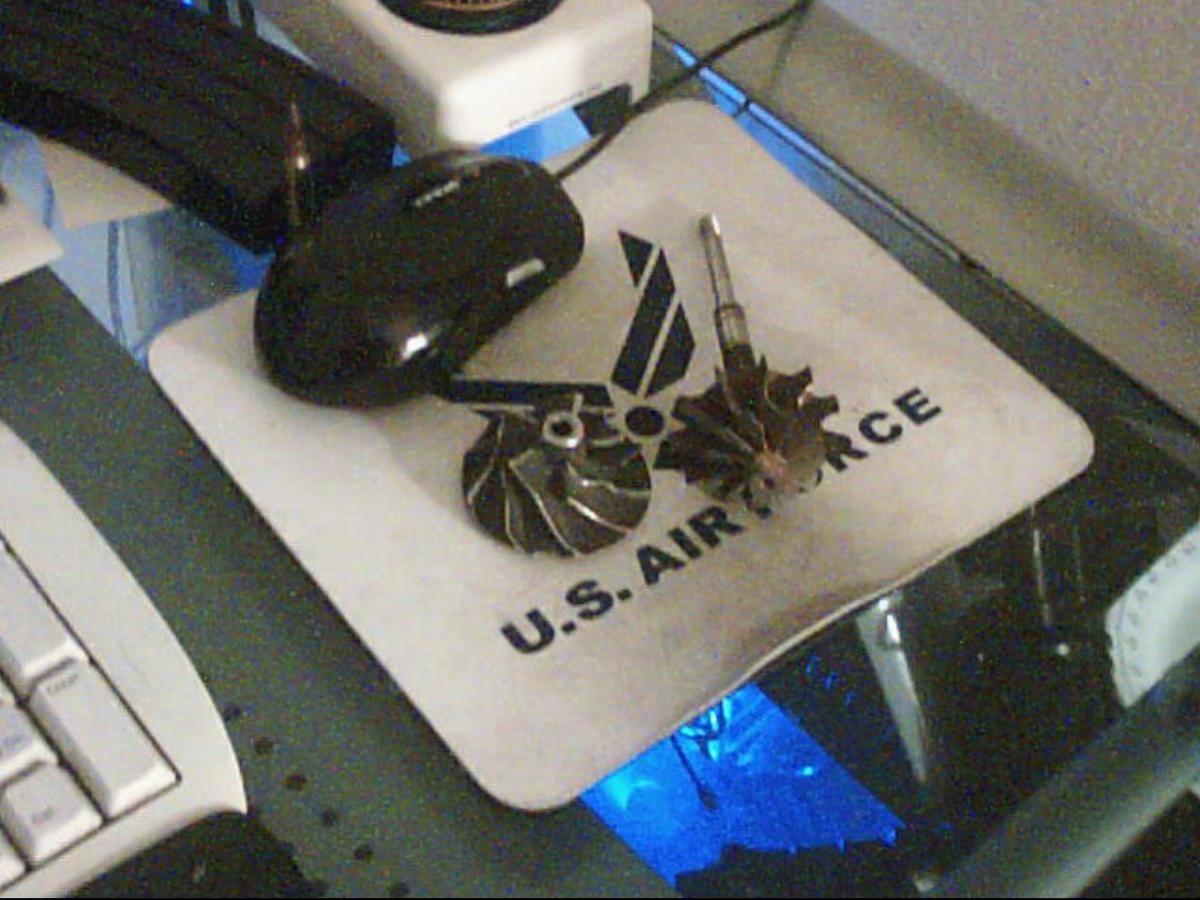

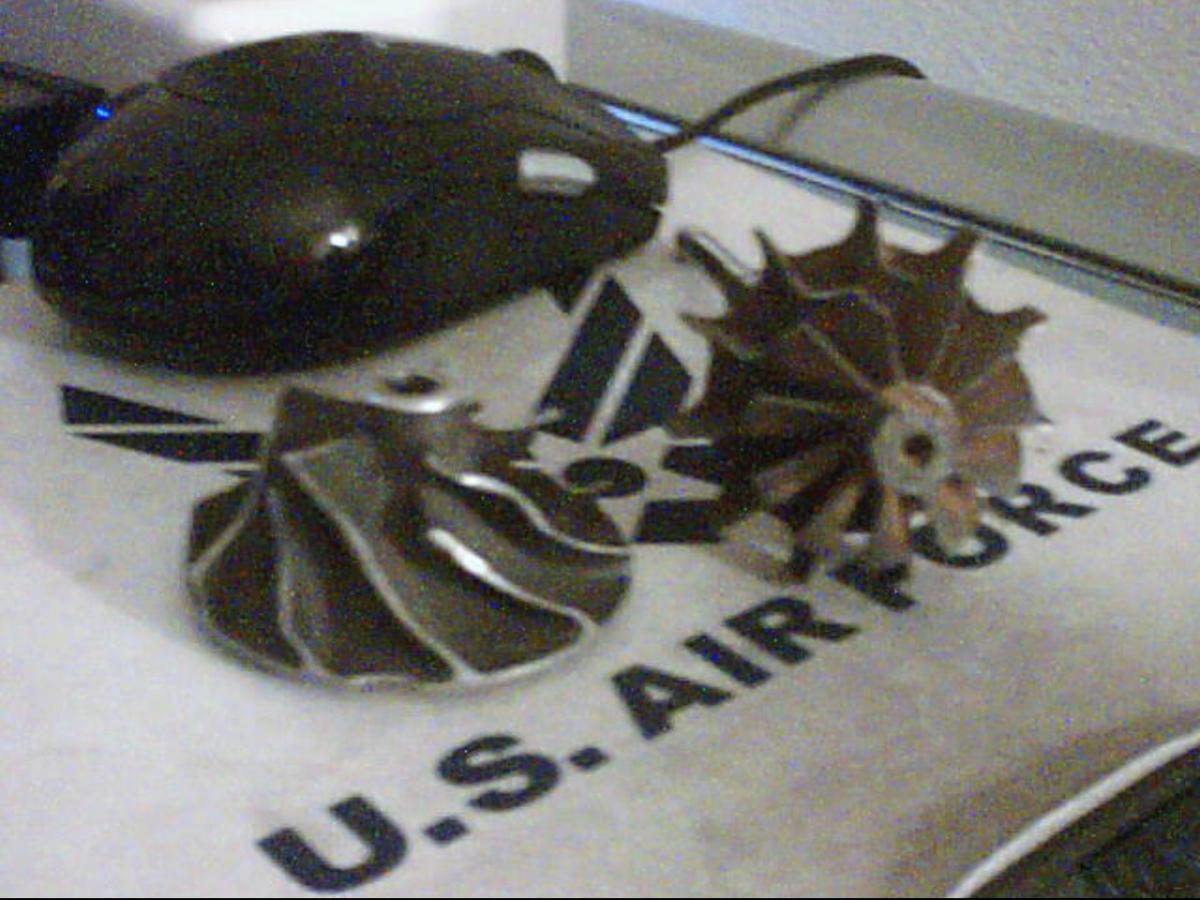

I am planning to attempt to rebuild one of my T2 turbos for my first practice rebuild... but came across a snag. A month ago I was pulling apart my masterpower turbo, to see what rebuild kit I need, and somewhere between wrenching off the wastegate actuator off the compressor housing... and a few drinks, I dumbassly knocked & dropped the turbine shaft off the cabinet on to the computer desk (which is made of tempered glass with a steel frame), then fell on the feet of the desk... after that I just put everything in a box and went to bed. Well when the rebuild kits came in, I inspected the turbine and came across a very small crack on a compressor blade, and a ******* small chip on the exhaust turbine... Do I need a replacement? Will they be fine? If the turbine is off balence, can it just be countered?

Here are some pics.
Attached Thumbnails
is this turbine ok?-picture-48.jpg   is this turbine ok?-picture-48-copy.jpg   is this turbine ok?-picture-44.jpg   is this turbine ok?-picture-44-copy.jpg
Pen2_the_penguin is offline   Reply With Quote
Old 02-27-2010, 11:11 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

When things with cracks spin at 100,000rpm they come apart.
hustler is offline   Reply With Quote
Old 02-27-2010, 11:51 AM   #3
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Damn that sucks. I've got a t25 on the cheap if you want it
johnmatt is offline   Reply With Quote
Old 02-27-2010, 12:48 PM   #4
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Those pictures show nothing, but at least you showed where the crack/chip would be if we could see. I'm not expert, but I agree with hustler, that thing will grenade.
FRT_Fun is offline   Reply With Quote
Old 02-27-2010, 03:11 PM   #5
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

When the compressor blade breaks off it is taking a ride through your motor, unless you get lucky enough to have it break off in a large enough chunk to remain trapped in your IC. I would never use a turbo with known-damaged compressor blades.

I'm not sure if that turbine wheel can be rebalanced but it's probably not something you can do yourself because it needs to be done with a fair amount of precision. Something spinning at 100,000 rpm on a 20mm radius (conservative size estimate for that wheel) is experiencing over 220,000 x g. G-Pop Shop will rebalance turbos for $65 but by the time you pay for that and a new compressor wheel you're into what a used SR20 T25 costs.
ScottFW is offline   Reply With Quote
Old 02-27-2010, 04:12 PM   #6
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

I'd run it. The worst that can happen is that it blows apart and lodges itself in your muffler somewhere. I wouldn't take a chance with a chipped/cracked compressor wheel though.
Oscar is offline   Reply With Quote
Old 02-27-2010, 04:59 PM   #7
Elite Member
Thread Starter
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

I payed for the turbo brand new for $500... so spending 200 for a new turbine and compressor isnt that much. I dont know much about the internals for a turbo, does the comressor and turbine in a T2 fit the T25? I heard somewhere they do, the T25 just has a bigger housing on both ends.
Pen2_the_penguin is offline   Reply With Quote
Old 02-28-2010, 03:40 PM   #8
Newb

Join Date: Jun 2008
Posts: 15
Total Cats: 0
Default

that sucks! I had a broken blade once and I got lucky it got stuck in the TB...
miata-project is offline   Reply With Quote
Old 02-28-2010, 04:14 PM   #9
Elite Member
Thread Starter
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

NP here, ill just add it to my list of things to buy with military bonus+tax return... got quoted $275 from a garrett dealer for the complete shaft. Then Ill just keep the turbo as a spare or sell it along with the other healthy T2 I have to rebuild also. Thanks guys, glad I got advice before rebuild and test run...
Pen2_the_penguin is offline   Reply With Quote
Old 02-28-2010, 04:18 PM   #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

If you run it, this will happen:

Full_Tilt_Boogie is offline   Reply With Quote
Old 02-28-2010, 04:18 PM   #11
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I seriously wouldn't worry about it on the turbine side. I dropped my CHRA on concrete and took a chunk out of a tip of one of the fins on my turbo and put a little crack in the blade. Its been just fine for well over a year and many many thousands of miles, track, autox etc. I'm pretty sure the compressor is fine too but I would replace that wheel before the turbine.
wayne_curr is offline   Reply With Quote
Old 02-28-2010, 04:21 PM   #12
Elite Member
Thread Starter
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

just another fyi that I forgot to add: The compressor got cracked when I dropped it, not just the turbine was damaged in the accident. If this means anything at all that is.
Pen2_the_penguin is offline   Reply With Quote
Old 02-28-2010, 07:11 PM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

gpopshop.com sells reman'd CHRA's with a warranty pretty cheaply.
Might be worth looking into.
cjernigan is offline   Reply With Quote
Old 03-02-2010, 04:21 PM   #14
Senior Member
iTrader: (2)

Join Date: Aug 2007
Location: North Cackalackey
Posts: 716
Total Cats: 2
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
If you run it, this will happen:

Looks like somebody forgot to latch the access doors, would hate to be on that ride.
musanovic is offline   Reply With Quote
